Thank you for purchasing a RadioShack 1/3-
Inch B&W Indoor/Outdoor Camera. Your
camera is super-small and compact. It is
designed for use with a RadioShack 10-Inch
B&W Single Channel Security Monitor (Cat.
No. 49-2514) to provide a safe and secure
environment.
Built-in Speaker and Microphone — allow
2-way communication with compatible
equipment.
CMOS (Complementary Metal-Oxide
Semiconductor) Sensor — provides
superior-resolution B&W images.
Passive Infrared (PIR) Sensor — detects
motion up to 16.5 feet away from an angle of
up to 100°.
Weatherproof — so you can mount the
camera indoors or outdoors.
%#/'4#"/1706+0)")7+&'.+0'5
Carefully plan where and how you will
position the camera and where you will route
the cable that connects the camera to the
monitor. When planning the installation:
• Select a location for the camera that
provides a clear view of the area you
want to monitor, is free from dust, and is
not in direct sunlight or in line-of-sight of
a strong light source .
• Do not install the camera in a location
where it will be exposed to high humidity
or rain.
• Plan the cable’s route so it is not closeto
power or telephone lines, transformers,
microwave ovens, or other electrical
equipment that could interfere with (or
accept interference from) the system.
•Select a location for the camera that has
an ambient temperature between –4°F
(–20°C) and 122°F (50°C).
• If you plan to install the camera in a
location that has conditions not
recommended in this manual, consult
with a professional installer and consider
use of a separate camera cover or
housing.
/1706+0)"#0&"+056#..+0)"6*'"%#/'4#

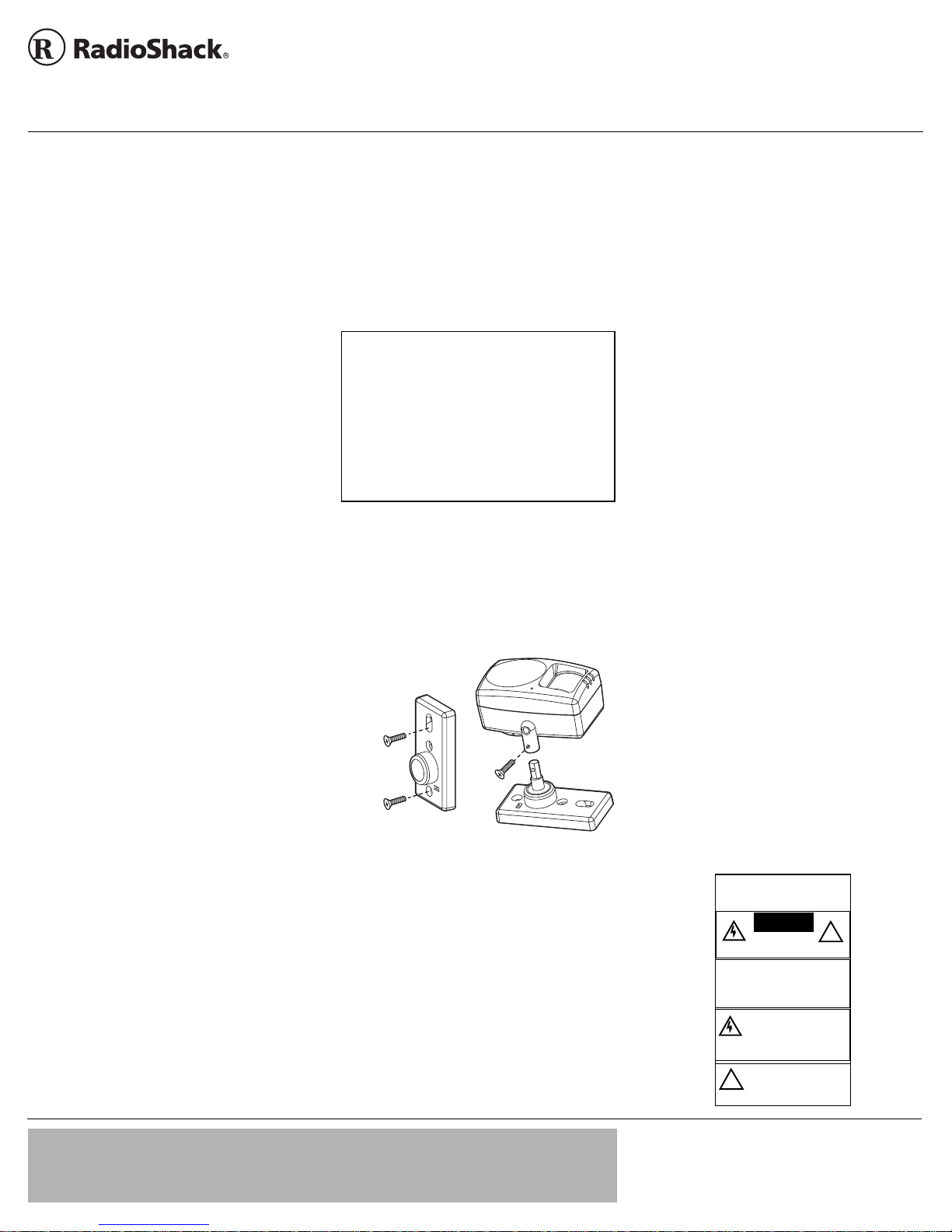

You can mount the camera indoors or
outdoors in a permanent location such as a
wall or on a movable platform (such as a
tripod) for mounting on a desk, shelf, or table.
1. Use the base of the camera as a guide,
mark the locations for the screwholes on
the mounting surface.
2. Drill a starter hole at each marked
location. If necessary, drill a third hole (at
least 14 mm in diameter) below the
mounting holes to permit the camera’s
cable to be inserted through the
mounting surface.
3. If necessary, insert the supplied drywall
anchors into the screw holes.
4. Insert one of the two supplied screws
through each of the screw holes in the
bracket and into the mounting surface,
then tighten each screw until the base is
secure.
5. Loosen the screw from the camera’s
arm-sleeve and fully insert the base’s
arm into the sleeve. Then secure the
arm and sleeve together by tightening
the screw.
5'66+0)"72"6*'"
%#/'4#
%100'%6+0)"&+4'%6.;"61"6*'"
/10+614
1. Connect the camera’s mini-DIN plug into
the supplied 59-foot cable’s mini-DIN
socket.
2. Connect the 59-foot cable to the
monitor’s mini-DIN port.
±"016'"±"
Though the camera is highly sensitive, it cannot
“see” over a wide area in total darkness. To
assist the camera’s night vision, install a 100-
watt incandescent lamp (rich in infrared
radiation) to illuminate the camera’s viewing
area. You can also use a small incandescent
flood lamp. Halogen lamps, other high pressure
outdoor lamps, and fluorescent lighting are
infrared-poor and not recommended.
The lightning symbol is intended to
alert you to the presence of uninsu-
lated dangerous voltage within this
product’s enclosure that might be of
sufficient magnitude to constitute a
risk of electric shock. Do not open
the product’s case.
The exclamation symbol is intended
to inform you that important operat-
ing and maintenance instructions
are includedin the literature accom-
panying this product.
!
WARNING: To reduce the risk of fire or
shock hazard, do not expose this product to
rain or moisture.
CAUTION
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COV-
ER OR BACK. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED PERSONNEL.
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
!
3
15/+PEJ"$(9"+PFQQT11WVFQQT"%COGTC
#"+/2146#06"#
If an icon appears at the end of a paragraph, go to the box on that page with the corresponding icon for
pertinent information.
R
RR
Rý— Warning #— Important ±
±±
±—Note .
..
.—Caution °
°°
°— Hint

2
75+0)"#18"+02765"14"#"59+6%*$1:
1. Connect the extension cable’s mini-DIN plug into the supplied 6-inch adapter cable’s mini-DIN socket.
2. Connect the adapter cable’s yellow end to your TV’s video jack, and connect the white end to your TV’s audio jack.
3. Connect the adapter cable’s red power socket to the supplied DC adapter’s barrel plug.
4. Connect the DC adapter to a standard AC outlet.
%#4'
Keep the camera dry; if it gets wet, wipe it dry
immediately. Use and store the camera only
in normal temperature environments. Handle
the camera carefully; do not drop it. Keep the
camera away from dust and dirt, and wipe it with a damp cloth occasionally to keep it looking new.
5'48+%'"#0&"4'2#+4
If your camera is not performing as it should,
take it to your local RadioShack store for
assistance. Modifying or tampering with the
camera’s internal components can cause a
malfunction and might invalidate its warranty.
52'%+(+%#6+105
Input Voltage ..................................15 V DC
Lens Angle ..........90°(viewing angle is 76°)
Video Output ...................1.0 Vp-p, 75 Ohm
Audio Output ..................................1.2 Vp-p
Maximum Audio Output Power
(Speaker) ............................................0.4W
Audio Distortion ....................................<1%
Audio Frequency
Response ......................... 300 Hz to 5 KHz
Resolution ........250,000 pixel, 330 TV lines
Minimum Illumination .............. 2 lux @ F2.0
(without IR LED)
0 lux @ F2.0
(with IR LED)
Operating Temperature ............. 4° to 122°F
(–20°to 50°C)
PIR Maximum Range ................100° ×16.5ft
PIR Detection Angle (H/V) ..Horizontal 100°
Vertical 45°
Dimensions.......... 21/16 ×35/16 ×13/4inches
(52 ×84 ×45 mm)
Weight (with wire) ................. 5.8 oz (165 g)
Specifications are typical; individual units might
vary. Specifications are subject to change and
improvement without notice.
