RADLEY 1277-021 User manual

Wet/Dry vacuums used without a filter made of HEPA-rated
material to extract drywall dust, will void the warranty.

Replacement foam filter sleeve 1277-047
HEPA cartridge filter (sold separately)
1277-037

1277-021
15L WET DRY VACUUM
2
..........................................................................................................1
Table of Contents .................................................................................................................. 2
General Safety Warnings ...................................................................................................... 3
Safety Symbols ...................................................................................................................... 3
....................................... 3-4
Servicing of a Double-Insulated Wet/Dry Vacuum ...................................................... 5-6
Know Your Wet/Dry Vacuum................................................................................................ 7
Operation .......................................................................................................................... 8-11
Maintenance .........................................................................................................................12
Exploded View ..................................................................................................................... 14

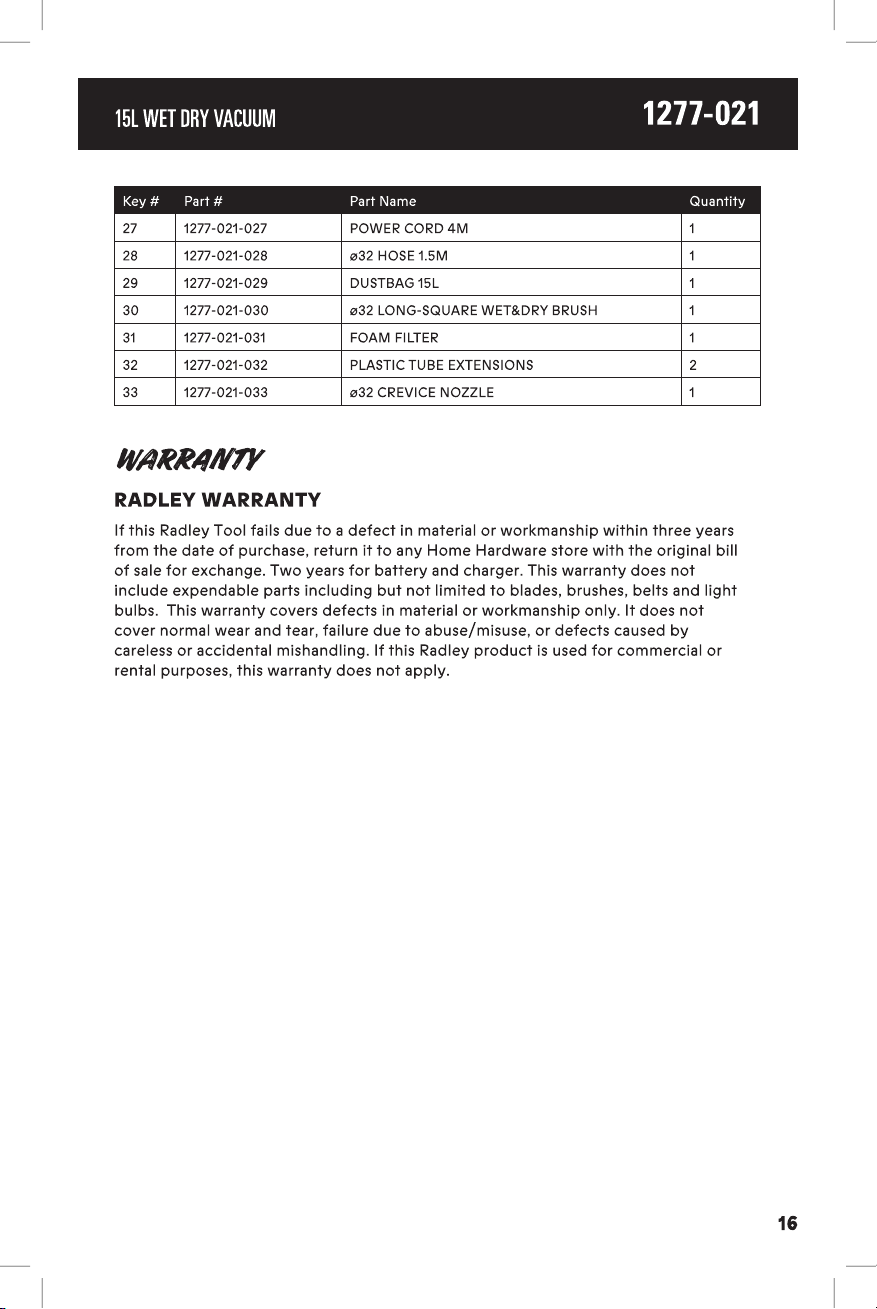

Parts List .......................................................................................................................... 15-16
Warranty ................................................................................................................................16

IMPORTANT SAFETY INSTRUCTIONS
Read and understand all safety and operational instructions. Failure to follow the safety
rules listed below and other basic safety precautions may result in serious personal
injury. Keep this manual, sales receipts, and applicable warranty forms for future
reference.
SAFETY SYMBOLS
The purpose of safety symbols is to alert you of the potential safety RISKS. Recognize
and understand them. Follow the instructions provided.
SYMBOL MEANING
Failure to obey a DANGER safety alert WILL result in serious
personal injury or death to you or to others. Always obey all
messages following this symbol to reduce the risk of serious
personal injury or death.
Failure to obey a WARNING safety alert MAY result in serious
personal injury or death to you or to others. Always obey all
messages following this symbol to reduce the risk of potential
serious personal injury or death.
Failure to obey a CAUTION safety alert MAY result in personal
injury or property damage to you or to others. Always obey all
messages following this symbol to reduce the risk of personal
injury or property damage.
Failure to obey a NOTICE or a CAUTION (without a safety alert)
MAY result in property damage to you or to others. Always obey
al messages following this symbol to reduce the risk of property
damage.
SAVE THIS MANUAL FOR FUTURE REFERENCE
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
• Read and understand this instruction manual and all labels on the Wet/Dry Vacuum
before using.
• Safety is a combination of common sense, staying alert and knowing how this Wet/
Dry Vacuum works. Use this Wet/Dry Vacuum only as described in this manual.
To reduce the risk of personal injury or damage to the Wet/Dry Vacuum, use only
recommended accessories.
3

1277-021
15L WET DRY VACUUM
WHEN USING THIS WET/DRY VACUUM FOLLOW BASIC SAFETY
PRECAUTIONS INCLUDING THE FOLLOWING:
To reduce the risk of fire, electric shock or injury:
• Do not run the Wet/Dry Vacuum unattended.
• Do not vacuum, or use this Wet/Dry Vacuum near liquids, gases, or explosive vapours
hydrogen.
• Do not vacuum or use this Wet/Dry Vacuum near explosive dusts like coal dust,
magnesium dust, grain dust, or gunpowder as sparks inside the motor can ignite
• Do not vacuum burning or smoking items such as cigarettes, matches, or hot ashes.
• Keep the cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use if the cord, plug or other parts are damaged.
• If the Wet/Dry Vacuum is not working correctly or has missing parts, has been
dropped or damaged, left outdoors or dropped in water, return it to an independent
service centre.
• Do not pull or carry by the cord. Do not use the cord as a handle, close a door on the
cord, or pull the cord around sharp edges or corners.
• Do not run the Wet/Dry Vacuum over the cord.
• Do not handle the plug or the Wet/Dry Vacuum with wet hands.
• To reduce the risk of health hazards from vapours or dusts, do not vacuum toxic
materials.
• Do not use or store near hazardous materials.
•
when vacuuming liquids as described in the operation section of this manual.
• Do not use the Wet/Dry Vacuum as a toy. Pay particularly close attention when it is
being used by or near children.
• To reduce the risk of injury from the Wet/Dry Vacuum accidentally starting, unplug
• Do not leave the Wet/Dry Vacuum unattended when it is plugged in. Unplug it from
before unplugging.
• Do not put any objects into the ventilation openings. Do not vacuum with any
ventilation openings blocked.
•
•
parts.
• To reduce the risk of falling, use extra care when cleaning on stairs.
4

5
WHEN USING AS BLOWER:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vac as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.
This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding
system. Use only identical replacements parts. Read the servicing instructions before
servicing the Wet/Dry Vacuum.
Use this Wet/Dry Vacuum only as described in this manual.
Observe the following warnings that appear on the motor housing of this Wet/Dry
Vacuum.
WARNING
In a double-insulated Wet/Dry Vacuum, two systems of insulation are provided
instead of grounding. This means that no grounding is provided on a double-insulated
appliance, nor should a means for grounding be added. Servicing a double-insulated
Wet/Dry Vacuum requires extreme care and knowledge of the system and should be
Wet/Dry Vacuum must be identical to the parts they replace. The double-insulated Wet/
Dry Vacuum is marked with the words "DOUBLE INSULATED" and the symbol may
also be marked on the appliance.
• For household use only.
• To reduce the risk of electric shock, unplug before cleaning or servicing.
•
• To reduce the risk of electric shock, use indoors only.
WARNING If the supply cord is damaged, it must be replaced by the manufacturer
WARNING Remove the plug from the socket before performing maintenance.
Before using the machine make sure that the frequency and voltage shown on the
change without prior notice. The accessories shown in the pictures may vary from model
to model.
WARNING For your own safety, read and understand this instruction manual. Do not
operate unattended. Do not use this Wet/Dry Vacuum to pick up hot ashes, coals, toxic,
WARNING To reduce the risk of electric shock, do not expose to rain. Store indoors.
CAUTION

1277-021
15L WET DRY VACUUM
6
CAUTION To reduce the risk of injury from moving parts, unplug before servicing.
SAVE THIS USER MANUAL
WARNING MISUSE or failure to follow the safety rules stated in this instruction
manual may cause serious personal injury.

7
ATTENTION Before starting please read, understand, and apply the safety
instructions.
Reminder: DO NOT vacuum hazardous substances.

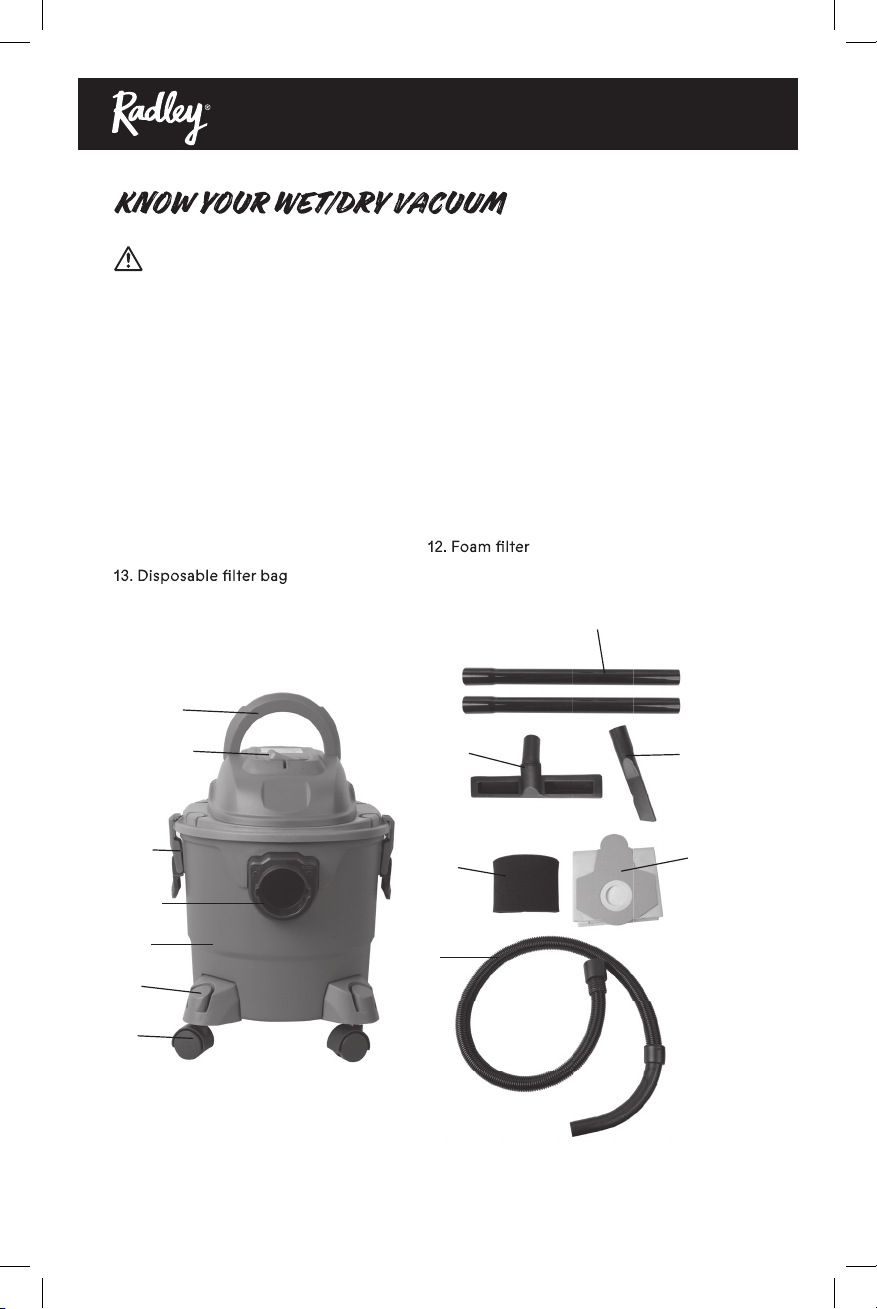

FUNCTIONS
1. Handle 2. Power switch
3. Lid latches 4. Vacuum port
5. Dust tank 6. Dolly
7. Casters 8. Flexible hose
9. Extension wand 10. Floor brush
11. Crevice nozzle
2
4
3
5
6
7
1
9
10
12
8
11
13

1277-021
15L WET DRY VACUUM
ATTENTION Read the entire important safety information section at the beginning
of this manual.

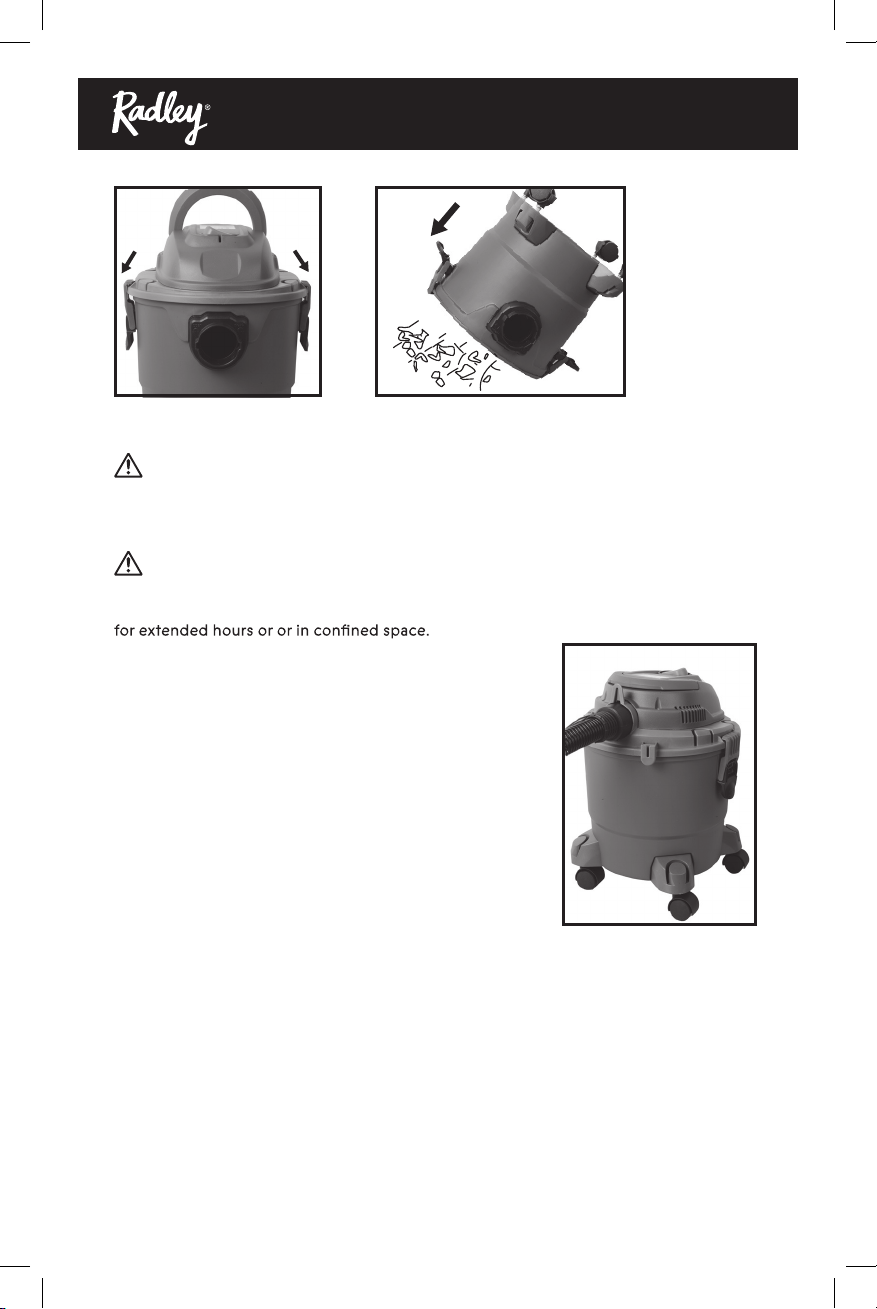

1. Pull lid latches in an outward motion, remove power head and some accessories
that may have been shipped in the tank.
2. Attach casters following the instructions below:
a. Invert dust tank and align casters as shown in diagram
to the right, then secure casters with provided screws.
b. Return dust tank assembly upright.
3. Before replacing power head, refer to this manual to ensure you
4. Replace power head, and apply pressure with thumb to each latch
until it snaps tightly in place. Make sure all lid latches are clamped securely.
5. Insert the hose end into inlet of tank.
6. Attach the extension wands to the end of the hose. Apply slight
7. Attach one of the cleaning accessories (depending on
the cleaning requirements) on the extension wands.
Twist slightly to tighten the connection.
8. Plug the cord into the wall outlet. The cleaner is ready for use.
9. Turn the unit "ON" by pushing the switch from position "O" to position "I". The
"O" is the "OFF" position and the "I" is the "ON" position.
WARNING
paints, gasoline, alcohol or aerosol sprays. Explosive dusts include but are not limited to:
coal, magnesium, aluminum, and grain or gun powder. Do not vacuum explosive dust,
dusts, do not vacuum toxic materials.
WARNING The operation of any utility vacuum can result in foreign objects being
blown into the eyes, which can result in severe eye damage. Always wear safety eyewear
complying with ANSI Z87.1 (or in Canada, CSA Z94.3) before starting operation.
CAUTION To reduce risk of hearing damage, wear ear protectors when using the
vacuum for extended hours or when using it in a noisy area.
8
PUSH DOWN
O = OFF I = ON

9
1.
2.
necessary to empty the dust tank and clean or replace the
performance.
NOTICE
INSTALLING DISPOSABLE FILTER BAG
1.
2. Position the bag so that it is distributed around the inside of the tank.
3. Replace and secure the power head onto the tank.
Disposable

1277-021
15L WET DRY VACUUM

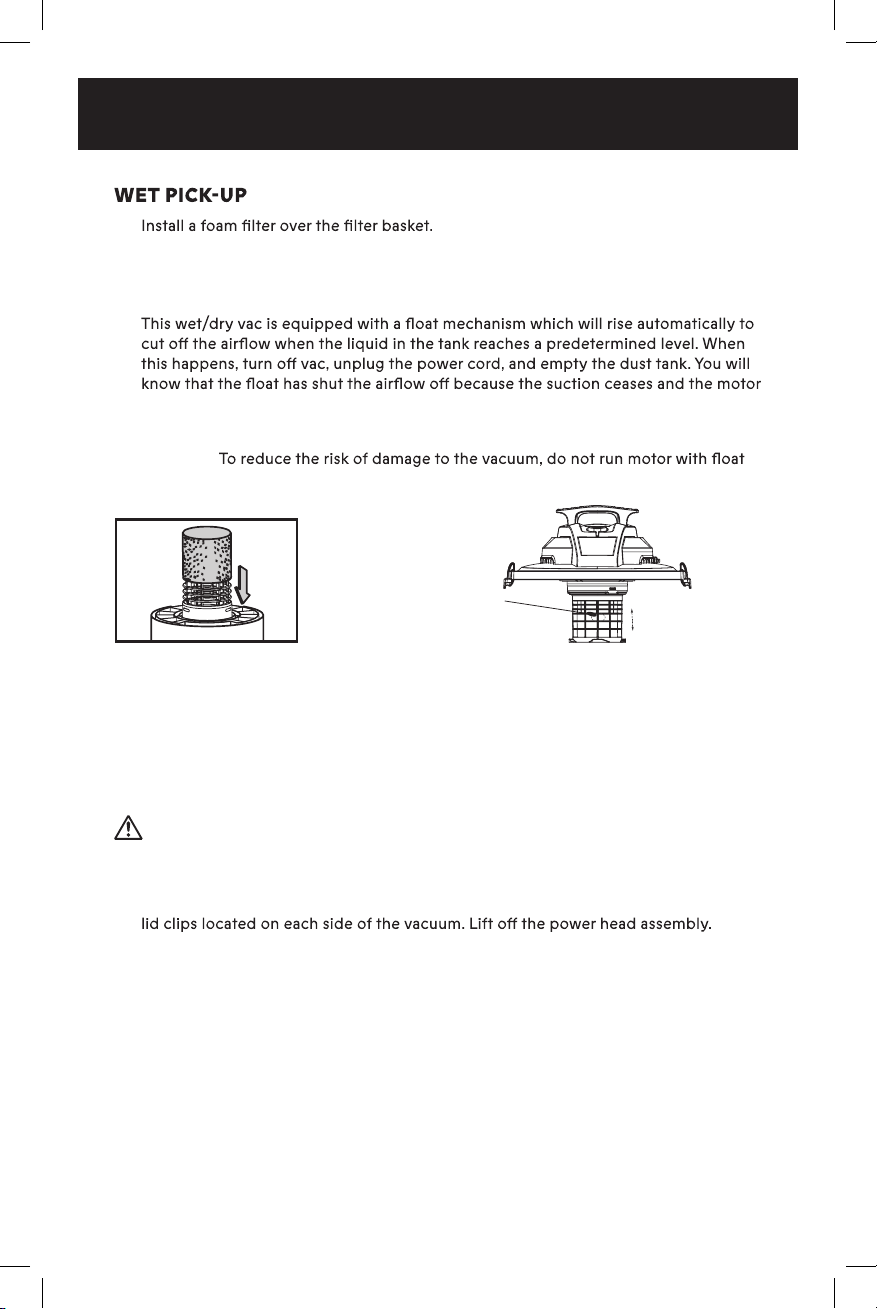

1.
NOTE: WET PICK-UP ACCESSORIES SHOULD BE WASHED PERIODICALLY, ESPECIALLY
AFTER PICKING UP WET, STICKY KITCHEN ACCIDENTS. THIS CAN BE ACCOMPLISHED
WITH A WARM SOLUTION OF SOAP AND WATER.
2.
noise becomes higher in pitch due to increased motor speed. The liquid capacity
may vary with the rate of pickup.
IMPORTANT:
in raised position.
NOTE: IF ACCIDENTALLY TIPPED OVER, THE VACUUM COULD LOSE ITS SUCTION
ABILITY. IF THIS OCCURS, PLACE VAC IN UPRIGHT POSITION AND TURN SWITCH OFF.
THIS WILL ALLOW THE FLOAT TO RETURN TO ITS NORMAL POSITION, AND YOU WILL
BE ABLE TO CONTINUE OPERATION.
EMPTYING THE TANK
WARNING!
To reduce the risk of injury from accidental starting, unplug power cord before emptying
the dust tank.
1. Remove the power head assembly of the wet/dry vacuum by pulling outward on the
2. Dump the tank contents into the proper waste disposal container.
10
Float in raised
position

11
BLOWER OPERATION
WARNING
Always wear safety eyewear complying with ANSI Z87.1 (or in Canada CSA Z94.3) when
using as a blower.
To avoid injury to bystanders, keep them clear of blowing debris.
CAUTION
Wear a dust mask if blowing creates dust which might be inhaled.
To reduce the risk of hearing damage, wear ear protectors when using the vac/blower
The vacuum contains a blowing feature. Follow the steps
below to use the vacuum as a blower.
1. Locate blowing port on the vacuum.
2. Insert one end of the 1 1/4" x 5ft (32mm x 1.5m)
hose into the blower port.
3. Turn the vacuum "ON".

1277-021
15L WET DRY VACUUM
12
WARNING To reduce the risk of injury from accidental starting, unplug power cord
maintain peak vacuum performance.
NOTICE To avoid damage to the impeller and motor, always reinstall the reusable
before using the vacuum for wet pickups.
holes or tears in it. Even a small hole can cause dust to come out of the vacuum. Replace
it immediately.
CLEANING
To keep the wet/dry vacuum looking its best, clean the outside with a cloth dampened
with warm water and mild soap.
To clean the tank:
1. Dump out debris.
2. Wash tank thoroughly with warm water and mild soap.
3. Wipe out with dry cloth.
STORAGE
Before storing the vacuum, the dust tank should be emptied and cleaned. The cord
should be wrapped and hung on the unit and the accessories should be kept in the
accessory holder so they can be readily available. The vacuum should be stored indoors.

13
WARNING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Vacuum will not
run
No electricity Make sure electrical outlet has voltage
contacted)
Loss of suction,
wet pick-up
1. Full tank
2. Clogged hose
1. Drain and clean tank
2. Remove hose and clean debris
Loss of suction,
dry pick-up
1. Full tank
2. Clogged hose
1. Drain and clean tank
2. Remove hose and clean debris

1277-021
15L WET DRY VACUUM
14

15
WARNING: When servicing, use only original equipment replacement parts.
The use of any other parts may create a safety hazard or cause damage to the Wet/Dry
Vacuum. Any attempt to repair or replace electrical parts on this Wet/Dry Vacuum may
information, call the Toll-free Helpline, at 1-866-349-8665
Always order by PART NUMBER, not by key number.
Key # Part # Part Name Quantity
1 1277-021-001 HANDLE 1
2 1277-021-002 HANDLE SCREWS 4*16 15
3 1277-021-003 TOP COVER 1
4 1277-021-004 MOTOR TOP COVER 1
5 1277-021-005 SCREWS 4*12 7
6 1277-021-006 POWER CORD STRAIN RELIEF 1
7 1277-021-007 BOTTOM COVER 1
8 1277-021-008 MOTOR TOP SEALING RING 1
9 1277-021-009 AIR-OUTLET FOAM FILTER 1
10 1277-021-010 MOTOR 1
11 1277-021-011 PLUG FOR BOTTOM HOLE 1
12 1277-021-012 MOTOR BOTTOM SEALING RING 1
13 1277-021-013 MOTOR BOTTOM COVER 2
14 1277-021-014 SAFETY VALVE 1
15 1277-021-015 BOTTOM COVER BASKET 1
16 1277-021-016 CLAMPS 2
17 1277-021-017 CLAMPS BASE 2
18 1277-021-018 CLAMPS HANDLE 2
19 1277-021-019 TANK 1
20 1277-021-020 CASTER SUPPORT 4
21 1277-021-021 CASTER SUPPORT 4
22 1277-021-022 AIR-INLET BASE 1
23 1277-021-023 AIR-INLET BASE SEALING RING 1
24 1277-021-024 MOTOR NOISE REDUCTION SPONGE 1
25 1277-021-025 CAPACITANCE 1
26 1277-021-026 SWITCH 2P 1

*Wet/Dry vacuums used without a filter made of HEPA-rated material to extract drywall dust,
will void the warranty.

Wet/Dry vacuums used without a filter made of HEPA-rated material
to extract drywall dust, will void the warranty.
