Raindrip WeatherSmart RSC600i Assembly instructions

877.502.7952 • raindrip.com/weathersmart
Installation &
Programming Manual
http://waterheatertimer.org/Sprinkler-and-watering-timers.html
http://waterheatertimer.org/Woods-timers-and-manuals-old.html#raindrip
http://waterheatertimer.org/Low-pressure-rainbarrel-timer.html

Support
raindrip.com/weathersmart
Installation & Programming
Product Information
The model and serial numbers are located at the rear of the
timer. Record these numbers in the space provided below.
Have these numbers available when contacting
Technical Support.
MODEL NO.:
SERIAL NO.:
Technical Phone Support: 877-502-7952
Monday - Saturday 8:00 AM - 4:00 PM (PST)
Sunday 8:00 AM - 1:00 PM (PST)
Irrigation System Overview . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . .2
WeatherSmart™Features . . . . . . . . . . . . . . . . . . . . .3
WeatherSmartPRO™Features . . . . . . . . . . . . . . . . .4
Timer Overview . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
Installation Requirements . . . . . . . . . . . . . . . . . . . .7
Installation: Docking Station . . . . . . . . . . . . . . . . . . . .8
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . .9
Dock Timer . . . . . . . . . . . . . . . . . . . . . .10
Timer Settings . . . . . . . . . . . . . . . . . . . . . . . . .11-12
Rain Shutdown (WeatherSmartPRO™). . . . . . . . . . . .13
Percent Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Programming Watering Schedule . . . . . . . . . . .15-17
Programming Notes . . . . . . . . . . . . . . . . . . . . . . . .18
Weather Station Overview (WeatherSmartPRO™).19-20
Installation: Weather Station (WeatherSmartPRO™)21-22
Auto Run (ON / SKIP / OFF) . . . . . . . . . . . . . . . . . . . .23
Water Now . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Disabling Smart Mode . . . . . . . . . . . . . . . . . . . . . .25
Rain Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Operational Notes . . . . . . . . . . . . . . . . . . . . . . . . .27
Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . .28
FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Programming Aid . . . . . . . . . . . . . . . . . . . . . . .31-32
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35-36
Table of Contents
raindrip.com/weathersmart
Installation & Programming

Irrigation System Overview
raindrip.com/weathersmart
Installation & Programming
1
E
E
D
A
B
D
C
A. Timer
B. Wires
C. Valves and Solenoids
D. Sprinkler Zones
E. Drip Irrigation Zones
raindrip.com/weathersmart
Installation & Programming
2
Package Contents
WeatherSmart™
Includes:
❶Timer /
Docking Station
❷AC Power Supply
❸Mounting Hardware
a. #8 X 1-1/4" Screws (4)
b. Drywall Anchors (4)
❹Installation &
Programming
Guide
❺Registration
Card
WeatherSmartPRO™
Also Includes:
❻Weather Station
❼Mounting Hardware
a. Mounting Bracket
b. #6 x 1" Screws (2)
❷
❸
❹ ❺
❶
❼
❻

raindrip.com/weathersmart
Installation & Programming
3
RSC600i
WeatherSmart™ Features:
• 6 Zones with up to 4 independent
start times per day per day.
• AM and PM watering durations
per zone.
• Automatically adjusts watering
durations monthly based on historic
weather patterns for your zip code.
• Daily and Year-to-Date water savings
displayed.
• “Percent Adjust” function for
adjusting watering durations for all
zones.
• “Skip” function for manual
interruption of watering schedule for
yard work and other activities.
• “Water Now” function for manual
watering to test irrigation system.
• Rain Switch ready – accepts most
major brands.
• Built-in diagnostics automatically
troubleshoots and alerts of wiring
short circuit.
• Easy to read, oversized backlit
display.
• Non Volatile Memory saves program
settings in the event of power loss
• Audible beep to alert for low
batteries, wiring faults, and other
user interface actions.
• Timer “undocks” to allow for
comfortable / convenient
programming.
• Automatically adjusts for daylight
savings.
• Conventional timer mode
(non-smart) option.
WeatherSmart™Features
RSC600is
WeatherSmartPRO™
Additional Features:
• Includes WeatherSmart™
features listed on page 3.
• Includes WeatherSmart™
wireless weather station.
• Optimizes and
automatically adjusts
watering durations daily
based on actual local
outside temperature.
• Automatically suspends
programmed watering
schedules when rainfall
is detected.
• Automatically suspends
programmed watering
schedules when low
temperature conditions
occur.
• Displays outside
temperature.
• Displays Daily and Year-to-
Date rainfall.
• Weather station status and
low battery condition
displayed.
WeatherSmartPRO™Features
raindrip.com/weathersmart
Installation & Programming
4

Timer Overview
raindrip.com/weathersmart
Installation & Programming
5

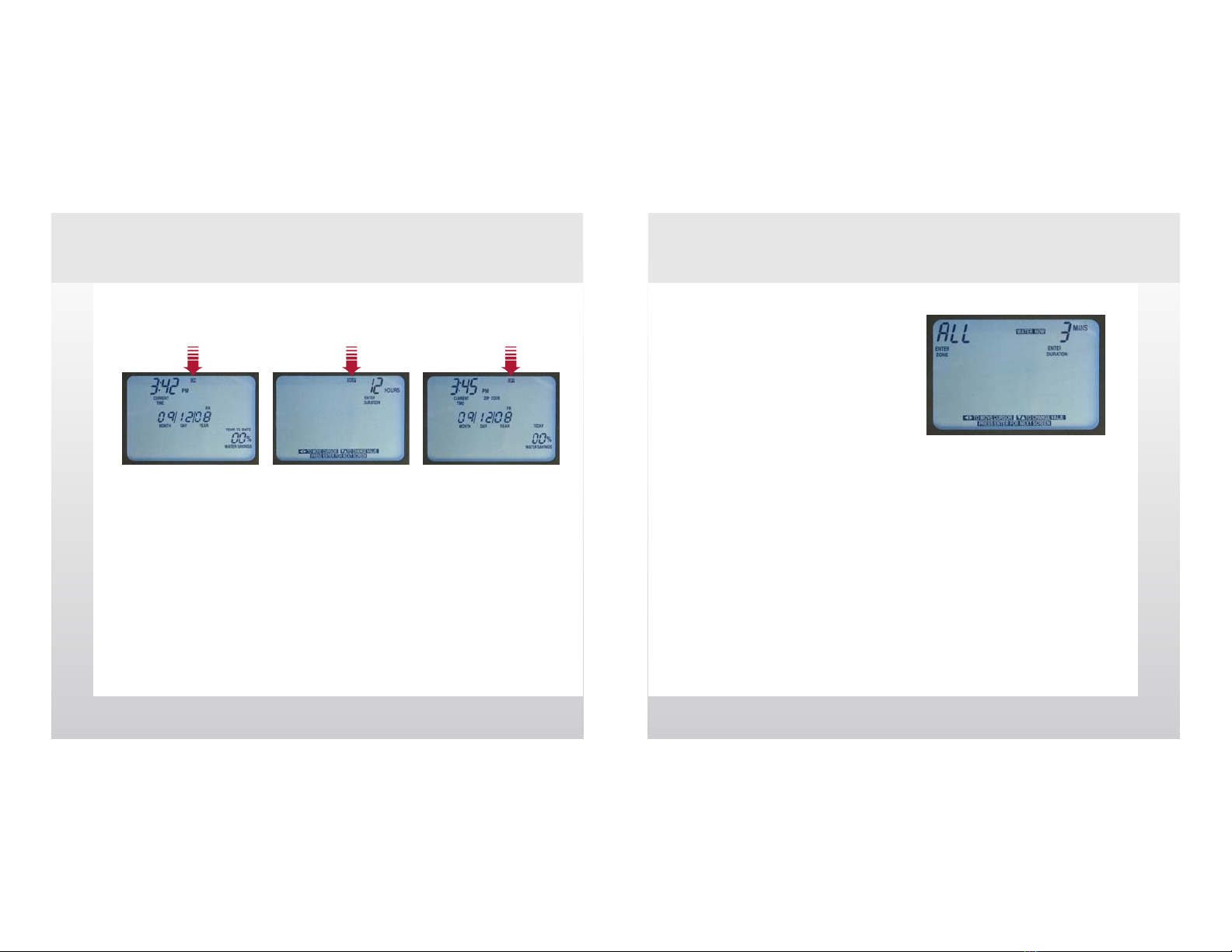

❶LCD Display – Displays status of the timer. (page 27-28)
❷Navigation Pad – Used to select, change, and enter values.
• LEFT and RIGHT arrows to move left or right.
• UP and DOWN arrows to increase or decrease values.
• ENTER saves all values and advances to next screen.
❸Settings – View or change DATE, TIME, ZIP CODE, and
WATERING DAYS option. (page 11-12)
❹Edit Schedule – View or change the WATERING SCHEDULE. (page 13-18)
❺Auto Run – Change operating mode to ON / SKIP / OFF. (page 23)
❻Water Now – Manual watering Start / Stop. (page 24)
❼A/C Power Connection – External power connection.
❽Valve Solenoid Wire Terminals – Color coded quick connect terminals.
❾Rain Switch Terminals – For rain switch wiring (optional).
No additional programming required.(page 26)
❿Reset – Stops watering; clears timer memory of any errors;
and returns timer to the idle state. DATE, TIME, ZIP CODE,
WATERING DAYS option, and WATERING SCHEDULE are not erased.
⓫Removable Cover – To access SETTINGS, EDIT SCHEDULE,
and RESET buttons.
Timer Overview
raindrip.com/weathersmart
Installation & Programming
6
❼
⓫
❶
❺
❸
❷
❻
❹
❿
❾
❽

raindrip.com/weathersmart
Installation & Programming
7
Items Required for Installation
Included in Package:
• Docking Station
- #8 X 11⁄4" screws (4)
- Drywall anchors (4)
• Mounting Bracket for weather station (WeatherSmartPRO™)
- #6 X 1" screws (2)
Tools and Other Items (not included):
• Phillips head screwdriver
• Wire strippers
• Power drill (if drywall anchors are used)
• 1/4" drill bit (if drywall anchors are used)
• 2 AA alkaline batteries for timer
• 2 AA alkaline batteries for weather station (WeatherSmartPRO™)
Installation Requirements
raindrip.com/weathersmart
8
Docking Station Installation
For new installations
• Locate near sprinkler wires from
irrigation system valve solenoids.
• Locate within 48" of a 110 volt AC outlet.
Mount the docking station
• Undock and set the timer aside.
• At the selected location, hold
the docking station on the wall.
• Using the docking station as a template,
mark the four screw locations on the wall.
• If drywall anchors are needed, drill a 1/4"
hole in the wall at each marked location.
• Insert a drywall anchor in each hole so that
it is flush with the wall surface.
• Position the docking station over the anchors.
• Insert and tighten one #8 X 11⁄4" screw in
each of the four holes. Do not overtighten screws.
NOTE: Must be installed
in a weather resistant
enclosure if mounted
outdoors.
Installation: Docking Station
Installation & Programming

raindrip.com/weathersmart
Installation & Programming
9
Wiring the Docking Station
These instructions assume your irrigation system is properly installed and
the valve solenoid wires are available at the timer mounting location.
CAUTION: Do not connect more than one wire to each
terminal. Damage to the timer will occur.
Common Wire Connections
• Insert the common wire from the solenoids to either "COMMON"
terminal (white) at the bottom of the docking station.
Zone Wire Connections
• Insert one control wire from a specific solenoid (zone 1) to
a corresponding "ZONES" terminal (blue 1) at the bottom
of the docking station. Repeat for each zone solenoid.
• Check wires to ensure they
are fully seated and secure.
• Plug A/C Power Suppy connector to
the "24 VAC POWER" terminal (red),
then plug the Power Supply into a
110 volt outlet.
Installation: Wiring
Docking the Timer
• Install AA batteries in the back of the timer.
• Place the back of the timer against the docking station
• Slide the timer downward until it is firmly seated at the
bottom of the docking station.
• Confirm UNDOCKED indicator is turned off.
The timer is ready for programming and operation.
Installation: Dock Timer
raindrip.com/weathersmart
Installation & Programming
10

raindrip.com/weathersmart
Installation & Programming
11
Remove Cover
1. Press SETTINGS button
2. Adjust CURRENT DATE.
Press ENTER.
3. Adjust CURRENT TIME
(note AM or PM).
Press ENTER.
View or change DATE, TIME, ZIP CODE, and WATERING DAYS option.
Timer Settings Timer Settings
raindrip.com/weathersmart
Installation & Programming
12
4. Adjust your local ZIP CODE.
Press ENTER.
• If ENTER ZIP CODE ERROR is displayed;
the zip code is not recognized.
-Check the entered zip code number.
-Use a neighboring zip code if necessary.
5. Select WATERING DAYS option.
Press ENTER.
-Option 1: (see page 15)
“WATER ON SPECIFIC DAYS OF WEEK”
-Option 2: (see page 16)
“WATER ON ODD OR EVEN DATES OF MONTH”
Note: To operate the timer as
a conventional (non-smart)
timer, use 0 0 0 0 0.
See page 25.
SETTINGS are now complete.

raindrip.com/weathersmart
Installation & Programming
13
Rain shutdown adjustment is now complete.
OPTIONAL: press AUTO RUN button to exit edit schedule.
NOTE: This option will appear
only when the WeatherSmartPRO
indicates SHUTDOWN RAIN
DETECTED.
Remove Cover
1. Press EDIT SCHEDULE button.
2. Adjust REMAINING DURATION
value. Press ENTER.
View or change duration for rain shutdown.
Rain Shutdown
for WeatherSmartPRO™
Remove Cover
1. Press EDIT SCHEDULE button.
If needed, press ENTER to
advance to PERCENT ADJUST screen.
2. Adjust PERCENT ADJUST
value. Press ENTER.
(watering durations increase for values greater
than 100%; decreases if less than 100%)
View or change PERCENT ADJUST for all zones.
Percent Adjust
raindrip.com/weathersmart
Installation & Programming
14
PERCENT ADJUST is now complete.
OPTIONAL: press AUTO RUN button to exit edit schedule.
NOTE: Percent adjust increases or decreases watering durations for
ALL zones and is primarily used when the timer is in non-smart
mode. If used in smart mode, then percent adjust will revert to
100% in 2 days for WeatherSmartPRO; 5 days for the WeatherSmart.

NOTE: See Programming Notes on page 18.
Remove Cover
View or change number of watering CYCLES per day.
Option 1: WATER ON SPECIFIC DAYS OF WEEK
Programming Watering Schedule
raindrip.com/weathersmart
Installation & Programming
15
1. Use Programming Aid to facilitate
watering schedule programming
(pages 31-32)
2. Press EDIT SCHEDULE button,
press ENTER to advance to
the CYCLES per day screen.
3. Adjust number of watering
CYCLES for each day.
4. After CYCLES have been set
for all days, then press ENTER.
5. Repeat for all ZONES.
(continued)
CYCLES per day settings are now complete
OPTIONAL: press AUTO RUN button to exit edit schedule.
Programming Watering Schedule
raindrip.com/weathersmart
Installation & Programming
16
CYCLES per day settings are now complete
OPTIONAL: press AUTO RUN button to exit edit schedule.
1. Use Programming Aid to facilitate
watering schedule programming
(pages 31-32)
2. Press EDIT SCHEDULE button,
press ENTER to advance to
the CYCLES per day screen.
3. Select ODD DATES or
EVEN DATES.
4. Adjust number of watering
CYCLES, then press ENTER.
5. Repeat for all ZONES.
(continued)
Option 2: WATER ON ODD OR EVEN DATES OF MONTH

View or change watering DURATIONS.
Programming Watering Schedule
raindrip.com/weathersmart
Installation & Programming
17
START TIME settings are now complete.
OPTIONAL: press AUTO RUN button to exit edit schedule.
DURATION settings are now complete.
NOTE: Set DURATIONS for
the hottest month of the year.
View or change START TIMES.
(continued from previous pages)
6. Adjust AM watering DURATION
(1 to 99 minutes), press ENTER.
7. Adjust PM watering DURATION
(1 to 99 minutes), press ENTER.
8. Repeat for remaining ZONES.
9. Adjust START TIME,
(note AM or PM), press ENTER.
10. Repeat for remaining cycle
start times (1, 2, 3, or 4).
11. Repeat for remaining watering days
(SU, MO, TU, WE, TH, FR, SA).
raindrip.com/weathersmart
Installation & Programming
18
WeatherSmart and WeatherSmartPRO
Programming and Watering Notes:
• Daily programmed watering is from 12:00AM to 11:59PM.
Any programmed watering will be terminated at midnight
each day to comply with possible local daily watering
restrictions.
• WeatherSmart timer will automatically adjust watering
durations. The adjusted minimum watering duration will be
one (1) minute. If the adjusted watering duration is less than
30 seconds, the watering duration will be zero (no watering).
• Watering schedule entries are saved once ENTER is pressed.
• Watering schedule entries can be reviewed and corrected at
any time during programming by pressing the EDIT
SCHEDULE button.
• At anytime during EDIT SCHEDULE, the AUTO RUN button can
be pressed to exit edit schedule.
• Optional: To erase ALL entered watering schedule programs,
press and hold EDIT SCHEDULE for 5 seconds.
Programming Notes

Weather Station Overview
for WeatherSmartPRO™
raindrip.com/weathersmart
Installation & Programming
19
❶Base – Wireless weather station main base.
❷Cover – Remove to access battery cap
and facilitate cleaning.
❸Battery Cap – Remove cap to access
battery compartment.
❹Tipping Bucket – Tips when rain
water enters and fills bucket.
(remove and discard bucket retainer strip).
❺Mount Bracket – Multi-position
mounting options.
❻Mount Clip – Adjustable for various
mounting positions, leveling, and
attaches to bottom of base.
Weather Station Overview
for WeatherSmartPRO™
raindrip.com/weathersmart
Installation & Programming
20
❷
❸
❹
❶
❺
❻
NOTE: Remove and discard
bucket retainer strip.

raindrip.com/weathersmart
Installation & Programming
21
⦶
⦶
1. Identify a location outdoors to mount the weather station
• Select a location where full unobstructed direct rainfall can be received.
• Avoid locations where water from sources such as roofs,
roof gutters, or irrigation sprinklers can enter the weather station.
• Select a location within an effective communication
range of the timer (typically within 50 feet; depending on obstructions).
• See page 22 before mounting weather station.
Installation: Weather Station
for WeatherSmartPRO™
2. Activate the weather station
NOTE: The timer must be operational before activating the weather station.
• At the timer navigation pad, press and hold and
for 5 seconds to begin timer communication setup.
• SENSOR will appear in the display and blink during a 3 minute setup period.
• At the selected mount location, remove upper housing from base of weather station.
• Verify bucket retainer strip is removed and discarded (see page 20).
• Install 2 AA batteries; reattach battery cap and upper housing.
• The weather station will automatically begin a 1 minute setup routine.
3. Confirm wireless communication established
NOTE: Allow up to one minute for wireless communication to be established.
• At the timer, SENSOR will stop blinking in the display.
• Rain and temperature test values will appear in the display.
• The test values will reset 3 minutes from the start of timer communication setup.
4. Mount weather station (typically within 50 feet of timer; see page 21)
• Attach mounting bracket at selected mount location using 2 supplied screws.
• Attach weather station to mount clip. Level as needed by adjusting mount clips.
• Optional: Rainfall values can be reset to zero by pressing and
holding and ENTER buttons together for 5 seconds.
Installation: Weather Station
for WeatherSmartPRO™
raindrip.com/weathersmart
Installation & Programming
22
Weather station installation is now complete.

Change AUTO RUN mode to ON, SKIP, or OFF.
On Mode Skip Mode Off Mode
Press AUTO RUN button to select ON, SKIP, or OFF mode.
ON: Timer is in automatic watering mode.
SKIP: Timer will “skip” watering for a selected time period.
1. Input DURATION (1 to 99 hours).
2. Press ENTER to start the skip cycle.
• After SKIP cycle completes, the timer will return
to the previous operating mode (ON or OFF).
SKIP programming is now complete.
OFF: Timer is “off” and will not execute any watering schedule program.
Auto Run
(ON / SKIP / OFF)
raindrip.com/weathersmart
Installation & Programming
23
Initiate Manual Watering.
1. Press WATER NOW button.
2. Select a specific ZONE (1-6).
If ALL is selected, all zones will
water sequentially.
3. Input DURATION (1-10 minutes).
4. Press ENTER to start manual
watering cycle.
WATER NOW programming is now complete.
WATER NOW Notes:
• To stop a manual watering cycle, press the WATER NOW button again.
• After a manual watering cycle is complete, the timer
will return to the previous operating mode (ON, SKIP, or OFF).
-The operating mode can be changed during a manual
watering cycle by pressing the AUTO RUN button.
-Pressing AUTO RUN, SETTINGS or EDIT SCHEDULE
button will not stop a manual watering cycle.
• WATER NOW manual watering cycles are not included in
TODAY or YTD water savings calculations.
Water Now
raindrip.com/weathersmart
Installation & Programming
24

raindrip.com/weathersmart
Installation & Programming
25
Operate timer as a conventional (non-smart) timer.
1. Press SETTINGS.
2. Press ENTER (do not change DATE).
3. Press ENTER (do not change TIME).
4. Change ZIP CODE to all zeroes. Press ENTER.
5. Press ENTER (do not change WATERING
SCHEDULE method).
Smart mode is now disabled.
To enable Smart mode, repeat steps 1-5 above and
enter your local ZIP CODE as shown on page 12.
Conventional Timer Mode Notes:
• The ZIP CODE indicator will flash slowly as a
reminder the timer is in conventional timer mode.
• Disabling Smart mode will not change WATERING
METHOD or WATERING SCHEDULE program.
• TODAY WATER SAVINGS will display 00%.
• Watering durations will not be reduced seasonally.
• Water savings may not be realized.
Disabling Smart Mode
Connect a conventional two wire rain switch (optional).
1. Mount rain switch per the
manufacturer's installation instructions.
2. Remove rain switch jumper wire.
-Press square plunger down.
-Remove yellow jumper wire.
3. Connect wires from rain switch
to terminal strip.
-Press square plunger down.
-Insert switch wires into yellow
terminal blocks (ignore color of switch wires).
Rain Switch is ready for use.
Examples of compatible Rain Switch:
• Nelson®8501 Rain-Trip™• Rainbird®RSD-CEx
• Hunter®Mini-Clik®• Hunter®Rain-Clik™
• Toro®TRS
raindrip.com/weathersmart
Installation & Programming
26
Rain Switch (optional)
(not required for WeatherSmartPRO™)
NOTE: If the jumper wire is removed
and a rain switch is NOT connected,
then actual watering will NOT occur.

NOTE: The timer cannot send a watering signal to valve solenoids
when the timer is "undocked". Actual watering will not occur.
Operational Notes
raindrip.com/weathersmart
Installation & Programming
27
Undocked - Using Battery Power
• The LCD backlight will not illuminate when the timer is undocked and running
on battery power.
• If buttons are not pressed within a 1 minute time period, the LCD display will
automatically turn off (blank) to conserve battery life. The timer clock will
continue to operate.
• To reactivate the LCD display, press and hold any button for 2 seconds.
• Battery power is used for keeping current time and for undocked programming
only when A/C power is not available (power loss or undocked). Setting and
watering schedule program is maintained in timer memory.
Docked - Using Wall Outlet A/C Power
• The LCD backlight will automatically turn off after buttons are not pressed
within a 3 minute time period.
• To reactivate the backlight, press any button.
Audible Beeps
• Docking and Undocking - rapid triple beep
• LOW BATTERY - single beep every 15 seconds.
• ERROR Check Valve Wires - single beep every 15 seconds.
• ERROR Check Sensor - single beep every 15 seconds. - WeatherSmart PRO
• Upper or Lower Start Time Value Reached (when programming) - single beep
Status Indicators
raindrip.com/weathersmart
Installation & Programming
28
SHUTDOWN
LOW TEMPERATURE
SHUTDOWN
RAIN DETECTED
UNDOCKED
CONTROLLER
IN SENSOR
LOW BATTERY
CODEZIP ERROR
VALVE WIRES
CHECK SENSOR
ERROR
❹❸
❷
❶
❻
❺
Status Indicator Notes
❶UNDOCKED – The timer is
"undocked" or not fully seated
in the docking station.
❷LOW BATTERY – Indicates
batteries are low and need to be
replaced. All programming and
settings (except current time)
will be maintained during
battery replacement.
❸ZIP CODE ERROR – The entered
zip code was not recognized.
See SETTINGS on page 12.
❹ERROR CHECK SENSOR –
The timer has not received a
signal from the weather station.
See troubleshooting on page 30.
❺ERROR CHECK VALVE WIRES –
A wiring fault was detected during
watering of a specific zone. The
specific zone number will also be
displayed. Check for shorted wires
or faulty solenoid.
❻SHUTDOWN RAIN DETECTED –
The timer will not water when this
indicator is on. - WeatherSmart
with optional rain switch or
WeatherSmartPROtm
❼SHUTDOWN LOW
TEMPERATURE – The timer
will not water when this
indicator is on. (below 40 F)
- WeatherSmartPROtm
❼

FAQ
29
1. Can I use the WeatherSmart™and WeatherSmartPRO™for both drip and sprinkler systems?
Yes. Independent durations and multiple watering cycles allow you to program for drip and sprinkler
irrigation systems.
2. Can I use my existing wires to my valves?
Yes. The timer is compatible with commonly used landscape irrigation systems.
3. Can I install the timer outdoors?
Yes … the timer must be installed in a weather resistant enclosure.
4. How many valves can be controlled by one zone output terminal?
Only one valve can be controlled per zone output terminal. Damage to the timer may occur if more
than one valve is connected to a zone terminal.
5. What if my zip code is new or not recognized by the timer?
Use a nearby neighboring zip code.
6. How do I know what duration to program into the timer?
Set your watering durations for the hottest part of the year. If replacing a standard timer, use the
durations from the watering program of your previous timer. Consult a landscape professional for
detailed advice on your specific landscape needs.
7. Why do I need more than one cycle or start time per day?
If your landscape soil is not easily penetrated by moisture or the landscape is sloped it can be
beneficial to run multiple short watering cycles to minimize run-off and to allow time for water
to be absorbed by the soil.
8. Will my timer stop watering when it rains?
Yes. The WeatherSmartPRO™with weather station will automatically shutdown when it rains.
The WeatherSmart™timer will not stop watering unless an optional rain switch is installed.
The timer accepts most major brands of rain switches (see page 26).
9. What if it's raining and I don't have a rain switch?
The SKIP function can be used to interrupt all programmed watering schedules for up to 99 hours.
When the SKIP function ends, the timer will return to the previously set operating mode (ON or OFF).
10. Why does my landscape appear to be dry?
Your watering duration may need to be adjusted if dryness is frequently observed. If necessary,
the timer is equipped with a Water Now feature for manual watering and to test drip and sprinkler
system performance.
11. Do the valves operate when the timer is undocked?
No. The timer cannot operate valves when it is undocked. Watering will not occur.
Troubleshooting
watch the video at raindrip.com/smart
30
Problem Possible Cause Solution
No backlight;
display is blank a) No power to timer Check power wires and circuit breakers, check / fully dock timer, or check batteries
No backlight;
display is working
a) Backlight or display
is in sleep mode Normal operation (see page 27)
Timer beeps once
every 15 seconds
(see page 27)
a) LOW BATTERY
indicator is on Replace batteries
b) ERROR CHECK VALVE
WIRES indicator is on
Note zone on display; Check / Repair
shorted wires or faulty valve solenoid
c) ERROR CHECK SENSOR
indicator is on
(WeatherSmartPRO)
Check for obstructions between weather station &
timer; move weather station closer to timer to test
operation (allow up to 15 min.); or replace batteries
No watering
occurs when timer
shows watering
a) Timer is not fully docked Check / Fully dock timer
b) Faulty wiring, solenoid,
or valve
Check / Repair open wire,
faulty solenoid, or faulty valve
c) Water supply
may be shut off Check water supply line has pressure
Timer does not
water as
scheduled
a) AUTO RUN is OFF
or in SKIP MODE Set AUTO RUN to ON
b) Current date, time, zip code, or
watering days option incorrect Check / Set settings (see pages 11 – 12)
c) WATERING SCHEDULE not
programmed correctly
Verify watering schedule program
(see pages 15 – 18)
d) Smart technology adjusted
the watering duration to zero
Normal Smart operation.
Verify watering schedule program
e) SHUTDOWN RAIN DETECTED
indicator is on
Check rain switch jumper wire or rain
switch (see page 26); Check / Adjust rain
shutdown (WeatherSmartPRO - page 13)
f) SHUTDOWN LOW
TEMPERATURE indicator is on
(WeatherSmartPRO)
Normal if temperature is less than 40°F

The following information is needed for each zone used:
❶Number of watering CYCLES per day (0, 1, 2, 3, or 4).
❷DURATION in minutes (AM & PM).
❸Cycle START TIMES (S1, S2, S3, S4).
CYCLES: (0, 1, 2, 3, or 4):
• 0 indicates no watering for the day.
• 1, 2, 3, or 4 indicates number of watering cycles per day.
• The number of cycles will determine the number of start times.
ODD / EVEN:
• ODD will water on 1st, 3rd, 5th, etc. dates of month.
• EVEN will water on 2nd, 4th, 6th, etc. dates of month.
Programming Aid
raindrip.com/weathersmart
31
Sun Mon Tue Wed Thu Fri Sat ODD
dates
or EVEN
dates
0003003
AM:
PM:
0020020
AM:
PM:
ZONES
1
notes:
2
Side Area
Front Area
notes:
Number of C Y C L E S (start times) per D A Y CYCLES per DAY
DURATIONS
(minutes)
SPECIFIC DAYS OF WEEK ODD / EVEN
11
11
9
5
Sun Mon Tue Wed Thu Fri Sat
S1 6:30 AM 8:20 PM 6:30 AM 8:20 PM S1
S2 9:30 PM 8:40 PM 9:30 PM 8:40 PM S2
S3 9:00 PM 9:00 PM S3
S4 S4
S T A R T T I M E S (5 minute increments) S T A R T T I M E S
(5 minute increments)
❸
❶❷
NOTE: See Programming Notes on page 18 for
additional programming and watering notes.
Programming Aid
raindrip.com/weathersmart
32
Sun Mon Tue Wed Thu Fri Sat ODD
dates
or EVEN
dates
AM:
PM:
AM:
PM:
AM:
PM:
AM:
PM:
AM:
PM:
AM:
PM:
Sun Mon Tue Wed Thu Fri Sat
S1 S1
S2 S2
S3 S3
S4 S4
SPECIFIC DAYS OF WEEK ODD / EVEN
S T A R T T I M E S
(5 minute increments)
S T A R T T I M E S (5 minute increments)
Number of C Y C L E S (start times) per D A Y CYCLES per DAY
DURATIONS
(minutes)
4
notes:
5
notes:
6
notes:
3
notes:
notes:
ZONES
1
notes:
2

A/C Power Supply: Input: 120VAC, 60 HZ; Output: 24VAC, 0.45amps
Timer Zone Output: 24VAC, 0.25amps
Battery Power: “AA” alkaline (not included).
Depending on usage environment, batteries should be replaced once a year.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Raindrip Technical Services could void
the user’s authority to operate the equipment.
Specifications
33 34
Raindrip warrants to the original product or service purchaser ('the Customer') that the Raindrip product, for which the Customer
received this warranty, was designed, developed and/or fabricated using all due reasonable commercial care and good
manufacturing practices. Raindrip's product shall be free from defects in material and workmanship for one year, from the original
date of purchase. Raindrip's sole and exclusive obligation under this warranty is to provide for the free repair or replacement of
the product or of defective part in the product, at Raindrip's option.
Warranty Limitations. The duration of any implied warranty or condition, of merchantability, fitness for a particular purpose, or
otherwise, on this product shall be limited to the duration of the express warranty set forth above. In no event shall Raindrip be
liable for any loss, inconvenience or damage, whether direct, incidental, consequential or otherwise, resulting from breach of any
express or implied warranty or condition, of merchantability, fitness for a particular purpose or otherwise with respect to this
product, except as set forth herein. Some states or countries do not allow limitation on how long an implied warranty lasts and
some do not allow exclusions or limitations of incidental or consequential damages, so the above limitations or exclusions may
not apply to you. This warranty will be interpreted pursuant to the laws of the United States and the State of California. The
original English language version (meaning) of this warranty controls over all translations.
Warranty Service Options. For service under this warranty you must return the product to the store where you purchased [the units] it.
Warranty Exclusions.
This warranty does not cover the following:
• Products that have been modified, neglected or poorly maintained, misused, abused or involved in accidents or natural
disasters.
• Damage to the product resulting from improper maintenance or repair, the use or installation of parts and/or accessories that
are not compatible with the original intended use of the product, or the failure to follow the product warnings and usage
instructions.
• Damage or deterioration to the surface finish, aesthetics or appearance of the product.
• The labor costs required to remove and/or refit and readjust the product covered by this warranty.
• Normal wear and tear to the product.
• Product installed outdoors or in a manner not recommended by Raindrip.
• Or, any products for which the Customer does not follow the warranty procedures outlined [above] in this Limited Warranty.
877.502.7952
[email protected]
raindrip.com/weathersmart
Warranty
Raindrip WeatherSmart™ – Limited Warranty

Notes
raindrip.com/weathersmart
35
Notes
raindrip.com/weathersmart
36
