Rale Industries ST120 2022 User manual

®
2022
USER’S MANUAL
ST120
MT120

2022 RALE® USER’S MANUAL
Revision: A
Release: 12-21-2021
TD-32120

iii2022 RALE®INDUSTRIES USER'S MANUAL
WELCOME
Thank you for purchasing a RALE® Industries snow bike conversion
kit!
The RALE® suspension design utilizes a motorcycle style swingarm
that incorporates the factory rear shock and pivot points to provide
the only rising rate snow bike suspension system on the market. This
design provides industry leading handling, agility, and suspension
performance to let you ride harder, faster, and longer.
This Installation Guide is to be used in conjunction with the
application specific Fit Kit Diagram included with each Fit Kit.
Please retain this Installation Guide for usability and safety
information. Consider this guide a part of the product.
If you need a copy of any documentation please contact RALE®
Industries.
RALE® Industries is distributed exclusively by Western Power Sports.
Web:
riderale.com
Email:
[email protected]
Customer Service:
208-376-8400 x 3155

2022 RALE®INDUSTRIES USER'S MANUALiv

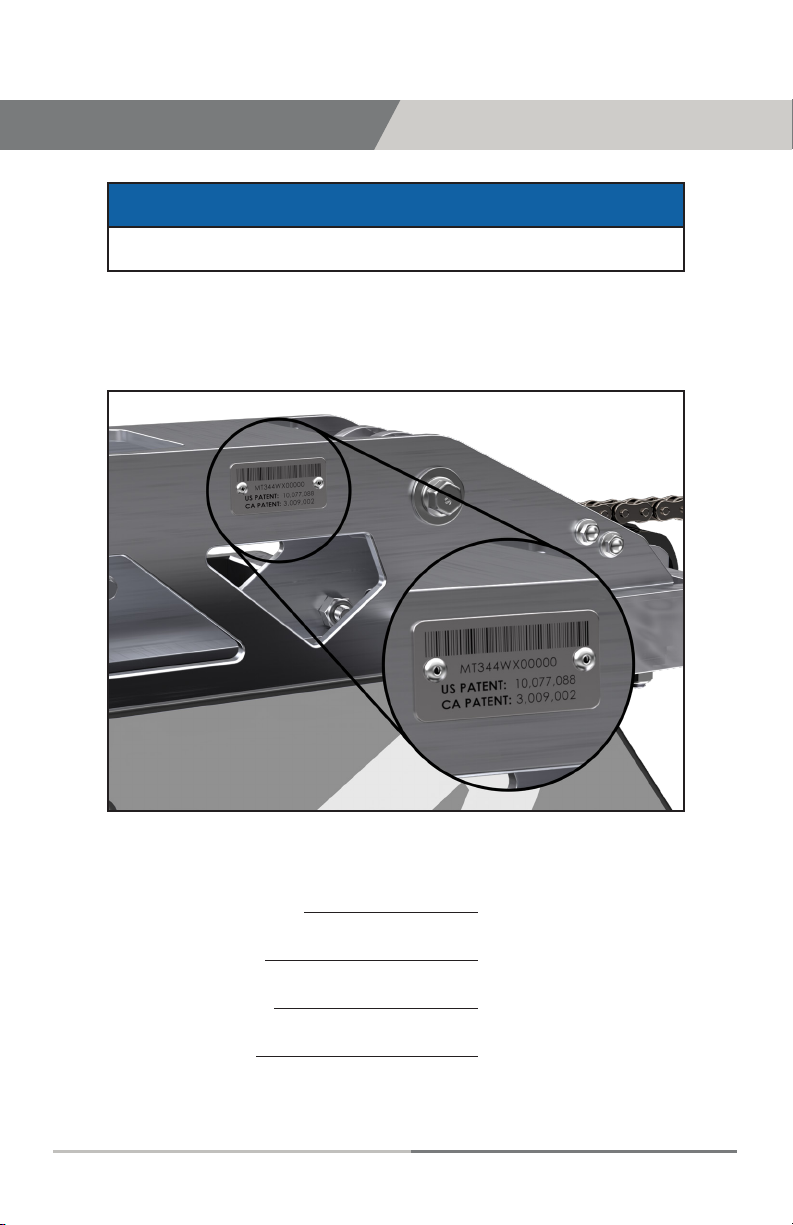

NOTICE
Do not remove, paint over or cover the serial number plate.
The serial number will need to be referenced when communicating
with your dealer or RALE® Industries. It is located on the right side of
the RALE® Track Kit.
Record the following information:
RALE®Serial Number:
Motorcycle Make:
Motorcycle Model:
Motorcycle Year:
SERIAL NUMBER

TABLE OF CONTENTS
Welcome ................................................ iii
Serial Number .................................... iv
Warnings ................................................ 2
User's Guide ......................................... 4
Features......................................................................5
Safety........................................................................... 8
Suspension Setup Tips........................................10
Setting Static Sag...................................................11
Pre-trip Inspection .................................................11
Maintenance............................................................12
Part Diagrams ................................... 16
Table of Contents...................................................17
Warranty ............................................ 35

2022 RALE®INDUSTRIES USER'S MANUAL2
WARNINGS
Please review and familiarize yourself with the following warnings
and their significance. These warnings will be present throughout
this Installation Guide.
DANGER
Potential of death, serious harm, or injury to the operator or
bystander(s).
CAUTION
Possible damage to the motorcycle, track adaptation system, or
adjacent property.
NOTICE
Specific instructions requiring extra attention or important topics
to understand.
NOTE: It is not possible for RALE® to warn the owner or operator
of every conceivable DANGER, CAUTION or NOTICE that may be
encountered in relation to a RALE® Industries snowbike conversion
kit. It is the responsibility of the owner and/or the operator to exercise
good judgment to stay safe at all times
DANGER: Cancer and Reproductive Harm www.P65Warrnngs.ca.gov
Before operating a vehicle equipped with a RALE® Track Kit, all
operators should read and become familiar with the User’s Manual.
The latest digital version of this manual can be found online at
www.riderale.com
The document number, version number, and release date of this
manual can be found on the inside cover.

2022 RALE®INDUSTRIES USER'S MANUAL4
USER'S GUIDE

52022 RALE®INDUSTRIES USER'S MANUAL
WARNING
Suspension travel reduces distance between
exhaust and tunnel.
Always position cargo and accessories to avoid contact with engine,
exhaust, or moving componets.
Failure to comply may result in suspension interference, serious injury,
fire, and or burns.
Fe a t u r e s
Warning labels are placed on the tunnel of the RALE® Track Kit. All
operators should read and become familiar with each sticker. DO
NOT remove or cover them. If they need replaced, order them from
your RALE® dealer.
WARNING
Prior to operation, read and understand USER'S
MANUALS and all warnings.
• Always wear a DOT approved helmet, eye protection, and protective
clothing while operating this vehicle
• Never carry a passenger
• Before starting engine, check throttle and brake for proper
opperation
• Reduce speed and use extreme caution when operating in unfimiliar
terrain
• Ensure that sprocket and track shrouds are in place and secure
• Do not operate with shrouds removed
• Only operate in snow and ensure safe snow conditions
Failure to follow these instructions could result in severe injury or death.
if User's Manual is missing, contact your dealer for a replacment.
WARNING
Never pull or tow any person or object.
Objects towed can easily colide with the rear or the track or other objects,
resulting in severe injury or death.
Never ride on track tunnel.
Riding on the tunnel can cause entanglement with track resulting in
severe injury or death.

2022 RALE®INDUSTRIES USER'S MANUAL6
16
15
14
9
8
19
20
6
7
4
3
2
18
17
1
12
11
10
13
5

72022 RALE®INDUSTRIES USER'S MANUAL
22
21
24
Tunnel
12
Rear Handle
11
Hyfax
9
Track Rails
8
Track
7
Yo k e
6
Primary Chain
5
Bellcrank A
4
Center Channel
3
Chain Cover
2
Bellcrank B
1
Track Rails
15
Warning Labels
13
Secondary Chain Adjuster
20
Secondary Chain
19
Brake Hub / Rotor
18
Brake Caliper
17

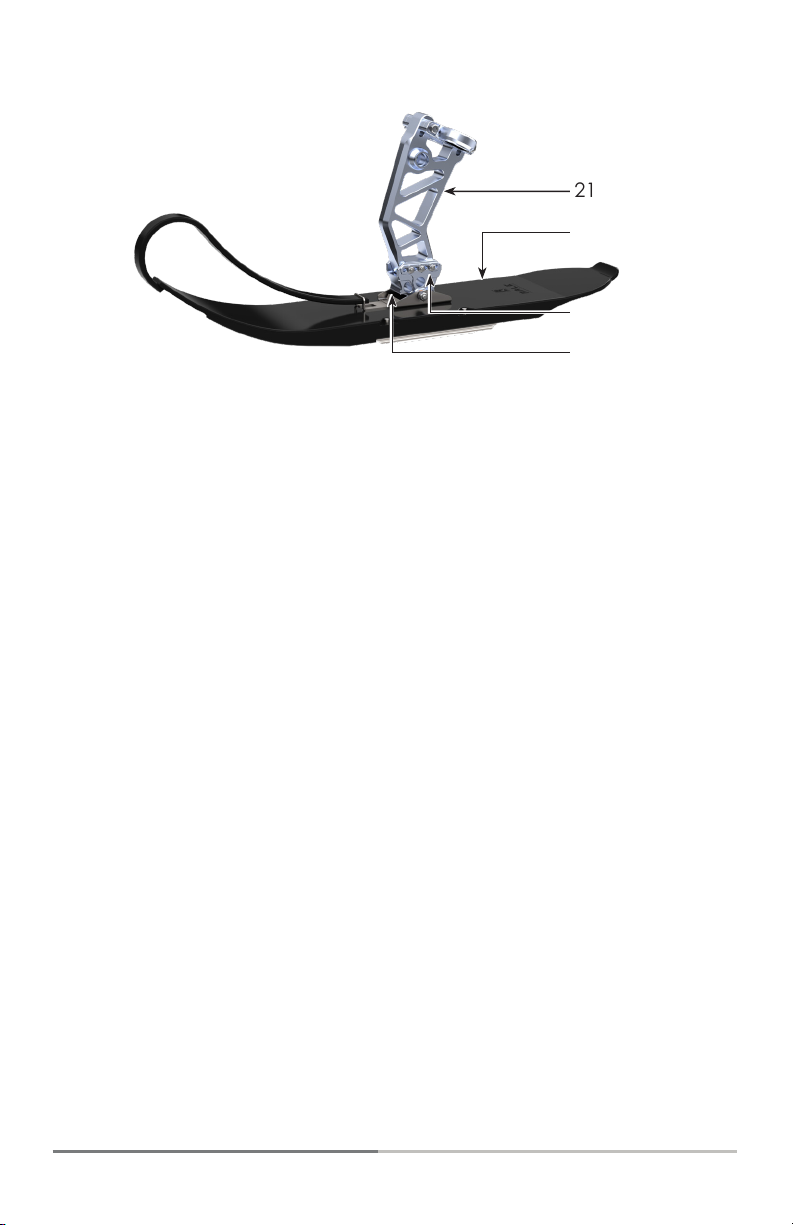

Ski Tower
21
Ski
22
10 Side Links
Ski Mount Block
23
Undercarriage
16
14 Rear Bogie Wheels /
Track Adjustment
Ski Saddle Bushing
24
23

2022 RALE®INDUSTRIES USER'S MANUAL8
Read and follow all warning Labels on the RALE® Track Kit and in
this User’s Manual
Snow Safety: Riding in snow and cold temperatures is fun and
thrilling if riders take the time to become educated, know what to
expect beforehand as well as exercise safety precautions while
riding. This list is not comprehensive it is the sole responsibility of
the operator to be educated.
• Learn about avalanche awareness. Check for safety courses in
your area
• Wear an avalanche beacon, avalanche bag, carry a shovel,
and probes
• Frequently practice avalanche safety, and make sure everyone
in your riding group is educated about snow safety
• Check weather and snow conditions, and dress appropriately
• Know your route; tell someone your plan and when to call for
help if contact is not made
• Utilize on-line resources for cold weather safety information and
training; https://www.wcc.nrcs.usda.gov/snow/ ; weather.gov/ ;
avalanche.org
Gear / Tool Packing: It is recommended to pack the following gear.
These lists are not comprehensive, and the rider may need to
pack more or less depending on current and changing conditions,
routes, duration, distance, proximity to help, and any other potential
dangers.
Survival / Recovery:
• First aid kit
• Fire starter kit
• Shovel
• Avalanche beacon
• Avalanche probes
• Folding saw
• Satellite communication device / GPS
• Extra Socks
• Extra Gloves
• Survival Kit
DANGER
Riding in snow and cold temperatures is safe, fun and exciting
if the rider takes the time to become educated, know what to
expect and exercise safety precautions while riding. This list is not
comprehensive. It is the sole responsibility of the operator to be
educated.
sa F e t y

92022 RALE®INDUSTRIES USER'S MANUAL
Riding:
• Reference the host bike OEM user's/owner's manual to fully
understand the safe operation and control functions of the
host bike
• Whenever possible, ride in groups
• Traction can be lost at high speeds. In deep, soft powder the
track can spin and get stuck
• Be cautious of potential obstacles hidden under the snow
• In remote areas or unfamiliar terrain, always carry a
comprehensive survival kit
• Ride the RALE® Track Kit as you would ride a normal dirt bike,
stay forward, ride light on the seat, and don't hesitate to stand
up for better control
Riding disclaimer: A vehicle equipped with the RALE® Track Kit is
similar to riding a dirt bike, but with obvious handling dierences.
Familiarity with the kit, its operation and an understanding of how
snow conditions, obstacles, and terrain aect ride-ability is crucial
to mitigate risk.
DANGER
To avoid serious injury or death: prevent objects, clothing, or
extremities from becoming entangled or jammed in and around
moving parts. IMMEDIATELY STOP THE ENGINE AND ENGAGE
THE BRAKE IF THIS CAN OR DOES OCCUR.
Tools:
• Wrenches: 8mm, 13mm, 15mm,
17mm, 19mm
• Adjustable wrench
• Flat screwdriver
• Plastic cable ties
• Battery jumper pack

2022 RALE®INDUSTRIES USER'S MANUAL10
• The RALE® Track Kit has moving parts and pinch points
• Use extreme caution while operating the RALE® Track Kit to
avoid contacting any moving or power transmitting parts, such
as drive chains, sprockets, drive cogs, disc brakes, and track
• If any object can be, or does become entangled or jammed
into the kit, stop and remove it to avoid serious injury or
product failure
• Lack of awareness when riding or with situations can result in
falling, rolling, or flipping over, and may result in serious injury
or death.
• Installation of the RALE® Track Kit changes the center of
gravity, increases the overall weight of the vehicle
• The RALE® Track Kit will make an OEM speedometer/
odometer inoperative
• Carrying a passenger or towing is EXTREMELY dangerous
(See warning label on RALE® Track Kit)
• Always respect laws and regulations when riding
DANGER
Users assume all risk while operating a vehicle equipped with
a RALE® Track Kit equipped vehicle, including, but not limited
to, stunts, jumps, wheelies, competitive hill climbing, race
competition, or performance expositions of any kind.
su s p e n s i o n s e t u p t i p s
• RALE® recommends slowing the rebound of the factory shock
to account for the added weight of the track kit. 2 clicks from
max rebound dampening is a preferred setting for many riders.
NOTE: Do not completely close o the rebound clicker/port
• Less shock spring preload is common with the RALE® system to
achieve proper static sag, as shown on page 11. This is because
the shock is compressed slightly during installation into the kit.
• All other suspension settings, including forks, often transfer
over very well from the rider's dirt bike suspension preferences.

112022 RALE®INDUSTRIES USER'S MANUAL

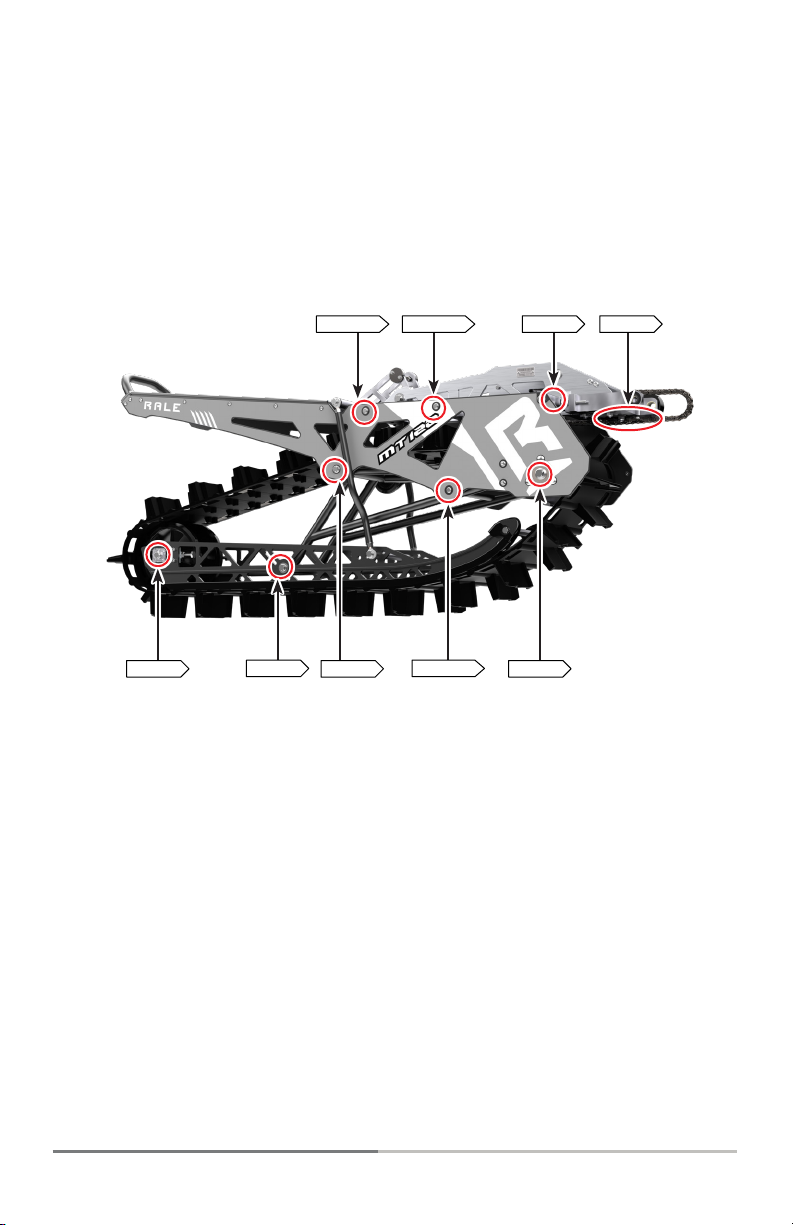

Before riding, perform all of the following tasks as outlined on
page 15:
• Visual and physical check
• Bolt Re-torque
• Brake check
• Upper Link check
• Primary Chain and Secondary Chain tension
• Track tension
• Front ski nut and bolt check
• Air intake check
se t t i n g s t a t i c s a g
pr e -t r i p i n s p e c t i o n
90˚
90˚
0˚
0˚
90˚
90˚
28˚
28˚
1. Place the bike on level gound, not supported by any stand, to
set the static sag using the shock spring preload adjuster.
2. Jounce the suspension of the bike to establish proper ride
height. Ensure the handlebars are straight before proceeding.
3. Place a level on the center channel.
4. Increase the spring preload until the center channel is level (0°).
5. Using an angle gauge on the lower fork tubes, continue
adjusting the shock spring preload as needed to achieve a fork
angle of 28° +/- 1°.
NOTE: A 28° dierence between the swingarm center channel
and forks of the bike is critical to achieving proper handling and
weight distribution of the snowbike conversion kit.

2022 RALE®INDUSTRIES USER'S MANUAL12
Host Bike: Follow all maintenance tasks and schedules in the OEM
user’s manual.
RALE®Track Kit: Read and follow all maintenance requirements as
outlined in the following section.
CAUTION
Failure to perform scheduled maintenance tasks can result in
excessive wear and damage to the RALE® Track Kit that are not
covered under warranty.
DANGER
To prevent serious injury or death, never allow any part of a
person's body, or clothing, or any tools or devices into the RALE®
Track Kit without first turning o the host bike power.
Ma i n t e n a n c e

132022 RALE®INDUSTRIES USER'S MANUAL
Break-in:
The RALE® Track Kit will have a break-in period where everything will
settle in. After one hour of riding check the following, and perform
tasks as listed in the maintenance schedule on page 14 and as
described on page 15.
Re-torque all bolts (shown below) repeat on opposite side of RALE®
Track Kit. See the parts diagrams for torque specs.
35 FT-LB 50 FT-LB
50 FT-LB 50 FT-LB
200 IN-LB
40 FT-LB40 FT-LB200 IN-LB200 IN-LB

2022 RALE®INDUSTRIES USER'S MANUAL14
Maintenance Chart
Clean - wash with a mild soap and rinse.
Check - tension, for cracks, abnormal or excessive wear;
replace broken, damaged or worn parts.
Adjust - Make adjustments as may be nesseccary.
Lubricate.
Replacement parts can be ordered from your RALE® dealer. Please
have your serial number available, and use the part numbers for
reference.
Keep a record of parts changed and dates of maintenance
performed.
EVERY 5
HOURS
EVERY 10
HOURS
EVERY 40
HOURS /
ANNUAL
PART
VISUAL & PHYSICAL
BOLT TORQUE
PRIMARY CHAIN
SECONDARY CHAIN
SPROCKETS
TRACK TENSION
TRACK
HYFAX
BOGIE WHEELS
SKI SKAG
SKI SADDLE
BUSHING
BRAKE SYSTEM
RAIL PIVOT AXLE
SIDE LINK
ROD ENDS
UPPER LINK
ROD ENDS
1 HOUR
BREAK-IN
INSPECTION

152022 RALE®INDUSTRIES USER'S MANUAL
Visual and Physical Inspection – After cleaning the RALE® Track
Kit, inspect for the following; cracks, loose, damaged or missing
parts, and abnormal or excessive wear.
Bolt Torque – Re-torque all bolts as specified on page 13. Refer
to the part diagrams for torque specifications.
Primary Chain – Verify that the chain guide is aligned and does not
have excessive wear. Check the chain tension, wear and master
link; clean and lubricate as needed. Refer to the installation manual
to properly set or check the chain tension.
Secondary Chain – Check the chain slider for excessive wear;
adjust to the tighter hole if necessary. Check the chain wear and
master link; clean and lubricate as needed.
Sprockets – Check for abnormal or excessive wear due to
improper alignment or improper chain tension.
Track Tension – Refer to the installation manual to properly set or
check the track tension / alignment.
Track – Check for damage, wear on the lugs. Examine the metal
clips for excessive wear or missing clips.
Hyfax – Check for abnormal or excessive wear; the sides should
not be less than 17 mm tall.
Bogie Wheels – Check for side to side movement; indicating
bearing wear. Check the running surface for wear.
Rail Pivot Axle – Lubricate using Lucas®Marine Grease.
RALE recommends WPS PN 58-5297
Ski Skag – Check for broken or excessive wear of the carbide
edge.
Ski Saddle Bushing – Check for cracks or wear; the bushing
should provide support for the ski tower, preventing the ski from
being loose or floppy.
Brake System – Check the hydraulic fluid level, check the pads for
excessive wear, and check the brake rotor for warping.
Side Link Rod Ends – Use Motorex®Silicone Spray on the (4) rod
ends on the Side Links. RALE® recommends WPS PN 580-0414
Upper Link Rod Ends – Use Motorex®Silicone Spray, RALE®
recommends WPS PN 580-0414, the rod end located at the top
of the upper link. Lubricate the lower joint using Lucas®Marine
Grease. RALE® recommends WPS PN 58-5297

2022 RALE®INDUSTRIES USER'S MANUAL16
PART DIAGRAMS
