Ram Mounts Roto-View User manual

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Pr
oducts, Inc.T
o see more mounting options, visit rammount.com
Safety Precaution
Do not install this product near or over an airbag deployment area or in a location that obstructs the driver’s vision or interferes with vehicle
operation. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage.
Parts Index
* not to scale
rammount.com
1.800.497.7479
[email protected] RAM®Roto-View™ Keyboard Adapter
Continue on back
While pressing against back magnets of (C) RAM®Power Plate™ III, slide
red adhesive plate off and slide (D) ball base over magnets aligning the
holes with (C) RAM®Power Plate™ III holes. Use (M) screws and (I) nuts to
secure the ball base.
2
Use the screws that came with your RAM® Cradle to attach to the
front side of (A) RAM®Roto-View™.
1
Hold (B) tube adapter against (G) tube and attach to (A) RAM®Roto-View™
sub assembly with (J) screws without fully tightening.
4
Place (H) nuts inside pockets of (B) tube adapter before attaching
to (G) tube.
3
A
x 1
B
x 1
C
x 1
D
x 1
N
F
x 1
x 1
G
x 1
x 2
#8-32 x 1 1/4”
L
x 2
#8-32 x 5/8”
K
x 4
#6 x 1/2”
J
x 4
#6-32
I
x 2
#8-32
H
A
C
D
G
N
J
B
H
I
M
x 4
#6-32 x 1/2”
M

RMR-INS-TAB-KEY1
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Pr
oducts, Inc.T
o see more mounting options, visit rammount.com
Safety Precaution
Do not install this product near or over an airbag deployment area or in a location that obstructs the driver’s vision or interferes with vehicle
operation. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage.
rammount.com
1.800.497.7479
[email protected] RAM®Roto-View™ Keyboard Adapter

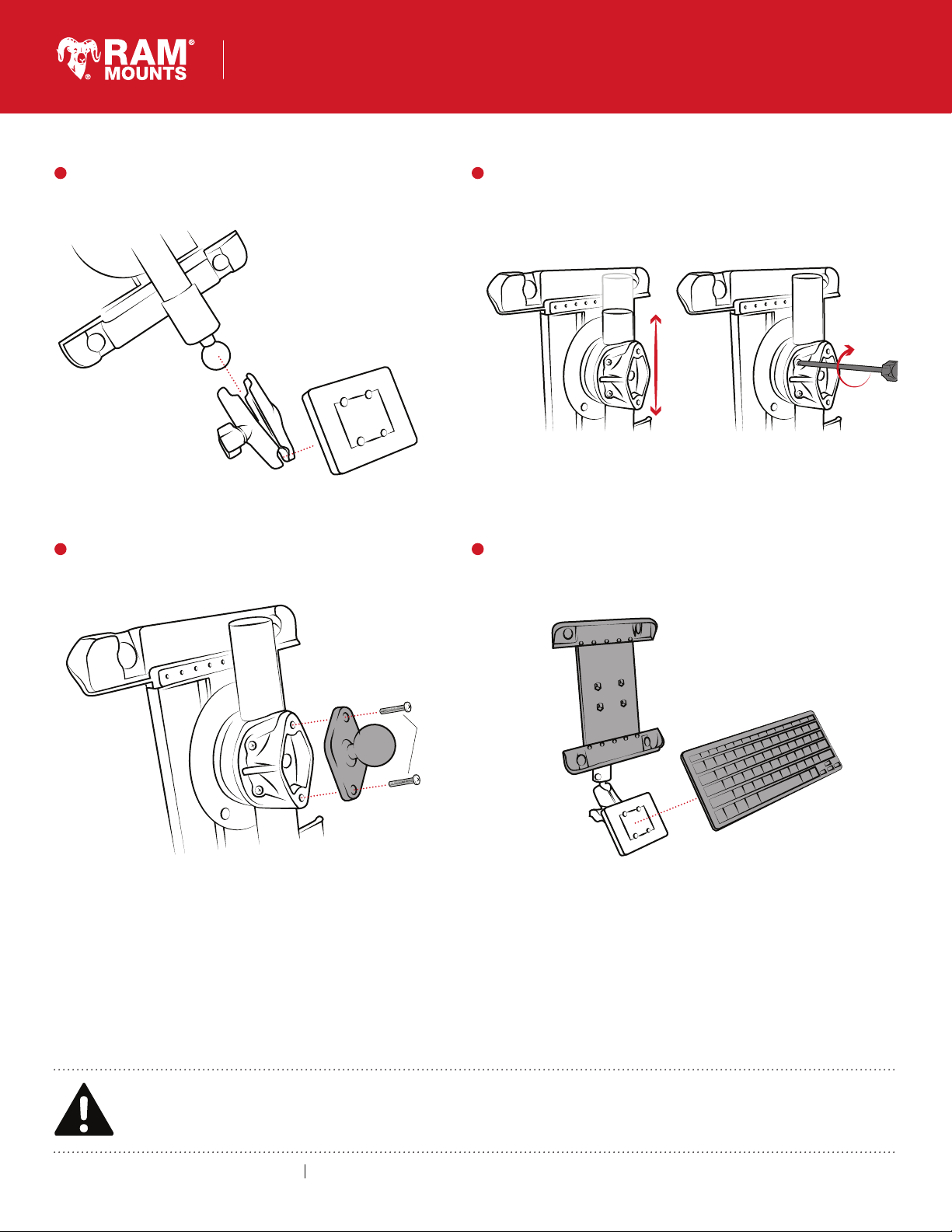

Determine proper height adjustment by sliding (G) tube up and down as
needed. When set to the correct position, evenly tighten the (J) screws
behind (A) RAM®Roto-View™.
6
Connect (F) double socket arm to ball end of (G) tube. Connect
(C) RAM®Power Plate™ III adapter to (F) double socket arm,
determine the angle you want and tighten.
5
Attach keyboard to (C) RAM®Power Plate™ III. When positioning (G) tube,
take into account the amount of space needed to rotate your tablet
between portrait and landscape mode.
8
Attach your RAM® ball base to the holes behind (B) tube adapter
using (K) screws.
7
F
G
C
K
