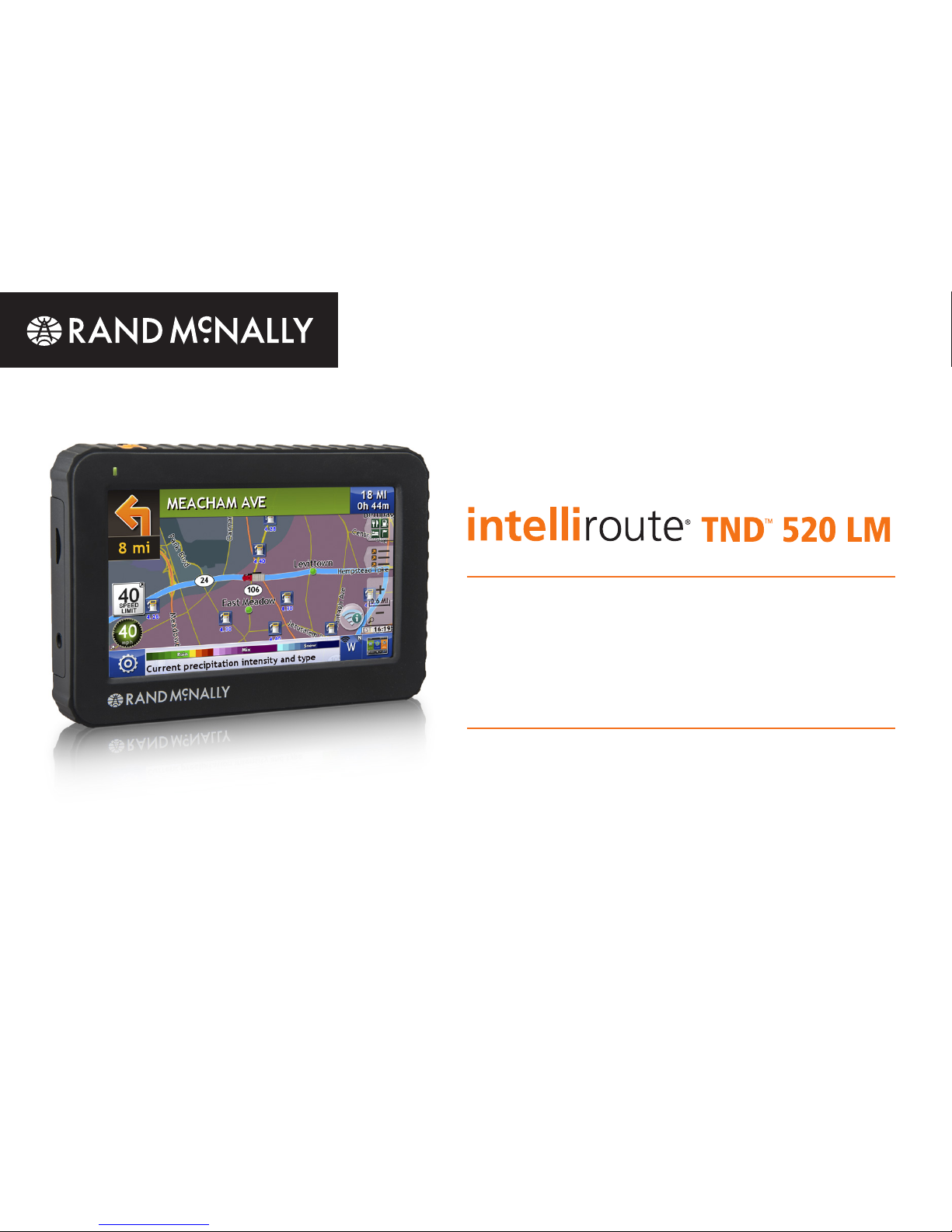

Rand McNally intelliroute TND 520 LM User manual

Quick Start Guide....................................... 1
Guide de Démarrage Rapide.................... 22
Guía de Inicio Rápido...............................44

Important Information About Your IntelliRoute®TND™520 LM
WI-FI®:Some features of this device require wireless connectivity, which requires a supporting feature (such as a smartphone
with tethering) and data plan from your wireless service provider. As the user, you are responsible for all data charges. Please
contact your wireless service provider to make sure you do not exceed the limits of your data plan.
Rand Mcnally dock: Keep your device up to date by downloading the Rand McNally Dock for your home computer
at www.randmcnally.com/dock and connecting your device with the USB cable provided.
leaRn MoRe: Access Tutorial & Tips under Preferences > General on your device for more information, or visit
www.randmcnally.com/support to download the user manual.
PoWeR BUTTon: Press and hold the orange power button to turn the device on or off. The power button can also
be used for quick access to certain features while the device is running. See Preferences > General > Quick Power Press
for options. A red light indicates the battery is charging; a green light indicates the battery is fully charged.
ReseT: Use the reset button on the back of the device to restart. This will cancel the current route, but preferences,
address book, and other personal data will be saved.
Some screens include help tips. Tap this button to access.
1

2

Install the Mount
noTe: Follow all local regulations governing the placement of the mount.
Select an area with a line of sight to the sky and GPS satellites to ensure reliable GPS information.
1. Clean and dry the mounting area.
2. Remove the suction cup protective film.
3. Adjust the angle of the mount using the thumbscrew.
4. Pull the suction cup lever up to release suction.
5. Plug the power cord into the device and the vehicle’s 12-volt power source.
6. Slide the device onto the mount.
7. Place and hold the mount suction cup against the mounting surface.
8. Press the suction cup lever down until it snaps into place.
9. Adjust the device so that it can be easily seen and does not block the driver’s line of sight.
3

Main Menu
1Enter truck information and access
truck-specific use tools.
2Show location on the map and view
navigation instructions.
3Choose a destination.
4Select device, route and map preferences.
5Mute/unmute the speaker.
6Adjust speaker volume.
7Indicates charge when running on battery.
8Change driver profile, trailer load,
or driver status.
noTe: From other screens, tap the Main Menu
icon in the bottom right corner to return
to the Main Menu.
noTe: Help and tutorials are available in Preferences.
1
4 5
8
6
7
23
4

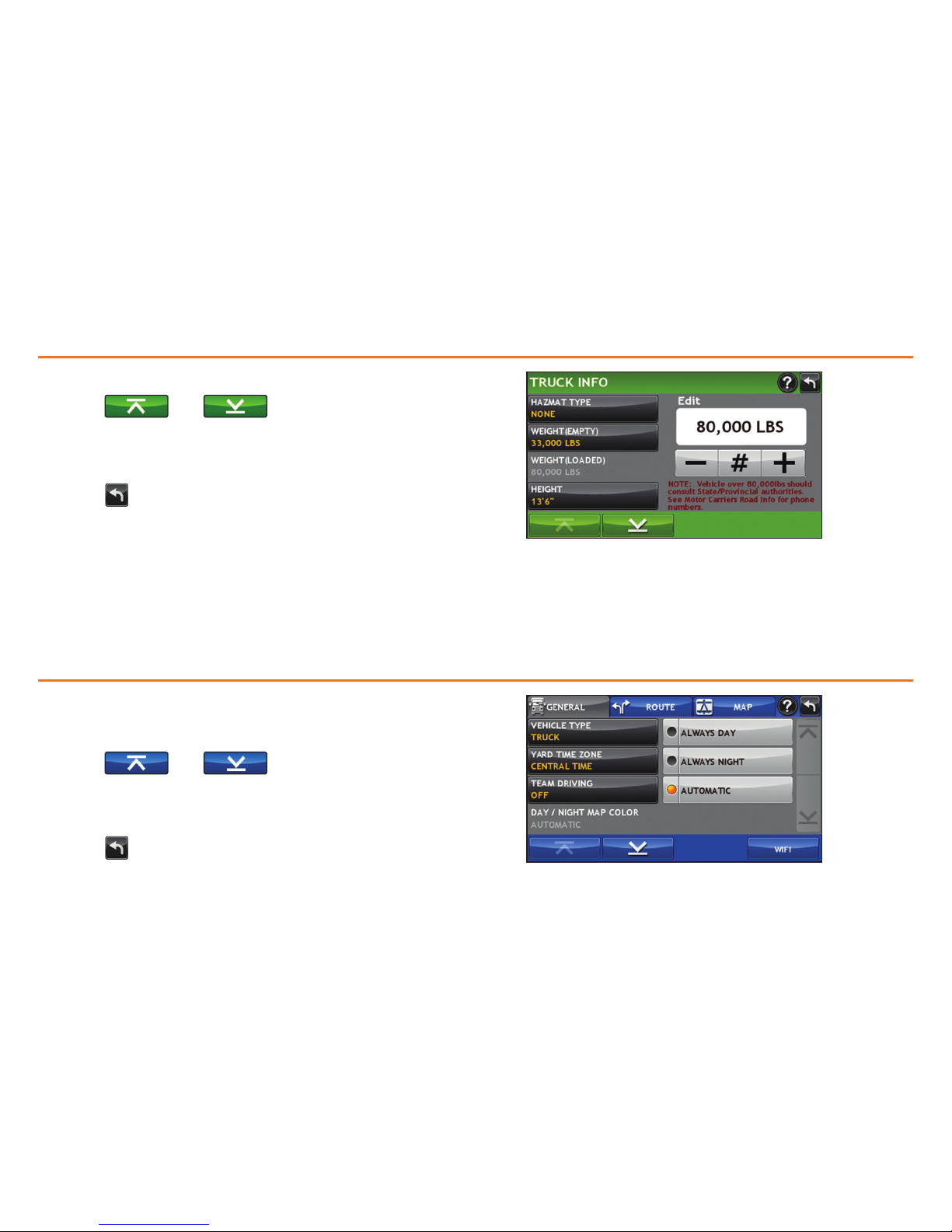

Enter Truck Information and Set Warnings
1. Tap Truck Tools > Truck Info or Warnings.
2. Tap and to view options.
3. Tap the option button to be changed.
4. Enter new settings.
5. Tap to save changes.
Set Routing and Device Options
1. Tap Preferences.
2. Tap the General, Route or Map tab.
3. Tap and to view options.
4. Tap the option button to be changed.
5. Enter new settings.
6. Tap to save changes.
On the left,
tap on an
option
On the left,
tap on an
option
On the right,
enter settings
for the option
On the right,
enter settings
for the option
5

Destination
1Route to a new location. (See page 7.)
2Return to a previously entered address.
3Access the Address Book.
4Plan a multi-stop trip.
5Route to a point of interest. (See page 10.)
6Run an Internet search for local businesses.
(noTe: This feature requires a Wi-Fi connection.)
Run a local search near:
7Your truck
8A particular city
9Your destination
Search for local restaurants.
Access recent searches.
11
1 2 3
4 5 6
7 8 9
10 11
10
6

Route to a New Location
1. Tap Choose Destination > New Location.
2. Tap Address.
3. Enter the name of the city. (noTe: As you type, the keyboard
displays only the next possible letter.)
4. Prompts appear in the top bar.Tap the city to select. Or, tap
List to view cities beginning with the letter(s) you entered.
5. Enter the street name. (noTe: If the letters you need do not
appear, tap Expand Search.)
6. Enter the house number. (noTe: To enter the house number
before the street, tap the house number button
in the previous step.)
See Confirm Destination Window (page 8.)
Tips
• YoucanalsoroutetoanewlocationbyCity Center,
Intersection, or Latitude/Longitude, or choose
Address > Zip Code Search.
• View recent destinations by tapping Choose Destination >
History. View recent cities by tapping Choose Destination
> New Location > Address > History.
• ViewsavedlocationsbytappingChoose Destination >
Address Book.
7

Confirm Destination Window
1Destination address.
2Begin route to destination.
Compare a primary and alternate route and choose one.
4Add the location as a via point on the way to
a previously entered destination.*
5Save the location to the Address Book.
6Cross reference to printed Rand McNally
Motor Carriers’ Road Atlas.
7View the map.
8Change the starting location for a route to the
location displayed here.
9Return to Main Menu.
Return to previous window.
*To manage via points, Tap Choose Destination > Multi-Stop
Trips. You can add up to 50 destinations in a multi-stop trip, and
optimize routing for trips of up to10 stops.
noTe: This window may include
additional buttons based on the
type of destination selected.
1
3
5
6 7
9
8
10
2
3
4
10
8

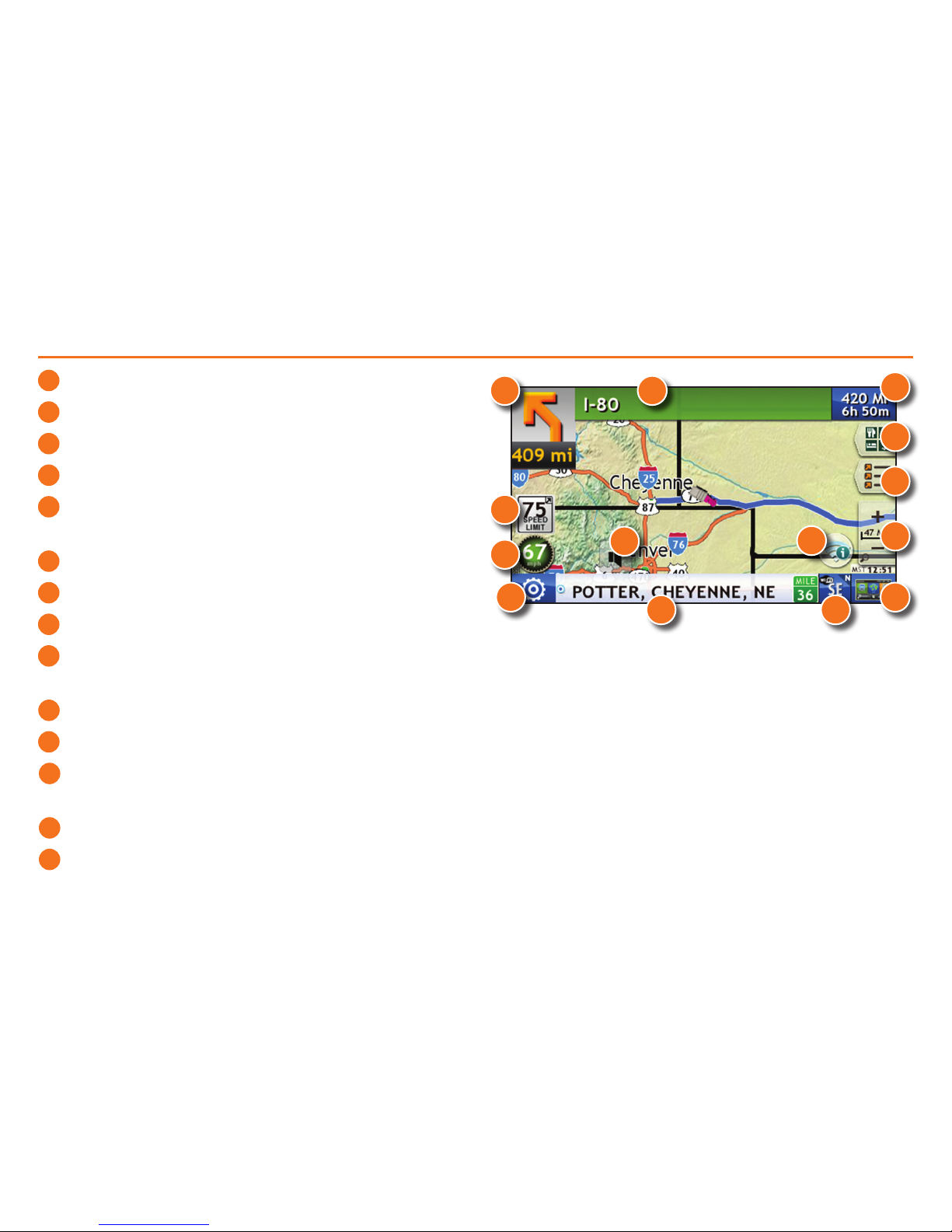

Route Map Window
1Repeat spoken next-maneuver instructions.
2Name of street you will turn onto next.
3Show arrival time, remaining time, or other options.
4Slide out to show upcoming exit information.
5Directions list slideout. Tap Route Display Options
to select turn-by-turn, highway, or map view.
6Zoom in/zoom out.
7Access Wi-Fi connected services.
8Return to Main Menu.
9Current direction.Tap to select a map display option (Heading
Up, North Up, or 3D View).Also displays Wi-Fi®status.
10 View current road name, upcoming cross road name, or city, county and state.
11 View and save current location, detour, or cancel a route.
12 Tap on the current speed to display the Virtual Dashboard.
(noTe: Turns red for speed warnings; set in Truck Tools > Warnings.)
13 Current speed limit—orange for truck limit, white for general limit. Tap to open a “Tell Rand” about speed limits.
14 Mute the speaker.
13
4
5
6
8
7
9
2
10
11
12 14
13
9

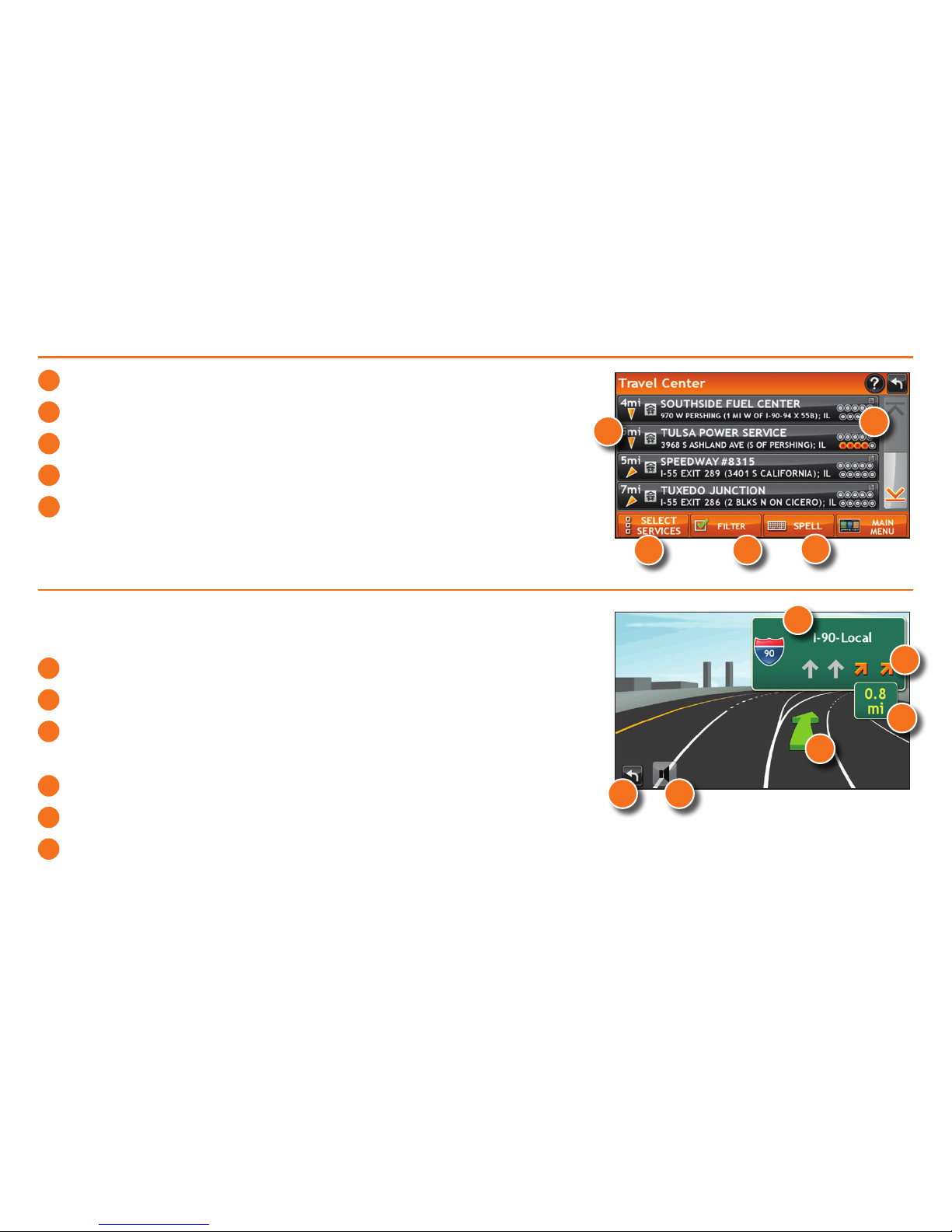

Find a Point of Interest (POI)
Tap Choose Destination > Points of Interest.
1Find popular truck-friendly POIs near your current location.
Search for a POI:
2Near your truck
3In a particular city
4Along your route
5Along the last 30 minutes of your driving day
(using the time remaining in Truck Tools > Timers)
6Near your destination
POI Categories
7Select a category.
8Find restaurants, hotels, and other subcategories.
9View custom POIs that have been uploaded through
the Rand McNally Dock.
8
7
9
1
3
45 6
2
10

Junction View
When on a route, Junction View displays when you have an upcoming maneuver.
Once past the maneuver, Junction View closes and the previous window displays.
1Signs to follow for the next maneuver.
2Number and direction of lanes for the next maneuver.
3Distance to the upcoming maneuver. Distance decreases as you
approach the ramp.
4Lane assist arrow.
5Mute the speaker.
6Return to previous window.
1
3
2
4
56
Find a Point of Interest (POI) - continued
10 Tap location to select.
11 View and edit ratings and comments.
12 Tap to search by available services.
13 Apply or remove services filter for search results.
14 Search POI by name.
10 11
12 13 14
11

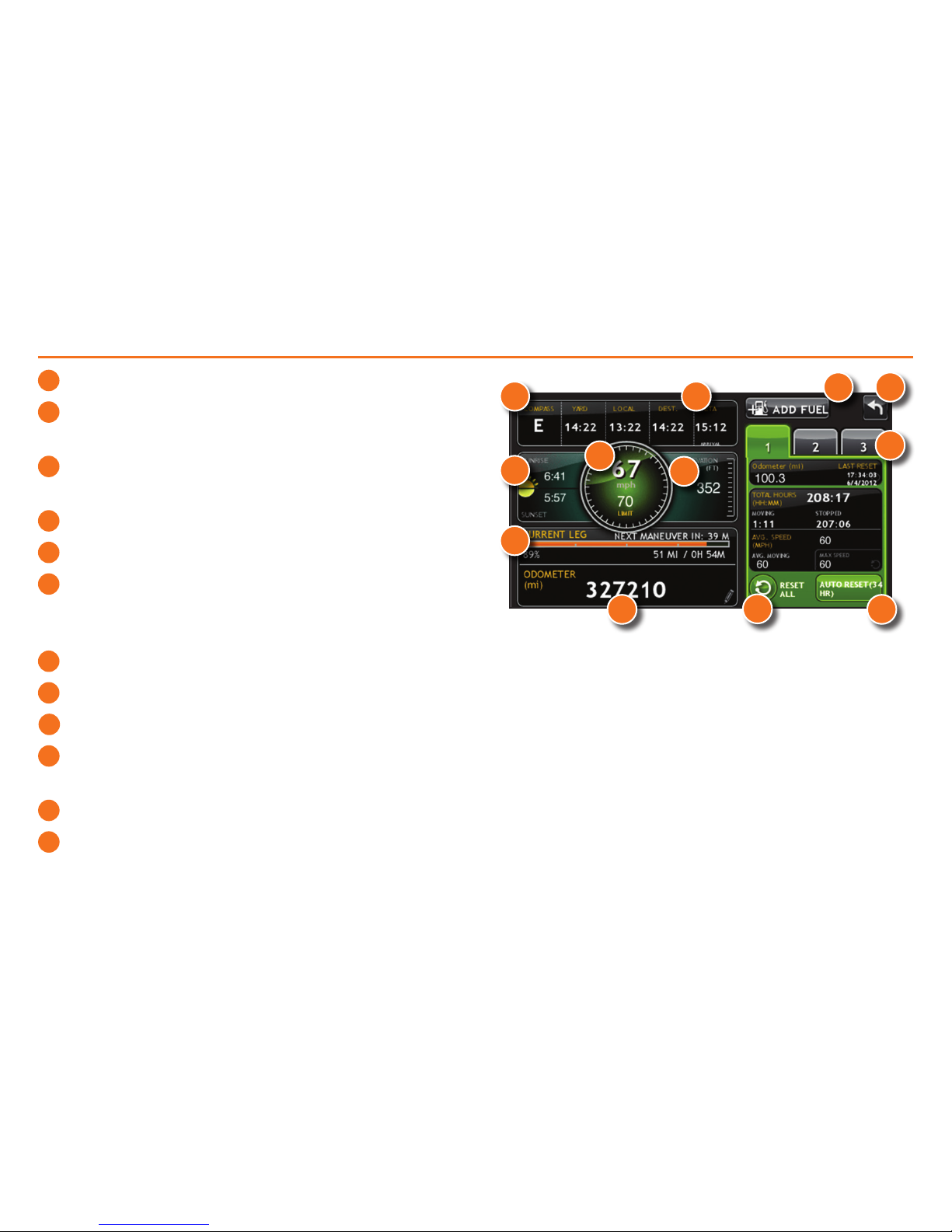

Virtual Dashboard
1Current direction of travel.
2Displays current time at the yard, current location
and your destination.
3Sunrise and sunset times based on vehicle location
(latitude/longitude) and day.
4Current speed (above) and posted speed limit (below).
5Elevation at current location.
6Percentage of current trip completed, distance to next
maneuver, and the number of miles and time spent
on the trip to this point.
7Return to the Route Map Window.
8Gather trip information for up to three trips. Includes odometer settings, hours, and speeds.
9Reset trip information for the selected trip (Tab 1, Tab 2 or Tab 3).
10 Select to automatically reset the information in each tab after the vehicle has remained stationary
for the specified number of hours.
11 View fuel logs and add fuel purchase information.
12 Match with truck's odometer to automatically update new fuel logs.
Tap the pencil to edit.
1
345
6
7
910
11
8
2
12
12

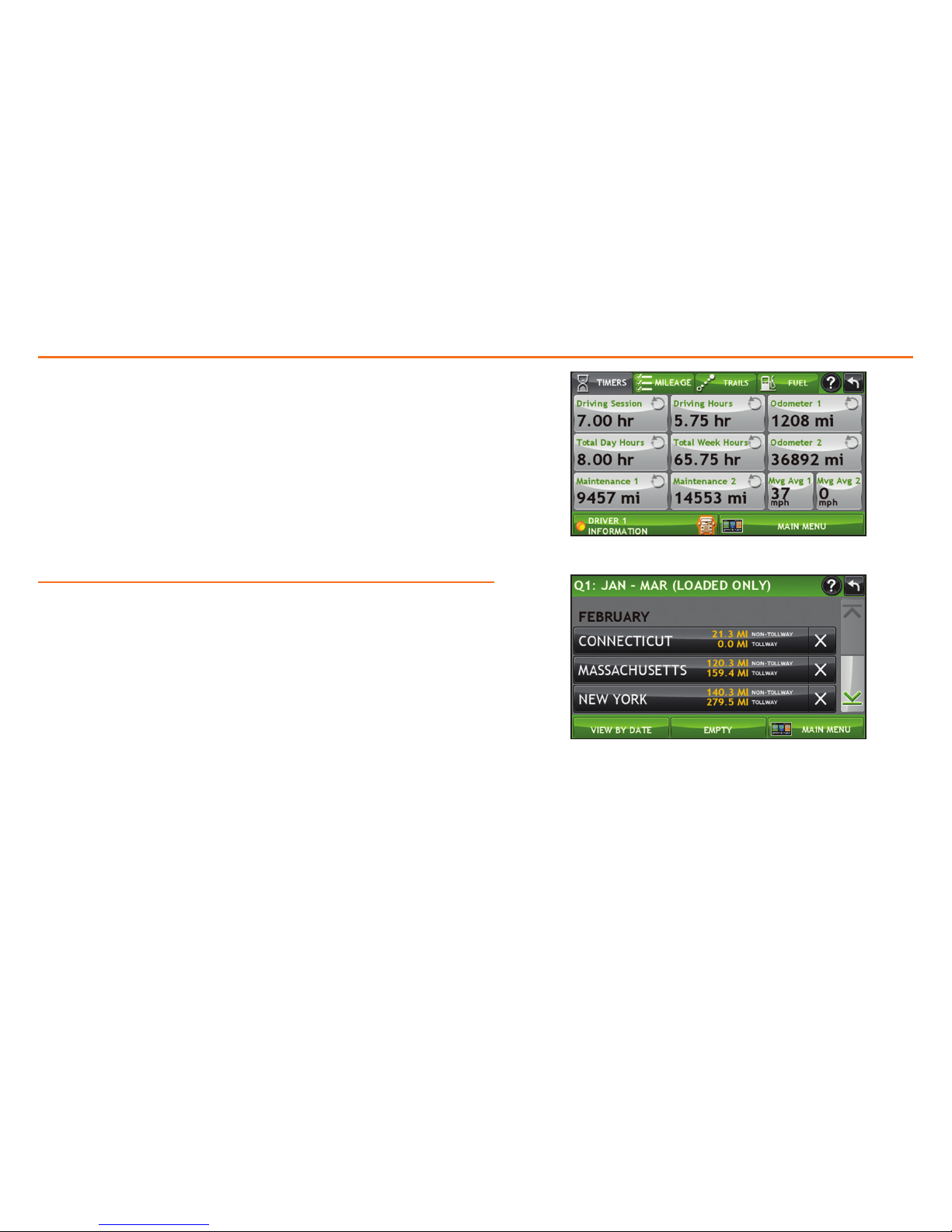

View Timers and Logs
1. Tap Truck Tools > Timers, Logs, Trails, Fuel.
2. Tap Timers to view timers, odometer readings, and average speed.
3. Tap on a field to change or reset the number.
noTe: Countdown timers are controlled by the Driver Status
(Driving, On Duty, or Off Duty) selected on the Main Menu.
To switch driver profiles, tap the driver information field.
4. Tap Logs to view a list of mileage logs by quarter.
5. Tap on a quarter to view individual logs by state.
noTe: You can export logs to your computer through the
Rand McNally Dock.
13

View Trails and Fuel
1. Tap Truck Tools > Timers, Logs, Trails, Fuel.
2. Tap Trails to record a “bread-crumb” path of GPS
coordinates where your truck has traveled.
3. Tap any record to view the trail, edit the name
or set the color.
4. Tap Show on Map to display the trail on the
Route Map Window.
5. Tap Fuel to view a list of fuel logs by quarter.
6. Tap on a quarter to view individual logs by state.
7. Tap Add Fuel to record the date, location and cost
of fuel purchase.
8. Tap on a field to make changes.
9. Check Taxable to include the purchase in the fuel log.
10. Tap Save.
14

Wi-Fi
For information on setting up a Wi-Fi hotspot through your cellular phone or laptop computer, please visit
www.randmcnally.com/wifihelp for basic instructions, or contact your wireless carrier.
noTe: Wi-Fi connectivity requires a supporting feature and data plan from your wireless service provider.
As the user, you are responsible for all data charges. Please contact your wireless service provider to make sure
you do not exceed the limits of your data plan.
Once you have established a Wi-Fi hotspot:
1. From the Main Menu, tap Preferences. Or tap the WiFi
connected services icon on the map screen.
2. Tap WiFi in the bottom right corner.
3. Tap Enable WiFi to search for available hotspots.
4. Tap the hotspot you want to connect to.
5. Enter the network password.
6. Tap Disable WiFi to turn Wi-Fi connectivity off.
(noTe: Disable to save battery power.)
15

Weather
noTe: This feature requires a Wi-Fi connection.
To view current weather information and the three-day forecast
for your location, tap the Wi-Fi connected services icon ( ) on
the map screen.
1Tap to view details for current weather alerts.
2View weather information at your destination.
(noTe: You can view weather information at any other
location by tapping the map at the desired location and
then the Weather icon.)
3Display weather on the map as you drive.
4Select from a variety of weather types.
5Slide to adjust the transparency of the overlay on the map.
noTe: Use the slider to readjust for visibility when
switching between day and night modes.
noTe: The speed of the weather display will depend on
the speed of your Internet connection.
4
5
1
32
16

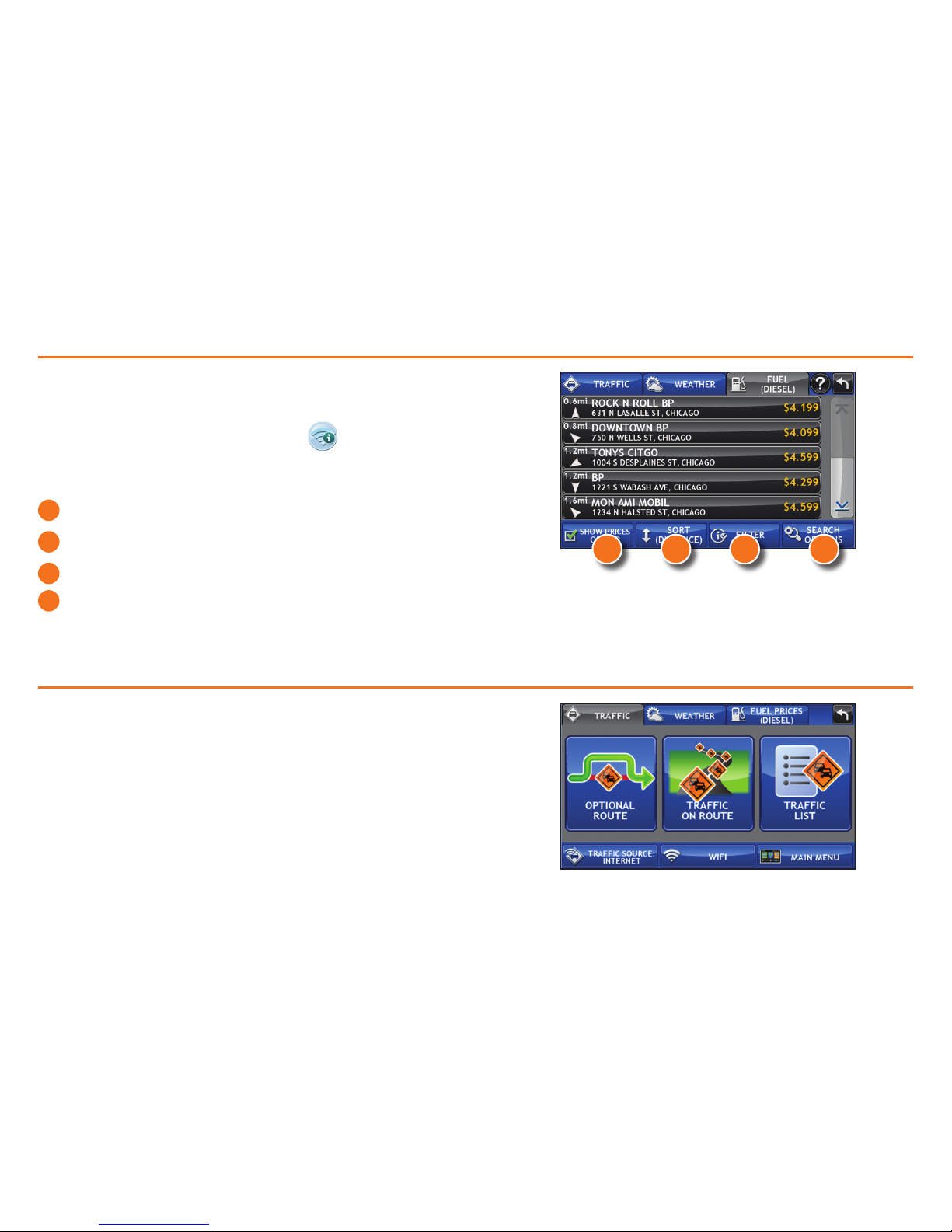

Fuel Prices
noTe: This feature requires a Wi-Fi connection.
Tap the Wi-Fi connected services icon ( ) on the map screen.
Then tap the Fuel tab.
1Check to show fuel prices on the map screen.
2Sort results by distance or price.
3Set filters for type and brand of fuel.
4Choose to search near your vehicle or along your route.
Traffic Everywhere
Live traffic information is available as a premium service on
the Rand McNally Dock. (See page 18.) Get traffic conditions
and alerts right on your TND™. Traffic information is available
with a Wi-Fi connection wherever you receive a data signal
on your smartphone, even in rural areas.
1 2 3 4
17

More Information
For a detailed description of the features of your device, please see the IntelliRoute®TND™520 LM User Manual.The User
Manual can be downloaded from the Rand McNally Dock, and is also available at www.randmcnally.com/support.
Rand McNally Dock
The Rand McNally Dock enables you to receive software upgrades and access map updates, construction updates, and
additional features. Simply download the Dock software for your PC or Mac at www.randmcnally.com/dock and connect
your device using the USB cable provided.
With the Rand McNally Dock, you can also:
• PurchaseTrafcEverywhere
• Exportmileageandfuellogstoyourhomecomputer
• UploadcustomPOIs,suchasredlightcamerasandrailroadcrossings,toyourdevice
• DownloadtheUserManual
• AccesstheRandMcNallysupportsiteandonlinestore
• Readproductnewsandannouncements
• SendfeedbackandsuggestionstoRandMcNallythrough“TellRand”
18
