Range Road RR5036 User manual

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
Range Road RR5022, RR5026, RR5032 and RR5036
Sawmill
Owner’s Manual
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before
operating. Failure to follow the safety rules and other basic safety precautions may result in
serious personal injury.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
Thank you very much for choosing this product! For future reference, please complete the owner’s record below:
Model: RR______ Purchase Date:
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become
familiar with this product before you begin using it.
This product is designed for certain applications only. The manufacturer cannot be responsible for issues
arising from modification. We strongly recommend this product not be modified and/or used for any
application other than that for which it was designed. If you have any questions relative to a particular
application, DO NOT use the product until you have first contacted us to determine if it can or should be
performed on the product.
For technical questions please visit www.range-road.ca or www.range-road.com.
INTENDED USE
The RangeRoad Saw Mill is portable and versatile which makes it a great tool for any lumber project. It has the
capabilities of sawing logs up to 22”, 26”, 32” and 36”in diameter, 7” thick and a cutting length of 125”.
TECHNICAL SPECIFICATIONS
Model:
RR5022A/B
RR5026A
RR5032A/B
RR5036A
Capacity:
51cm (22”) diameter,
17.5cm (7”) thick, 315cm
(124”) in length
66cm (26”) diameter,
16.5cm (6 ½”) thick, 315cm
(124”) length
81cm (32”) 16.5cm (6 ½”)
thick, 315cm (124”) Length
92cm (36”) 16.5cm (6 ½”) thick,
315cm (124”) Length
Engine:
306cc (10Hp) Predator
(RATO) or Briggs & Stratton
15HP Predator (RATO)
14Hp Kohler CH440 or
22HP Predator (RATO)
22HP Predator (RATO)
Blade:
144 x 1-1/4 x .042
144 x 1-1/4 x .042
3973mm (156 ½”) x 1-1/4” x
.042
4128mm (162 ½”) x 1-1/4” x .042
Dimensions:
4100mm x 1800mm x 1625mm
(153 ½” x71”x64”)
4100mmx1800mmx1968.5mm
(153 ½” x70.87”x 77.5”)
4100mmx1905mmx1969mm
(153 ½” x 75” x 77 ½”)
4100mmx1905mmx1969mm
(153 ½” x 75” x 77 ½”)
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed below may
result in serious injury.
CAUTION: Do not allow persons to operate or assemble this saw mill until they have read this
manual and have developed a thorough understanding of how the saw mill works.
WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot
cover all possible conditions or situations that could occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this product, but must be supplied by the
operator.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
SAVE THESE INSTRUCTIONS
WORK AREA
Keep the work area clean, free of clutter. Cluttered and dark work areas can cause accidents.
Keep children and bystanders away while operating the saw mill. Distractions can cause you to lose
control, so visitors should remain at a safe distance from the work area.
Be alert to your surroundings. Using a saw mill in confined work areas may put you dangerously close to
rotating parts and the blade.
PERSONAL SAFETY
Stay alert. Watch what you are doing and use common sense when using a saw mill. Do not use a saw mill
while you are tired or under the influence of drugs, alcohol or medication. Inattention while operating a saw
mill may result in serious personal injury.
Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
Use safety apparel and equipment. Use safety goggles or safety glasses with side shields which comply
with current national standards, or when needed, a face shield. Use a dust mask if working in dusty work
conditions. This applies to all persons in the work area. Also use non-skid safety shoes, hardhat, gloves,
dust collection systems, and hearing protection when appropriate.
SAW MILL USE AND CARE
•Do not modify the saw mill in any way. Unauthorized modification may impair the function and/or safety
and could affect the life of the equipment. There are specific applications for which the saw mill was
designed.
•Always check for damaged or worn parts before using the saw mill. Broken parts will affect the saw
mill operation. Replace or repair damaged or worn parts immediately.
• Do not exceed the saw mill load capacity.
•Distribute the load evenly. Uneven loads may cause the saw mill to tip, resulting in personal injury to the
operator or others. Log should be secured before sawing.
• Use the saw mill on flat and level surfaces capable of supporting the saw mill and its maximum load.
Pulling or pushing a load on a slanted or uneven surface can result in loss of control. The Saw mill needs to
be on a flat and level surface before sawing.
• Store idle saw mill. When saw mill is not in use, store it in a secure place out of the reach of children.
It is also a good idea to back off the blade tension when not in use, helps to preserve belt and blade life.
Inspect it for good working condition prior to storage and before re-use.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
IMPORTANT SAFETY INFORMATION
WARNING! Read all instructions. Failure to follow all instructions listed below
may result in fire, serious injury and/or DEATH. The warnings and precautions
discussed in this manual cannot cover all possible conditions and situations that may occur. It
must be understood by the operator that common sense and caution are factors which cannot
be built into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS
Set Up Precautions.
1. Gasoline fuel and fumes are flammable, and potentially explosive. Use proper fuel storage and handling procedures.
Do not store fuel or other flammable materials near the machine.
2. Have fire extinguishers nearby.
3. Operation of this equipment may create sparks that can start fires around brush and dry vegetation. A spark arrestor
may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention
requirements.
4. Set up and use only on a flat and level surface. Area must be well ventilated.
5. Wear ANSI-approved safety goggles, heavy-duty work gloves, and dust mask/respirator during set up.
6. Use only lubricants and fuel recommended in the engine manual or in the Specifications Chart of this manual.
Engine Precautions
Follow engine precautions and instructions in the included engine instruction manual.
Operating Precautions
CARBON MONOXIDE HAZARD
Using an engine indoors CAN KILL YOU IN MINUTES.
Engine exhaust contains carbon monoxide. This is a poison you cannot see or smell.
NEVER use gas
engines indoors
EVEN IF doors and window are open.
Only use OUTSIDE and far away from windows,
doors and vents.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
1) Keep children and bystanders away from the equipment, especially during operation.
2) Do not leave the equipment unattended when it is running. Turn off the equipment (and remove safety keys, if
available) before leaving the work area.
3) Wear ANSI-approved safety glasses, hearing protection, and NIOSH-approved dust mask/respirator under a full face
shield during use. Wearing steel toe shoes is also recommended.
4) Wear heavy-duty work gloves when handling the blades.
5) People with pacemakers should consult their physician before use. Electromagnetic fields in close proximity to a heart
pacemaker could cause pacemaker interference or pacemaker failure. Caution is necessary when near the engine’s
magneto or recoil starter.
6) Use only accessories that are recommended by Range Road for your model. Accessories that may be suitable for
one piece of equipment may become hazardous when used on another piece of equipment.
7) Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
Gasoline-powered engines may ignite the dust or fumes.
8) Stay alert, watch what you are doing and use common sense when operating this piece of equipment. Do not use
this piece of equipment while tired or under the influence of drugs, alcohol or medication.
9) Do not overreach. Keep proper footing and balance at all times. This enables better control of the equipment in
unexpected situations.
10) Dress properly. Do not wear loose clothing or jewelry. Keep hair, clothing and gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught in moving parts.
11) Parts, especially exhaust system components, get very hot during use. Stay clear of hot parts.
12) Do not cover the engine or equipment during operation.
13) Keep the equipment, engine, and work area clean at all times.
14) Use the equipment, accessories, etc., in accordance with these instructions and in the manner intended for the
particular type of equipment, taking into account the working conditions and the work to be performed. Use of the
equipment for operations different from those intended could result in a hazardous situation.
15) Do not operate the equipment with known leaks in the engine's fuel system.
16) WARNING: The brass components of this product contain lead, a chemical known to the State of California to cause
birth defects (or other reproductive harm). (California Health & Safety code § 25249.5, et seq.)
17) WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities, contains
chemicals known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
Lead from lead-based paints
Crystalline silica from bricks and cement or other masonry products
Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these
chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles. (California Health & Safety Code § 25249.5, et seq.)
18) This product contains or, when used, produces a chemical known to the State of California to cause cancer and birth
defects or other reproductive harm. (California Health & Safety Code § 25249.5, et seq.)
19) When spills of fuel or oil occur, they must be cleaned up immediately. Dispose of fluids and cleaning materials as per
any local, state or federal codes and regulations. Store oil rags in a bottom-ventilated, covered, metal container.
20) Keep hands and feet away from moving parts. Do not reach over or across equipment while operating.
21) Before use, check for misalignment or binding of moving parts, breakage of parts, and any other condition that my affect
the equipment’s operation. If damaged, have the equipment serviced before using. Many accidents are caused by
poorly maintained equipment.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
22)Use the correct equipment for the application. Do not modify the equipment and do not use the equipment for a purpose
for which it is not intended.
Service Precautions
•Before servicing, maintenance or cleaning:
oTurn the engine switch/key to its “OFF”position.
oAllow the engine components to completely cool
•Always keep all safety guards in place and in proper working order. Safety guards can include muffler,
air cleaner, mechanical guards and heat shields, among other guards.
•Wear approved safety goggles, heavy-duty gloves, and a dust mask/respirator during service.
•Maintain all labels on the saw mill. These show important information. If unreadable, missing or damaged,
contact Range Road for a replacement.
•Have the equipment serviced by a qualified repair person using only OEM replacement parts. This will
ensure that the safety of the saw mill is maintained. Do not attempt any service or maintenance procedures
not explained in this manual or any procedures that you are uncertain of your ability to perform in a safe or
correct manner.
•Store all equipment out of the reach of children.
•Follow scheduled engine and equipment maintenance.
•Refueling:
oDo not smoke, or allow sparks, flames, or other sources of ignition around the equipment, especially
when refueling.
oDo not refill the fuel tank while the engine is running or hot.
oDo not fill fuel tank to the top. Leave a little room for the fuel to expand as needed.
oRefuel in a well-ventilated area only.
Specifications
Note: Engine specifications are found in the engine manual supplied with this sawmill.
TO PREVENT SERIOUS INJURY:
Operate only with proper spark arrestor(s) installed. Operation of this equipment may create sparks that can start
fires around dry vegetation and brush. A spark arrestor may be required.
The operator should contact local agencies for laws or regulations relating to fire prevention requirements.
Model:
RR5022A/B
RR5026A
RR5032A/B
RR5036A
Fuel Type
87+ octane unleaded
87+ octane unleaded
gasoline
87+ octane unleaded
gasoline
87+ octane unleaded
Fuel Capacity
5.4L (1.4 Gal) RATO
3L (.8 Gallon) B&S
6.5L (1.7 Gallon)
9L (2.4 Gal) RATO
7.4L (1.95 Gal) Kohler
9L (2.4 Gal) RATO
7.4L (1.95 Gal) Kohler
Coolant Tank Capacity
6L (6.3 Quarts)
6L (6.3 Quarts)
6L (6.3 Quarts)
6L (6.3 Quarts)
Blade Speed
3,150 FPM
3,150 FPM
3,150 FPM
3150 FPM
Log Diameter
56cm (22”) Maximum
66cm (26”) Maximum
81cm (32”) Maximum
92cm (36”) Maximum
Board Width
55cm (21.5”) Maximum
62cm (22 1/8”) Maximum
72cm (28 ½”) Maximum
80cm (28 ½”) Maximum
Cutting Thickness
18cm (7”) Maximum
16.5cm (6 ½”) Maximum
18cm (7”) Maximum
18cm (7”) Maximum
Cutting Length
315cm(124”) Maximum
without extensions
315cm (124”) Maximum
without extensions
315cm (124”) Maximum
without extensions
315cm (124”) Maximum
without extensions

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
Assembly
Read all of the safety precautions and warnings in this manual before setting up or using this product.
TO PREVENT SERIOUS INJURY: The Sawmill can be dangerous if assembled incorrectly.
If you do not feel completely comfortable assembling it, please have a qualified technician assemble it.
Note: For any additional information regarding the sawmill parts, refer to Assembly Diagram near the end of this
manual.
1) Open the package and carefully remove the Individual parts from the crate and organize on the floor. Leave
the large head unit resting in the crate.
2) The two long boxes at the bottom of the crate are the rail parts. Open these boxes and you will see a small white
box, open and take out the bolts and nuts for mounting the rails.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca

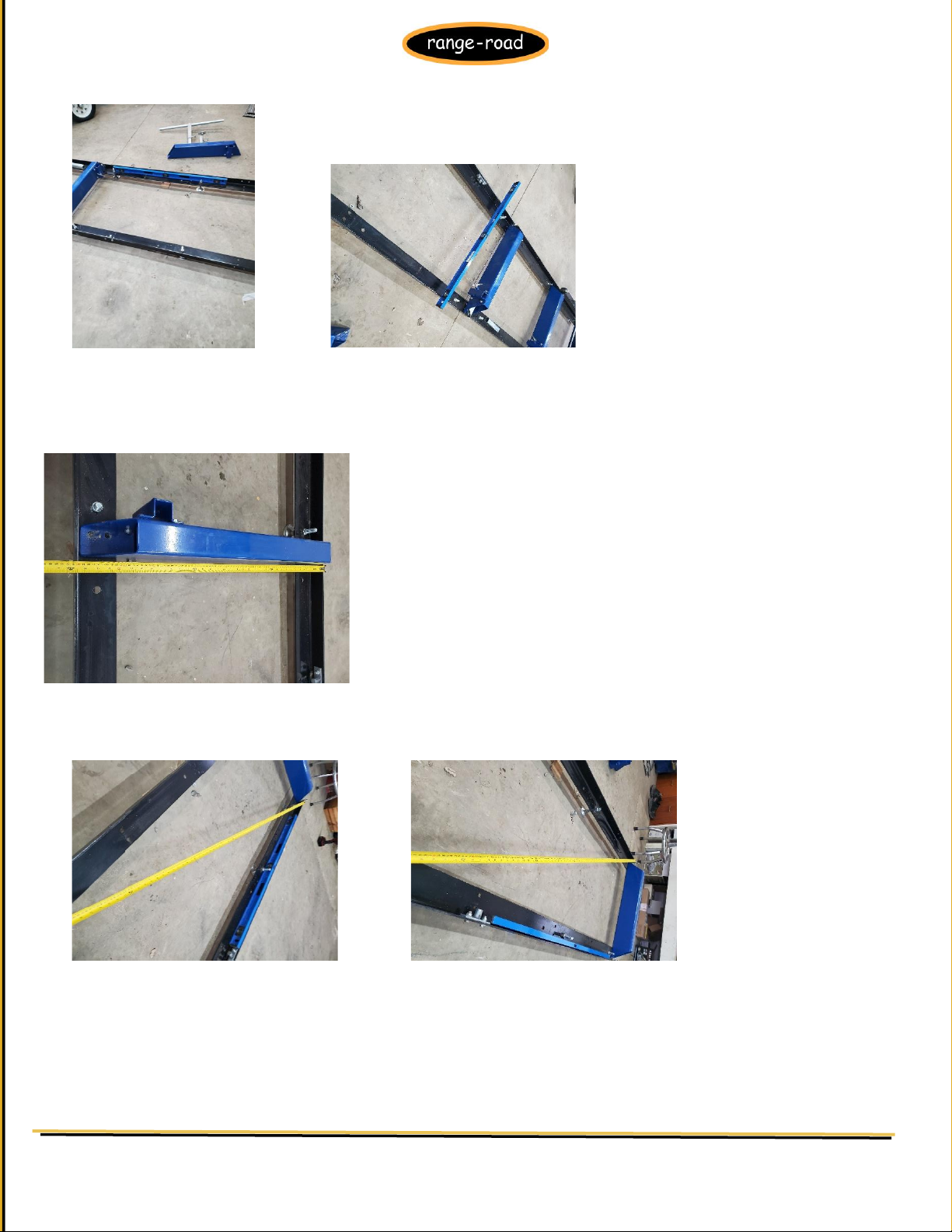

3) Place 2 guide rails on the floor and install 2 or 3 levelling feet in the large round holes on the bottom of each rail
4) Place the 2 rails on their levelling feet parallel to each other, the measurement from center to center will be roughly:
- RR5022 & RR5026 845mm (33 3/8”)
- RR5032 1008mm (39 11/16”)
- RR5036A 1099mm (43 ¼”)
Alternatively: assemble track without setting width, then:
1) You can assemble the sawmill head assembly, them measure the distance between the left and
right rollers on the sawmill head, that will give you the width that you need for setting the track
width. OR
2) You can assemble the sawmill head assembly, and loosely assemble the track, then set your
assembled head onto the loose track, the track will automatically move out to the proper width,
then run the sawmill head slowly down and up the track to set the width along the entire length of
the track.
Any of the above procedures will be suitable for setting the track width.
For any Sawmill to cut square and straight all pieces have to be squared to each other
and level. Use the adjusting feet to level one rail and then make sure the second rail is
level with the first one.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
5) Place the log support cross tubes on each end and put the bolts in snugly but do not tighten. The log support
cross tube that the next rails will also attach to has 4 holes on each side, this rail will eventually be the center of
the rails and it has a side pocket on it.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
6) Check your width measurement again:
- RR5022 & RR5026 845mm (33 ¼”)
- RR5032 1008mm (39 11/16”)
- RR5036A 1099mm (43 ¼”)
7) Do cross measurements now to make sure the rails are square to each other.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
8) When the rails are square, tighten all 8 bolts in the log support cross tubes and recheck levelness and
squareness, adjust as needed.
9) Mount and tighten centre log support cross tube.
10) Put the levelling feet on next 2 rails and put them in position at the centre log support cross tube.
11)When you have the rails level with the log support cross tube use clamps to hold the outer rails together.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
12)Level one rail, then level the 2nd rail from it
13)Check to make sure rails are the correct distance apart at both ends and put on the end log support cross
tube, do not tighten the bolts.
14)Cross measure new rails and adjust
15)When rails are square and level tighten 8 bolts in log support cross tube, mount the centre log support cross
tube and tighten it.
Re check levelness and cross measurements.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca

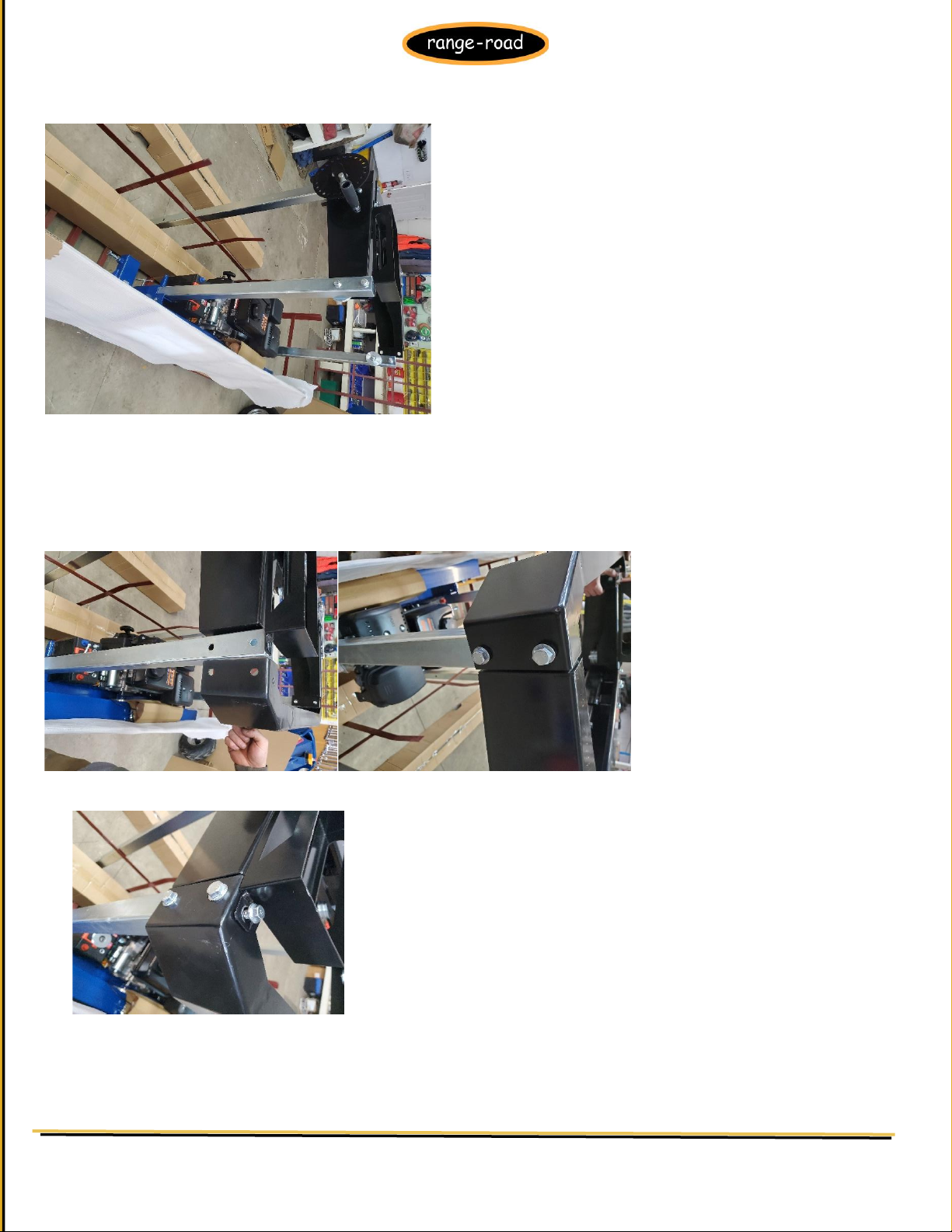

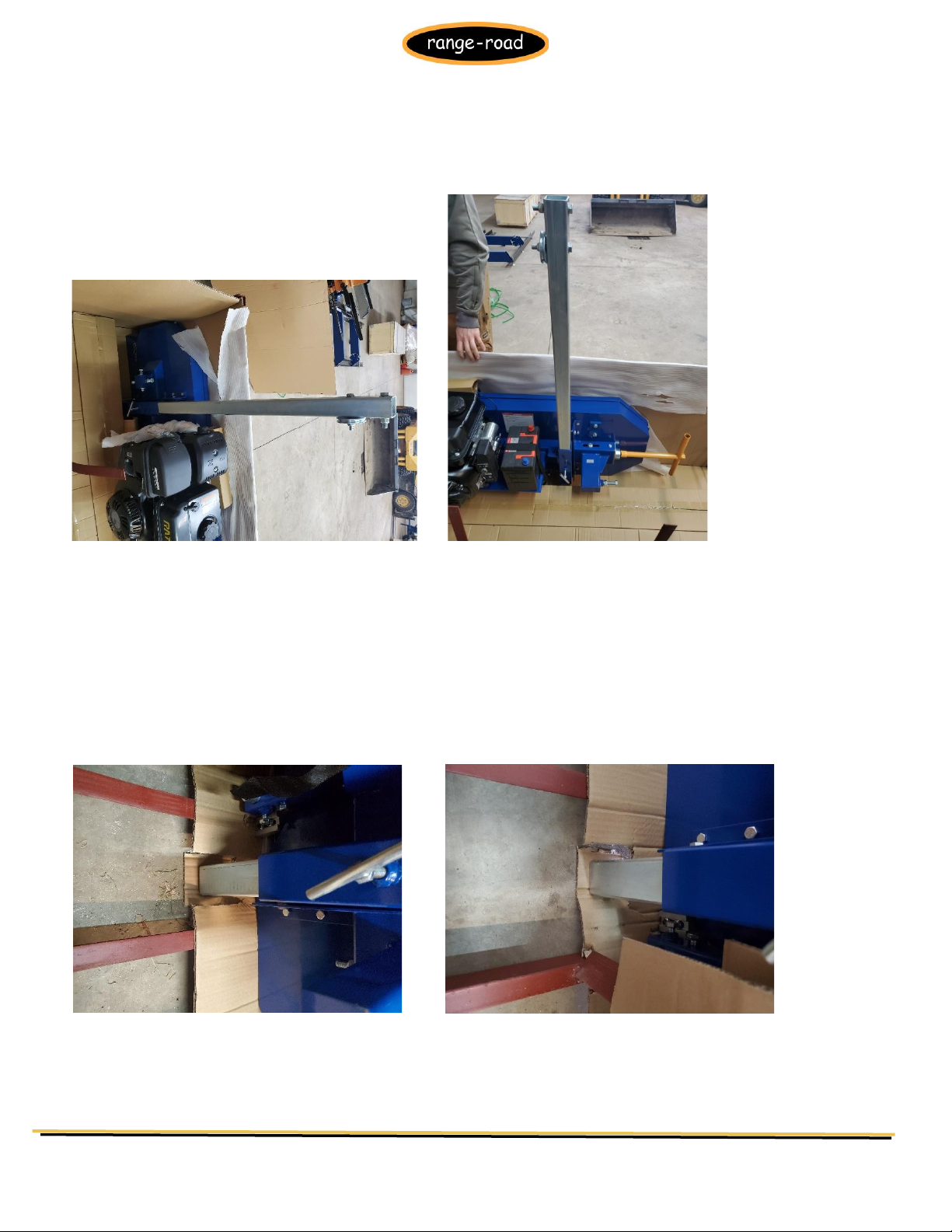

16)Take the 2 galvanized square posts (View 2 #25) with the pulleys on them and place them into the head unit
square tubes, remove the bolts and pulleys, pay attention to where the pulley spacers go, place these to the
side.
17)Cut the cardboard at the base of the tube so they can go through to the floor
18) Tighten the T-handles to lock the tubes in place

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca

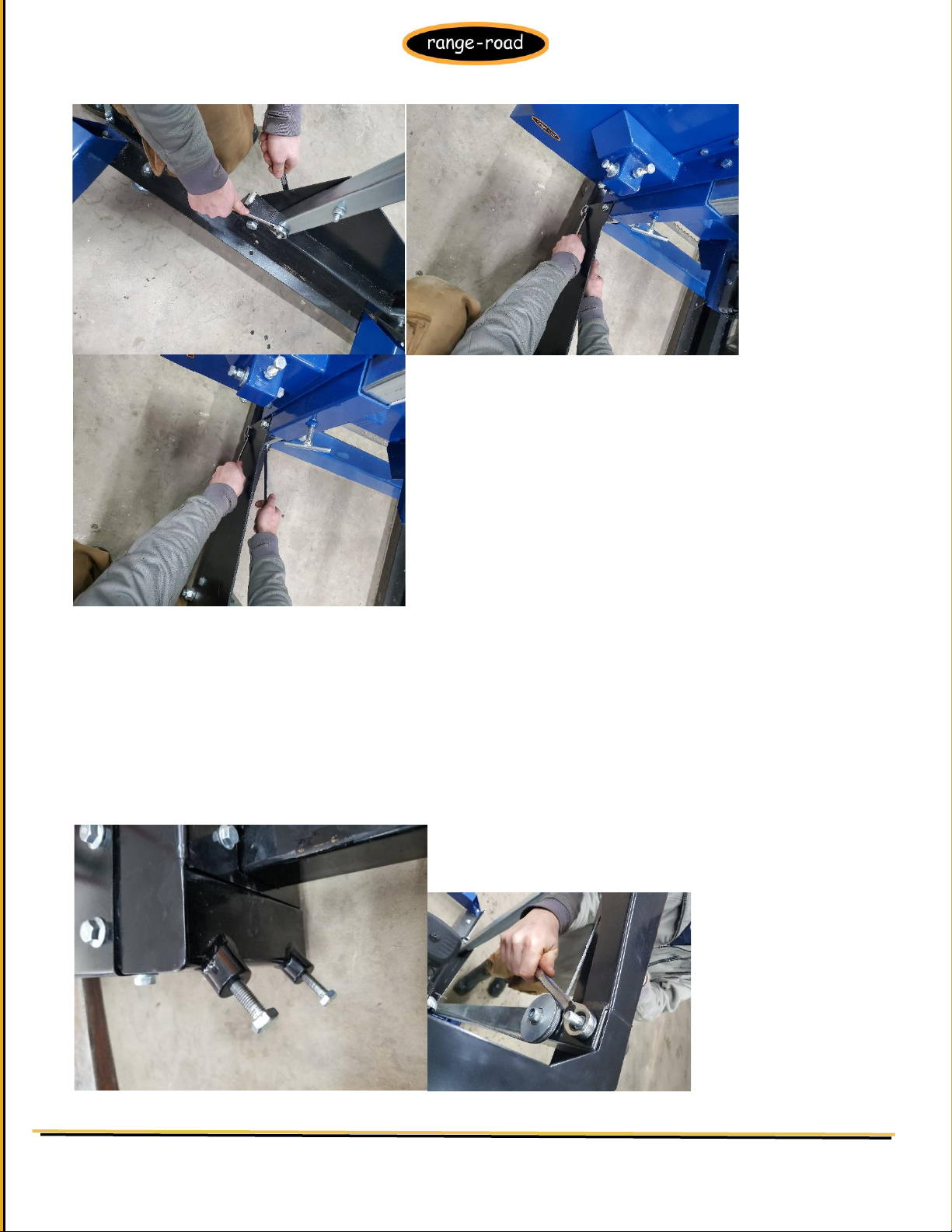

19) Loosen the 4 corner bolts on the top frame
20)Place the top frame upside down and put the 2 galvanized corner posts in and tighten all 4 corner bolt

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
21)Tighten all 4 corner bolts to hold posts in place.
22) Lift and rotate the top frame so it is right side up and position it at head unit.
23)Put the back cover in position and put both bolts in on the side away from the water tank bracket.
24)Put the back cover on the water tank side and put the bolts in

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
25)Place spacers and pulleys on bottom bolts, pulley circlips face the spacers, put nuts and washers on but do
not tighten up.
26)Lift complete head unit out of crate

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
27)Mount left and right roller assemblies onto the galvanized tubes, snug bolts up but do not tighten them.
28)Position head unit over track and line rollers up so that the track sits in the roller groove, set head unit onto
tracks.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
29)Tighten all 8 bolts on roller frames
30) Tighten 8 bolts on top frame of head unit

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
Install roller stops at all 4 frame corners
31)Mount control handle at preferred working height on right hand post, making sure throttle cable is not twisted,
tighten all 4 bolts. Take note that 32A/36A model’s equipped with the 22hp RATO, do NOT have the throttle
mounted on the handle, it will be near the engine key assembly.
32)Mount Scale bar, the metal spacer sits behind the bar at base where 2 bolts secure it.

Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
33)Tighten bolt in water tank mount bracket and put water tank in, the copper end on the water tank hose runs
through the hole in the frame above the blade, loosen the 16mm bolt, put the copper tube through, aiming it
towards the blade and snug the bolt up.
