INSTALLATION GUIDE
N4-PS20-8 Partskeeper Cabinet
( steel )

QUICK START GUIDE
REQUIRED ITEMS
2
PERSONS
q1.1 Setup...............................................................................................................................................
q1.2 Shelf Assembly................................................................................................................................
3 - 5
6 - 7
Phase 1 - Assembly
Phase 2 - Installation
8
9
10 - 11
12 - 13
14 - 15
q2.1 Attach Wall Brackets To The End Panels........................................................................................
q2.2 Mark Holes For Plus Nuts...............................................................................................................
q2.3 Attach Plus Nut...............................................................................................................................
q2.4 Attach Partskeeper Cabinet To the Floor........................................................................................
q2.5 Attach Wall Brackets......................................................................................................................
qCordless Impact
qCordless Drill
qTape Measure
qMarker
q1/2" Socket
q1/2" Drill Bit w/ Drill Collar ( Set at 1/2" )
q3/8" Driver Bit
qKnife
qPlusnut Tool / Plusnut Gun ( 5/16" )

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 3
PHASE 1 – ASSEMBLY
1.1 SETUP
1.1.1 Unpack components; compare with the bill of materials.
1.1.2 Verify all parts are present.
Item No. Description Qty.
40 - 715 Bracket head 2
40 - 716 Bracket arm 2
50 - 7003 End Panel ( Left ) 1
50 - 7004 End Panel ( Right ) 1
50 - 707 N4 Partskeeper Bottom Shelf 1
62-U5079 Plastic Partkeeper Case 8
60 - 11.875 × 19.5 Shelf Tray, Black Plywood, Usable 12" × 19.5" 1
EN - 402 × 19.5 - 00 Shelf Extrusion ( 19.5" ) 1
94 - 5013 Assembly Fastener Kit 1
96 - 5013 Install Fastener Kit 1
BILL OF MATERIALS
60 - 11.875 × 19.5
50-707
62-U5079
EN-402×19.5-00
50 - 7003 50 - 7004
40 - 716
40 - 715

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 4

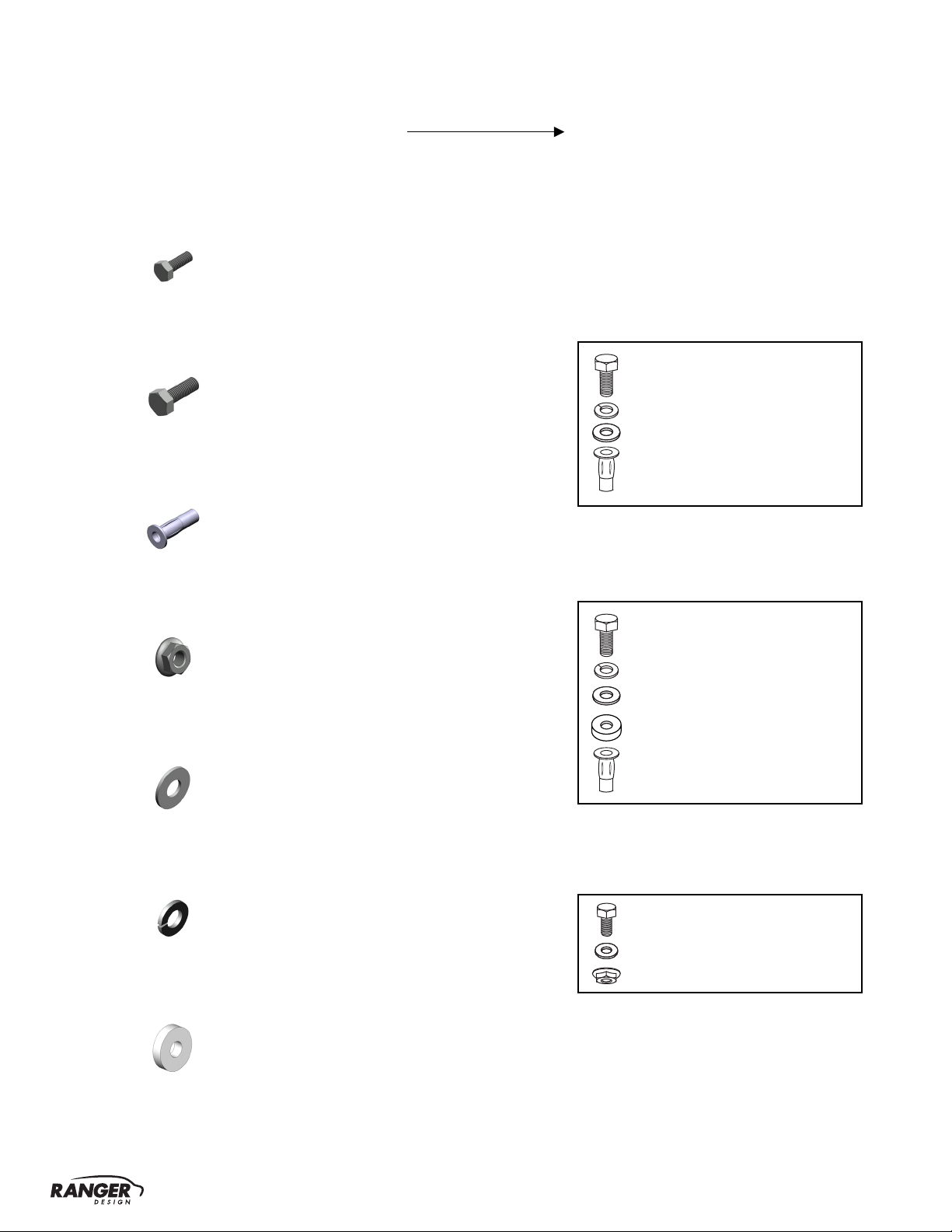

94 - 5013 Fastener Kit Fastener Assembly
1.1.3 Fastener kits.
#90-106 Hex Bolt 1/4" × 1/2"
#98-112 Flat Washer
#94-112 Serrated Nut
4×
#90-200 Hex Bolt 5/16" × 1/2"
#98-116 Flat Washer
#94-116 Serrated Nut
2×
12×
#92-102 Screw #14 × 1"
2×
Hex Bolt
5/16"-18 × 1/2"
GR-5 ZINC
# 90-200
4×
Hex Bolt
1/4"-18 × 1/2"
GR-5 ZINC
# 90-106
# 94-112
Serrated Nut
1/4"-20
ZINC
4×
# 94-116
Serrated Nut
5/16"-18
ZINC
2×
# 92-102
Screw HWH
#14 × 1"
ZINC
12×
2× # 98-116
Flat Washer
5/16"
ZINC
4× # 98-112
Flat Washer
1/4"
ZINC

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 5
96 - 5013 Fastener Kit Fastener Assembly
Hex Bolt
5/16"-18 × 1-1/4"
GR-5 ZINC
# 90-212
Plusnut
# 94-132
# 98-122
Lock Washer
5/16"
ZINC
4×
Spacer
0.375" ID, × 1.0" OD × 0.25" LONG
NYLON
# 98-157
16× # 98-116
Flat Washer
5/16", O.D. 7/8"
ZINC
Hex Bolt
5/16"-18 × 3/4"
GR-5 ZINC
# 90-204
8×
# 94-116
Serrated Nut
5/16"-18
ZINC
8×
4×
#90-212 Hex Bolt 5/16" × 1-1/4"
#98-122 Lock Washer
#98-116 Flat Washer
#94-132 5/16" Plusnut
#94-132 5/16" Plusnut
4×
#90-212 Hex Bolt 5/16" × 1-1/4"
#98-122 Lock Washer
#98-116 Flat Washer
#98-157 Spacers
( QTY = Gap beTween floor and end panel )
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
8×
8×
8×
8×

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 6
TOOLS
qCordless Impact
q3/8" Driver Bit
q1/2" Socket
1.2.1 Attach both panels to the shelf trays.
PHASE 1 – ASSEMBLY
1.2 SHELF ASSEMBLY
12" × 19.5"
50-707
#92-102 Screw #14 × 1"
HARDWARE USED
20× 94-5013
2× 94-5013
#90-200 Hex Bolt 5/16" × 1/2"
#98-116 Flat Washer
#94-116 Serrated Nut
4× 94-5013
#90-106 Hex Bolt 1/4" × 1/2"
#98-112 Flat Washer
#94-112 Serrated Nut
EN-402×19.5-00
IMPORTANT: Assembly the cabinet on a protected clean surface to avoid scratching.

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 7
NOTE: Hand-tighten the bolts for adjustment.
2×

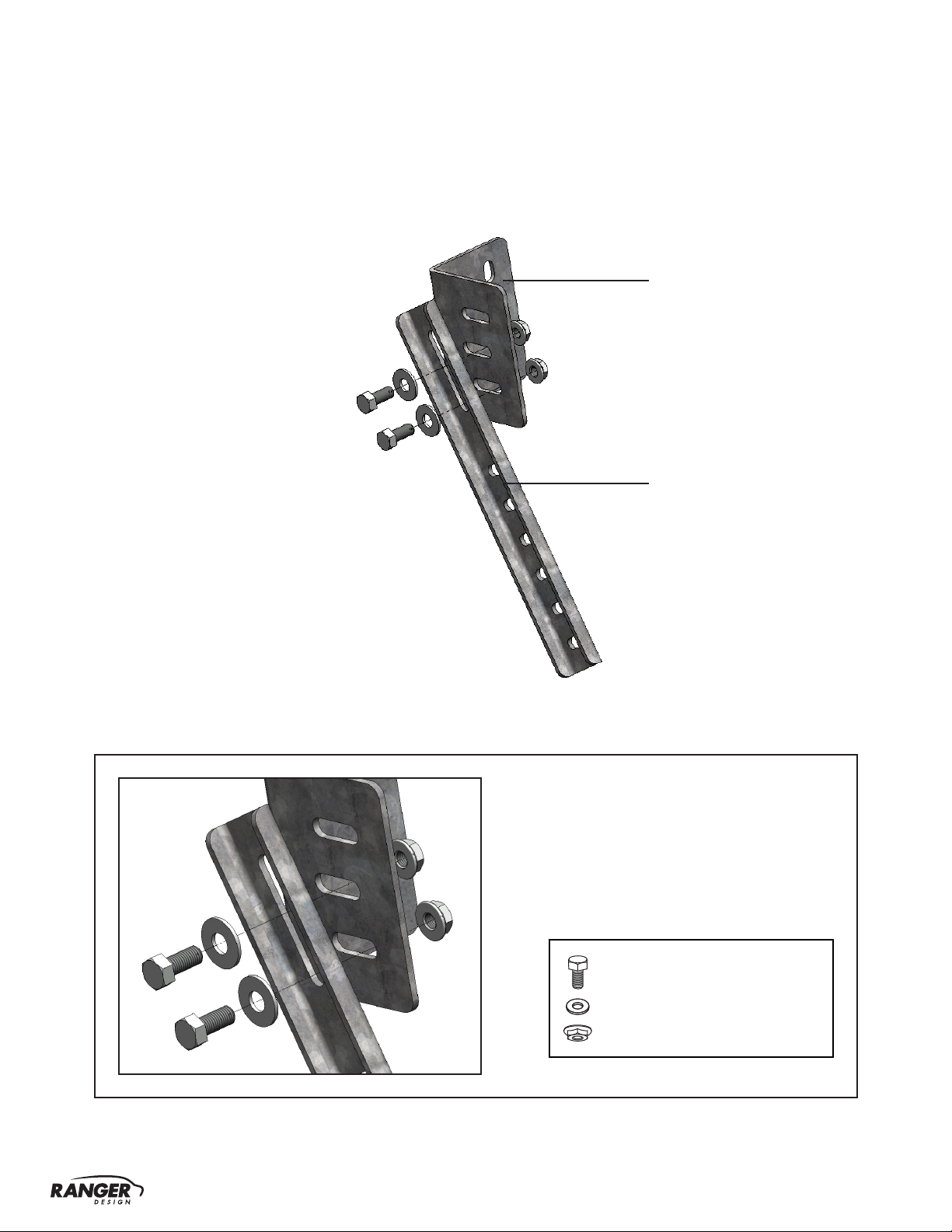

1.2.2 Attach the bracket head to the bracket arm.
TOOLS
qCordless Impact
q1/2" Socket
HARDWARE USED
4× hand-tighten the bolts
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
40 - 716
40 - 715

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 8
PHASE 2 – INSTALLATION
2.1 ATTACH WALL BRACKETS TO THE END PANELS
NOTE: Handle with care.
2.1.1 • Lift the assembled partskeeper cabinet to the vehicle, then put it in place.
• Attach the bracket arm to the panels aligning the brackets head to the horizontal rim of the vehicle.
HORIZONTAL RIM
BRACKET HEAD
TOOLS
qCordless Impact
q1/2" Socket
HARDWARE USED
4× hand-tighten the bolts
#90-204 Hex Bolt 5/16" × 3/4"
#98-116 Flat Washer
#94-116 Serrated Nut
WALL BRACKETS

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 9
PHASE 2 – INSTALLATION

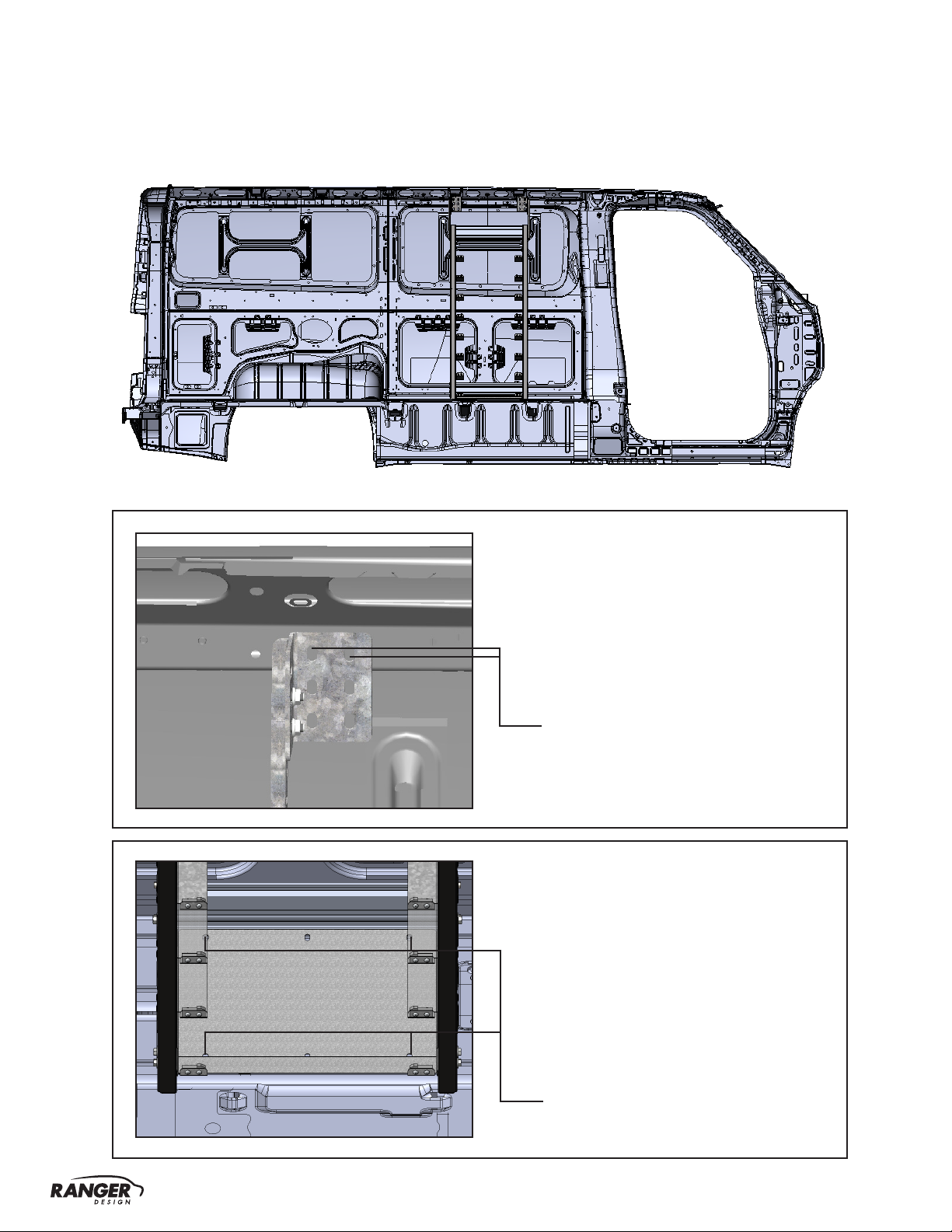

2.2 MARK HOLES FOR PLUS NUTS
2.2.1 After attaching the brackets, mark the holes from the brackets and bottom shelf to the vehicle.
TOOLS
qMarker
MARK
Mark 2 holes of the brackets head
on the vehicle horizontal rim.
NOTE: If you are using Ranger wall
kit, please go to page 15.
TOOLS
qMarker
MARK
Mark 2 holes of each end panel on the
vehicle oor.
NOTE: If you are using Ranger oor,
please go to page 13.

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 10
PHASE 2 – INSTALLATION
2.3 ATTACH PLUS NUTS
WARNING: Before drilling, ensure that you will not hit any critical parts of the vehicle like the Gas tank,
Wiring Harness and Hose.
NOTE: Use 1/2" drill bit with drill collar to stop drill at 1/2" depth.
2.3.1 • Remove the assembled partskeeper cabinet and place on the side.
• Drill all the marks using 1/2" drill bit w/ drill collar, then attach plus nuts to the holes.
PLUSNUT
DRILL COLLAR
( seT aT 1/2")
Drill all the marks then, attach plus nuts to the
holes.
HARDWARE USED
8× 96-5013
TOOLS
qCordless Drill
q1/2" Drill Bit w/ Drill Collar ( Set at 1/2" )
qPlus Nut Tool ( 5/16" )
#94-132 Plus Nut

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 11
FORWARD REVERSE
STEP: Put the plusnut on the plusnut gun, then attach the plus nut in the hole by turning the gun forward until
the plus nut locks, then remove the gun by turning in reverse.
•using plusnut gun
•using the 6491 plusnut tool
2.3.2 How to attach plus nut.
6491 HARDWARE USED
Flat washer 5/16"
Flat washer 5/16" BS × 7/8" OD
TOOLS
qCordless Impact
q1/2" Socket
q9/16" Wrench
STEP 1:
Assemble the 6491 plusnut tool with the hardware needed, plus
nut and the 9/16" wrench as shown.
FORWARD REVERSE
STEP 2:
Attach the plus nut in the hole by turning
the bolt forward using an impact with a
1/2" socket until the plusnut locks, then
remove the bolt by turning the impact in
reverse.
NOTE: The hardware used for the 6490 plusnut tool is not included in the fastener bag.
The 6490 plusnut tool can be ordered separately upon demand at no charge.

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 12
2.4.1 Put the assembled partskeeper cabinet back in place aligning the holes to the plusnuts, then install the
bottom shelf to the plus nuts.
PHASE 2 – INSTALLATION
2.4 ATTACH SHELF UNIT TO THE FLOOR
without ranger floor
W/ Spacer W/O Spacer
most vehicle use 1 spacer when not over ribs
tips when to use spacer:
TOOLS
qCordless Impact
q1/2" Socket
#90-212 Hex Bolt 5/16" × 1-1/4"
#98-122 Lock Washer
#98-116 Flat Washer
#98-157 Spacers
( QTY = Gap beTween floor and end panel )
HARDWARE USED
4× 96-5013
#94-132 5/16" Plusnut

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 13

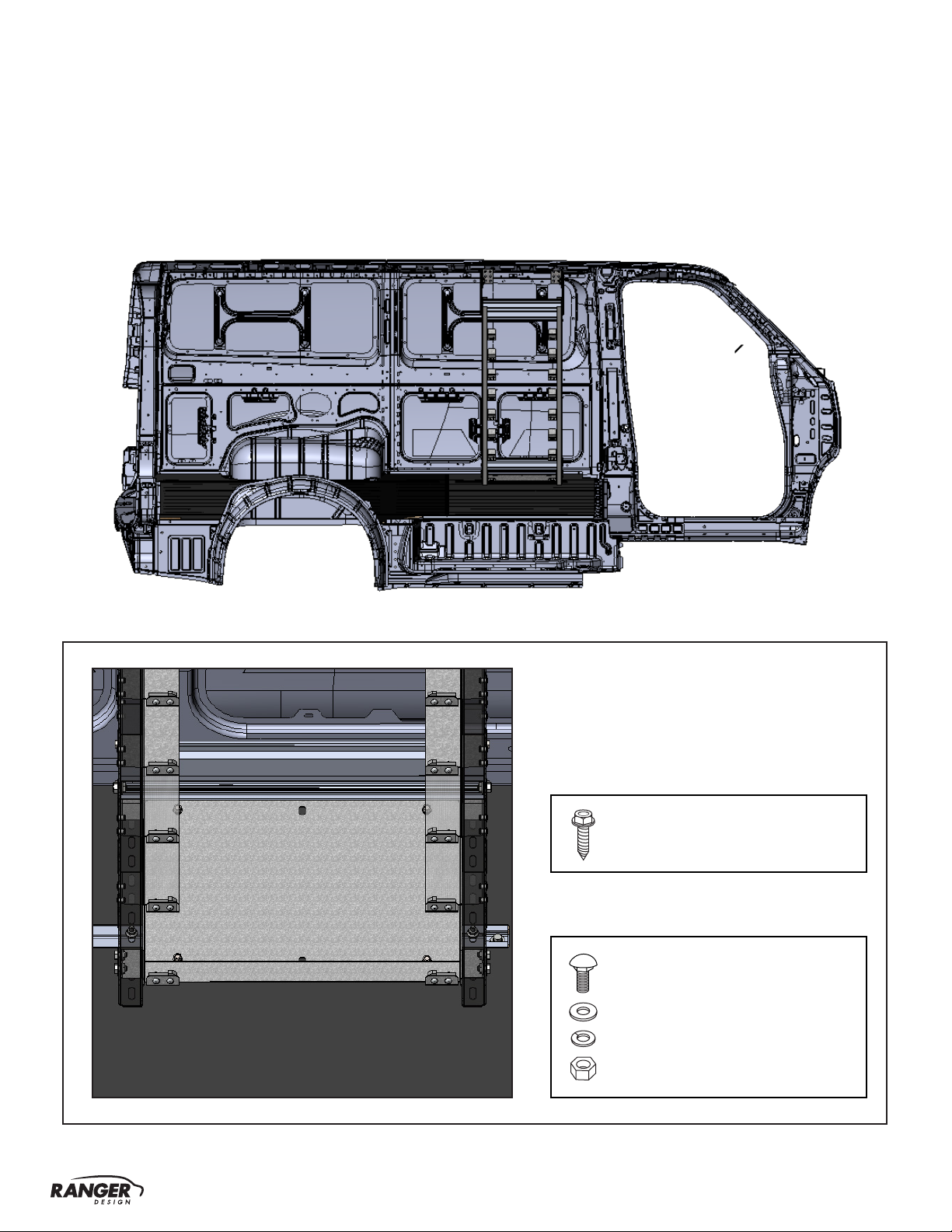

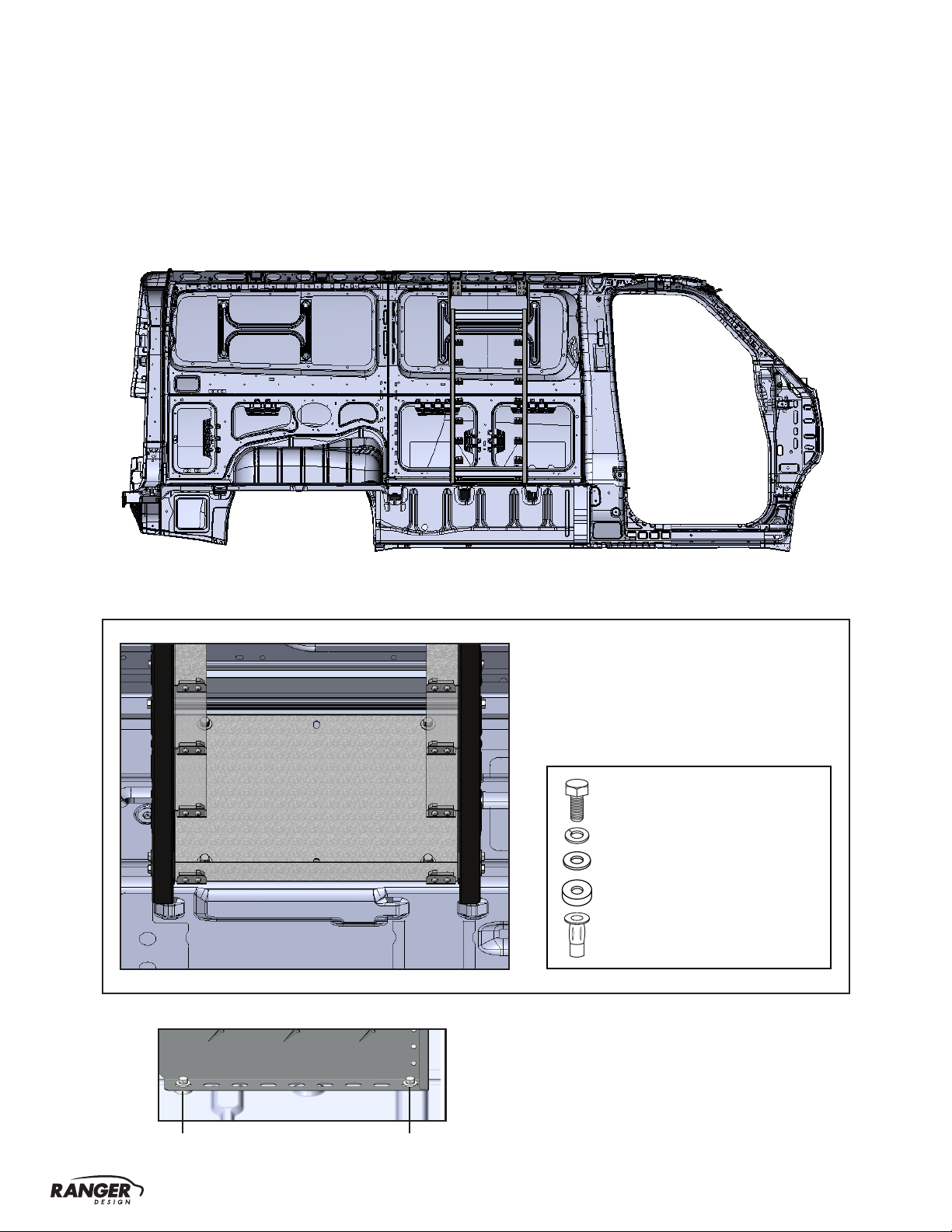

2.4.2 • Lift the parskeeper cabinet inside the van, then put it in place.
• Install the partskeeper cabinet to the floor mounting track by sliding bolts in the mounting tracks,
and screwing the bottom shelf to the floor.
#94-104 Hex Nut
#98-116 Lock Washer
#98-122 Flat Washer
#90-490 Carriage Bolt 5/16" × 1"
HARDWARE USED
2× floor fastener kit
#92-102 Screw 1"
HARDWARE USED
4× floor fastener kit
TOOLS
qCordless Impact q3/8" Driver Bit
q1/2" Socket
with ranger floor

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 14

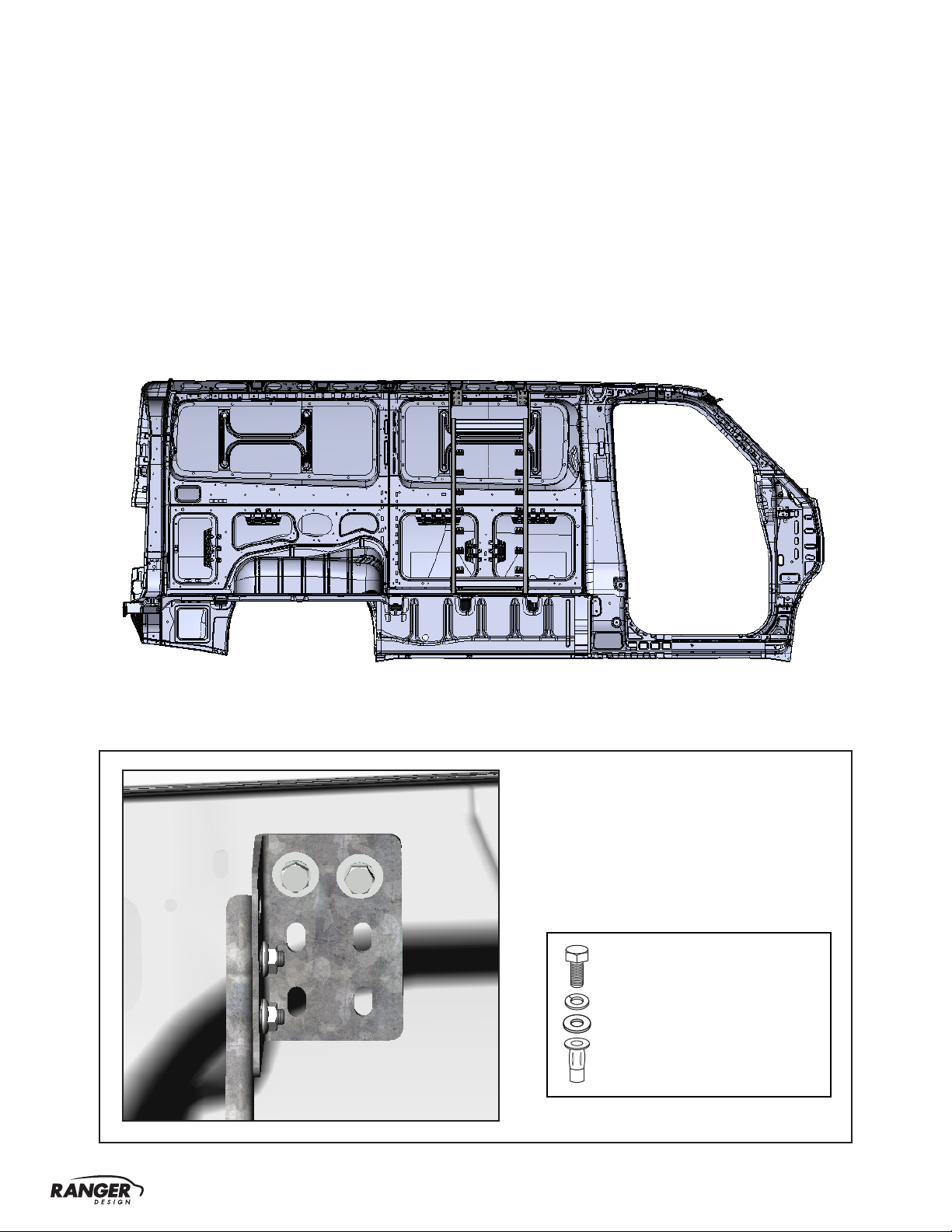

2.5.1 Align the wall brackets to the plus nuts, then install the wall brackets to the wall.
IMPORTANT: After installation is completed, ensure all bolts are tightened.
PHASE 2 – INSTALLATION
2.5 ATTACH WALL BRACKETS
without ranger wall kits
TOOLS
qCordless Impact
q1/2" Socket
HARDWARE USED
4× 96-5013
#90-212 Hex Bolt 5/16" × 1-1/4"
#98-122 Lock Washer
#98-116 Flat Washer
#94-132 5/16" Plusnut
NOTE: Tighten the bolts that attach the bracket to the wall or wall rails 1st before
tightening the bolts from the brackets to the end panels.

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 15

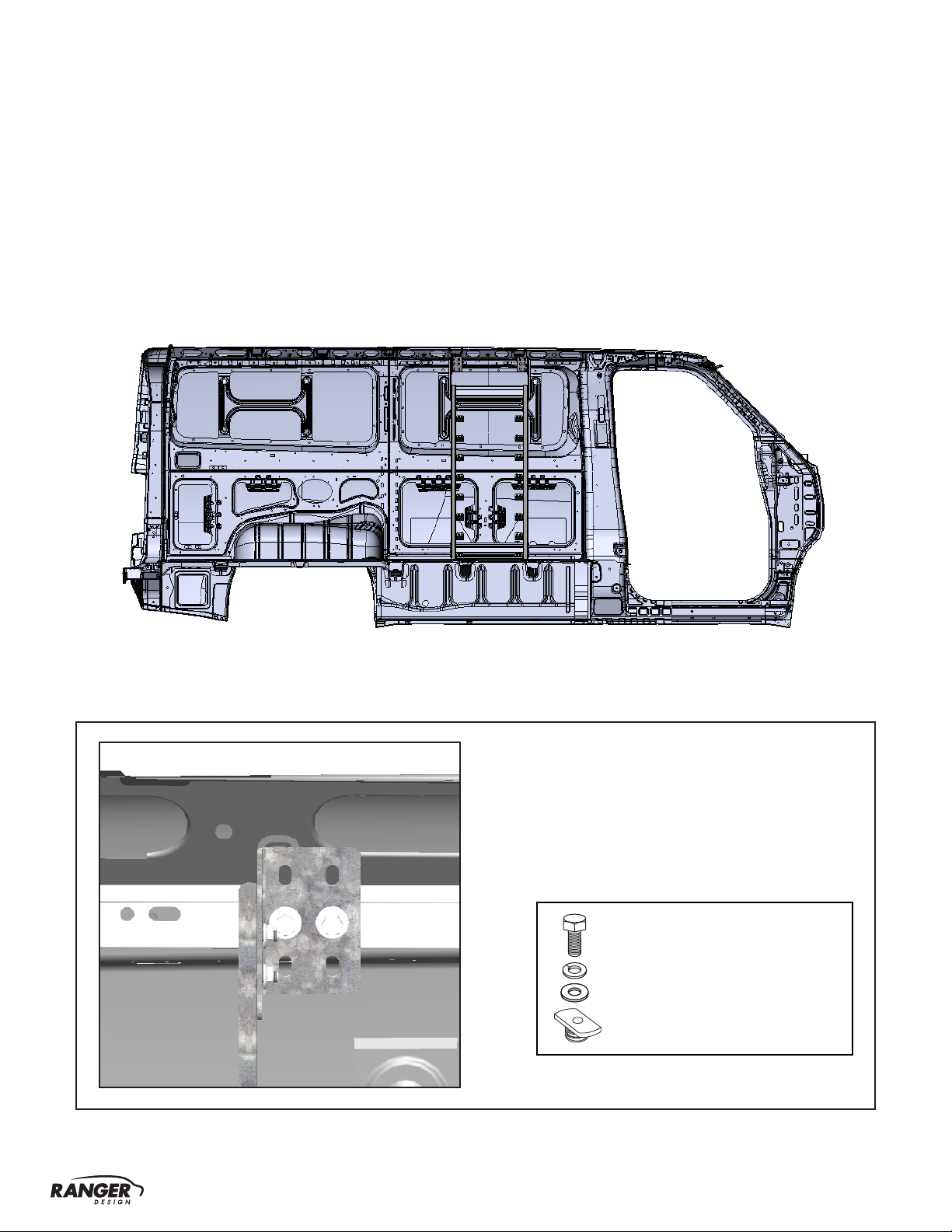

2.5.2 Align the wall brackets to the wall mounting track kits, then install the wall brackets
to the wall mounting track kits using channel nuts.
IMPORTANT: After installation is completed, ensure all bolts are tightened.
with ranger wall kits
TOOLS
qCordless Impact
q1/2" Socket
FASTENERS USED
4× wall kits fastener kit
#90-212 Hex Bolt 5/16" × 1-1/4"
#98-122 Lock Washer
#98-116 Flat Washer
#94-150 Channel Nut
NOTE: Tighten the bolts that attach the bracket to the wall or wall rails 1st before
tightening the bolts from the brackets to the end panels.

For technical support, contact us at 1-800-565-5321 N4-PS20-8 Installation Guide |REV. A1 | Page 16

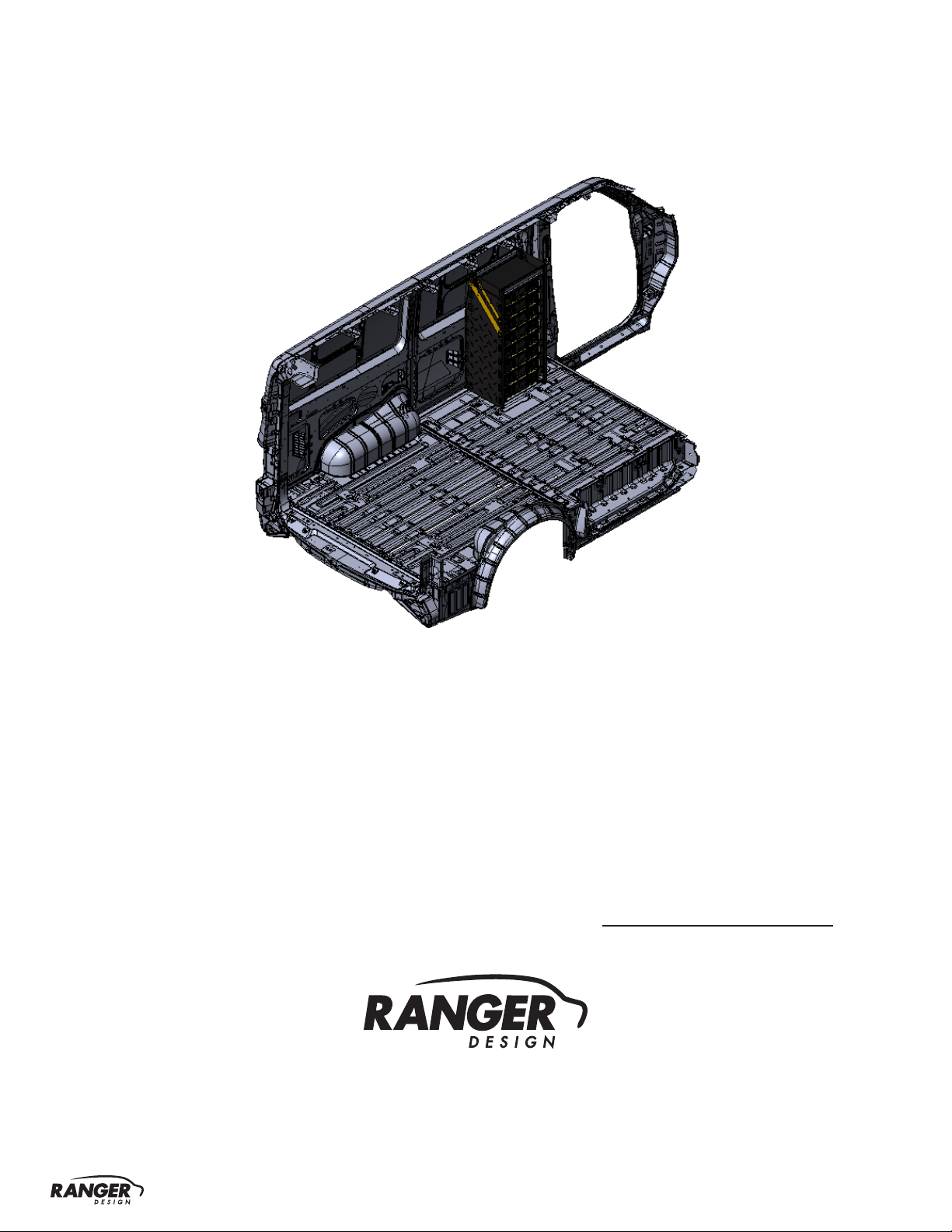

IMPORTANT: After checking all bolts are thightened slide 8 partskeeper case to the cabinet.
“You have successfully installed your
N4-PS20-8
Thank you for doing business with us.”
