Ranger design 62-U5074 User manual

INSTALLATION GUIDE
62-U5074 Partskeeper Carry Case
( aluminum )

QUICK START GUIDE
REQUIRED ITEMS
2
PERSONS
q1.1 Setup...............................................................................................................................................
q1.2 Partskeeper Holder & Base Assembly.............................................................................................
3 - 4
4 - 5
Phase 1 - Assembly
Phase 2 - Installation
6
q2.1 Partskeeper Carry case Installation................................................................................................
qCordless Impact
qRivet Gun
q3/8" Driver Bit

For technical support, contact us at 1-800-565-5321 62-U5074 Installation Guide |REV. A1 | Page 3
PHASE 1 – ASSEMBLY
1.1 SETUP

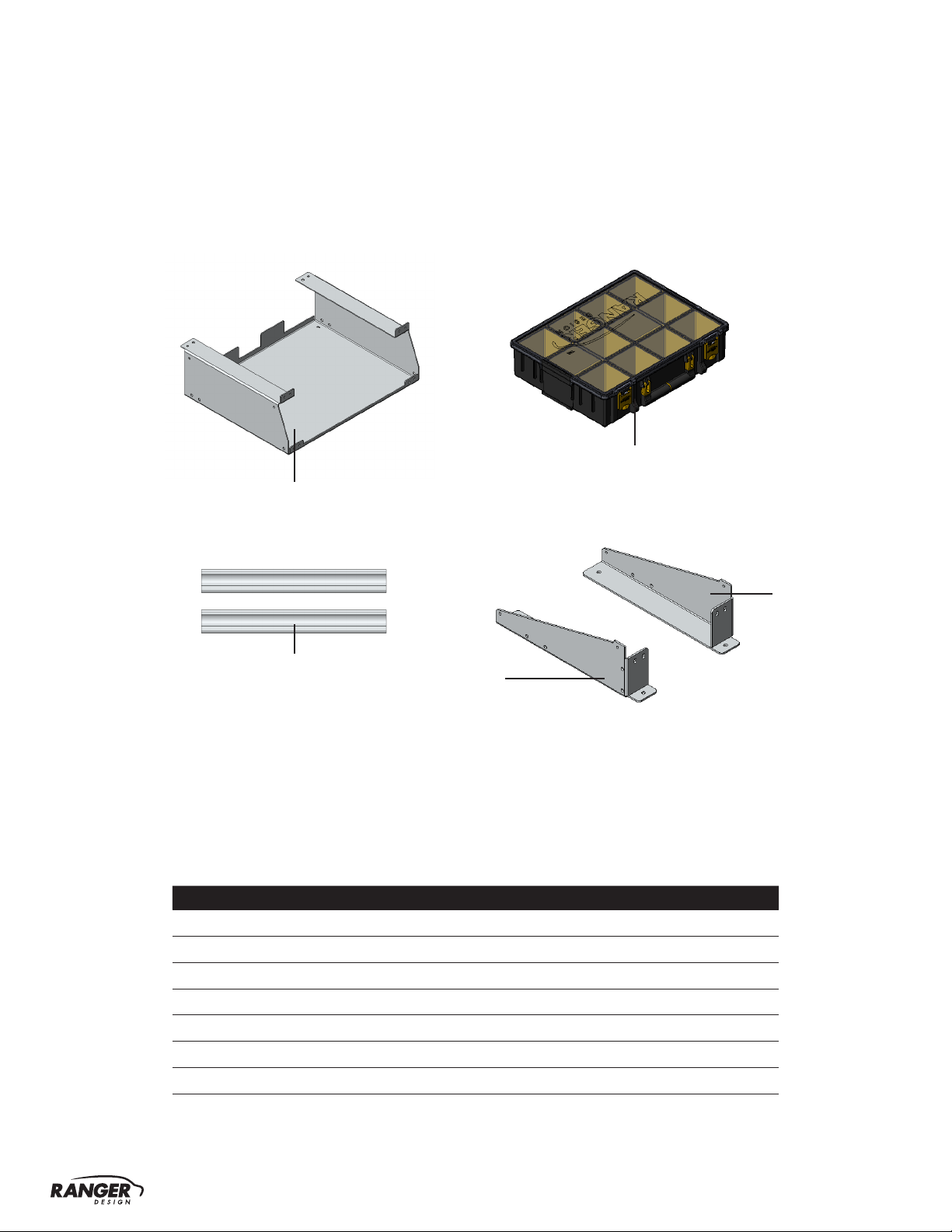

1.1.1 Unpack components; compare with the bill of materials.
1.1.2 Verify all parts are present.
Item No. Description Qty.
50-700 Partskeeper Holder 4
50-709 Tilted Left Side Base 1
50-710 Tilted Right Side Base 1
62-U5079 Plastic Partskeeper Case 4
EN - 410 × 17" Bin Extrusion, 17" 2
94-5016 Assembly Fastener Kit 1
96-5016 Install Fastener Kit 1
BILL OF MATERIALS
62-U5079
50-700
EN - 410 × 17" 50-709
50-710

For technical support, contact us at 1-800-565-5321 62-U5074 Installation Guide |REV. A1 | Page 4
94 - 5016 Fastener Kit Fastener Assembly
96 - 5016 Fastener Kit Fastener Assembly
1.1.3 Fastener kits.
18×
Closed Rivet
3/16" × 1/4"
ALUM/STEEL
# 96-202
8× # 92-102
Screw HWH
#14 × 1"
ZINC
8×
Closed Rivet
3/16" × 1/4"
ALUM/STEEL
# 96-202
4× # 92-102
Screw HWH
#14 × 1"
ZINC
#96-202 Closed Rivet
18×
8×
#92-102 Screw #14 × 1"
#96-202 Closed Rivet
8×
4×
#92-102 Screw #14 × 1"
PHASE 1 – ASSEMBLY
1.2 PARTSKEEPER HOLDER & BASE ASSEMBLY
TOOLS
qCordless Impact
q3/8" Bit
#92-102 Screw #14 × 1"
HARDWARE USED
8× 94-5016
1.2.1 Attach the bin extrusion to the left and right side base.

For technical support, contact us at 1-800-565-5321 62-U5074 Installation Guide |REV. A1 | Page 5
FRONT
BACK
#96-202 Closed Rivet
HARDWARE USED
18× 94-5016
TOOLS
qRivet Gun
1.2.2 Stack and rivet the partskeeper holder to each other.

For technical support, contact us at 1-800-565-5321 62-U5074 Installation Guide |REV. A1 | Page 6
PHASE 2 – INSTALL
2.1 PARTSKEEPER CARRY CASE INSTALLATION
TOOLS
qCordless Impact
q3/8" Bit
#92-102 Screw #14 × 1"
HARDWARE USED
4× 96-5015
2.1.1 •Lift the assembled partskeeper carry base to the vehicle, then put it in place.
• Screw the assembled partskeeper carry base to the oor vehicle.
2.1.2 •Rivet the partskeeper holder to the partskeeper carry base.
• After riveting the partskeeper holder slide the partskeeper case inside the partskeeper holder.
NOTE: Rivet from inside not from outside.
#96-202 Closed Rivet
HARDWARE USED
4× 96-5015
TOOLS
qRivet Gun

For technical support, contact us at 1-800-565-5321 62-U5074 Installation Guide |REV. A1 | Page 7
“You have successfully installed your
62-U5074
Thank you for doing business with us.”
For any feedback or suggestions you may have, please contact: [e-mail]
