OPERATOR’S MANUAL

April 19, 2007
For Parts or Service contact your local Distributor or:
Betson Enterprises
303 Paterson Plank Road
Carlstadt, Ne Jersey
Main Phone: [phone]
Toll Free Phone: [phone]
Part Phone: [phone]
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.
CAUTION:
•The spe ifi ations of this produ t are subje t to hange without noti e for reasons su h
as performan e.
•The ontent of this game, its main devi es and design are prote ted under ea h federal
law on erning patent, opyright and other intelle tual properties.
•Unauthorized reprodu tion of this do ument or any of its ontents is stri tly forbidden.
2
TM

April 19, 2007
Safety Instructions
Safety instru tions apply to operators and servi e personnel. Read these instru tions before preparing the video
game ma hine (VGM) for play. Other safety instru tions appear throughout this manual.
WARNING: TRANSPORTING THE VIDEO GAME MACHINE (VGM).
The VGM ontains glass and fragile ele troni devi es. Use appropriate are when transporting . Avoid rough
handling when moving the VGM.
WARNING: DISCONNECT POWER.
Always turn the power OFF and unplug the VGM before attempting servi e or adjustments unless otherwise
instru ted. Installing or repairing omponents with the power swit hed ON an damage the omponents an void
warranty.
WARNING: GROUND GAMES.
Avoid ele tri al sho k! Do not plug in the VGM until you have inspe ted and properly grounded it. Only plug into a
grounded, three-wire outlet. Do not use a “ heater” plug, or ut off the ground pin on the line ord.
WARNING: AVOID ELECTRICAL SHOCKS.
This VGM does not utilize an isolation transformer. Internal abinet AC is not isolated from the external AC line.
WARNING: HANDLE FLOURESCENT TUBE AND CRT WITH CARE.
If you drop a fluores ent tube or CRT and it breaks, it will implode! Shattered glass an fly eight feet or more from
the implosion.
WARNING: CHECK POWER SELECTOR, LAMP.
Set the 115/230 VAC sele tor swit h on the power supply for the orre t line voltage on the installation site. Verify
that the fluores ent lamps are rated for the proper line voltage.
WARNING: USE PROPER FUSE.
Avoid ele tri al sho k! Repla ement fuses must be identi ally rated to the original fuse!
WARNING: ATTACH CONNECTORS PROPERLY.
Be sure all onne tors mate properly. If onne tors do not slip in easily, do not for e them. Conne tors are often
keyed and only onne t one way. Che k for orre t orientation.
WARNING: USE EXTREME CARE WHEN HANDLING PC.
The PC ontains sensitive omponents su h as a hard drive. Do not handle roughly. Call your distributor before
servi ing PC internal omponents. Ask about warranty information as it relates to the PC.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.3

April 19, 2007
WARNING: HAZARD TO EPILEPTICS.
A very small portion of the population has a ondition whi h may ause them to experien e
epilepti seizures or have momentary loss of ons iousness when viewing ertain kinds of
flashing lights or patterns that are present in our daily environment. These persons may
experien e seizures while wat hing some kinds of television pi tures or playing ertain video
games. Peoples who have not had any previous seizures may nonetheless have an undete ted
epilepti ondition.
If you or anyone in your family has experien ed symptoms linked to an epilepti ondition (e.g.,
seizures or loss of awareness), immediately onsult your physi ian before using any video
games.
We re ommend that parents observe their hildren while they play video games. If you or your
hild experien e the following symptoms: dizziness, altered vision, eye or mus le twit hing,
involuntary movements, loss of awareness, disorientation, or onvulsions, DISCONTINUE USE
IMMEDIATELY and onsult your physi ian.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.4

April 19, 2007
PRODUCT SPECIFICATIONS
OPERATING REQUIREMENTS
ELECTRICAL POWER
Domesti 120VAC @ 60 Hz, 5 amps
Foreign 240VAC @ 50Hz, 2.5 amps
TEMPERATURE
32° F to 100°F
(0°C to 38°C)
HUMIDITY
Not to ex eed 95% relative humidity.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.5

April 19, 2007
INSPECTION AND INSTALLATION
WARNING: Use extreme are when moving or servi ing the game abinet. Don’t plug in the game until you
have read this manual. If the line cord is damaged, it must be replaced by a similar cord available from
the manufacturer or service agent.
Please he k the following after the game has been removed from its shipping rate and pla ed in a suitable play
or servi e area.
Make sure that the game abinet is level. Adjust the asters as needed.
1. Che k the AC line ord for any visible signs of damage to the plug or line ord insulation.
2. Che k for possible shipping damage to the following:
•Player interfa es: steering wheel, buttons, keypad and shifter.
•Seat assembly.
•Monitor glass.
•Cabinet ba kdoor.
•Cabinet oin door.
•Cabinet and seat de als.
3. Remove the oin door key from the oin return hute.
4. Open the top oin door and lo ate the key for the ba kdoor and the ashbox.
5. Lo ate hardware kit: tamper proof tool kit
rossover network able
line ord
seat hardware fasteners (8 sets)
6. Remove the ba kdoor the ba kdoor from the abinet and visually inspe t the ele troni omponents.
7. Verify that all onne tors are se ure and that the bottom of the abinet is free of loose obje ts whi h may
have possibly ome loose during shipping.
CAUTION: A ess to ba k of the games should be limited to servi e personnel only! Allow minimum learan e
between ba k of game and wall stru ture for able and ventilation while preventing non-authorized a ess.
Maximum learan e should be 6 in hes (15 m), in a ordan e with lo al ode or whi hever is less.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.6

April 19, 2007
Seat Assembly Procedure
WARNING: The abinet is top heavy. Install only on level surfa e. Use the leg levelers to make sure the abinet
and seat are stable. Do not push against plasti parts during movement.
1. Roll the abinet and seat to the intended lo ation and lower the leg levelers until both are equal height
and stable.
2. Rea h inside the base of the abinet remove the bolts to fasten a mounting rail to the abinet and set
aside. Individually pull the rail out, flip it end over end and reinsert it. Fasten the rail to the inside of the
abinet with bolts until finger tight; some movement is required in the mounting rails to align holes with
seat pedestal assembly. Repeat for the mounting rail on the other side. See diagram.
3.
4. Roll the pedestal near the abinet and
align the opening in the pedestal with
the ends of the rails. Slide the pedestal
forward onto the rails leaving enough
spa e to atta h the wiring harness.
Mate ea h able onne tor and press
firmly to seat the onta ts. Ensure no
wires are pin hed during the pedestal
atta hment. Fasten in pla e with the ¼”
X 20 tamper resistant s rews and large
flat washers provided.
5. Tighten the s rews firmly with the
wren h provided, and then tighten the
bolts for the mounting rails.
6. Adjust all levelers until both abinet and seat are flush and parallel with ea h other. Inspe t for pin hed
wires before firmly tightening the remaining fasteners to atta h the two pie es as one.
Po er Up Procedure
1. Plug the game line ord into an appropriately wired and fused AC re epta le.
2. Lo ate the game AC main swit h to the bottom left side on ba k of the game abinet.
3. Turn the swit h to the ON position.
4. The game attra t feature will begin after the game is finished loading- approximately 1 minute.
5. Pro eed to Swit h Test of this do ument and verify proper game operation.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.7

April 19, 2007
Game Net orking
NOTICE: To link the two games together, use the rossover able provided in the spare parts bag. Use of
another able other than the one shipped with the game ould void warranty or ause games not to link. Use
network ables whi h are at least CAT5 grade.
Net orking Considerations
Ea h FNF Super Cars game omes with a network able. Optionally, a hub an be installed and lo ated remotely
to link additional units.
Take are to prote t exposed game wiring from general foot traffi around the game. Use a onduit or wire way to
prote t the ables as needed.
Please mark linking ables for your game if other su h ables are in the vi inity to avoid onfusion. Network
ables are not marked or oded.
Avoid routing the network ables near sour es of heat, moisture or ele tri al energy su h as neon lights,
ompressor motors, transformers et .
Net orking Setup
1. Remove the network able from the spare parts bag inside the ashbox.
2. Conne t ea h end of the able to network ja k behind ea h PC.
3. Neatly route the able through the not h on the ba k of the abinet.
4. Use the SYSTEM ADJUSTMENT in TEST MODE below for enabling link feature .Press TEST Button to
a ess TEST MENU. Iis mounted inside the oin door of the abinet.
5. Reset both games simultaneously and verify that link is su essful. If not, he k the settings for Ma hine ID
onfli t and make sure that the network able is onne ted properly and se ured. Please refer to the Game
Troubleshooting Guide on this manual for more details.
SET NETWORK ENABLE= ON >>
SET UNIQUE MACHINE ID= 1-8 >>
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.8

April 19, 2007
SETUP AND TEST MENU VOL (+)
Lo ate the Service Button Pane . The Servi e Button
Panel is made up of two ro ker swit hes. Simply press the
side of the swit h indi ated by the fun tion you want to
a tivate. It is mounted inside the oin door area on top of the
ash box vault. Press the TEST button to a ess the
Test Menu.
Menu Navigation:
Button Action
Test Enter Operator S reen
Start Button Enter/Sele t Item Sub-Menu
Vol. (+) or View 1 Button S roll up thru Menu items
Vol. (-) or View 3 Button S roll down thru Menu items
Servi e or Tunes Exit to previous Menu
MAIN MENU
The Test Main Menu appears when the TEST button is pressed.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.9
Ra Thrills, Inc
Test Vol (+)
Service Vol (-)

April 19, 2007
Diagnostics Menu
From the Main Menu, sele t Diagnostics and enter to view options.
S itch Test
From the Diagnostics sele t and enter Switch Test. Verify proper swit h input fun tion using this menu. Ea h
swit h a tivated will be indi ated on the test s reen in orresponding yellow box and will be a ompanied by a
swit h a tive sound indi ator. Verify pot value for min, enter and max are orre t. If not, pro eed to Calibration
se tion of this manual. Press and hold the Service Button for three se onds to return to the Diagnostics Menu.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.10

April 19, 2007
Sound Test
From the Diagnostics Menu sele t and enter Sound Test. Verify that marquee, abinet and seat sound volume
and quality are good. Press the Tunes Button to return to Diagnostics Menu
Wheel Test
From the Diagnostics Menu sele t and enter Wheel Test. Verify proper wheel for e feedba k fun tion using this
menu. Follow the s reen instru tion arefully.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.11
Caution: Begin by pla ing the wheel at enter position. The steering wheel moves
automati ally during the wheel test. Stay lear of the wheel!

April 19, 2007
Monitor Test
From the Audio/Video Options menu, sele t and enter Color Bars & Purity. Verify orre t olor and purity for
Red, Blue and Green s reens. Use the onvergen e s reen to also verify linearity. See Appendix n.
Color Bar
Convergence
Lamp Test
From the Diagnostics Menu sele t and enter amp Test. Use View1 or View 3 to sele t the lamp and press Start to
a tivate that lamp. Verify that ALL lamps are working.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.12
•White Screen
•Red Screen
•Green Screen
•Blue Screen
urity Screen
Note:
Lamp function could also be
verified using Switch Test.
lease check the coin door
lamps as part of your game
diagnostic check.

April 19, 2007
Coin Meter Test

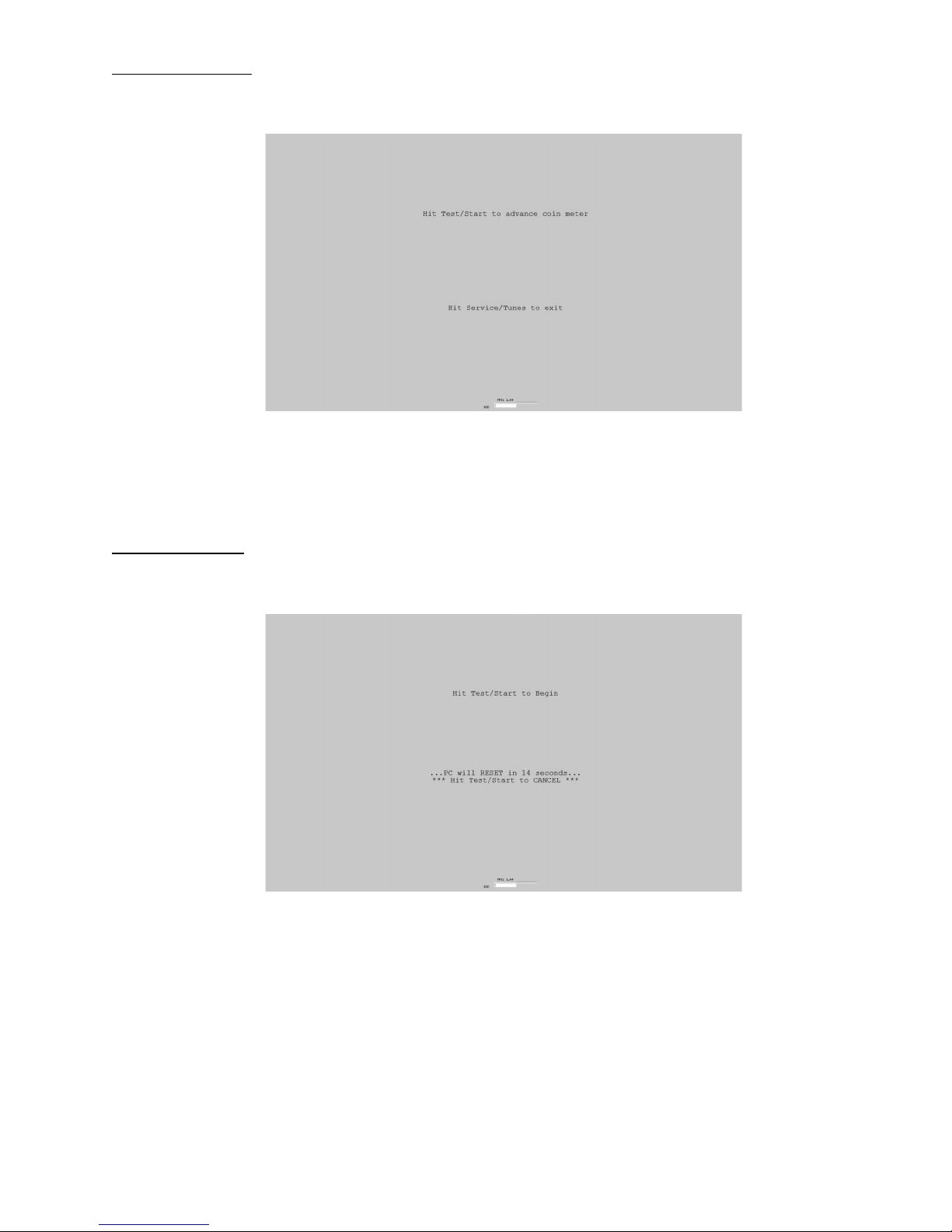

From the Diagnostics Menu sele t and enter Coin Meter Test. Advan e the meter on e using by pressing Start.
Press the Tunes Button to return to Diagnostics Menu.
Watchdog Test
From the Diagnostics Menu sele t and enter Watchdog Test. The game will reset in approximately 6 se onds.
The wat hdog feature allows the PC to monitor normal game software and hardware operation.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.13

April 19, 2007
Link Sytem

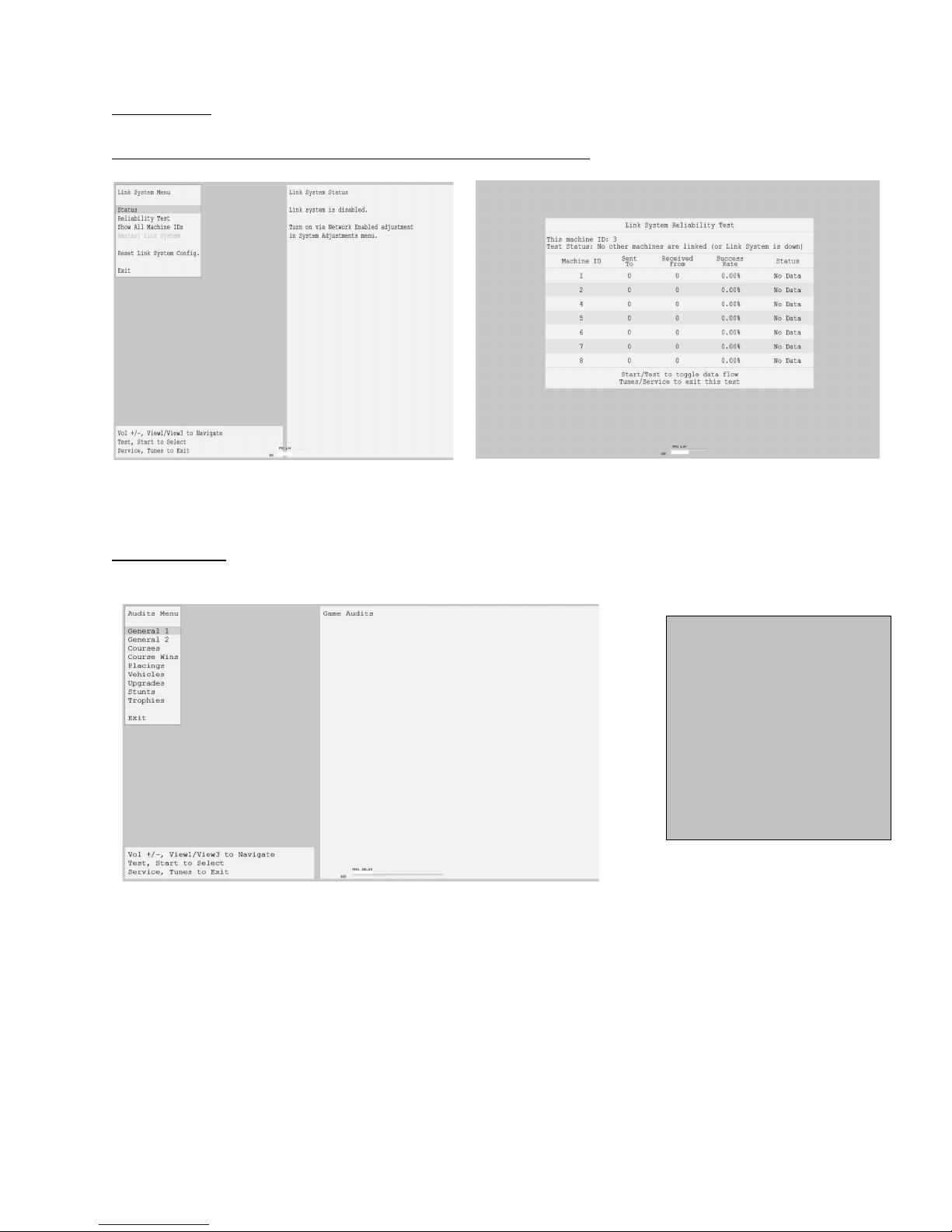

From the Main Menu , sele t ink System and enter to view options.
Game Audits

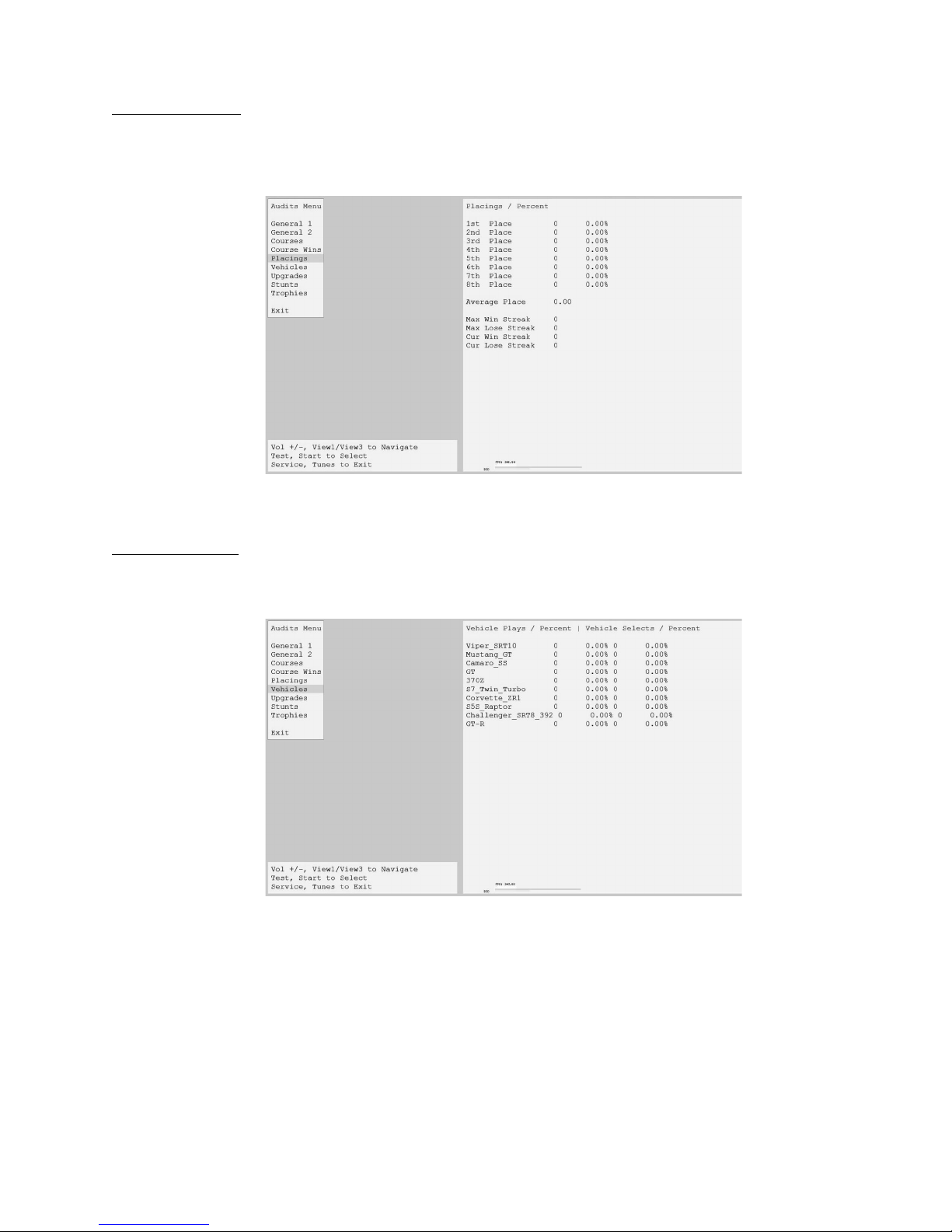

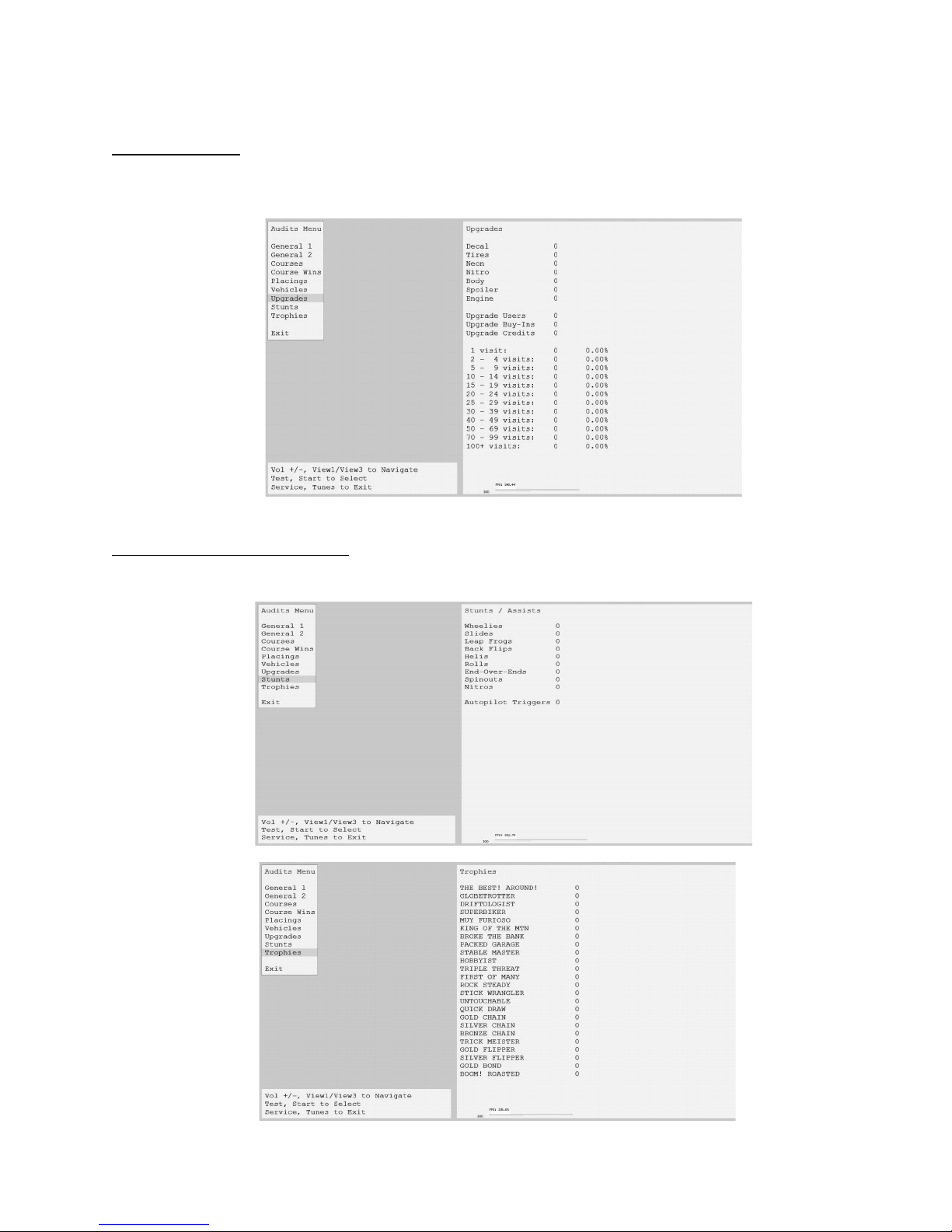

From the Main Menu, sele t Game Audits and enter to view options.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.14
Note:
•Use game audit screens to
assess game performance.
•Use information to
determine options such as
game difficulty and free
game award to maximize
game earnings.
•Use information to detect
possible intermittent
problems.

April 19, 2007

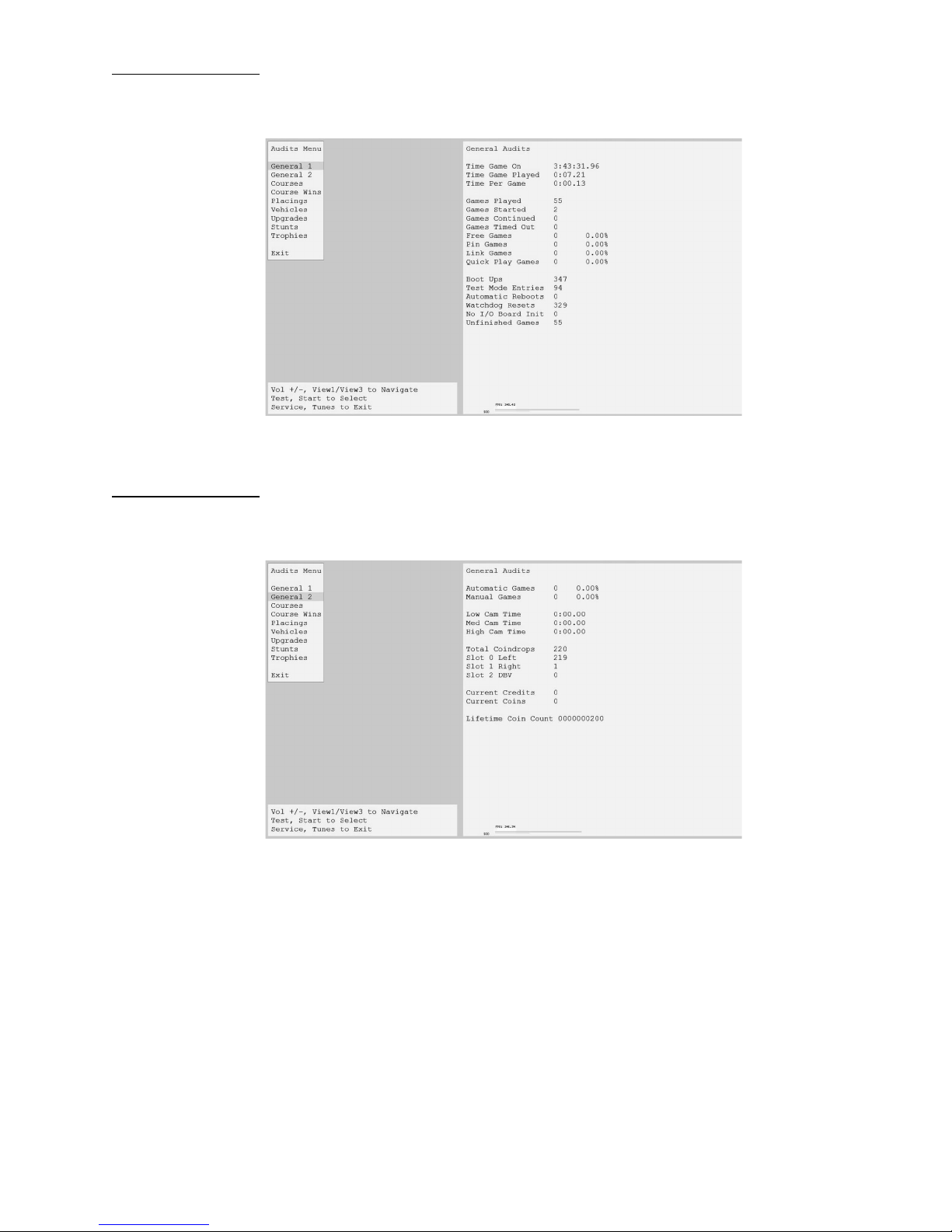

General 1 Audits
From the Audits Menu, sele t General 1 and enter to view general game statisti s. Press the Tunes Button to
return to Main Menu.
General 2 Audits
From the Audits Menu, sele t General 2 and enter to view additional general game statisti s. Press the Tunes
Button to return to Main Menu.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.15

April 19, 2007
Course Audits
From the Audits Menu, sele t Courses and enter to view individual information on ea h ourse. View how many
times ea h ourse is sele ted, as well as its popularity by overall per entage. Press the Tunes Button to return to
Main Menu.
Course Wins Audit
From the Audits Menu, sele t Courses Wins and enter to view individual win and overall per entage information
on ea h ourse. Press the Tunes Button to return to Main Menu.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.16

April 19, 2007
Placings Audit
From the Audits Menu, sele t Placings and enter to view individual ount for ea h standing and per entage
information. Use this information to determine game diffi ulty adjustments to properly reward players and
maximize game earning performan e. Press the Tunes Button to return to Main Menu.
Vehicles Audit
From the Audits Menu, sele t Vehicles and enter to view individual ount for ea h vehi le sele tion and
per entage information. Press the Tunes Button to return to Main Menu.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.17

April 19, 2007
Upgrade Audit
From the Audits Menu, sele t Upgrades and enter to view individual ount for ea h vehi le feature upgrade
sele tion and per entage information. Press the Tunes Button to return to Main Menu.
Stunts and Trophies Audit
From the Audits Menu, sele t Stunts and enter to view individual ount for ea h stunt performed. Press the
Tunes Button to return to Main Menu
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.18

April 19, 2007
Pricing Adjustment Menu
From the Main Menu, sele t Pricing Adjustment and enter. The Adjustment Menu allows you to ustomize the
game. Ea h variable will hange an aspe t of the basi game pri ing, other related player free game reward and
upgrade ost. Optimizing these settings should result in ontinued high player interest and game earnings. You
an monitor the affe ts of these options by omparing audit information before and after the hanges have been
implemented. Press Start to Sele t. Press Tunes or Servi e to Exit.
Price Menu
From the Pricing Adjustment Menu, sele t Freeplay and enter. This option allows you to set the game to Free
Play or at no ost. Any oins or bills inserted will ontinue to be a epted and ounted. This will be refle ted in the
Audits. The redits issued money a epted during Freeplay mode will be available after Freeplay is turned off or
dea tivated. Please perform Clear Credits to remove unwanted redits. Press Start to Sele t. Press Tunes or
Servi e to Exit.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.19

April 19, 2007
Money Unit Menu
From the Pricing Menu, sele t Money Unit and enter. Sele t the urren y whi h applies to the games lo ation
and press Start to sele t. Press Start to Sele t. Press Tunes or Servi e to Exit.
Coin Value Menu
From the Pricing Menu, sele t Coin Value and enter. Choose the oin value based on the urren y sele ted and
the oin a eptor type or setting. Press Start to Sele t. Press Tunes or Servi e to Exit.
The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills In • All rights reserved.20
