Raytheon Anschütz ECDIS NX Compact User guide

ECDIS NX Compact
System Manual
Edition:001
10000000559

Copyright
Dieses Dokument sowie dessen Inhalt sind urheberrechtlich
geschützt. Die Weitergabe, Vervielfältigung und Speicherung sowie
die Übersetzung wie auch Verwendung dieses Dokuments oder
dessen Inhalts, als Ganzes oder in Teilen und egal in welcher Form,
ist ohne vorherige ausdrückliche schriftliche Genehmigung nicht
gestattet. Zuwiderhandlungen verpflichten zu Schadenersatz.
This document and its content are copyright protected. Distribution,
reproduction and storage as well as translation and exploitation of
this document and its content, in whole or in parts and regardless of
what form, are prohibited without prior express written permission.
Offenders will be held liable for the payment of damages.
Änderungen dieses Dokuments und dessen Inhalt bleiben vorbehal-
ten.
Changes and modification to this document and its content re-
served.

ECDIS NX Compact
Table of Contents
Edition:001 I 10000000559
Table of Contents
List of Figures......................................................................................................................................................III
List of Tables........................................................................................................................................................ V
List of Abbreviations......................................................................................................................................... VII
Introduction........................................................................................................................................................ 1
Preliminary Remarks..................................................................................................................................... 1
About this Document.....................................................................................................................................1
Safety.............................................................................................................................................................1
General Safety Regulations.....................................................................................................................1
General Safety Instructions........................................................................................................................... 2
Product and Performance Standards............................................................................................................3
List of Further Documents.............................................................................................................................3
1 Description....................................................................................................................................................... 5
1.1 Purpose.....................................................................................................................................................5
1.2 Standalone and Dual Mode..................................................................................................................... 5
1.3 Equipment Overview................................................................................................................................ 5
1.4 Trackball....................................................................................................................................................7
1.5 Installation and Update.............................................................................................................................8
1.6 Dependence on Peripheral Systems / Devices........................................................................................8
1.7 Technical Data..........................................................................................................................................8
1.8 List of Optional Equipment.......................................................................................................................9
2 Installation......................................................................................................................................................10
2.1 Hardware Installation..............................................................................................................................10
2.1.1 General Installation Recommendations.........................................................................................10
2.1.1.1 Installation and Mounting......................................................................................................10
2.1.1.2 Installation Limitations...........................................................................................................11
2.1.1.3 Ergonomics............................................................................................................................12
2.1.1.4 Cables................................................................................................................................... 12
2.1.1.5 Housing / Terminal Block Connector Overview....................................................................14
2.1.1.6 Configuring Housing / Terminal Block Connectors...............................................................15
2.1.2 Installation Procedures.................................................................................................................. 17
2.1.2.1 Install the Unit into a Console.............................................................................................. 17
2.1.2.2 Connect the Cables.............................................................................................................. 19
2.1.2.2.1 Cable Shielding and Strain Relief................................................................................19
2.1.2.2.2 Overview of Connections............................................................................................. 21
2.1.2.2.3 Connect IEC 61162-1 (NMEA 0183) PIN Allocation....................................................22
2.1.2.2.4 Connect IEC 61162-1 (NMEA 0183) Devices............................................................. 24
2.2 Software Installation..............................................................................................................................26
2.3 Software Configuration..........................................................................................................................30
3 Annex.............................................................................................................................................................. 36

ECDIS NX Compact
Table of Contents
10000000559 II Edition:001

ECDIS NX Compact
List of Figures
Edition:001 III 10000000559
List of Figures

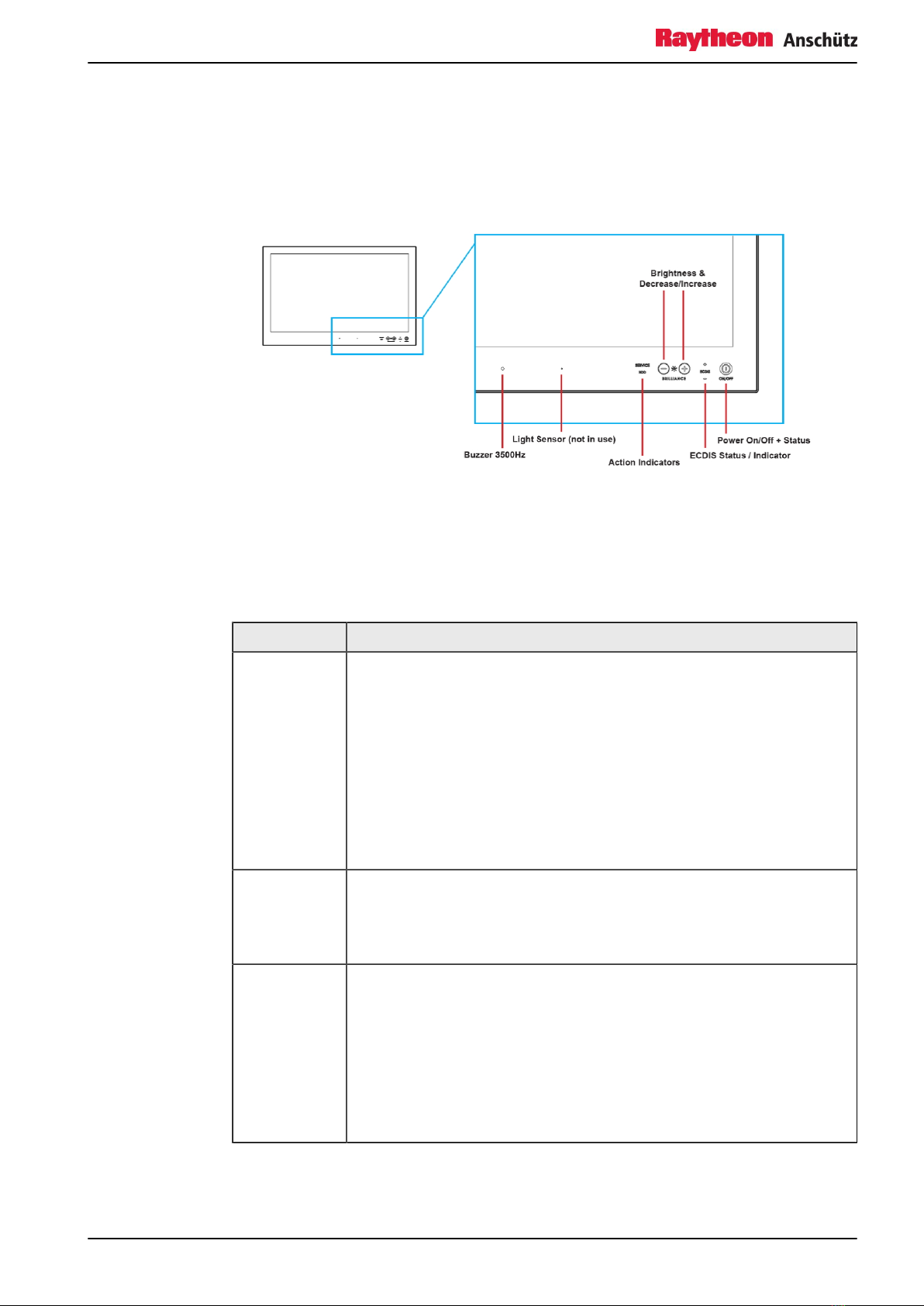

Fig. 1: Equipment Overview................................................................................................................................... 6
Fig. 2: Trackball...................................................................................................................................................... 7

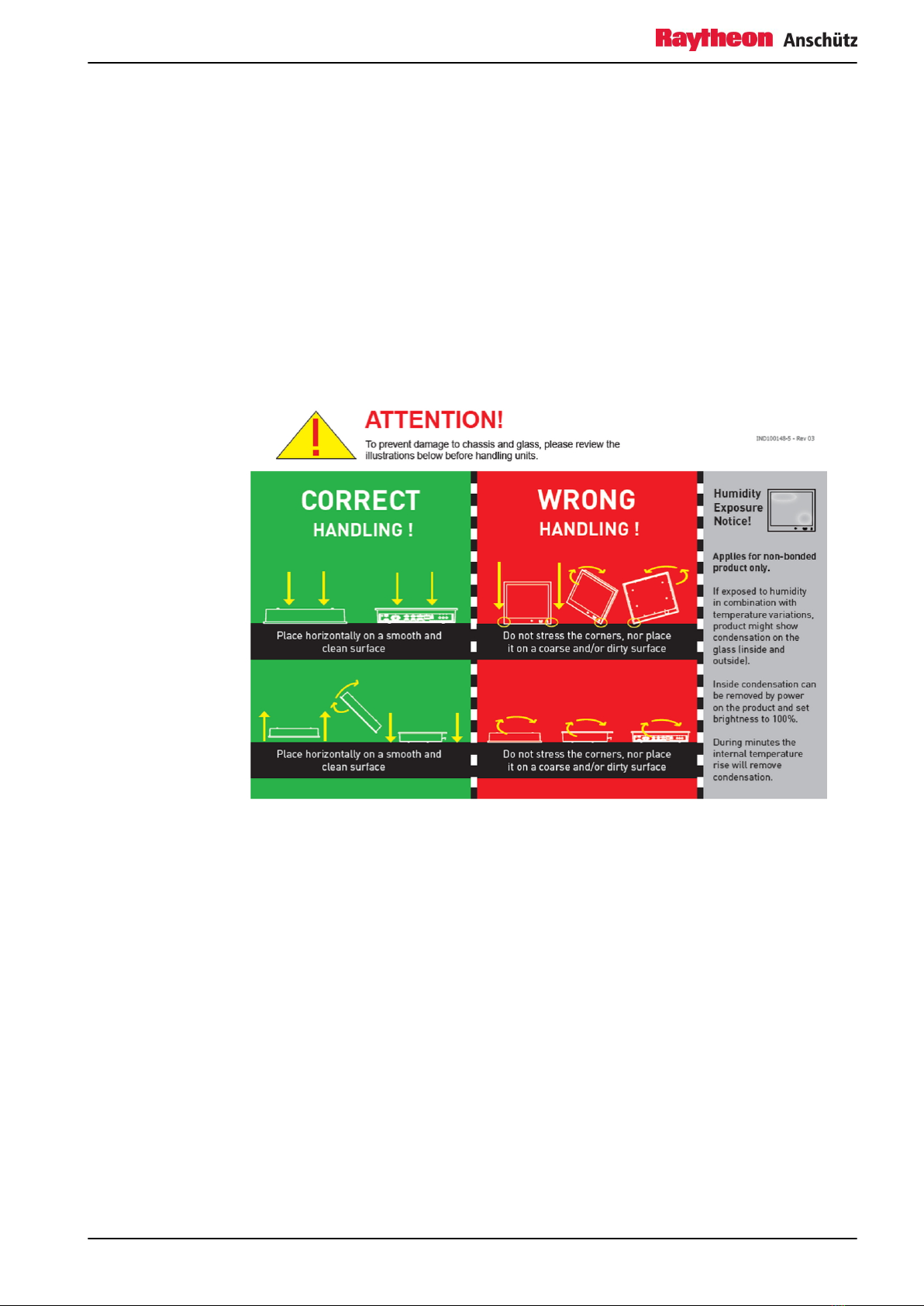

Fig. 3: Handling Instructions................................................................................................................................. 10
Fig. 4: Panel PC, Cable Entries & Connectors Back...........................................................................................13
Fig. 5: Panel PC, Cable Entries & Connectors Bottom........................................................................................14
Fig. 6: Connector, Open Connector..................................................................................................................... 16
Fig. 7: Connector, Insert Cables...........................................................................................................................16
Fig. 8: Connector, Plug into Housing................................................................................................................... 17
Fig. 9: Connector, Tighten Connector.................................................................................................................. 17
Fig. 10: Installation, Slide Unit into Cutout...........................................................................................................18
Fig. 11: Installation, Use Correct Brackets...........................................................................................................18
Fig. 12: Installation, Mount Brackets.................................................................................................................... 19
Fig. 13: Installation, Closeup of Screws and Washers........................................................................................ 19
Fig. 14: Position of Strain Relief Clamps............................................................................................................. 20
Fig. 15: Strain Relief Clamp with Cable............................................................................................................... 20
Fig. 16: Connection Area......................................................................................................................................21
Fig. 17: Connection Overview, Allocation of Pins................................................................................................ 23
Fig. 18: Connection Overview, Allocation of Devices.......................................................................................... 24
Fig. 19: Select Future Boot Type......................................................................................................................... 26
Fig. 20: Remove USB Flash Drive....................................................................................................................... 27
Fig. 21: Installation Window..................................................................................................................................28
Fig. 22: Installation Complete............................................................................................................................... 29
Fig. 23: User Account Control Message.............................................................................................................. 29
Fig. 24: No Valid License for Kernel found..........................................................................................................30
Fig. 25: Service Tool, Ship Parameters............................................................................................................... 31
Fig. 26: Service Tool, Charts Configuration......................................................................................................... 32
Fig. 27: Dialog: Kernel not Registered................................................................................................................. 32
Fig. 28: Dialog: Login as User Service................................................................................................................ 33
Fig. 29: Dialog: Logged in as User Service......................................................................................................... 33
Fig. 30: Dialog: Hardware IDs.............................................................................................................................. 33
Fig. 31: Dialog: Select Export Path...................................................................................................................... 34
Fig. 32: Dialog: Enter ARCS PIN and User Permit..............................................................................................35

ECDIS NX Compact
List of Figures
10000000559 IV Edition:001

ECDIS NX Compact
List of Tables
Edition:001 V 10000000559
List of Tables
Tab. 1: Product and Performance Standards.........................................................................................................3
Tab. 2: IHO Standards............................................................................................................................................3
Tab. 3: List of Further Operator Documents.......................................................................................................... 4
Tab. 4: List of Further System Documents............................................................................................................ 4
Tab. 5: Optional Equipment / Spare Parts............................................................................................................. 9
Tab. 6: Allocation of Pins..................................................................................................................................... 23
Tab. 7: Allocation of Devices: Standalone / Main Unit.........................................................................................25
Tab. 8: Allocation of Devices: Backup Unit..........................................................................................................25

ECDIS NX Compact
List of Tables
10000000559 VI Edition:001

ECDIS NX Compact
List of Abbreviations
Edition:001 VII 10000000559
List of Abbreviations
AIO Admirality Information Overlay
AIS Automatic Identification System
ARCS Admirality Raster Chart Services
ARP Annotated Route Plan
ARPA Automatic Radar Plotting Aid
AtoN Aids to Navigation
BAM Bridge Alert Management
BSB Raster Chart Format provided by NOAA (USA)
BWOL Bearing to Wheel Over Line
CAM-HMI Central Alert Management Human Machine Interface
CCRP Consistent Common Reference Point
CCRS Consistent Common Reference System
COG Course over Ground
CPA Closest Point of Approach
CUST CUSTOM
DNC Digital Nautical Chart
DR Dead Reckoning
DTR Distance to run
DWOL Distance to Wheel Over Line
EBL Electronic Bearing Line
ECDIS Electronic Chart Display and Information System
ENC Electronic Navigational Chart
ETA Estimated Time of Arrival
IEC International Electrotechnical Commission
IHO International Hydrographic Office
IMO International Maritime Organization
INS Integrated Navigation System
LAT Latitude
LON Longitude
LOP Line of Position
MFC Multifunction Console
MMSI Maritime Mobile Service Identity
MOB Man-Over-Board
NGA National Geospatial-Intelligence Agency
NOAA National Oceanic and Atmospheric Administration
OSK On Screen Keyboard
RCDS Raster Chart Display System
RNC Raster Navigational Chart
ROT Rate of Turn
RPM Revolutions per Minute
RTE Route
SAR Search and Rescue
SENC System Electronic Navigational Chart
SOG Speed over Ground
SOLAS Safety of Life at Sea
STD STANDARD
TCPA Time to Closest Point of Approach
TOV Time of Validity
TPL Transferred Position Line
UKHO United Kingdom Hydrographic Office
UTC Universal Time Coordinated
VRM Variable Range Marker
WGS World Geodetic System
WOL Wheel Over Line
WOP Wheel Over Point
WPT Waypoint
XTD Cross Track Distance

ECDIS NX Compact
List of Abbreviations
10000000559 VIII Edition:001
XTE Cross Track Error

ECDIS NX Compact
Introduction
Edition:001 1 10000000559
Introduction
Preliminary Remarks
The present manual is a description and reference book only. It is intended to answer
questions and to solve problems in the quickest possible manner.
Read and follow the instructions and notes in this manual before operating the equipment.
For this purpose, refer to the table of contents and read the corresponding chapters
thoroughly.
If you have any further questions, contact us under the following address:
Raytheon Anschütz GmbH Tel. +49 431 / 3019 - 0
Zeyestr. 16 - 24 Fax +49 431 / 3019 - 291
D-24106 Kiel Email:
[email protected]
Germany www.raytheon-anschuetz.com
All rights reserved. It is not allowed to copy any part of this manual, neither mechanically,
electronically, magnetically, manually nor otherwise. It is not allowed to store it in a
database, or distribute or forward it without written permission of Raytheon Anschütz
GmbH.
Copyright:
Raytheon Anschütz GmbH
Zeyestr. 16 - 24
D-24106 Kiel
Germany
Errors can hardly be avoided in the documentation despite all efforts. Therefore, we
appreciate any remarks and suggestions.
Subject to alterations.
About this Document
This user manual is based on the original copyright protected document from Hatteland
Technology AS – Eikeskogvegen 52 - Aksdal. Raytheon Anschütz is fully responsible for
the content of this document, and Hatteland Technology holds no responsibility for this
content.
Safety
General Safety Regulations
The following safety symbols are used in this manual:

ECDIS NX Compact
Introduction
10000000559 2 Edition:001
WARNING!
Warning statements indicate a hazardous situation that, if not avoided,
could result in minor, moderate or serious injury, or death
Consequence
• Preventive action
CAUTION!
Caution statements indicate a hazardous situation that, if not avoided,
could result in material damage
Consequence
• Preventive action
Note
Notes indicate information considered important but not hazard-related.
General Safety Instructions
WARNING!
Danger due to nonadherence to general rules and regulations
Risk of death or serious injury and material damage
• Observe all national and regional rules and regulations.
• Observe all general rules and regulations that are specified for the work
area.
• Observe all instructions that are placed on the components or described
in related documentation.
WARNING!
Danger due to improper operation and use for other than the intended
purpose
Risk of serious injury and material damage
• Use the product only for the intended purpose.
• Perform operation steps according to this manual.
• Do not make any product modifications without authorization.

ECDIS NX Compact
Introduction
Edition:001 3 10000000559
WARNING!
Danger due to voltage-regulated devices
Risk of death or serious injury that is caused by electrical shock
• Switch off voltage supply if the wires have damaged insulation.
• Only skilled electricians must perform work on the electric system.
• Keep moisture away from live parts.
• Keep the system closed.
• Do not attempt to bypass or disable fuses.
Product and Performance Standards
Tab. 1: Product and Performance Standards
Standard Designation
IMO
MSC.252(83) INS Performance Standard
IEC 61174 Ed.
4.0
Maritime navigation and radiocommunication equipment and systems
- Electronic chart display and information system (ECDIS)
IEC 62288 Ed. 2 Presentation of navigation-related information on shipborne naviga-
tional displays
IEC 62065 Ed. 2 Maritime navigation and radiocommunication equipment and systems
- Track control systems
The ECDIS is designed to meet the requirements as defined by IMO, IEC and IHO.
The ECDIS is compliant with the following IHO standards:
Tab. 2: IHO Standards
Standard Designation
S-52 Ed 6.1 Chart Content and Display Aspects of ECDIS
Presentation Library Edition 4.0 (Annex A to S-52)
S-52 Annex A Presentation Library Ed 4.0
S-57 Ed 3.1 Transfer Standard for Digital Hydrographic Data
S-63 Ed 1.2.0 Data Protection Scheme
S-64 Ed 3.0.1 Test Data Sets for ECDIS
Note
See also the IHO website at http://www.iho.int for currently available versions of the IHO
standard.

ECDIS NX Compact
Introduction
10000000559 4 Edition:001
List of Further Documents
Tab. 3: List of Further Operator Documents
Documentation
No. Designation
4451 Conning NX
10000000351 ECDIS NX
Tab. 4: List of Further System Documents
Documentation
No. Designation
4449 Synapsis System Manual
4428 Synapsis Service Tool
4450 Synapsis Radar NX Manual

ECDIS NX Compact
1 Description
Edition:001 5 10000000559
1 Description
1.1 Purpose
The ECDIS NX Compact is a stand-alone ECDIS solution. It can be installed as a single
ECDIS system or as a dual ECDIS system which includes a backup ECDIS NX Compact.
The devices consist of a 24 inch panel PC which can be controlled by touch or trackball.
They run an integrated software-controlled navigation system with advanced electronic
chart capabilities including:
• Route planning
• Route monitoring
The ECDIS enables a navigator to conveniently do all navigational routines which are
currently done on paper charts.
The ECDIS takes information from various shipboard sensors:
•Automatic Radar Plotting Aid (ARPA) radar
•Automatic Identification System (AIS) transponder
• Positioning devices
• Echo sounders
• Heading sensors
• Speed sensors
The information is integrated into easily interpretable visual displays.
Note
Chart Datum is World Geodetic System (WGS) 1984.
For further information about features and functionality of the ECDIS software, see ECDIS
NX Operator Manual.
1.2 Standalone and Dual Mode
ECDIS NX Compact can be set up with a single unit in standalone mode or with 2 units in
dual mode. In dual mode, one unit is set up as master unit and one as backup unit. The
standalone unit and the master unit in dual mode are configured the same way.
To use ECDIS NX Compact for Track Control, dual mode configuration is required and
a second GPS receiver (GPS 2) is mandatory. If Track Control is not used, one GPS
receiver (GPS 1) is sufficient.
For details about the configuration in standalone and dual mode find the block diagrams in
chapter 3.

ECDIS NX Compact
1 Description
10000000559 6 Edition:001
1.3 Equipment Overview
Fig. 1: Equipment Overview
Element Description
Power On/Off This symbol and all text will illuminate in red when suitable power is con-
nected and the unit is turned off. When the unit is on and operating, this
symbol will change into green color and illuminate constantly.
•Power On: To turn the unit on, verify that the symbol is illuminated in
red (indicates suitable power is connected) and touch the power sym-
bol and hold until the the symbol changes to green light or a image
appears on the screen.
•Power Off: To turn the unit off, touch the power symbol and hold un-
til it either illuminate/change from green to red or the image on screen
disappears.
Brightness
Adjust
Brilliance / Brightness adjustment of the displayed image is adjusted by
touching the (-) or (+) illuminated symbols. The entire area of text and
symbols are visible as long as the unit is powered. Note that only the (-)
and (+) are touch sensitive while the symbols are not.
ECDIS Status
Indicator
For units that has been factory ECDIS calibrated the text “ECDIS” will il-
luminate in green constantly as long as the unit is powered. The “+” and
“-” symbols will illuminate in red when the Brightness/Brillance is adjust-
ed either above or below ECDIS factory calibration point.
To be able to stay within ECDIS calibrated range, please assure that
both the “+” and “-” are not illuminated and that “ECDIS” text remains il-
luminated during operation. Note that by touching these symbols no ac-
tion will be performed or has been assigned.

ECDIS NX Compact
1 Description
Edition:001 7 10000000559
Element Description
Action Indica-
tors
HDD
Whenever there is a storage device activity (HDD/SSD read or write op-
erations) this area will illuminate and blink accordingly in sync. with the
read/write operations while the unit is powered. Note that by touching
this symbol no action will be performed or has been assigned.
SERVICE
Built in functionality to determine when the unit requires service in order
to perform within preset factory standards. This area will illuminate con-
stantly until the unit is powered off. Note that by touching this symbol no
action will be performed or has been assigned.
Buzzer Only functional for units ordered with Buzzer functionality. The location
of the buzzer hole (physical hole in glass) is barely visible for the eye.
Touching this area will naturally mute buzzer sound or in some cases
make it lower or change audible frequency. In no circumstances should
this area be blocked by either stickers or objects!
Light Sensor Used to sense level of ambient light in the surrounding environment.
The sensor data can be read by suitable software through the Hatteland
Display SCOM functionality of the unit and thus can be used to control
brightness remotely. Note: This sensor is barly visible for the eye and
lies under the glass. It has no illumination behind to indicate its position.
Touching or covering this area will naturally make the sensor data inac-
curate and should be avoided!
1.4 Trackball
ECDIS NX Compact delivery includes a trackball.
Fig. 2: Trackball

ECDIS NX Compact
1 Description
10000000559 8 Edition:001
1.5 Installation and Update
The installation and update process includes 3 parts:
ECDIS NX Compact Hardware
The 24 inch panel pc is designed for flush mount installation. A flush mount set is included
in the package. See chapter chapter 2.1 for the installation process.
ECDIS NX Compact Software
The software is the regular ECDIS NX software, which is configured for the ECDIS
NX Compact. The software must be installed on the system before use. See Chapter
chapter 2.2 for the installation process.
Note
A USB extension cord is included with the delivery of ECDIS NX Compact. Connect
the extension cord to the USB 3.0 port and lead the connector somewhere, where it is
reachable after the installation for later updates via USB.
Charts
The chart installation and update is organized via the 7Cs ChartHandler, see ECDIS NX
Operator Manual.
1.6 Dependence on Peripheral Systems / Devices
The normal ECDIS NX Compact operation depends on following systems and devices:
• Position sensor (e.g. GPS)
• Heading sensor (e.g. Gyro Compass)
• Speed sensor
• Bridge Alert Management
• BNWAS
• Voyage Data Recorder
The following systems and devices can be connected optionally to ECDIS NX Compact in
standalone mode:
• Depth sensor
• AIS
The following systems and devices can be connected optionally to ECDIS NX Compact in
dual mode:
• Autopilot
• Radar
Note
The sensor control and alarm management takes place via the integrated BIP, see
Synapsis System manual.

ECDIS NX Compact
1 Description
Edition:001 9 10000000559
1.7 Technical Data
Height 384.00 mm
Width 593.00 mm
Dimensions
Depth 76.40 mm
Weight 11.2 kg
VESA Mounting 280 x 150 mm
4 x M6
Max 12 mm deep
Voltage Supply 115 & 230 V AC - 50/60Hz + 24 V DC
Power Consumption 125 W (max)
50 W (typ)
Operation Temperature -15°C to +55°C, Humidity up to 95%
Note
Even though the test conditions for bridge units provide
for a maximum operating temperature of 55°C, conti-
nous operation of all electronic components should, if
possible, take place at ambient temperatures of only
25°C. This is a necessary prerequisite for long life and
low service costs.
Storage Temperature -20°C to +60°C, Humidity up to 95%
IP-Rating IP66 front
IP22 rear (EN60529)
Compass Safe Distance Standard: 115 cm
Steering: 70 cm
Display Specifications Size: 24.0 inch
Widescreen, Aspect Ratio 16:9
Resolution: 1920x1080 px
1.8 List of Optional Equipment
Tab. 5: Optional Equipment / Spare Parts
Optional Equipment Equipment Number
Desktop Mounting Bracket Hatteland HD
TMB SX1-C1
2012405

ECDIS NX Compact
2 Installation
10000000559 10 Edition:001
2 Installation
2.1 Hardware Installation
2.1.1 General Installation Recommendations
2.1.1.1 Installation and Mounting
Fig. 3: Handling Instructions
1. This product is intended for various methods of installation or mounting (panel
mounting, bracket mounting, ceiling/wall, console mounting etc.); for details, please see
the relevant mechanical drawings.
2. Adequate ventilation is a necessary prerequisite for the life of the product. The air inlet
and outlet openings must definitely be kept clear; coverings which restrict ventilation are
not permissible.
3. Generally, do not install the unit in a horizontal position (laying down), as this will
cause heat to build up inside the unit which will damage the LCD Panel. To prevent
this problem we recommend installing the unit in a vertical position (±30 degrees) to
improve the airflow through the unit.
4. To further improve the thermal situation we recommend to use forced air passing by the
product. In some cases, convection based cooling can create “heat zones” around the
product. This may be required in high temperature applications and also when there is
reason to expect temperature problems due to non-optimal way of mounting.
5. Exposure to extreme direct sunlight can cause a considerable increase in
the temperature of the unit, and might under certain circumstances lead to
