Samyung STR-6000D User manual

1
MARINE VHF RADIO TELEPHONE
OPERATION MANUAL
STR-6000D
SAMYUNGENC CO.,LTD.

2
STR-6000D SUMMARY
KNOB/BUTTON FUNCTIONS
PWR/VOL Power On/Off/Speaker Volume Control
SQUELCH SQUELCH Control
DISTRESS
Pressing and holding down this button for 3s will allow users
to input the own ship ID in order to transmit the distress call.
(※Trial transmission is strictly forbidden !! )
CH16 This converses to the current channel and Channel 16.
MENU This moves to DSC MENU (Refer to Page. 45)
MENU More than 1 s. This moves to each setup MENU.(Refer to Page. 29)
DUAL
This works on reception, conversing to the current channel
and Channel 16.
DUAL More than 1 s. This starts scanning onto the current SCAN mode.
(Press again to stop)
ESC/F
This operates as Escape in MENU but as Function button in
the others.
CH/WX This converses to weather channel.
HL/ENT
At normal time, this alternates 25W and 1W in power output.
In MENU, this is used as Enter (Select items and Input
confirmation).
This is used to move CHANNEL and to move items in
MENU.
(Short pressing – 1 time, Long pressing – continuous
operation).
This changes the SCAN kinds.(ALL, TAG)
This leads only to TAG-designated channels.
CH/WX This is for changes between nations. (ITU, USA, CAN)
ESC/F
HL/ENT
In scanning, scan the tag-designated channel .This is for
setup and cancellation of TAG

3
* How to mark and look for MENU
1. Press Call/Menu button. Only 3(three) items of MENU can be simultaneously marked.
2. Press Up/Down buttons until the cursor is located at the wanted position.
Press ENT button to select any function.
3. Perform the wanted change and selection.
4. Press ENT button to confirm the change. If pressing ESC button, the current setup will stay
unchanged.
5. Press ESC button to get out of the current MENU function.
* How to put in numbers and alphabets
1. Use Up/Down buttons to input numbers and alphabets and the changes will be made.
2. Press Down button to display numbers first and if pressing continuously, the display will go fast
to the wanted value.
3. Press Up button to display alphabets first, if pressing continuously, the display will go fast to the
wanted characters.
4. If there is any wrong input, press ENT button until ‘<’ is shown and then press ENT button for
correction.

4
CAUTIONS
Before supplying power, users are urged to read this operation manual with attention.
1. How to make Distress Call and stop
1-1. When any distress call is made, press DISTRESS button for 3s until DISTRESS
MESSAGE is seen, then the overall display unit will be flamed with a high level of alert
sound. In transmitting any distress call, it should be made based on the duty person’s
judgment of the ship. As this test may cause a huge damage to neighboring ships or to
rescue authorities, users MUST NOT make the test.
1-2. If the distress call is performed, the distress message will be automatically transmitted
at repetitive intervals of 3m 30s ~ 4m 30s. This transmission repeats until the previous
DSC made by the own station is received or any operation for stop is performed. If any
transmission is mistakenly made, press ESC/F button to stop it. Even though the
operation for stop is made, users need to contact Channel 16 to inform about the
accidental transmission because the message was automatically transmitted.
1-3 When any distress call is received, please inform the person in charge of it.
2. Initial setup in installation
For the below items, please work on the initial setup when the equipment is installed, prior
to the actual operation. Users can contact the maker or any agents who is able to work on
the installation.
2-1 Voltage Checkout
Input Voltage of VHF Main Unit : Make sure that DC13.6V is ready.
2-2 Setup of ID Number
ID Number assigned for the own ship and other setups are required.

5
Chapter 1. Summary..........................................................................................................7
1.1. Summary ............................................................................................................................. 7
Purpose................................................................................................................................ 7
DSC Transmission and Reception ....................................................................................... 7
What is DSC ? ..................................................................................................................... 7
1.2. Features .............................................................................................................................. 8
Chapter 2. Components ....................................................................................................9
2.1 Standard components .......................................................................................................... 9
2.2 Option................................................................................................................................... 9
Chapter 3. Specifications................................................................................................10
3.1 STR-6000D Main Unit ........................................................................................................ 10
3.1.1 Generals ................................................................................................................... 10
3.1.2 Transmitter Unit......................................................................................................... 10
3.1.3 Receiver Unit .............................................................................................................11
3.1.4 DSC Unit....................................................................................................................11
3.2 Channel list......................................................................................................................... 12
3.2.1 ITU Channel.............................................................................................................. 12
3.2.2 USA Channel ............................................................................................................ 14
3.2.3 CANADA Channel..................................................................................................... 16
3.2.4 WHEATHER CHANNEL ........................................................................................... 18
3.3 POSITION INFORMATION INTERFACE ........................................................................... 19
The chapter 4. How to operate........................................................................................20
4.1 Unit Description. ................................................................................................................. 20
4.1.1 Front Panel. ..............................................................................................................20
4.1.2 Microphone ............................................................................................................... 21
4.2 DISPLAY DESCRIPTION ................................................................................................... 22
4.2.1 LCD Screen Description ........................................................................................... 22
4.3 Menu tree and Instruction (Please press button for long time)........................................... 23
4.3.1 FRIENDS SEL .......................................................................................................... 24
4.3.2. BACKLIGHT............................................................................................................. 26
4.3.3 CONTRAST .............................................................................................................. 26
4.3.4 GPS SETUP ............................................................................................................. 27
4.3.5 DSC SETUP ............................................................................................................. 31
4.3.6 RADIO SET............................................................................................................... 34
4.3.7 DSC Receiving Control ............................................................................................. 37
4.3.8 Initializing - RESET ................................................................................................... 37
4.3.9 SYS TEST (System test) .......................................................................................... 37
4.4 DSC CALL Menu Structure & how to operate .................................................................... 39
4.4.1 INDIVIDUAL (Produce a routine call)........................................................................ 39
4.4.2 LAST CALL (Call for received call recently).............................................................. 40
4.4.3 GROUP CALL(Group Call) ....................................................................................... 41
4.4.4 ALL SHIPS (Call all vessels)..................................................................................... 42
4.4.5 CALL LOG (Call by Call Log).................................................................................... 43

6
4.4.6 Call using disaster log(DIST LOG)............................................................................ 44
4.4.7 Request a call of friend’s position (LL REQUEST).................................................... 45
4.5 Receiving DSC call............................................................................................................. 46
4.5.1 Receiving all vessel’s call (ALL SHIPS CALL).......................................................... 46
4.5.2 Receiving all vessel’s call (IDIVIDUAL CALL)........................................................... 46
4.5.3 GROUP CALL........................................................................................................... 47
4.5.4 GEOGRAPHY CALL................................................................................................. 47
4.5.5 LL POSITION............................................................................................................ 48
4.6 DISTRESS CALL ...............................................................................................................48
4.6.1 Transmit the distress call .......................................................................................... 48
4.6.2 DISTRESS CALL ...................................................................................................... 49
4.6.3 DISTRESS ACK or REPLY ....................................................................................... 50
Chapter 5. INSTALLTION.................................................................................................51
5.1 Dismantling package and inspection.................................................................................. 51
5.2 Selection of Installation Position for Main Unit of STR-6000D ........................................... 51
5.3 Installation for main unit of STR-6000D.............................................................................. 51
5.4 Cable Connection............................................................................................................... 53
5.4.1 POWER CONNECTION ........................................................................................... 53
5.4.2 CONNECTS TO EXTERNAL SPEAKER .................................................................. 53
5.4.3 HOW TO SET-UP ANTENNA ................................................................................... 53
5.5 INTEGRATED WIRING ...................................................................................................... 54
6. PACKING LIST...........................................................................................................55
6.1 Domestic ............................................................................................................................ 55
6.2 Overseas ............................................................................................................................ 57

7
Chapter 1. Summary
1.1. Summary
Purpose
This VHF Radio is designed to be fit for the VHF carriage requirements for both
internationally engaged vessels and locally engaged vessels and is radio transceiver for
ship mobile radio communication.
On top of the traditional voice communication, this equipment has an additional function of
DSC alert which enables users to work on both normal-time communication and distress
communication with the built-in DSC facility.
DSC Transmission and Reception
In order to use DSC function, any valid user MMSI should be input first.
What is DSC ?
Internationally standardized by IMO(International Maritime Organization) as a part of
GMDSS(Global Maritime Distress and Safety System), DSC(Digital Selective Calling) is a
semi-automatic way of making any MF/HF and VHF call.

8
1.2. Features
1. Including all the channels designated by the radio communication agreements of
International Electro-technical Commission, it is designed to work on USA CHANNEL,
WEATHER CHANNEL and CANADA CHANNEL. (Weather Alert Sense Function available,
USA and Canada area applicable)
2. Compact design requires less space and easier installation.
3. The adoption of GRAPHIC LCD of wide range sight-angle allows users to have better
eye-sights at various positions and easier operation. Clear channel display guarantees
4(four) levels of LCD Contrast available.
4. As the necessary operation methods are displayed on LCD according to marks and
purposes by MENU modes, it is especially useful to operate DSC in addition to the
existent operations.
5. As LCD and buttons’ back light have a wide range of lighting, it does not disturb the
night duty.
6. It is designed for the waterproof.
7. Besides the traditional voice communication, it is also available to work on
communications for distress, emergency, safety and normal operations, using DSC
function.
8. It offers much better convenience with GPS altitude/longitude and time indication
functions. (When it is connected to GPS receiver)
9. It has a function for automatic input of position data(altitude/longitude) resulting from
any navigational equipment such as GPS receiver. When transmitting any distress call, it
is designed to insert the position data coming from any navigational equipment into the
distress message for transmission.
And when receiving any sea area call, it is designed to make an automatic judgment to
see if the own ship is positioned within the area, based on the position data coming from
any navigational equipment.
10. It offers a function to select High(25W) or Low(1W) transmission power and an
automatic setup.
11. It also has a function to link to any external radio output.
12. It is convenient to use a dedicated Channel 16/9 buttons that enable users to make an
easy access to the priority channels.
13. It has the built-in Dual/Trial Watch function and Tag Scan function.
14. DSC function complies to Class D standards.
15. It has a Friend List function to easily call up to 20 persons with DSC whom the user
want to list up.
16. Users can set up 3(three) favorite groups. (For Group DSC transmission)
17. It offers Group DSC transmission and it is also available to call all vessels with DSC
function.
18. LL Position Polling function enables users to identify the positions of friends.

9
Chapter 2. Components
The equipment consists of the following specifications.
2.1 Standard components
Item Model Quantity Remarks
VHF radio telecomm.
Main nut
STR-6000D 1Set Including HAND MIC
Operation manual 1 Volume
2.2 Option
Item Model Remarks
Antenna SAN-150 (RX/TX) 3dBi Including CABLE/BRACKET

10
Chapter 3. Specifications
3.1 STR-6000D Main Unit
3.1.1 Generals
TX Frequency 156.025MHz ~ 157.425MHz
RX Frequency 156.050MHz ~ 163.275MHz
Channel Number
183 Channels
ITU : 55 Channels
USA : 57 Channels
CANADA : 61 Channels
WEATHER : 10 Channels
Type of Emission FM(16K0G3E), DSC(16K0G2B)
Channel Interval 25KHz
Communication Mode Duplex and Semi Simplex
Antenna Impedance 50 Ω(SO-239)
Audio Output Impedance 4 Ω
Frequency Stability ± 10ppm(-15°C to +55°C)
Voltage Supply 13.6V DC ±10%(Negative Ground)
Consumed Currency(13.6V) TX high 6A Maximum
Maximum Audio 1.5A Maximum
Temperature Limits -15°C to +55°C
Dimension 85mm x172mmx170mm
Weight 1.1Kg
3.1.2 Transmitter Unit
Antenna Output 25W/1W(Low)
Frequency Deviation ± 10ppm(-15°C to +55°C)
Starting Mode Synthesizer Mode
Modulation Mode Variable Reactance Frequency Modulation
Maximum Frequency Deviation ±5.0 KHz
Occupancy Bandwidth Within 16KHz
Microphone Input Impedance 2KΩ
Audio Frequency Response 300Hz ~ 3KHz, 6dB/Octave(+1 ~ -3dB)
Spurious Emission More than 70dB
Adjacent Channel Power Less than -70dBc
Audio Harmonic Distortion Less than 10%(At m=3 : 300Hz, 500Hz, 1KHz)
Parasitic Modulation
(Signal/Noise Ratio) More than 40dB

11
3.1.3 Receiver Unit
Receiving Mode Double Conversation Super Heterodyne
1st 21.7MHz
Intermediate Frequencies 2nd 450KHz
Local Oscillating Frequency Receiving Frequency -21.7MHz
Local Oscillating Mode Synthesizer Mode
Receiving Sensitivity 0.32uV(20dB SINAD)
0.22uV(12dB SINAD)
Audio Frequency Responce -6dB/octave
Squelch Sensitivity 0.22uV
Common Channel Reject Rate -10dB ~ 0dB
Adjacent Channel Selection More than 70dB
Spurious Response Reject Rate More than 70dB
Inter Modulation Response Rate More than 68dB
Spurious Emission Less than 2nW (-56.9dBm)
Hum and Noise Less Than -40dB
Audio Output Power (@13.6V DC) 4.5W/4Ω(distortion below 10%)
3.1.4 DSC Unit
Operating Frequency 156.525MHz
Mode 16KOG2B
Receiving System Double-conversion Super-heterodyne
1st 10.7MHz
Intermediate Frequencies 2nd 450KHz
Inter-modulation Rejection Ratio More than68dB(Less than 10¯2 Bit error rate)
Adjacent Channel Selectivity More than70dB(Less than 10¯2 Bit error rate)
Spurious Response Rejection Ratio More than70dB(Less than 10¯2 Bit error rate)
Spurious Emission Less than 2nW (-56.9dBm)
DSC Modulation Speed 1200baud(±30ppm)
DSC Modulation Method FSK
DSC Modulation Index Within M = 2±10Hz
MARK Frequency Within 1300Hz ±10Hz
SPACE Frequency Within 2100Hz ±10Hz
Maximum Sensitivity Available 0.25uV (Less than 10¯2 Bit error rate)
DSC Operation ITU-R M.541-9
ITU-R M.689-2
DSC FILE Memory DISTRESS Related Message Receiving :20
OTHERS Related Message Receiving :20

12
3.2 Channel list
3.2.1 ITU Channel
CH TX
(MHZ) RX (MHZ) Communication Type Ship to
Ship Ship to Shore Channel
Name
01 156.050 160.650 Public Correspondence,
Duplex NO YES TELEPHO
02 156.100 160.700 Public Correspondence,
Duplex NO YES TELEPHO
03 156.150 160.750 Public Correspondence
Duplex NO YES TELEPHO
04 156.200 160.800 Port Operations, Duplex NO YES P-OPS
05 156.250 160.850
Port Operations, Selected VTS
Area NO YES P-OPVTS
06 156.300 156.300 Inter-ship Safety YES NO SAFETY
07 156.350 160.950 Port Operations, Duplex NO YES P-OPS
08 156.400 156.400 Commercial (Inter-ship Only) YES NO COMMERC
09 156.450 156.450 Recreational, VTS in Selected
Area YES YES CALLING
10 156.500 156.500 Commercial YES YES COMMERC
11 156.550 156.550 Commercial, VTS in Selected
Area YES YES VTS
12 156.600 156.600
Port Operations, Selected VTS
Areas YES YES P-OPVTS
13 156.650 156.650 Inter-ship Navigation Safety
(bridge-to-bridge) YES NO BRIDGE
14 156.700 156.700
Port Operations, Selected VTS
Areas YES NO P-OPVTS
15(1) 156.750 156.750 Port Operation-1W Only YES YES P-OPS
16 156.800 156.800 International Distress, Safety,
and Calling YES YES DISTRES
17(1) 156.850 156.850 State Controlled-1W Only YES YES SAR
18 156.900 161.500 Port Operations, Duplex NO YES P-OPS
19 156.950 161.550 Commercial, Duplex NO YES DISTRES
20 157.000 161.600 Port Operations, Duplex NO YES P-OPS
21 157.050 161.650 Port Operations, Duplex NO YES P-OPS
22 157.100 161.700 Port Operations, Duplex NO YES P-OPS
23 157.150 161.750 Public Correspondence,
Duplex NO YES TELEPHO
24 157.200 161.800 Public Correspondence,
Duplex NO YES TELEPHO
25 157.250 161.850 Public Correspondence,
Duplex NO YES TELEPHO
26 157.300 161.900 Public Correspondence,
Duplex NO YES TELEPHO
27 157.350 161.950 Public Correspondence,
Duplex NO YES TELEPHO
28 157.400 162.000 Public Correspondence, uplex NO YES TELEPHO

13
CH TX
(MHZ) RX (MHZ) Communication Type Ship to
Ship
Ship to
Shore
Channel
Name
60 156.025 160.625 Public Correspondence,
Duplex NO YES TELEPHO
61 156.075 160.675 Public Operations, Duplex NO YES P-OPS
62 156.125 160.725 Public Operations,
Duplex NO YES P-OPS
63 156.175 160.775 Port Operations, Duplex NO YES TELEPHO
64 156.225 160.825 Public Correspondence,
Duplex NO YES P-OPS
65 156.275 160.875 Public Operations,
Duplex NO YES P-OPS
66 156.325 160.925 Port Operations, Duplex NO YES P-OPS
67 156.375 156.375 Commercial, bridge to bridge YES NO BRIDGE
68 156.425 156.425 Boat Operations, Recreational YES YES SP-SP
69 156.425 156.475 Port Operations YES YES P-OPS
70(2) 156.525 156.525 Digital Selective Calling for
distress safety and calling --------- --------- DSC
71 156.575 156.575 Port Operations YES YES P-OPS
72 156.625 156.625 Inter-ship YES NO SP-SP
73 156.675 156.675 Port Operations YES YES P-OPS
74 156.725 156.725 Port Operations YES YES P-OPS
77 156.875 156.875 Inter-ship YES NO SP-SP
78 156.925 161.525 Non-Commercial, Duplex NO YES SP-SOR
79 156.975 161.575 Commercial, Duplex NO YES SP-SOR
80 157.025 161.625 Commercial, Duplex NO YES SP-SOR
81 157.075 161.675 Port Operations, Duplex NO YES P-OPS
82 157.125 161.725 Port Operations, Duplex NO YES P-OPS
83 157.175 161.775 Public Correspondence,
Duplex NO YES TELEPHO
84 157.225 161.825 Public Correspondence,
Duplex NO YES TELEPHO
85 157.275 161.875 Public Correspondence,
Duplex NO YES TELEPHO
86 157.325 161.925 Public Correspondence,
Duplex NO YES TELEPHO
87 157.375 157.375 Port Operations YES YES P-OPS
88 157.425 157.425 Port Operations YES YES P-OPS
Note.
(1) 1W output is set on CH15 and CH17.
(2) Voice transmission on Ch70 is forbidden as a dedicated DSC channel.
Transmission on CH75 and CH76 is forbidden to avoid any harmful interference.

14
3.2.2 USA Channel
CH TX
(MHZ) RX (MHZ) Communication Type Ship to
Ship
Ship to
Shore Channel
Name
01A 156.050 160.650 Port Operations, Selected VTS
Areas YES YES P-OPVTS
03A 156.150 156.150 US Government, Coast Guard YES YES
05A 156.250 156.250 Port Operations, Selected VTS
Areas YES YES P-OPVTS
06 156.300 156.300 Inter-ship Safety YES NO SAFETY
07A 156.350 156.350 Commercial YES YES COMMERC
08 156.400 156.400 Commercial(Inter-ship Only) YES YES CALLING
09 156.450 156.450 Recreational Calling Channel YES YES CALLING
10 156.500 156.500 Commercial YES YES COMMERC
11 156.550 156.550 Commercial, VTS in Selected
Areas YES YES VTS
12 156.600 156.600
Port Operations, Selected VTS
Areas YES YES P-OPVTS
13(1) 156.650 156.650
Inter-ship Navigation Safety
(bridge to bridge)
1W Only
YES NO BRIDGE
14 156.700 156.700
Port Operations, Selected VTS
Areas YES YES P-OPVTS
15(3) RX Only 156.750 Environmental, RX Only -------- --------- ENVIRON
16 156.800 156.800 International Distress, Safety,
and Calling YES YES DISTRES
17(1) 156.850 156.850 State Controlled-1W Only YES YES SAR
COMMERC
19A 156.950 156.950 Commercial YES YES COMMERC
20 157.000 161.600 Port Operations, Canadian
Coast Guard, Duplex NO YES P-OPS
20A 157.000 157.000 Port Operations YES YES P-OPS
21A 157.050 157.050 U.S. Government, Canadian
Coast Guard YES YES P-OPS
22A 157.100 157.100 Coast Guard Liaison YES YES COAST-G
23A 157.150 157.150 U.S. Government, Coast Guard YES YES UNAUTHO
24 157.200 161.800 Public Correspondence,
Marine Operator NO YES TELEPHO
25 157.250 161.850 Public Correspondence,
Marine Operator NO YES TELEPHO
26 157.300 161.900 Public Correspondence,
Marine Operator NO YES TELEPHO
27 157.350 161.950 Public Correspondence,
Marine Operator NO YES TELEPHO
28 157.400 162.000 Public Correspondence,
Marine Operator NO YES TELEPHO

15
CH TX
(MHZ) RX (MHZ) Communication Type Ship to
Ship Ship to Shore Channel
Name
61A 156.075 156.075 U.S. Government, Canadian
Coast Guard YES YES UNAUTHO
63A 156.175 156.175 Port Operations, VTS in
Selected Areas YES YES P-OPVTS
64A 156.225 156.225 U.S. Government, Canadian
Commercial Fishing YES YES UNAUTHO
65A 156.275 156.275 Port Operations YES YES P-OPS
66A 156.325 156.325 Port Operations YES YES P-OPS
67(1) 156.375 156.375 Commercial, bridge-to-bridge,
1W Only YES NO BRIDGE
68 156.425 156.425 Boat Operations, Recreational YES NO SP-SP
69 156.473 156.475 Boat Operations, Recreational YES YES PLEASUR
70(2) 156.525 156.525 Digital Selective Calling-DSC --------- -------- DSC
71 156.575 156.575 Boat Operations, Recreational YES YES PLEASUR
72 156.625 156.625 Boat Operations, Recreational YES NO SP-SP
73 156.675 156.675 Port Operations YES YES P-OPS
74 156.725 156.725 Port Operations YES YES P-OPS
77(1) 156.875 156.875 Port Operations-1W Only YES YES P-OPS
78A 156.925 156.925 Boat Operations, Recreational YES NO SP-SP
79A 156.975 156.975 Commercial YES YES COMMERC
80A 157.025 157.025 Commercial YES YES COMMERC
81A 157.075 157.075
U.S. Government,
Environmental, Protection
Agency Operations
YES YES UNAUTHO
82A 157.125 157.125 U.S. Government, Canadian
Coast Guard YES YES UNAUTHO
83A 157.175 157.175 U.S. Government, Canadian
Coast Guard YES YES UNAUTHO
84 157.225 161.825 Public Correspondence.
Marine Operator NO YES TELEPHO
84A 157.225 157.225 Public Correspondence.
Marine Operator YES YES TELEPHO
85 157.275 161.875 Public Correspondence.
Marine Operator NO YES TELEPHO
86 157.275 161.975 Public Correspondence.
Marine Operator YES YES TELEPHO
86A
157.325 157.325 Public Correspondence. Marine Operator NO YES TELEPHO
87 157.375 161.975 Public Correspondence.
Marine Operator NO YES TELEPHO
87A 157.375 157.375 Public Correspondence.
Marine Operator YES YES TELEPHO
88 157.425 162.025 Public Correspondence.
Marine Operator NO YES TELEPHO
88A 157.425 157.425 Public Correspondence.
Marine Operator YES NO COMMERC
Note.
(1) 1W output is set on CH13, CH17, CH67 and CH77
(2) Voice transmission on Ch70 is forbidden as a dedicated DSC channel.
Transmission on CH15, CH75 and CH76 is forbidden to avoid any harmful interference.

16
3.2.3 CANADA Channel
CH TX
(MHZ) RX (MHZ) Communication Type Ship to
Ship Ship to Shore Channel
Name
01 156.050 160.650 Public Correspondence, Duplex NO YES TELEPHO
02 156.100 160.700 Public Correspondence,
Duplex NO YES TELEPHO
03 156.150 160.750 Public Correspondence,
Duplex NO YES TELEPHO
04A 156.200 156.200 Canadian Coast Guard, SAR YES YES CA-CG
05A 156.250 156.250 Port Operations, VTS in
Selected Areas YES YES P-OPVTS
06 156.250 156.300 Inter-ship Safety YES NO SAFETY
07A 156.350 156.350 Commercial YES YES COMMERC
08 156.400 156.400 Commercial (Inter ship Only) YES NO COMMERC
09 156.450 156.450 Recreational Calling Channel YES YES CALLING
10 156.500 156.500 Commercial YES YES COMMERC
11 156.550 156.550 Commercial, VTS in Selected
VTS Areas YES YES VTS
12 156.600 156.600 Port Operations, Selected Areas YES YES P-OPVTS
13(1) 156.650 156.650 Inter-ship Navigation Safety
(bridge-to-bridge) 1W Only YES NO BRIDGE
14 156.700 156.700 Port Operations, VTS in
Selected Areas YES YES P-OPVTS
15(1) 156.750 156.750 Commercial-1W Only YES YES COMMERG
16 156.800 156.800 International Distress, Safety
and Calling YES YES DISTRES
17(1) 156.850 156.850 State Controlled-1W Only YES YES SAR
18A 156.950 156.950 Commercial YES YES COMMERC
19A 156.950 156.950 Canadian Coast Guard YES YES CA-CG
20(1) 157.000 161.600 Canadian Coast Guard, Duplex-
1W Only NO YES CA-CG
21 157.050 161.650 Port Operations, Duplex NO YES CA-CG
21A 157.050 157.050 U.S. Government, Canadian
Coast Guard YES YES UNAUTHO
21B RX Only 161.650 Port Operations, RX Only ------- --------- P-OPS
22A 157.100 157.100 Canadian Coast Guard Liaison YES YES CA-CG
23 157.15
0 161.750 Public Correspondence, Duplex NO YES TELEPHO
24 157.200 161.800 Public Correspondence, Duplex NO YES TELEPHO
25 157.250 161.850 Public Correspondence, Duplex NO YES TELEPHO
25B RX Only 161.850 Public Correspondence,
RX Only ------- ------- TELEPHO
26 157.300 161.900 Public Correspondence,
Duplex NO YES TELEPHO
27 157.350 161.950 Public Correspondence,
Duplex NO YES TELEPHO
28 157.400 162.000 Public Correspondence,
Duplex NO YES TELEPHO
28B RX Only 162.000 Public Correspondence,
RX Only -------- -------- TELEPHO

17
CH TX
(MHZ) RX (MHZ) Communication Type Ship to
Ship Ship to Shore Channel
Name
60 156.025 160.625 Public Correspondence,
Duplex NO YES TELEPHO
61A 156.075 156.075 U.S. Government, Canadian
Coast Guard YES YES UNAUTHO
62A 156.125 156.125 Canadian Coast Guard YES YES CA-CG
64 156.225 160.825 Public Correspondence,
Duplex NO YES TELEPHO
64A 156.225 156.225 U.S. Government, Canadian
Commercial Fishing YES YES UNAUTHO
65A 156.275 156.275 Port Operations YES YES P-OPS
66A 156.325 156.325 Port Operations YES YES P-OPS
67 156.375 156.375 Commercial, SAR YES NO COMMERC
68 156.425 156.425 Boat Operations, Recreational YES NO SP-SP
69 156.475 156.475 Commercial Fishing Only YES YES COMMERC
70(2) 156.525 156.525 Digital Selective Calling-DSC ------- ------- DSC
71 156.575 156.575 Boat Operations, Recreational YES YES PLEASUR
72 156.625 156.575 Inter-ship YES NO SP-SP
73 156.675 156.675 Commercial Fishing Only YES YES COMMERC
74 156.725 156.725 Commercial Fishing Only YES YES COMMERC
77 156.875 156.875 Port Operations YES YES P-OPS
78A 156.925 156.925 Boat Operations, Recreational YES NO SP-SP
79A 156.975 156.975 Commercial YES YES COMMERC
80A 157.025 157.025 Commercial YES YES UNAUTHO
81A 157.075 157.075 U.S. Government, Canadian
Coast Guard YES YES UNAUTHO
82A 157.125 157.125 U.S. Government, Canadian
Coast Guard YES YES UNAUTHO
83 157.175 161.775 Canadian Coast Guard YES YES CA-CG
83A 157.175 161.175 U.S. Government, Canadian
Coast Guard YES YES UNAUTHO
83B RX Only 161.775 Canadian Coast Guard, RX
Only ------- -------- CA-CG
84 157.225 161.825 Public Correspondence,
Marine Operator NO YES TELEPHO
85 157.275 161.875 Public Correspondence,
Marine Operator NO YES TELEPHO
86 157.325 161.925 Public Correspondence,
Marine Operator NO YES TELEPHO
87 157.375 161.975 Public Correspondence,
Marine Operator NO YES TELEPHO
88 157.425 162.025 Public Correspondence,
Marine Operator NO YES TELEPHO
Note.
(1) 1W output is set on CH13, CH15, CH17 and CH20.
(2) Voice transmission on Ch70 is forbidden as a dedicated DSC channel.
(3) Transmission on CH75 and CH76 is forbidden to avoid any harmful interference
* 1W output is set on CH66, CH77 and available to convert to 25W

18
3.2.4 WHEATHER CHANNEL
WEATHER CH Rx(MHz) Type Remark
WX1 162.55. NOAA WEATHER CHANNEL NOAA WX
WX2 162.400 NOAA WEATHER CHANNEL NOAA WX
WX3 162.475 NOAA WEATHER CHANNEL NOAA WX
WX4 162.425 NOAA WEATHER CHANNEL NOAA WX
WX5 162.450 NOAA WEATHER CHANNEL NOAA WX
WX6 162.500 NOAA WEATHER CHANNEL NOAA WX
WX7 162.525 NOAA WEATHER CHANNEL NOAA WX
WX8 161.650 CANADIAN WEATHER CHANNEL CANADA WX
WX9 161.775 CANADIAN WEATHER CHANNEL CANADA WX
WX10 163.275 NOAA WEATHER CHANNEL NOAA WX

19
3.3 POSITION INFORMATION INTERFACE
This unit is efficiently designed for convenient use, after receiving NMEA0183 FORMAT
typed GPS information that will interfaces internally and input automatically with current
own vessel’s latitude and longitude value when distress call is occurred.
It is available to input the time when determined with position information and position by
manual.
In case not receiving position data from electronic position-determined device, and/or in
case position information conducted by manual input being delayed more than 4 hours,
alarm is ringing. Any position information, which is not updated more than 231/2 hours
should be deleting. Alarm will ring if GPS is not input more than 1 minute and alarm
would stop when GPS is input again.
NMEA0283 input mode and type for this unit is as follows,
$GPGGA,065501,3506.3023,N,12905.6429,E,1,07,001.3,00005,M,0000,M,,*41
$GPGGA,032007,3505.10,N,12902.47,E,1,00,1,0,M,,M,,
$GPGGA,044610.00,3505.2139,N,12904.2867,E,1,06,05.4,,M,,M,,*63
$GPRMC,123456,A,3505.00,N,12902.00,E,1.0,0.0,221199,0.0,E*00
$GPRMC,123456,A,3505.0000,N,12902.0000,E,1.0,0.0,221199,0.0,E*00
$GPRMC,044610.00,A,3505.2139,N,12904.2867,E,00.2,229.1,180702,,*0D
$GPGLL,3504.2892,N,12900.2503,E,024950.00,V*14
$GPGLL,3505.09,N,12902.45,E*PCL
$GPZDA,025220.00,17,04,1999,00,00*6B
$GPZDA,050048,13,09,1998,+00

20
The chapter 4. How to operate.
4.1 Unit Description.

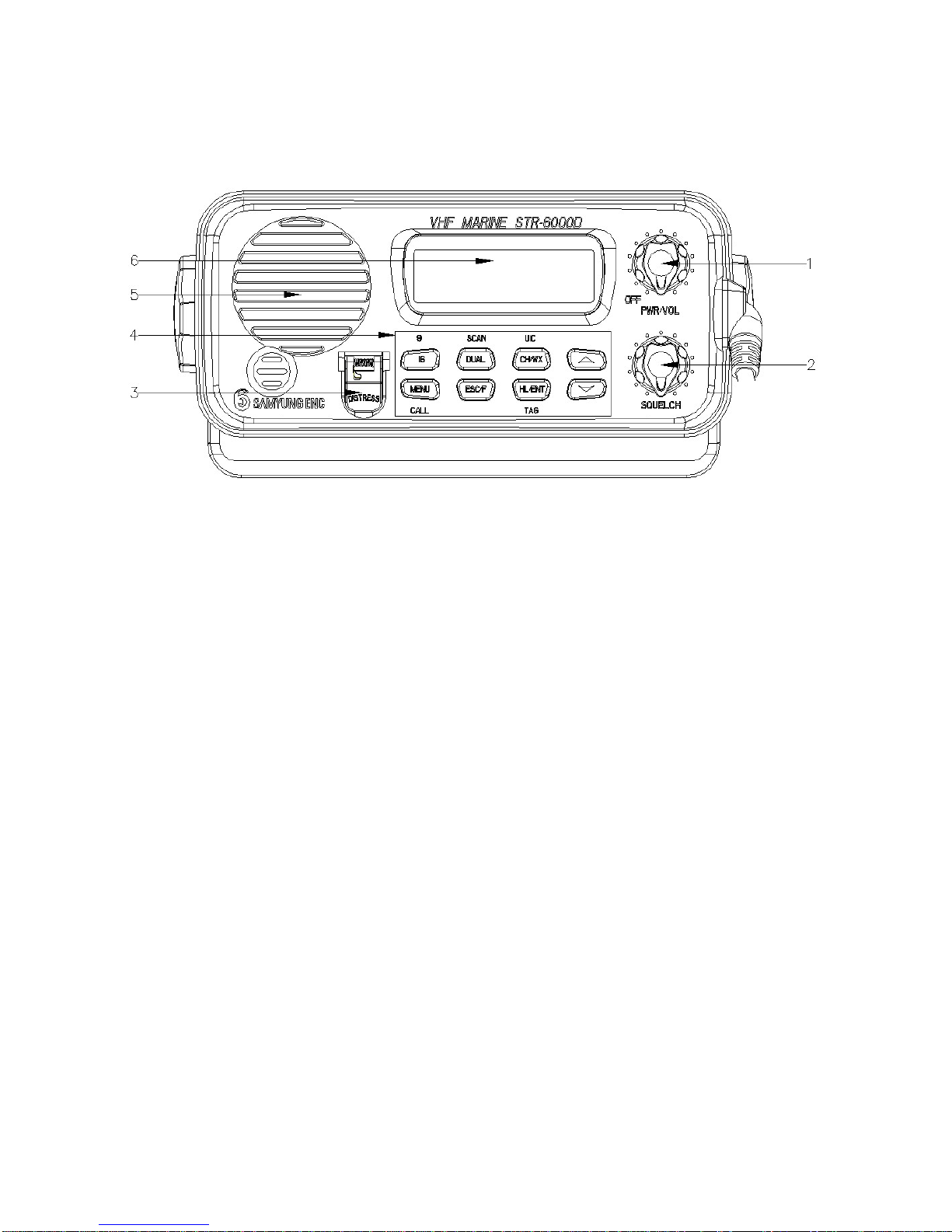

4.1.1 Front Panel.
1) Power knob : To turn ON/OFF power and control volume.
2) SQUELCH knob : Squelch control.
3) DISTRESS button : When pushed for 5 seconds, it activates distress call.
4) Front Panel button.
- CH16 : Convert to current channel and CH16.
- DUAL : Inter converting and scanning function between current
channel and CH16. Short pressing button links to DUAL.
Long pressing button links to ALL SCAN.
- CH/WX : Convert inter-channel between current channel and weather channel.
- Menu : Short pressing button links to DSC call. Long pressing key links to
menu display.
- Esc/F : Escape in Menu mode, while Function button in others.
- HL/ENT, TAG : Operated by using Enter button in menu mode.
While in normal times it is used for converting transmission
power (1W, 25W).
- ▲ (UP), ▼ (Down) : To change channel or convert Menu.(Short press button
will work one time, Long press button will work continuously).
5) Internal speaker : 16Ω 2W.
6) LCD Front Panel Display Function.
