HDTV User’s Guide
Changing Entertainment. Again.

This symbol indicates
"dangerous voltage" inside
the product that presents
a risk of electric shock or
personal injury.
WARNING
To reduce the risk of fire
or electric shock, do not
expose this product to rain or
moisture. The apparatus shall
not be exposed to dripping or
splashing and no objects filled
with liquids, such as vases, shall
be placed on the apparatus.
Caution: To reduce the risk of electric shock, do
not remove cover (or back). With the exception of
the lamp, no user serviceable parts inside. Refer
servicing to qualified service personnel.
This symbol indicates
important instructions
accompanying the product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Product Registration
Please fill out the product registration card (packed separately) and return it immediately. For U.S. customers: Your
RCA Consumer Electronics product may also be registered at www.rca.com/productregistration. Returning the card
allows us to contact you if needed.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record
the serial and model numbers in case you need them. These numbers are located on the product.
Model No. ______________________________________________________________________________________________
Serial No ._______________________________________________________________________________________________
Purchase Date: __________________________________________________________________________________________
Dealer/Address/Phone: ___________________________________________________________________________________
Important Information
Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.
FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority
to operate it.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical
Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding system of the building as close to
the point of cable entry as practical.
Important: This television is a table model and is designed to sit on a firm, flat, surface. Don't place the TV on
soft carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked resulting in
reduced lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 4 inches
from the top and sides of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.
Also, make sure the stand, cabinet, or base you use is of adequate size and strength to prevent the TV from being
accidentally tipped over, pushed off, or pulled off. This could cause personal injury and/or damage the TV. Refer to
the Important Safety Instructions packed separately.
This symbol indicates that the lamp in the HDTV contains mercury.
Special disposal of the lamp for environmental reasons may be
required under the laws applicable to your jurisdiction. For disposal
or recycling information, please contact your local authorities or the
Electronic Industries Alliance: www.eiae.org.

1
Introduction
Thank you for choosing RCA
Congratulations on purchasing this RCA High Definition Television (HDTV) featuring Texas
Instruments Digital Light Processing™ technology–a true viewing experience. Your purchase
decision represents an investment in a new generation of technology–DLP™ and HDTV. Even
though this is a technologically advanced HDTV, it is the most user-friendly of its kind–with
comprehensive on-screen instructions that guide you through all of the TV’s features.
This introduction has three parts that describe why an RCA HDTV featuring DLP™ technology is
an excellent choice:
Part 1: DLP™ technology–brilliance in color and design
Part 2: Why RCA DLP™ HDTV is better
Part 3: Other Key Features of owning an RCA HDTV
Part 1: DLP™ technology–brilliance in color and design
RCA brings you pictures with DLP™ system–a brilliantly choreographed, engineering marvel
that combines microscopic mirrors, light, and color to bring you the best and brightest pictures
possible.

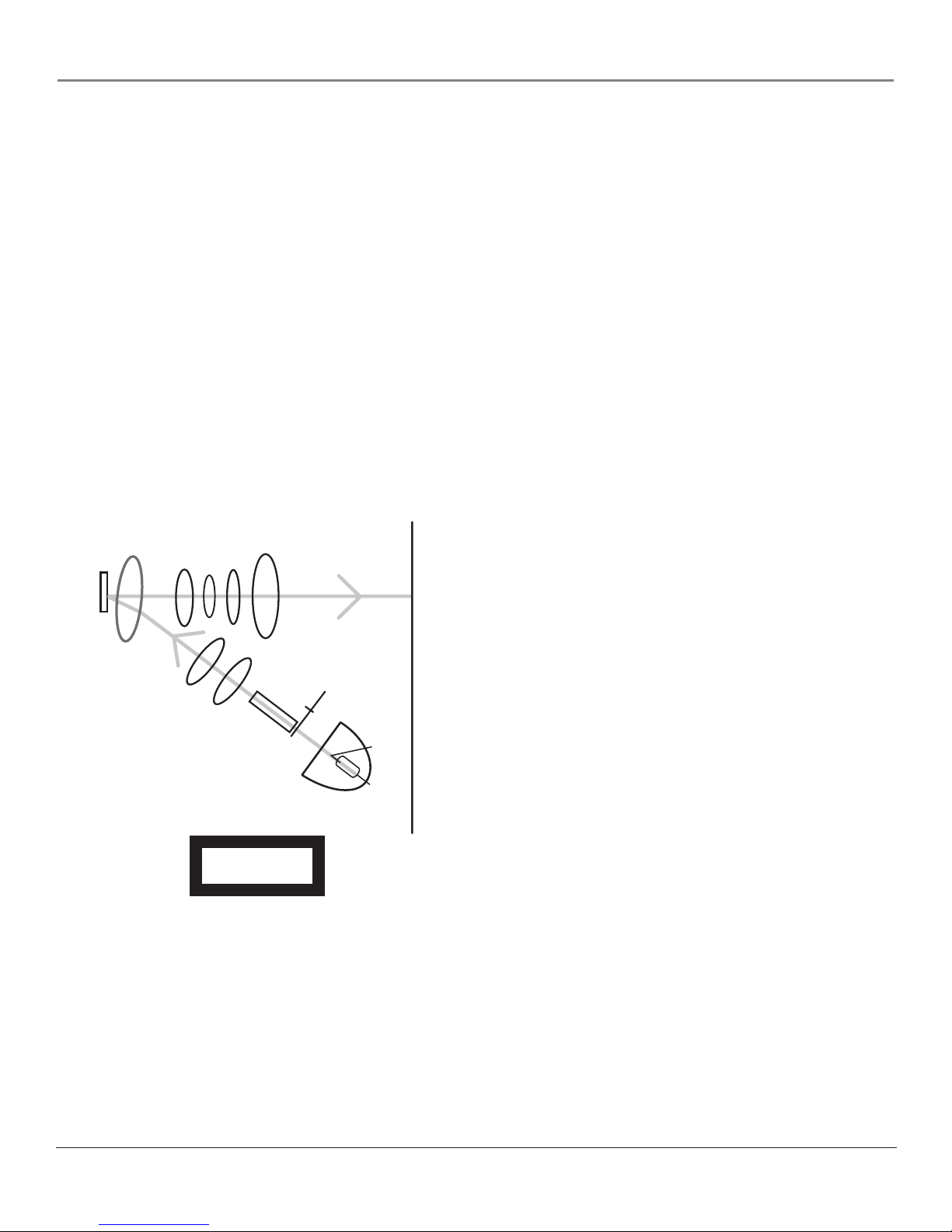

How DLP™ Technology Works
In general, DLP™ technology combines microscopic mirrors, a
specially designed semiconductor, and a color wheel to adjust
light to display the most brilliant, accurate images! Your DLP™
HDTV doesn’t use Cathode Ray Tubes (CRTs), which means
you don’t have to worry about screen burn (fixed video images
burning onto the screen permanently) or convergence (realigning
the CRTs). The diagram on the left illustrates the complex system.
Thin and Light
The efficiency of DLP™ technology enabled our design team to
create a high-performance HDTV that is about 16 inches thin and
weighs less than 100 pounds.
Lamp Replacement
DLP™ technology uses a special lamp. Eventually, you’ll need to
replace this lamp, which you can do yourself by following the
instructions that come packed with the new lamp. To order the
correct lamp, you’ll need to know your TV’s model number, serial
number, and lamp type–this information is listed on the Service
Model Number sticker (example of the sticker is shown on the
left). Face the back of the TV. The sticker is located on the right
side of the TV. The lamp type can also be found in the TV’s Lamp
Power menu. Go to page 62 for more information. For future
reference, write down the information in the space provided at
the left.
DMD
Projection Optics
Illumination Relay Optics
Lamp
Screen
Common Field Lens
Integrating Light Pipe
Color Wheel
Digital Light Processing, DLP, the DLP logo, and the DLP medallion are trademarks of Texas Instruments. All other products and names
may or may not be trademarks or registered trademarks of their respective companies.
Model No.____________________________________
Lamp Type___________________________________
Date_________________________________________
Service Model Number Numéro de Modéle-Service
SERIAL SERIE LAMP
HDLP50XXXXXX
000000000 X
EXAMPLE: Service Model Number sticker
with lamp type listed.

2
Introduction
Part 2: Why RCA HDTV is better
DLP™ technology is just part of the story. You have chosen to embark on the next generation of TV viewing–HDTV. There
are many technological advancements that make HDTV better than analog TV, but there are basically three things about
HDTV that bring you a superior viewing experience: (1) resolution, (2) aspect ratio, and (3) digital signal and sound.
Resolution (it’s math...that works for you)
The crisp, lifelike picture that people rave about when experiencing true HDTV is due to the resolution this technology
provides. The resolution is measured by calculating the number of active lines of pixels. A pixel (which stands for picture
element) is a small dot. The picture you see on your TV is composed of these dots.
A regular, analog television only has a resolution of about 200,000 pixels (480 vertical pixels x 440 horizontal pixels =
211,200 pixels). The HDTV format is capable of more than 2 million pixels (1,920 x 1,080 = 2,073,600).
More pixels equal more detail. In summary, HDTV is capable of resolution that is up to almost 10 times the resolution of the
picture on a regular, analog TV!
Aspect Ratio
Aspect ratio is simply the width and height of the picture. Regular TVs use
a 4:3 aspect ratio, which means the picture is a little wider than it is tall (a
screen that is 20 inches wide is about 15 inches tall).
When the standards were being developed for television broadcasting in
1941 by the NTSC (the National Television Standards Committee), it made
sense to adopt the 4:3 aspect ratio the film industry was using at that time.
As TVs dropped in price and people prospered in the 1950s, the movie
industry had to find a way to get people out of their living rooms and
back to the movie theatres. That’s when they created the 16:9 aspect ratio
(also called widescreen format). When the standards for HDTV were being
developed by the ATSC (Advanced Television Standards Committee), the 16:9
aspect ratio was chosen as the format for HDTV.
This widescreen format makes sense because it’s much closer to the way
we see. Our field of vision is actually much wider than tall because of our
peripheral vision. Not only is it closer to the way we see, but the pictures are
crisper and cleaner with more detail in the close-up and panoramic views.
Feature Analog (NTSC) HD Digital (ATSC)
Total Scan Lines 525 1125
Effective Scan Lines 480 1080
Aspect Ratio 4:3 (Standard) 16:9 (Widescreen)
Max Resolution 720 x 480 1920 x 1080
Sound 2-ch Stereo 5.1 ch Surround
16:9 Aspect Ratio
4:3 Aspect Ratio

3
Introduction
Digital Signal and Sound
The analog television broadcast system that has been used in the United States for the past 50 years transmits signals as
electronic waves. These waves can suffer degradation as the signal travels to your home. Additionally, the analog waves are
susceptible to interference from planes passing overhead, weather, and household appliances.
Digital signals, in contrast to analog signals, can be reproduced precisely because the images are transmitted and received
using the computer language of 1s and 0s. Such precision yields a signal that is capable of displaying studio-quality picture
and Dolby Digital 5.1 channel sound.
Part 3: Other Key Features of owning an RCA HDTV
There are other HDTV’s on the market–even some that use DLP™ technology. But your RCA HDTV has been designed with
features that will enhance your TV viewing experience, and features that provide flexibility to build on the digital revolution
that is taking place. A summary of your TV’s most unique features follows. Go to Chapter 3 for more details on these and
additional features.
Integrated HDTV Tuner with Digital Cable Ready QAM
RCA was the first to offer an integrated tuner with its HDTVs, which means there is no need for another box to receive
digital programming. Now, we’ve gone one better–your HDTV’s tuner is digital cable ready, which means there is no need
for a cable box to view unscrambled digital cable programming. The CableCARD™ slot on your HDTV allows you to use a
digital cable card to access digital cable. The tuner is able to decode all 35 formats of digital television broadcasts, and it can
interpret unscrambled digital cable signals because it includes QAM (Quadrature Amplitude Modulation).
Note: A digital cable card may be necessary to view scrambled (encrypted) channels. Contact your cable provider for
more information. Go to page 10 for more information.
TruScan Digital Reality
The intelligent signal processing of TruScan Digital Reality recognizes incoming video signals and progressively converts
them to achieve optimum digital picture performance. It also recognizes when original film sources have been modified
and can automatically convert the analog frame rate back to its original format to bring out the detail–a process commonly
referred to as reverse 3:2 pulldown.
User-friendly Features Help You Personalize Your TV
• You can customize your TV to fit your viewing taste and match the lighting
where you watch TV by using Personal Presets and/or the automatic picture
quality settings: Vibrant (Day), Natural, Cinematic (Night), Videogame, and
Professional. You can adjust each input jack to a different setting and the TV
will automatically adjust the picture when you change inputs.
• Help Text: The elaborate, on-screen help text describes your TV’s features
and explains how to use them.
Picture Presets
Picture Settings
Go Back
2
1
0
Noise Reduction
Color Warmth
Auto Color
5
4
3
Green Stretch
6
Edge Enhancement
7
Contrast Expand
8
Advanced Settings
9Press 5or 6to point to an option, then press OK to select it.
Press 3to return to the menu.
A change in this screen is applied to Input 3.
Vibrant Day
Natural
Cinematic (Night)
Videogame
Professional
Personal
Contrast 65%
Color 70%
Tint 55%
Black Level 60%
Sharpness 55%
Auto Color On
Color Warmth Cool
Noise Reduction Frame Comb
Green Stretch High
Edge Enhancement Low
Contrast Expand High
Main Menu4Picture Quality
CableCARD™ is a trademark of Cable Television Laboratories, Inc.
Help text

4
Introduction
Audio/Video Output Jacks
Because the VCRs in most households are analog and can’t receive or record digital TV signals,
recording digital TV broadcasts wasn’t possible without purchasing additional equipment. That’s
why RCA added AUDIO/VIDEO OUTPUT jacks to this HDTV. These jacks enable you to record
both analog and digital programs. RCA understands how you watch TV and what’s necessary to
make the transition to HDTV seamless.

5
Table of Contents
Introduction............................................................................................... 1
Chapter 1: Connections & Setup
Things to Consider Before You Connect .........................................................................................8
Protect Against Power Surges...................................................................................................8
Protect Components from Overheating ...................................................................................8
Position Cables Properly to Avoid Audio Interference ............................................................8
Use Indirect Light.......................................................................................................................8
FCC Statement ...........................................................................................................................8
Choose Your Signal...........................................................................................................................9
Using the Cable Input................................................................................................................9
Using the Antenna Input...........................................................................................................9
Using the CableCARD Slot.........................................................................................................9
Setting Up Digital Cable Television Service ............................................................................10
Choose Your Connection ................................................................................................................11
Y Pb Pr Connection ..................................................................................................................12
Audio/Video Input and Output Connection...........................................................................14
HDMI/DVI Connection..............................................................................................................16
Advanced Audio Connection Information .............................................................................18
Plug in the TV..................................................................................................................................19
Put Batteries in the Remote ...........................................................................................................19
Turn on the TV.................................................................................................................................19
Use the Remote Control to Complete the Assisted Setup ...........................................................19
Complete the Assisted Setup.........................................................................................................19
Set the Menu Language .........................................................................................................20
Complete Channel Search .......................................................................................................20
What To Expect ...............................................................................................................................20
Watching TV.............................................................................................................................20
Changing Channels..................................................................................................................21
Next Steps .......................................................................................................................................21
Explanation of Jacks .......................................................................................................................22
The Front of Your TV.......................................................................................................................25
Front Input Jacks......................................................................................................................25
Front Panel ...............................................................................................................................25
Chapter 2: Using the Remote Control
The Buttons on the Remote Control..............................................................................................28
Programming the Remote to Operate Other Devices ..................................................................30
Find Out If You Need to Program the Remote ......................................................................30
Programming the Remote.......................................................................................................30
How to Use the Remote After You’ve Programmed It.................................................................31
Modes of Operation ................................................................................................................32
Volume Punchthrough Feature ......................................................................................................32
Deleting ALL Volume Punchthrough Commands ..................................................................33
Using the INPUT Button..................................................................................................................33
Remote Code List ............................................................................................................................33
Chapter 3: Using the TV’s Features
About the Channel Banner.............................................................................................................36
Digital or Analog TV Channels.......................................................................................................37
Direct Tuning to a Channel .....................................................................................................37
Parental Controls ............................................................................................................................38
Lock/Unlock TV.........................................................................................................................38
Channel Lists (Video Input List, Cable Channel List, Antenna Ch. List)................................38

6
Table of Contents
How V-Chip Works for the USA and Canada ................................................................................39
USA V-Chip TV Ratings ............................................................................................................39
Canada V-Chip..........................................................................................................................43
Auto Tuning Feature ......................................................................................................................45
Emergency Alert System (EAS) ......................................................................................................46
Chapter 4: Using the TV’s Menu System
Menus, On-screen Help, and Control Panels.................................................................................48
Navigating the Menu System..................................................................................................48
On-Screen Help ........................................................................................................................48
Controls ....................................................................................................................................48
Picture Quality Menu......................................................................................................................50
Picture Settings ........................................................................................................................50
Picture Presets ..........................................................................................................................50
Auto Color................................................................................................................................51
Color Warmth ..........................................................................................................................51
Noise Reduction .......................................................................................................................51
Green Stretch ...........................................................................................................................51
Edge Enhancement..................................................................................................................51
Contrast Expand.......................................................................................................................52
Advanced Settings ...................................................................................................................52
Audio Menu.....................................................................................................................................53
Equalizer Presets ......................................................................................................................53
Audio Processor........................................................................................................................53
Sound Logic..............................................................................................................................54
Audio Mode .............................................................................................................................54
SAP (Second Audio Program) ..................................................................................................54
Balance .....................................................................................................................................54
Audio Connections...................................................................................................................55
Connections Menu..........................................................................................................................56
Signal Strength.........................................................................................................................56
Channel Search.........................................................................................................................56
Signal Source............................................................................................................................57
Auto Tuning .............................................................................................................................57
Special Features........................................................................................................................58
Preferences Menu ...........................................................................................................................58
Closed Captioning....................................................................................................................59
Screen Format .........................................................................................................................61
Time Menu ...............................................................................................................................61
Color Scheme............................................................................................................................62
Translucency .............................................................................................................................62
Menu Language.......................................................................................................................62
Lamp Power..............................................................................................................................62
Chapter 5: Other Information
Frequently Asked Questions (FAQs)..............................................................................................64
Troubleshooting..............................................................................................................................65
Lamp Replacement Information ....................................................................................................69
HDTV Specifications........................................................................................................................70
Accessory Information....................................................................................................................72
Limited Warranty ............................................................................................................................73
Care and Cleaning...........................................................................................................................74
FCC Information ..............................................................................................................................74
Index ................................................................................................................................................76

Graphics contained within this publication are for representation only. 7
Chapter 1
Connections &
Setup
rca.com
Changing Entertainment. Again.
Connections & Setup
Chapter Overview:
• Things to Consider Before You Connect
• Choose Your Signal
• Choose Your Connection
• Plug in the TV
• Put Batteries in the Remote
• Turn on the TV
• Use the Remote Control to Complete
the Assisted Setup
• Complete the Assisted Setup
• What To Expect
• Next Steps
• Explanation of Jacks
• The Front of Your TV

Connections & Setup
8 Chapter 1
Things to Consider Before You Connect
Protect Against Power Surges
• Connect all components before you plug any of their power cords into the wall outlet or
power strip. NEVER plug your TV into an outlet that is controlled by a wall switch.
• Turn off the TV and/or device(s) before you connect or disconnect any cables.
• Make sure all antennas and cables are properly grounded. Refer to the Important Safety
Instructions sheet packed with your TV.
Protect Components from Overheating
• Don’t block ventilation holes on any of the components. Arrange the components so that air
can circulate freely.
• Don’t stack components.
• If you place components in a stand, make sure you allow adequate ventilation.
• If you connect an audio receiver or amplifier, place it on the top shelf so the heated air from
it won’t flow around other components.
Position Cables Properly to Avoid Audio Interference
Insert each cable firmly into the designated jack.
Use Indirect Light
Don’t place the TV where sunlight or room lighting will be directed toward the screen. Use soft
or indirect lighting.
FCC Statement
This digital television is capable of receiving analog basic, digital basic and digital premium cable
television programming by direct connection to a cable system providing such programming. A
security card provided by your cable operator is required to view encrypted digital programming.
Certain advanced and interactive digital cable services such as video-on-demand, a cable
operator’s enhanced program guide and data-enhanced television services may require the use of
a set-top box. For more information, call your local cable operator.

Connections & Setup
Chapter 1 9
VIDEO
AUDIO /VIDE
DIGITAL
AUDIO
OUTPUT
(OPTICAL)
VIDE
O
A
UDIO
/
VIDE
D
IGITA
L
A
UDIO
O
UTPUT
(O
PTICAL)
CABLE INPUT
Choose Your Signal
The first part of connecting your TV is to get a signal. The back panel of your TV allows you to
connect cable by using the CABLE INPUT; off-air antenna by using the ANTENNA INPUT; and a
digital cable card by using the CableCARD slot. See below for these locations.
Using the Cable Input
Connect a coaxial cable from the wall outlet to the CABLE INPUT on the back of the TV to
receive cable channels.
Coaxial cable
CableCARD Slot CABLE INPUT ANTENNA INPUT
What You Need
Coaxial cable
What You Need To Know
• If you have cable connected and you want to record programs, go to the connection on page 14
for more information.
• When you get to the Channel Search screen in the Assisted Setup, place a check mark in the box
next to Cable Input. To complete a channel search now, go to page 20.
• When you are ready to watch channels, make sure you are tuned to the Cable Input. Press the
ANT•CAB button to tune to the Cable Input.
Using the Antenna Input
Connect a coaxial cable from an off-air antenna to the ANTENNA INPUT to receive off-air
channels and local digital channels.
What You Need
Indoor or outdoor antenna
What you Need to Know
• Visit www.antennaweb.org to get help deciding what type of antenna to use to receive the local
digital channels available to you. By entering where you live, this mapping program tells you what
local analog and digital stations are available using a certain antenna. Once you determine what
type of antenna you need, go to rca.com or go to the accessories on page 72.
• When you get to the Channel Search screen in the Assisted Setup, place a check mark in the box
next to Antenna Input. To complete a channel search now, go to page 20.
• When you are ready to watch channels, make sure you are tuned to the Antenna Input. Press the
ANT•CAB button to tune to the Antenna Input.
Outdoor antenna
Indoor antenna

Connections & Setup
10 Chapter 1
Using the CableCARD Slot
The CableCARD slot allows you to use a digital cable card to receive digital cable services,
including premium and HDTV cable channels, without the need for a set-top box. Please contact
your local cable company to obtain a digital cable card. Depending on your cable company,
someone might come to your home to install the digital cable card for you, or they’ll simply send
you the digital cable card.
Important Note: CableCARD service details, availability, restrictions, and pricing
are determined by your cable company.
When you receive the digital cable card, make sure you connect your coaxial cable to the
CABLE INPUT jack. Then, turn on your TV. Insert the digital cable card into the slot on the back
of the TV labeled CableCARD. Push firmly on the card until almost the entire card is inserted.
Wait to receive information on-screen regarding your digital cable television services. See below
for information on setting up digital cable television services for your TV.
Digital Cable
Card
What You Need
• Coaxial cable
• Digital cable service subscription
• Digital cable card
What You Need to Know
• The coaxial cable from your cable outlet needs to be connected to the CABLE INPUT jack so the
digital cable card can get a signal and receive channel information.
• Once the digital cable card is authorized for a particular TV, the card can’t be used with any other
TV, unless it is re-authorized to it.
• You won’t receive digital cable channels if you connect your cable to the ANTENNA INPUT. Make
sure you connect your cable to the CABLE INPUT.
• Once inserted, it is not recommended you remove the digital cable card. In the case it needs to
be removed, grasp firmly, and pull the card straight out.
Setting Up Digital Cable Television Service
Once you have inserted a digital cable card into the CableCARD slot on the back of the TV (explained
above), you are ready to receive digital cable channels. Wait approximately 30 seconds for the status
screen to appear. Write down the information you see and call your cable company to provide them
with the information on-screen.
If you experience problems with your digital cable after your digital cable card is set up, try resetting
your card. Go to page 58 for more information. If problems persist, contact your cable company.
Notes: If your information screen disappears before you have a chance to write down the
information, press MENU on the remote to access the menu system. Then press 9, 9, 9, and
the information screen appears. Go to page 58 for more information on the CableCARD Tools
menu.
You can’t order video-on-demand through your digital cable card. Call your local cable
company to place an order.
Coaxial cable

Connections & Setup
Chapter 1 11
Jacks Used Cables Needed Go to...
Component video page 12-13
page 14-15
2 sets of
Composite
page 16-17
HDMI™
OR
HDMI
Y Pb Pr
Audio R and L
Video
Audio R and L
Audio/Video
Output
HDMI/DVI INPUT
Use menu for DVI audio.
HDMI/DVI
Y/VIDEO
PB
PR
L
R
S-VIDEO
COMPOSITE INPUT
INPUT 1
VIDEO
L
R
VIDEO
L
R
AUDIO/VIDEO
OUTPUT
HDMI and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
DVI is a trademark of the Digital Display Working Group (DDWG)
HDMI/DVI™
adapter
Audio
Audio
Choose Your Connection
There are several ways to connect your HDTV, depending on the components you want to connect and the quality of the
signal you want to achieve. The HDMI/DVI and component jacks are considered excellent; S-Video is very good; composite
jacks are good, while connecting components to the Antenna or Cable input is fair.
Please use the following chart to determine which connection is best for you. Cables may be ordered separately by calling
the number on page 72. Proceed to the appropriate page and connect your TV.
Note for U.S. Customers: If you prefer, we can provide you with the name of an Authorized Service Representative
who will visit your home for a fee to install your electronic entertainment system and to instruct you in its operation.
For details about this service, call 1-888-206-3359. For additional assistance while using your RCA product, please
visit www.rca.com.
Connecting an optional audio receiver:
After you connect your TV (choose an option above), go to page 18 for general information
about connecting an audio/video receiver.

Connections & Setup
12 Chapter 1
COMPO SITE INPUT COMPONENT (1080i/720p/480p/480i)/COMPOSITE INPUTS
INPUT 1
VIDEO
L
R
INPUT 3
L
R
S-VIDEO
CABLE INPUT
VIDEO
L
R
SUBWOOFER
L
R
AUDIO /VIDEO
OUTPUT
FIXED/VARIABLE
AUDIO OUTPUT
INPUT 2
Y/VIDEO
PB
PR
L
R
S-VIDEO
DIGITAL
AUDIO
OUTPUT
(OPTICAL)
COMPONENT VIDEO
YPb Pr
VIDEO
INPUT
LR
AUDIO
VIDEO
OUTPUT
S-VIDEO
OUT
S-VIDEO
IN
LR
AUDIO
LR
AUDIO
STOP PAUSE
TV
ON•OFF
AUX•HDDVD SAT•CABLE
CC PRESETS FREEZESOUND
PLAY FORWARDREVERSE
GUIDE
GO BACK
C
H
+
C
H
-
V
O
L
V
O
L
FORMATMUTE
INFO
MENU CLEAR
SKIP
ANT•CAB
123
456
789
0
INPUT
VCR
AUDIO
OK
RECORD
BACKLIGHT
INPUT
button
Input 2 Cable Input
16:9 Normal 1080i HD
Listening to English in SRS
MPAA - Not Rated
12:39 PM
12:30 AM 00:30Program Title/Acquiring Channel
Input channel appears here
TV button
Use these buttons
to view the picture
of the device you’ve
connected to the TV.
Y Pb Pr Connection
Viewing the Picture from the Connected Device
The device in this connection is connected to the TV’s INPUT 2 jacks. To view this device:
1. Turn on the TV and the device you want to view, for example a DVD player.
2. Press the TV button on the remote control to put the remote in TV mode..
3. Press the INPUT button on the remote control to scroll through the Video Input Channels until
you see INPUT 2 displayed in the channel banner. See picture below for location.
Note: You can set up the TV to automatically tune to the correct device you want to view. This
is called Auto Tuning. See Chapter 3 for more information on Auto Tuning

Connections & Setup
Chapter 1 13
Green
Blue
Red
Component Video
cables (Y Pb Pr) are
color coded- Green,
Blue and Red
White
Red
Audio cables are color
coded- Red= right audio;
white= left audio • If you are done connecting
devices to your TV, go to
page 19 to complete the
Assisted Setup.
• To continue connecting
devices, go to the next page.
• If you don’t have the cables
needed for this connection,
go to page 72 for accessory
information.
Connecting the Device
This connection allows you to connect a device that has Y Pb Pr jacks, for
example, a DVD player. If the device you are connecting also has S-Video or
composite video, we recommend you use the component video input for better
quality.
Using the example of a DVD player:
1. Connect your cable and/or off-air antenna as described on page 9.
2. Connect your Y Pb Pr component video cables.
Connect three video grade cables to the INPUT 2 Y/VIDEO PBPRjacks on
the back of the TV and to the Y PBPR outputs on the DVD player.
3. Connect your audio cables.
Connect the audio (white and red) cables to the INPUT 2 R and L Audio
jacks on the back of the TV and to the Audio Output jacks on the DVD
player.

Connections & Setup
14 Chapter 1
COMPONENT VIDEO
YPb Pr
VIDEO
INPUT
LR
AUDIO
VIDEO
OUTPUT
S-VIDEO
OUT
S-VIDEO
IN
LR
AUDIO
LR
AUDIO
COMPO SITE IN PUT COMPONENT (1080i/720p/480p/480i)/COMPOSITE INPUTS
INPUT 2
Y/VIDEO
PB
L
R
S-VIDEO
INPUT 3
Y/VIDEO
PB
PR
L
R
S-VIDEO
CABLE INPUT
SUBWOOFER
L
R
FIXED/VARIABLE
AUDIO OUTPU T
INPUT 1
VIDEO
L
R
VIDEO
L
R
AUDIO/VIDEO
OUTPUT
DIGITAL
AUDIO
OUTPUT
(OPTICAL)
Input 1 Cable Input
16:9 Normal 1080i HD
Listening to English in SRS
MPAA - Not Rated
12:39 PM
12:30 AM 00:30Program Title/Acquiring Channel
Input channel appears here
STOP PAUSE
TV
ON•OFF
AUX•HDDVD SAT•CABLE
CC PRESETS FREEZESOUND
PLAY FORWARDREVERSE
GUIDE
GO BACK
C
H
+
C
H
-
V
O
L
V
O
L
FORMATMUTE
INFO
MENU CLEAR
SKIP
ANT•CAB
123
456
789
0
INPUT
VCR
AUDIO
OK
RECORD
BACKLIGHT
INPUT
button
TV button
Use these buttons
to view the picture
of the device you’ve
connected to the TV.
Audio/Video Input and Output Connection
Viewing the Picture from the Connected Device
The device in this connection is connected to the INPUT 1 jacks. To view this device:
1. Turn on the TV and the device you want to view.
2. Press the TV button on the remote control to put the remote in TV mode..
3. Press the INPUT button on the remote control to scroll through the Video Input Channels until
you see INPUT 1 in the channel banner. See picture below for location.
Note: You can set up the TV to automatically tune to the correct device you want to view. This
is called Auto Tuning. See Chapter 3 for more information on Auto Tuning

Connections & Setup
Chapter 1 15
.
White
Red
Yellow
Use one set of composite audio/video
cables to connect to the TV’s input;
another set to connect to the TV’s output.
Composite cables are color coded-
Yellow= video; Red= right audio; white=
left audio
• If you are done connecting
devices to your TV, go to
page 19 to complete the
Assisted Setup.
• To continue connecting
devices, go to the next page.
• If you don’t have the cables
needed for this connection,
go to page 72 for accessory
information.
Connecting the Device
This connection allows you to connect a device such as a VCR that has audio/
video inputs and outputs. Connecting to the TV’s output allows you to record
both analog and digital programs (except copy protected or component video
formats).
Using the example of a VCR:
1. Connect your cable and/or off-air antenna as described on page 9.
2. Connect your composite audio/video cables to the TV’s input.
Connect composite audio/video cables to the TV’s INPUT 1 jacks (R and
L-Audio, and Video) and to the VCR’s audio/video outputs.
3. Connect your composite audio/video cables to the TV’s output.
Connect composite audio/video cables to the TV’s AUDIO/VIDEO OUTPUT
jacks (R and L-Audio, and Video) and to the VCR’s audio/video input.

Connections & Setup
16 Chapter 1
COMPO SITE INPUT COMPONENT (1080i/720p/480p/480i)/COMPOSITE INPUTS
INPUT 1
VIDEO
L
R
INPUT 2
Y/VIDEO
PB
PR
L
R
S-VIDEO
CABLE INPUT
VIDEO
L
R
SUBWOOFER
L
R
AUDIO /VIDEO
OUTPUT
FIXED/VARIABLE
AUDIO OUTPUT
INPUT 3
Y/VIDEO
PB
PR
L
R
S-VIDEO
OR
Device with DVI
L
R
Device with HDMI
Audio Out
DVI Out
Pb
Y
Video Out
Pr
HDMI Out
L
R
Audio Out
DIGITAL
AUDIO
OUTPUT
(OPTICAL)
.
HDMI/DVI Cable Input
16:9 Normal 1080i HD
Listening to English in SRS
MPAA - Not Rated
12:39 PM
12:30 AM 00:30Program Title/Acquiring Channel
Input channel appears here
STOP PAUSE
TV
ON•OFF
AUX•HDDVD SAT•CABLE
CC PRESETS FREEZESOUND
PLAY FORWARDREVERSE
GUIDE
GO BACK
C
H
+
C
H
-
V
O
L
V
O
L
FORMATMUTE
INFO
MENU CLEAR
SKIP
ANT•CAB
123
456
789
0
INPUT
VCR
AUDIO
OK
RECORD
BACKLIGHT
INPUT
button
TV button
A
B
C
Use these buttons
to view the picture
of the device you’ve
connected to the TV.
HDMI/DVI Connection
Viewing the Picture from the Connected Device
The device in this connection is connected to the HDMI/DVI jack. To view this device:
1. Turn on the TV and the device you want to view.
2. Press the TV button on the remote control to put the remote in TV mode..
3. Press the INPUT button on the remote control to scroll through the Video Input Channels until
you see HDMI/DVI displayed in the channel banner. See picture below for location.
Note: You can set up the TV to automatically tune to the correct device you want to view. This
is called Auto Tuning. See Chapter 3 for more information on Auto Tuning.

Connections & Setup
Chapter 1 17
HDMI cable
HDMI/DVI adapter
White
Red
Audio cables are color
coded- Red= right audio;
white= left audio
HDMI cable
• If you are done connecting
devices to your TV, go to
page 19 to complete the
Assisted Setup.
• To find out more about
connecting audio/video
receivers, go to the next
page.
• If you don’t have the cables
needed for this connection,
go to page 72 for accessory
information.
Connecting the Device
High-Definition Multimedia Interface (HDMI) is an uncompressed digital interface that carries
both video and audio data by way of an integrated mini-plug cable. Since HDMI is based on
Digital Visual Interface (DVI), the jack on the back of your TV is also compatible with devices
that have a DVI jack.
Note: The HDMI/DVI jack is not intended to be used with a computer.
• Connect your device that has an HDMI jack using an HDMI cable.
Connect an HDMI cable to the HDMI/DVI INPUT jack on the back of the
TV and to the HDMI Out jack on the back of the device.
OR
• Connect your device that has a DVI jack using an HDMI cable and an
HDMI/DVI adapter.
A. Connect an HDMI cable to the HDMI/DVI INPUT jack on the back of
the TV.
B. Attach an HDMI/DVI adapter to the end of the HDMI cable, then
connect the adapter to the DVI Out jack on the back of the device.
C. Since you’re using an HDMI/DVI adapter, you need to connect Audio
left and right cables to the R and L jacks on the back of the device and to R
and L Audio jacks that aren’t in use on the back of the TV.
Note: If the device you’re connecting has a digital audio output jack,
connect a digital audio cable from the device to an audio receiver for
digital audio.
D. After you’ve completed the on-screen Assisted Setup (page 19), go to
the DVI Audio Input option in the Audio Connections menu to select which
Audio Input jack you’re using. In the example on the opposite page you
would choose INPUT 3.

Connections & Setup
18 Chapter 1
Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
COMPO SITE INPUT COMPONENT (1080i/720p/480p/480i)/COMPOSITE INPUTS
INPUT 1
VIDEO
L
R
INPUT 2
Y/VIDEO
PB
PR
L
R
S-VIDEO
INPUT 3
Y/VIDEO
PB
PR
L
R
S-VIDEO
CABLE INPUT
VIDEO
L
R
SU
AUDIO /VIDEO
OUTPUT
FIXED/
AUDIO OUTPU
SUBWOOFER
L
R
FIXED/VARIABLE
AUDIO OUTPUT
SU
F
IXED
/
A
U
DI
O
OU
TP
U
DIGITAL
AUDIO
OUTPUT
(OPTICAL)
DI
G
ITAL
A
U
DI
O
O
UTPUT
(OPTICAL)
DIGITAL
AUDIO
OUTPUT
(OPTICAL)
White
Red
Audio cables are color
coded- Red= right
audio; white= left
audio
Subwoofer
cable
Digital Optical
cable
Advanced Audio Connection Information
With the audio versatility of your HDTV, you can choose various connection options depending on
the type and quality of sound that you want. From good to best sound, choose one of the options
or refer to the user’s manual of each device that you are connecting to get the best results.
• Use your TV’s internal speakers (good sound).
• Connect an audio receiver (speakers connected to receiver) to your TV (better sound).
• Connect an audio receiver (speakers connected to receiver) to your TV using the DIGITAL AUDIO
OUTPUT (OPTICAL) jack (best sound)
Connecting Your TV to an Audio/Video Receiver
For better sound quality than the TV’s internal speakers, connect to an audio receiver using audio
cables to the TV’s AUDIO OUTPUT jacks.
• Use the FIXED/VARIABLE AUDIO OUTPUT for a more advanced connection. Connect the FIXED/
VARIABLE AUDIO OUTPUTS from the TV to an A/V receiver using audio cables.
Be sure to go to the Fixed/Variable Out screen in the Audio Connections menu and select
whether you want the FIXED/VARIABLE AUDIO OUTPUT jacks to send fixed or variable volume
audio.
• Variable Output provides variable-level audio output. Volume levels are controlled by the
TV’s volume.
• Fixed Output provides fixed-level audio output from the TV. This audio output is ideal for
connecting to an A/V receiver that has its own volume control.
• If you connect the SUBWOOFER jack, be sure to go to the Fixed/Variable Out screen in the
Audio Connections menu and select Yes for connecting to an external subwoofer.
Connecting Your TV to a Receiver with Dolby®Digital
If you own a receiver with Dolby®digital decoding or PCM (Pulse-Code Modulation) that uses an
optical cable-type input, connect an optical cable for excellent audio quality.
• Connect one end of the optical cable to the DIGITAL AUDIO OUTPUT (OPTICAL) jack on your
TV and to the Digital Optical Input jack on your receiver/amplifier receiver.
• If your receiver can decode Dolby digital and PCM, go to the Audio menu, select Audio
Connections, then Digital Audio Output. Select AutoSelect (recommended) or PCM.
• If your receiver can decode only PCM, select PCM.
