ENGLISH
IMPORTANT
Before connecting and using this product, please read this instruction manual carefully and
keep it on hand for future reference.
The manual is to be considered an integral part of this product and must accompany it
when it changes ownership as a reference for correct installation and use as well as for the
safety precautions.
RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of
this product.
WARNING: To prevent the risk of re or electric shock, never expose this product to rain
or humidity (indoor use only).
SAFETY PRECAUTIONS
1. All the precautions, in particular the safety ones, must be read with special attention, as
they provide important information.
2. POWER SUPPLY FROM MAINS
-The mains voltage is sufciently high to involve a risk of electrocution: never install or
connect this product when its power cord is plugged in.
-Before powering up, make sure that all the connections have been made correctly and
the voltage of your mains corresponds to the voltage shown on the rating plate on the
unit, if not, please contact your RCF dealer.
-The metallic parts of the unit are earthed by means of the power cord.
-An apparatus with CLASS I construction shall be connected to a mains socket outlet
with a protective earthing connection.
-Protect the power cord from damage. Make sure it is positioned in a way that it cannot
be stepped on or crushed by objects.
-To prevent the risk of electric shock, never open this product: there are no parts inside
that the user needs to access.
-The mains plug is used as the disconnect device and it shall remain readily operable.
3. Make sure that no objects or liquids can get into this product, as this may cause a short
circuit. This apparatus shall not be exposed to dripping or splashing.
No objects lled with liquid (such as vases) and no naked sources (such as lighted candles)
shall be placed on this apparatus.
4. Never attempt to carry out any operations, modications or repairs that are not expressly
described in this manual.
Contact your authorized service centre or qualied personnel should any of the following
occur:
-The product does not function (or functions in an anomalous way).
-The power supply cord has been damaged.
-Objects or liquids have got in the unit.
-The product has been subject to a heavy impact.
5. If this product is not used for a long period, disconnect the power cord.
6. If this product begins emitting any strange odours or smoke, switch it off immediately
and disconnect the power cord.
7. Do not connect this product to any equipment or accessories not foreseen.
For suspended installation, only use the dedicated anchoring points and do not try to hang
this product by using elements that are unsuitable or not specic for this purpose.
Also check the suitability of the support surface to which the product is anchored (wall,
ceiling, structure, etc.), and the components used for attachment (screw anchors, screws,
brackets not supplied by RCF etc.), which must guarantee the security of the system /
IMPORTANT
WARNING
SAFETY PRECAUTIONS

5
ENGLISH
installation over time, also considering, for example, the mechanical vibrations normally
generated by loudspeakers.
To prevent the risk of falling equipment, do not stack multiple units of this product unless
this possibility is specied in the user manual.
8. RCF S.p.A. strongly recommends this product is only installed by professional qualied
installers (or specialised rms) who can ensure correct installation and certify it according
to the regulations in force.
The entire audio system must comply with the current standards and regulations regarding
electrical systems.
9. Supports and trolleys
The equipment should be only used on trolleys or supports, where necessary, that are
recommended by the manufacturer. The equipment / support / trolley assembly must be
moved with extreme caution. Sudden stops, excessive pushing force and uneven oors may
cause the assembly to overturn.
10. Mechanical and electrical factors need to be considered when installing a professional
audio system (in addition to those which are strictly acoustic, such as sound pressure,
angles of coverage, frequency response, etc.).
11. Hearing loss
Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure
level that leads to hearing loss is different from person to person and depends on the
duration of exposure. To prevent potentially dangerous exposure to high levels of acoustic
pressure, anyone who is exposed to these levels should use adequate protection devices.
When loudspeakers capable of producing high sound levels are used, it is necessary to
wear ear plugs or protective earphones.
See the technical specications in speaker user manuals to know their maximum sound
pressure levels.
12. Install this product far from any heat source.
13. Never force the control elements (keys, knobs, etc. ).
14. Do not use solvents, alcohol, benzene or other volatile substances for cleaning the
external parts of this product. Use a dry cloth.
To prevent the occurrence of noise on microphone / line signal cables, use screened cables
only and avoid putting them close to:
- Equipment that produces high-intensity electromagnetic elds
- Mains cables
- Loudspeaker lines.
NOTES ABOUT AUDIO SIGNAL CABLES

6
ENGLISH
RCF S.P.A. THANKS YOU FOR PURCHASING THIS PRODUCT, WHICH HAS BEEN
DESIGNED TO GUARANTEE RELIABILITY AND HIGH PERFORMANCES.
This device can be installed into a 19” rack cabinet (1 unit) thanks to its rack ears.
INSTALLATION
MZ 8060 is a highly versatile digital audio matrix (and automixer) based on a powerful DSP
and dedicated to installed sound systems and other audio applications.
It has 8 mic / line inputs on removable connectors with selectable 48 V phantom power
(each input from 5 to 8 has a single RCA socket) and six outputs, of which four (A to D) on
removable screw terminals, two (E – F) on RCA sockets.
Sound processing includes parametric equalizers, noise-gates, compressors, limiters, delays,
ducking, automatic level and gain controls, priority functions, levels and gains on all matrix
nodes.
All parameters can be edited through a dedicated RDNET software module.
Each MZ 8060 can work as a dual automixer with 2 independent settings.
MZ 8060 has 10 logic inputs (GPIN), 4 logic outputs (GPOUT) plus 2 (RL1, RL2) with relays.
All logic inputs and outputs have removable screw terminals and are fully congurable.
Two MZ 8060 (MASTER and SLAVE) can be linked each other to get a 16-input 12-output
matrix through RJ 45 digital ports on their rear panels.
A slot on rear panel allows to integrate the optional RCF AC RDNET IN/OUT PLUG board to
get remote control through RDNET network.
Up to twelve BM 3003 paging microphones (linked in daisy-chain on the same line) can be
connected to the dedicated RJ 45 port, which can be used as alternative to input 1.
Each of the three BM 3003 buttons can be congured to page one or more zones (audio
outputs).
All paging microphones are interlocked one another and report in-use and busy indications.
MAIN FEATURES
-8-input 6-output digital audio matrix and automixer.
-40-bit oating point DSP, sampling frequency: 48 kHz, 24-bit a/d d/a converters.
-8 mic / line balanced audio inputs with 48 V ‘Phantom’ power, with noise gates,
compressors, parametric equalizers, automatic gain controls, ducking function.
-4 balanced and 2 unbalanced LINE audio outputs, all with level controls, parametric
equalizers, delays, limiters.
-10 programmable logic inputs (GPIN).
-4 programmable logic outputs (GPOUT) plus 2 with relay (RL1, RL2).
-Dual automixer with 2 independent settings.
DESCRIPTION

7
ENGLISH
-16-input 12-output audio matrix and 4 automixers (two for MASTER unit outputs and
two for SLAVE unit outputs) by linking together two MZ 8060.
-Congurable ALC (‘Automatic Level Control’) when a noise detection microphone is
connected to the input no.8 .
-Either USB link (standard) or RDNET link (through the optional AC RDNET IN/OUT PLUG
board).
-RS 485 serial port for remote control via third-party software.

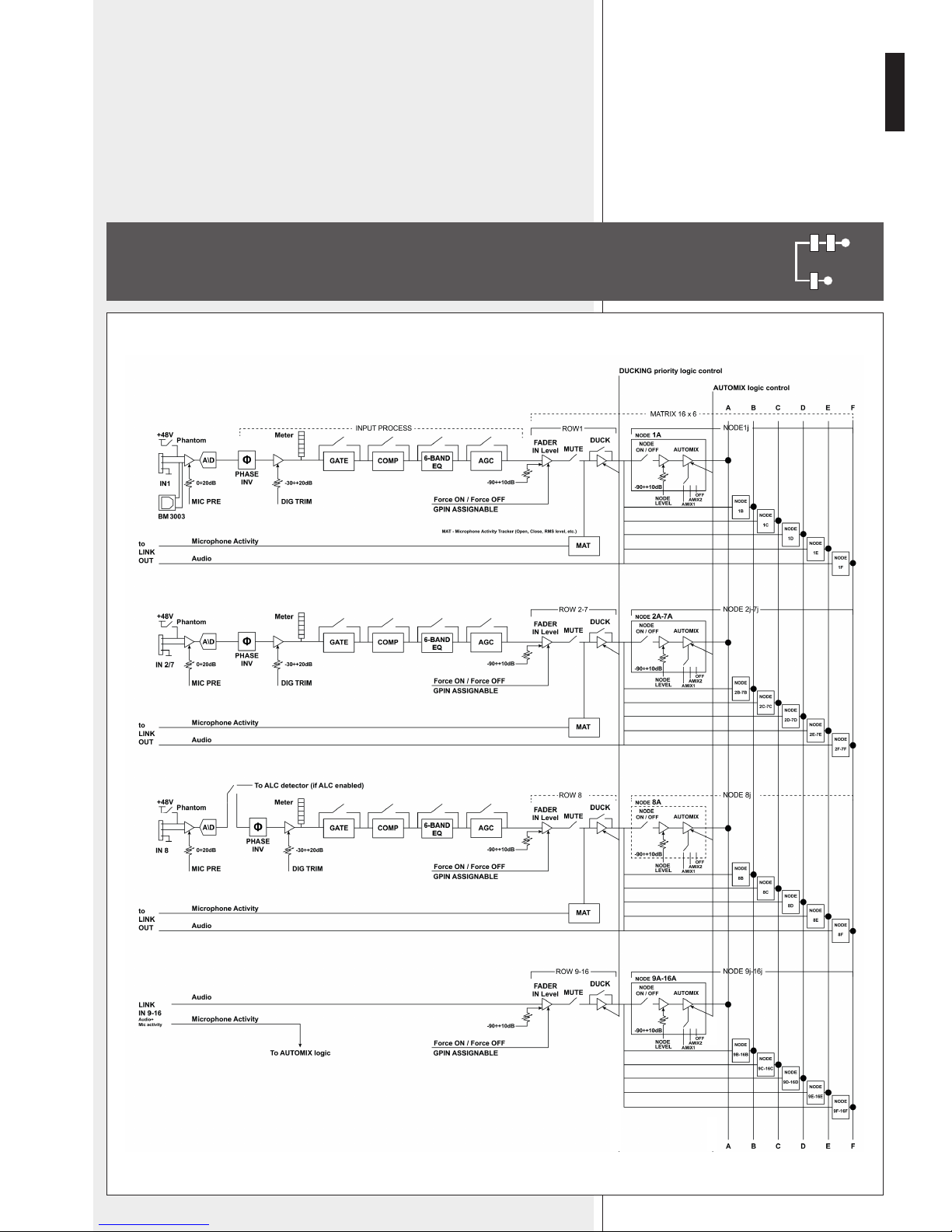

AUDIO INPUT BLOCK DIAGRAM

8
ENGLISH

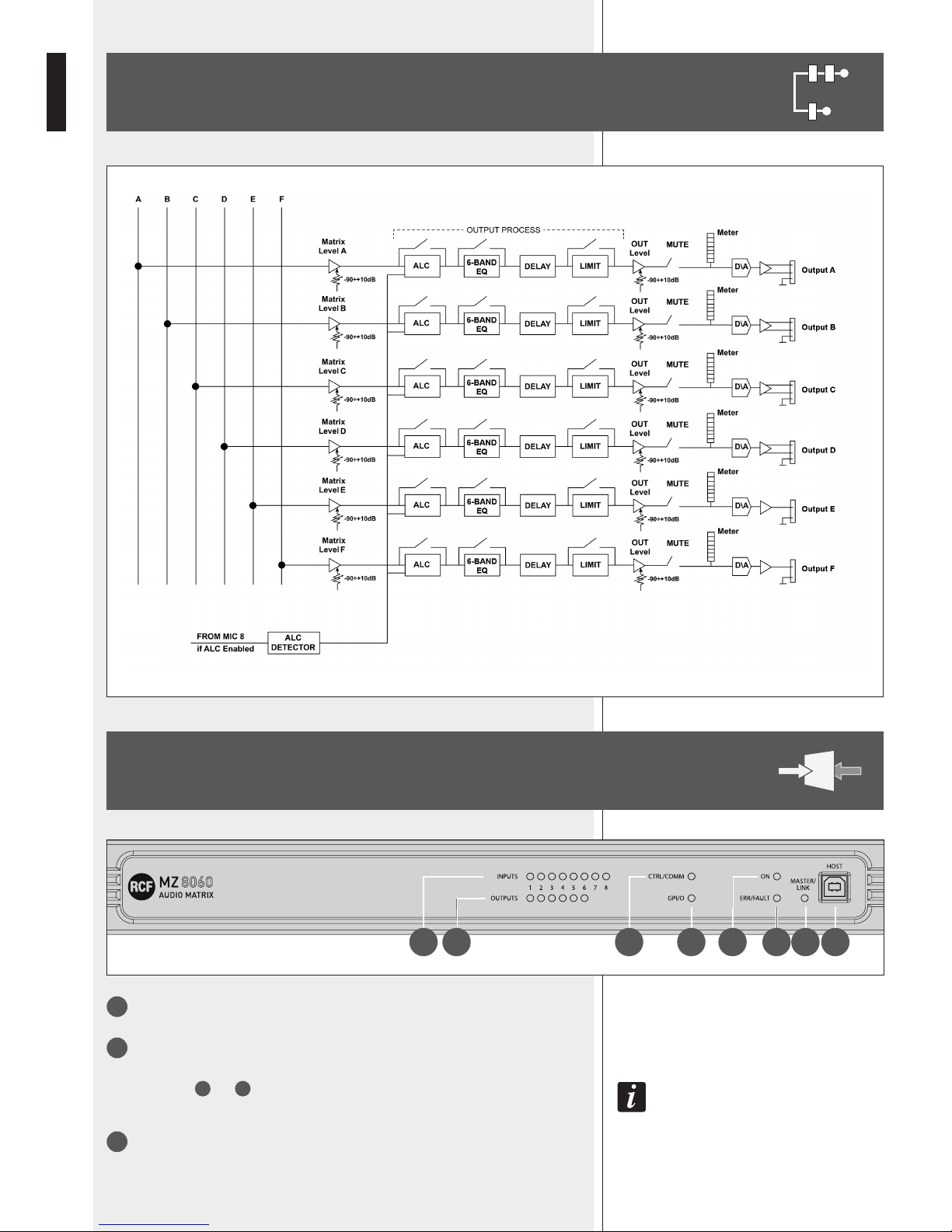

AUDIO OUTPUT BLOCK DIAGRAM
1INPUTS LEDs: each LED indicates the signal level of its respective audio input.
2OUTPUTS LEDs: each LED indicates the signal level of its respective audio output.
NOTE
: each led (
1
and
2
) is off when its audio signal level is below –60
dBFS,
green = –60
dBFS
, orange = –12
dBFS
, red = in the range –3 to 0
dBFS
(peak).
3CTRL/COMM LED: it blinks when receiving control data.
1 3 54 6 7 82
FRONT PANEL

9
ENGLISH
4GPI/O LED: when lit, it indicates the activation of at least a logic input / output.
5ON LED: when lit, it indicates the MZ 8060 audio matrix is properly powered and
operating.
6ERR/FAULT LED: when lit, it indicates a fault or data transmission / reception errors.
7MASTER/LINK LED: when lit, the MZ 8060 audio matrix is the MASTER unit. When
off, the MZ 8060 is the SLAVE unit. When blinking, the MASTER unit is not linked to the
SLAVE (or vice-versa) or due to a LINK fault.
8HOST: USB (type B) port to link a computer (PC) locally.

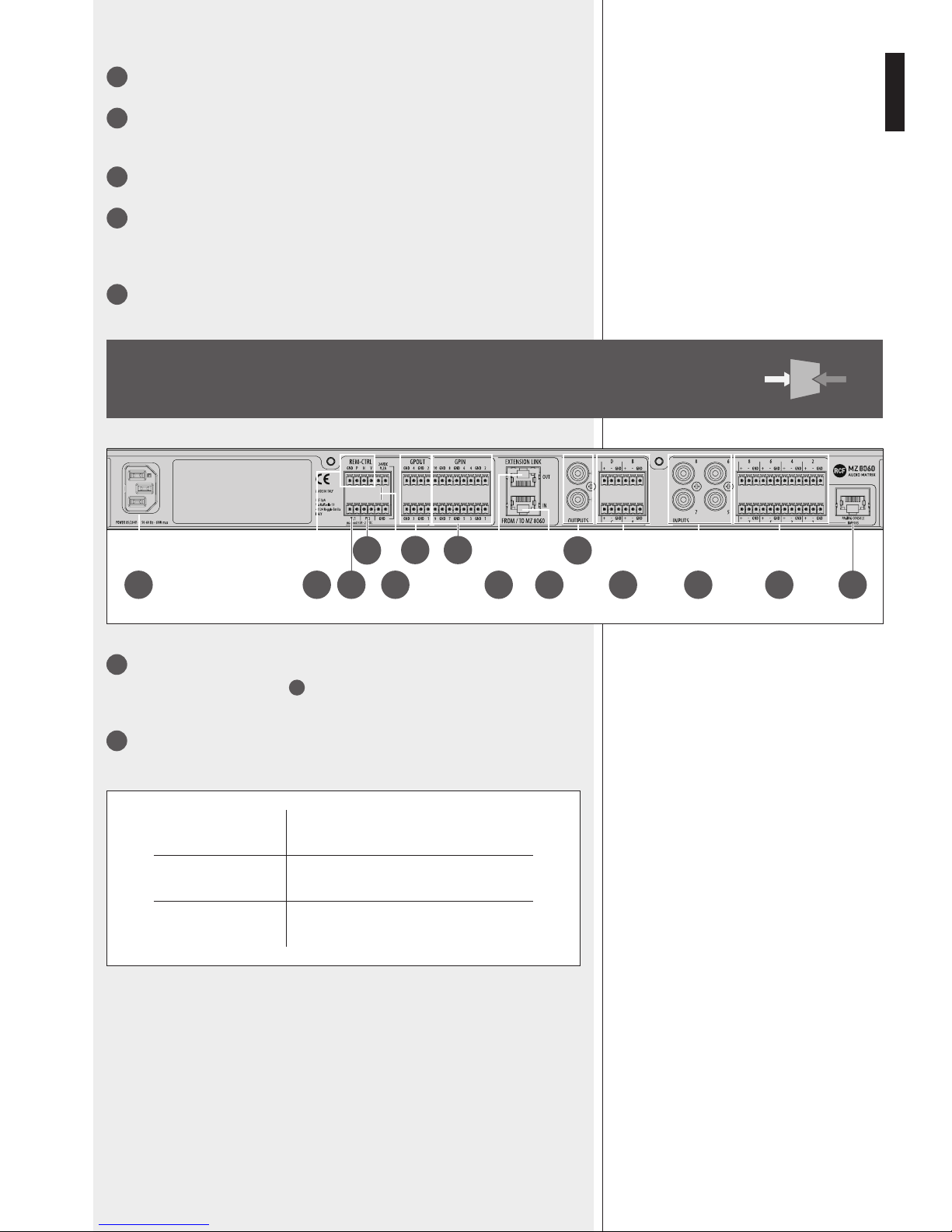

REAR PANEL
9PAGING CONSOLE (input 1): audio input with RJ 45 socket (alternative to the
input 1 with removable connector 10 ) for a line made of max. 12 RCF BM 3003 paging
microphones linked in 'daisy-chain' (read the BM 3003 user manual).
10 AUDIO INPUTS 1 to 8: balanced line level inputs for removable connectors.
Pins:
+Audio signal, hot
–Audio signal, cold
GND Ground
15 1422
19
20 18
13
12 11 10 9
17 16
21

10
ENGLISH
13 AUDIO OUTPUTS E and F: unbalanced line level outputs with RCA sockets.
14 EXTENSION LINK IN: input to link the EXTENSION LINK OUT of the second MZ
8060 (optional). Read the manual section ‘How to link two MZ 8060 each other’.
15 EXTENSION LINK OUT: output to link the EXTENSION LINK IN of the second MZ
8060 (optional). Read the manual section ‘How to link two MZ 8060 each other’.
16 GPIN 1 ÷ 10 'Generic Purpose Inputs' (removable connectors)
Logic inputs that can be activated by other device commands.
Each logic input can be set via software. It can be activated when its two pins (for
example, '1' and its respective ground GND) are either shorted or open.
17 GPOUT 1 ÷ 4 'Generic Purpose Outputs' (removable connectors)
Logic outputs that can be set via software.
note: logic outputs cannot be used to power other devices (i.e. relays).
output voltage can be either 5 v (high) or 0 (low).
18 24 VDC output (two positive 24 V dc pins and two ground pins)
24 V dc output (for removable connectors) available to power other devices
(max. current: 0.2 A).
19 RL2 logic output with relay (removable connector) that can be set via software.
Max. current on contacts: 0.5A. Max. applicable voltage: 24 V dc.
20 RL1 logic output with relay (removable connector) normally assigned to the device
fault indication. To enable its user software control, it is necessary to set the JMP1
internal jumper (see the respective manual section).
Max. current on contacts: 0.5A. Max. applicable voltage: 24 V dc.
11 AUDIO INPUTS 5 to 8: (alternative to those for removable connectors 10 ),
unbalanced line level inputs with RCA sockets.
12 AUDIO OUTPUTS A to D: balanced line level outputs for removable connectors.
Pins:
+Audio signal, hot
–Audio signal, cold
GND Ground

11
ENGLISH
HOW TO LINK TWO MZ 8060 EACH OTHER
EXTENSION LINK
EXTENSION LINK
FROM / TO MZ 8060
FROM / TO MZ 8060
OUT
OUT
MZ 8060 (1)
MZ 8060 (2)
IN
IN
GND Ground
PNon-inverting pin (RS 485 A)
NInverting pin (RS 485 B)
V24 V dc
22 Input for the power cord (to be connected to mains through an earthed socket only).
The RDNET software is protected by international copyright laws and is to be used to
congure the RCF RDNET system only.
It is not allowed to modify or change or try to decompile this software.
In no event shall RCF S.p.A. be liable to end-users for any damage whatsoever, including
but not limited to nancial damages for loss of business prots or business information
due to the software use or inability to use this product.
The foregoing provision is effective even if RCF S.p.A. has been advised of the possibility
of such damages.
Even if the SOFTWARE has any material, veriable and reproducible program errors, RCF
S.p.A. shall have no obligation to modify such errors.
NOTES ABOUT THE RDNET SOFTWARE
Two MZ 8060 can be linked each other to get a 16-input 12-output matrix
through the EXTENSION LINK ports (RJ 45 sockets) on their rear panels.
Connect the EXTENSION LINK OUT 15 output of the rst MZ 8060 to the
EXTENSION LINK IN 14 input of the second MZ 8060 and vice-versa.
The Two cables musT be unshielded caT 6 and noT longer Than 20 cm
(abouT 8 inches).
when using The Pc sofTware (read The resPecTive manual secTion ‘sofTware
configuraTion > uniT seTTings’), seT The firsT mZ 8060 To masTer and The
second mZ 8060 To slave.
21 REM-CTRL REM-CTRL RS 485 serial port for remote control via third-party software
(removable connector).

12
ENGLISH
RDNET SOFTWARE INSTALLATION
Read the license agreement.
Click ‘I Agree’ to accept and proceed with the software installation.
It is now possible to change the installation folder (directory) of the RDNET
software (or keep the default path).
Click INSTALL to proceed.
Minimum requirement: a PC with either Microsoft
‘Windows® Vista’ or ‘7’ (or later) operating system, having an
available USB port. The operating system shall also have the
drivers for the emulation of the serial RS 232 interface via the
USB port.
Before installing a new software release, it is necessary to
remove the previous version (if installed). Verify also that the
new release is the right one for the PC operating system: either
32-bit or 64-bit.
Run rcf_rdnetsetup_(release).exe to start the setup wizard.
Click NEXT > to proceed.

13
ENGLISH
As soon as the installation ends, it will be necessary to reboot your computer.
Choose either ‘Reboot Now’ to reboot immediately or ‘I want to reboot
later” to reboot later manually.
Click FINISH to quit.
note: the pc operating system shall also have the drivers for the
emulation of the serial rs 232 interface via the usb port.
Link (through a suitable cable) the computer USB port to the one of
the MZ 8060 audio matrix (labelled HOST 8).
Run the RDNET software (in Windows, click):
Start > Programs > RCF > RDNet > RDNet
(or double-click RDNet icon on the desktop).
First, in the main menu, click ‘Go’ and then ‘Controllers’.
START THE RDNET SOFTWARE (REL. 2.2.54.5203) VIA USB
In the ‘Controllers’ section (bottom
left in the main window), click ‘Match
All’ (or click each single ‘Match’
button or simply drag and drop) to
add all linked USB devices (COM) to
the ‘Workspace Controllers’ list
(bottom right in the main window).

14
ENGLISH
SOFTWARE CONFIGURATION

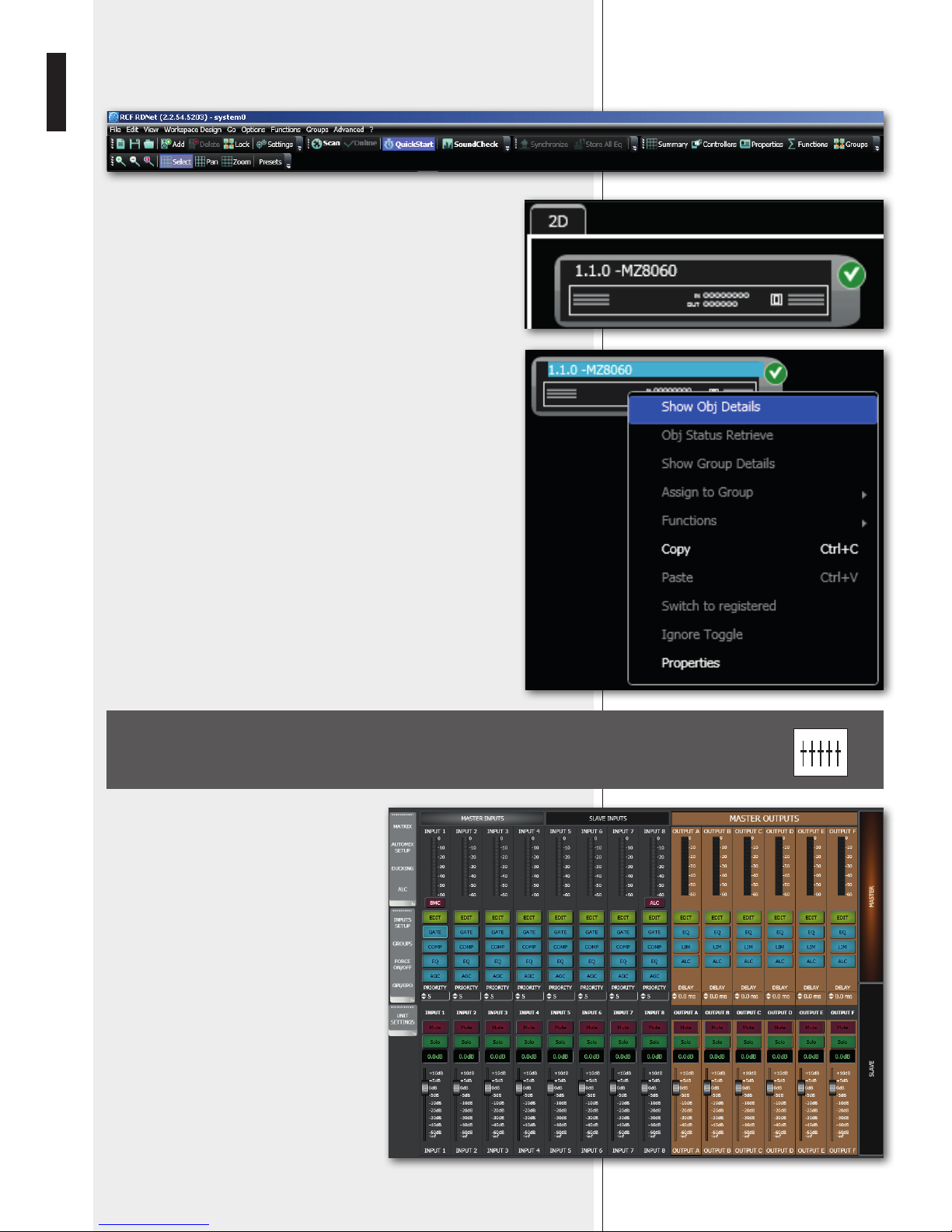

In the main menu, now click ‘Quickstart’: in the bottom right-hand corner of the main
window (in the bottom bar) the word ‘OFFLINE’ becomes ‘ONLINE’.
The MZ 8060 module now appears.
Point the PC mouse on the MZ 8060 module and double-click (or right-click
and select ‘Show Obj Details’) to open the audio matrix setting window.
To upgrade the MZ 8060 rmware (main menu: “Advanced > Firmware
Upgrade...”), refer to the RDNET user manual.
The main window includes the 8 MASTER
INPUTS and the 6 MASTER OUTPUTS of the
MASTER unit (the rst or the only MZ 8060);
the SLAVE INPUTS and SLAVE buttons (to
manage the SLAVE unit, which is the second
optional MZ 8060) are initially disabled.
First, click UNIT SETTINGS (in the main
window) to open the ‘Global settings’ window.

15
ENGLISH
UNIT SETTINGS
Select either MASTER for the MASTER unit or SLAVE for the SLAVE unit.
LINK CONFIG
Select either MASTER ONLY if there is a single MZ 8060 or MASTER + SLAVE
for two MZ 8060 linked each other.
The MASTER + SLAVE setting enables all SLAVE unit software controls.
SYSTEM CONFIG CONTROL
Click SAVE to save the current software conguration to MZ 8060.
The conguration includes the MASTER / SLAVE settings, the initial PRESET, audio
input settings (e.g. PHANTOM power, phase, MIC/LINE settings, digital trimmers),
logic inputs and outputs, all labels, remote controls and groups.
Click LOAD to load (into the software) the conguration previously saved to MZ
8060.
UNITS RESET
Click RESET to reset all MZ 8060.
PRESET MANAGER
It is possible to store and recall up to 16 different presets.
Click UNIT SETTINGS (in the main window) to open the ‘Global settings’
window, which includes the preset manager.
SAVE: saves the current settings to the selected preset (chosen from 1 to 16 in
the PRESET list).
A NAME (text box) can be given to each preset.
Note:
to save all preset names too, it is necessary to save the entire
configuration. click
UNIT SETTINGS
in the main window, then
SAVE
in
SYSTEM CONFIG CONTROL.
RECALL: recalls the selected preset (previously saved).
warning: save currenT seTTings To aPreseT before recalling anoTher one
(oTherwise all currenT seTTings will be losT)!
STARTUP CONFIG
It allows to choose which preset will be loaded as rst after MZ 8060 start-up:
- FIXED PRESET, the one chosen in the PRESET list.
- LAST PRESET, the last saved or recalled preset (in chronological order).
PRESET MANAGER

16
ENGLISH
INPUT CHANNEL SETTINGS

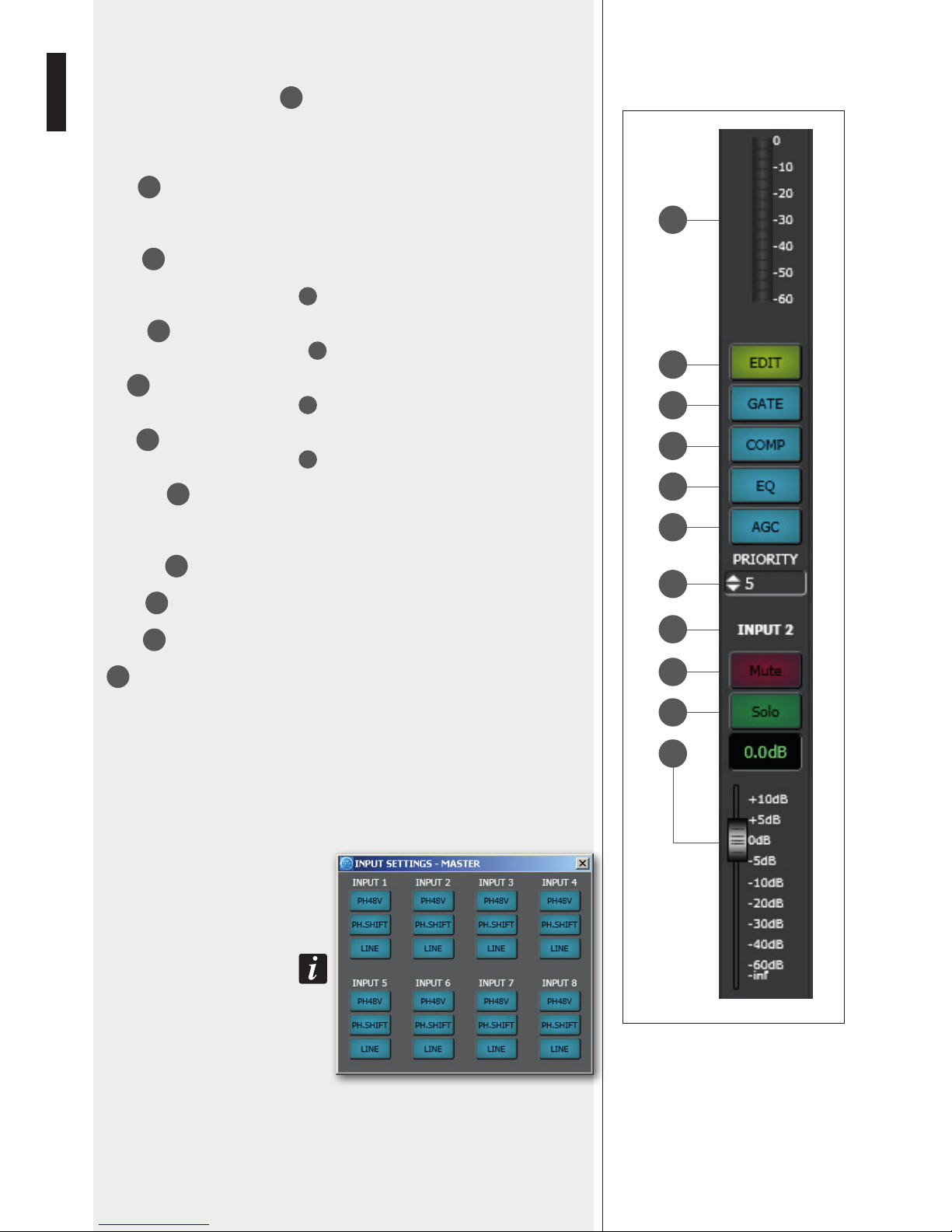

Each audio input has a level bar 1, from –60 to 0 dB.
0 dB is the peak level before distortion.
All input controls are here listed:
EDIT 2opens or closes the setting window of the equalizer, the compressor, the
automatic gain control (AGC), the noise gate and the digital trimmer.
The INPUT 1 also includes all settings for BM 3003 paging microphone.
GATE 3toggles the noise gate (automatic channel opening only if its signal exceeds
the predetermined threshold).
To access its parameters, click EDIT 2and select the DSP window.
COMP 4toggles the compressor.
To access its parameters, click EDIT 2and select the DSP window.
EQ 5toggles the parametric equalizer.
To access its parameters, click EDIT 2and select the EQ window.
AGC 6toggles the automatic gain control.
To access its parameters, click EDIT 2and select the DSP window.
PRIORITY 7: priority level setting from 0 (lowest) to 10 (highest) for the ‘ducking’
function (automatic level attenuation of one or more audio inputs when a signal is
detected at the input with the highest priority level).
INPUT (n) 8: audio input label that can be edited after a double-click on the text.
MUTE 9: (when lit) mutes the audio input.
SOLO 10 : (when lit) opens the selected input only (and mutes all the others).
11 Audio input level control. The level can be adjusted by moving the fader (by keeping
it with the mouse left button) or directly changing its value (above the fader: click the
number and then insert the new value with the numeric keyboard).
Click INPUTS SETUP (in the main window) to edit other input options.
PH48V: toggles the Phantom power
(48 V) in its respective input.
Phantom is usually needed by electret
microphones.
Warning: never turn Phantom
power on when not necessary
(i.e. for LINE level signal from CD
/ MP3 players, dynamic microphones) or
the used cable is unbalanced.
PH.SHIFT:
(when lit) inverts the signal phase.
Do not turn this option on (but particular needs).
6
7
8
9
10
11
5
4
3
2
1
INPUT CHANNEL SETTING

17
ENGLISH
LINE: changes the input sensitivity from LINE (for signals coming from other mixers,
CD / MP3 players, etc.) to MIC (microphones that are not pre-amplified).
Click MIC to turn back to LINE.

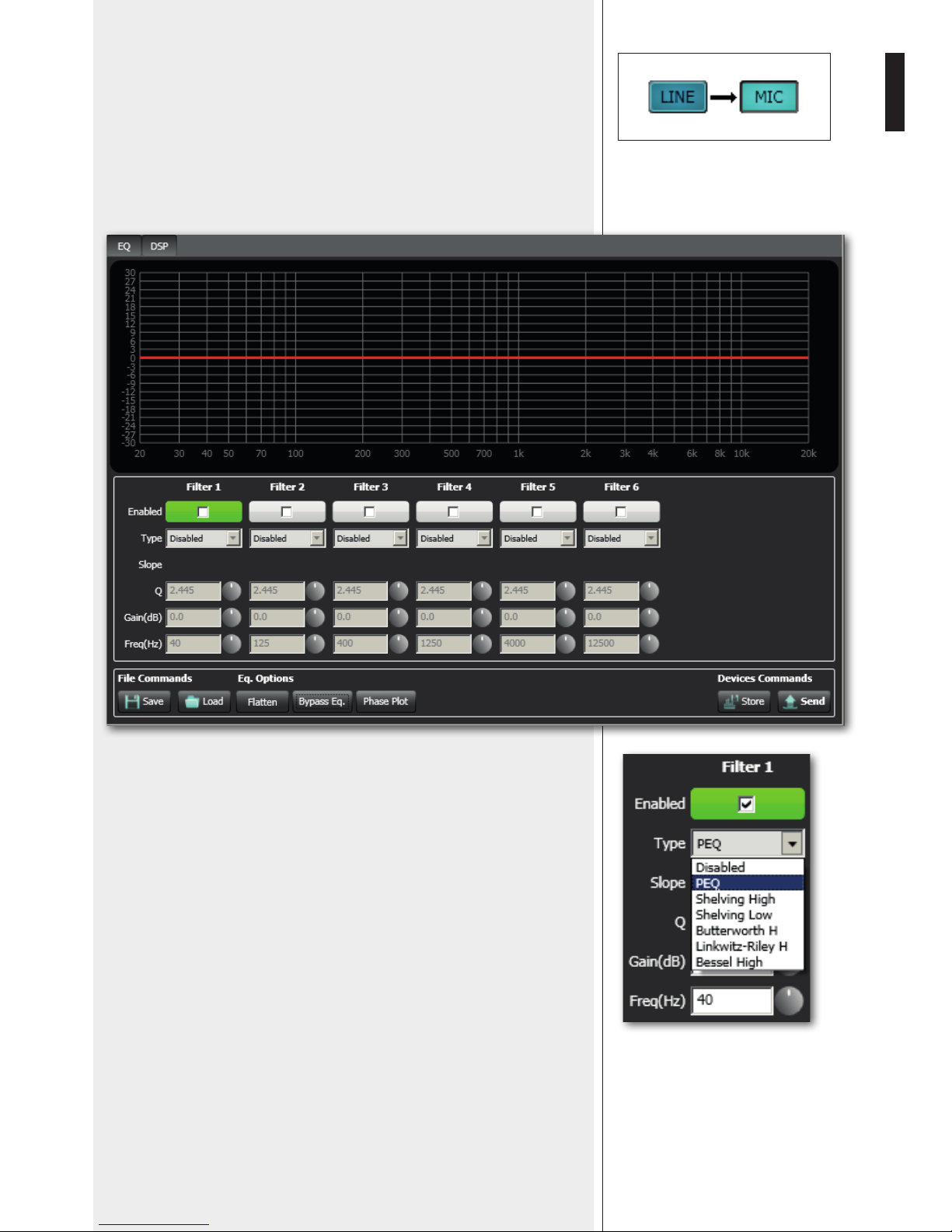

It is possible to set up to six independent lters (Filter 1, 2, 3, 4, 5, 6).
Enabled: click the checkbox to toggle each lter.
Move the mouse on its white background (making it green) to highlight a lter (if
present) on the EQ graph.
Type:
- DISABLED: the lter is disabled (by-pass).
- PEQ: parametric equalizer that allows to adjust the level at the settable centre
frequency and specify the Q factor (the adjusted level can be widened or narrowed).
-SHELVING HIGH: increase or decrease the level of all frequencies above the selected
frequency by the specied amount.
-SHELVING LOW: increase or decrease the level of all frequencies below the selected
frequency by the specied amount.
-The BUTTERWORTH, LINKWITZ-RILEY, BESSEL options are only available for the
lters no.1 (‘high-pass’) and no.6 (‘low-pass’).
EQUALIZER
Click EDIT to open the EQ setting window (of its respective audio input).
EQUALIZER

18
ENGLISH
Slope: lter slope setting (dB / oct).
Q: Q factor setting.
Gain (dB): lter gain setting.
Freq (Hz): either lter frequency selection or PEQ central frequency setting.
File Commands:
- SAVE: it saves to PC the current equalization as .rde le.
- LOAD: it loads from PC an equalization previously saved as .rde le.
Eq. options:
- FLATTEN: it disables all lters (at frequency response).
- BYPASS EQ.: it disables the equalization, but without changing lter settings.
- PHASE PLOT: if selected, the phase plot is shown (green line).
Devices commands:
- STORE: it sends and stores the equalization to MZ 8060.
- SEND: it sends (without storing) the equalization to MZ 8060.
For each lter, frequency and gain can be adjusted either graphically (through the mouse)
by dragging the little coloured square or in an analytical way (by inserting the values in
the cells or rotating the control).
The overall equalization is shown as a red line, the intervention of the selected lter as a
green line, the intervention of a lter that is not selected as a white line.

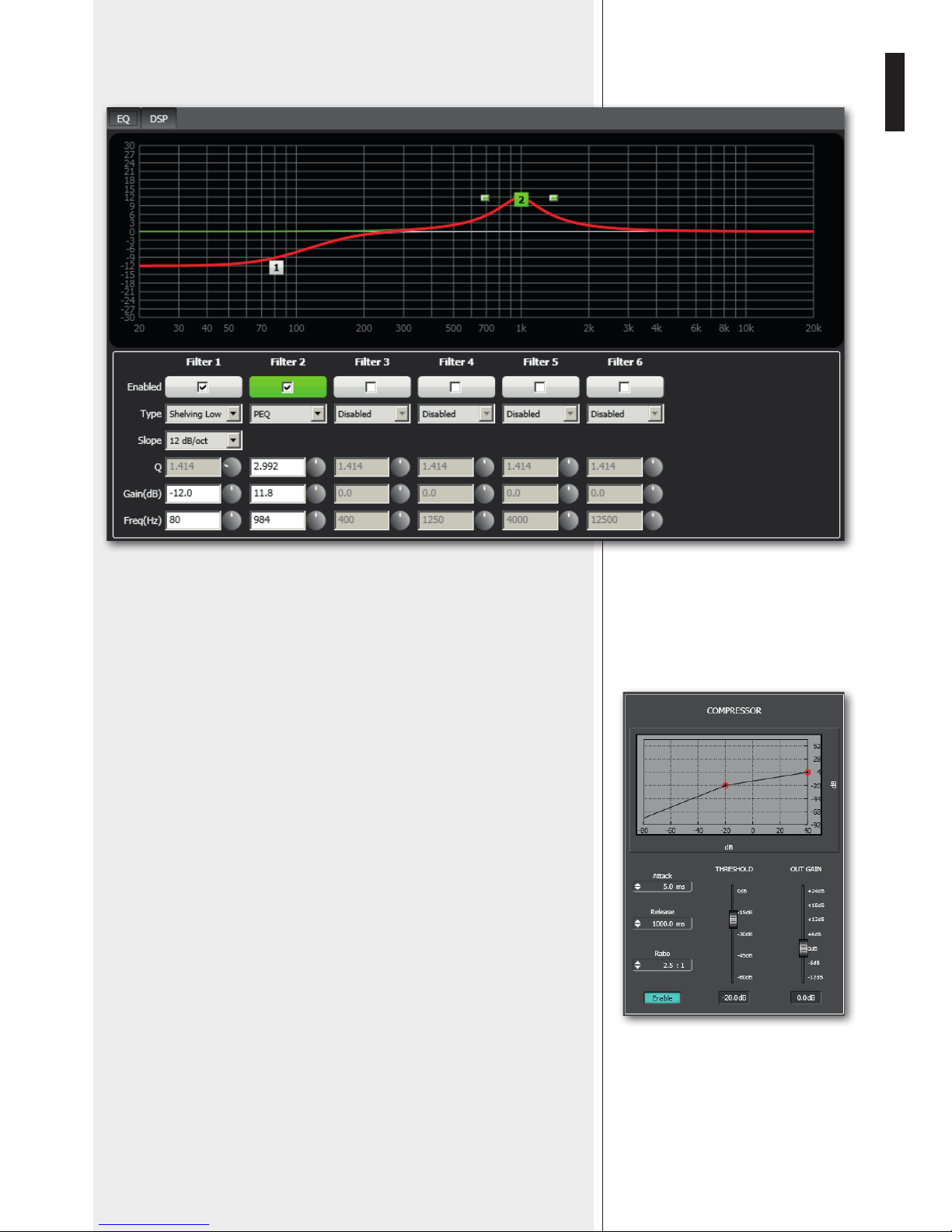

For example, to apply a 12 dB attenuation for frequencies below 80 Hz: enable the lter
1 by clicking its ‘Enabled’ checkbox, select the SHELVING LOW lter type, set the gain to
–12 dB and frequency to 80 Hz.

19
ENGLISH
To add a second lter (i.e. PEQ): enable the lter 2, select the PEQ lter type, its gain and
central frequency, then set its Q factor.
Finally, click either STORE (send and store) or SEND (send without storing) all EQ settings
to MZ 8060.
COMPRESSOR
The compressor does not modify a signal having a level lower than the predetermined
threshold and compresses a signal with higher level.
To access its parameters (of a single input), click EDIT on the respective channel and
select the DSP window.
THRESHOLD and RATIO values can be adjusted either by moving the respective faders or
dragging (with the mouse) the red points in the graph.
THRESHOLD: adjusts the level above which the compressor compresses the signal.
OUT GAIN: adjusts the output gain (useful to minimize the signal attenuation due to
compression).
Attack: adjusts the compressor attack time.
Release: adjusts the compressor release time.
Ratio: sets the ratio between the original signal (above the threshold) and the
compressor output.
For example: if ratio is 2:1, a signal that exceeds the threshold of 2 dB will be compressed
to 1 dB (above the threshold).
Indicatively: 2:1 ratio is suitable for voice, from 2:1 to 4:1 for musical instruments.
A compressor having a ratio higher than 10:1 operates as a limiter.
A 1:1 ratio is an invalid setting, as it does not compress at all.
Enable: toggles the compressor (keep it on when using).
COMPRESSOR

20
ENGLISH
USE EXAMPLE:
1. Set THRESHOLD to a level lower than 0 dB (e.g. –15 dB).
2. Set RATIO (i.e. 4:1).
3. Adjust OUT GAIN in order to increase the signal output gain (to minimize the
compressor attenuation, i.e. +10 dB).
123
AUTOMATIC GAIN CONTROL (AGC)
The automatic gain control does not modify a signal having a level lower than the
predetermined threshold, but increases or reduces a signal above the threshold to get
the desired average level (‘target’), within the set time and according to the compression/
expansion ratio.
To access AGC parameters (of a single input), click EDIT on the respective channel and
select the DSP window.
THRESHOLD: adjusts the level above which the AGC operates.
TARGET: adjusts the optimal average signal level to be obtained.
Time: adjusts the AGC intervention time.
Ratio: sets the ratio between the original signal (above the threshold) and the AGC
output.
Use a ratio in the 1.5 ÷ 3 range, in order to avoid excessive compression / expansion,
which may lead to too low or distorted output signals.
A 1:1 ratio is an invalid setting, as the AGC does not operates at all.
Enable: toggles the AGC (keep it on when using).
AUTOMATIC GAIN CONTROL (AGC)
