RCS PRO RSB3A User manual

Renaissance
Cooking Systems
PROBURNER
MODEL # RSB3A Use Liner Jacket LJRSB3
INSTALLATION AND OPERATING
INSTRUCTIONS
INSTALLER: Leave these instructions with consumer.
CONSUMER: READ & retain for future reference.
Important: READ THESE INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION
SAFETY WARNINGS &CODES
DANGER
IF YOU SMELL GAS:
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. Open lid to vent.
4. If odor continues, keep away from the
appliance, and immediately call your
gas supplier or fire department.
WARNING
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. Apropane cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance with flame.
CODE AND SUPPLY REQUIREMENTS: This power
burner must be installed in accordance with local codes
and ordinances, or, in the absence of local codes, with
either the latest National Fuel Gas Code (ANSI Z223.1/
NFPA 54), and Natural Gas and Propane Storage and
Handling Installation Code (CSA-B149.1).
This appliance and its individual shutoff valves must
be disconnected from the gas supply piping system
when testing the system at pressures in excess of
½psig (3.5 kPa).
This appliance must be isolated from the gas supply
piping system by closing its individual manual
shut-off valvesduring any pressure testing of the
gas supply system at pressures up to and including
½psig (3.5 kPa).
WARNING
Improper installation, adjustment, alteration,
service, or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information consult
aqualified professional installer, service
agency, or the gas supplier.
All electrical outlets in the vicinity of the power
burner must be properly grounded in
Accordance with local codes or, in the
absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code, CSA C22.1,
whichever is applicable.
Keep all electrical supply
cords and fuel supply
hoses away from any heated surface at all
times.

Safety and Installation Instructions
When using your ProBurner, please read and follow these basic precautions:
Power Burner INSTALLATION
This Outdoor-cooking appliance (Power Burner) must be installed in accordance
with all local and state codes INSPECTED by your local CITY & Fire department.
If installation is planned in an area with no local codes, the gas burner must be
installed in accord with the National Fuel Gas Code ANSI Z223.1 and storage
and handling of liquefied petroleum gases, ANSI/NFPA 58 or CSA B149.1 natural
gas and propane installation code. ALWAYS USE PROFESSIONAL BUILDERS
& INSTALLERS. For Safety –have inspected by your local city, Gas Company
and Fire Department before use. This is NOT an indoor appliance –for outdoor
use only. Do not install into a combustible cabinet without an insulating liner -
LJRSB3
CALIFORNIA PROPOSITION 65 WARNING
The burning of gas cooking fuel generates some by-products, which are on the list
of substances, which are known by the State of California to cause cancer or
reproductive harm. California law requires businesses to warn customers of
potential exposure to such substances. To minimize exposure to these
substances, always operate the unit according to the use and care manual,
ensuring you provide good ventilation when cooking.
NOTE: DO NOT USE THIS APPLIANCE UNDER OVERHEAD CONBUSTABLE SURFACES

GENERAL SAFETY REQUIREMENTS:
1. The installation of this appliance must conform with local codes or, in the absence of
local codes, Either the National Fuel Gas Code, ANZI Z223.1/NFPA 54, or CAN/CGA-
B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code.
2. This outdoor cooking gas appliance is not intended to be installed in or on recreational
vehicles and /or boats.
3. This outdoor cooking gas appliance is intended for use outdoors and shall not beused in
a building, garage or any other enclosed area.
4. Minimum clearance of 16” –18” inches from the back and sides of the Pro Burner
to adjacent combustible construction must be maintained. This outdoor cooking gas
appliance shall not be located under overhead-unprotected combustible
construction.
5. If the use of an external electrical source is requires when installed, this outdoor cooking
gas appliance must be electrically grounded in accordance with the local codes or, in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1. Keep any electrical supply cord, or the fuel supply hose away
from any heated surfaces.
6. Keep your ProBurner in an area clear and free from combustible materials, gasoline
and other flammable vapors and liquids.
7. DO NOT obstruct the flow of combustion and ventilation air to this appliance. Keep the
ventilation openings of the cylinder enclosure free and clear from debris.

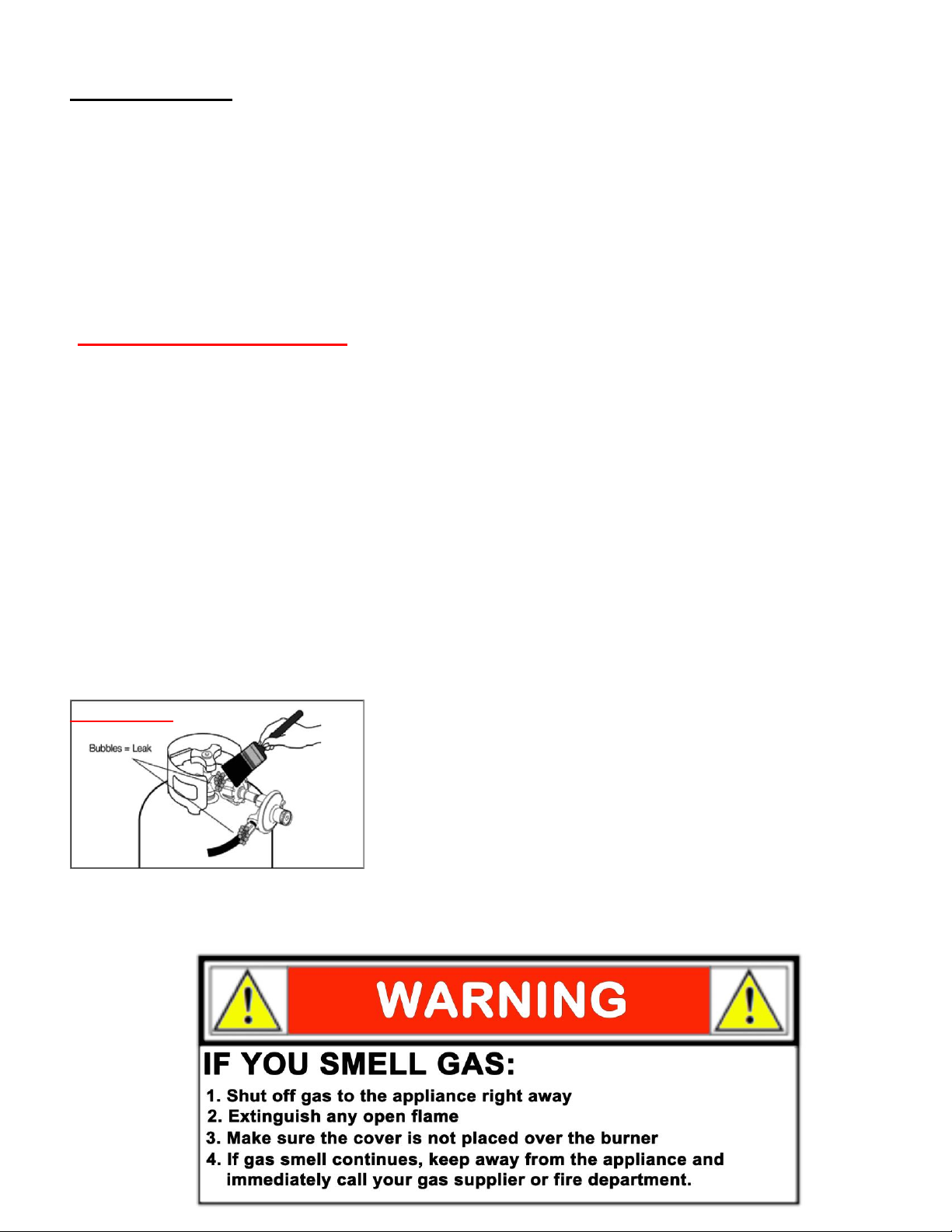

8. Check all gas connections for leaks with soapy water solution and brush. Never use an
open flame to test for gas leaks.
9. Check flexible hoses for cuts and wear that may affect the safety before each use.
10. Never use the ProBurner in a windy area.
11. Never use the ProBurner without the drip pan installed and push all the way to the
back of the Power Burner. Without the drip pan, hot liquid and debris could leak downward
and could produce a fire hazard.
12. CALIFORNIA PROPOSITION 65-WARNING: The burning of gas cooking fuel
generates some by-products which are on the list of substances known by the State of
California to cause cancer or reproductive harm. California law requires businesses to
warn customers of potential exposure to such substances. To minimize exposure to these
substances always operate this unit according to the use and care manual, ensuring you
provide good ventilation when cooking with gas.
NOTE: In Massachusetts: All gas products must be installed using a “Massachusetts” licensed
plumber or gas fitter. A “T” Handle type manual gas valve must be installed in the gas supply
line to this appliance. This applies to permanently installed natural gas and propane
installations. This does not apply to propane portable installations using a 20-pound tank.

WHERE TO INSTALL THE POWER BURNER
IMPORTANT: THIS PROBURNER IS FOR OUTDOOR USE ONLY.
WARNING
The power burner must be installed in a masonry or other type of fireproof surround.The unit is
not insulated and therefore must be installed or placed with 16"–18” of side and back
clearance from unprotected combustible materials such as wood, Plastic, or stucco with wood
framing. PLEASE NOTE: if this is not done,the combustible material will catch on fire and
potentially damage your house / structure and may cause bodily harm due to the fire. Optional
insulating Liner #LJRSB3 is available.
Do not install this unit under unprotected flammable surfaces. Do not install or use this
appliance inside abuilding, garage, or any other enclosed area. It must not be used in
or on recreational vehicles or boats.
This is aslide-inunit designed to fit into open-front enclosures. Control panel of the unit is
removable for gas hookup, servicing and burner adjustment. Control panel must remain
removable after you install the unit. Do not have this panel sealed for any reason.
Important: The lip on the side requires 1" (2.5 cm) of countertop on each side and back to
Support the unit.
Note: We recommend you build the enclosure for the power burner 6"-12" (15.2 cm-30.5 cm)
LOWER than your countertop. This will ensure asafer environment when using tall cooking
pots like the turkey fryer, which can hold 40lbs of hot flammable oil. Please make sure that
you do not overfill large pots of oil for the oil will spill over and catch on fire.
Note: This unit should be installed so that it can be removed at alater date if factory service is
required.
ENSURING PROPER COMBUSTION AIR AND COOLING AIR FLOW
You must maintain proper air flow for your power burner to perform as it was designed
(diagram below) If airflow is blocked, overheating and poor combustion will result. Make sure
not to block the 1" (2.5 cm) front air inlet along the bottom of the control panel or more than
75% of the support grid surface with pans or griddles.
Note: The 1" (2.5 cm) front air space allows access to the drip tray.
EXHAUST REMOVAL If installed under apatio roof, the cooking grid area
should be fully covered by achimney and exhaust
hood. An exhaust fan with arating of up to 1,000
CFM (472 liters per second) may be necessary to
efficiently remove smoke and other Cooking by-
products from the covered area. Installation in fully
enclosed patio areas is not recommended.

GAS SAFETY REQUIREMENTS
Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the
Type of gas, either natural gas or LP ( Liquid Propane) gas and make sure that the marking on
the rating plate located on the side of the unit. matches the gas being supplied to the Power
Burner. The rating plate is located on the side of the Power Burner.
All gas hook up connections should be made by a qualified technician and in accordance with
local codes and ordinances. The installation must conform with local codes or, in the absence
of local codes, with either the national Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CGA-
B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code.
WARNING: CHECK TO ENSURE THAT THE GAS SUPPLY HOSE DOES NOT COME IN
CONTACT WITH ANY HOT SURFACE OF THE POWER BURNER.
L.P. GAS (LIQUIFIED PETROLEUM /PROPANE)
If your Power Burner is factory built for L.P., the regulator required is set for 10” water
column and is for use with L.P. gas only. If unit is NOT supplied with regulator please make
sure that all requirements are met for the type of regulator required. Use part number RONHK.
L.P. GAS SAFETY REQUIREMENT
The LP-gas supply cylinder must be constructed and marked in accordance with the
Specifications for LP-gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the
National Standards of Canada CAN/CSA-B339, Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods, and Commission, as applicable; and
1. Provided with a listed overfilling prevention device.
2. Provided with a cylinder connection device compatible with the connection for outdoor
cooking appliances.
It must be provided with a shut-off valve terminating ingas tank valve outlet. It must include a
Collar to protect the cylinder valve. The cylinder supply system must be arranged for vapor
withdrawal.
Do not operate the gas ProBurner indoors or in any enclosed area. If the gas ProBurner is
not in use, the gas must be turned off at the supply cylinder. If the ProBurner is to be stored
indoors, disconnect the gas supply cylinder and leave the cylinder outdoors.

LP GAS HOOK-UP
A typical LP gas installationis shownon the right. Do not use any replacement regulator other
than that specified by the manufacturer. Use only pipe sealants that are approved for use with
natural and LP gases. An installer-supplied gas shutoff valve must be installed in an accessible
location. (Reference: leak test procedure).
Although LP Gas Cylinder may be used, it is not recommended due to the large amount of
Gas Consumption and may freeze up the gas cylinder as well as a safety risk.
VENTING YOUR ENCLOSURE: An enclosure or Island for LPgas cylinder must be vented on
the level of the cylinder valve and at floor level. The effectiveness of the opening(s) for purposes of
ventilation shall be determined with the LP gas supply cylinder in place. This shall be accomplished
by one of the following: a. One side of the enclosure shall be fully open; or
b. For an enclosure having four sides, a top and a bottom:
At least two ventilation openings at cylinder valve level shall be provided in the sidewall,
equally sized, spaced at 180 degrees (3.14 rad), and unobstructed. Each opening shall have
a total free area of not less than 1/2 square inch per pound (7.1 cm2/kg) ofstored fuel capacity and not
less than a total free area of 10 square inches (64.5 cm2).
Ventilation opening(s) shall be provided at floor level and shall have a total free area of not
less than ½" square inch per pound (7.1 cm2/kg) ofstored fuel capacity and not less than a total free
area of 10 square inches (64.5 cm2). If ventilation openings at floor level are in a sidewall, there shall
be at least two openings. The bottom of the openings shall beat floor level and the upper edge no more
than 5 inches (127 mm) above the floor. The openings shall beequally sized, spaced at 180 degrees
(3.14 rad) and un-obstructed. See item #RVNT1 for vents.

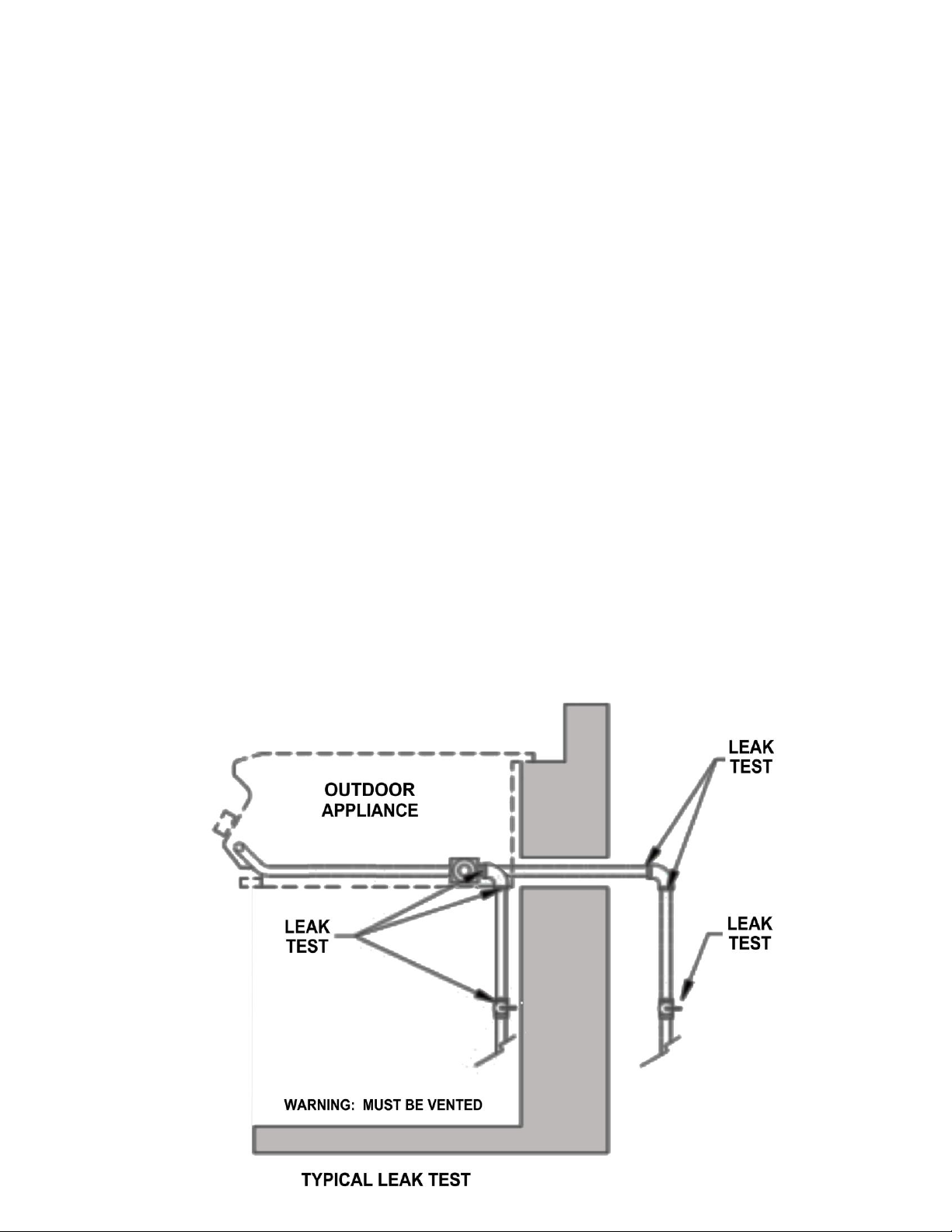

LEAK TEST

NATURAL GAS INSTALLATION –
The installation must conform with local codes or, in the absence of local codes, with either
The national Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas
Installation Code or CAN/CGA-B149.2, Propane Installation Code.
1. This gas appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at the test pressures in excess of 1/2
psi (3.5 kPa).
2. This appliance must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the as supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
If the gas ProBurner is factory built for natural gas, the regulator needs to be set for 4” water
column. The regulator is convertible Later to 10” water column for system LP application. Do not
use with a 20-lb LP cylinder.
Make sure that the regulator is set for natural gas. To check, remove the top cap. You will find
the conversion plastic pin attached to the cap to the underside ofthe cap. If the disc (1/2 in.
diameter) of the pin is close to the cap, then the regulator isset for natural gas. If the disc isat
the tip of the pin, away from the brass cap, the regulator is set for system LP application. To
convert to natural gas, remove the plastic conversion pin and invert and replace itback in a
manner such that the disc isclose to the brass cap. For both natural and LP, the maximum inlet
pressure is 14” water column.
Do not use any replacement regulator other than that specified by RCS. Use only pipe
sealants that are approved for use with natural and LP gases. An installer-supplied gas Shutoff
valve must be installed in an accessible location.
LEAK TEST
CAUTION BEFORE TESTING
Finding and/or fixing a gas leak is NOT a “DO-IT-YOURSELF” procedure.
NEVER USE THE PROBURNER WITHOUT FIRST LEAK TESTING THE GAS
CONNECTIONS.
WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS.
USE OF AN OPEN FLAME COULD RESULT IN A FIRE, EXPLOSION AND BODILY HARM.
DO NOT SMOKE WHILE PERFORMING THE LEAK TEST!
IF AT ANYTIME YOU SMELL GAS –SWITCH OFF ALL OF YOUR EQUIPMENT AND CALL A
PROFESSIONAL TO DETECT THE GAS LEAK. ALWAYS INFORM ALL MEMBERS OF YOUR
FAMILY ABOUT THIS IMPORTANT FACT –SMELL GAS = DO NOT USE THE EQUIPMENT.

To prevent fire or explosion hazard, DO NOT use or permit sources of ignition in the area
while performing a leak test. Perform leak test outdoors only.
Check to ensure that flexible hoses do not have any cuts and wear that may affect the
safety before each use. Use only replacement regulator specified by the manufacturer.
1) Prepare a leak testing solution of soap and water in a spray bottle (50% solution)
2) Confirm that all control knobs are in the off position
3) Turn the main gas supply valve ON
4) Apply the leak test solution by spraying on all of the pipe joints, fittings and hose
5) As gas Leak is detected when:
a. There is a faint smell of gas and/or
b. There is bubbles around the connections
6) DO NOT ATTEMPT TO IGNITE THE BURNER
7) Turn off the main Gas Supply
8) Call a Certified/qualified professional to repair the GAS LEAK
9) DO NOT attempt to use the power burner until the leak is fixed.

TYPICAL BUILDING DIMENSIONS
NOTE: Its is recommended to build the Pro Burner at least 6”-12” lower than the countertop
CLEARANCE TO COMBUSTIBLE CONSTRUCTION
Aminimum clearance of 16”–18” from the sides and back of the ProBurner to adjacent
Vertical combustible construction must be maintained.
CLEARANCE TO NONCOMBUSTIBLE CONSTRUCTION
Aminimum clearance of 1” from the back of the ProBurner
Above cooking surface to non- combustible construction is required.
Aminimum of 1” clearance to the sides of the ProBurner above cooking surface to non-
Combustible construction is recommended.
NOTE: DO NOT USE THIS APPLIANCE UNDER OVERHEAD CONBUSTABLE SURFACES

CLEANING & MAINTENANCE
SPIDER AND INSECT WARNING
Spiders and other insects can nest in the burner of this and any other ProBurner, which causes
the gas to flow from the front of the burner. This dangerous “condition” can cause a fire behind
the valve panel, damaging the ProBurner and making the ProBurner unsafe to operate. Inspect
the burners once a year or if the ProBurner has not been used for more than one month orif
any of the following conditions occur:
1) The smell of gas in conjunction with the burner flames appearing yellow.
2) The Power Burner does not reach temperature.
3) The Power Burner heats unevenly.
4) The burner makes popping noises
STAINLESS STEEL MAINTENANCE
The Power Burner is made of stainless steel construction.
Never clean the stainless steel when it is hot. After the initial cooking use, certain
areas of the ProBurner may discolor. This is a normal discoloration caused by the internal heat
given off by the burner. Specks of grease can gather on the surface of the stainless steel and
get baked-on. These can be removed by using a mild abrasive pad (like Scotch Brite) with a
stainless steel cleaner. Use the mildest cleaner and always scrub in the direction of the grain.
Do not use steel wool to clean the ProBurner.
Do not use abrasives on the polished highlights. Be extra careful when cleaning around the
highlights. Metal polisher or mild chrome cleaner can be used to bring back the luster on
highlights. To touch-up minor scratches in the stainless steel, sand the affected surface very
lightly, with 100-dry grit emery sandpaper in the direction of the grain
PROBURNER GRATE MAINTENANCE
The easiest way to clean the grates is to scrub them with a barbeque brush immediately after
cooking is completed and the flame is turned off.
Wear a heat protective barbeque mitt to protect your hands from the heat and
steam. Dip a brass bristle barbeque brush in tap water and scrub the hot grates. Dip the brush
frequently in tap water. Steam, created as water comes in contact with the hot Power Burner,
helps loosen food particles stuck in the Power Burner. These food particles will either get burned
or fall into the cleaning pan. Cleaning ofthe Power Burner would be longer and more difficult if
the ProBurner grates are allowed to cool before cleaning.

BURNERS CLEANING & MAINTENANCE
Burners are made of heavy gauge stainless steel and can be cleaned using a bristle brush,
warm water and soap. Check every port hole for clogs. Use a wire pin to clean out clogged
ports. Make sure the burner is dry before installing itback to the ProBurner.
DRIP PAN
The drip pan collects grease, liquid and fallen food particles. Allow the pan and its contents to
cool before cleaning. Slide the pan out and wipe it clean. Make sure the drip pan is fully inserted
back into the ProBurner. It is highly recommended to clean the pan after every use
to avoid any possibility of a grease fire. DO NOT use the ProBurner without the drip pan
pushed all the way to the back of the ProBurner unit.
OPERATING INSTRUCTIONS
BEFORE LIGHTING THE PROBURNER
1) DO NOT ATTEMPT TO LIGHT THE PROBURNER IF YOU SMELL GAS.
2) WARNING!IT IS CRITICAL THAT THE GAS BURNERS ARE PROPERLY INSTALLED
WITH THEIR ORIFICES INSIDE THE BURNERS AIR SHUTTERS. If not properly installed,
gas may leak outside of the burner that could lead to fire, potential damage to your Pro
Burner and bodily injury.
Inspect the gas supply piping or hose prior to turning the gas ON. If there is evidence of cuts,
wear, or abrasion, it must be replaced prior to use. The replacement pressure regulator and
hose assembly must be the type specified by the manufacturer. Do not use the ProBurner if
the odor of gas ispresent.
If the unit is LP, screw the regulator and hand tighten to the valve of the cylinder and leak
check the hose and regulator connections with a soap and water solution before operating the
ProBurner. Make sure you always read about LEAK PRVENTION.
Always keep your face and body as far away as possible when lighting.
Refer to spiders and insects warning and procedure under the cleaning and maintenance page
of this manual.

TO LIGHT THE PROBURNER’S BURNER
Lighting the ProBurner
1. Open the gas supply shut-off valve.
2. Push in the knob to the left wait a few seconds and then click the sure-strike ignition system
to ignite. If the igniter does not light turn to the right and OFF position, verify that the gas is on
and then try again.
3. Once you see or hear a flame you can adjust the burner to the desired position.
CAUTION: If ignition does not take place within a few clicks, turn knob to the OFF Position, wait
for five minutes and repeat step 2.
Match/BBQ Lighter Lighting Instructions:
The burners can be lit manually using a lighted long match, taper or long BBQ lighter.
1. Push and turn the knob counter-clock-wise past the “CLICK” position. Hold the knob pushed
in for 5 seconds.
2. Insert a lit match or BBQ lighter thru the grates and near the top of the burner. Once you see
or hear a flame you can release the knob.
NOTE: if the burner does not ignite for the first time use –there may be “AIR” in the line.
Contact your Gas Professional to bleed out the line.
Important: If burner fails to light within 5 seconds, turn off gas and wait 5 minutes before
repeating the process.
Warning:If you smell gas with the valves off, shutoff the gas supplies and
immediatelychecks for leaks using the soapy water technique.

RSB3A Parts List
LP NG
1 RSB3014 Hood Handle 1 1
2 RSB3A001 Hood 1 1
3 RON067 Rubber Stopper 8 8
4 RSB3A002 Inner Grate 1 1
5 RSB3A003 Outer Grate 1 1
6 RSB3A004 Body Assembly 1 1
7 RSB3A005 Burner Cover 1 1
8 RSB3A006 Fixing Channel Steel 1 1
RSB3A007 Mid Burner Orifice Φ1.5(LP) 1
RSB3A008 Mid Burner Orifice Φ2.35(NG) 1
10 RSB3A009 Burner Base 1 1
11 RSB3A010 Right Angle Brass Fitting 1 1
12 RSB3A011 Burner Base Bracket 1 1
13 RSB3A012 Tube Burner Assembly 1 1
14 RSB3A013 Igniter Needle 1 1
15 RSB3A014 Tube Burner Igniter Needle 1 1
16 RSB3A015 Basin Frame Left Side Panel 1 1
17 RSB3A016 Drip Tray Guide Track 2 2
18 RSB3A017 Oil Drip Tube 1 1
19 RSB3A018 Basin Frame Mid Connection Board 1 1
20 RSB3A019 Fixing Channel Steel 1 1
21 RSB3A020 Basin Frame Back Connection Board 1 1
22 RSB3A021 Basin Frame Right Side Panel 1 1
23 RSB3A022 Drip tray 1 1
24 RSB1011 Ignition Wire L=240mm 1 1
25 RSB3A023 Ignition Wire L=330mm 1 1
26 RSB3A024 SS Ripple Tube L=325mm Φ9mm 2 2
RSB3A025 Tube Burner Orifice Φ1.8(LP) 1 -
RSB3A026 Tube Burner Orifice Φ3.45(NG) - 1
28 RSB3A027 Orifice Fitting Nut 1 1
29 RSB3A028 Orifice Mounting Plate 1 1
30 RSB3A029 Orifice Right Angle Fitting Assembly 1 1
31 RSB3A030 LED Light Wire 1 1
32 RON129 LED Bulb 2 2
33 RON102 Knob 2 2
34 RON103 Knob Bezel 2 2
35 RSB3A031 Control panel 1 1
36 RON105 LED Switch 1 1
37 RJC023P Gas Valve 2 2
38 RSB3A032 Inlet Tube Joint 1 1
39 RSB3A033 1/2" Inside & Outside Brushed Elbow 2 2
40 RSB3A034 Regulator（RV48) 1 1
41 RSB3A035 Airway Tube Welding Assembly 1 1
42 RJC021P Valve Latch 2 2
43 RON033 Transformer Inlet Cord 1 1
44 RON032 Transformer 1 1
Qty
Number
9
27
Part Desciption
Part Number

Renaissance Cooking Systems Limited Warranty
RCS is proud to provide the industry’s most comprehensive warranty.
All RCS Cutlass Pro Series grills, ALL side burners, sinks, as well as ALL
doors and drawers are warrantied to be free from manufacturer defects for
the lifetime of the original owner.
All RCS Premier Series grills are warrantied to be free from manufacturer
defects for 15 years of the original owner.
All RCS Refrigeration Products are warrantied to be free from manufacturer
defects for five years to the original owner.
This RCS warranty is effective for products manufactured after January 1, 2020 and supersedes
all other warranties. This warranty excludes normal surface corrosion, discoloration, surface
scratches and surface rust which may occur. Improper maintenance, salt spray, chemicals,
pesticides will effect the look and integrity of the components. RCS will not be responsible for any
damage caused as a result of not following owner’s manual instructions. This non-transferable
warranty is limited to the replacement of original (one-time) defective parts, does not include
shipping and labor to remove or install replacement parts, if necessary. The owner must retain
and submit their original receipt with any warranty claim to receive warranty parts. The warranty
applies to the original owner only. Coverage is for residential use only, no commercial or multi-
family installations apply.
For service assistance, please reach out to us at the email address below. You may also
check our website for lots of great information on using, servicing or cooking on your new
RCS grill.
For more information, questions or assistance please contact us at:
RCSGasGrills.com ~ [email protected]
