Rduch WPI - 1000 User manual

ELEKTROAKUSTYKAELEKTROAKUSTYKA
USER MANUAL
OF INDUCTION LOOPAMPLIFIER
TYPE:
WPI - 1000

Before using the device, to avoid any complications, you should consult this user manual.
Please observe the warnings and guidelines on the unit and the recommendations contained in the
manual.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS: RISQE DE CHOC ELECTRIQUE !
NE PAS OUVRIR !
RYZYKO PORA¯ENIA PR¥DEM
NIE OTWIERAÆ
RYZYKO PORA¯ENIA PR¥DEM
NIE OTWIERAÆ
UWAGA
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RYZYKO PORA¯ENIA PR¥DEM
NIE OTWIERAÆ
RYZYKO PORA¯ENIA PR¥DEM
NIE OTWIERAÆ
UWAGA
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.
WARNING OF DANGEROUS
ELECTRICAL VONTAGE! IN THE
HOUSING ARE NOT PROTECTET
ELECTRONIC COMPONENTS WHICH
HAVEA HIGHT ENOUGH CHARGE. IT
CAN BE DANGEROUS!
THE EXCLAMATION POINTIS AFORM
OF GUIDANCE IS NEEDED IN
SUPPORT AND MEINTENANCE OF
THE INSTRUMENT
CAUTION
TO PREVENT ELECTRIC SHOCK, DO
NOT REMOVE TOP COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL

GUARANTEE CARD NO.............................
Below mentioned, efficient and in a good condition device is given to the buyer on …………..according to the rules stated in
articles no 577-582 of the Penal Code. Rduch Elektoakustyka gives the buyer a guarantee on the proper working device for 36
months.
Name of this device.................WPI-1000..............................................................
.
Rduch Elekroakustyka company, located in Godów, 1 Maja Street 196, tel. [phone] to 06, fax. [phone],
is called a producer in the further part of the contract.
I. OPERATING CONDITIONS
1. Plug – in power socket 230 V /50 Hz should have grounding or neutral grounding.
2. The device should be situated in a place with the temperature between +5ºC to +40ºC and of the
humidity between 8 to 80%.
3. The device should not be a subject to vibration, should not be placed near the sources of strong electromagnetic fields
and should be protected against the excessive sun exposure.
II. WARRANTY STATEMENTS
1. Warranty period starts from the date of selling the device by the producer.
2. In order to repair the device during the warranty period, it should be delivered to the company after the previous call or
fax.
3. The producer provides 7 day repair period counted from the date of the adoption of the device to repair.
4. Requirement for a complaint is to provide the device in the original packing, with the guarantee card, to the place, where
the
device was bought.
5. In case of the damage of the device during the warranty period, that are caused because of the producer, or hidden
defects in
the material, the producer reserves the right to exchange the device into another one that is free of defects after having
examined the causes of the device malfunction.
III. BEYOND THE WARRANTY
1. The warranty does not cover the mechanical damage or the damage caused by the user, or the damage
caused by failure to comply with the universal principles of operation of the equipment and the
requirements stated in point no 1.
2. Mechanical damages or other ones, not associated with the operation of the device, result in loss of
warranty.
3. Tuning, regulations or the exchange of the fuses are not the subject to the warranty.
4. Producer, as the servicing part, reserves the rights to estimate and qualify the level of the damage.
5. In case of delivering the device in a good condition or the device that was not previously reported, the
servicing costs, cleaning, testing and transport costs are paid by the person or the company that
complain.
6. The guarantee card is invalid without the producer’ s signature, date or the company stamp.
.................................. .....................................................
Stamp and signature
Date

1. Notes for user
-Making any modifications and repairs at the WPI-1000 by unauthorized people invalidate the warranty
and may cause decrease in performance and safety.
- ATTENTION! The device must be powered from the mains socket
with an attached protection circuit
- In case of replacement mains fuse, remove the plug from the socket strictly
- The producer reserves the right to make changes in part of modernization and technical progress,
without introducing them to the user-manual if they do not change the basic parameters
Equipment:
- user manual
- warranty card
- spare fuse
2. Application and general comments.
Modern loop amplifier of type WPI - 1000 is used to amplify sacral buildings, conference rooms, tv
rooms, etc. It is used to transmit an acoustic signal through a special loop made with a wire. Signal
reception of the loop is done via a wireless receiver OPI connected with headphones or through hearing
aids from hearing impaired people.

3. Technical data.
* input audio 1 x mic XLR, 1x mic/line XLR, 1 x line Jack
2
* maximum loop area 350 - 1300 m
(depends on the losses in the metal)
* the maximum length of the loop wire 230m
* loop impedance 0,5 - 3
* loop current (RMS) 9,2 A
* phantom power 15 V
* work frequency 80 - 6,5 kHz /±1,5dB
* distortions THD + N < 0,2% / 1kHz
* power supply 230 V / 50 Hz
* max. output power 120 W
* weight 4,2 kg
* dimensions (width / height / depth) 443 x 50 x 205 mm
OFF
POWER
ON
OVERLOAD
TEMP.
ERROR
0
LOW HIGH
COMPRESSOR
dB dB
OUTPUT LEVEL
-3
-9
-15
-21
-27
33
27
21
15
9
3
ELEKTROAKUSTYKAELEKTROAKUSTYKA

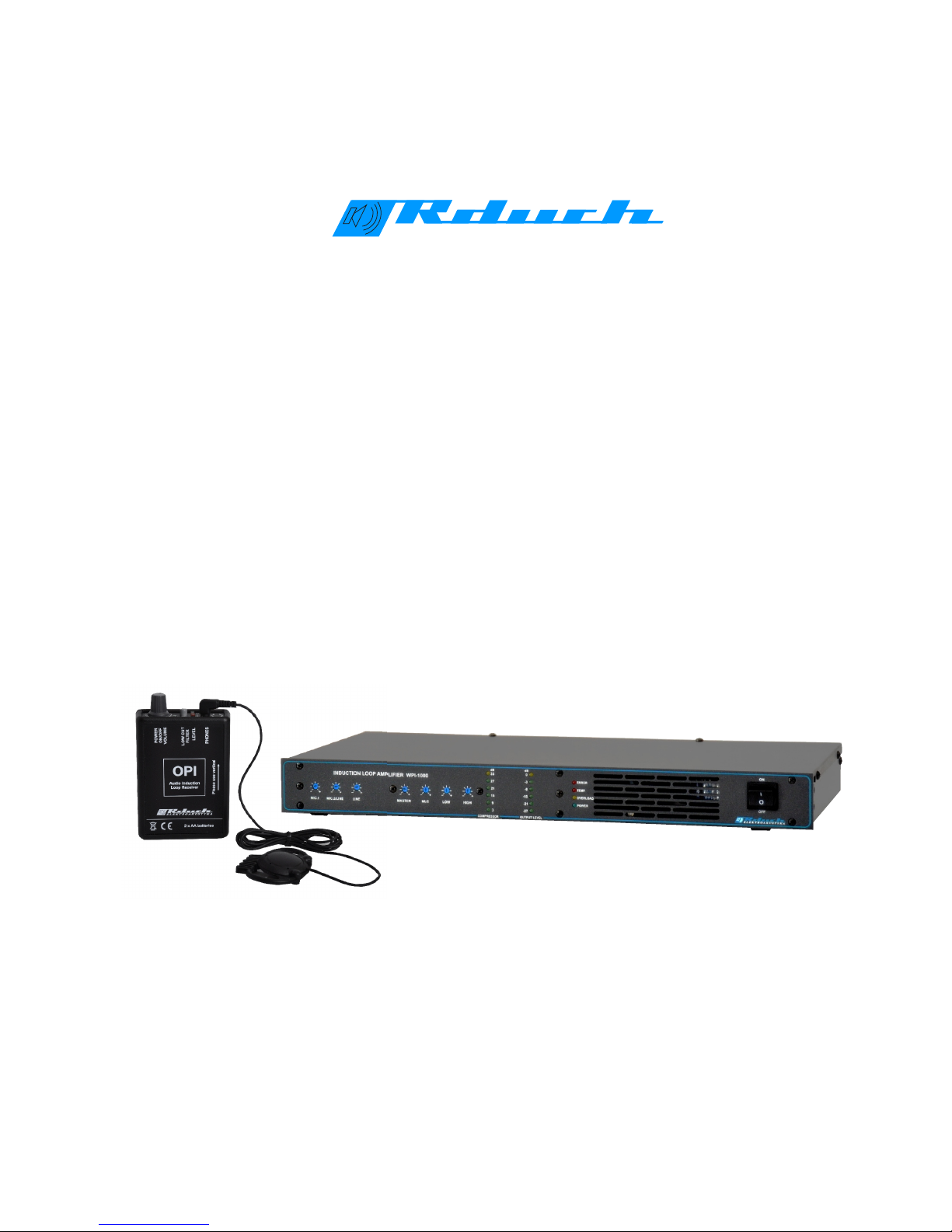

View of the front WPI-1000
1- mic input 1 gain control
2- universal input 2 gain control
3- line input 3 gain control
4- master gain control
5- tone regulation - depending on the amount of metal in the room
(eg, reinforcement of the floor)
6- bass adjustment
7- treble adjustment
8- compressor indicator
9- signal level indicator
10- LED indicating overload
11- LED indicating overheat the power amp.
12- LED indicating incorrect loop impedance - out of range 0.5 - 3W
13- LED indicating that the device starts correctly
14- on/off switch
78 9 10 14
11 12
13
4. Location of components and sockets.
MIC.1 MIC.2/LINE LINE MASTER MLC
INDUCTION LOOP AMPLIFIER WPI-1000
1 2 3 4 5 6

MIC.1
Phantom Gain
ON
1 2
22 2322 23
27
MIC.2/LINE
LINE
INSERT
Line
Mic.
Phantom Gain
ON
1 2
LOOP
CONTROL
DC
OUTPUT
RESISTANCE 0,5Wto 3WRESISTANCE 0,5Wto 3W
LOOP CABLE
100mA
15V

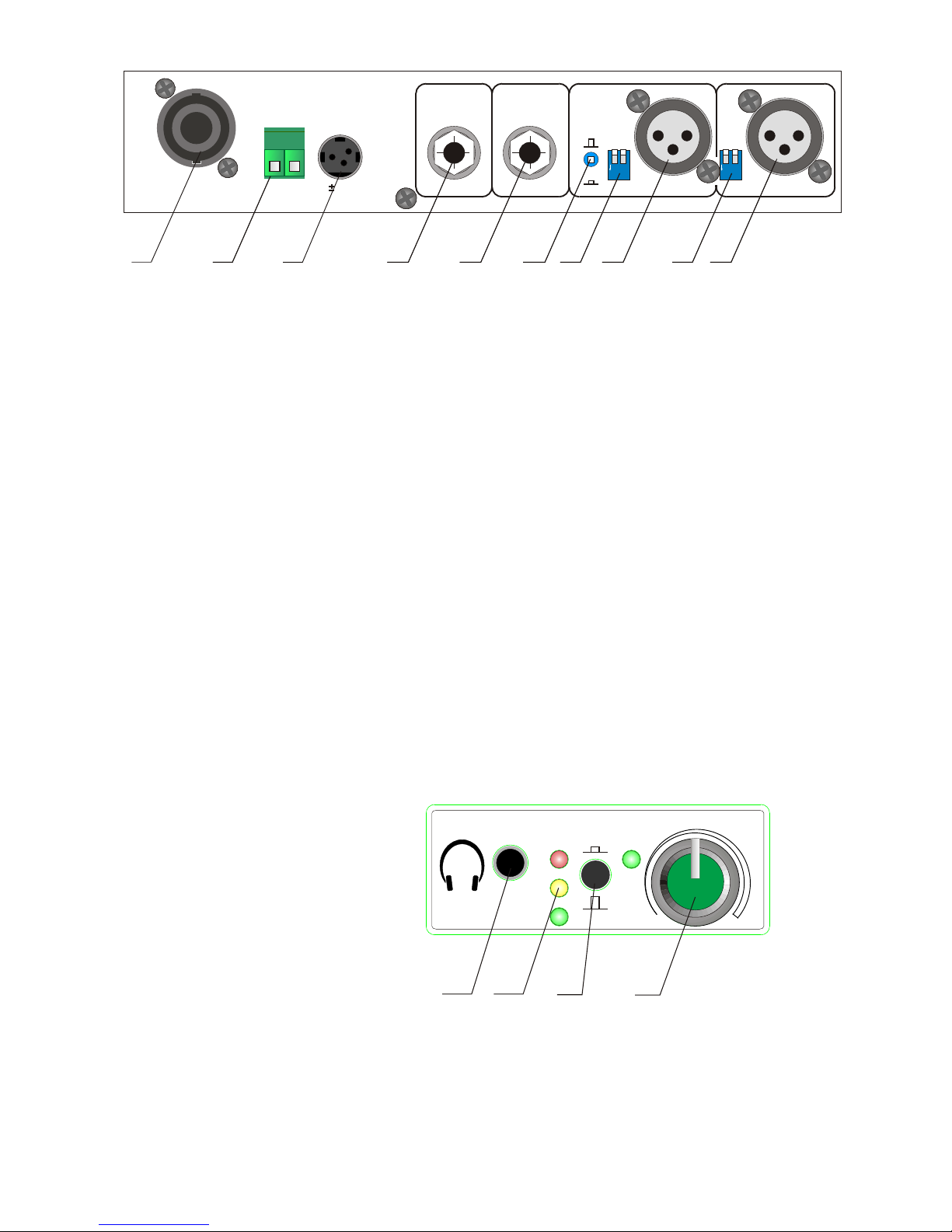

View of the back WPI-1000
15- loop connection socket
16- control socket - closed contacts indicate proper operation
16.5- output ±15V DC 100mA
17- INSERT socket - is used to connect additional devices, and to connect in parallel two loops
18- jack input socket for line 3
19- input switch 2 - microphone or line mode
20- double switch:
- gain - input sensitivity switch [21] - position ON +15dB
- phantom power switch
21- input socket XLR - microphone-line
22- double switch:
- gain - input sensivity switch [23] - position ON +15dB
- phantom power switch
23- input socket XLR microphone 1
5. Receiver OPI.
24- headphone jack socket
25- signaling LED’s
26- Low-cut-filter
27- potentiometer gain adjustment with switch
16 17 18 19 20 21
15 16 17 18 19 20 21
16.5
dB
0
-6
-12
ON
OFF
ON
VOLUME
24 25 26

6. Installation of the loop and amplifier WPI 1000.
Induction loop should be made with a wire with a thickness of 1 to 2.5 mm2. The maximum loop area is
1300 m2, with a maximum dimension of the short side may not exceed 30m.
The Loop installing-height should not exceed 1 m above the ground.
The loop should be connected to the clamp [15], and for its control we have the socket [16]. XLR sockets
[18], [21], [23] are to connect microphones or other line sources, at the same time setting the switches [19],
[20], [22] in the desired position. The Phantom power we user by condenser microphones
In the event when the amplifier is damage:
- switch (10) off the power,
- check the fuses and if they are damaged, replace them with the right
one,
- remove any short circuit or any overload line
- send to the producer service
44-340 Godów, ul.1Maja 196, tel. 036 / 47 51 803 - 6
7. Receiver OPI operation.
Connect your headphones to the jack socket [24]. With the potentiometer [26] turn on the device and
adjust the volume with the potentiometer [27].

ELEKTROAKUSTYKAELEKTROAKUSTYKA
Jan RduchJan Rduch
44-340Godów,ul.1Maja196
tel.[phone] do 5
44-340Godów,ul.1Maja196
tel.[phone] do 5
www.rduch.com.pl
www.naglosnienia.com.pl
e-mail: [email protected]
