RecPro RP-RANGE-17BL User manual

RP-RANGE-17BL/RP-RANGE-17SS
RP-RANGE-21BL/RP-RANGE-21SS
INSTRUCTION MANUAL
Gas Range

Table of Contents
Product Introduction....................................................................... 3
Safeguard Measures ........................................................................ 4
Safeguard Preparations ................................................................... 5
Install Information............................................................................ 10
Functions ........................................................................................ 15
Range Features ............................................................................. 21
Product Troubleshooting................................................................. 22
Sanitation & Upkeep ...................................................................... 23
Exploded-View Drawing ................................................................. 24
Product Warranty Information ......................................................... 26
Warranty Contact Information ......................................................... 28
2|Page

Product Introduction
Thank you for your purchase of the RecPro Gas Range! Before
the use of your new RecPro Gas Range, please review this user
manual carefully. This user and instruction guide contains useful
information pertaining to safety, maintenance/upkeep, installation,
functions, features, and warranty.
Please do not dispose of this user manual, as you may need to
refer to this guide in the future. If you should ever need to pass this
user manual to any future owner of the gas range, please do so.
Following the information in this user manual could reduce the risk
of injury and will provide information for safe use.
If these instructions are now followed in any way, RecPro does not
accept any responsibility for injury or damage.
3IPage

Safeguard Measures
& WARNING : This symbol indicates a safety alert. It will
alert you to possible hazards that can cause serious bodily harm,
property damage, or even death. The safety symbol will precede
important messages about safety.
WARNING: If one does not follow the instructions in this guide
exactly, an explosion or fire may result in personal injury, property
damage, or even death.
Do not use or store flammable substances or liquids, such
as gasoline, near this product or any appliance.
IN THE EVENT THAT A GAS SMELL IS PRESENT:
•Do NOT attempt to ignite or light ANY appliance or incendiary
device.
•Do NOT touch ANY electrical switch.
•Do NOT use any phone or electrical device in your recreational
vehicle.
•Ev acuate the recreational vehicle of all occupants and pets.
•Shut off the main gas supply or gas tank supply valve.
•From a location away from the gas smell and recreational
vehicle, call your gas supplier immediately for further
instructions.
•If your gas supplier can not be reached, proceed to call the local
fire department or 9-1-1 immediately.
•Have the gas range and system checked and have the leakage
source solved by a qualified installer, manufacturer or dealer,
the gas supplier, or service agency.
4|Page

& Caution
Hazards or unsafe practices can result in minor personal
injury or harm.
Read the following instructions carefully before attempting to use the
following application to prevent the potential risk of electric shock, fire,
damage to the appliance, or personal injury. Please use the appliance
only for its intended purpose as described by this manual.
If you are using an external electrical source, please ensure that the
appliance is electrically grounded in accordance to state or other codes,
such as the National Electric Code (NFPA70/AN51). Do NOT attempt to
repair, adjust, service, or replace any parts on your appliance unless
specifically recommended by this manual. Other services should be
referred to a qualified service technician.
The warning and important safety instructions appearing in this guide are
not meant to cover every condition and possible situation that may occur.
Caution, common sense, and care must be practiced when maintaining,
operating, or installing your appliance. One should always contact the
manufacturer about conditions or problems you do not understand.
INSTRUCTIONS FOR SAFETY
•Do NOT overload the oven door as it could tip the appliance
over.
•Remove all tape and packaging before using this appliance.
Properly dispose of the carton and plastic bag after unpacking
the appliance. Never allow children to play with the packaging
material.
5IPage

•This appliance should be installed properly by a qualified
technician, in accordance with local and state regulations and
laws.
•Never modify or alter the appliance by removing screws, anti-
tip brackets, leveling legs, panels, or any other part of the
product.
•Do not use the oven or warmer drawer for storage.
•Do not store objects that could be of interest to children in the
cabinets above the appliance. A child could atte mpt to climb
onto the appliance to reach these items and could be harmed
or seriously injured.
& WARNING
Do NOT use this range as a space heater to warm a room, as this
may cause carbon monoxide poisoning and overheat the oven.
Do NOT cover the rear vent on the range, the internal cavity holes, or
cover the space at the bottom of the oven door. Never cover the rack
completely with materials like aluminum foil or any other flammable
objects. Doing this can cause an air flow block; carbon monoxide
poisoning, fire, or explosions may occur as a result.
•The range must be separated from the gas supply piping
system by closing its manual shutoff valve during any
pressure testing that is equal to or less than
1/2psi(3.SKPa).
•Do NOT touch surface burners, space near these burners,
the oven burners, or any interior surfaces of the warmer
drawers or oven.
6IPage

During and after use, do NOT touch or allow flammable
materials, objects, or clothing to touch or come into contact with
these areas until they have cooled down. Any burners, surface
or oven, may be hot even though flames are not visible. These
burners may still be hot enough to inflict burns or injuries.
•DO NOT wear loose fitting or clothing that hangs while
operating this range, as these items could catch fire and
cause serious injury or property damage.
•When heating grease, oil, or fat, watch it closely. Oils,
fats, or grease can catch fire if they become too hot. In
the event of a grease or oil fire, smother the fire with the
pan lid, use baking soda, a dry chemical, or foam-type fire
extinguishers. DO NOT USE WATER OR FLOUR!
•The space in which the range is installed should be
constructed so that the range is framed in and guarded
to prevent space around the range.
& WARNING
Gas leaks may occur in the system and result in dangerous
conditions. In some situations, a gas leak may not be
detectable by smell. Gas suppliers recommend you purchase
and install a UL-approved gas detector. These detectors
should be installed in accordance with the manufacturers'
instructions.
•Do NOT use wet or damp potholders, only use dry
potholders.
•Do NOT let the potholders touch hot or heating burners.
•Do NOT use a towel or other bulky cloth in place of a
potholder.
•Do NOT heat unopened food containers as the
pressure of heat or steam could build-up. This may
cause the container to rupture or explode and could
cause harm or serious injury.
7|Page

•Upon storage or disposal of the appliance, please remove
the oven door before doing so.
CAUTION: Never attempt to utilize the range during a power
failure. During the event the power fails during use, always shut
off the oven, as your appliance may turn on unsupervised as the
power restores.
INSTRUCTIONS FOR COOKTOP USAGE:
•Using the correct flame size: The flame should be
adjusted so that it does not reach beyond the edge of your
utensils, such as a pot or pan. Undersized utensils may
expose a portion of the burner and flame, which may result
in the combustion of fabric or clothing if they make contact
with the flame. Using correctly sized pots or pans will
improve efficiency and safety.
•Do not use stove top grills on a sealed gas burner, doing
so may cause incomplete combustion, and this may result
in carbon monoxide poisoning.
•Please memorize the knobs and their corresponding
burners which they control. Always place a pan on the
burner before starting a flame. Always turn off the burner
before removing the pan.

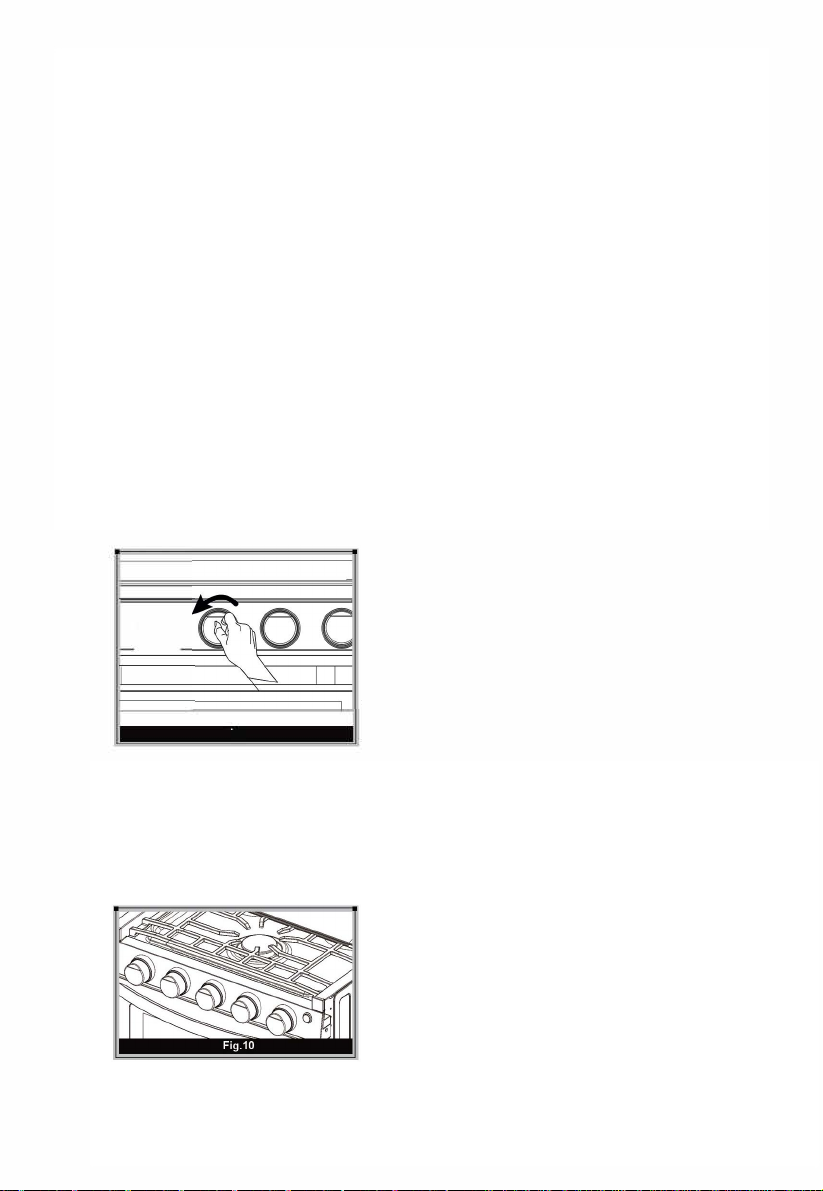

•Always turn the knob all the way to the "Light" mark when
igniting the range's top burners. Always then check to see if
flames are visible, ensuring that the burner is then lit.
•Do NOT face pot or pan handles outward. They should
always be facing inward but not directly over another flame.
This practice can reduce the risk of serious burns, spillage,
or even the combustion of flammable items or materials in
the event there is accidental contact with the handle.
•Do NOT leave the range's top burners on a high heat
setting unattended. Failure to supervise can result in a boil
over, which can cause smoke or a grease fire.
8IPage

•Protective Sheets: Never use aluminum foil to cover the oven
bottom or burner pans, unless suggested by this manual. The improper
use or installation of these sheets and liners can increase the risk of
electrical shock or fire.
•NEVER use a searing grill on the cooktop: Searing grills
are not designed for use on this range. The utilization of a searing grill
can cause a fire.
•NEVER use a decorative burner cover: In the event that
a burner is turned on accidentally, the covers could become too hot,
could possibly melt, or combust. This can also result in damage to the
range from overheating and can cause ignition and combustion
problems.
•Cooking utensils that are glazed: Please only use certain
types of ceramic, glass, or glazed utensils that are designed for use on
a cooktop. Avoid the use of these utensils when possible.
CRITICAL INSTRUCTION FOR OVEN USE:
•Take caution when opening the oven door when the
oven or warmer drawer is in use: Upon opening the oven
door, stand to the side of the range instead of facing directly toward
the range. Let all steam or hot air exit before you proceed to replace or
remove f ood.
•Do NOT obstruct oven vent ducts: The vent for the oven
is located at the center rear of the cooktop. Making contact with the
surface in this area while the oven is in use could cause potential
burns or serious injury.
•Never move oven racks when the oven is hot: Please
only move oven racks when the oven is cool. However, If a rack MUST
be moved while the oven is in use please exercise extreme caution.
Use potholders and grasp the oven rack with both hands. Never allow
potholders or yourself to come into contact with the heating elements in
the warmer drawer or oven. Alwa ys remove all utensils and items before
attempting to move the rack.
9|Page

•Always use a broiler pan with an insert: The broiler pan
insert allows dripping oil and fat to drain away from the
broiler.
•Never cover the broiler insert with aluminum foil:
Grease and fat could ignite and catch fire if exposed.
•Never touch the interior of the oven or heating
elements: The oven's heating elements, despite being
dark in appearance, could be very hot and could cause
burns or serious injury.
•Never touch any areas on or near the vent panel (back
of product): The vent panel may be hot during use, and
could cause burns.
Cleaning Instructions
You should always clean your range regularly and keep all parts
grease free to prevent fire. Clean all grease filters and exhaust
fan vents. Never allow grease to build up on the filter or hood,
grease buildup could ignite. Turn on the hood fan when cooking
under the hood.
INSTALLING YOUR APPLIANCE
The installation of your range MUST conform with state or local laws
and codes. In the absence of codes and laws, please use the
standard for RVs (NFPA 1192/AN51).
& WARNING
When installing this range, you must adhere to the written
instructions in this guide. No representative, agent, or employee
of the manufacturer of RECPRO, or any other person(s) has
authorization to do any kind of modifications, provisions/edits, or
changes to the instructions mentioned in this user manual.
10 I Page

CABINET SPECIFICATIONS
To ensure proper operation of your range, suitable cabinets
must be used.
Cabinet specification information:
•There must be a ventilation hole in the cabinet for air
circulation. A minimum 3/8" gap at the bottom of the oven
will also provide proper air circulation.
•The minimum vertical distance from the cooking top is 30".
To reduce the required distance use non-combustible
materials and construction. The minimum distance from
the top of the cooking grate to the bottom of the non-
combustible is 19.5".
•If cabinets are installed above the cooktop, the maximum
depth is 13". If the range hood is below the cabinet, there
is no limitation for the cabinet depth.
•The minimum distance between the vehicle/trailer floor
and the bottom of the cut-out is 4".

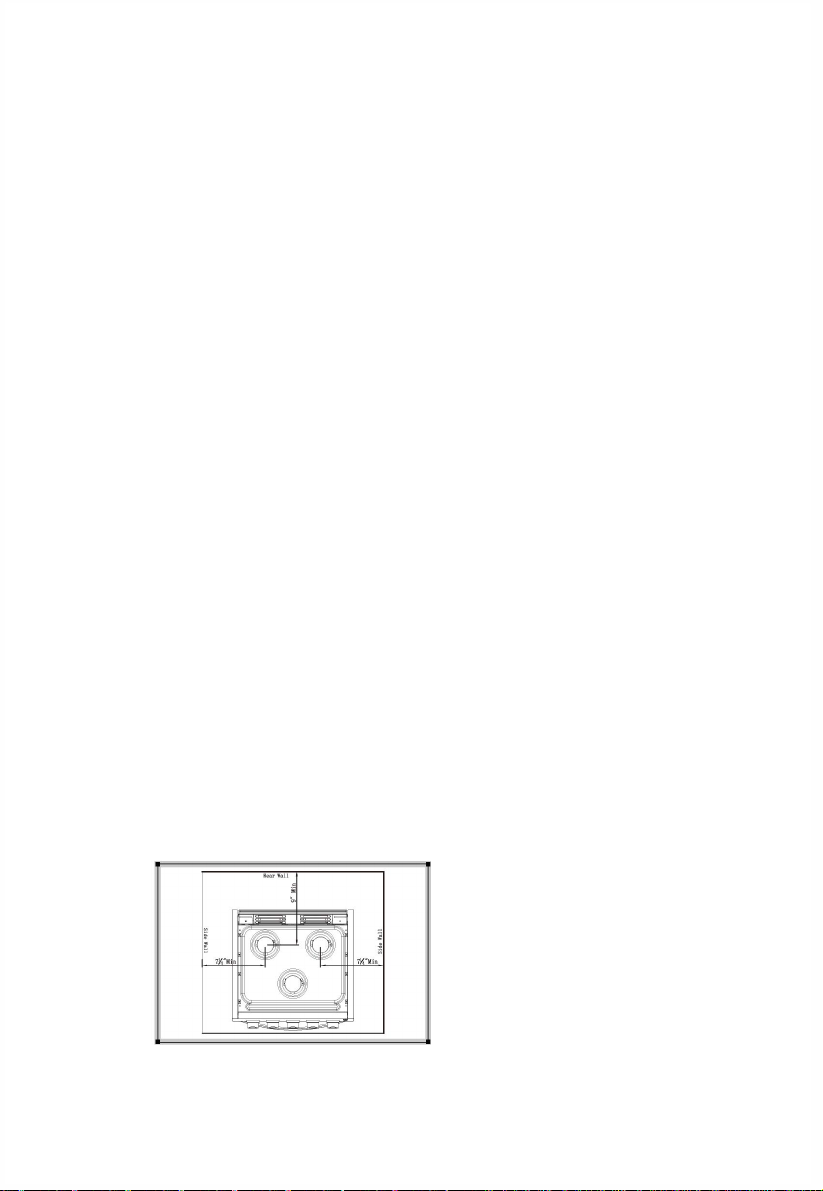

•The minimum horizontal distance from the rear wall will be
no more than 9" adjacent to the vertical combustible wall.
•The minimum horizontal distance from the side wall will be
no more than 7.25" adjacent to the vertical combustible
wall.
- All measurements are distances from the center of the
burner, out.
11|Page

Cabinet and counter cutout:
Model
A B
C
D E
F
17"RV
0.94" 1.56"
2"
Range
17.75"
451mm
20.25"
514mm
16.12"
410mm 23mm 40mm 51mm
max. max. min.
21" RV
0.94" 1.56"
2"
Range
17.75"
451mm
20.25"
514mm
20.06"
510mm 23mm
40mm
51mm
max. max. min.
Above is the minimum cutout size
How to Install Gas Range Oven:
Once the gas line is in place and the cabinet has been
prepared in accordance with the dimensions previously
provided:
1. Remove packing material, tape, and any temporary labels
from your range, and unscrew the 4 screws marked on (Fig. 1).
2. Slightly push back the top glass cover assembly and lift
up to remove it from the range oven (Fig. 2).
3. Slide the range oven into the cabinet cavity. Verify that the
oven is level by using a "Level" tool. Confirm the oven is level
rear to front and side to side (Fig. 3).
12IPage

4. Use any approved gas supply tube or hose with proper fitting
to the range oven through the gas cavity on the upper left-rear
corner of the cabinet. Connect a 12V power supply wire to the
appliance from the upper right-rear corner of the cabinet (Fig.4).
5. To secure the range oven, use two self-tapping screws on
both the left and the right (Fig. 5).
6. Check the pipe fittings for leaks using a soapy solution.
NEVER TEST FOR LEAKS WITH OPEN FLAMES!
13IPage

7. Install the top glass assembly as directed by the arrow.
Tighten the screws marked in the picture Fig.1-1.
(Fig. 6 -1 , The holes on the left and right sides of the inside door frame are optional for
mounting and do not re q uire screws to be used.)
8. Installation is now complete. (Fig. 7)
ELECTRICAL CONNECTION:
Range Oven without Light Eliminating
Diode (LED) lighting: Attach the wires of
the oven and lamp to a 12V DC circuit
with a fuse protected and a max rating of
no more than 5 amps.
Note: Make sure to connect the wires
with the correct polarity.
Black= + (positive)
White = - (negative)
Range Oven with Light Eliminating Diode
(LED) lighting: Attach the light wires to a 12V DC
circuit with a fuse protector and a max rating of no
more than 5 amps.
DC12V
Wi 「 ing Diagram
＋一 千
DC 12V
Oven lamp
Wiring Diagram
14 I Page

Function
Lighting Oven with Match
1. Make sure and check that ALL knobs are turned to the OFF position
before lighting with a match.
2. Ensure the main gas valve is in the open position.

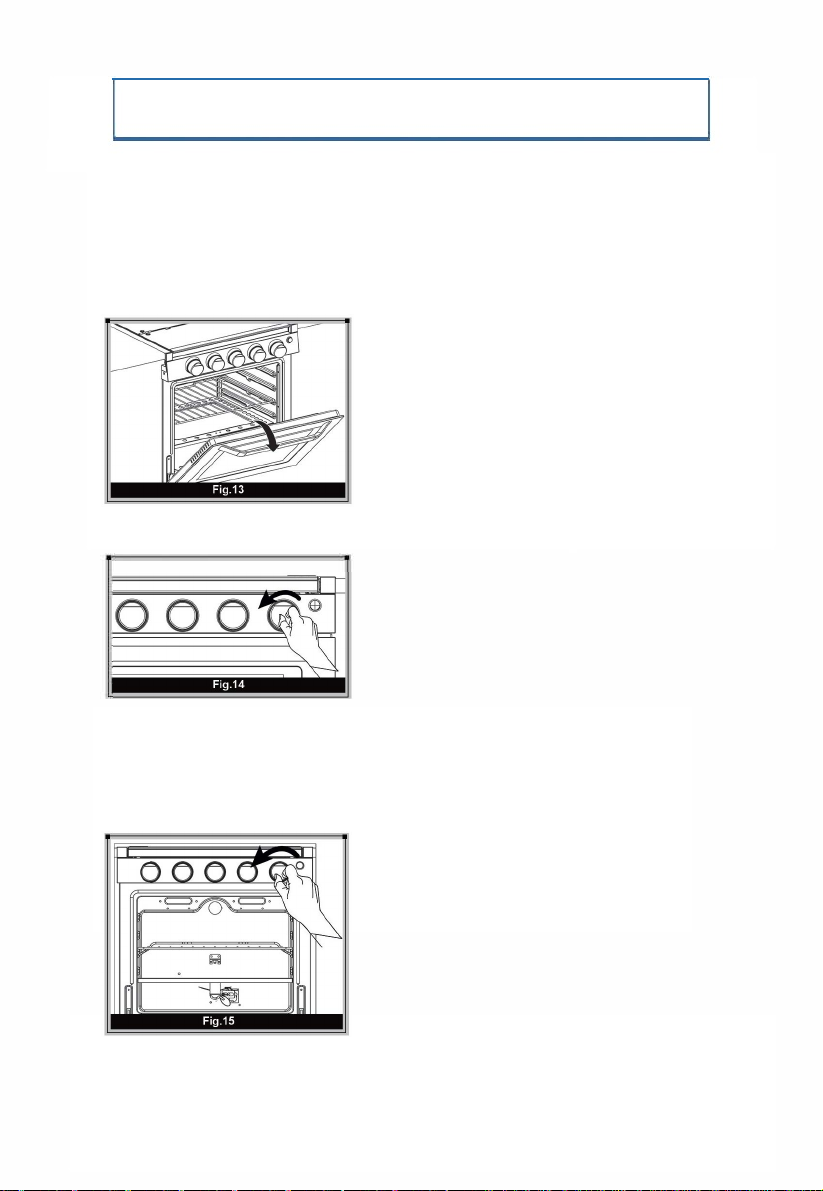

3. Open the gas range oven door. (Fig. 13)
4. Push and rotate the oven control knob counterclockwise to  position. (Fig 14)
5. While holding and pushing in the oven control knob, open the gas range
oven door and insert an extended wooden match or an extended butane
lighter through the grate spaces, near the ports of the burner, to light the
oven burner. (Fig. 15)
15IPage

6. Do not let go of the oven control knob, keep the oven control knob
pushed in and hold the oven control knob in for 5 seconds after the
pilot light is lit. If needed, repeat steps 4 and 5 if the gas range oven is
not lit.

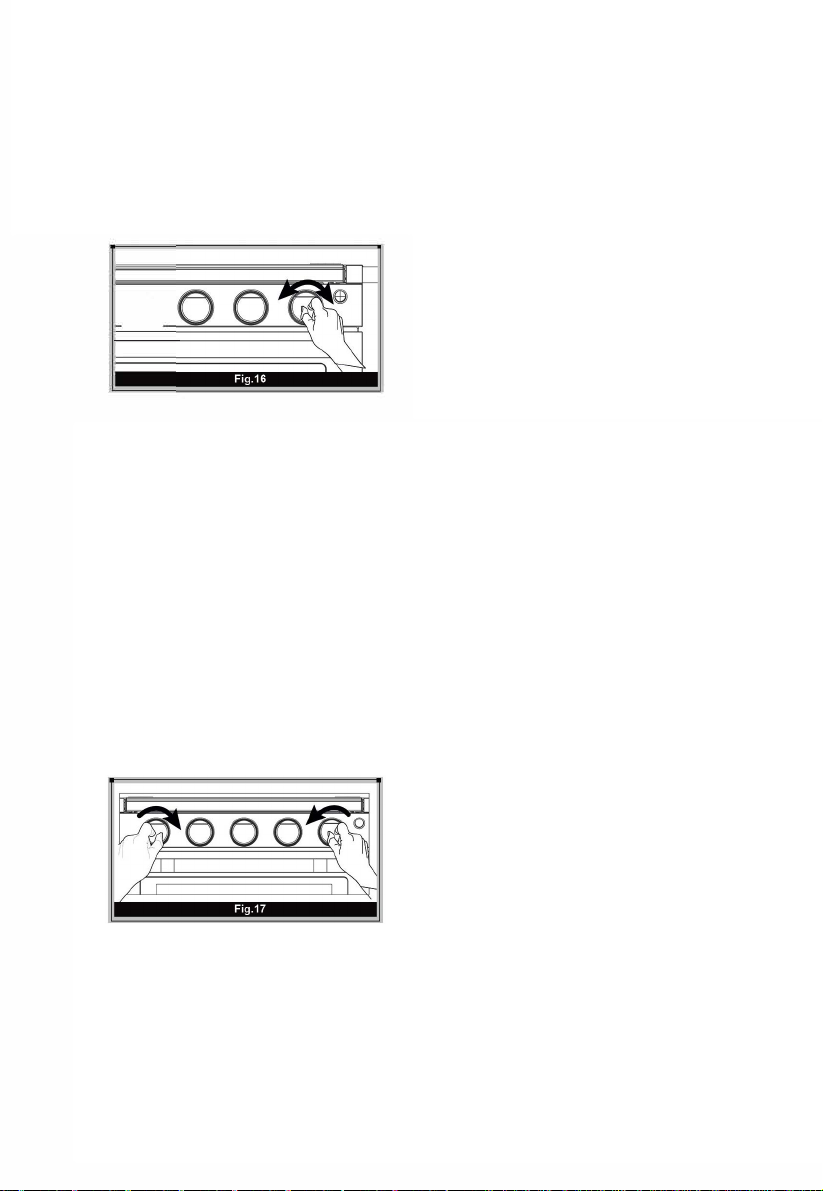

7. Adjust the burner to the desired flame level by rotating the oven
control knob left and right. (Fig. 16)
0
Lighting Electronically:
1. Make sure and check that ALL knobs are turned to the OFF position
before lighting.
2. Ensure the main gas valve is in the open position.
3. Push and rotate the oven control knob counterclockwise to the
light position. (Fig. 14)
4. Continue to push and hold in the oven control knob for 5 seconds and
rotate the ignition button clockwise repeatedly until the burner lights.
Repeat steps 3 & 4 if not lit. (Fig. 17)
5. Adjust the flame to the desired level by rotating the control knob.
16IPage

How to Light TOP Burners:
& WARNING
The top cover must be open when the main burner is in operation.
Based on safety considerations, the top burner flame size should be
adjusted so it does not extend beyond the edge of the cooking utensil.
Lighting TOP burner with a match:
1. Make sure and check that ALL knobs are turned to
the OFF position before lighting with a match.
2. Ensure the main gas valve is in the open position.
3. Rotate the appropriate burner knob counterclockwise
to the "HI" position. (Fig. 9)
0
Fig.9
4. PROMPTLY position an extended-lit wooden match, or
use an extended butane lighter, through the grate spaces,
nearest the burner port, to light the burner. Repeat steps 4
& 5 to light desired burners. (Fig. 10)
17IPage

5. To adjust to the desired flame, push and rotate the burner
control knob. (Fig. 11)

==�I
Fig.11
Igniting Gas Range Electronically:
1. Ensure all control knobs are in their OFF positions.
2. Ensure the main gas tank valve is open.
3. Turn the desired control knob counterclockwise to the
"HI" setting, DO NOT LIGHT more than one burner
simultaneously.
4. Immediately after the control knob is set, turn the ignition
knob clockwise multiple times or until the burner lights.

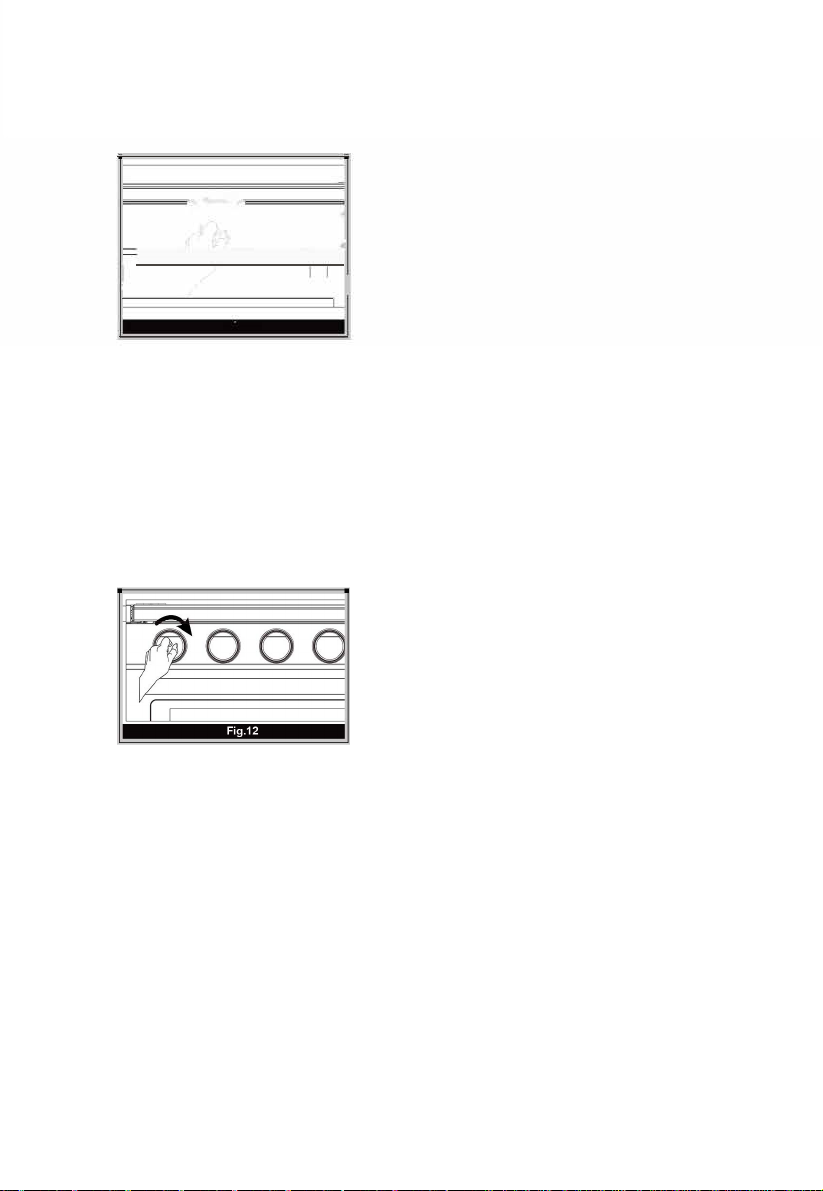

Turning the gas range flame OFF:
To turn the oven or burner flame off, push and turn the control
knob clockwise until the knob is in the OFF position. If you
travel and need to refuel your gas tank, ALWAYS turn the tank
valve off.
18IPage

Useful information on proper flame for burner: Gas burners
will tend to burn blue if the ratio of fuel to air is adjusted
properly.
air shutter (or Venturi) needs to be adjusted so that it can produce
more air. Please be aware of any carbon or soot deposits that may
build up on the burner as this too will affect the burner's ability to cook
evenly and properly.
This Gas Range oven comes with an LED light feature! Simply press
the button to turn the oven LED light on and off.
ALWAYS PERFORM A GAS LEAK CHECK BEFORE USING THE
GAS RANGE!
Before operating the gas range, always perform an analysis or check
for a gas leak. DO NOT use the gas range until the leak test is
performed and confirms there are no gas leak indications. Test for
leaks by using between 11-13.8 WC pressure.
- If there is a gas leak detected, replace the defective part
recommended by the manufacturer or tighten the loose joint properly.
& WARNING
BEFORE TESTING FOR GAS LEAK
1. Ensure gas range con trols are in their OFF positions.
2. Never test for leaks with any open flames present.
3. Do not smoke when testing for gas leaks.
4. Use a soapy solution to detect gas leaks. If there are bubbles
present, there is a gas leak.
19IPage
Burner flames that burn yellow
on the tip of the flame (over 1
inch) are a sign that the burner
is not receiving enough air for
the combustion of gas. If the
tip of the flame is more yellow
in appearance this could
indicate that the burners,

& WARNING
MERCHANDISE HARM RISK!
•If the control knob is set to the LIGHT position, DO NOT
COOK as damage may occur to the ignition m odule and
the burner electrodes.
•DO NOT LET children or pets play near, at, or around the
gas range. Be cautious as the range can tip/fall if pulled.
ALWAYS check the oven before setting the oven
temperature.
•DO NOT USE cookware that exceeds 1 inch larger than
the burner grate. If oversized cookware is used, this may
cause extreme heat build-up and may result in
destruction to the burner grate, burner, and/or cooktop
(maximum pan size= 10 inches).
•DO NOT USE any cooking pan, griddle, or any cooking
instrument that covers more than one burner at any time.
The maximum pan size is a 10-inch skillet. Any cooking
instrument larger than 10 inches is strictly prohibited. If
this instruction is not followed, results may cause large
amounts of heat that could result in damage to the item
or could result in damage to the burner grates or range
top.
•Leaving an empty or dry cooking utensil on a hot burner
could result in damage to the cooking utensil or could
result in serious damage and/or fire. Remove all pans/
cooking utensils, when not in use.
Cooking Tip
Preheat the oven for 15 minutes before placing food to bake.
20IPage
