Redland Aspiration User manual

www.redlanddentalproducts.com [e-mail]
AEROSOL
SUCTION
Redland
Aspiration
Thank you for purchasing our aerosol suction machine.
Please read this manual carefully
before use and keep it properly for future refrence

www.redlanddentalproducts.com [e-mail]
CONTENT
OVERVIEW ------------------------------------------------
PRODUCT FEATURES -------------------------------------
PACKING LIST --------------------------------------------
FILTERS --------------------------------------------------
INSTALLATION INSTRUCTIONS -----------------------------
ABOUT DISINFECTION ------------------------------------
CONTROL PANEL AND REMOTE CONTROL -----------------
FAQ AND SOLUTIONS -------------------------------------
STRUCTURE ----------------------------------------------
WARRANTY ----------------------------------------------
1
2
3
4
5
6
7
8
9
10

www.redlanddentalproducts.com [e-mail]
1
OVERVIEW
SPECIFICATION
This product is a mobile extra-oral suction machine, which quickly lters spray,
aerosol, bacteria, and other harmful substances during treatment, by utilizing the high
negative pressure produced by a brushless direct current motor.
The rst step to ltration is using a washable primary cotton lter and secondary
water vapor absorbing lter to effectively lter out the aerosol spray, thin blood, debris and
other large particles during the treatment.
The second step is lter out 99.97% of the aerosol and odor through our highly efcient
customized H14 HEPA highly efcient lter and an active carbon lter.
The last step puries through the UVC photo oxygen catalytic sterilization module, which
sterilizes and exhausts air to the outside. the result-our tower- like lters to purify the air. In
conclusion, this product can make the air clean and fresh to improve the cleanliness of the
treatment environment, and reduce the rate of viral cross-infection. This achieves our goal of
ghting infection.
Voltage 110V 60Hz
Power 220W
Air Flow Rate 5666.667 liter/min
Noise Lowest 52db
Filtration Effect 0.3μm 99.97%
Size 16”x10”x25
N.W 53Lbs
Diameter of Flange 3”
Filter layer 4 layer + UVC
Folding arm length 55”
Folding arm Diameter 2.5”

www.redlanddentalproducts.com [e-mail]
2
PRODUCT FEATURES
CENTRIFUGAL FAN
LCD DISPLAY
REMOTE CONTROL
FILTERS
The fan has a brushless direct current motor with a maximum service life of 40 thousand
hours.
We assure the highest reliability, and our fan will require no maintenance.
The fan produces low operating noise, high rotation speed, high air volume, high air pressure
and high efciency.
Independently devloped microcomputer LCD with a programmable single chip bringing
digital control. A simple interface displays the operating parameters. The mode of the fan
is automatically checked. When there is a blockage in the tubing, or the lter is saturated, and
in , other situations, the system will automatically signal an alarm with an audible sound. It
will operate with low-pressure power to improve safety.
This product can remotely control basis on-off instructions, accelerate and decelerate suction,
timed shutdown functions.
It uses 2.4G wireless technology to achieve 360-degree control within 20 meters. Easy and
convient operations enable flexibility.
There are four levels/ layers of lter systems in the Redland Aspiration.
The systems have a washable primary effective lter, water vapor absorbing lter, H14 HEPA
lter, and an UVC photo oxygen catalytic sterilization system. The Redland Aspiration ads an
active carbon lter.
The rst step uses a washable primary cotton lter and secondary water vapor absorbing
lter to effectively lter out spray, thin blood, scraps, and other large particles during the
treatment.
The second step lters out 99.97% of the smell, aerosol and aerosol related pathogens
through our customized H14 HEPA highly efcient lter and/or active carbon lter.
The last step is through the UVC photo oxygen catalytic sterilization module, which sterilizes
and exhausts air it to the outside.
The result, our tower-like lters purify the air.
In conclusion, this product can make the air clean and fresh to improve the cleanliness of the
treatment environment, and reduce the rate of viral cross-infection. This achieves our goal of
ghting infection.

www.redlanddentalproducts.com [e-mail]
3
PACKING LIST
Description QTY Size Model Note
Main machine 1 set L400xW255xH595mm Redland
Aspiration
Power cord 1 piece 1.8 meters Connect with
machine
Smoking tube 1 piece 1.4 meters Folding arm
User’s manual 1 book
Washable primary
effective lter 2 piece L360xW220xH20mm AS01
H14 HEPA 1 piece L360xW220xH100mm AS02
Water vapor
absorbing lter 1 piece L360xW220xH50mm AS03
Active carbon lter 1 piece L360xW220xH50mm AS04 Redland
Aspiration
UVC lamp 1 piece 10w AS05
Plasma 1 piece AS06 Options
2.4G Remote
control 1 piece
Foot Switch 1 piece AS07 Options
Note: The lter element is placed inside the machine

www.redlanddentalproducts.com [e-mail]
4
FILTERS
Description Replacement period Replacing method
1Washable primary
effective lter 15-30 days Pull out
2Water vapor absorbing
lter 2-4 months Pull out
3 H14 HEPA 6-8 months Pull out
4Active carbon lter 6-8 months Pull out
5 UVC lamp 6-8 months Remove the chasis
bottom cover

www.redlanddentalproducts.com [e-mail]
5
INSTALLATION INSTRUCTION
1. Insert one end of the power cord to the tern switch and the other end to an
electrical outlet.
2. Switch the machine on.
Note: Try to make the nozzle face the mouth while using the machine to improve the
suction efciency.

www.redlanddentalproducts.com [e-mail]
6
ABOUT DISINFECTION
DISINFECTION OF THE FOLDING ARM/SELF-SUPPORTING ARM
DISINFECTION OF THE CASE
IDisinfection of suction nozzle: spray disinfection water, alcohol or other liquid with
disinfection function to disinfect the surface.
II Disinfection of the Self – supporting arm, after daily use, please turn on the machine con
tinuously for 30 second and then turn it off. At this time, the droplet, liquid, and dust on the
support arm can be minimized to the greatest extent.
III When disinfecting regularly, please hold the support arm by hands, hold down the
connection between the support arm and the machine, and pull the support arm out of the
vertical direction of the device. Afterward, twist the connection of the support arm clockwise
and disassemble it.
Separate each section of the support arm, sterilize the inner tube wall, and then assemble it
after more than 2 hours.
IV Disinfect the connection between the support arm and the machine; note that after
spraying the disinfection liquid to the connecting part, Wipe it as soon as possible and wait for
1 hour.
I Disinfection of lter element:
The lter element is recommended to be replaced regularly.
It is strictly forbidden to wash and sterilize the lter element other than the primary effect
water lter element and then use it again.
II About the disinfection inside the chassis:
Take out all the lter element, and then spray disinfection water or other disinfection supplies
into chassis.
After spraying , use a soft fabric to clean the inside, and just leave the case for more than 2
hours without closing the case
.
III Regarding the disinfection of the disinfection layer:
The disinfection layer needs to open the bottom cover, usually the disinfection compartment
does not need to be disinfected, and a simple disinfection process can be performed when
replacing the UV lamp.
#It is forbidden to use organic solvents to sterilize the equipment.
During the sterilization process, please bring a mask to prevent dust.

www.redlanddentalproducts.com [e-mail]
7

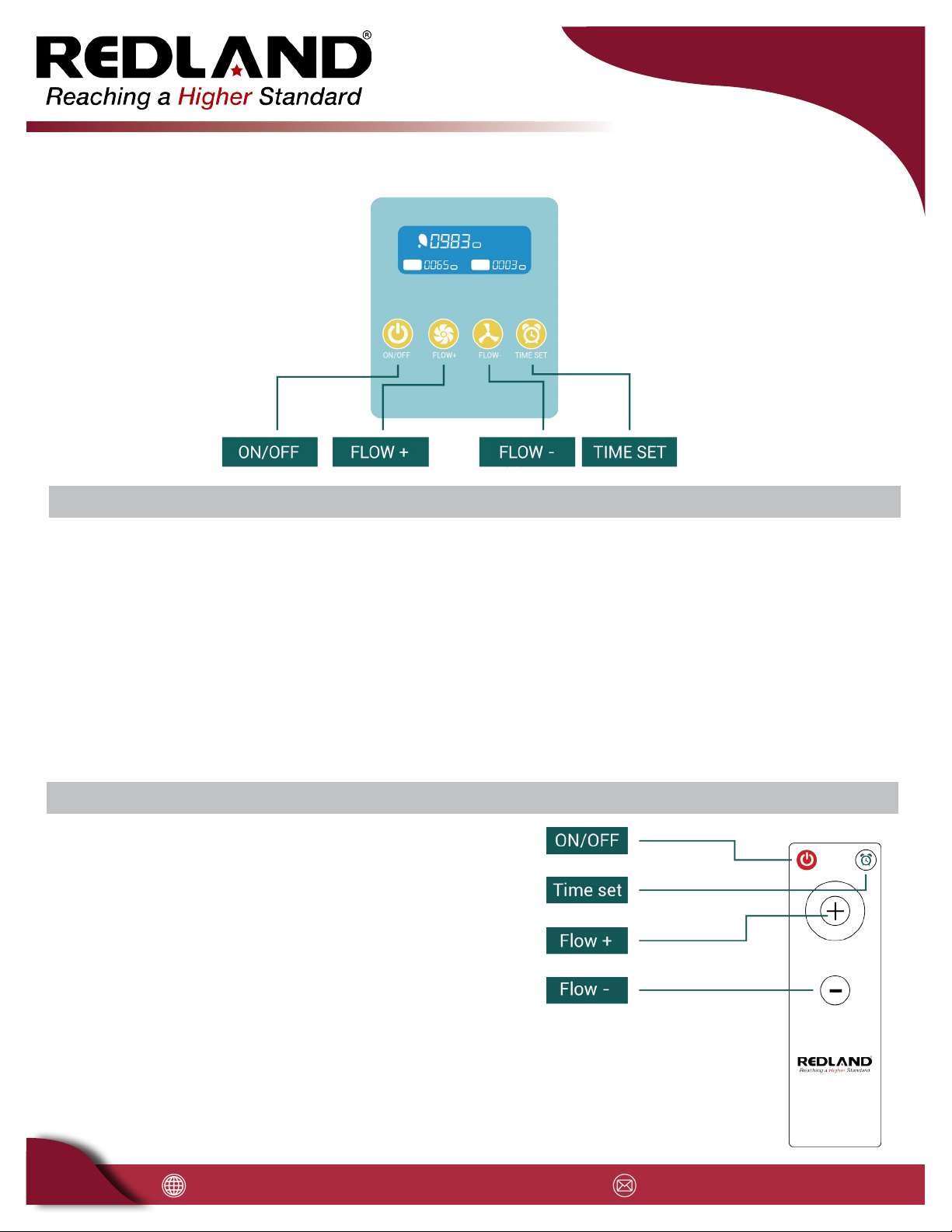

CONTROL PANEL AND REMOTE CONTROL
TIMED SHUTDOWN SETTINGS
REMOTE TIMED SHUT DOWN
When the machine is running, pres the key to display the HXXX on the display screen, and
then adjust the specic time of the timer shutdown according to the increase and decrease of
wind speed. When setting the timer, press the timer key again to adjust the shift of the number
of times, tens and hundreds.
After setting, press the OK setting key to conrm the end tine of the device. Among then, XXX
represent the number of hours the machine operates at a xed time, with a maximum of 300
hours. And minimum of 1 hour. After setting, press key to query the remaining time on the
timer. The display screen display HXXX. For Example, HOO5 represent the machine will auto-
matically shut down after % hours. Set the time H000 to eliminate the timer.
When the machine is running, press the key to
display HXXX on the display screen, and then
adjust the specic time of timing shutdown
according to the increase and decrease of wind
speed, wherein XXX represents the hours of
timing operation of the machine, with the
maximum of 300 hours and the minimum of 1
hour after setting, press the timer key to query
the timing time. The display shows HXXX. For
example, H005 represent the machine will
automatically shut down after 5 hours. Set the
time to H000 can eliminate the timer.

www.redlanddentalproducts.com [e-mail]
8
FAQ AND SOLUTIONS
1: The system is still working, but the air volume is weak, and the suction force is
signicantly reduced.
Cause: The air intake is blocked, or there is foreign matter in the tubing, and the lter
element reaches saturation failure, resulting in a blocking alarm.
Check: turn off the power supply, check whether there is any foreign matter blocking
the air intake, And then check whether the air outtake is blocked. If the suction of the air
compressor is normal, The lter element needs to be replaced.
2: After the machine starts, it will shut down automatically, repeat the above phenome-
non appear when turning on again.
Cause: The internal airflow is blocked, and the lter element resistance is to large,
which leads to excessive starting current of the fan, and the machine will automatically
protect and shut down.
Check: turn off the power supply and check whether there is any foreign matter block-
ing the air intake; if there is no abnormality, adjust the air volume to the minimum,
restart the machine and adjust the air volume to the appropriate position.
3: Turn on the power switch and the indicator light is not on
Check if the connection is good; check if the fuse in the power box is burnt. If it is
damaged, replace the fuse.
Be sure to cut off the power before checking and repairing the equipment !

www.redlanddentalproducts.com [e-mail]
9
STRUCTURE
1 Air Inlet
2 Control panel
3 Lifting handle
4 Filter’s door
5 Three-in-one switch
6 Filters door latch plate
7 Universal wheel
