Redline robored G2 User manual

Robot Vacuum Cleaner
Instruction Manual
Vakumlu Temizlik Robotu
Kullanma Kılavuzu
Robot aspirateur
Manuel d'instructions
Ademhalingsmachine
handleiding

G2
Robot Vacuum Cleaner
Instruction Manual
Laser Navigation
All control in one app
Smart electronic water tank

Safety Instructions
Before using this product, please read the safety instructions and follow all regular safety
precautions.
1. Only authorized technicians can disassemble the product. Users are not allowed to disassemble or
repair the product.
2. Only use the original battery and power adapter (Model: QG24-240125-AG) of the product for
charging. Using an unmatched adapter may cause electric shock, fire or product damage.
3. Do not touch the power cord, plug or adapter with wet hands.
4. Do not use this product in wet or moist environment ( any environment with liquid), e.g. bathroom or
laundry. If there is too much water on the floor, please wipe off the water by manual firstly before
running machine.
5. Do not have curtain, any kind of wrapping material, clothes or part of user’s body caught in the
wheels.
6. Before use, clean floor environment (remove all fragile objects and cords, clothing, paper, loose
cables, as well as make sure to lift curtains and drapes off the floor to avoid any possible acci-
dents.)
7. Make sure this product is not close to cigarette butts, lighters matches or any flammables.
8. Never use the product to clean combustible or highly volatile liquids, such as gasoline.
9. Only use the product indoors, do not use it outdoors.
10. If the product needs cleaning, clean it after power is switched off.

11. Do not over-bend or pressure the flexible cord with heavy or sharp objects.
12. Do not sit or attach an item on the top of this product. Beware of children or pets while the product
is in operation.
13. Do not place this product where ifs easy to drop off (table, chairs, etc.)
14. Turn off the power switch during product transportation or for long term storage.
15. Before charging, check whether adapter and outlet are properly connected.
16. To avoid tripping, all the people in the house should be noticed when this product is on.
17. Check dustbin is empty prior to use.
18. Use this product in temperature from 0°C to 40°C.
19. Do not use this product in high-temperature environment or under intense sunlight for a long time.
20. This appliance contains batteries that are only replaceable by skilled persons. The battery must be
removed from the product before it is scrapped. The battery should be disposed of properly for
safety sake.
21 .For the purposes of recharging the battery,only use the detachable supply unit provided with this
appliance.
22 This appliance contains batteries that are only replaceable by skilled persons.
23. Do not press or lift the lidar housing by hand in case of damage to the lidar module.

Please Clean the ground
to avoid robot locked
or binded.
Do not press or pull
radar cover to avoid
radar damage.
Do not use your robot
to clean the liquid.
Please set up a guardrail
to prevent falling when
cleaning a duplex staircase.

CONTENTS
Product Components 3
Main Body and Accessories 3
Main Body Diagram 4
Dust Bin&Rolling Brush&Charging Dock 5
Product Operation 6
APP Connect 6
Robot Standby 6
Start Cleaning 6
Stop Cleaning 7
Auto-charging 7
Schedule setting operation 8
LED Indication 8
Battery Charging 9
Cleaning Modes 10
Component install 11
Product Maintenance 12
Cleaning Side Brushes 12
Cleaning Dust Bin and Filters 12
Cleaning Sensors&Charging Poles&Rolling Brush 13
How to assemble 2-in-one Water Tank 14
How to clean the Dust Bin in 2-in-one Water Tank 15
Trouble shooting 16
Product Specifications 17
Warnings About Battery 18

1
Product Components
Main Body and Accessories
Item Description Quantity
1 Main Body 1
2 Charging Docking 1
3 Power Adapter 1
4 2 in 1 Electronic Water Tank 1
5 Side Brush 4
6 Mopping Cloth 2
7 HEPA 1
8 Clean Brush 1
9 Manual 1
10 Remote controller 1

2
Product Components
Main Body Diagram

3
Product Components
Dust Bin&Rolling Brush&Charging Dock
Power indicator
Charging poles

4
Product Operation
1. APP Connect
Step 1: Download the APP
Step 2: Connect the robot with wifi per the instruction
interface on the APP
Step 3: Then you can control the robot, set up sched-
ule or select cleaning mode via the APP
2. Robot Standby
Press the ON/OFF button till the circle LED light on the
button is on, or Press the "Pause" button on the APP
to let robot enter standby mode.
3. Start Cleaning
Press the ON/OFF button on the robot, or press the
START button on the APP, then the robot will start
cleaning.

5
Product Operation
4. Stop Cleaning
Press the ON/OFF button on the robot，or press the
“Pause” button on the APP, then the robot will stop
cleaning.

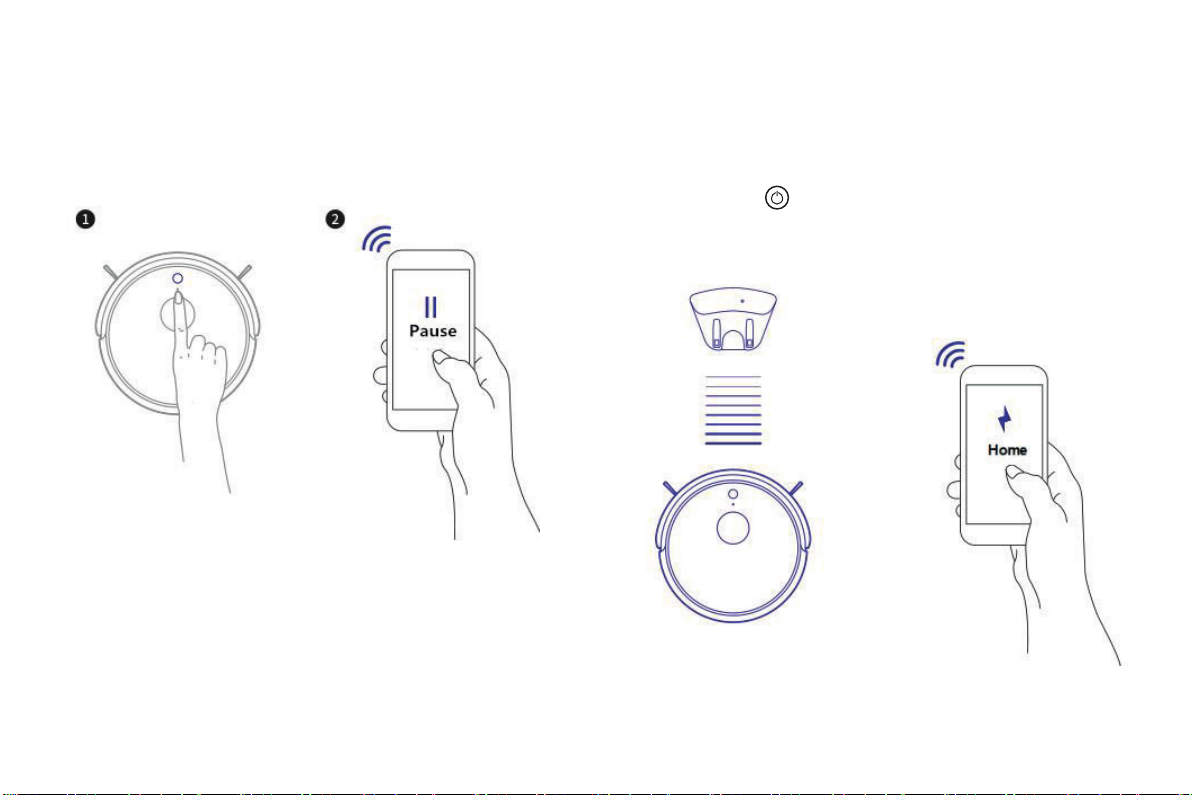

5. Auto-charging
a. When the robot runs out of power, it will looks for
the charging station automatically. After automatically
charging, robot will continue to cleaning the remaining
area if cleaning not completed before the charging.
b. When robot is in other mode, press "Re-charge”
button on the APP and the robot will start looking for
its charging station.
c. Press the " " button twice in a short time, robot
will go back to charging station for charging.

6
Product Operation
6. Schedule Setting Operation
In standby or charging status, press “Schedule” button
on the APP to set up schedule, and robot will start
cleaning on scheduled time.
Note:
a. When robot connect with the APP, robot system time will
synchronize with your mobile phone's time automatically.
b. Once the cleaning time schedule setting is confirmed,
robot will start cleaning automatically every day at the
scheduled time.
c. If the robot is powered off, its schedule would be
canceled. So if you need the robot's schedule keep working,
you have to make the robot keep in standby on charging
station, or you have to schedule setting again.

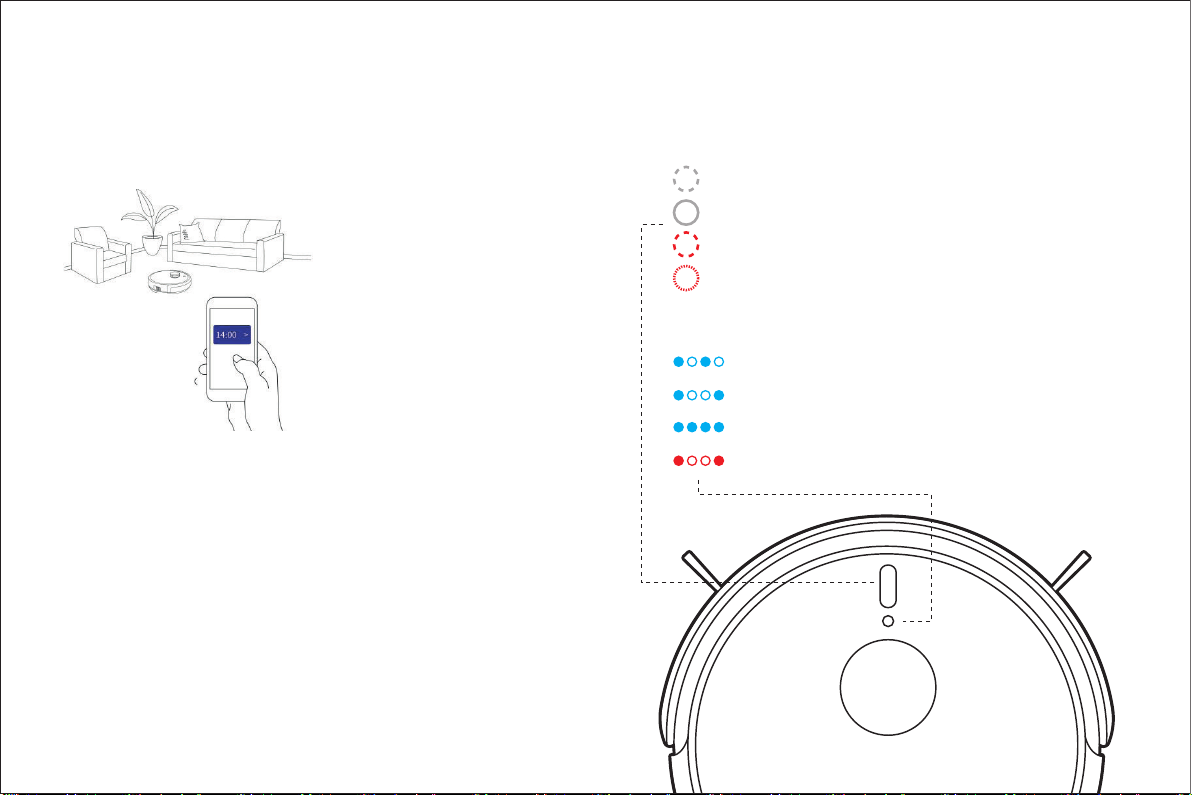

7. LED Indication
ON/OFF LED Indicator
White Slow Flash: Starting Up/Charging
White Light Stay On: Standby/Charging Completed
Red Slow Flash: Low Power
Red Quick Flash: Error
Wi-Fi Indicator
Blue Quick Flash: Wi-Fi Setting Completed
Blue Slow Flash: Wi-Fi connecting
Blue Light Stay On: Wi-Fi connected
Red Light SLow Flash: Connection Failure

7
Product Operation
Battery Charging

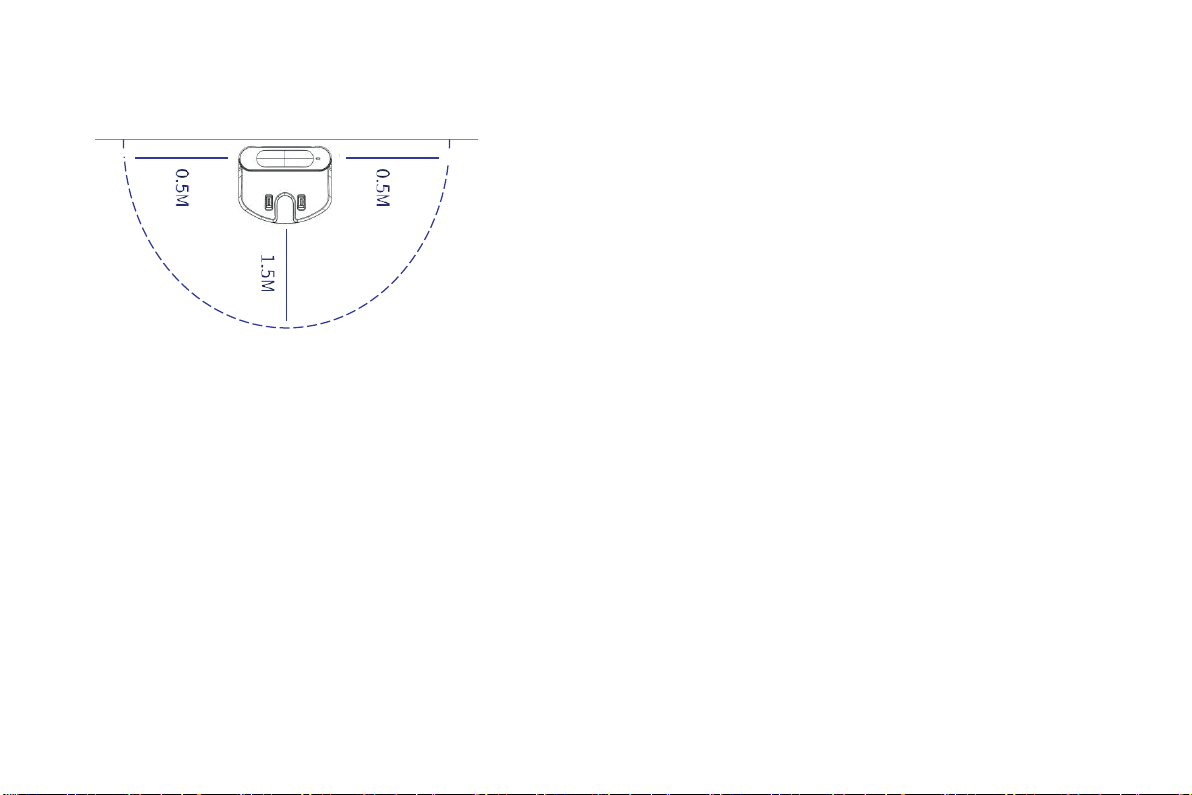

1. Charging Station Placement Place charging station
against the wall, and remove obstacles about 1 meter
at two sides and 2 meters in front of the station as
show in the right figure.
Note: îf robot is powered off, then switch on the robot
firstly before charging.
2. Charge the robot in either way as shown below:
a. plug one end of the adapter into the robot and the other
end into the power socket.
b.Press “Re-charge” button on APP to operate the robot
looking for the charging station automatically.
c. Press the K ®H button twice in a short time, robot will
go back to charging station for charging.
Note:
A. In standby or working status, the robot will looks for
charging docking automatically when battery capacity is
low.
B. During the process of looking for charging station, if robot
run out of power before arriving the charging station, it will
broadcast voice "Battery low, robot is shutting down" and
shut down within twenty minutes.
C. When battery in working status, you should “Pause” it
first，let it “Standby”，then “Re-charge”.
In Order to Extend Battery Life
A. Please charge the robot up to 12 hours in first
charging.
B. Charge the robot as soon as possible when battery
capacity is low.
C. The robot will return to the charging station auto-
matically when accomplish cleaning or battery
capacity is low.
D. When you will not use the robot for some time,
please fully charge the battery firstly, then switch off
the robot and keep it in a cool but dry place.
E. If the robot has been put aside over 3 months,
please charge the robot for 12 hours firstly before use
it for cleaning.

8
Product Operation
Cleaning Modes
There are below cleaning modes to meet different cleaning requirements of you.
1. Automatic Cleaning Mode
In standby status, pressM on robot body or press ON/OFF on APP, robot will enter
automatic cleaning mode. Robot will start along the wall and plan the cleaning of a 4
m2 area with Zig-zag mode, and then after that moves to next 4 m2 area.
2. MAX Cleaning Mode
Press “ MAX” on APP to enter powerful cleaning mode,
Robot will slow down its speed and increase its vacuum power, and speed up the main brush rotation for deep cleaning.

Product Operation
3. Mute Cleaning Mode
Press “ Mute ’’ on APP to enter low noise cleaning mode, Robot will slow down its
moving speed and mainbrush rotating speed, and decrease its vacuum power to
minimize the noise level.
4. Area Cleaning
Based on the existing complete map of house, press “Area” on the mapping page of
APP, chose the size and location of a target area, and confirm it and start cleaning.
Robot will go straight for cleaning the target area.
5. Forbidden Area Setting
Based on the existing complete map of house, press “Forbidden area” on the map-
ping page of APP, chose the size and location of the forbidden area, and confirm it
and start cleaning. Robot will the remaining area of the house except for the forbid-
den area.
9

10
Product Operation
Component Install
Rolling baish kit, dust bin kit should be well installed in
the corresponding position (refer to below diagram)
Product Maintenance
Cleaning Side Brush
1. check if side brush is broken or something stacked
2. use mops to clean the side brush
3. if side brush is curly or deform, put them in hot
water for 5 seconds
4. if side brush cannot be used any more, please
change it in time.
Cleaning Dust Bin and Filters
Empty and clean dust bin every time when you use it,
cleaning steps as below:
A. simply wash dust bin in running water after use to
avoid dust blowing in the air which will cause second
pollution.
B. wash primary filter every 15-30 days to maximize
its use life. Do not wash HEPA filter.
C. before install the filters make sure they are dry.
D. primary filter and HEPA filter are changeable
accessories. Maximum life span for HEPA is 24
months.
E. Do not bake the filters under intense sunlight.

11

12
Product Maintenance
Cleaning Sensors&Charging Poles&Rolling Brush
Use cleaning tools or soft micro fiber to wipe the
sensers and wheels as below:
Cleaning Charging Poles
Use cleaning tools or soft micro fibers to wipe charging
poles of charging docking and robot as below:
Cleaning Rolling Brush Kit
Remove the rolling brush kit from robot, take out of
the rolling bmsh stick, cleaning the brush rolling brush
stick or cover clapboard with cleaning tools or soft
micro fibers, (rolling brush stick is washable)

13
Product Maintenance

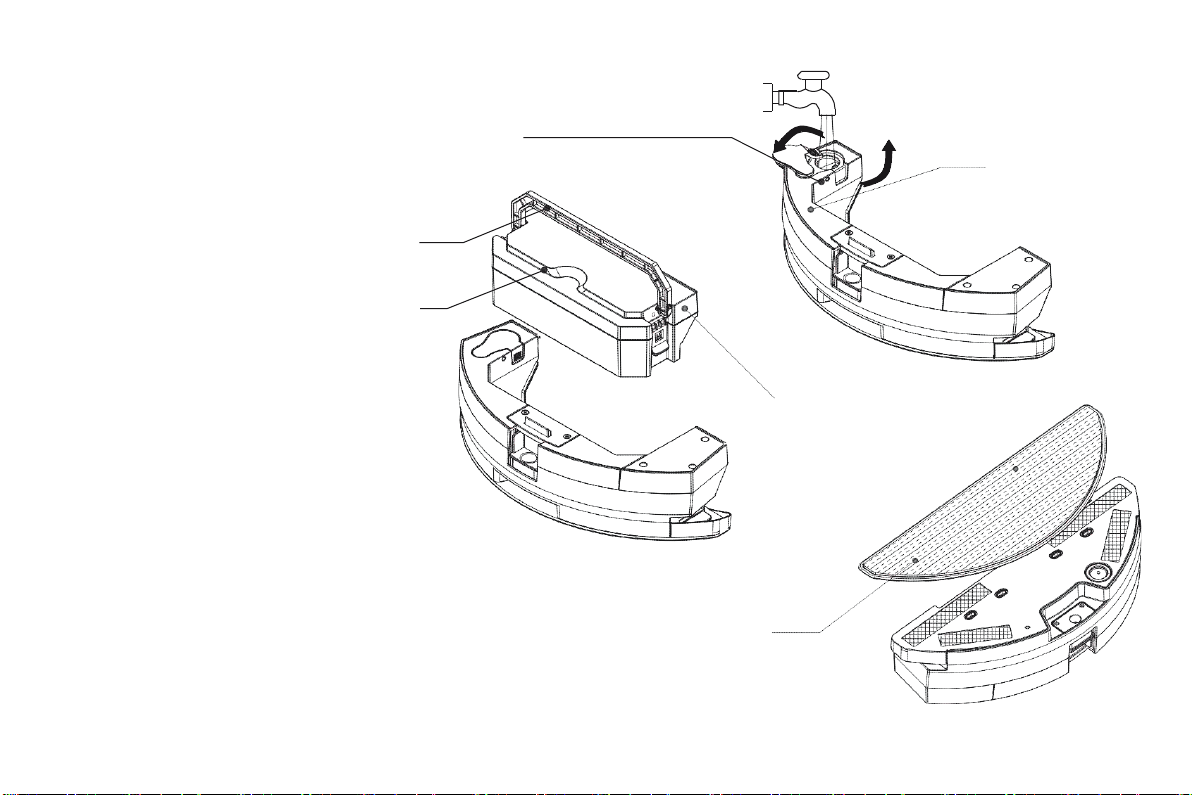

How to assemble 2-in-one Water Tank
Step 1: Take off the dust bin, unplug the rnbber plug
of water tank and inject water until filling it up,
then plug its lid.
Step 3: Align the mop cloth to the edge of
water tank's bottom, then stick the mop
cloth on water tank and press it flat.
Step 4: Put the 2-in-one water tank into the corresponding
position of the machine. You can replace the original Dust Bin
for your needs.
Handle
Dust Bin
Mechanical
Water Tank
Step 2: Put the dust bin
back in the corresponding
position of water tank.
Mop Cloth
