USING YOUR DYSON APPLIANCE
PLEASE READ THE ‘IMPORTANT SAFETY INSTRUCTIONS’ IN THIS DYSON OPERATING
MANUAL BEFORE PROCEEDING.
• Carry the appliance by the main handle on the body.
• Do not press the cyclone release button or shake the appliance when carrying or the
cyclone could disengage, fall off and cause injury.
OPERATION
CAUTION: This vacuum cleaner’s hose contains electrical connections: Do not use to
suck up water or other liquids. Do not immerse in water for cleaning. The hose should be
checked regularly and must not be used if damaged.
• Always extend the cable fully to the red tape before use.
• Plug the appliance into the mains electricity supply.
• To switch ‘ON’ or ‘OFF’ press the power button, located as shown.
• After use: unplug, retract the cable safely, put the appliance away.
• Switch ‘OFF’ the appliance and unplug before:
– adjusting the setting.
– changing or using tools.
– removing the hose or airway inspection parts.
LOOKING AFTER YOUR DYSON APPLIANCE
• Do not carry out any maintenance or repair work other than that shown in this Dyson
Operating Manual, or advised by the Dyson Helpline.
• Only use parts recommended by Dyson. If you do not this could invalidate your guarantee.
• Store the appliance indoors. Do not use or store it below 0°C (32°F). Ensure the appliance
is at room temperature before operating.
• Clean the appliance only with a dry cloth. Do not use any lubricants, cleaning agents,
polishes or air fresheners on any part of the appliance.
• If used in a garage, always wipe the base plate and ball with a dry cloth after vacuuming
to clean off any sand, dirt, or pebbles that could damage delicate floors.
VACUUMING - CAUTION
• Do not use without the clear bin and filter in place.
• Fine dust such as plaster dust or flour should only be vacuumed in very small amounts.
• Do not use the appliance to pick up sharp hard objects, small toys, pins, paper clips, etc.
They may damage the appliance.
• When vacuuming, certain carpets may generate small static charges in the clear bin or
wand. These are harmless and are not associated with the mains electricity supply. To
minimise any effect from this, do not put your hand or insert any object into the clear bin
unless you have first emptied it and rinsed it out with cold water (see ‘Cleaning the
clear bin’).
• Do not work with the appliance above you on the stairs.
• Do not put the appliance on chairs, tables, etc.
• Before vacuuming highly polished floors, such as wood or lino, first check that the
underside of the floor tool and its brushes are free from foreign objects that could cause
marking.
• Do not push hard with the floor tool when vacuuming, as this may cause damage.
• Do not leave the cleaner head in one place on delicate floors.
• On waxed floors the movement of the cleaner head may create an uneven lustre. If this
happens, wipe with a damp cloth, polish the area with wax, and wait for it to dry.
EMPTYING THE CLEAR BIN
• Empty as soon as the dirt reaches the level of the MAX mark – do not overfill.
• Switch ‘OFF’ and unplug before emptying the clear bin.
• To remove the cyclone and clear bin unit, push the release button at the back of the
carrying handle, as shown.
• To release the dirt, press the red bin release button.
• To minimise dust/allergen contact when emptying, encase the clear bin tightly in a plastic
bag and empty.
• Remove the clear bin carefully.
• Seal the bag tightly, dispose as normal.
The British Allergy Foundation is a UK national charity with the aim of improving
awareness, prevention and treatment of allergies. The British Allergy Foundation Seal of
Approval is a UK registered trademark.
CLEANING THE CLEAR BIN
• Remove cyclone and clear bin (instructions above).
• Press the small silver button on the back of the clear bin and separate the cyclone unit
from the clear bin.
• Clean the clear bin with cold water only.
• Ensure the clear bin is completely dry before replacing.
• Do not use detergents, polishes or air fresheners to clean the clear bin.
• Do not put clear bin in a dishwasher.
• Do not immerse the whole cyclone in water or pour water into it.
• Clean the cyclone shroud with a cloth or dry brush to remove lint and dust.
WASHING YOUR FILTERS
DO THIS EVERY MONTH.
• Switch ‘OFF’ and unplug before removing the filters.
• Ensure that the washable filters are completely dry before refitting into the vacuum cleaner.
• Check your filters regularly. Under normal use, wash your filters every month according to
instructions, to maintain performance.
• The filters may require more frequent washing if vacuuming fine dust.
• Do not use detergents to clean the filters.
• Do not put the filters in a dishwasher, washing machine, tumble dryer, oven, microwave or
near a naked flame.
• IMPORTANT: After washing please leave at least 24 hours to dry completely before
refitting.
LOOKING FOR BLOCKAGES

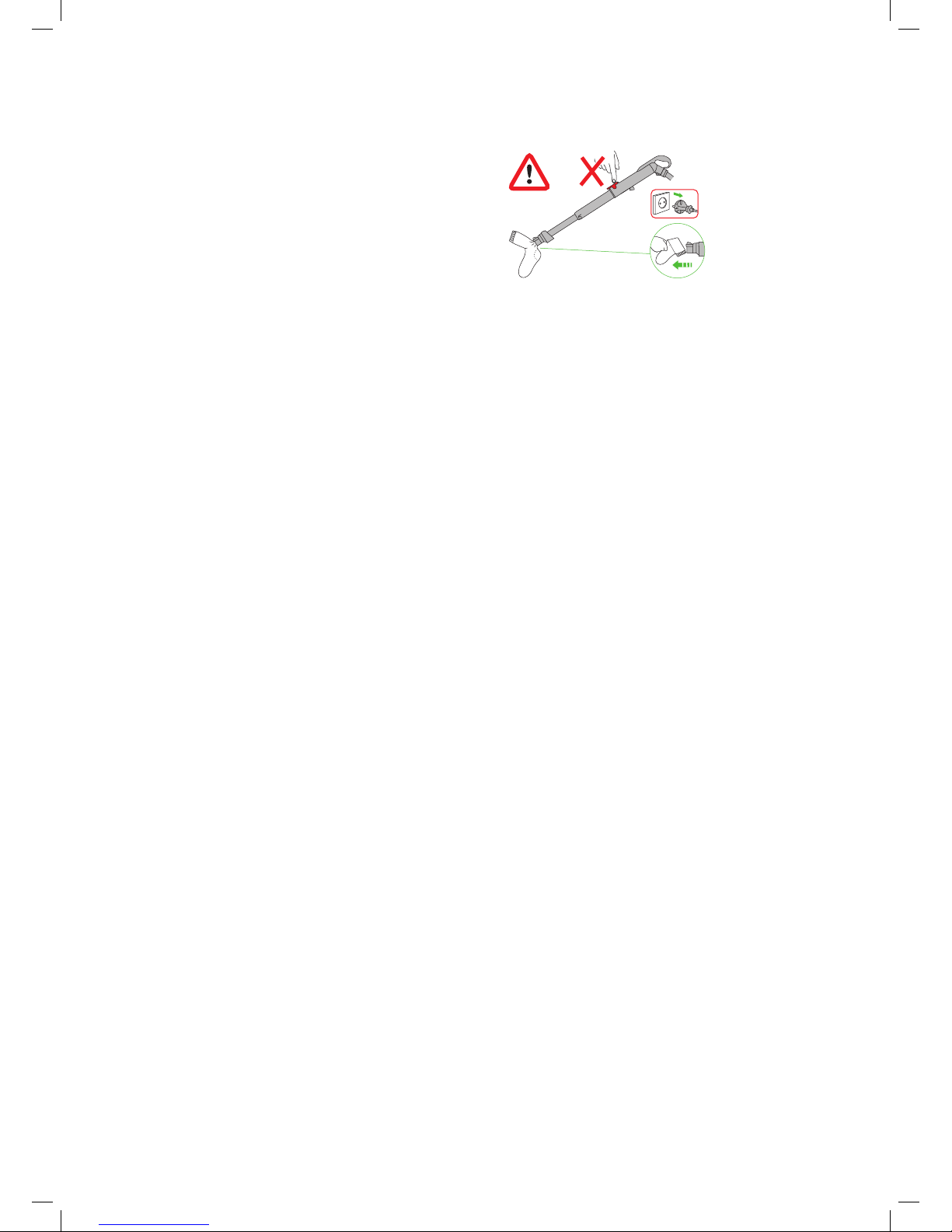

• Switch ‘OFF’ and unplug before looking for blockages. Do not operate the wand release
catch. Failure to do so could result in personal injury.
• Beware of sharp objects when checking for blockages.
• Refit all parts securely before using.
• Clearing blockages is not covered by your guarantee.
2
1
3
CLEARING BLOCKAGES –THERMAL CUT-OUT

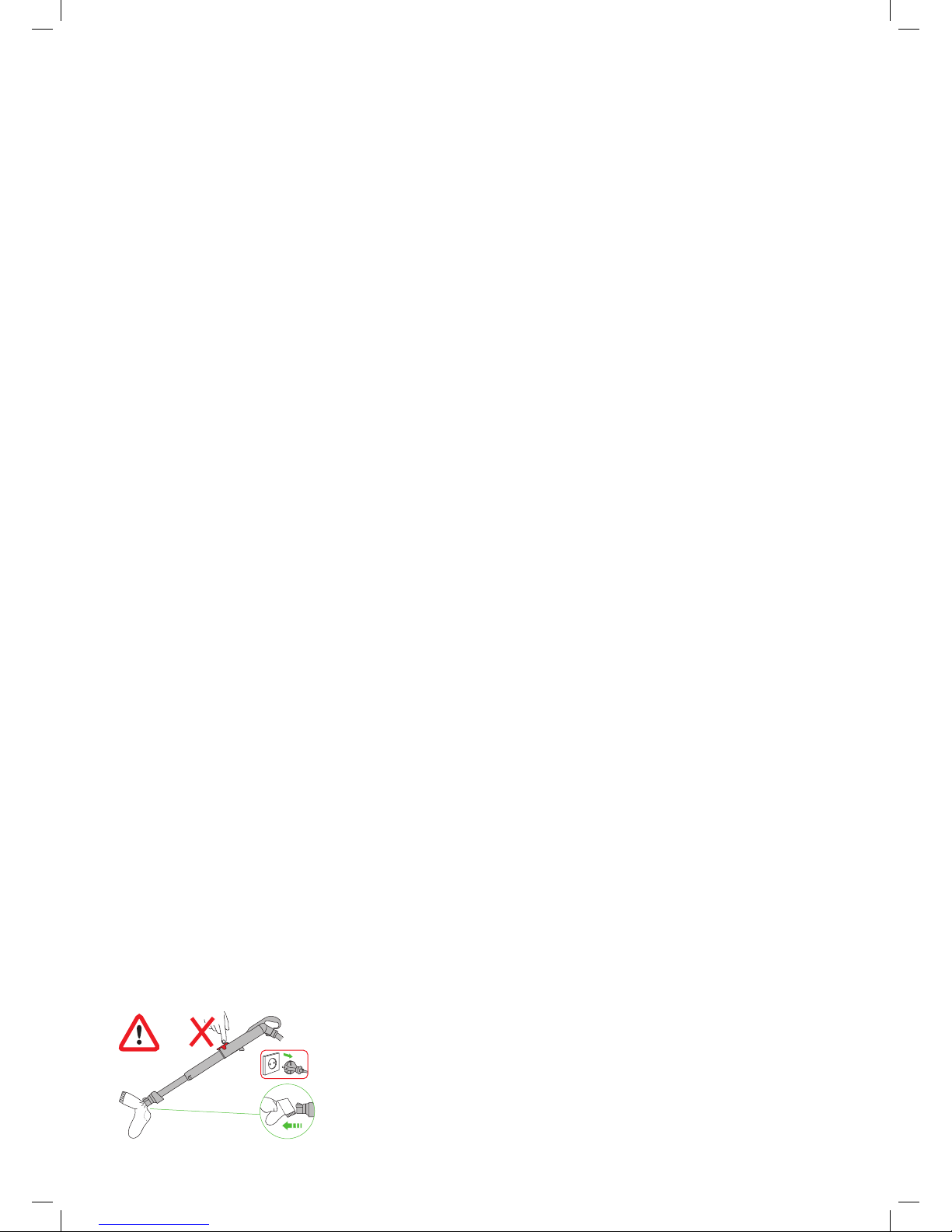

• Large items may block the tools or wand inlet. If this happens, do not operate the wand
release catch. Switch ‘OFF’ and unplug, then remove blockage.
• This appliance is fitted with an automatically resetting thermal cut-out. If any part becomes
blocked the appliance may overheat and automatically cut-out.
• Switch ‘OFF’ and unplug. Leave to cool down for 1-2 hours before checking filter or for
blockages.
• Clear any blockage before restarting.
BRUSH BAR – CLEARING OBSTRUCTIONS
• If your brush bar is obstructed, it may shut off. If this happens you will need to remove the
brushbar as shown.
• Switch ‘OFF’ and unplug before proceeding. Failure to do so could result in personal injury.
• Remove the brush bar by using a coin to turn the fastener marked with a padlock until it clicks.
• Raise the fastener tab and use it to lift the brush bar out of the floor tool.
• Beware of sharp objects when clearing obstructions.
• Replace the brush bar and secure it by tightening the fastener until it clicks. Ensure it is
fixed firmly before operating.
• Clearing brush bar obstructions is not covered by your guarantee.
BRUSH BAR – TROUBLESHOOTING
If the brush bar has stopped spinning, follow the instructions above on clearing
obstructions. Alternatively, contact a Dyson expert on the Dyson Helpline or visit
the website.
REPLACING BATTERIES
• Switch OFF and unplug the vacuum cleaner before replacing the batteries.
• Replace both batteries at the same time and do no mix with other battery types.
• Do not install backwards or short circuit the batteries.
• Do not attempt to dismantle the batteries, charge them or put them in fire.
• Do not directly handle leaking batteries.
• Carefully follow all instructions and warnings provided with the new batteries.
PLEASE NOTE:
• The batteries must be removed from the vacuum cleaner before it is disposed of.
• The batteries must be disposed of in accordance with your local regulations.
DISPOSAL INFORMATION
Dyson products are made from high grade recyclable materials. Please dispose of this
product responsibly and recycle where possible.
