RedMax BC225DL Owner's manual

OWNER/OPERATOR MANUAL
BRUSHCUTTERS
T3108-93110(108)

The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
WARNING
Before using our products, please
read this manual carefully to
understand the proper use of your
unit.
WARNING
DRIVE UNIT 120000 and up ENGINE UNIT 000101 and up
APPLICABLE SERIAL NUMBERS :
BC225DL

SAFETY FIRST
Instructions contained in warnings within this
manual marked with a symbol concern
critical points which must be taken into
consideration to prevent possible serious
bodily injury, and for this reason you are
requested to read all such instructions
carefully and follow them without fail.
■WARNINGS IN THE MANUAL
This mark indicates instructions which must be
followed in order to prevent accidents which could
lead to serious bodily injury or death.
This mark indicates instructions which must be
followed, or it leads to mechanical failure,
breakdown, or damage.
This mark indicates hints or directions useful in the
use of the product.
NOTE
IMPORTANT
WARNING
CONTENTS
1. Parts location …………………………………4
2. Specifications …………………………………4
3. Warning labels on the machine ……………5
4. Symbols on the machine ……………………6
5. For safe operation ……………………………7
6. Set up…………………………………………13
7. Fuel……………………………………………15
8. Operation ……………………………………17
9. Maintenance …………………………………20
10. Storage ………………………………………24
11. Optional blade usage ………………………25
12. Troubleshooting guide………………………30
13. Parts list………………………………………31

2. Specifications
■BC225DL
Overall size(LxWxH)······················································ 70.8(1800)x12.8(325)x13.0(330) in(mm)
Dry weight w/o acc.······························································································· 10.0 lbs (5.0kg)
Engine Type······················································································ Air-cooled 2-stroke gasoline
Model········································································································ Zenoah G24LS
Displacement ······················································································· 1.4cu-in (22.5cm3)
Max. output························································································ 1.08Hp at 8000 rpm
Fuel ······················································································· Mixture(Gasoline 50 : Oil 1)
Carburetor ··················································································· Walbro Diaphragm type
Spark plug ···························································································· Champion RCJ6Y
Fuel tank capacity································································································ 20.3 fl.oz (0.6 )
Transmission··········································································· Centrifugal clutch, Rigid driveshaft
Reduction ratio ····················································································································· 1.462
Cutting head rotating direction ················································ Counter-clockwise(Operator view)
Durability period··················································································································300hrs.
Standard Accessories
4 in. 2-line Head ········································································································ 1 pc.
Goggle······················································································································· 1 pc.
Specifications are subject to change without notice.

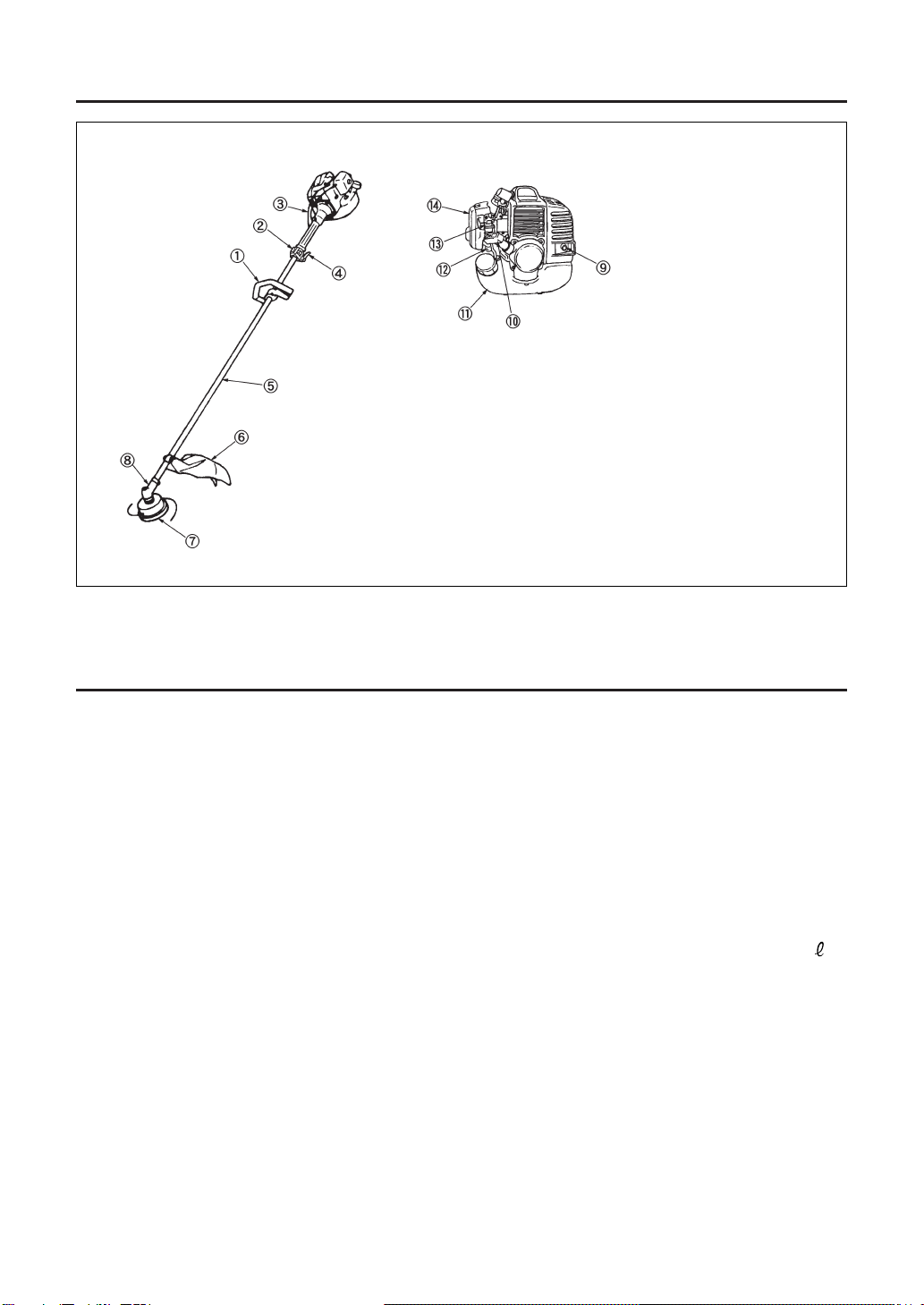

1. Parts location
1. Loop handle
2. Ignition switch
3. Throttle cable
4. Throttle lever
5. Drive shaft housing
6. Debris guard
7. Cutting line head
8. Gear case
9. Spark arrester
10. Starter knob
11. Fuel tank
12. Primer pump
13. Choke lever
14. Air cleaner cover
4

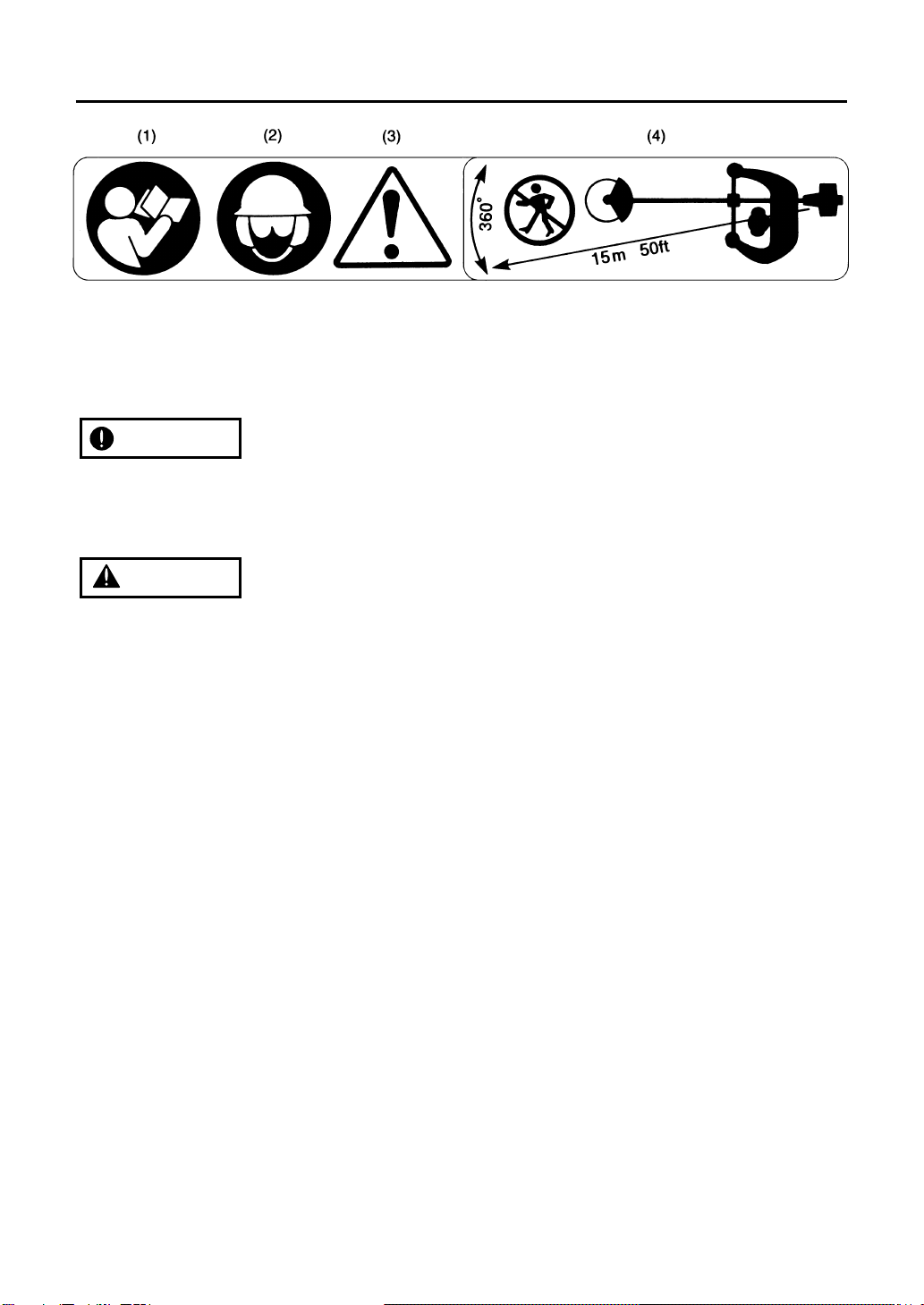

(1)Read owner's manual before operating this machine.
(2)Wear head, eye and ear protection.
(3)Warning/Attention
(4)Keep all children, bystanders and helpers 15 meters away from the brushcutter
If warning label peel off or become soiled and impossible to read, you should contact the dealer
from which you purchased the product to order new labels and affix them in the required
location(s).
Never modify your brushcutter.
We won't warrant the machine, if you use the remodeled brushcutter or you don't observe
the proper usage written in the manual.
WARNING
IMPORTANT
3. Warning labels on the machine
5

6
For safe operation and maintenance,
symbols are carved in relief on the machine.
According to these indications, please be
careful not to make a mistake.
(a)The port to refuel the "MIX GASOLINE"
Position: FUEL TANK CAP
(b)The direction to close the choke
Position: AIR CLEANER COVER
(c) The direction to open the choke
Position: AIR CLEANER COVER
4. Symbols on the machine
Made in Japan
RedMax
IMPORTANT ENGINE INFORMATION
THIS ENGINE MEETS U.S. EPA PH1 AND
2001 CALIFORNIA EMISSION REGULATIONS
FOR SMALL OFF-ROAD ENGINES WITH AN
EMISSION DURABILITY PERIOD OF 300 HOURS.
ENGINE FAMILY : 1KZXS. 0254CD
ENGINE DISPLACEMENT : 22.5cc
REFER TO OWNER'S MANUMAL FOR MAINTE-
NANCE SPECIFICATIONS AND ADJUSTMENTS.
MANUFACTURED
Made in Japan
RedMax
INFORMATION IMPORTANTE CONCERNANT LE MOTEUR
Ce moteur est conformc aux normcs U.S.EPA PH1 et 2001 ainsi
qu’aux autres dispositions ultérieures de la réglementation
concernant la pollution de l’air pour les petits moteurs tout-terrain
avec une période de durabilité opour les émissions de 300 heures.
Type de moteur : 1KZXS. 0254CD
Cylindrée du moteur : 22,5cc
Se référer au Manuel de l’utilisateur pour les spécifications
d’entretien et les réglages.
Manufacturé

7
5. For safe operation
1. Read this manual carefully until you
completely understand and follow all safety
and operating instructions.
2. Keep this manual handy so that you may refer
to it later whenever any questions arise. Also
note, if you have any questions which cannot
be answered herein, contact the dealer from
whom you purchased the product.
3. Always be sure to include this manual when
selling, lending, or otherwise transferring the
ownership of this product.
4. Never allow children or anyone unable to fully
understand the directions given in the manual
to use the machine.
■WORKING CONDITION
1. When using the product, you should wear proper
clothing and protective equipment.
(1)Helmet
(2)Ear protectors
(3)Protection goggles or face protector
(4)Thick work gloves
(5)Non-slip-sole work boots
2. And you should carry with you.
(1)Attached tools and files
(2)Properly reserved fuel
(3)Spare blade
(4)Things to notify your working area (rope,
warning signs)
(5)Whistle (for collaboration or emergency)
(6)Hatchet or saw (for removal of obstacles)
3. Do not wear loose clothing, jewelry, short
trousers, sandals, or go barefoot. Do not wear
anything which might be caught by a moving
part of the unit. Secure hair so it is above
shoulder length.
■WORKING CIRCUMSTANCE
1. Never start the engine inside a closed room or
building. Exhaust gases contain dangerous
carbon monoxide.
2. Never use the product,
a. when the ground is slippery or when you can’t
maintain a steady posture.

8
b. At night, at times of heavy fog, or at any other
times when your field of vision might be
limited and it would be difficult to gain a clear
view of the working area.
c. During rain storms, during lightning storms, at
times of strong or gale-force winds, or at any
other times when weather conditions might
make it unsafe to use the product.
■WORKING PLAN
1. You should never use the product when under
the influence of alcohol, when suffering from
exhaustion or lack of sleep, when suffering from
drowsiness as a result of having taken cold
medicine or at any other time when a possibility
exists that your judgment might be impaired or
that you might not be able to operate the product
properly and in a safe manner.
2. When planning your work schedule, allow plenty
of time to rest. Limit the amount of time over
which the product is to be used continuously to
somewhere around 30~40 minutes per session,
and take 10~20 minutes of rest between work
sessions. Also try to keep the total amount of
work performed in a single day under 2 hours or
less.
1. If you don’t observe the working time, or
working manner (See ■USING THE
PRODUCT), Repetitive Stress Injury(RSI)
could occur.
If you feel discomfort, redness and swelling
of your fingers or any other part of your
body, see a doctor before getting worse.
2. To avoid noise complaints, in general,
operate product between 8a.m. and 5p.m. on
weekdays and 9a.m. to 5p.m. weekends.
Check and follow the local regulations as to sound
level and hours of operations for the product.
NOTE
WARNING
5. For safe operation

■BEFORE STARTING THE ENGINE
1. The area within a perimeter of 50 feet (15m) of
the person using the product should be
considered a hazardous area into which no one
should enter. If necessary yellow warning rope,
warning signs should be placed around the
perimeter of the area. When work is to be
performed simultaneously by two or more
persons, care should also be taken to constantly
look around or otherwise check for the presence
and locations of other people working so as to
maintain a distance between each person
sufficient to ensure safety.
2. Check the condition of working area to avoid any
accident by hitting hidden obstacles such as
stumps, stones, cans, or broken grass.
Remove any obstacle before beginning work.
3. Inspect the entire unit for loose fasteners and
fuel leakage. Make sure that the cutting
attachment is properly installed and securely
fastened.
4. Be sure the debris guard is firmly attached in
place.
5. If the cutting head is the metal blade, use the
shoulder strap. Adjust the strap for comfort
before starting the engine. The strap should be
adjusted so the left hand can comfortably hold
the handlebar grip approximately waist high.
■STARTING THE ENGINE
1. Keep bystanders and animals at least 50feet
(15m) away from the operating point. If you are
approached, immediately stop the engine.
2. The product is equipped with a centrifugal clutch
mechanism, so the cutting attachment begins to
rotate as soon as the engine is started by putting
the throttle into the start position. When starting
the engine, place the product onto the ground in
a flat clear area and hold it firmly in place so as
to ensure that neither the cutting part nor the
throttle come into contact with any obstacle
when the engine starts.
IMPORTANT
5. For safe operation
9

10 
Never place the throttle into the high speed
position when starting the engine.
3. After starting the engine, check to make sure
that the cutting attachment stops rotating when
the throttle is moved fully back to its original
position. If it continues to rotate even after the
throttle has been moved fully back, turn off the
engine and take the unit to your authorized Red
Max servicing dealer for repair.
■USING THE PRODUCT
Cut only materials recommended by the
manufacturer. And use only for tasks explained
in the manual.
1. Grip the handles firmly with both hands using
your whole hand. Place your feet slightly apart
(slightly further apart than the width of your
shoulders) so that your weight is distributed
evenly across both legs, and always be sure to
maintain a steady, even posture while working.
2. Keep cutting attachment below waist level.
3. Maintain the speed of the engine at the level
required to perform cutting work, and never raise
the speed of the engine above the level
necessary.
4. If the unit start to shake or vibrate, turn off the
engine and check the whole unit. Do not use it
until the trouble has been properly corrected.
5. Keep all parts of your body away from rotating
cutting attachment and hot surfaces.
6. Never touch the muffler, spark plug, or other
metallic parts of the engine while the engine is in
operation or immediately after shutting down the
engine. Doing so could result in serious burns or
electrical shock.
IMPORTANT
WARNING
5. For safe operation

• IF SOMEONE COMES
1. Guard against hazardous situations at all times.
Warn adults to keep pets and children away
from the area. Be careful if you are approached.
Injury may result from flying debris.
2. If someone calls out or otherwise interrupts you
while working, always be sure to turn off the
engine before turning around.
■MAINTENANCE
1. In order to maintain your product in proper
working order, perform the maintenance and
checking operations described in the manual at
regular intervals.
2. Always be sure to turn off the engine before
performing any maintenance or checking
procedures.
The metallic parts reach high temperatures
immediately after stopping the engine.
3. When replacing the cutting attachment or any
other part, or when replacing the oil or any
lubricant, always be sure to use only RedMax
products or products which have been
certified by RedMax for use with the RedMax
product.
4. In the event that any part must be replaced or
any maintenance or repair work not described in
this manual must be performed, please contact a
representative from the store nearest RedMax
authorized servicing dealer for assistance.
5. Do not use any accessory or attachment other
than those bearing the RedMax mark and
recommended for the unit.
6. Under no circumstances should you ever take
apart the product or alter it in any way. Doing so
might result in the product becoming damaged
during operation or the product becoming unable
to operate properly.
■HANDLING FUEL
1. The engine of the RedMax product is designed
to run on a mixed fuel which contains highly
flammable gasoline. Never store cans of fuel or
WARNING
5. For safe operation
11 

12 
5. For safe operation
refill the tank of the unit in any place where there
is a boiler, stove, wood fire, electrical sparks,
welding sparks, or any other source of heat or
fire which might ignite the fuel.
2. Never smoke while operating the unit or refilling
its fuel tank.
3. When refilling the tank, always turn off the
engine and allow it to cool down. Take a careful
look around to make sure that there are no
sparks or open flames anywhere nearby before
refueling.
4. Wipe spilled fuel completely using a dry rag if
any fuel spillage occurs during refueling.
5. After refueling, screw the fuel cap back tightly
onto the fuel tank and then carry the unit to a
spot 10feet (3m) or more away from where it
was refueled before turning on the engine.
■TRANSPORTATION
1. When hand-carrying the product, cover over the
cutting part if necessary, lift up the product and
carry it paying attention to the blade.
2. Never transport the product over rough roads
over long distances by vehicle without removing
all fuel from the fuel tank. If doing so, fuel might
leak from the tank during transport.

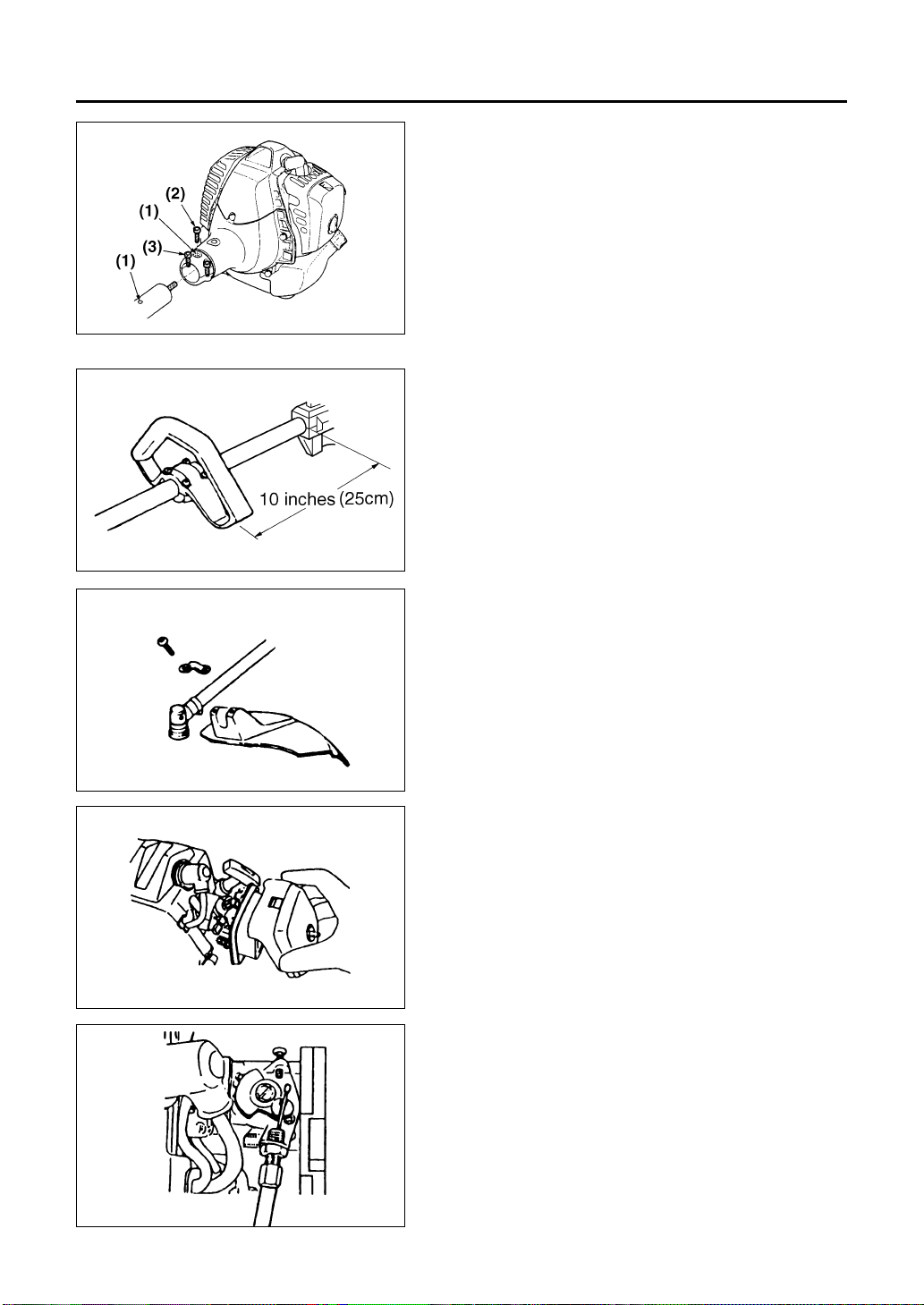

■MOUNTING ENGINE (SE1)
1. Loosen the bolts temporarily attached to the
clutch housing.
2. Push the driveshaft toward the gearcase and
rotate it by hand to check that the driveshaft is
engaged with the gears.
3. Insert the shaft tube into the clutch housing until
it bottoms. When difficult to engage, twist the
engine slightly.
4. Align the positioning holes on the clutch housing
and the shaft tube and fit the bolt into the holes.
And fasten the tightning bolts by turns securely.
(Tightning torque: 4.9~7.8 N.m. (0.5~0.8kg·m))
(1)Positioning hole
(2)Bolt (M5x10)
(3)Tightning bolt (M5x22)
■INSTALLING HANDLE (SE2)
• Mount the handle to the shaft tube and clamp it
at your best operating position.
■INSTALLING DEBRIS GUARD (SE3)
• Put the debris guard on the shaft tube near the
gear box, attach it with the 2 screws and
hardware provided.
■CONNECTING THROTTLE WIRE
1. Remove the air cleaner cover. (SE4)
2. Connect the end of the throttle wire to the joint
on the top of the carburetor. (SE5)
■CONNECTING SWITCH WIRES
• Connect the switch wires between the engine
and the main unit. Pair the wires of the same
color.
6. Set up
SE1
SE2
SE3
SE4
13 
SE5

14 
6. Set up

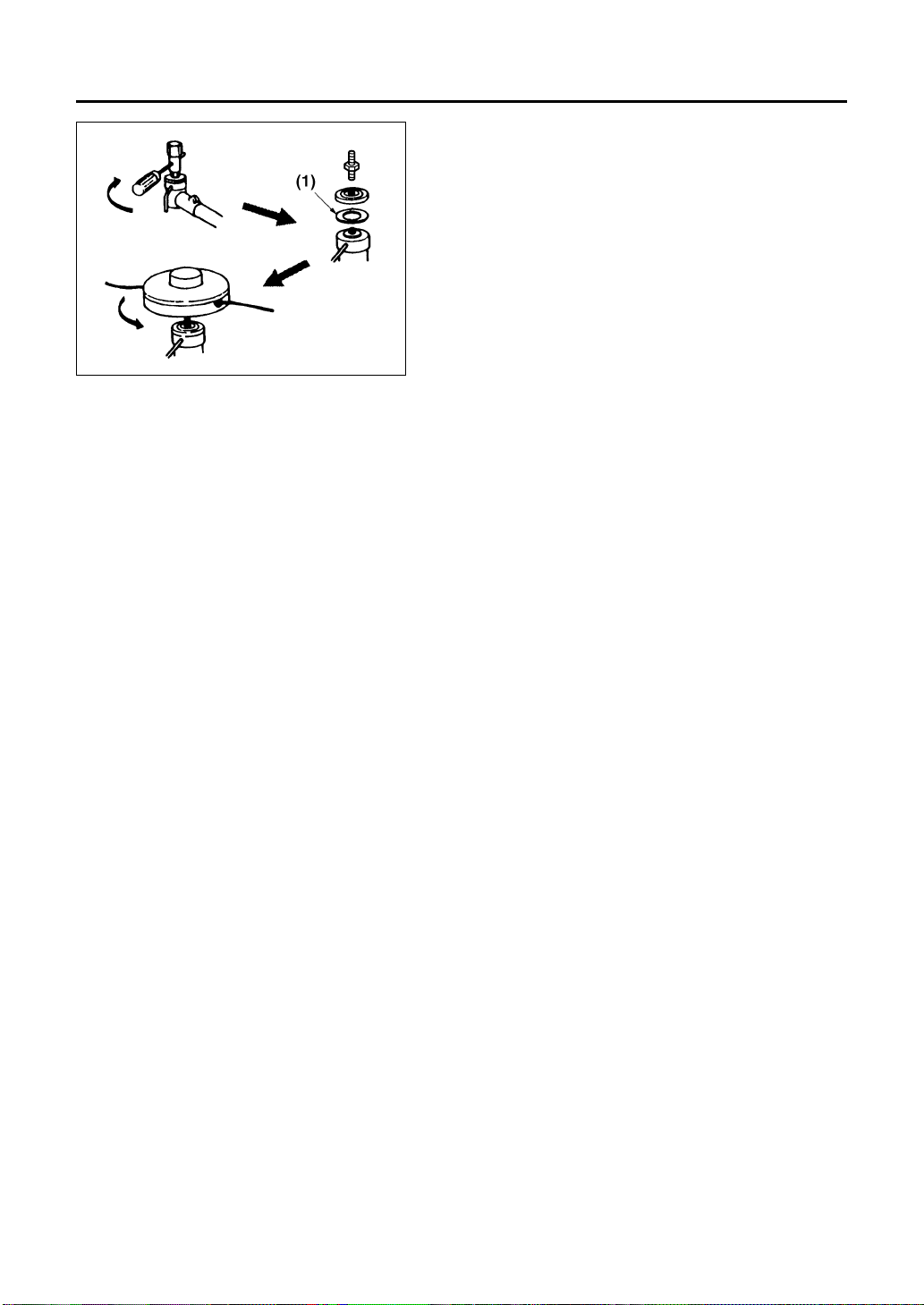

■INSTALLING CUTTING HEAD (SE6)
1. While locking the gear shaft by inserting the
attached bar into the upper holder and the gear
box, loosen and remove the hexagon bolt(left-
handed)
2. Fit the spacer attached to the head assembly
between the upper and lower holders. Then
screw in the cutting head to the gear shaft over
the holders. Hand-tighten it securely.
(1)Spacer
SE6

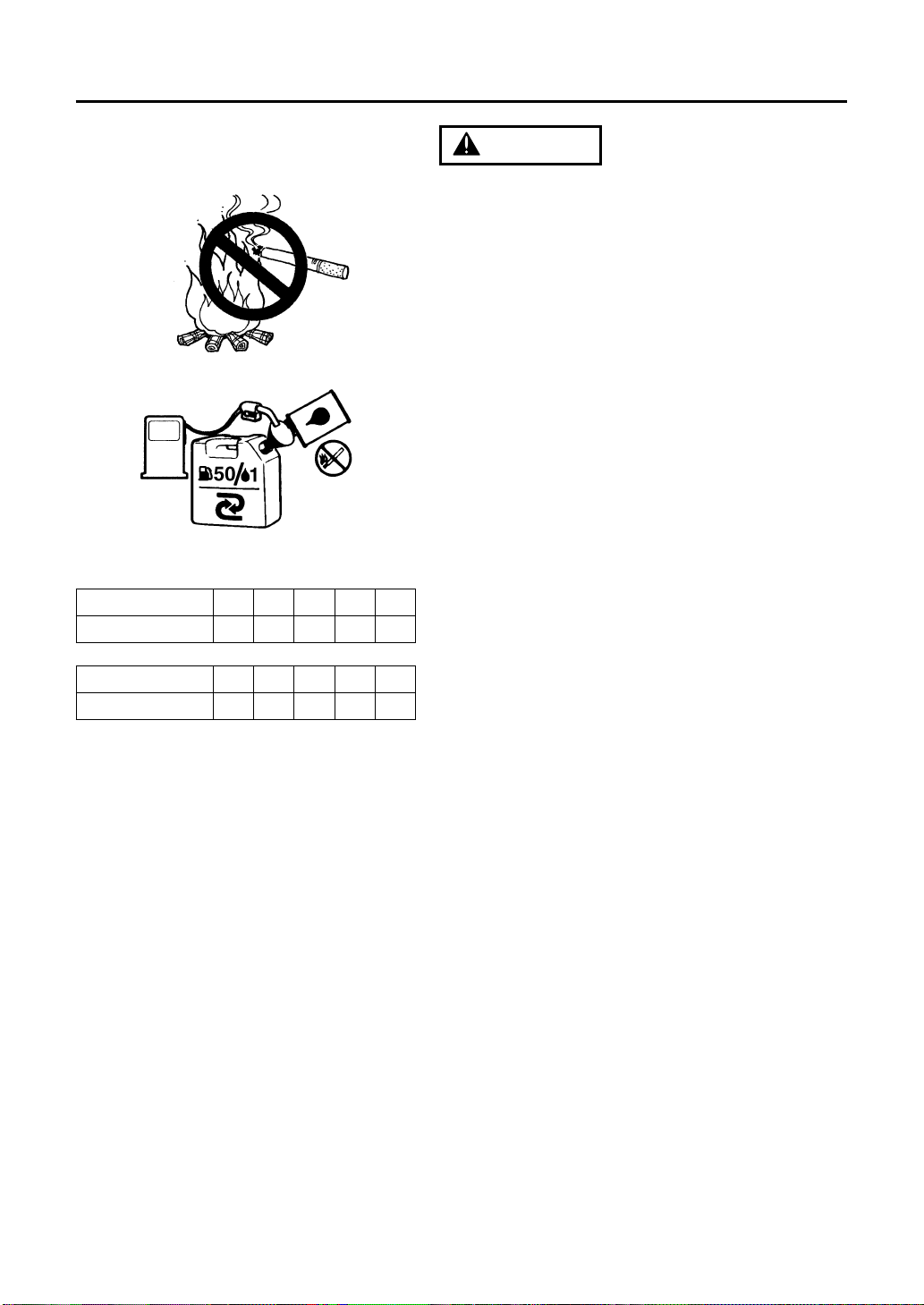

• Gasoline is very flammable. Avoid smoking
or bringing any flame or sparks near fuel.
Make sure to stop the engine and allow it
cool before refueling the unit. Select outdoor
bare ground for fueling and move at least
3m(10ft) away from the fueling point before
starting the engine.
• The RedMax engines are lubricated by oil
specially formulated for air-cooled 2-cycle
gasoline engine use. If RedMax oil is not
available, use an anti-oxidant added quality oil
expressly labeled for air-cooled 2-cycle engine
use. (JASO FC GRADE OIL or ISO EGC
GRADE)
RECOMMENDED MIXING RATIO
GASOLINE 50:OIL 1
• Exhaust emission are controlled by the
fundamental engine parameters and
components(eq., carburation, ignition timing
and port timing) without addition of any
major hardware or the introduction of an
inert material during combustion.
• These engines are certified to operate on
unleaded gasoline.
• Make sure to use gasoline with a minimum
octane number of 90 ROZ(USA/Canada : pump
octane min.87)
• Unleaded gasoline is recommended to reduce
the contamination of the air for the sake of your
health and the environment.
• Poor quality gasolines or oils may damage
sealing rings, fuel lines or fuel tank of the
engine.
■HOW TO MIX FUEL
1. Measure out the quantities of gasoline and oil to
be mixed.
2. Put some of the gasoline into a clean, approved
fuel container.
3. Pour in all of the oil and agitate well.
4. Pour in the rest of gasoline and agitate again for
WARNING
7. Fuel
15 
50:1 MIXING CHART
GASOLINE gal. 1 2345
2-CYCLE OIL fl.oz 2.6 5.2 7.8 10.4 13
GASOLINE liter 1 2345
2-CYCLE OIL ml 20 40 60 80 100

16 
at least one minute.
5. Put a clear indication on the outside of the
container to avoid mixing up with gasoline or
other containers.
6. Indicate the contents on outside of container for
easy identification.
■FUELING THE UNIT
1. Untwist and remove the fuel cap. Rest the cap
on a dustless place.
2. Put fuel into the fuel tank to 80% of the full
capacity.
3. Fasten the fuel cap securely and wipe up any
fuel spillage around the unit.
1. Select bare ground for fueling.
2. Move at least 10 feet (3 meters) away from
the fueling point before starting the engine.
3. Stop the engine before refueling the unit.
FOR YOUR ENGINE LIFE, AVOID;
1. FUEL WITH NO OIL(RAW GASOLINE) – It will
cause severe damage to the internal engine
parts very quickly.
2. GASOHOL – It can cause deterioration of rubber
and/or plastic parts and disruption of engine
lubrication.
3. OIL FOR 4-CYCLE ENGINE USE or WATER
COOLED 2-CYCLE ENGINE USE – It can
cause spark plug fouling, exhaust port blocking,
or piston ring sticking.
4. Mixed fuels which have been left unused for
a period of one month or more may clog the
carburetor and result in the engine failing to
operate properly.
WARNING
7. Fuel

■STARTING ENGINE
1. Rest the unit on a flat, firm place. Keep the
cutting head off the ground and clear of
surrounding objects as it will start rotating upon
starting of the engine.
2. Pump the primer until fuel flows out in the clear
tube. (OP1)
3. Move the choke lever upward to close the
choke. (OP2)
(1)Choke lever
(2)Close
(3)Open
4. Shift the ignition switch to the START position.
(OP3)
(1)Ignition switch
(2)Stop
(3)Start
5. While pulling the throttle lever with the little
finger of your left hand, pull the starter rope.
(OP4)
• Avoid pulling the rope to its end or returning it by
releasing the knob. Such actions can cause
starter failures.
6. When the engine has started, move the choke
lever gradually downward to open the choke.
7. Allow the engine to warm up for a half minute
before starting operation.
1. When restarting the engine immediately after
stopping it, leave the choke open.
2. Overchoking can make the engine hard to start
due to excess fuel. When the engine failed to
start after several attempts, open the choke and
repeat pulling the rope, or remove the spark plug
and dry it.
NOTE
NOTE
8. Operation
OP1
OP2
OP3
OP4
17 

18 
8. Operation
■STOPPING ENGINE
1. Release the throttle lever and run the engine for
a half minute.
2. Shift the ignition switch to the STOP position.
• Except for an emergency, avoid stopping the
engine while pulling the throttle lever.
■ADJUSTING IDLING SPEED (OP5)
1. When the engine tends stop frequently at idling
mode, turn the adjusting screw clockwise.
2. When the cutting head keeps rotating after
releasing the trigger, turn the adjusting screw
counter-clockwise.
(1)Idle adjustment screw
(2)Cable adjuster
• Warm up the engine before adjusting the idling
speed.
■LINE HEAD USAGE
1. Always wear eye protection such as safety
goggles. Never lean over the rotating cutting
head. Rocks or other debris could be thrown
into eyes and face and cause serious
personal injury.
2. Keep the debris guard attached in place at all
times when the unit is operated.
TRIMMING GRASS AND WEEDS
• Always remember that the TIP of the line does
cutting. You will achieve better results by not
crowding the line into the cutting area. Allow the
unit to trim at its own pace.
1. Hold the unit so the head is off the ground and is
tilted about 20 degrees toward the sweep
direction.
2. Use full throttle when cutting.
WARNING
NOTE
NOTE
OP5

3. You can avoid thrown debris by sweeping from
your left to the right.
4. Use a slow, deliberate action to cut heavy
growth. The rate of cutting motion will depend on
the material being cut. Heavy growth will require
slower action than will light growth.
5. Never swing the unit so hard as you are in
danger of losing your balance or control of the
unit.
6. Try to control the cutting motion with the hip
rather than placing the full workload on the arm
and hands.
7. Take precautions to avoid wire, grass and dead,
dry, long-stem weeds from wrapping around the
head shaft. Such materials can stall the head
and cause the clutch to slip, resulting in damage
to the clutch system if repeated frequently.
ADJUSTING THE LINE LENGTH
• Your brushcutters is equipped with a semi- auto
type nylon line head that allows the operator to
advance the line without stopping the engine.
When the line becomes short, lightly tap the
head on the ground while running the engine at
full throttle.
• Each time the head is bumped, the line advance
about 1 inch(25.4 mm). For better effect, tap the
head on bear ground or hard soil. Avoid
bumping in thick, tall grass as the engine may
stall by overload.
8. Operation
19 

20 
9. Maintenance
• Always be sure to stop the engine before
inspecting the brushcutter for problems or
performing maintenance.
• Never alter the brushcutter or take the engine
apart.
• When replacing parts, always be sure to use
only RedMax products or products which
have been certified by RedMax for use with
the RedMax brushcutter.
• Things to check before using brushcutter.
■REFILLING TRIMMING LINE
1. For replacement line, use a diameter of .095
in(2.4 mm). The spool is capable for a line upto
27 ft(8 m)on the 4” head, and 46 ft(14m)on the 6”
head. Avoid using a larger line as it may cut
down the trimming performance. For safety
reasons, do not use metal line.
2. Pinch the slotted area on the both sides of the
spool housing to unhook the bottom cap. (MA1)
3. Take out the spool and pull off the old line. Put
one end of new line through the spool holes and
pull it until the length is equal between each part
of the line. (MA2)
4. Wind up the line in the correct as indicated on
the spool. (MA3)
5. Hook each end of the line in the slot on the edge
of the spool, and then put the ends through the
eyelets on the housing. Make sure that the
spring and the washers are in place. (MA4)
6. While holding the spool against the housing, pull
the line ends to release them from the slot.
7. Line up the slot on the bottom cap with the hook
on the housing, press the cap against the
housing until it clicks.
WARNING
MA1
MA2
MA3
MA4
