Reelworks SR101.01 User manual

Instruction Manual
REV 07/14/22
Static Grounding Reel
Piercing Clamp
Alligator Clamp
II 2G Ex h IIC T6 Gb
II 2D Ex h IIIC T85°C Db
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.

INDEX
1. SAFETY WARNINGS & STATEMENTS ------------------------------------------ 1
2. DISCLAIMER ---------------------------------------------------------------------------- 1
3. MAIN USES ---------------------------------------------------------------------------- 1
4. TECHNICAL PARAMETERS -------------------------------------------------------- 1
5. INSTRUCTIONS FOR INSTALLATION ------------------------------------------- 2
6. INSTRUCTIONS FOR OPERATION ------------------------------------------- 2~3
7. COMMON FAULTS AND TROUBLESHOOTING METHODS --------------- 3
8. ROUTINE MAINTENANCE ----------------------------------------------------------- 3
9. ENVIRONMENTAL PROTECTION REQUIREMENTS ------------------------ 3
10. EXPLODED VIEW AND PARTS LIST --------------------------------------------4
11. TRANSPORTATION AND STORAGE ------------------------------------------- 5

1. SAFETY WARNINGS & STATEMENTS
For your own personal safety and the safety of the product, please always follow the
following basic safety precautions when using this product:
General Precautions
1. Before use, read through the user’s manual of the product in order to understand this
product and how to install and operate it.
2. The manual does not cover all possible conditions or situations that may cause injuries, and
the operator must understand this product or understand this user’s manual.
3. Do not operate this product when you are affected by alcohol or drugs.
4. Do not operate this product if you are under the age of 16.
5. Make sure that there are no irrelevant persons in the vicinity before using this product.
6. Unpack and install the product with suitable tools and wearing gloves.
7. Operate this product in the daytime or under good artificial light.
8. Do not operate or install this product without reading through or understanding the operator's
manual.
Precautions for Product Operation
1. The reel must be installed in a place that complies with current regulations and codes.
2. The device must be installed by professionals.
3. To avoid damage to the reel, do not pull the flexible steel cable completely out of the reel,
preferably leaving 2 to 3 turns in the reel.
4. To avoid damage to the reel, please keep holding the clip end of the reel while the flexible
steel cable is being retracted.
5. It may prove to be dangerous to disassemble the device by unskilled personnel. The risks
involved mainly involve preloaded springs.
6. The device must not be operated, disassembled or repaired by non-professionals.
2. DISCLAIMER
Please read through all instructions before operation. This equipment should only be operated
if the safety precautions and other basic precautionary measures for safety are strictly
observed.
The company shall not assume responsibility for any personal injury or property damage
caused by human causes or abnormal use.
3. MAIN USES
The main purpose of this reel is to reliably connect the equipment surface to the floor so as to
avoid static charge accumulation.
4. TECHNICAL PARAMETERS
Designed working temperature for harsh environment up to 66ºC (150ºF).
Installation height: ≤6.5' (2m).
1
Item No.
SR101.01
SR101.02
SR101.03
SR101.04
SR101.05
SR101.06
SR101.07
SR101.08
Diameter of
Steel Cable
Clamp
3/32"
2.5mm
Diameter of
Outer Coating
5/32"
4.0mm
Length
75' / 23m
50' / 15m
75' / 23m
50' / 15m
75' / 23m
50' / 15m
75' / 23m
50' / 15m
Cable Color
Orange
Alligator static
grounding clamp
Transparent
Piercing static
grounding clamp
Alligator static
grounding clamp
Piercing static
grounding clamp

5. INSTRUCTIONS FOR INSTALLATION
5.1. Packing list
5.2. Installation procedure
1. The reel must be installed in a place that complies with current regulations and codes, and
must be installed by professionals.
2. Common installation methods:
3. You can fix the reel to the ground, wall or ceiling, with M12(1/2") metal screws
of a suitable length mounted in the bracket holes. Make sure that the continuity
between the fixing position and the reel circuit and that between the fixing
position and the ground circuit.
Note: See "Hole position installation drawing" for the mounting holes.
4. You can adjust the stopper to the proper position with a suitable 7mm (9/32") socket wrench
and a screwdriver according to your need, and adjust the guide bracket to the appropriate
angle with an adjustable wrench and a 5mm (7/32") hex wrench.
6. INSTRUCTIONS FOR OPERATION
6.1. Product appearance introduction
2
S/N
A
B
C
Q’tyName
1
1
1
Static grounding reel
Hole position installation drawing
Instructions for operation

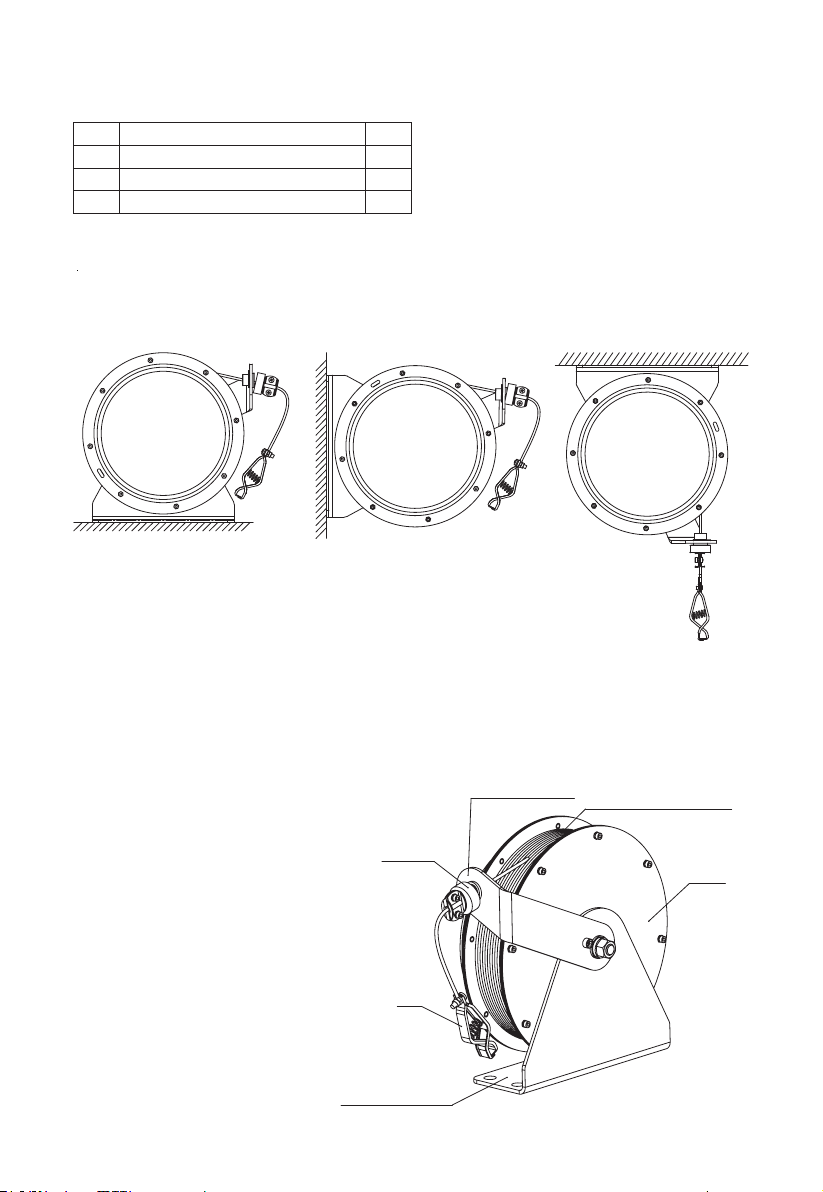

Ground-mounted Wall-mounted Ceiling-mounted
Fig. 1
Mounting base
Clip
Stopper
Guide bracket Flexible steel cable
Reel
Fig. 2

6.2. Use steps
1. Before using the reel, you must use professional tools (e.g. multimeter) to measure whether
the circuit between the clamped equipment and the fixing position of the reel as well as the
ground is clear, and the resistance between the clip of the reel and the grounding device
should be measured to be less than 10Ω to ensure that the reel can effectively dissipate
static charge accumulation. If the circuit is not clear, it is prohibited to use this product and
seek prompt professional attention or contact your dealer.
2. Fix the reel, slowly pull out the flexible cable and check if the reel is working properly. The
reel will produce 6 "clicks" per turn.
3. Make sure there are no problems with the two points above before using the reel. The reel
has pull-and-stop and slow-retraction functions. After the desired length of flexible cable has
been pulled out, loosen your grip to lock the reel and fasten the clip to the equipment that
needs to dissipate static charges.
4. When you’ve finished operation, manually release the clip and pull out the flexible cable by
10-20mm to unlock the reel. At this point you can retract the flexible cable or pull out more
flexible cable.
Note:
a. To avoid damage to the reel, do not pull the flexible steel wire completely out of the reel,
preferably leaving 2 to 3 turns in the reel.
b. To avoid damage to the reel, please keep holding the clip end of the reel while the flexible
steel wire is being retracted.
7. COMMON FAULTS AND TROUBLESHOOTING METHODS
8. ROUTINE MAINTENANCE
1. Clean the cable and the reel with a cloth soaked in silicone oil every 2 to 3 months to remove
dirt or deposits.
2. Do not use detergents or solvents that may be incompatible with the reel.
3. If it is necessary to carry out maintenance of mechanical parts or to replace the cable,
please contact your dealer.
4. It may prove to be dangerous to disassemble the device by unskilled personnel. The risks
involved mainly involve preloaded springs.
5. Store the cable in a dry and well-ventilated place if it is not to be used for a long time.
6. The Static Grounding reel shall be earthed when it is used,the earth resistance shall not be
greater than 10 ohm.
9. ENVIRONMENTAL PROTECTION REQUIREMENTS
The product complies with California 65 (Ca. prop. 65) and EU RoHS and REACH require-
ments.
3
Faults
The circuit is not clear after
clamping.
The flexible cable runs off the
reel during retraction.
The reel circuit has a higher
via resistance or becomes
open after prolonged storage.
The reel cannot be locked/
unlocked.
Possible Causes
The surface of the clamped
equipment is not conductive.
Not conductive between the
mounting position and the reel.
The reel itself is not conductive.
Failure to keep holding the clip
end during retraction.
1. The reel circuit rusts in the
storage environment.
2. Insulating materials attach to
the reel circuit during storage.
The locking mechanism has faults.
Troubleshooting Methods
Test the conductivity of the
clamped equipment.
Test the conductivity between the
reel and the mounting position.
Test the conductivity of the reel itself.
Lock the reel, manually wind the
flexible cable onto the reel and
confirm that 4 to 5 turns are
pre-tightened.
Clean the reel circuit.
Contact your dealer for assistance.

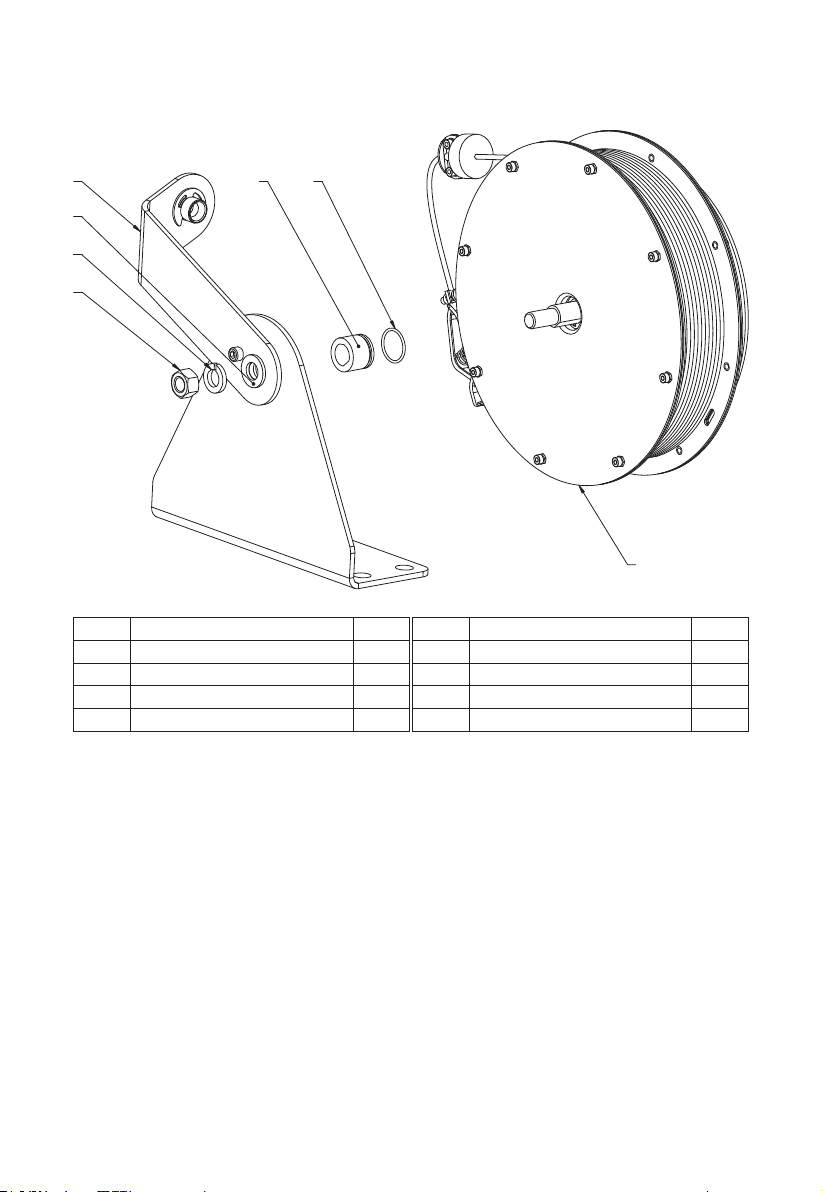

10. EXPLODED VIEW AND PARTS LIST
Procedure of O-ring (6) replacement:
1. The operator must understand this product or be a professionally trained person.
2. Remove a few turns of the steel cable from the number 7 (reel assembly) to release the
spring force of the volute spiral spring.
3. Remove the numbers 1, 2, 3, 4 and 5 in turn, remove 6 from 5, clean the contact surfaces of
5 and 7, replace 6 (O-ring) onto 5 and apply the lubricant to the contact surfaces of 5, 6 and
7.
4. Replace the parts 5, 4, 3, 2 and 1 in turn and tighten them. Note that there are requirements
for the mounting surfaces of 4 and the spindle.
5. Pre-tighten the volute spiral spring down the reel body with 4 to 5 turns of the steel cable to
complete the replacement.
4
Part No.
1
2
3
4
Description
Nut M12
Washer 12
Washer 12
Base assembly
Q’ty
1
1
1
1
Part No.
5
*6
7
Description
Bush
O-ring
Reel assembly
Q’ty
1
1
1
Note: "*" indicates wearing parts. It is recommended to stock a modest amount of wearing and consumable
parts and replace such parts every 1 year.
1
2
4 6
3
5
7

11. TRANSPORTATION AND STORAGE
1. During transportation and storage of this product, avoid exposure to direct sunlight, rain and
dropping, prohibit contact and mixing with corrosive substances, and keep it 1m away from
heating devices.
2. During transportation, loading and unloading of this product, rough operations are strictly
forbidden, such as throwing, dropping, tossing and treading on.
3. Working temperature -40ºC~52ºC (-40ºF~126ºF), storage temperature -50ºC~60ºC
(-58ºF~140ºF).
5
