REITEL DUSTY ZIRKON User manual

Operating Instructions
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen
Phone: [phone] | Fax: [phone]
www.reitel.com | [email protected]
DUSTY ZIRKON

II
Dear Customer!
The REITEL extraction units of the DUSTY-Series are used for any kind of dust removal at
workplaces or machines in production, in laboratories and in the workshop. They combine
solid design with high suction performance. The DUSTY ZIRKON (wet and dry extractor with
power tool socket) offers suction power control, allowing precise adaptation of the suction
power for different cleaning tasks and silent operation. The DUSTY ZIRKON meets the
standard for clean room operation. It is equipped with a motor cooling filter for fine dust and a
Push & Clean filter cleaning system.
Prior to installation of the device operating instructions and especially the safety instructions
must be read and followed by all personnel who use this device.
After having unpacked the device, please check carefully whether transportation damages of
any kind have occurred. If that is the case, the carrier or manufacturer must be notified within
3 days. The company will not be responsible for any damages found after that.
These operating instructions must be read and followed by all personnel who use this device.
To ensure quick access we recommend to keep it at a safe place near the device. In case of
loss it can be ordered at a nominal fee from the manufacturer.

III
INDEX
EQUIPMENT................................................................................................................. 4
BASIC EQUIPMENT....................................................................................................... 4
SPECIAL ACCESSORIES................................................................................................ 4
OPERATING ELEMENTS ................................................................................................ 5
TECHNICAL DATA......................................................................................................... 9
SAFETY NOTES..........................................................................................................10
GENERAL SAFETY NOTES ...........................................................................................10
SPECIFIC SAFETY NOTES............................................................................................11
OPERATION................................................................................................................12
INSTALLATION.............................................................................................................12
HOSE INSTALLATION...................................................................................................12
FILTER INSTALLATION .................................................................................................12
CONNECTION OF POWER TOOLS ..................................................................................12
NOTES FOR THE USER..............................................................................................13
OPERATION................................................................................................................13
REPLACING FILTER BAG OR FILTER ELEMENT ................................................................14
AUTOCLEAN FUNCTION...............................................................................................14
PICKING UP DRY SUBSTANCES.....................................................................................14
PICKING UP LIQUIDS....................................................................................................14
EMPTYING THE DIRT TANK AFTER PICKING UP LIQUIDS...................................................15
TROUBLESHOOTING .................................................................................................16
MAINTENANCE...........................................................................................................17
WARRANTY.................................................................................................................18
DISPOSAL REGULATIONS ........................................................................................21
SPARE PARTS LIST ...................................................................................................22
EC-CONFORMITY DECLARATION.............................................................................23

4
Equipment
Basic Equipment
•DUSTY ZIRKON single workplace extraction unit with preassembled filter element
•5,0 m extraction hose
•7,5 m cable
•Filter bag (1 piece)
•2 separate handles
•Strap
Special Accessories
•Order-No.: 27806000 Filter bags DUSTY ZIRKON

5

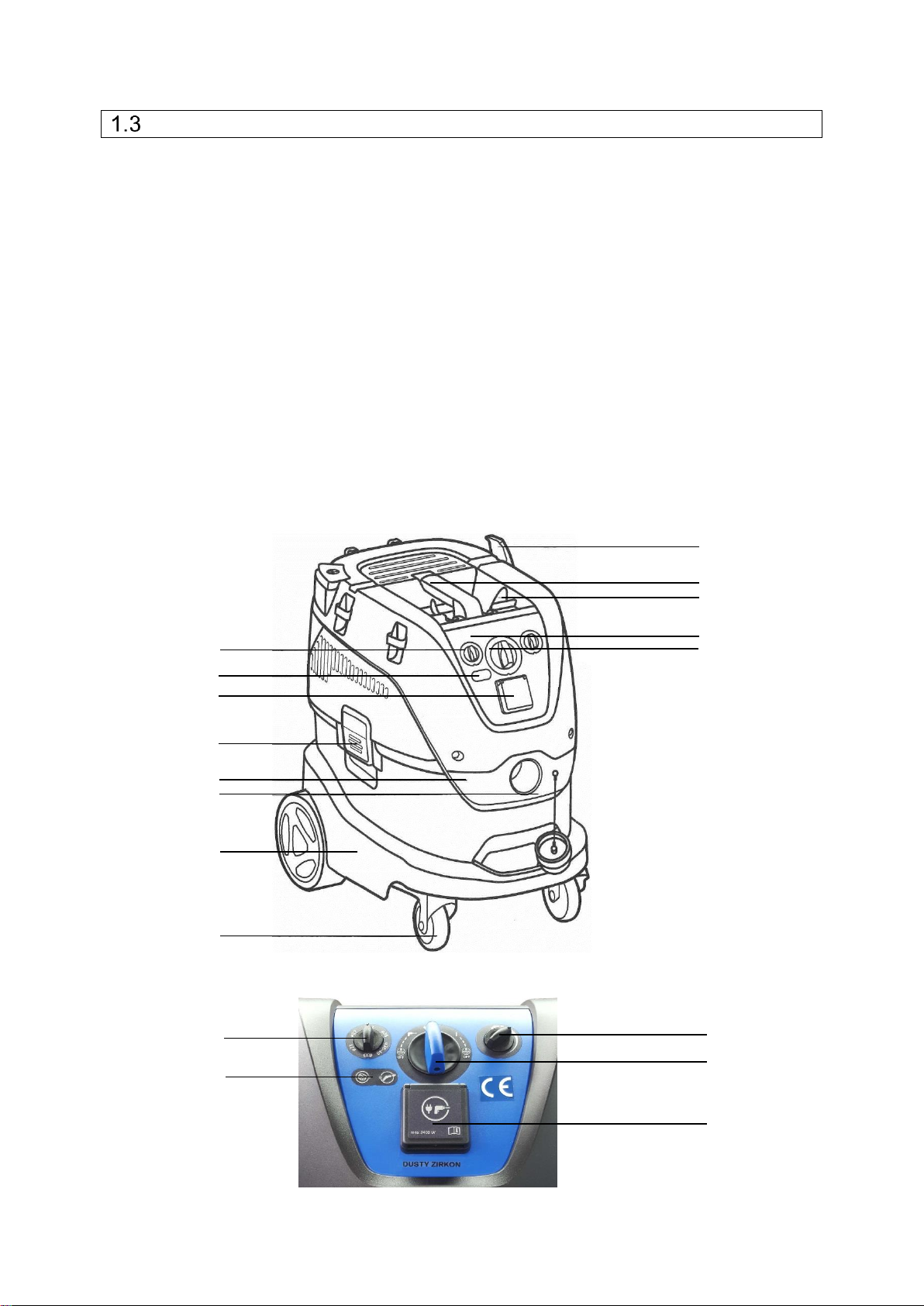

Operating elements
1 Handle
2 Accessory positions
3 Latch
4 Castor
5 Container
6 Inlet fitting
7 Switch
8 Speed control
9 Appliance socket
10 Hose hook
11 Hose diameter setting
12 LED indicator
13 Inlet cap
12
3
10
8
5
Fig.: Device view
11
Fig.: Control panel
8
11
12
7
9
9
6
13
4
7
1
2

6
Detail 1:
Open / close device
Detail 2:
Safety filter bag installation
Detail 3:
Hose insert & operations
Detail 4:
LED indicator:
flow rate & filter warning

7
Detail 5:
AutoClean
filter cleaning system
Detail 6:
Power tool adaption
Detail 7:
Safety filter bag
replacement
Detail 8:
Filter replacement
Dust Class M & H

8
Detail 9:
Essential filter replacement
Dust Class H
Detail 10:
Motor cooling air diffuser
cleaning
Detail 11:
Gaskets and floater cleaning

9
Technical data
Line voltage
230 V/50–60 Hz
Current consumption
1.200 W
Connected load for appliance socket
2.400 W
Air flow rate
4500 l/min
Height / width / depth
565 / 385 / 605 mm
Weight
16 kg
Dust collection
99,99 % (class H)
Flow rate
270 m³/h
Sound level
60 db[A]
Tank volume
42 l
Housing
plastic material
Order-No.:
24500000
Made in Germany (Subject to modifications)

10
Safety Notes
General Safety Notes
•All equipment undergoes final inspection and testing before leaving our factory. However,
if equipment is damaged during shipping or through any other circumstances, it must not
be used in service. Please check the device regularly for damages. Damaged parts
should be replaced immediately.
•All power/air/water/gas sources should be rated for the demands of the device as listed in
the technical data sheets. Maximum ratings must not be exceeded. All VDE (Verein
Deutscher Elektro-Ingenieure) standards should be followed. Equipment should be
grounded according to standards.
•Adherence to valid regulations regarding necessary checks (e.g. according to Accident
Prevention & Insurance or electrical equipment) is exclusively taken over by the
buyer/user of this product.
•This device has been designated to be used only for its intended purpose. All other
applications must be prohibited for safety reasons as otherwise the manufacturer’s
warranty expires.
•The device should be set-up in a clean, well-ventilated room, if necessary under a hood.
•Supporting surfaces should be straight, flat and adequately stable.
•Don’t place anything on top of the machine.
•To avoid injury, appropriate protection should be worn (e.g. gloves, safety glasses, safety
shoes, hearing protection etc.)
•If the machine is defective or working improperly it must be taken out of service. In case
of further use of the machine the owner will be held responsible for any consequential
damage.
•To prevent accidents from water, fire or explosion, all power/air/water/gas sources should
be turned off after working hours and during breaks, and secured against unauthorized
access.
•When carrying out maintenance works or repairs or when opening the device always turn
off the main power switch and unplug the whole unit.
•Repairs should be carried out only by the manufacturer or by qualified and certified
personnel appointed according to chapter 7 –warranty.
•In case of leaking water out of housing or tank shut down device and call service.

11
Specific Safety Notes
•Don’t pick up any explosive, burnable or aggressive fluids or dust with the extraction unit.
•This extraction unit is not suitable for picking up harmful dust, risking to damage the filter
element (e.g. glass splinters, metal etc.).
•This machine is not suitable for continuous operation.
•Always turn the machine off and unplug it before carrying out any maintenance work or
cleaning.
•Use accessories provided for filling and / or maintenance.
•Don’t perform any other maintenance work than listed in the operating instructions. Any
operation not listed in the operating instructions may bear risks.
•Before plugging the power tool plug into the socket, ensure that the voltage shown on the
rating plate corresponds to the voltage of the local mains power supply.
•Prior to picking up liquids the filter bag must be removed and the float lever needs to be
checked. A sieve filter and a filter element must always be installed in the device.
•If foam appears after picking up liquids the device has to be switched off immediately and
the dirt tank has to be emptied.
•Don’t use the wet filter element for dry dust extraction in order to avoid filter clogging.
•Don’t tilt or transport the machine in a lying position if there is liquid in the tank..
•Always insert a filter bag prior to picking up dry substances.
•Do not damage the mains power lead (e.g. by driving over it, pulling or crushing it).
•Using an extension cable the minimum cross-sections must be in compliance with
requirements (up to 20 m →1,5 mm²; 20 bis 50 m →2,5 mm²).

12
Operation
The equipment delivered is ready for immediate use. The sealed plug can be connected
directly to the mains supply 230 V/16 A. For installation please refer to safety notes in
chapter 2.
Installation
1. Ensure that the cleaner is switched off. Turn switch (7) to position “0” (off).
2. Check if a suitable filter is inserted in the device.
3. Insert the power cord into a properly installed and fused socket with earthing contact.
Hose Installation
1. Connect the supplied extraction hose to the latch (3).
2. The hose diameter must match the hose diameter setting (11).
3. Check the extraction hose for a tight fit.
Filter Installation
1. Open the retaining clamps and remove the upper section of the vacuum cleaner
(s. p. 6 –detail 2).
2. Press the filter bag connection firmly on to the inlet fitting in the dirt tank
(s. p. 7 –detail 7).
3. Attach the upper section of the vacuum cleaner. Close the retaining clamps (3). Ensure
that the retaining clamps fit properly (s. p. 6 –detail 1).
Connection of power tools
Attention:
To comply with regulations, only approved dust producing tools should be connected. The
maximum power consumption of the connected electrical appliance is stated in „Trouble-
shooting“, chapter 5 and „Technical Data“. The operating instructions incl. safety
instructions for the connected tool have to be adhered to.
1. Connect the extraction unit to a power tool (s. p. 7 –detail 6):
a. The extraction must be switched off (7).
b. Switch off the power tool.
c. Attach the end of the supplied extraction hose to the extraction connection sleeve
on the power tool.
d. Insert the plug of the extraction into the device socket of the power tool and
connect it to the mains supply 230 V/16 A.

13
2. Connect a power tool to the extraction unit:
a. The extraction must be switched off (7).
b. Switch off the power tool.
c. Attach the end of the supplied extraction hose to the extraction connection sleeve
on the power tool.
d. Insert the plug from the power tool into the accessory socket (9) on the extraction
control panel and connect it to the mains supply 230 V/16 A.
Notes for the User
The DUSTY ZIRKON is suitable for picking up liquids and dry substances. Using both filter
element and filter bag, high level filtration is achieved for picking up dry substances. For
picking up liquids please refer to chapter 4.5.
Operation
1. Extraction unit without connected tool:
a. Switch on the extractor with switch (7) to "I"
b. Turn the speed control (8) clockwise to regulate suction power.
c. Switch off the extractor with switch (7) to "0"
2. Connected power tool activated by extraction unit:
a. Make sure that both devices are turned off first.
b. Switch on the power tool
c. Switch on the extraction counterclockwise with the switch (7) to "auto" –
the power tool also starts.
d. Turn the speed control (8) clockwise to regulate suction power.
e. When switching off extractor with switch (7) to "0", the external device also stops.
3. Extraction unit activated by power tool:
a. Make sure that both devices are turned off first.
b. Switch on extractor with the clockwise switch (7) to "I"
c. When switching on the power tool, the extractor starts automatically
d. Turn the speed control (8) clockwise to regulate suction power.
e. When switching off the power tool, the extractor stops automatically. The
extraction unit continues to run for a short moment.
f. When work is finished switch off the extraction unit by turning the switch (7) to „0“
4. Extraction as extension cable:: Switch (7) to „0“

14
Replacing filter bag or filter element
1. Open the retaining clamps and remove the upper section of the vacuum cleaner.
2. Carefully remove the filter bag connection from the inlet fitting and insert a new filter bag
in the dirt tank. Press the bush of the new filter bag firmly on to the inlet fitting (dispose of
the filter bag in accordance with legal regulations).
3. Turn the filter holder anticlockwise and remove the filter element. Dispose of the used
filter element in accordance with legal regulations. Insert the new filter element. Fit the
filter holder and turn it clockwise to secure it.
4. Clean the rim of the tank and the seals in the intermediate ring and the upper section of
the cleaner before refitting them. Close the retaining clamps.
AutoClean function
The extraction unit is equipped with an automatic filter cleaning system. A frequent cleaning
cycle will automatically run during operation to ensure that suction performance is always at
its best. If suction performance decreases, a manually filter cleaning operation is
recommended:
1. Turn the switch (7) to position „I“ and let the machine operate at full speed (8).
2. Close the extraction hose opening with the palm of your hand for approx. 10 seconds.
3. If suction power is still reduced take out the filter and clean mechanically or replace filter.
For certain operations it is recommended to turn off the AutoClean function by turning the
switch (7) to the respective stop position.
Picking up dry substances
The appliance is equipped with a pre-installed filter element. Before picking up dry
substances, always ensure that a filter bag is inserted in the tank. After picking up liquids, the
filter element is wet. A damp filter element clogs more quickly when dry substances are
picked up. For this reason the filter element should be washed and dried or replaced by a dry
element before dry substances are picked up.
Picking up liquids
Before liquids are picked up, always remove the filter bag. If foam appears, stop work
immediately and empty the tank.
1. Open the retaining clamps and remove the upper section of the extraction unit.
2. Turn the filter holder anticlockwise and remove it. Insert a separate filter element for
picking up liquids. Fit the filter holder and turn it clockwise to secure it.
3. Remove the used filter bag.

15
Emptying the dirt tank after picking up liquids
1. Open the retaining clamps and remove the upper section of the vacuum cleaner.
2. Tip out the collected dirt and dispose of the dirt in accordance with legal regulations.
3. Clean the rim of the tank and the seals in the in the intermediate ring and the upper
section of cleaner, before refitting them. If the seal or groove is dirty or damaged, the
suction performance will be reduced. Close the retaining clamps.

16
Troubleshooting
Device cannot be switched on (motor
doesn’t start).
a. Check the building’s fuse.
b. Overload protection switch has tripped
(Switch off the extraction unit and allow
it to cool for approx. 5 minutes)
Motor does not run in automatic mode.
a. Power tool is defective or not connected
properly→ check that the power tool
works or that the plug is inserted
correctly.
b. The power rating of the electrical tool is
too low → note that minimum power
rating is P > 40 W.
Reduced suction power.
a. Check suction power control.
b. Clogged suction hose/nozzle→ clean
extraction hose/nozzle.
c. Seal between tank and upper section of
vacuum cleaner is dirty → clean gasket.
d. Full filter bag →replace it.
e. Filter element is clogged →clean filter
element or replace it.
f. Full dirt tank → Switch off the extraction
unit and empty the tank.

17
Maintenance
•Regularly check the device for visible damage to housing or power cord.
•Regularly replace the filter bag (see chapter 4.2 Replacing filter bag or filter element).
•Regularly clean or replace he filter element (see chapter 4.2 replacement of filter bag or
filter element).
•Regularly empty and clean the dirt tank (see chapter 4.6), especially if the extraction unit
has not been used for some time.
•After picking-up liquids: store the upper section of the vacuum cleaner separately so that
the filter element can dry.
•Regularly clean the housing with a damp cloth.

18
Warranty
We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven
date of purchase. This warranty covers all defects traceable to materials, design or
workmanship. The following warranty regulations are applicable:
Within the warranty period Reitel Feinwerktechnik GmbH or an authorised distributor agrees
at its sole option, to perform repair or replace this product at no charge covering all defects
traceable to materials, design or workmanship. Warranty only applies to appropriate use and
regular maintenance of this product according to the operating instructions. Claims under
warranty are restricted to complementary performance. Additional claims, especially claims
for indemnifications, are not covered by this warranty.
1.
Warranty claims have to be addressed to the distributor the product was purchased from or
directly to our service department.
Contact:
REITEL Feinwerktechnik GmbH
Senfdamm 20
49152 Bad Essen
Germany
Phone: [phone] (Service Department)
Phone: [phone] (Reception)
Fax-No: [phone]
2.
In case of warranty claim application the sales receipt or your purchase invoice showing the
date of purchase of the product and the serial number must be furnished. Securely pack and
ship the device, freight charges prepaid, at your own risk to us, along with a report describing
the defect. We reserve the right to decline warranty if this information has been removed or
modified after purchase of the product or if they are not included in case of warranty claims.
3.
Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorised
distributors. Repairs performed by non-authorised companies will void the claim for refund
since damages to the product resulting hereof are not covered by warranty.
4.

19
If the unit sent in for repair or replacement is still under the original warranty then warranty is
to the end of the original 1 year warranty.
5.
If the unit is destined to be operated in another country than originally intended and
manfactured for, modifications to the product might be necessary to comply to special
technical and /or safety standards of that specific country. Such modifications are no defects
traceable to materials, design or workmanship. and are therefore expressly excluded from
warranty claims.
Modification costs or damages arising from operation of the product under deviating
conditions are not covered by warranty.
6.
Exclusions from warranty:
−Service and maintenance work as well as repair and replacement of consumables
according to our consumables‘ list
−Transportation cost of the machine or installation and dismounting expenses incurred
−Damages due to use of the product other than for its intended purpose
−Damages due to faulty installation or insufficient maintenance of the product (e.g.
decalcification)
−Damages due to natural disaster e.g. lightning, water, fire, act of nature beyond
control, war, inadequate line voltage, insufficient ventilation, no decalcification,
insufficient care and cleaning or non-adherence to operation and maintenance
instructions according to the accompanying operation guide.
−Damage due to use of the product other than in accordance with the instructions
provided by REITEL Feinwerktechnik GmH;
−The warranty does not cover the cost of removal and replacement of parts and
accessories, unless supplied as original equipment by REITEL Feinwerktechnik
GmbH
−All kind of damages occurred not directly at the device as well as consequential
damages (e.g. damages to furniture due to a lack of water, downtime of the machine,
material, lost working hours, wages and other consequential damages).
This warranty shall be rendered null and void if:
−the product has been subject to any modification, repair or replacement other than as
authorised by REITEL Feinwerktechnik GmbH
−the product is continued to be operated despite a functional defect

20
7.
The warranty is device specific and may be claimed, within the warranty period, by any
person who has legally acquired the device.
8.
Consumables are excluded from warranty. Spare parts are subject to a warranty coverage of
6 months against all defects traceable to materials, design or workmanship according to
these warranty regulations.
9.
Legal default claims on the part of the purchaser remain unaffected by this warranty.
10.
We reserve the right to charge a fee if repair of the device is rejected and the device is
destined to be sent back unrepaired.
11.
Please note:
Upon repair or replacement of this unit, personal data and settings might get lost or
damaged. We don’t accept liability for all kind of data loss. The customer is advised to
backup essential programs and data before sending for service.
12.
This warranty shall be interpreted in accordance with German law to the exclusion of UN
sales law. Place of jurisdiction is our business location.
13.
If any provisions of this warranty are judged to be illegal or unenforceable, the continuation in
full force and effect of the remaining provisions will not be prejudiced. The provisions of this
warranty judged to be illegal or unenforceable shall be construed so as to give effect to the
intent manifested by the provision held invalid, illegal or unenforceable and to give effect to
section 13 hereof.
14.
Should you need to borrow a device while your device is being repaired, please contact
Messrs. REITEL or your distributor. These loans are a service for which availability cannot
necessarily be guaranteed. After the warranty period, a free may be charged for loan
equipment as well as for shipping and packaging.
