Operating manual
Respiro R3 profi
Respiro R3 compact B1000, B700
BA01.EN.0617
Original operating manual

Page 2
Table of contents
1. Content
2. General ............................................................................................................................................ 4
2.1. Symbols in warnings................................................................................................................ 4
2.2. Additional instructions ............................................................................................................ 4
2.3. CE mark.................................................................................................................................... 5
2.4. Warning signs .......................................................................................................................... 5
3. Important information about your safety..................................................................................... 10
3.1. Intended use.......................................................................................................................... 10
3.2. Target group .......................................................................................................................... 10
4. Product description ....................................................................................................................... 11
4.1. Respiro R3 compact............................................................................................................... 11
4.2. Respiro R3 profi..................................................................................................................... 13
5. Mounting of the machine.............................................................................................................. 22
5.1. Coupling of the lower and upper links .................................................................................. 22
5.2. Setting the working height .................................................................................................... 24
5.3. Hydraulic connections ........................................................................................................... 24
5.4. Electrical connections............................................................................................................ 25
5.5. Ballasting of the tractor......................................................................................................... 27
6. Operation of the machine ............................................................................................................. 29
6.1. Control terminal .................................................................................................................... 29
6.2. Rotor switch .......................................................................................................................... 29
6.3. Belt switch ............................................................................................................................. 31
7. Commissioning .............................................................................................................................. 31
8. Recommended settings for operation .......................................................................................... 32
8.1. Suspension............................................................................................................................. 32
8.2. Working height of the pick-up............................................................................................... 33
8.3. Oil flow .................................................................................................................................. 34
8.4. Speeds of pick-up, rotor and conveyor belt.......................................................................... 34
8.5. Rotor position, rotor damping and rotor suspension ........................................................... 35
8.6. Headland position ................................................................................................................. 36
8.7. Swath roller ........................................................................................................................... 36
8.8. Pick-up cover: ........................................................................................................................ 37
9. Maintenance.................................................................................................................................. 38
9.1. Replacing pick-up tines.......................................................................................................... 38

Page 3
9.2. Replacing rotor tines ............................................................................................................. 40
9.3. Replacing wear discs.............................................................................................................. 41
9.4. Repair of the conveyor belt................................................................................................... 41
9.5. Replacing the conveyor belt.................................................................................................. 42
9.6. Readjust / adjust cleaning strip for conveyor belt roller....................................................... 46
9.7. Check wear of conveyor guide strips .................................................................................... 46
9.8. Cleaning of machine parts..................................................................................................... 47
9.9. Lubrication plan..................................................................................................................... 47
10. Troubleshooting ........................................................................................................................ 49
10.1. Pick-up and rotor are not working .................................................................................... 49
10.2. Rotor does not lift.............................................................................................................. 49
10.3. Belt doesn’t travel ............................................................................................................. 49
10.4. Pick-up tines make a noise when idling ............................................................................ 49
10.5. Pick-up or rotor are stiff / sluggish.................................................................................... 49
10.6. Conveyor belt is running lopsided..................................................................................... 50
10.7. Conveyor belt rollers build up dirt .................................................................................... 50
10.8. Gliding discs do not rotate smoothly ................................................................................ 50
11. Useful tips.................................................................................................................................. 51
11.1. Switching off...................................................................................................................... 51
11.2. Use with straw................................................................................................................... 51
12. Storage instructions................................................................................................................... 52
12.1. Parking outdoors ............................................................................................................... 52
12.2. Winter storage................................................................................................................... 52
13. Technical data............................................................................................................................ 53
14. Hydraulic plan of Respiro R3 compact & profi .......................................................................... 54
14.1. Respiro R3 compact........................................................................................................... 54
14.2. Respiro R3 profi ................................................................................................................. 55
15. Electrical plans........................................................................................................................... 56
15.1. Respiro R3 profi ................................................................................................................. 56
15.2. Respiro R3 compact........................................................................................................... 57
16. Transport on lorry or trailer ...................................................................................................... 59
17. Emergency service..................................................................................................................... 60
18. Reiter Innovative Technology customer service ....................................................................... 60

Page 4
2. General
Please read this operating manual carefully and keep it in the vicinity of the pick-up belt
rake. This will allow you to refer to it at any time for information regarding your safety and
proper use of the machine.

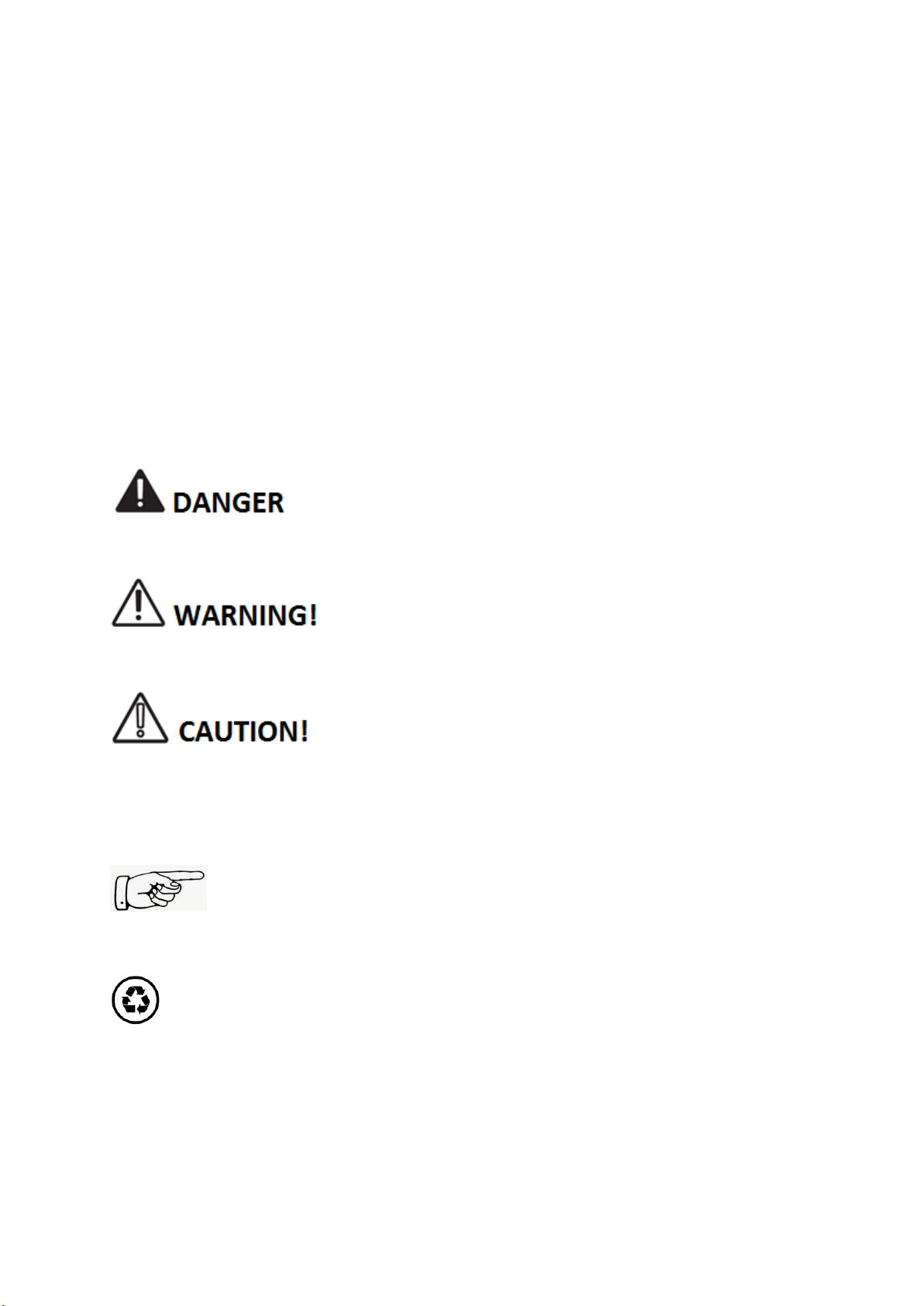

2.1. Symbols in warnings
In this operating manual there is a warning for every activity that involves a risk. Be sure to
follow these warnings to the letter. Doing so will allow you to avoid damage to property as
well as injuries, which in the worst case could even be fatal.
The warnings use signal words that have the following meanings:
Failure to heed this warning will result in death or severe injury.
Failure to heed this warning could result in death or severe injury.
Failure to heed this warning could result in minor injuries and/or damage to property.
2.2. Additional instructions
Information
This note indicates tips and useful information and provides assistance in solving a problem.
Environment
This note indicates instructions for the proper handling of environmentally hazardous
substances.

Page 5

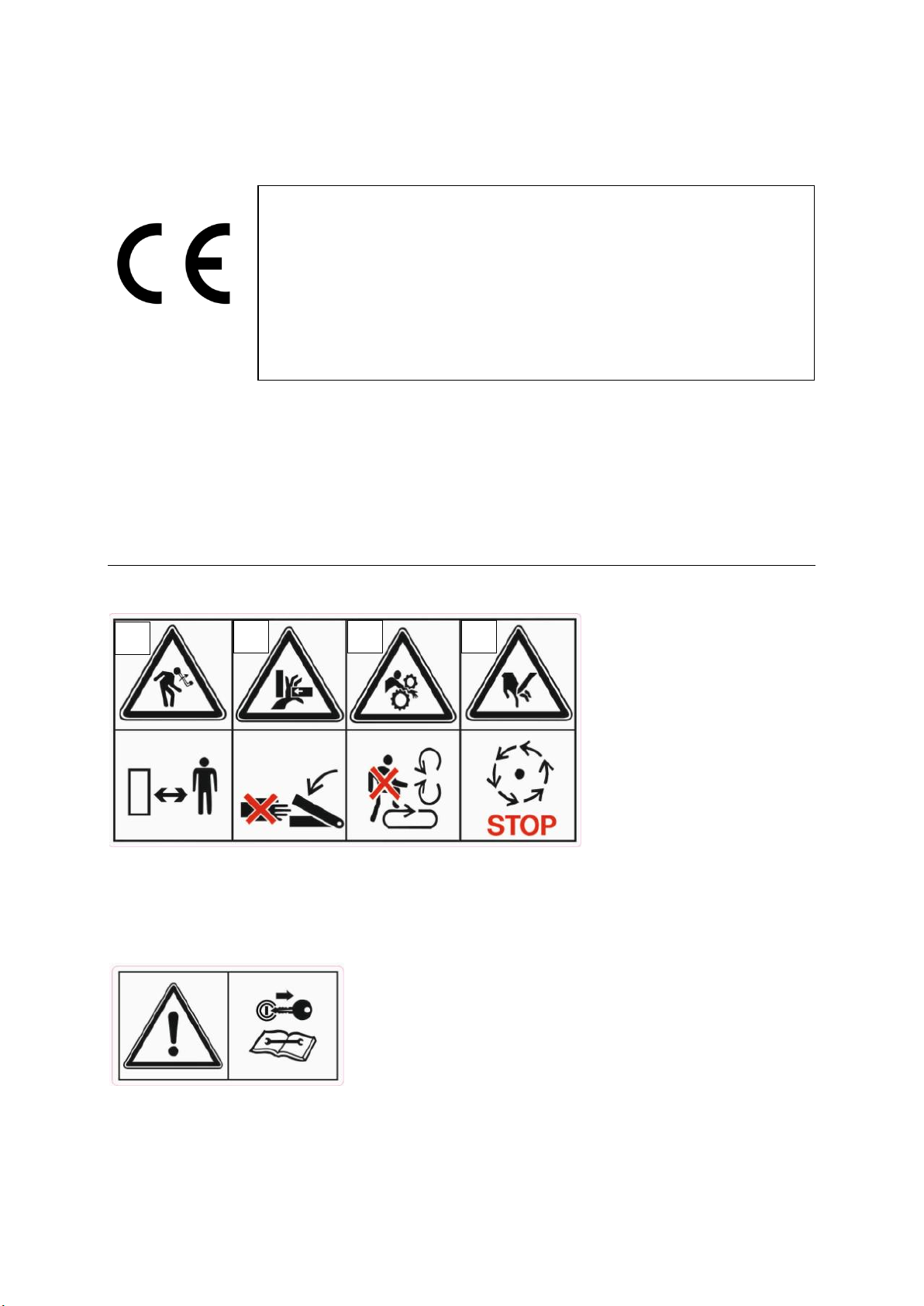

2.3. CE mark
2.4. Warning signs
2.4.1. Meaning
Group warning signs
1) Maintain sufficient distance.
2) Never reach into the crush hazard area while the parts there are capable of moving.
3) Do not touch moving machine parts, never climb on to the conveyor belt.
4) Wait until the machine has come to a complete standstill.
Switch off the engine and remove the key before performing maintenance and repair work.
The CE mark to be affixed by the manufacturer informs others about the machine’s
conformity with the provisions of the Machinery Directive and other relevant EC
Directives.
EC Declaration of Conformity (see appendix)
By signing the EC Declaration of Conformity, the manufacturer declares that the
machines placed on the market are in compliance with all relevant health and safety
requirements.
1)
2)
3)
4)

Page 6
Do not stand in the swivel range of the rotor while the machine is in operation.
Never step into the driving zone of the tractor.
Never reach into the crush hazard area while the parts there are capable of moving.
2.4.2. Position on the machine
Warning signs:
1) Do not stand in front of the tractor
2) Group warning signs
1)
2)

Page 7
Warning signs: Risk of crushing
Warning signs: Risk of crushing
Respiro R3 profi: correct setting of mounting frame height

Page 8
Maximum oil flow 60 l/min
Warning signs: Read operating manual before commissioning
Respiro R3 compact: Warning sign, risk of crushing

Page 9
Rotor suspension setting (1)
1)

Page 10
3. Important information about your safety
The Respire pick-up belt rake is designed and built according to recognised safety
regulations. Risks can nevertheless arise during use. The following safety instructions and the
special warnings in the individual chapters must be complied with for this reason.
3.1. Intended use
exclusively for typical use in agricultural work.
for raking various types of harvest forage.
in compliance with the prescribed maintenance and repair work.
Any non-agricultural use is prohibited
3.2. Target group
Qualified personnel, specialist agricultural workers
Non-specialists, auxiliary staff
Trainees, interns under supervision

Page 11

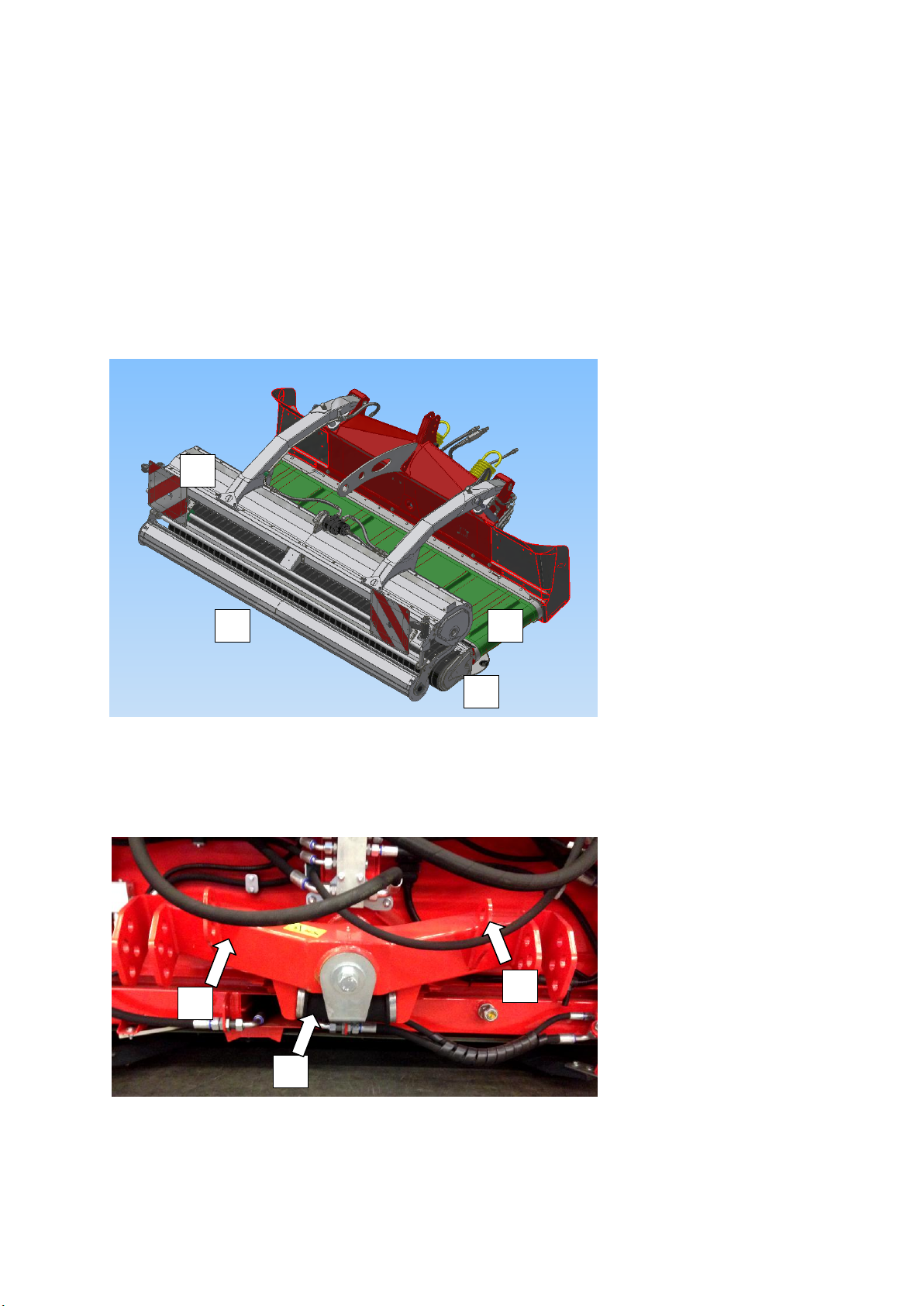

4. Product description
The harvest forage is picked up from the ground by the pick-up (1). The swath roller (2)
presses the harvest forage against the pick-up and guides the flow of material to the rotor
(3). The driven rotor conveys the harvest forage evenly on to the conveyor belt (4). The
harvest forage can be deposited by the conveyor belt on either the left or the right of the
machine.
The machine’s drive is hydraulic. No front PTO shaft is required.
4.1. Respiro R3 compact
Attachment rocker (1) with rubber buffers (2) for self-centring the work unit. Shackle (3) for
hanging in the suspension springs.
1)
2)
3)
4)
2)
1)
3)

Page 12

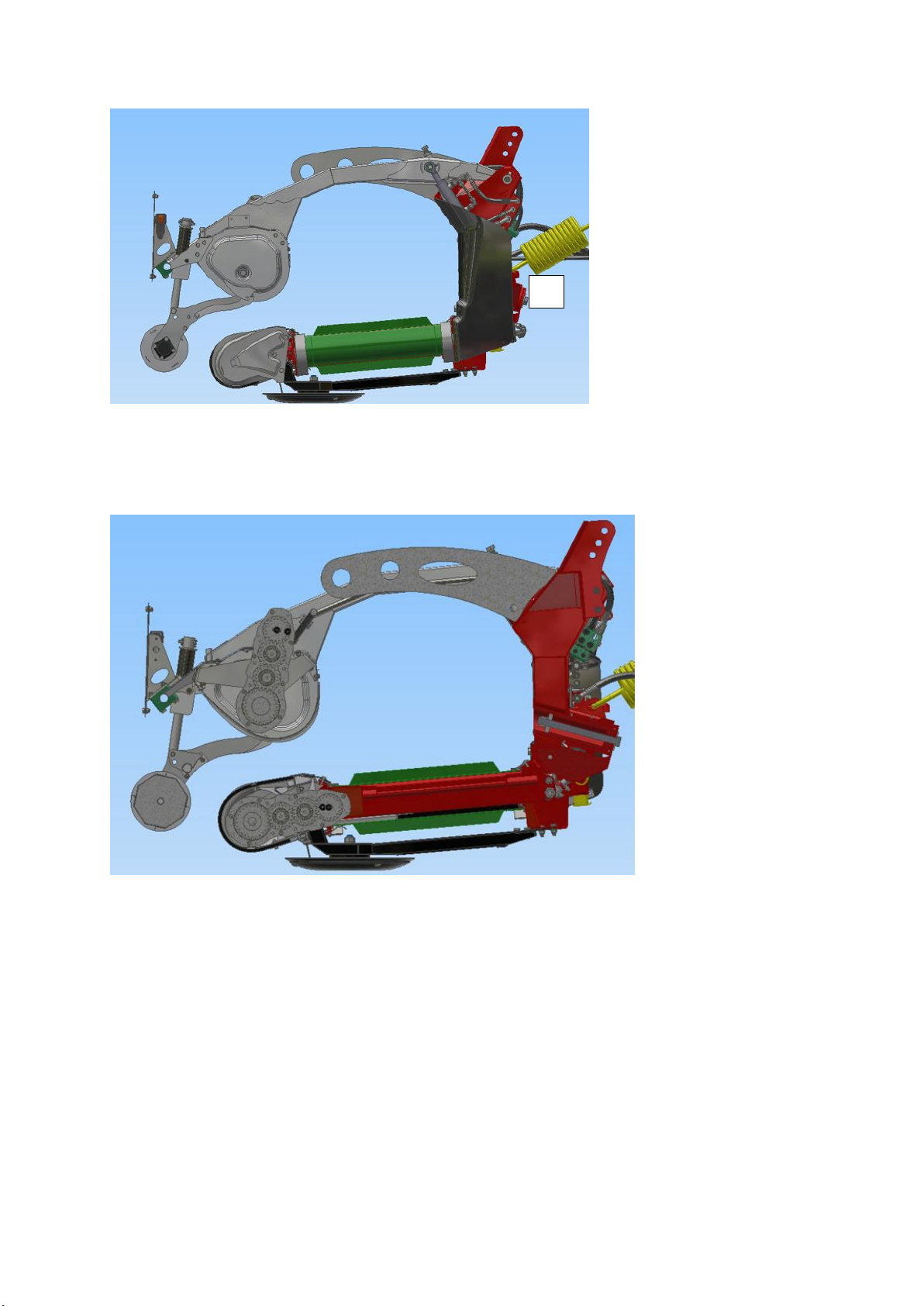

Suspension via two springs (1) to the tractor
Alternatively, integrated linkage suspension on the tractor
Sectional view of Respiro R3 compact, conveyor belt width 700 mm.
1)
1)

Page 13
Stone guard (1) and cleaning strip (2) for the strip mill roller (3).
4.2. Respiro R3 profi
Suspension integrated into the front linkage.
No springs required to tractor.
No integrated linkage suspension required.
1)
2)
3)

Page 14
Tractor’s front linkage fixed at one height for field work and transport.
Conveyor belt drive via hydraulic motor (1) and connector (2).
2)
1)

Page 15
Swath roller (1) suspension (2).
Accumulator (1) for rotor suspension.
2)
1)
1)

Page 16
Conveyor belt: Roller bearing (1) with fine adjustment (2) for optimal centring
of the conveyor belt.
Parking jack (1) for the work unit.
Respiro R3 profi: Setting the spring relief (1).
2)
1)
1)
1)

Page 17
Respiro R3 profi: Check valve (1) in the return flow of the hydraulic drive.
Respiro R3 profi: Lifting cylinder (1) with electromagnetically actuated seat valve (2).
Labyrinth seal for conveyor belt.
1)
1)
2)

Page 18

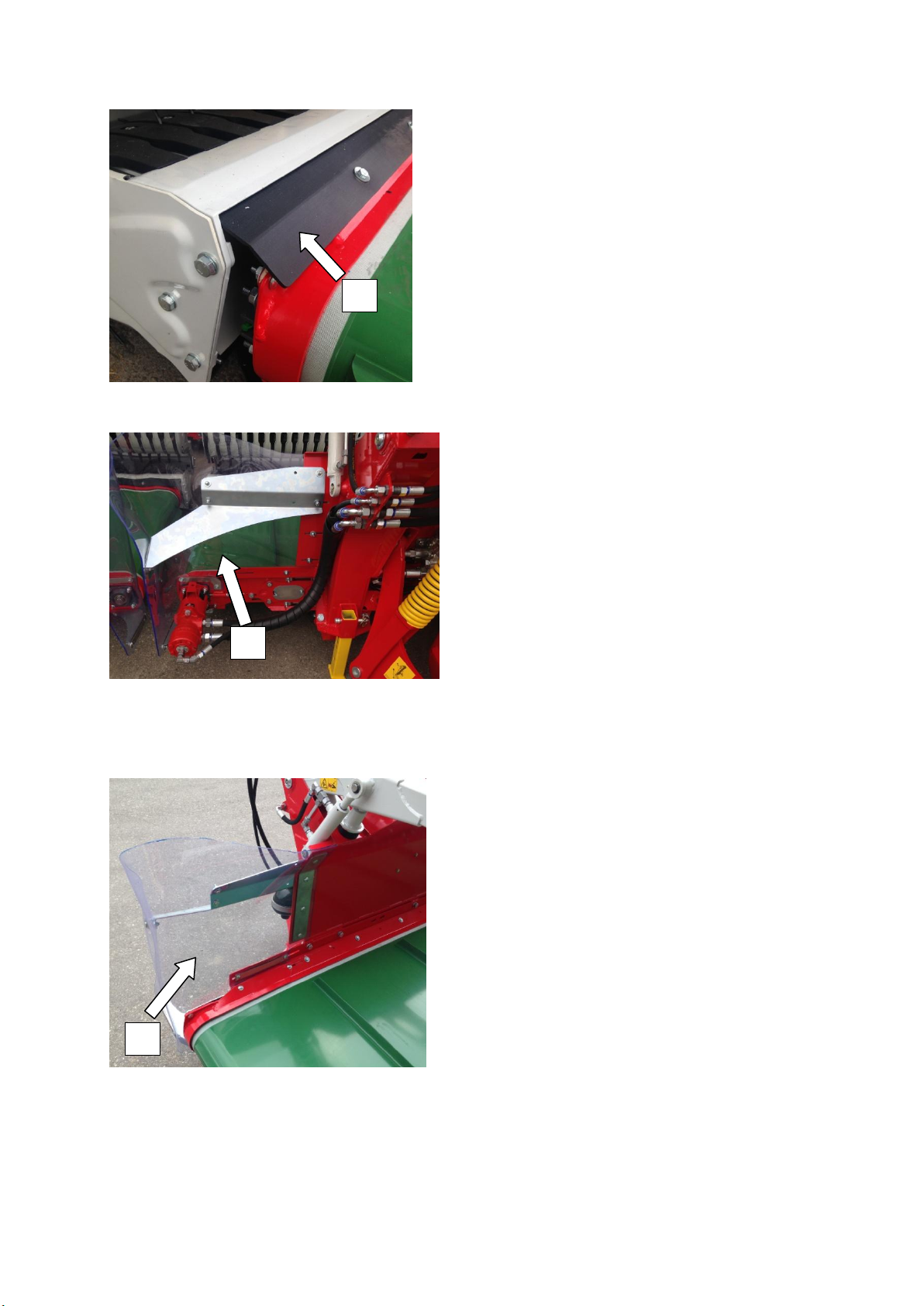

Transition part (1) from the elastic pick-up to the conveyor belt.
Transparent plastic guide element (1): Driver can see the conveyor belt. Operating condition
of the conveyor belt and direction of deposit are easy to identify.
Transparent plastic guide element (1): View from the side of the conveyor belt.
1)
1)
1)

Page 19
Main hydraulics module: Control of the belt direction on left (1) and right (2) as well as the
belt speed (3).
Mechanical emergency actuation of the main hydraulic module in case of damage to a cable
(valves can no longer be actuated electromagnetically).
Emergency actuation
Respiro R3 profi: Y5: Turn screw (1) clockwise => the belt travels to the right
Respiro R3 compact: Y5: Turn screw (1) clockwise => the belt travels to the left
Belt speed: Y1: Turn screw (3) clockwise => the belt travels faster
1)
2)
3)
3)
2)
1)

Page 20
Rotor module:
Electromagnetic valve (1): Lock rotor
Adjusting screw (2): Setting the damping; clockwise => damping becomes stronger
Adjusting screw (3): Setting the suspension; clockwise => suspension becomes stronger
Leak oil collector (1)
2)
3)
1)
1)
