RELAXONCHAIR RC-MK V User manual

Function Introduction
1．With the national invention patented massage on the back, the massage chair can
achieve kneading, knocking, Shiatsu, tapping and rubbing etc. It can create close to the
manual massage of the kneading techniques, which can make the massage as
comfortable as hand massage.
2．With the acupoint tracking detection functions, it is suitable for different height and
size of people to carry out accurate massage.
3．Combined with ergonomics and long L-shaped curve guide, so you can fully enjoy the
head to thighs massage, to quickly relieve the effect of spinal pressure.
4．One-button zero-gravity function, can effectively relieve the pressure on the spine and
joints, so that you experience true zero gravity experience.
5．10 cm away from the wall before the slide function, the back of the chair can be placed
near the wall, save more home space, and let you enjoy a massage experience in a limited
home space.
6．Footrest with a full range of rolling and airbag massage function, by stimulating the
reflex zone, smooth the body meridians, regulate and restore the body organs function,
and improve the body resistance and immunity effectively.
7．Legrest covered with multi-layer of airbags, massage on the leg muscles by pulse
pressure, promoting blood circulation, and recovering the leg energy.
8．Armrest with all-arm pulse pressure massage function, achieving the arm massage
and palm acupressure points shiatsu, to improve blood circulation, and relieve hand
numbness.
9．Buttocks with multiple sets of airbags, can completely cover the buttocks and thigh, to
achieve the different position alternately squeeze, eliminate fatigue fast.
10．Leg and foot angle can be freely adjusted to any angle, and can extend within the range
of 15cm. It is suitable for different height of people to use.
11．User-friendly simple controller with high-resolution LCD screen, can display massage
parts, techniques and status in real-time.
12．TCM heating therapy in the waist, promoting human blood circulation, relieving the
back pain, and protecting the spleen and stomach.

8
2
1
1
2
1
1
11
12
13
14
15
17
18
1
2
3
4
7
6
1
1
1
1
1
Left side of seat airbag
assembly
Sliding rail
Top seat frame assembly
Left armrest assembly
Electric magnetic valve
Massage machine
Right side fender
Remote control
Air pump
Connecting rod
Front fender
Left side fender
5Legrest &footrest
9Backrest electric actuator
1 0
Footrest electric actuator
1
1
1
Bottom seat frame assembly
1
13 14
按摩操作 按摩操作
7 8
1
1
Back cover assembly
19Back frame assembly
20 Backrest covering cloth
assembly
21 Back and seat cushion
1
1
1
22 Pillow 1
24 Right armrest assembly
25
Seat frame surface assembly
26 Right side of seat airbag
assembly
27
28 Castor
Seat support bar
1
1
1
2
2
29 Power case assembly 1

9 10
Step 3 How to assemble the left and right armrest .
Power line
①Unscrew the M6 on the seat frame with cross screwdriver. ②insert the fixed bolt into the fixed
hole of side backrest. ③ ④
⑤
Insert the square tube into the side piece of the seat frame. Slightly move
the armrest to make them front and back panel match bolt hole on the seat metal frame, screw M6
back to the hole. Connect air hose of the same color on armrest well to the air taps from seat.
Step1 How to move massage chair
①
②
③
④
Lift out from the main packaging carton: Take out the shoulder carton, legrest, left and right
airbags of the seat, back seat cushion, pillow, power line, hand controller from the main carton.
Take out the massage devices of the left and right shoulders from shoulder carton, when you
take it out, grab the left and right sides of the shoulder massage device with two hands and
slowly, and put on table or ground. (Do not scratch it.)
Lift out the legrest from carton, when you lift, hold the front and back sides of the legrest with
two hands.
Move out the main body of the massage chair from the main packaging carton, and hold on
the iron frame of two sides (left and right) of the seat by two people with two hands, and carry
it out slowly. (as show in the figure)
⑤ Lift out the left and right armrest from the armrest carton, when you left it out, hold two sides
(left and right) of the armrest, and slowly(the armrest is placed upside down in the carton);
Place flat the armrest on the table or the ground(be careful to prevent scratches), when the
armrest is to be installed, grasp the left and right sides of the armrest(from the front) with two
hands and lift slowly.
Left armrest
▲
Pillow
Right armrest
Back seat cushion
自动
复位
菜单
零重力
OK
自动
开/关 加热
Hand controller
⑤
Connect the air pipes
from the seat to the air
taps on armrest.
④
Mainly body of the massage chair
Hold the iron frame
of the seat with two
hands, and carry it
out slowly
Legrest
①
Screw
Screw
Side bracket plate
Square tube
Air tap
③
Fixed shaft
Fixed hole
Button
Fixing plate
②
Air pipes
Left airbag of the seat
(With the zipper facing
up, make the air tap jack
close to the left
cylindrical pin)
Right airbag of the seat
(With the zipper facing
up, make the air tap jack
close to the right
cylindrical pin)
Step 2: How to assemble the legrest
Install the legrest to the main body, ①unscrew from hangers of legrest then raise the rotation shaft
plate ②Raise the legrest with hands, put rotation shaft into hangers on main body, and put rotation
shaft plate down.③screw it back tight.④connect 3 air pipes onlegrest with air tap on main body, from
left to right is grey, brown and black pipe. Connect power line with power socket tight.
Shaft
Hanger
Rotation shaft plate
Raise the legrest with
hands, put rotation
shaft into hangers
Air tap
Connect air pipes
and power line with
air tap and power
socket tight.
④
①
Air pipes ③
Screw it
tight back
Screw
①
②
Power plug
Socket
Air tap jack
Grey/brown/black
When assembling the air pipe, do not squeeze pipes.
Disassemble the armrest: Disconnect the air pipes between the seat and armrest, unscrew
the four screws on the seat, lift up the front of armrest, let the square tube of amrest move out
from the plate of seat frame; then press the button on the fixed hole which at inside of back of
the armrest and pull the end of armrest at same time, move the fixed hole away from the fixed
bolt which on the side of backrest, then it will finish to disassemble the armrest

11 12
Step6 Installation of the seat side airbags
Install airbags of the seat side: take out left and right airbags of the seat side, With the zipper
facing to the seat direction, then to make two cylindrical pins and airtap holes alignment to two
holes and air taps of the seat frame, and then to press down vertically, plug in firmly.
Finally, take the hand controller out, and place it into the controller bag that is inside of the
right armrest.
▲
Air bags of the seat side
Two pin holes of
the seat frame
Air tap holes
There are two heating wire connectors
on the back cushion and the seat cushion,
connect them together
Place hand controller
into the controller bag
that is inside of right
armrest
Two cylindrical pins
Air tap of the seat frame

15 16
8、Keep pressing this button, legrest goes up, release it, legrest stop moving.
Controller screen will show position adjusting… when adjusting the position
of massage chair.
9、Keep pressing this button, backrest goes up, legrest goes down, release it,
backrest and legrest stop moving. Controller screen will show position
adjusting… when adjusting the position of massage chair.
5
choice:Recovery,Pain relief, Stretch,and relative screen display is shown on
controller.
、In ON status, press it to switch an auto program each time,five auto program for
10、Keep pressing this button, legrest goes down, release it, legrest stop moving.
Controller screen will show position adjusting… when adjusting the position
of massage chair.
Zero
OK
6、Direction button has 4 buttons,they are Up,Down,Left and Right.In Menu interface
it is navigator button,user can press Up or Down to choose menu fast,and press
Left or Right to enter previous or next menu, What's more, Up and Down button
can be used to adjust massage position in acupuncture point tracking detecting
finish and point massage.
7、
OK
Set function by pressing Menu key.
Speed：
Width：
Intensity：
20 min
Zero
Manual control
Manual control
1. Press power switch button under standby status,massage chair enters ON status.
Press Menu or button to choose massage program. In ON status,press power
switch button, massage chair will turn off and return, massage machine automatic
reset to the seat part, legrest stays in the lowest position, backrest stays in the
highest position, controller will turn off after 3-5 seconds.
2. In ON status, press it to enter quick auto program, there is relative status
screen display. Default massage time is 8 minutes. Press it again to stop.
relaxation
4. Press this button in Main interface to switch to menu interface, user can set
different function for massage chair. Press it in Menu interface to return to
main interface.
11. Keep pressing this button,backrest go down,legrest go up,release this button,
backrest and legrest stop moving.When adjusting sitting position, it shows
seat position adjusting… in controller screen.
12. In On status, press this button,massage chair will go into zero-gravity position,
press it again to return to default position.
3. In On status,press it to stop all the on-going massage immediately, all the button
not working, if user wants to continue massage, please press On/Off button to
turn on controller.
In ON status and under Menu mode, press it to confirm menu choice and enter next
menu.
Emergency off
Up
Down
Right
Legrest up&
backrest down
On/Off
Auto
Left
Confirm button
legrest down
Zero-Gravity
Menu
Quick relaxation
Manual control
Massage operation Massage operation
legrest up backrest
Legrest down
up&
On/Off
Quick
relaxation
Emergency
off
Menu Auto
On/Off
Quick
relaxation
Emergency
off
Menu
Auto
Zero

Yoge
Special Relax mode
Sleep mode
Neck-shoulder
Back-waist
Start
Stop
Heating: In menu mode, choose waist
or seat heating by navigation key, and
on or off two kinds optional, heating area
can be displayed on the screen.

19 20
Zero
1
32
a
1
3
4
2
Arm massage
Shoulder massage
Legrest Up
Legrest Down
Legrest extend and retract
Press this button on controller,
backrest go down and legrest
go up.Release this button,
backrest and legrest stop
moving,the angle is
locked in this position.
Legrest up and backrest down
Backrest up and Legrest down
Zero gravity
Massage operation
1. Please make sure there is no people, no pets or any stuff within range for backrest to avoid unexpected hurt or
property loss.
2. When adjusting the backrest, be careful the gap between the backrest and armrest.
3. When the legrest is moving, please do not stand on or leave from the seat, do not stop the legrest from moving
in case of causing damage to the chair.
4. Please refer to control instruction for more details.
Operation instruction and function illustration
Function Illustration
Operation instruction and function illustration
Massage operation
ON/OFF
② When massage stop, massage machine
return to the default position, meanwhile
“Shutting down”displayed on the controller,
controller off after 2-3 seconds.
Step1. Power on
On/Off
Power switch
① Put one end plug of power line to “a” hole.
② Put power plug to socket.
③ Turn on the power switch which is on the
power box, massage chair is powered.
④ Press "ON/OFF" on the controller, "DI"
beep tone send out, meanwhile display
Logo information, then enter the display
interface.
Step2. Massage
① Operate according to controller operation
instruction.
Step3. Turn off the power
①
②
③
When the chair is On, press On/Off button
to turn off the massage chair and it will
restore automatically.
Turn off the power switch on the bottom of
the back of chair after the rollers stay at

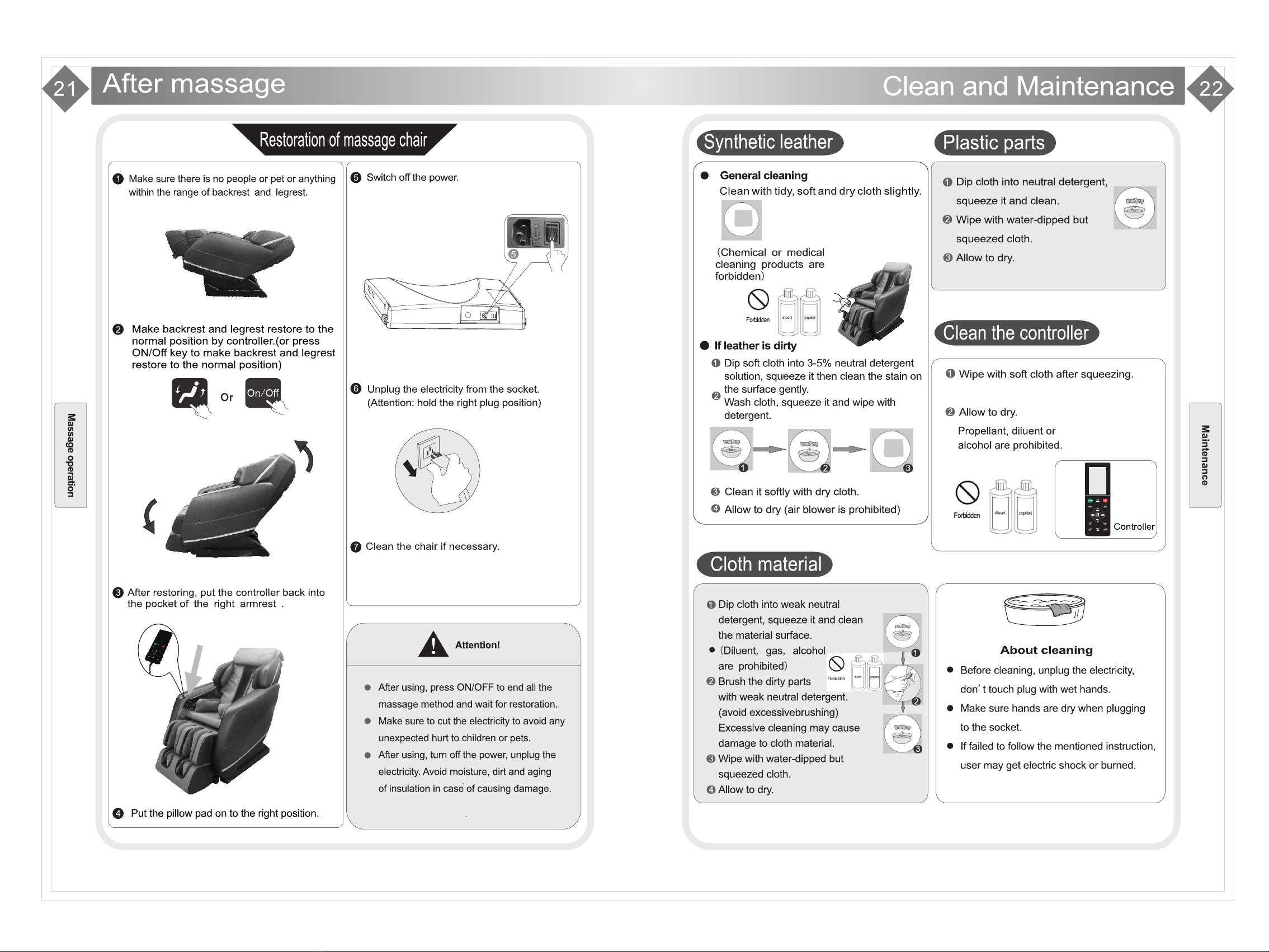

storage position.
Unplug the power plug from the socket.
1. Before using, pull up the pillow,
back cushion etc. to check if the
PU material is broken, if there is
damage, please stop using,
unplug the chair, and ask for
repairment.
2.Only plug to proper socket.
Warning
Attention
1.Before sitting down, make sure there
is no things pinched between armrest,
legrest , backrest and seat of the
chair.
2.Make sure the chair is in returned
position before using.
3.Do not stand on it when using the
massage chair.
Legrest can extend or retract within a
range of 15CM.
Multilayer extrusion
airbags is deployed
on both sides of the
shoulder. Achieve
pressure shoulder
stretch massage,
relieve shoulder
fatigue.
Footrest parts with roller
massage and air
pressure massage
function.Through
stimulating the foot
reflex zones,and clear
the body meridians,
regulate and restore
human organs function,
improve the body
resistance and immunity
effectively.
Put arms between arm
airbags before the
embedded airbags
filled with air. It will
perfom pinch
massage techniques
to arms and hands
after airbags inflating.
Press this button on controller,
backrest go up and legrest go
down. Release this button,
backrest and legrest stop
moving,the angle is
locked in this position.
Press the button "Zero” ,backrest
go down and legrest raise up,
the chair go into Zero gravity
status automatically.Press the Button
again,the backrest
and legrest stop moving,
and it will lock at this
position.However to change
the angles,we can keep
comfortable massage status all the time.
Foot roller massage
Press this button on controller,
legrest goes up.Release the
button,legrest stops moving,
the angle is locked in this
position.
Press this button on controller,
legrest goes down.Release
the button,legrest stops
moving, the angle is
locked in this position.
On/Off
Zero
OK
On/Off
Quick
relaxation
Emergency
off
Menu Auto

RC-MK-V
L Track Massage Chair
