RELAXONCHAIR YUKON-4D User manual

YUKON-4D
USER MANUAL
Please read SAFETY INSTRUCTIONS carefully before using the chair.

YUKON - 4D
Function Introduction
1. With the addition of patented 4D massage design built into the roller
mechanism, the massage chair is able to deliver a powerful, creative massage
that utilizes techniques such as kneading, tapping, a combination of kneading
and tapping, shiatsu, knocking, and rolling in order to imitate human hands
along your body.
2. Heating has been implemented into the rolling mechanism with a heating ball,
allowing the heat therapy to reach all the way form the neck to the buttocks.
3. Long L-track designed to apply massage techniques all along the length of the
body from your head to your buttocks.
4. Space-saving function allows for the massage chair to be close to the wall, as
the chair slides forward as the back reclines.
5. Zero-gravity functionality is available with just a-click-of-a-button. It relieves
pressure off of your spine and other joints by achieving a flat posture in order
to feel completely relaxed.
6. A simple hand controller with full-color LCD screen for displaying massage
programs and status in real time.
7. Wireless Bluetooth connectivity allows you to play music or videos from your
device, and lets you set the mood in order to match your style.
8. Equipped with omnibearing rolling and air compression technology, the foot
massager is able to relax your feet in addition to a roller heating function.
9. The calves are kneaded with multiple air cells by using pulsing air pressure
which can promote blood circulation and restore vitality to your legs.
10. Arms feel relaxed form the air compression massage, which can promote
blood circulation.
11. Experience a full body compression massage with airbags located on the
waist, hip, thigh, arms, calves, feet, back, and shoulders to relieve muscle
tension.
12. The footrest can be extended up to 22cm, accommodating for various
heights.

Thank you for choosing the Relaxonchair Yukon Massage Chair. Please read this
manual very carefully before use of the product. Keep this manual for future
reference. Please pay attention to the SAFETY INSTRUCTIONS.
Note: We reserve the right for the design to be changed. It is subject to change without notice.
The pictures used in this manual are just for reference, and we ask you to please look at the
actual product.
Table of Contents
PREPARATION
Safety Instructions .......................................................................................... 1
External Structure Parts ................................................................................. 5
Internal Structure Parts .................................................................................. 6
Mechanical Components ................................................................................ 7
INSTALLATION
Installation ....................................................................................................... 9
MASSAGE OPERATION
Adjustments Before Massaging .................................................................... 14
Manual Control ............................................................................................. 17
Operation Instruction..................................................................................... 22
Function Illustrations .................................................................................... 23
Voice Recognition ........................................................................................ 25
After Massage ............................................................................................... 26
MASSAGE OPERATION
MAINTENANCE
Cleaning and Maintenance .......................................................................... 27
OTHERS
Malfunctions ................................................................................................. 28
Technical Data .............................................................................................. 29

SAFETY INSTRUCTIONS
�Please read this manual carefully to ensure that the installation and operation
of the massage chair is correct.
�Warning and Caution markings are provided for important safety information.
Warning
Caution
This sign indicates possible cause of death or severe injury to the body.
This sign indicates possible injury or damage to things.
This sign indicates forbidden behavior.
This sign indicates instructions for oper-
ating.
This sign indicates that disassembly is
forbidden.
This sign indicates the correct operation
of a cable.
Warning
●People with osteoporosis, vertebral fractures, and acute painful diseases such as
sprains or muscle strains.
●Heart disease patients (including those who have pacemakers or are using other
medical electronics).
●Cancer patients.
●People with perceptual disorders due to high levels of peripheral circulatory
disturbances such as diabetes.
●People with abnormal spine or crooked spine.
●People with Protruded intervertebral Disc.
●Pregnant women and those who have just completed childbirth, as well as people
with poor health.
●People with trauma, such as thrombosis, acute varices, and various skin
inflammations.
●People who have been identified as having lost their ability to discern temperature.
●People with high fever (acute inflammation: such as burnout, chills, blood pressure
changes, physical weakness).
●Elderly people over 80.
●Persons with impaired consciousness, mentally handicapped persons, or those
who are incapable of operating the unit are prohibited from using this unit.
●People who can not take care of themselves, infants, and drunkards.
●Do not use this unit when it is wet or when you are wet.
●It must be taken care of, or not used by people who are not sensitive to heat or
people who are allergic to heat.
●Do not fall asleep in this unit.
�The following should be kept for any further references.
Not suitable
users.
Risk of
causing
accident or
body
discomfort.
People with above symptoms should not use massage chair, or use it under doctor's
advice.
User's discretion is advised if use the chair.
1
SYMBOL MEANING
1

SAFETY INSTRUCTIONS
Warning
●Before sitting, please confirm that there are no foreign matter inclusions between the
various parts of the machine.
●When using the backrest ，calf up &down, or calf extend, be sure to check that there
are no people or objects in the area (behind, under, or in front of the chair).
●In the event of a physical abnormality or abnormality in use, stop using it
immediately and ask a doctor.
●Massage around the head should pay attention to the movement of the massage
rollers, the head should not do too much or too strong massage.
●Pay special attention when you massage the area around your neck.
●Avoid excessive neck massage.
●Do not massage the abdomen or knees with this machine.
●If you want to leave your seat during the massage, you must stop the massage chair
before you leave the seat.
●Do not use it with other instruments.
●Do not allow children or pets to play on or around the unit (especially in use); nor
can they sit or stand on backrests ,armrests or legrest.
●When people are inconvenient for action or lack of communication skills, they must
have strict and continuous care.
●Before moving the unit, the backrest and legrest must be angled back to their
original position.
Accident
/injury
2
●When assembling, turn off the switch and unplug it after the chair returns.
●Insert the plug of the chair into correct and suitable power socket.
●Make sure the plug is completely inserted into the socket to reduce short circuit or
fire risk.
●Unplug the power when not in use,stop all massage functions and turn off on/off key
before unplugging.
Fire and
electric
shock
●Massage cushions of the chair are not allowed to fold for storage.
●The machine is forbidden for no-load running for a long time.
●An appliance should never be left unattended when plugged in.
●Power cord, plug, socket can't be used in broken or loose contact
condition.
●Don't use other electric power except rated voltage in case of fire, electric shock or
any breakdown.
●Any broken, re-process, knotted, twisted power cord or pressed under heavy cargo
is not allowed to use.
●Never operate this appliance if it has a damaged cord or plug, if it is not working.
●Keep the code away the heated surfaces.
Accident
Fire and
electric
shock
●If the chair works dysfunctional, or is broken, splashed with water or falls into water,
please have it repaired by professional repairman or send the chair to assigned
service agent.Self-modification, disassembly or maintenance is forbidden.
●If power cord or plug is damaged, please don't replace it yourself, please contact us
or appointed dealer for replacement.
●To avoid electric shock or body hurt, please don't open or disassemble any part of
the chair, there is not any attached part of the chair for maintenance by customers.
●Check leather or cloth material on the back and other areas is broken or not. If
broken, even though it is small,please stop using the chair, unplug the power and have
it repaired
Disassembly
and
maintenance
2

3
SAFETY INSTRUCTIONS
●Please operate the chair in a flat or level place. To avoid sudden falling.
●Don't press with hands or step on the massage heads with feet.
●Don't put hands between the working massage heads.
●Don't put hands or feet in the gap of mechanical parts.
●Don't drop or embed anything into the slot of massage chair.
●Don't stand or sit or put anything on the backrest, armrest or leg-rest.
●Don't move the chair during operation.
●Don't stand on the chair during operation.
●Don't pull out the plug or turn off the power during operation.
●Don't put your hands or head between leg-rest or beneath.
●Don't use the massage chair while wearing hair ornaments.
●Don't put hard things in pocket when take buttocks and huckle
massage.
●Don't sit or press on the backrest when the chair is in reclining position.
●Don't use at bare skin or were thin clothes, thin clothes may can
achieve better massage effect, But it also may cause irritation to the skin
or cryogenic burns.
●Do not use massager in close proximity to loose clothing or jewelry.
●Keep long hair away from massager while in use.
Caution
●The maximum suggested operating time is 20mins. 5mins for each
position beginning with the slight- step massage. Along continuous
massage in the same position may cause uncomfortable feeling.
●Before sitting on the chair to avoid injury please inspect everything to
confirm that the massage heads are in the correct position.
●Hand control should be timely put into the hand control bag, do not
arbitrarily put away, to avoid squeezing or drop damage.
●Please make sure that the power switch is at the“OFF” position before
inserting the plug into the socket.
●Turn off all controls before removing plug from outlet.
Too long time massage
is bad for your body.
To avoid accidental
injury.
To avoid the accident
when turn on the power.
●Make sure the plug completely insert into the socket. To reduce short circuits
and any fire hazard.
●Checking whether any damage on wire,make sure no water or rubbish
on wire.
●Installing earth wire in correct way. The plug must be
inserted into socket with earth connect, the earth connect
couldn't be bend or cut off.
To avoid electric shock
in any leakage or
breakdown.
To avoid accidents or
injury
●Make sure to install the earth wire in correct way (Incorrect install way
may cause electric shock. If you don't know how to install, please find a
professional electrician)
●Don't use plug adapter (If the enclosed plug doesn't match with socket,
please don't change the plug by yourself and find a professional
electrician to install a matched socket. )
To avoid electric shock
3

4
SAFETY INSTRUCTIONS
Caution
●Keep the chair away from heat, wet, sharp things and corrosive,
inflammable, explosive environment.
●To use electric blanket or other heating products on the chair is
forbiden.
●Keep the chair away from stove or other heating products.
●Don’t put the chair directly under the sun or other high temperature
places.
●Don't put in the space of dust serious or corrosive gas environment.
●Don't put the chair in a small space places or use in the bad air
circulation places.
●Don't use the chair outdoor.
To avoid fade, discolor
on upholstery or
hardened, deteriorated
on PU.
●Keep Dry-Don't use or store the chair in the wet environment like
nearing the swimming pool, or bathroom.
●Keep the chair and remote control dry all the time.
●Do not use it when user's body is wet.
To avoid leakage or
electric shock.
●Unplug the power before cleaning the chair.
●Unplug the power after using the chair.
●Unplug the power when any damage on the power.
●Hold the plug to unplug the power but not try to pull the wire to unplug
the power.
●Please turn off the power switch and unplug the power after massage.
●Unplug the power immediately when electricity goes off.
To avoid electric shock
or fire harzard.
To avoid accidents.
To avoid damage or accidents
when power on again.
The chair is equipped with a cord with a built-in
grounding conductor. The plug must be plugged into
an appropriate socket in order to ensure that it is
properly installed and matches the plug.
GROUNDING INSTRUCTION
When the fuse has burned out, please turn off the
power switch located at the back of the chair. Open
the lid of the cover, which is covering the switch
box. Replace the old fuse with the new one. Then
place back on the cover.
REPLACING THE FUSE
4

5
EXTERNAL STRUCTURE PARTS
Power switch
Power case
Powercordsocket
Fuse holer
Remote control
Pause
Auto
On Off
/Heating
Menu Experience
Zero
OK
USB charging port
Seat
Back seat cushion
Loud speaker
Left shoulder
massage device
Right shoulder massage device
Right armrest
Legrest
Footrest
Headpad
Left armrest
Castor
Shoulder cushion
Remote control pocket
Backrest
5

6
INTERNAL STRUCTURE PARTS
Calf airbag
Foot heating plate
Side airbag of leg
Heating Massage head
Shoulderairbag
Waist airbag
Air bags in the side seat
Footrest airbag
Foot roller and shiatsu
Air bags in the arm area
6

7
MECHANICAL COMPONENTS
12345678 9 10 11
12
13
14
15161718
19
20
2122
MECHANICAL COMPONENTS DIAGRAM
7

8
11
1
2
3
4
7
6
1
1
1
1
1
Right armrest frame
assembly
Under frame assembly
5
9
10
1
1
1
1
1
1
22 1
NO QtyName
Backrest electric actuator
Seat electric actuator
Foot and leg assembly
Remote control
Right side fender
Left side fender
Power case assembly
Massagemachine
Rightarmrestassembly
Back cover assembly
NO QtyName
1
1
1
1
1
1
1
12
13
14
15
16
17
18
Left armrest frame
assembly
19
20
1
1
Shoulder pad
21
1
Seat bottom frame
assembly
Pillow
Back and seat cushion
Shoulder device assembly
Leftamrestassembly
Footrest electric actuator
Seat frame surface
assembly
Backrest assembly
8
MECHANICAL COMPONENTS
MECHANICAL COMPONENTS LIST
8

9
INSTALLATION
STEP 1: PREPARING ASSEMBLY

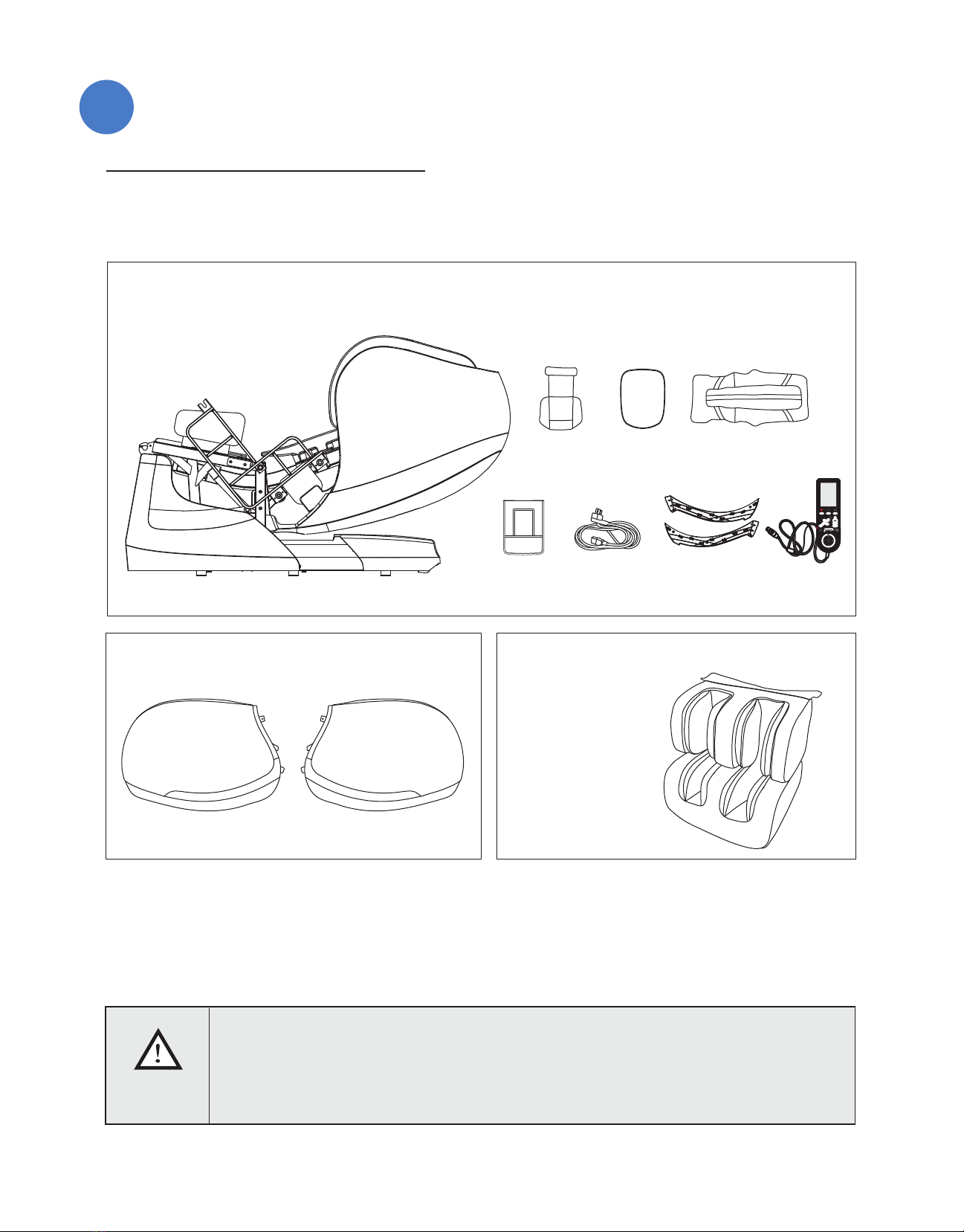

�Check the Boxes
Massage chair main body
BOX 1 (MAIN CARTON BOX): MASSAGE CHAIR MAIN BODY & 2 ACCESSORY BOXES
Headrest Additional
Head cushion Backrest
Pause
Auto
OnOff
/Heating
Menu Experience
Zero
OK
Controller
pocket
Electric
power cable
The armrest
exterior parts
Controller
& Cable
Accessories
from the accessory boxes
BOX 2 (ARMREST CARTON BOX):
LEFT AND RIGHT ARMRESTS
Left armrest Right armrest
BOX 3 (FOOTREST CARTON BOX):
FOOTREST
Footrest
Check all the boxes to make sure that you have everything you need. Make sure that the
chair is reclined and is away from objects and obstructions for safe assembly.
�Check the environment
Check all the boxes to make sure that you have everything you need. Make sure that the
chair is reclined and is away from objects and obstructions for safe assembly.
Due to the weight of the chair, we recommend using a blanket or soft cover in order to
protect your floor from getting ruined.
Caution
●Don’t use the chair in wet environments like near the bathroom or swimming pool to avoid
leakage or electric shock.
●Please use the chair in a flat area to prevent the chair from tipping over, falling, creating
noises or other unexpected trouble.
●Don’t use the massage chair under direct sunlight or near heating places like the stove or
fireplace in order to avoid the upholstery from deteriorating.
9

10
INSTALLATION
STEP 2: INSTALLING THE FOOTREST
�Preparing to Install the Footrest
Locate the body of the chair on a soft surface in order to begin assembly. Identify the
location of the footrest screws and attachments on the body of the chair. Using a
Phillips-head screwdriver, remove the footrest screws and put aside for later.
1. Place the footrest near the body of
the chair, and unscrew the the footrest
2. Plug in the electrical cord and air
hose into their respective socket and
3. Lift up the footrest attachment covers, then carefully lift up the footrest to place
the footrest into the footrest attachments.
4. Close the footrest attachment
covers, and screw the footrest screws
Socket Nozzle
Cover
Footrest attachment
5. Remove the velcro covering from
the footrest flap, and attach the velcro
to the body of the chair.
10

11
INSTALLATION
STEP 3: INSTALLING THE ARMRESTS
�Preparing to Install the Armrests
Locate the left-side air hoses on the body of the chair that will be connected to the left-side
arm panel. Locate the right-side air hoses and electrical plug on the body of the chair that
will be connected to the right-side arm panel.
1. Remove the rubber plugs located
on the inside of the arm panels, and
set aside for later.
Air hoses
(Both left and right side)
Electrical Plug
(*Right side only)
Rubber
plug
Arm panel (inside)
2. The armrest exterior parts should
snap into place.
Armrest
exterior part
Arm panel
(outside)
Note: The hoses and electrical plug
may be underneath the chair seat, so
they may not be visible without taking
them out.
3. Carefully angle one of the arm
panels so that the bracket on the body
of the chair is angled with the brace on
the inside portion of the arm panel.
Then proceed to slide it halfway into
the mounting bracket.
Angle of sliding
4. Holding the arm panel in place
halfway, reach and connect the air
hoses to the nozzles located on the
arm panel.
(The grey hose connects to the right
nozzle while the black hose connects
to the left nozzle respectively.)
(The electrical plug connects to the
socket on the right arm panel.
There is no electrical plug and
socket on the left side.)
11

12
INSTALLATION

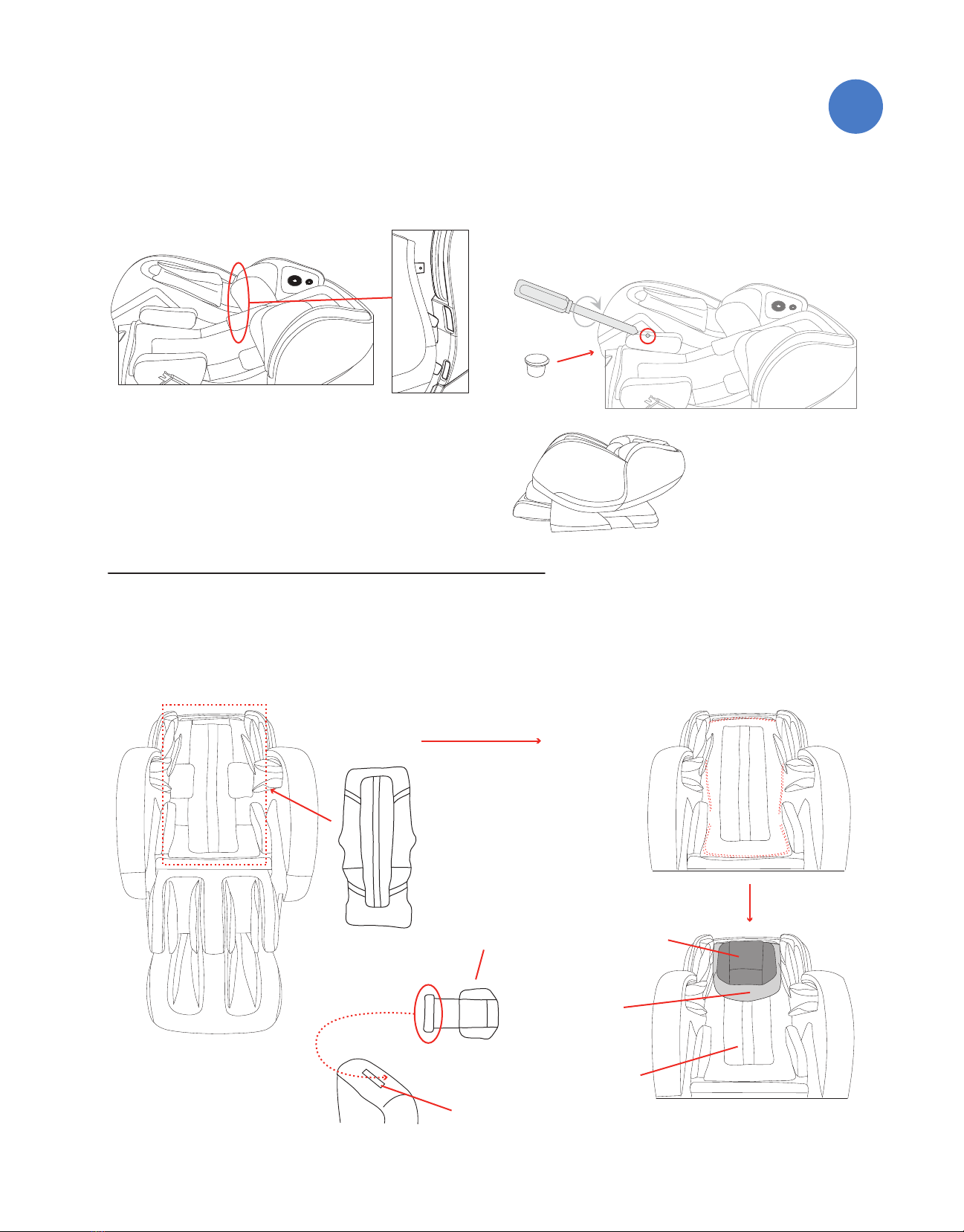

5. Then align the panel with the body of
the chair in order to slide the arm panel
into the slots.
6. Tighten the screw fully in order to
secure the armrest to the chair. Once
fully screwed in, plug the hole with the
rubber plug that was previously
removed.
Rubber plug
7. Repeat Steps 1- 6 for the another arm
panel.
STEP 4: INSTALLING OTHER ACCESSORIES
Backrest
(Connect the
backrest by
the 4 zippers)
Back seat cushion
Additional
head cushion
(Connect by zipper)
Headrest (Connect by the fix belt)
Fix belt
�Installing the backrest, additional head cushion and headrest
The backrest can be secured with zippers along the length of the chair. Then place the
additional head cushion at the top of the chair, which is also fastened with zippers. The
headrest is secured by sliding the tab in between the open handle at the top.
12

13
INSTALLATION
STEP 5: PLUG AND PLAY

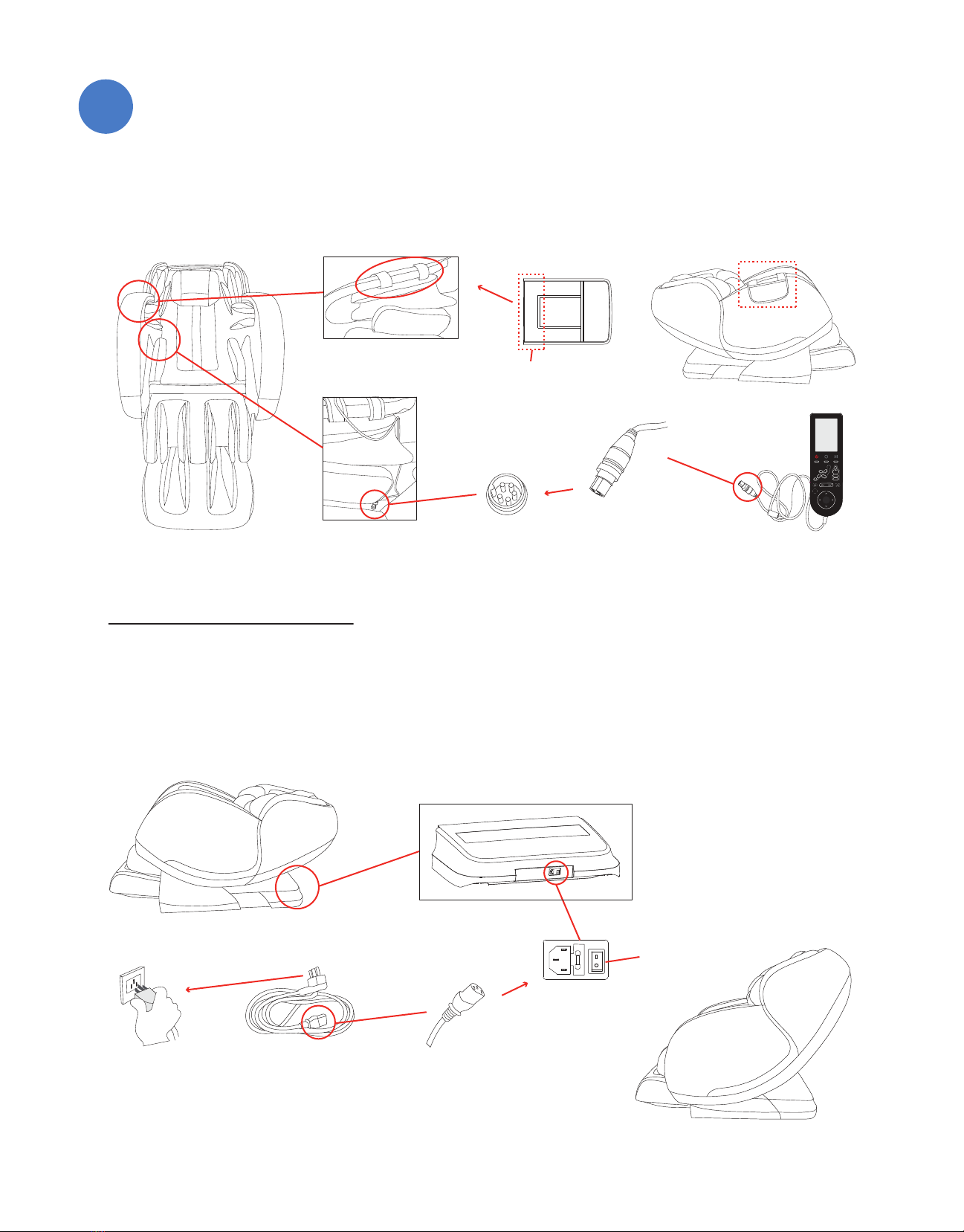

�Installing the controller and controller pocket
Connect the remote controller pocket to the right armrest by the velcros. The remote control
can be plugged into the right side of the chair, near the air hoses and electrical plug.
Pause
Auto
On Off
/Heating
Menu Experience
Zero
OK
Remote controller pocket
Remote controller
Velcro
Power cable
Power switch
Power cable can be plugged into the back of the chair and the power can be turned on by
flipping the power switch on. You can now enjoy your RELAXONCHAIR Yukon-4D Massage
Chair.
Note: Please refer to the user manual for instructions on how to operate the massage chair.
13

14
ADJUSTMENTS BEFORE MASSAGING
CHECK ENVIRONMENT
Caution
●Don’t operate the chair in wet environments in order to avoid leakage or electric shock.
●Don’t operate under direct sunlight or near heating sources in order to avoid upholstery
deterioration.
●Please operate the chair on a flat surface in order to avoid falling, injuries, unnecessary
noise, etc.
�Check Places in Front
Check the areas around the chair before
operation in order to make sure that no
people, pets, or objects are in danger of
being injured/damaged.
�Check Power Cable
Ensure that the cable is not frayed, twisted,
tied, or underneath a heavy object in order
to have safe operation.
�Space Size for using the chair
The chair requires at least 4 inches from
the back of the chair to the wall in order to
accommodate for the full recline of the
chair.
�Check Surroundings
Pay attention to any person or things within
the vicinity of the chair and for ample
space when the backrest and footrest
reclines and extends.
The chair requires at least 24 inches in
front of the leg in order to accommodate for
the full recline of the chair.
14

15
ADJUSTMENTS BEFORE MASSAGING
- It may take 2 or more people to properly move the chair.
- Check to make sure that the power has been turned off, and
that the power cable is away.
�How to Move
Press down on the head portion to create leverage on the rest of the massage chair. Using
the rollers on the back of the chair, move the chair to your desired location slowly and
steadily. Then proceed to set down the chair slowly.
The footrest may need to also be held up as shown in the picture in order to prevent
scratches and scrapes on the leather/fabric.
No more than 40 degrees
Rolling wheel
HOW TO MOVE MASSAGE CHAIR
Caution ●Don’t move the chair while it is in operation in order to prevent accidents or damages.
�Preparing to Move
- Bind the cables and put them in the seat to avoid damage when moving.
- Do not use the roller on the back of the chair if the flooring can be easily damaged or
ruined.
15

MASSAGE ADJUSTMENT
16
ADJUSTMENTS BEFORE MASSAGING
�Massage Adjustment

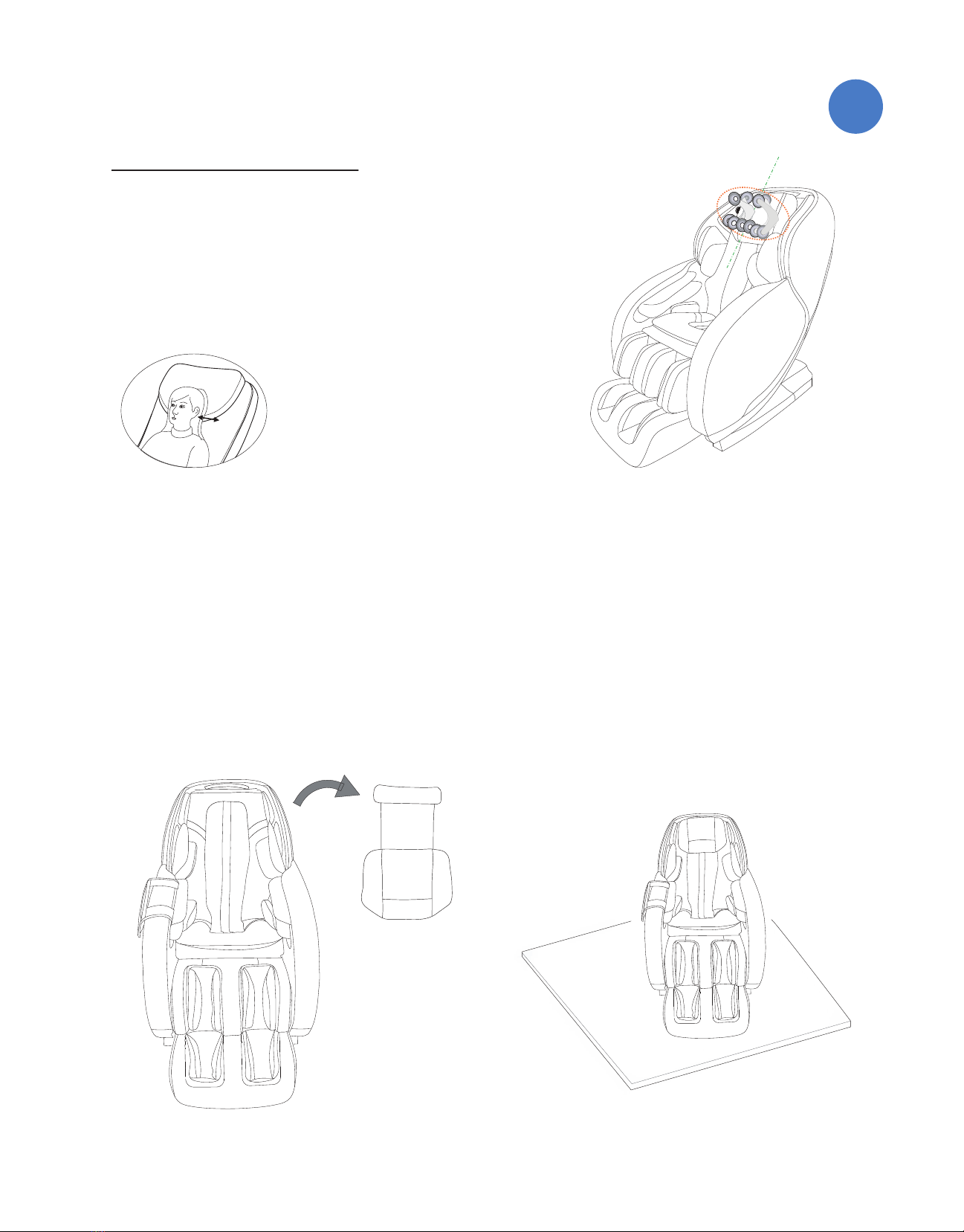

Make sure the back rollers stop at the upper portion of
the back, then proceed to sit on the chair slowly.
When the massage chair cannot find the shoulders
during body scans, it will default to the middle of the
back portion.
Properly Seated:
Please rest your back up against
the seat as much as possible, and
make sure the head rests against
the pillow.
�Additional Option
If the massage is not strong enough for
you, the headrest and head cushion can be
removed.
Due to the weight of the chair, it may ruin
the flooring in a long-term setting. We
recommend having a blanket or something
soft underneath the chair to help protect
the flooring.
The remote control will beep once the body scan begins into function.the up-down key can
be used to adjust the shoulder height.
Following these adjustments should provide a more pleasurable experience as
comfortability influences the experience.
16

17
MANUAL CONTROL
Time +
Time -
Time+
Time
-
Pause
Auto
On Off/Heating
Menu Experience
Zero
OK
Heat
Experience
Zero-Gravity
Legrest up
On/Off
Confirmbutton
Left Right
Down
Menu
Pause
Auto
Legrestdown
Up
Legrest up and
backrest down
Backrest up and
legrest down
Zero
Set function by pressing Menu key.
Speed:
Width:
Intensity:
4D：
20
min
17
