REMOVU R1 User manual

USER MANUAL

Table of Contents
1. Understanding This User Manual 3
2. Product Components and Features 4
3. Using REMOVU R1
Charging the Battery
Turning Your Device On and OFF
Navigating Your Device
Wi-Fi Connection: Connecting Your GoPro for the 󽗉rst time (HERO3, 3+ Users)
Wi-Fi Connection: Connecting Your GoPro for the 󽗉rst time (HERO4 Users)
Wi-Fi Connection: Connection Failure/Reconnect
Controlling GoPro (Power On / O󽗈)
6
6
6
7
8
9
10
11
4-1. Modes and Settings -
HERO3, 3+ Series
12
4-2. Modes and Settings -
HERO4 Series
17
5. Firmware Upgrade 20
6. Product Speci󽗉cation 21
7. Trouble Shooting Guide 22
8. Warranty Information 23

3
Thank you for purchasing our Wireless GoPro Live Viewing Device, REMOVU R1 (here-
inafter referred to as “R1”).
This Operator’s Guide describes how to handle and operate the R1.
Before using the R1, be sure to read this manual thoroughly for proper operation.
To enhance the performance of the product, the contents of this instruction manual
may be changed without prior notice.
(1) In accordance with Personal Information Security Law & related legislation, essel-t
Co., Ltd. will not be held responsible for any problem due to illegal use of this
product.
(2) Any defects or damage resulting from accident, misuse, abnormal use, abnormal
conditions, and improper storage will not be covered by the warranty.
(3) The warranty shall cover a period of 1 year. Please refer to Pg. 23 for more details.
(4) Use only a dry soft cloth or clean wipe when cleaning the LCD panel surface. Do
not use other cleaning substances. It may cause discoloration or damage to the
surface of the product.
(5) Keep away from children and pets. Store your devices out of the reach of children.
(6) REMOVU is the registered trademark of essel-t Co., Ltd. essel-t Co., Ltd. reserves the
rights regarding all works related to the REMOVU brand such as product design,
trademarks, and product-promotional videos. It is prohibited to reproduce, copy,
modify, or use related works without permission. Any violation may be penalized
in accordance with the relevant regulations.
(7) GoPro, HERO, the GoPro logo, and the GoPro Be a HERO logo are trademarks or
registered trademarks of GoPro, Inc.
Safety Precautions
1. Understanding This User Manual

4
Package Component
Names of Each Part
1. REC Button (Shutter / OK)
2. LCD Screen
3. Network Status Indicator LED
4. M (Mode / Power) Button
5. Recharging Indicator LED
6. Back Button
7. USB Port Cover
8. USB Port (Recharging and Data Transfer)
9. Reset Button
10. Wristband Holder
Please make sure your package includes all of the following items.
SET WRISTBAND USB CABLE QUICK GUIDE
2. Product Components and Features
1
10
8
9
5
23
4
6
7

5
1080/60/W
0015 45:30
LCD Screen Indicators
1. Camera Modes / FOV(Field of View) Indicator
VIDEO Mode, PHOTO Mode, BURST Mode, TIME LAPSE Mode
(Please refer to Pg. 12 for more details.)
2. Resolution / FPS
3. GoPro Battery Life
4. R1 Battery Life
5. Saved Image / Video Counter
6. Remaining Recordable Hours / Number of Photos Counter
7. Recharging Indicator LED
Red Light when recharging. It goes o󽗈 when it is fully charged.
8. Wi-󽗉 Signal Strength Indicator
45
7
6
1 2 38

6
1. Connect the device to a computer
USB port using the micro USB cable
included in the package.
Turning Your Device On and OFF
Charging the Battery
*The battery should be fully charged before using R1 the 󽗉rst time.
Turning it on
1. Press the M (Mode / Power) button for about 1
second to turn on the power.
2. The REMOVU logo will appear. After short load-
ing, Wi-Fi network list will pop up.
2. R1 can also be charged with a USB
power adapter. (Adaptor’s not
included)
We recommend using GoPro, or
Apple iphone adaptors.
1. Press the M (Mode / Power) button for about 2
seconds to turn o󽗈 the device. REMOVU Power o󽗈
logo will appear then the device will be turned o󽗈
with the red LED blinking three times.
2. If no input is made for 30 seconds in the Live View
Mode, the screen will shut o󽗈 to save power.
Turning it o󽗈
3. Using the REMOVU R1

7
LCD Brightness STANDARD mode / ECO mode
Camera Network It lists the available Wi-Fi network you can connect to
System information It displays the general information of the device
Navigating Your Device
To Adjust Settings
1. Live View Mode 2. Hide OSD 3. Screen Saver
4. Clock 6. Settings Mode5. Playback Mode
After the device is powered on and Wi-Fi connec-
tion is established, it goes into the Live View mode
automatically. From there, you can simply navigate
through di󽗈erent functions using the Back button.
The order of appearance of the functions are illus-
trated below.
The settings can be adjusted in the Setting Mode.
Please navigate to the settings mode using the
M (Mode / Power) button, and enter the menu by
pressing the REC (Shutter / Select) button
The list of the settings are:
1080/60/W
0015 45:30

8
Wi-Fi Connections:
Connecting Your GoPro for the 󽗉rst time. (HERO3, 3+ Users)
1. Plese go to the GoPro App settings menu on your
HERO3, 3+ to turn on the Wi-Fi fuction.
2. Turn on your REMOVU R1.
3. When the Select Camera Network Screen ap-
pears, select your GoPro’s SSID which you have
created.
4. Please type the password and press enter.
5. You will see Blue LED light when the connection
is sucessfully established.
1. Go to GoPro support page on GoPro Website to
upgrade your GoPro Camera to the latest 󽗉rm-
ware version.
2. While upgrading, you will be asked to set up Wi-Fi
SSID, Password. Please make sure to remember
your password and SSID.
HERO3, 3+ Wi-Fi SSID, and Password setup
Connecting your GoPro HERO3, 3+ to REMOVU
www.gopro.com
/support

9
1. Install the GoPro App on your Smartphone.
2. Go to your GoPro 4 Setup → Wireless → select
GoPro App. 6 digit Pin number will appear.
3. Open the GoPro App and connect your GoPro
Camera.
4. Enter the 6 digit Pin number that the GoPro Cam-
era is showing.
5. Create the SSID, and Password for your Camera.
6. After the connection is established, shut down
the App.
1. Turn on your HERO4 camera and go to HERO4
Setup → RC & App → Select Existing to turn on
the Wi-Fi function.
2. Turn on your REMOVU.
3. Select the SSID you generated from the Select
Camera Network list.
4. Enter the password you created.
5. The Blue LED will turn on when the connection
get established sucessfully.
Wi-Fi Connections:
Connecting Your GoPro for the 󽗉rst time. (HERO4 Users)
HERO4 Wi-Fi SSID, and Password setup
Connecting your GoPro HERO4 to REMOVU

10
Wi-Fi Connection: Connection Failure / Reconnect
1. Flashing red LED and Wi-Fi Network Not Connect-
ed message will appear if Wi-Fi fails to connect or
lose its signal.
2. Type in your password again and try reconnect-
ing the device.
3. If the connection is restored, blue LED will 󽗊ash
and the Live View will appear.
4. When reusing the device, R1 will try to connect to last device it was connected to
using the information saved from previous use.
5. Switching between di󽗈erent cameras can be done in the Settings mode → Camera
Network menu. Please choose the camera you wish to switch to.
Tips: When the Wi-Fi signal gets weaker, it may cause lags or the screen may
not display the screen.

11
Controlling GoPro (Power On / O󽗈)
Press and hold the Back button for about 2 seconds
to turn o󽗈 the GoPro.
Power On
Power O󽗈
Press and hold the Back button for about 2 seconds
to turn on the GoPro. The Live view will be dis-
played soon after the Starting Live View message
appears.
Note: Because of GoPro camera’s protocol, the connection between REM-
OVU and GoPro may get disconnected when either devices are turned
o󽗈. This function will not be available when the connection is lost.

12
4-1. Modes and Settings - HERO3, 3+ Series
VIDEO Record Video
PHOTO Capture a single Photo
BURST PHOTO Capture up to 30 Photos in one second
TIME LAPSE Capture a series of Photos at timed intervals
SETTINGS Adjust camera Settings
Menu Tree
Menu Rotation Sequence

13
VIDEO
BURST PHOTO
To record video, please press the M button repeatedly until the Video icon appears at
the top left corner of the Live View OSD.
To start recording:
Press the REC (Shutter / Select) button. The red LED Lights will 󽗊ash while recording.
To stop recording:
Press the REC (Shutter / Select) Button while recording. The red LED light will 󽗊ash
three times and stops recording.
To capture a Photo, please press the M button repeatedly until the Photo icon appears
at the top left corner of the Live View OSD.
To take a photo:
Press and release the REC (Shutter / Select) Button. The red Camera Status Lights
󽗊ash when photos are taken.
In Burst Photo mode your camera takes multiple photos in short time intervals.
Please press the M button repeatedly until the video icon appears at the top left cor-
ner of the Live View OSD.
To take a burst photo:
Press the REC (Shutter / Select) Button. The red Camera Status Lights 󽗊ash and the
camera captures photos multiple times.
Available interval options:
3 photos / 1 second, 5 photos / 1 second, 10 photos / 2seconds, 30 photos / 1 second,
30 photos / 2 seconds or 30 photos / 3 seconds.
Tips: The Live View does not support recording in high resolutions. When
you start recording in high resolution, the message “PREVIEW NOT
SUPPORTED” will appear on the screen. When you stop recording, the
live view will be displayed again.
Tips: Sometimes 30 photos / 1 second can be too fast. Try a slower BURST
PHOTO setting to get better results.

14
TIME LAPSE
Time Lapse mode automatically captures a series of photos at 0.5, 1, 2, 5, 10, 30 or 60
second intervals.
To capture a Time Lapse series, please press the M button repeatedly until the Time
Lapse icon appears at the top left corner of the Live View OSD.
To take time lapse photos:
Press the REC (Shutter / Select) Button. The camera initiates countdown and the red
Camera Status Lights 󽗊ash each time a Photo is taken.
To stop time lapse photos:
Press the REC (Shutter / Select) Button. The red Camera Status Lights 󽗊ash three
times to indicate that Time Lapse has stopped.

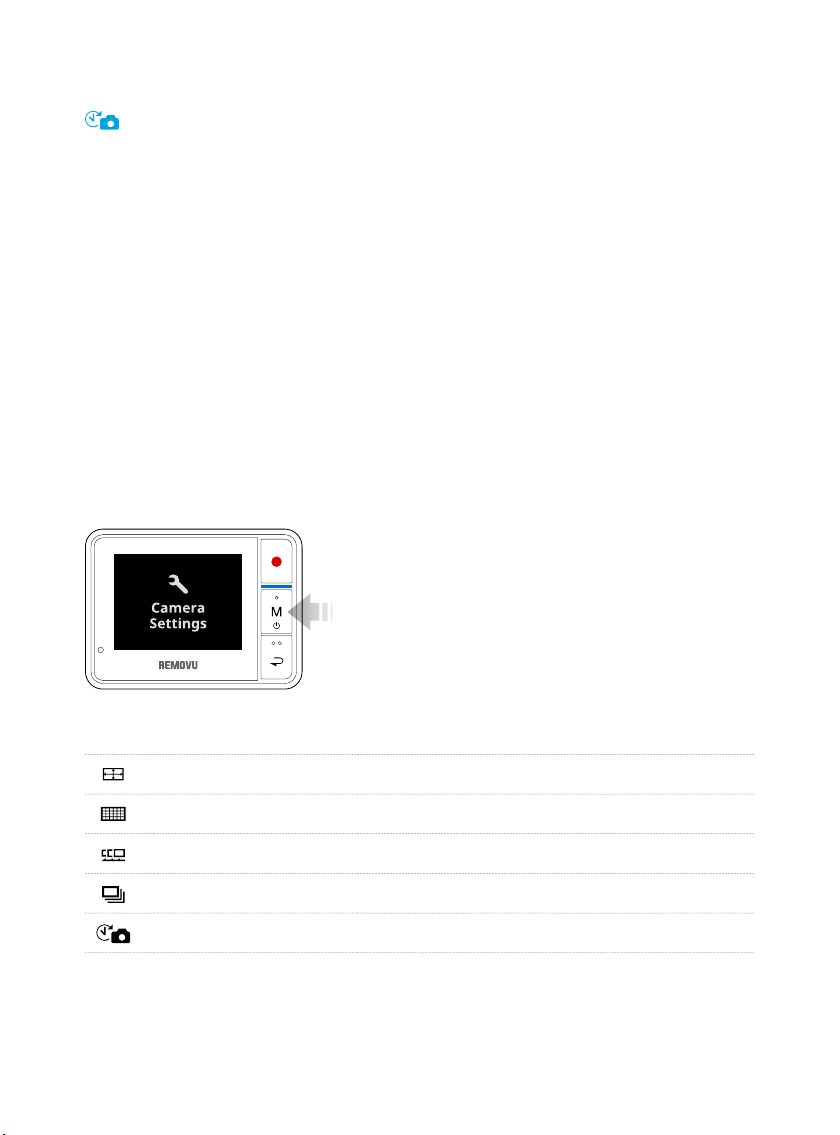

How to Change Camera Settings
The camera settings can be adjusted in the Setting
Mode. Please navigate to the Settings mode by
pressing M (Mode / Power) button repeatedly until
above screen appears.
VIDEO RESOLUTION Adjust the video resolution
PHOTO RESOLUTION Adjust the photo resolution
CONTINUOUS PHOTO Adjust the number of shots
BURST PHOTO Adjust the speed
TIME LAPSE Adjust the interval
Settings Menu

15
VIDEO RESOLUTION / FPS / FOV MODES
PHOTO RESOLUTION SETTINGS
The Resolution, fps (frames per second) and FOV (󽗉eld of view) can be changed in the
Video mode menu. You can also turn Auto Low Light mode ON / OFF.
To change Video Mode settings:
1. Press the REC (Shutter / Select) Button to enter
(VIDEO RESOLUTION / FPS / FOV MODES).
2. Use the M (Mode / Power) to navigate through options.
3. Press the REC (Shutter / Select) button to enter desired menu.
4. Use the M (Mode / Power) Button to cycle through each sub-menu option and the
REC (Shutter / Select) button to select it.
5. To change additional options, repeat step 4.
6. When all settings are adjusted, press the Back button to exit.
The photo resolution can be adjusted here. The changes are applied to Photo, Photo-
Burst, Time Lapse modes.
Photo Resolution / Field of View (FOV)
12MP / Wide
7MP / Wide
7MP / Medium
5MP / Medium
Note: The modes may vary across di󽗈erent models.
Note: The options may vary across di󽗈erent models.

16
CONTINUOUS PHOTO
TIME LAPSE SETTINGS
BURST PHOTO OPTIONS
Continuous Photo mode allows you to capture a series of 3 Photos by pressing the
REC (Shutter / Select) button.
Speed Options:
SINGLE
Takes 3 photos in 1 second
Takes 3 photos at speed of 5 photos/sec
Takes 3 photos at speed of 10 photos/sec
Several time interval options are available for Time Lapse mode, including 0.5, 1, 2, 5,
10, 30 and 60 seconds.
Additional Note:
The sub-menus are structured identical to GoPro. Please refer to GoPro manual for
details.
REMOVU’s Back buttons works the same way as GoPro’s Exit button.
The options may vary across di󽗈erent models.
Burst Photo mode captures a series of Photos when the REC (Shutter / Select) Button
is pressed.
Photos can be captured at the following rates:
3 photos in 1 second
5 photos in 1 second
10 photos in 1 second
10 photos in 2 seconds
30 photos in 1 second
30 photos in 2 seconds
30 photos in 3 seconds
Tips: Your camera will remain in Continuous Photo mode until you change it
back to single Photo capture mode.
Tips: The options may vary across di󽗈erent models.

17
4-2. Modes and Settings - HERO4 Series
VIDEO Record Video
PHOTO Capture a single Photo
MULTI-SHOT Capture a series of photos (Time Lapse, Burst, etc)
SETTINGS Adjust general camera settings
Menu Tree
Menu Rotation Sequence
Press M (Mode / Power) button to navigate across di󽗈erent modes.
TIME
LAPSE
VIDEO
VIDEO
VIDEO +
LOOPING
SETTING
VIDEO
SETTING
CAMERA
SETTINGS
MULTI
SHOT
BURST
CONTINUOUS
SINGLE
NIGHT
NIGHT
LAPSE
MULTI
SETTING
BRIGHTNESS
REMOVU
SETTINGS
CAMERA
NETWORK
SYSTEM
INFO
PLAYBACK

18
Video Captures video.
Video + Photo
Simultaneously captures both video and photos. You can set
the camera to capture a photo at selected intervals while you
record video. For details, see Video + Photo Intervals in this
section.
Looping
Lets you continuously record and save only the best mo-
ments, which helps to conserve space on your microSD card.
You must select an interval.
Single Photo Captures single photo.
Continuous
Photos Captures multiple photos continously.
Night Photo Captures single photo in low light environments.
VIDEO MODE
PHOTO MODE
Sub Menu Tree
Long-press REC (Shutter / Select) button while in the desired Camara Mode to
change the capture mode in the order listed of above.

19
Burst Captures up to 30 photos in 1 second. Perfect for capturing
the de󽗉nitive moment in fast-action sports.
Time Lapse
Captures a series of photos at speci󽗉ed intervals. You can use
Time Lapse to capture photos of any activity, so you can
choose the best ones later.
Night Lapse
Captures a series of photos at speci󽗉c intervals and expo-
sure times. Use Night Lapse in low light environments, such
as when capturing the night sky over a period of time. For
available exposure times and examples of when to use them,
see Shutter in Mult-Shot Settings.
MULTI-SHOT MODE

20
1. Please visit www.removu.com/󽗉rmware page to download the latest 󽗉rmware.
2. Download the 󽗉rmware 󽗉le and unzip the 󽗉le on your PC or Mac.
3. Turn on the REMOVU R1.
4. When “Select Camera Network” list appears on the REMOVU screen, connect the
device to your PC or Mac using the USB cable included in the package.
5. Copy and paste the 󽗉rmware 󽗉les to the root of REMOVU storage drive.
6. When the 󽗉les are successfully copied into the root of REMOVU, disconnect the
device from your PC or Mac.
7. Restart your REMOVU.
8. The REMOVU logo will appear then upgrade will begin.
9. You are ready to go extreme with the latest 󽗉rmware.
5. Firmware Upgrade
