Renault 2009 X79 User manual

© Renault s.a.s 2007
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a result of changes introduced by the manufacturer in
the production of the various component units and accessories from which the vehicles are
constructed".
All rights reserved by Renault.
Copying or translating, in part or in full, of this document or use of the service part reference
numbering system is forbidden without the prior written authority of Renault.
NOVEMBER 2009 EDITION ANGLAISE
X79
6Air conditioning
61A HEATING
62A AIR CONDITIONING

DUSTER - Chapitre 6
Contents
Pages
DUSTER - Chapitre 6ContentsPages
61A HEATING
Heating: List and location of
components 61A-1
Cabin filter: Removal -
Refitting 61A-8
Front air distribution duct:
Removal - Refitting 61A-9
Rear air distribution duct:
Removal - Refitting 61A-10
Recirculation control cable:
Removal - Refitting 61A-11
Air distribution cable:
Removal - Refitting 61A-13
Air mixing cable: Removal -
Refitting 61A-15
Distribution unit: Removal -
Refitting 61A-17
Heater matrix: Removal -
Refitting 61A-21
Fan assembly:Removal -
Refitting 61A-24
Heating resistor relays:
Removal - Refitting 61A-25
Heating resistors: Removal -
Refitting 61A-26
Passenger compartment fan
assembly control unit:
Removal - Refitting 61A-28
Control panel: Removal -
Refitting 61A-29
62A AIR CONDITIONING
Air conditioning: List and
location of components 62A-1
Air conditioning: Parts and
consumables for the repair 62A-9
Condenser: Removal -
Refitting 62A-10
Compressor: Removal -
Refitting 62A-12
Expansion valve: Removal -
Refitting 62A-16
Refrigerant pipe seal:
Removal - Refitting 62A-18
Refrigerant circuit pipe:
Removal - Refitting 62A-21
Pressure sensor: Removal -
Refitting 62A-23

61A-1
HEATING
Heating: List and location of components 61A

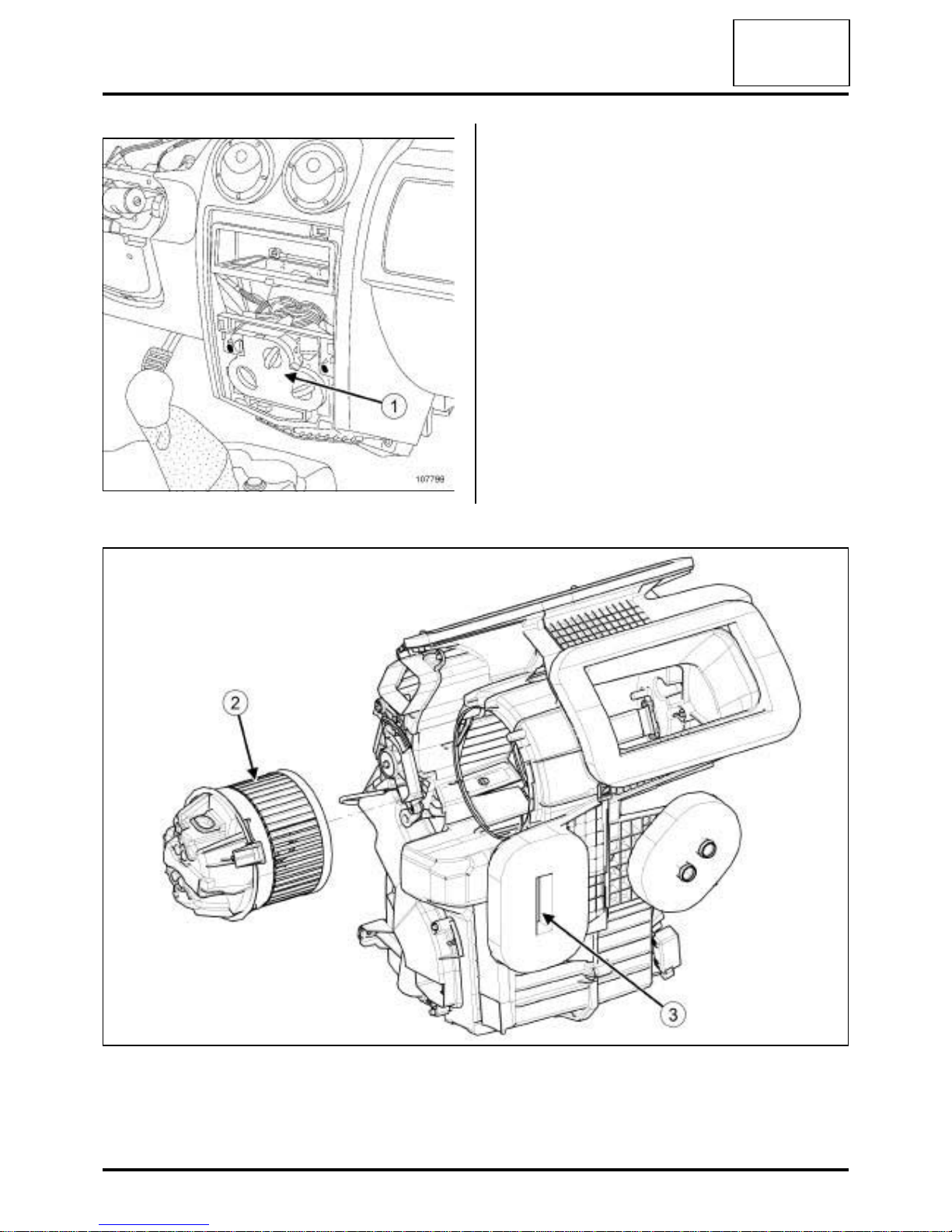

VALEO distribution unit
107799
143994

61A-2
HEATING
Heating: List and location of components 61A
143997

61A-3
HEATING
Heating: List and location of components 61A

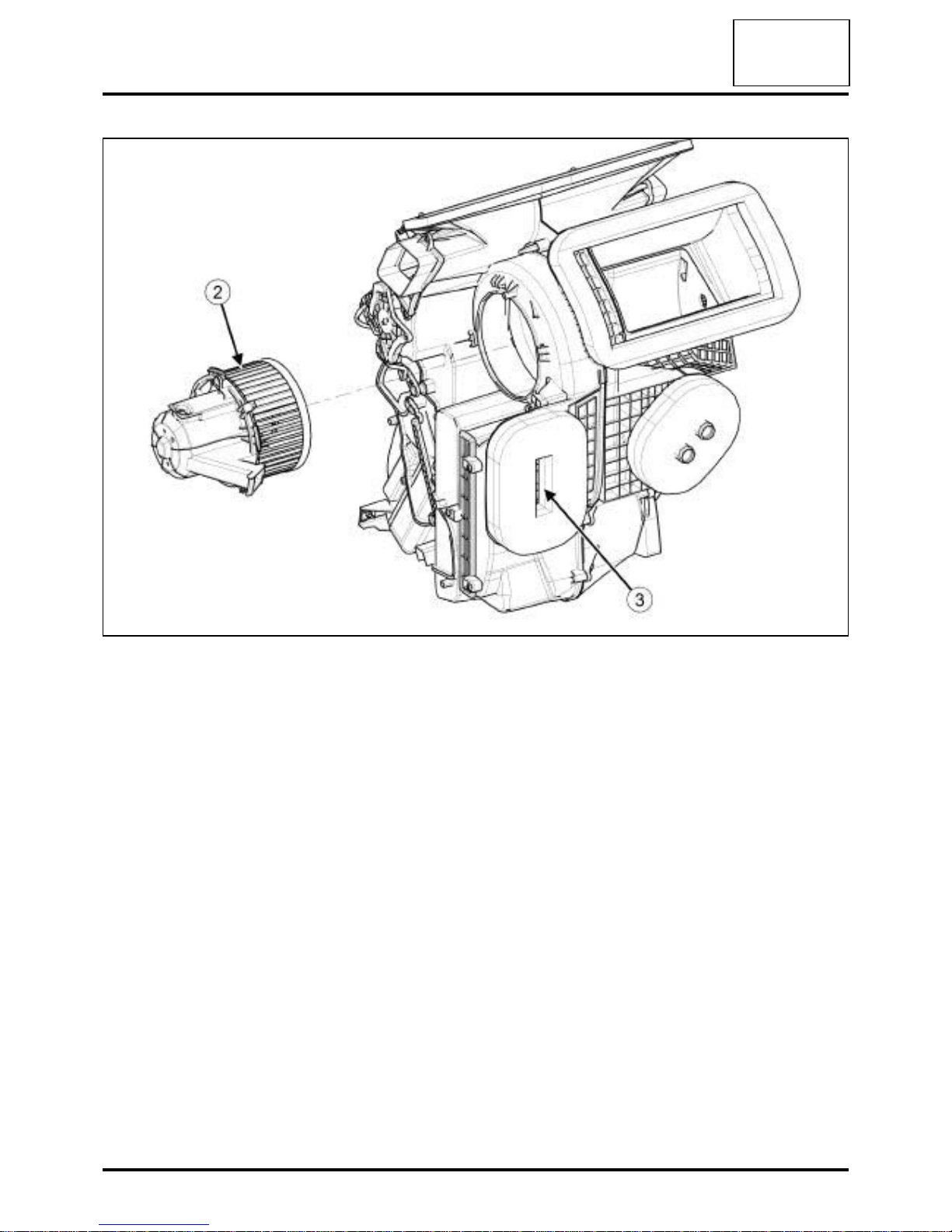

BEHR distribution unit
143995

61A-4
HEATING
Heating: List and location of components 61A
143998

61A-5
HEATING
Heating: List and location of components 61A
143996

61A-6
HEATING
Heating: List and location of components 61A
128024
121595
1Control panel (see 61A, Heating, Control panel: Removal -
Refitting, page 61A-29)
2Passenger compartment fan assembly (see 61A, Heating, Fan assembly: Removal -
Refitting, page 61A-24)

61A-7
HEATING
Heating: List and location of components 61A

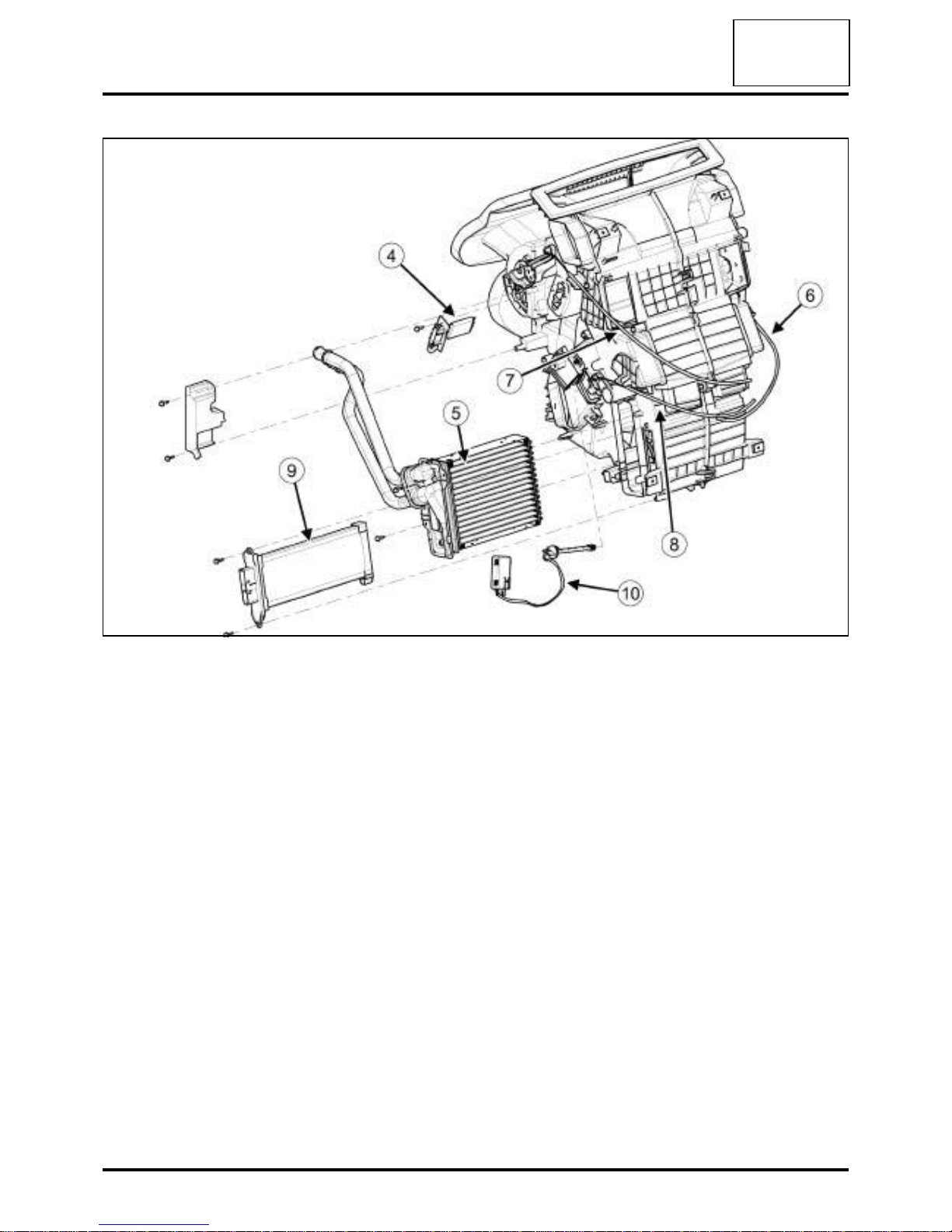

3Expansion valve (see 62A, Air conditioning, Expansion valve:
Removal - Refitting, page 62A-16)

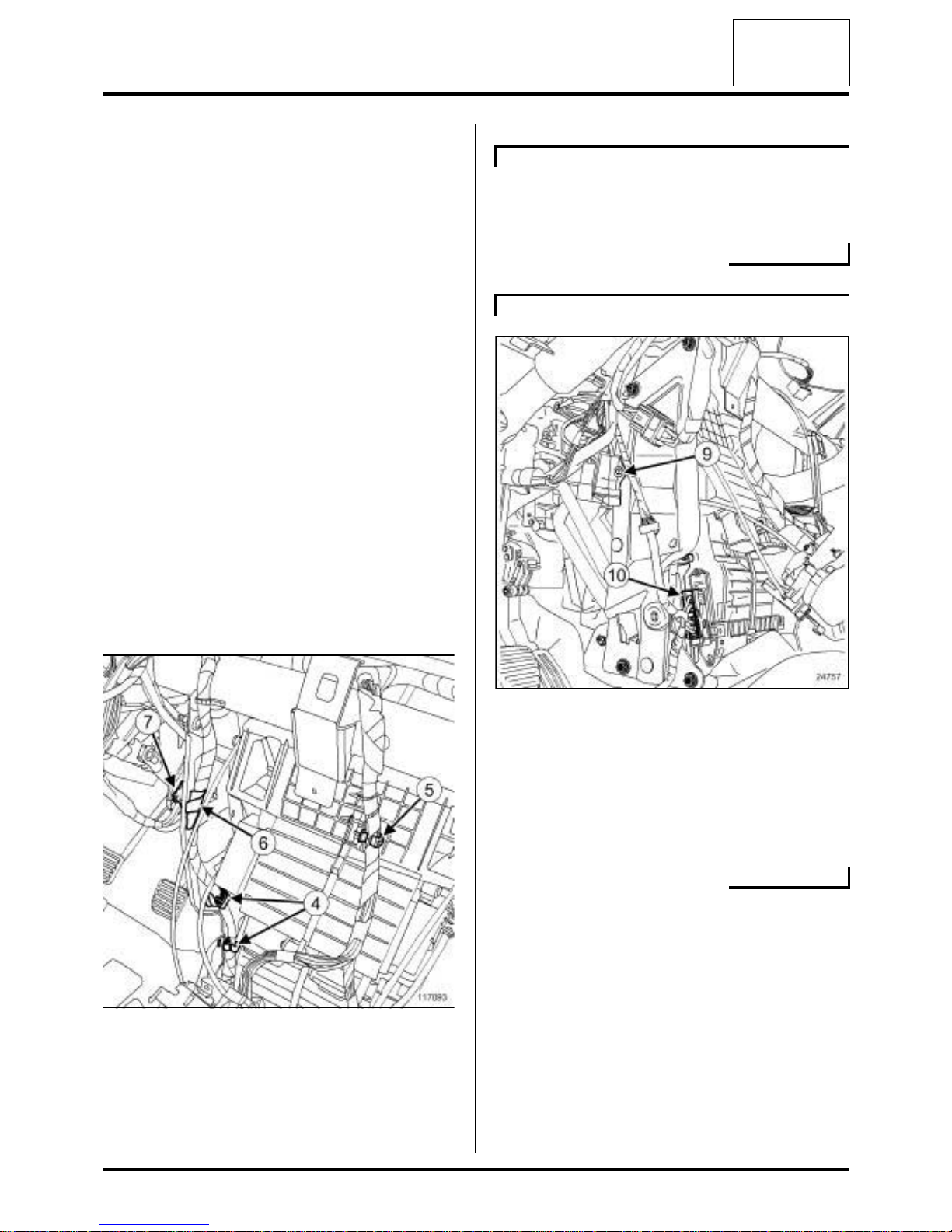

4Passenger compartment fan assembly control
unit (see 61A, Heating, Passenger compartment fan assembly control unit: Removal - Refit-
ting, page 61A-28)
5Heater matrix (see 61A, Heating, Heater matrix: Removal -
Refitting, page 61A-21)
6Air distribution cable (see 61A, Heating, Air distribution cable:
Removal - Refitting, page 61A-13)
7Recirculation control cable (see 61A, Heating, Recirculation control
cable: Removal - Refitting, page 61A-11)
8Air mixing cable (see 61A, Heating, Air mixing cable: Removal
- Refitting, page 61A-15)
9Heating resistors (VALEO type) (see 61A, Heating, Heating resistors:
Removal - Refitting, page 61A-26)
10 Evaporator sensor (VALEO type) (see Evaporator sensor: Removal - Refitting)

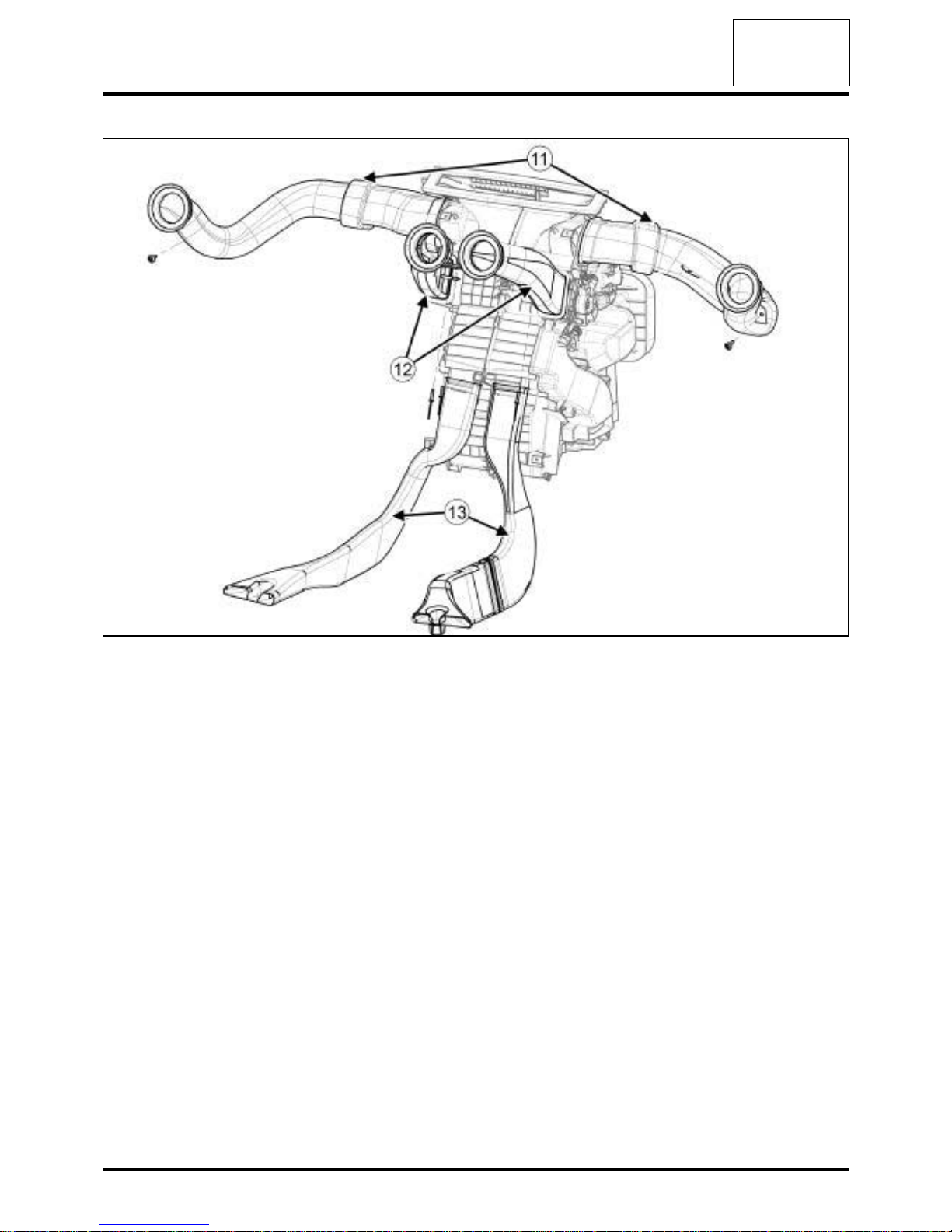

11 Front side air distribution duct (see 61A, Heating, Front air distribution duct:
Removal - Refitting, page 61A-9)
12 Front central air distribution duct
13 C-pillar air distribution duct (see 61A, Heating, Rear air distribution duct:
Removal - Refitting, page 61A-10)
14 A-pillar air distribution duct (see Front footwell air distribution duct:
Removal - Refitting)

61A-8
HEATING
Cabin filter: Removal - Refitting
AIR CONDITIONING
61A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED

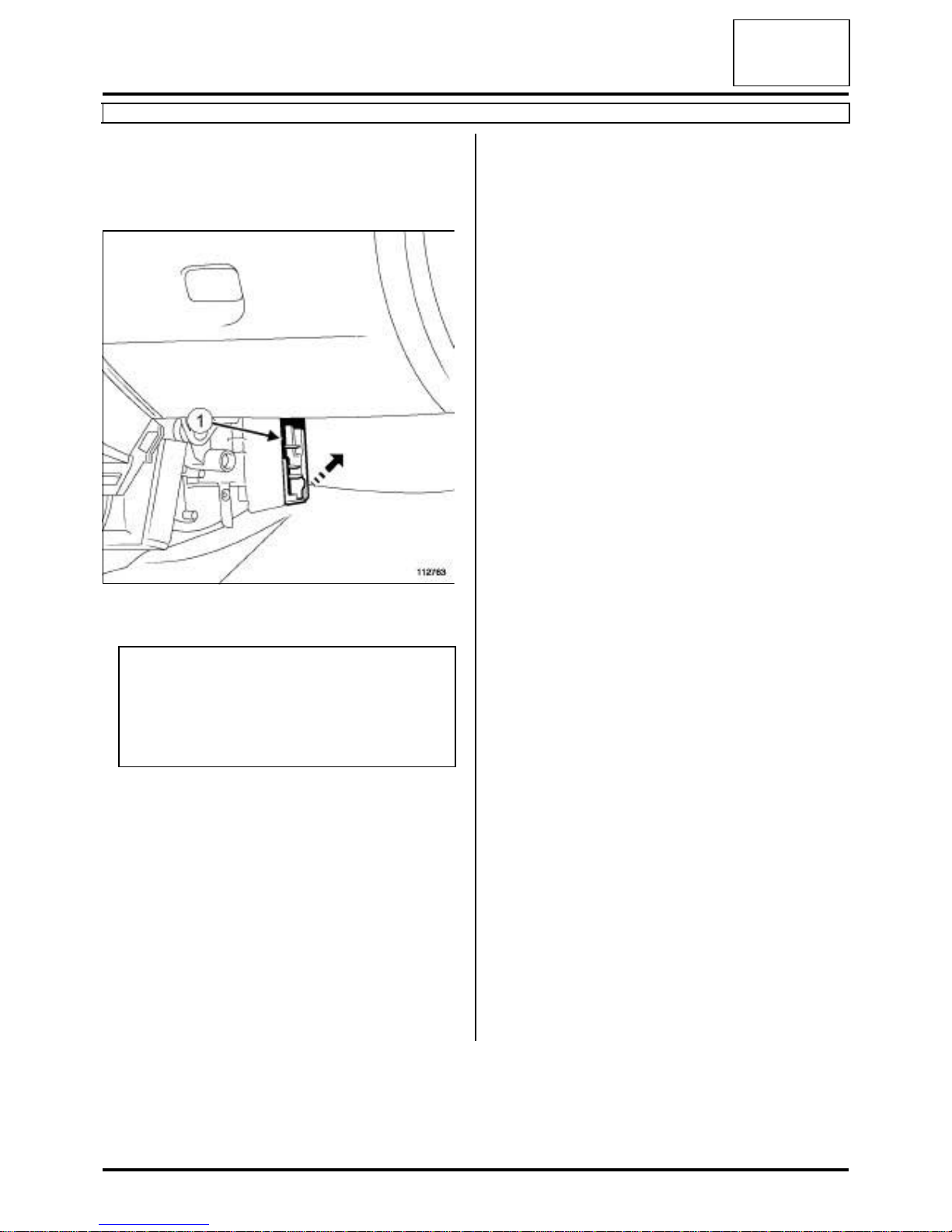

aUnclip the passenger compartment filter (1) .
aRemove the cabin filter.
REFITTING
I - REFITTING PREPARATIONS OPERATION
aCheck for foreign bodies in the cabin filter housing,
and clean thoroughly if necessary.
II - REFITTING OPERATION FOR PART
CONCERNED
aRefit the cabin filter.
aClip on the cabin filter.
112763
Note:
Foreign bodies (leaves, insects etc.) are likely to
accumulate in the passenger compartment filter.
Remove the cabin filter with care so as to prevent
foreign bodies getting into the evaporator.

61A-9
HEATING
Front air distribution duct: Removal - Refitting 61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
aRemove:
-the driver's frontal airbag (see Driver's frontal air-
bag: Removal - Refitting) (88C, Airbags and pre-
tensioners),
-the steering wheel (see Steering wheel: Removal
- Refitting) (36A, Steering assembly),
-the steering column switch assembly (see Steer-
ing column switch assembly: Removal - Refit-
ting) (84A, Control - Signals),
-theinstrument panel (see Instrument panel: Re-
moval - Refitting) (83A, Instrument panel),
-the storage compartment,
-the radio (see Radio: Removal - Refitting) (86A,
Radio),
-the dashboard (see Dashboard: Removal - Refit-
ting) (57A, Interior equipment).
II - REMOVAL OPERATION

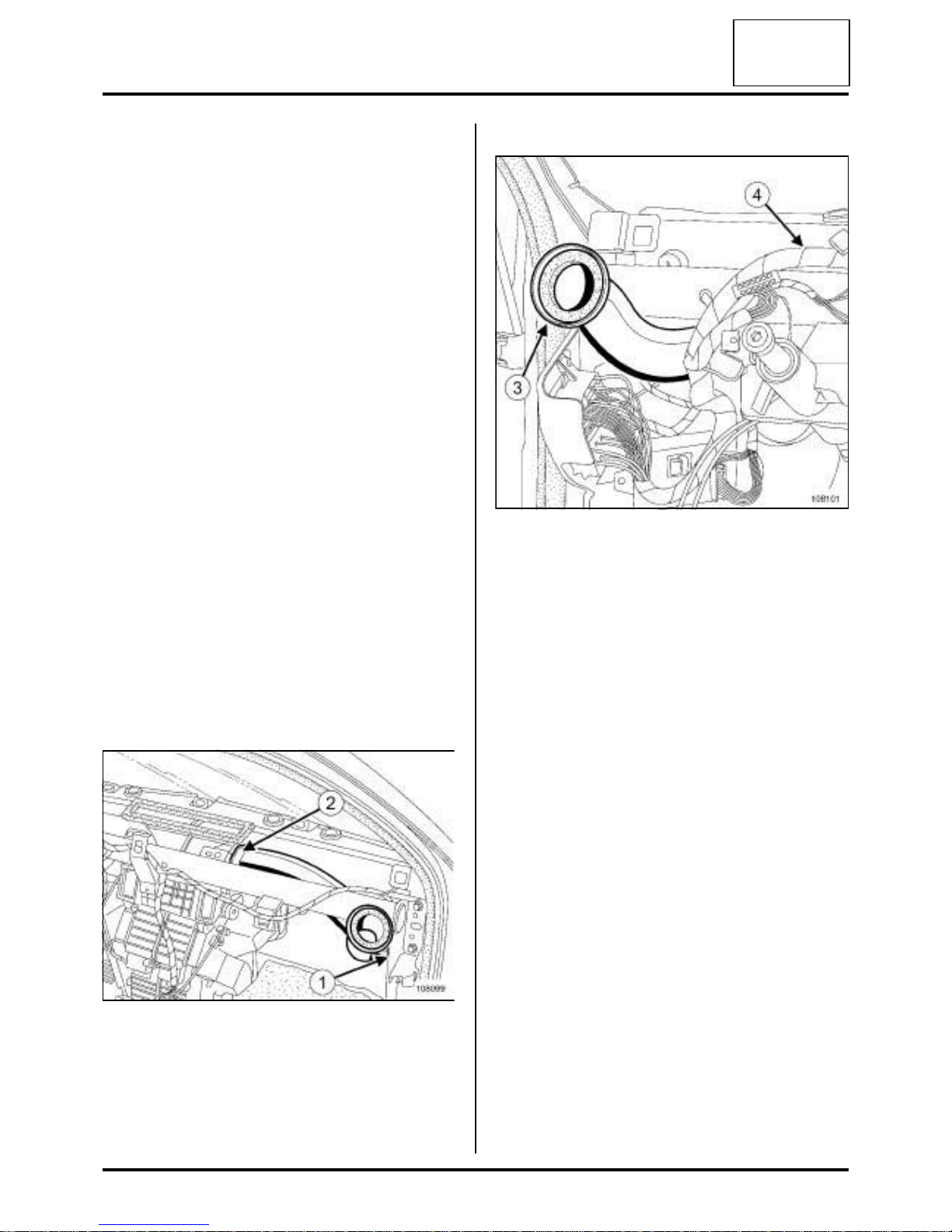

1 - Front right-hand air distribution duct
aRemove:
-the aerial cable clip on the front right-hand air distri-
bution duct,
-the front right-hand air distribution duct bolt (1) .
aPull out the front right-hand air distribution duct at (2)
.
2 - Front left-hand air distribution duct
aRemove the front left-hand air distribution duct bolt
(3) .
aPull out the front left-hand air distribution duct at (4) .
REFITTING
aProceed in the reverse order to removal.
aUnlock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
108099
108101

61A-10
HEATING
Rear air distribution duct: Removal - Refitting
REAR SEATS AIR DUCT
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove:
-the central console (see Centre console: Remov-
al - Refitting) (57A, Interior equipment),
-the front seats (see Front seat assembly: Ex-
ploded view) (75A, Front seat frames and mecha-
nisms),
-the floor carpet partially (see Floor trim assembly:
Exploded view) (71A, Body internal trim).
II - REMOVAL OPERATION
1 - Rear left-hand air distribution duct
aRemove the clip (1) using an unclipping tool.
aRemove the rear left-hand air distribution duct at (2)
.
2 - Rear right-hand air distribution duct
aRemove the clip (3) using an unclipping tool.
aRemove the rear right-hand air distribution duct at
(4) .
REFITTING
REFITTING OPERATION
aProceed in the reverse order to removal.
144759
144760

61A-11
HEATING
Recirculation control cable: Removal - Refitting
AIR CONDITIONING or STANDARD HEATING RECIRCULATION
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
aRemove:
-the driver's front airbag (see Driver's frontal air-
bag: Removal - Refitting) (88C, Airbags and pre-
tensioners),
-the steering wheel (see Steering wheel: Removal
- Refitting) (36A, Steering assembly),
-the steering column switch assembly (see Steer-
ing column switch assembly: Removal - Refit-
ting) (84A, Control - Signals),
-theinstrument panel (see Instrument panel: Re-
moval - Refitting) (83A, Instrument panel)
-the storage compartment,
-the radio (see Radio: Removal - Refitting) (86A,
Radio),
-the dashboard (see Dashboard: Removal - Refit-
ting) (57A, Interior equipment).
aTurn the air recirculation switch to the air recircula-
tion position.
aDisconnect the air conditioning control panel con-
nector.
II - REMOVAL OPERATION

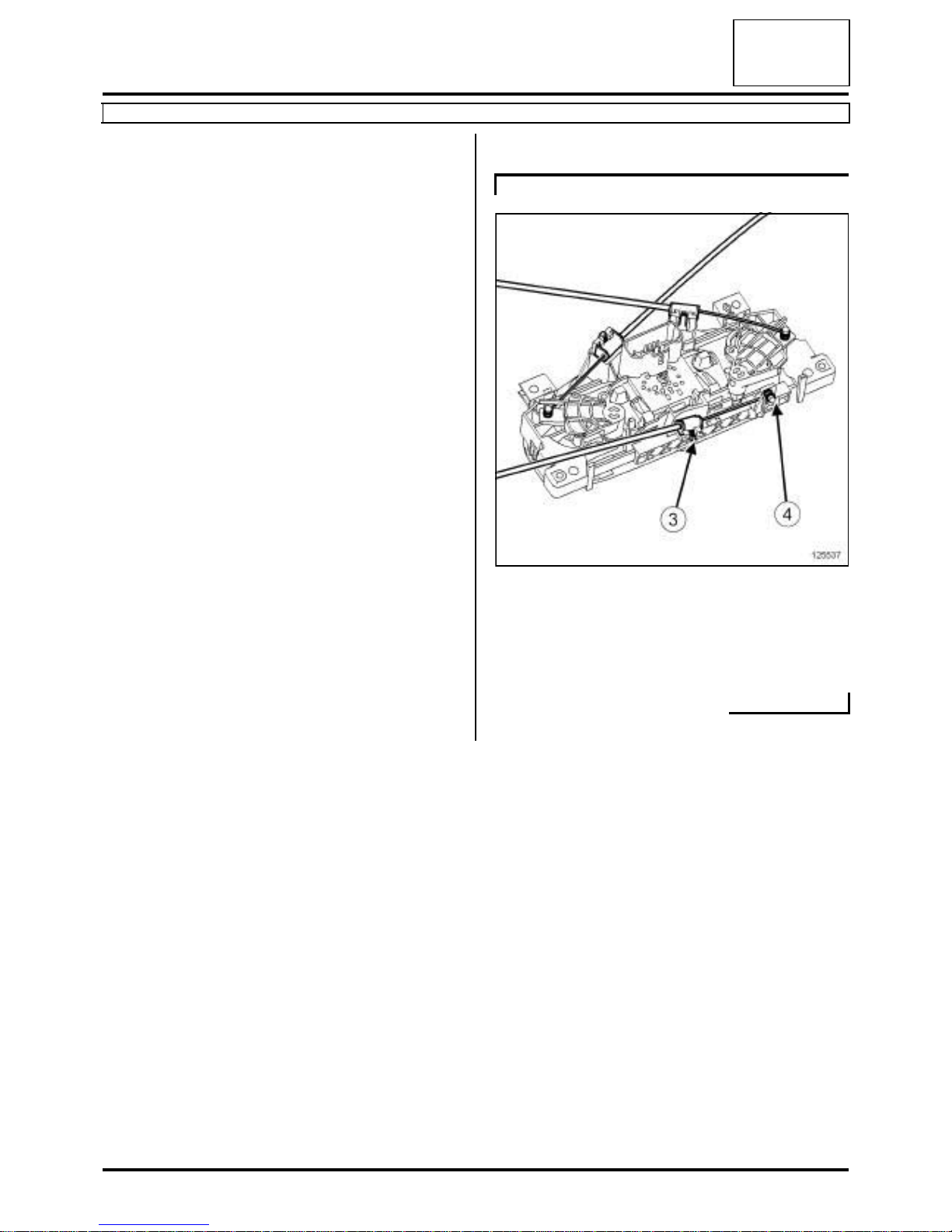

aRemove the sheath stop by moving the tab (3) to
one side.
aExtract the recirculation control cable (4) from the
control panel.
H79
125537

61A-12
HEATING
Recirculation control cable: Removal - Refitting
AIR CONDITIONING or STANDARD HEATING RECIRCULATION
61A

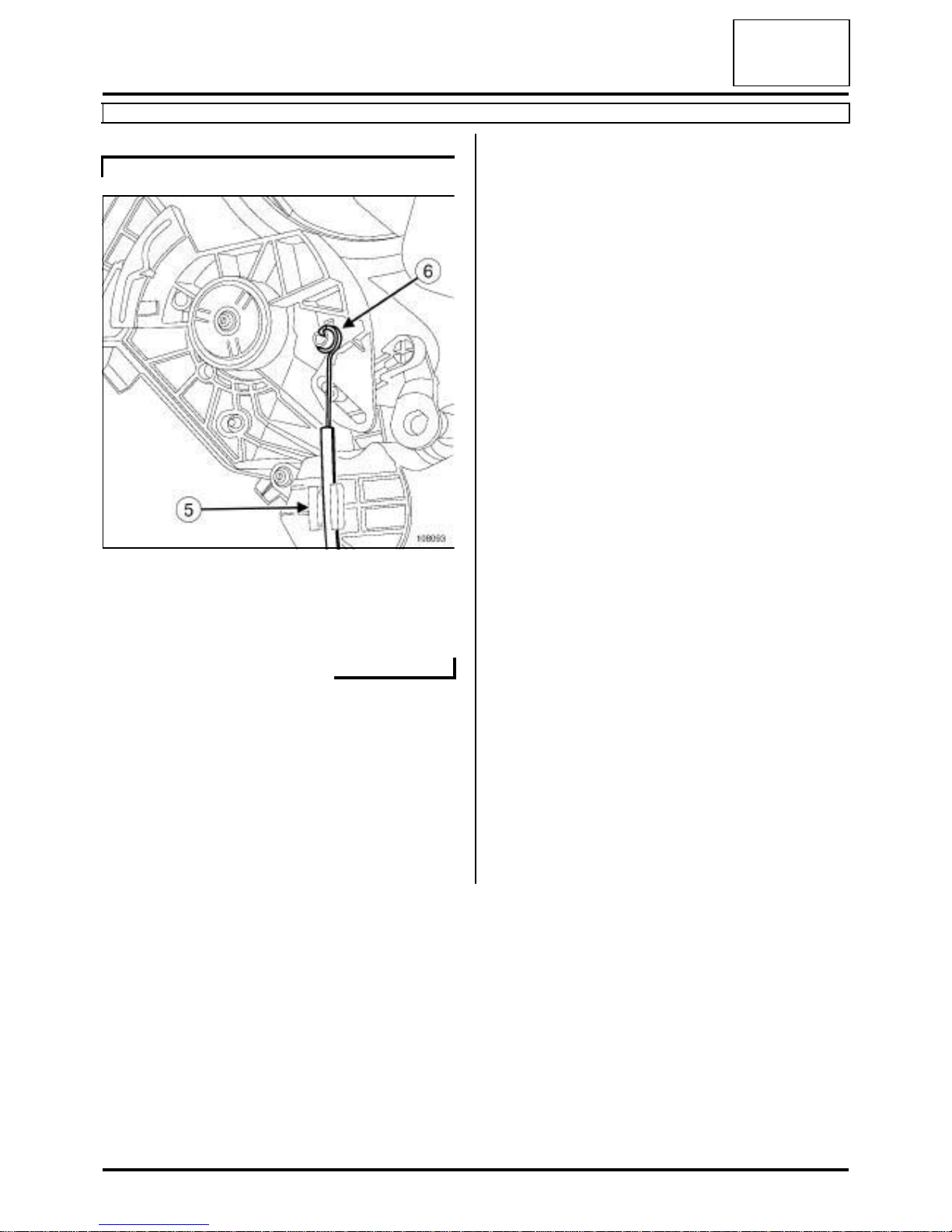

aUnclip the cable sleeve stop (5) from the distribution
unit.
aExtract the end of the air recirculation control cable
(6) .
aRemove the air recirculation control cable.
REFITTING
aProceed in the reverse order to removal.
aCheck that the air recirculation flap is in the recircu-
lation position.
aCheck that the recirculation control can move along
its whole stroke.
aUnlock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
121597

61A-13
HEATING
Air distribution cable: Removal - Refitting
AIR CONDITIONING or STANDARD HEATING RECIRCULATION
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
aTurn the air distribution control to the air vent posi-
tion on the dashboard,
aRemove:
-the driver's front airbag (see Driver's frontal air-
bag: Removal - Refitting) (88C, Airbags and pre-
tensioners),
-the steering wheel (see Steering wheel: Removal
- Refitting) (36A, Steering assembly),
-the steering column switch assembly (see Steer-
ing column switch assembly: Removal - Refit-
ting) (84A, Control - Signals),
-theinstrument panel (see Instrument panel: Re-
moval - Refitting) (83A, Instrument panel),
-the storage compartment,
-the radio (see Radio: Removal - Refitting) (86A,
Radio),
-the dashboard (see Dashboard: Removal - Refit-
ting) (57A, Interior equipment).
aDisconnect the climate control panel connector .
II - REMOVAL OPERATION
aRemove the sheath stop by moving the tab (3) to
one side.
aExtract the air distribution cable (4) from the air con-
ditioning control panel.
H79
125537

61A-14
HEATING
Air distribution cable: Removal - Refitting
AIR CONDITIONING or STANDARD HEATING RECIRCULATION
61A
aUnclip the cable sleeve stop (5) from the distribution
unit.
aExtract the end of the air distribution cable (6) .
aRemove the air distribution cable.
REFITTING
aProceed in the reverse order to removal.
aCheck that the air distribution control can move
along its whole stroke.
aUnlock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
LEFT-HAND DRIVE
108093

61A-15
HEATING
Air mixing cable: Removal - Refitting
AIR CONDITIONING or STANDARD HEATING RECIRCULATION
61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
aTurn the heating and air conditioning mixing control
to the hottest position.
aRemove:
-the driver's front airbag (see Driver's frontal air-
bag: Removal - Refitting) (88C, Airbags and pre-
tensioners),
-the steering wheel (see Steering wheel: Removal
- Refitting) (36A, Steering assembly),
-the steering column switch assembly (see Steer-
ing column switch assembly: Removal - Refit-
ting) (84A, Control - Signals),
-theinstrument panel (see Instrument panel: Re-
moval - Refitting) (83A, Instrument panel),
-the storage compartment,
-the radio (see Radio: Removal - Refitting) (86A,
Radio),
-the dashboard (see Dashboard: Removal - Refit-
ting) (57A, Interior equipment).
aDisconnect the climate control panel connector .
II - REMOVAL OPERATION
aRemove:
- the sheath stop by moving the tab (3) to one side,
- the air mixing cable (4) from the control panel.
aUnclip the distribution unit cable sleeve stop (5) .
aExtract the end of the air mixing cable (6) .
H79
125537
145422

61A-16
HEATING
Air mixing cable: Removal - Refitting
AIR CONDITIONING or STANDARD HEATING RECIRCULATION
61A
aRemove the air mixing cable.
REFITTING
aProceed in the reverse order to removal.
aCheck that the air mixing control can move along its
whole stroke.
aUnlock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).

61A-17
HEATING
Distribution unit: Removal - Refitting 61A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer (see Fault finding - Re-
placement of components) (88C, Airbags and pre-
tensioners).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a
aDrain the coolant circuit using the refrigerant
charging station (see Refrigerant circuit: Drain-
ing - Filling) .
aMove aside the engine compartment bulkhead
soundproofing.
aRemove the bolts (1) from the pipe unions on the ex-
pansion valve.
aDisconnect the expansion valve pipes.
aFit plugs into the openings.
aFit hose clamps (Ms. 583) at (2) .
aRemove the clips (3) from the heater hoses.
aDisconnect the heater hoses.
Special tooling required
Ms. 583 Pipe clamps.
Equipment required
refrigerant charging station
AIR CONDITIONING
IMPORTANT
Consult the safety and cleanliness advice and
operation recommendations before carrying out
any repair (see Air conditioning: Precautions
for the repair) .
Note:
Use blanking plugs for the fuel circuits with part
numbers 77 01 208 229or 77 01 476 857 to plug
any openings exposed to the open air. They must
be clean. Do not use any which have already
been used to plug a fuel circuit.
108112
WARNING
In order to avoid any refrigerant leaks, do not
damage (deform, twist, etc.) the pipe.
WARNING
To prevent moisture from entering the system,
place plugs on the cold loop components which
are open to the air.
108111

61A-18
HEATING
Distribution unit: Removal - Refitting 61A
aRemove:
-the driver's front airbag (see Driver's frontal air-
bag: Removal - Refitting) (88C, Airbags and pre-
tensioners),
-the steering wheel (see Steering wheel: Removal
- Refitting) (36A, Steering assembly),
-the steering column switch assembly (see Steer-
ing column switch assembly: Removal - Refit-
ting) (84A, Control - Signals),
-theinstrument panel (see Instrument panel: Re-
moval - Refitting) (83A, Instrument panel),
-the storage compartment,
-the radio (see Radio: Removal - Refitting) (86A,
Radio),
-the dashboard (see Dashboard: Removal - Refit-
ting) (57A, Interior equipment),
-the front air distribution ducts (see 61A, Heating,
Front air distribution duct: Removal - Refitting,
page 61A-9) ,
-the steering column (see Steering column: Re-
moval - Refitting) (36A, Steering assembly).
aUnclip:
-the wiring at (4) ,
-the wiring on the distribution unit at (5) .
aUnclip the wiring at (6) .
aUnclip the ignition switch connector (7) from its
mounting.
aRemove:
- the heating resistor relay mounting bolt (9) ,
- the heating resistor relay mounting.
aDisconnect the connector (10) from the heating re-
sistor unit.
aRemove the dashboard cross member (see Dash-
board cross member: Removal - Refitting) (42A,
Upper front structure).
II - REMOVAL OPERATION
aDisconnect:
- the air conditioning control panel connector,
-the passenger compartment fan assembly connec-
tor,
-the passenger compartment fan assembly resistor
unit connector.
117093
LEFT-HAND DRIVE
DIESEL VEHICLE
24757
