Renault ESPASE 2005 User manual

NU760_1_Gcv-FRA.qxd 8/12/05 9:13 Page Couv4
RENAULT s.a.s. Société par Actions Simplifiée au capital de 533 941 113

/ 13-15, quai Le Gallo - 92100 Boulogne-Billancourt
R.C.S. Nanterre 780 129 987 - SIRET 780 129 987 03591 / Tél. : [phone]
ESPACE NU752-2 C:\Documentum\Checkout\NU760_1_Tcv-ENG.win 30/12/2005 11:25 -page1
The Driver's handbook – 82 00 602 505 – NU 760-1 – 10/2005 – Edition anglaise
8200602505

NU760_1_Gcv-FRA.qxd 8/12/05 9:13 Page Couv2
ESPACE NU752-2 C:\Documentum\Checkout\NU760_1_Tcv-ENG.win 30/12/2005 11:25 -page2
recommends ELF
For all engines
For all petrol engines
For all engines except
1.9 dCi and 3.0 dCi
diesel
Manual gearbox
Automatic gearbox
ELF EXCELLIUM LDX 5W-40 ACEA A3 / B3 / B4
Premium performance. Best engine care under the most severe conditions
All types of driving
ELF EVOLUTION SXR 5W-40 ACEA A3 / B3 / B4
Premium performance
All types of driving
ELF EVOLUTION SXR 5W-30 ACEA A5 / B5
Fuel savings, engine care and protecting the environment.
All types of driving
ELF COMPETITION ST 10W-40 ACEA A3 / B3 / B4
ELF TURBO DIESEL 10W-40 ACEA B3 / B4
Other types of lubricants approved by RENAULT, for petrol or diesel engines.
TRANSELF TRP 75W-80 API GL5
Please contact your RENAULT dealer
RENAULT recommends approved ELF lubricants.
When topping up or changing the oil, we recommend you use the original oils.
Consult your RENAULT Dealer or visit www.lubricants.elf.com

NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 0.02
0.02
Quick overview
- Tyre pressure ..................................................................................................................... 0.04 ➟0.07
- RENAULT card: use ........................................................................................................ 1.02 ➟1.09
- Child restraints ................................................................................................................. 1.32 ➟1.41
- Warning lights (instrument panel) ............................................................................ 1.46 ➟1.64
- Starting/stopping the engine ....................................................................................... 2.03 ➟2.06
- Driving ................................................................................................................................. 2.02 ➟2.42
Assisted parking brake ................................................................................................ 2.10 - 2.12
Tyre Pressure Monitor ............................................................................................... 2.18 ➟2.21
Electronic stability program: ESP ....................................................................................... 2.22
Traction control system .............................................................................................. 2.23 - 2.24
Emergency brake assist ........................................................................................................... 2.22
Cruise control/Speed limiter .................................................................................. 2.28 ➟2.34
Parking proximity sensor ........................................................................................... 2.35 - 2.38
- Heating/Air conditioning ............................................................................................. 3.03 ➟3.25
- Bonnet/maintenance ...................................................................................................... 4.02 ➟4.16
- Practical advice (changing bulbs, fuses, breakdown, faults) .......................... 5.02 ➟5.42
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 0.02 (Black/Process Black plate)

NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 0.03
CONTENTS
Sections
Getting to know your vehicle ................................................................. 1
Driving ................................................................................................................. 2
Your comfort .................................................................................................... 3
Maintenance ..................................................................................................... 4
Practical advice .............................................................................................. 5
Technical specifications ............................................................................ 6
Alphabetical index ....................................................................................... 7
0.03
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 0.03 (Black/Process Black plate)

NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 0.04
0.04
TYRE PRESSURES (in bar or kg/cm²when cold)
Tyre pressure monitor
Refer to the information in Section 2 for details about the Tyre pressure monitor function.
Tyre safety and use of snow chains
Refer to the information on Tyres in Section 5 for information on maintenance and, depending on the version, the use of
chains.
(1) Special note concerning vehicles used under full load (Maximum Permissible All-Up Weight) and towing a trailer.
The maximum speed must be limited to 60 mph (100 km/h) and the tyre pressure increased by 0.2 bar.
Refer to the information on Weights in Section 6.
Versions
Vehicle type
See vehicle identification plate
Tyre dimensions
Wheel dimensions
Non-motorway use
- Front
- Rear
Motorway use (1)
- Front
- Rear
Emergency spare wheel
Intermediate emergency spare wheel
(wheel which is smaller than the other four
wheels)
JK01 - JK02 - JK04
225/60 R 16 225/55 R 17 245/45 R 18 225/55 R 17 245/45 R 18
6.5 J 16
2.4
2.2 2.4 2.2 2.5 2.3 2.5 2.2 2.6 2.3
2.4
2.2 2.4 2.2 2.5 2.3 2.5 2.2 2.6 2.3
2.4 2.4 2.5 2.5 2.6
3.7
7 J 17 7.5 J 18 7 J 17 7.5 J 18
2.0 dCi 16V 2.0 dCi 16V - 2.2 dCi - 3.0 dCi
JK03 - JK07 - JK0E - JK0H
JK0J - JK0V - JK0Y - JK1A
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 0.04 (Black/Process Black plate)

NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 0.05
0.05
TYRE PRESSURES (in bar or kg/cm²when cold) (continued)
Tyre pressure monitor
Refer to the information in Section 2 for details about the Tyre pressure monitor function.
Tyre safety and use of snow chains
Refer to the information on Tyres in Section 5 for information on maintenance and, depending on the version, the use of
chains.
(1) Special note concerning vehicles used under full load (Maximum Permissible All-Up Weight) and towing a trailer.
The maximum speed must be limited to 60 mph (100 km/h) and the tyre pressure increased by 0.2 bar.
Refer to the information on Weights in Section 6.
Versions
Vehicle type
See vehicle identification plate
Tyre dimensions
Wheel dimensions
Non-motorway use
- Front
- Rear
Motorway use (1)
- Front
- Rear
Emergency spare wheel
Intermediate emergency spare wheel
(wheel which is smaller than the other four
wheels)
JK09 - JK0A - JK0B - JK0D - JK0G - JK0K
JK0L - JK0N - JK0U - JK1B - JK1D
225/60 R 16 225/55 R 17 245/45 R 18 225/55 R 17 245/45 R 18
6.5 J 16
2.2
2.1 2.3 2.2 2.4 2.3 2.4 2.2 2.5 2.3
2.3
2.2 2.3 2.2 2.4 2.3 2.7 2.4 2.8 2.5
2.3 2.3 2.4 2.7 2.8
3.7
7 J 17 7.5 J 18 7 J 17 7.5 J 18
2.0 16V - 2.0T - 1.9 dCi 3.5 V6
JK00 - JK0F
JK0P - JK0S
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 0.05 (Black/Process Black plate)

NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 0.06
0.06
TYRE PRESSURES in PSI (when cold)
Tyre pressure monitor
Refer to the information in Section 2 for details about the Tyre pressure monitor function.
Tyre safety and use of snow chains
Refer to the information on Tyres in Section 5 for information on maintenance and, depending on the version, the use of
chains.
(1) Special note concerning vehicles used under full load (Maximum Permissible All-Up Weight) and towing a trailer.
The maximum speed must be limited to 60 mph (100 km/h) and the tyre pressure increased by 3 PSI.
Refer to the information on Weights in Section 6.
Versions
Vehicle type
See vehicle identification plate
Tyre dimensions
Wheel dimensions
Non-motorway use
- Front
- Rear
Motorway use (1)
- Front
- Rear
Emergency spare wheel
Intermediate emergency spare wheel
(wheel which is smaller than the other four
wheels)
JK01 - JK02 - JK04
225/60 R 16 225/55 R 17 245/45 R 18 225/55 R17 245/45 R 18
6.5 J 16
35
32 35 32 36 33 36 32 38 33
35
32 35 32 36 33 36 32 38 33
35 35 36 36 38
47
7 J 17 7.5 J 18 7 J 17 7.5 J 18
2.0 dCi 16V 2.0 dCi 16V - 2.2 dCi - 3.0 dCi
JK03 - JK07 - JK0E - JK0H
JK0J - JK0V - JK0Y - JK1A
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 0.06 (Black/Process Black plate)

NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 0.07
0.07
TYRE PRESSURES in PSI (when cold) (continued)
Tyre pressure monitor
Refer to the information in Section 2 for details about the Tyre pressure monitor function.
Tyre safety and use of snow chains
Refer to the information on Tyres in Section 5 for information on maintenance and, depending on the version, the use of
chains.
(1) Special note concerning vehicles used under full load (Maximum Permissible All-Up Weight) and towing a trailer.
The maximum speed must be limited to 60 mph (100 km/h) and the tyre pressure increased by 3 PSI.
Refer to the information on Weights in Section 6.
Versions
Vehicle type
See vehicle identification plate
Tyre dimensions
Wheel dimensions
Non-motorway use
- Front
- Rear
Motorway use (1)
- Front
- Rear
Emergency spare wheel
Intermediate emergency spare wheel
(wheel which is smaller than the other four
wheels)
JK09 - JK0A - JK0B - JK0D - JK0G - JK0K
JK0L - JK0N - JK0U - JK1B - JK1D
225/60 R 16 225/55 R 17 245/45 R 18 225/55 R 17 245/45 R 18
6.5 J 16
32
32 33 32 35 33 35 32 36 33
33
32 33 32 35 33 39 35 41 36
33 33 35 39 41
47
7 J 17 7.5 J 18 7 J 17 7.5 J 18
2.0 16V - 2.0T - 1.9 dCi 3.5 V6
JK00 - JK0F
JK0P - JK0S
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 0.07 (Black/Process Black plate)

NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 0.08
0.08
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 0.08 (Black/Process Black plate)

NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.01
Section 1: Getting to know your vehicle
RENAULT card: general information, use, deadlocking .............................................................................. 1.02 ➟1.08
Doors ....................................................................................................................................................................... 1.09 ➟1.14
Engine immobiliser ................................................................................................................................................ 1.15 - 1.16
Headrests - Seats ................................................................................................................................................... 1.17 ➟1.21
Seat belts ................................................................................................................................................................ 1.22 ➟1.25
Additional methods of restraint ........................................................................................................................ 1.26 ➟1.31
in addition to seat belt ................................................................................................................................... 1.26 ➟1.32
side protection devices ............................................................................................................................................... 1.30
Child safety ............................................................................................................................................................ 1.32 ➟1.41
Deactivating frontal passenger airbags .......................................................................................................................... 1.37
Driver’s position .................................................................................................................................................... 1.42 ➟1.45
Instrument panel .................................................................................................................................................. 1.46 ➟1.64
Trip computer and warning system ............................................................................................................ 1.52 ➟1.64
Steering wheel .................................................................................................................................................................... 1.65
Clock and exterior temperature ...................................................................................................................................... 1.66
Door mirrors ............................................................................................................................................................ 1.67 - 1.68
Audible and visible signals ............................................................................................................................................. 1.69
Lighting and exterior signals .............................................................................................................................. 1.70 ➟1.74
Headlight beam adjustment ............................................................................................................................................. 1.74
Wipers/Washers .................................................................................................................................................... 1.75 ➟1.77
Fuel tank (filling with fuel) .................................................................................................................................. 1.78 - 1.79
1.01
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.01 (Black/Process Black plate)

A
12
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.02
1.02

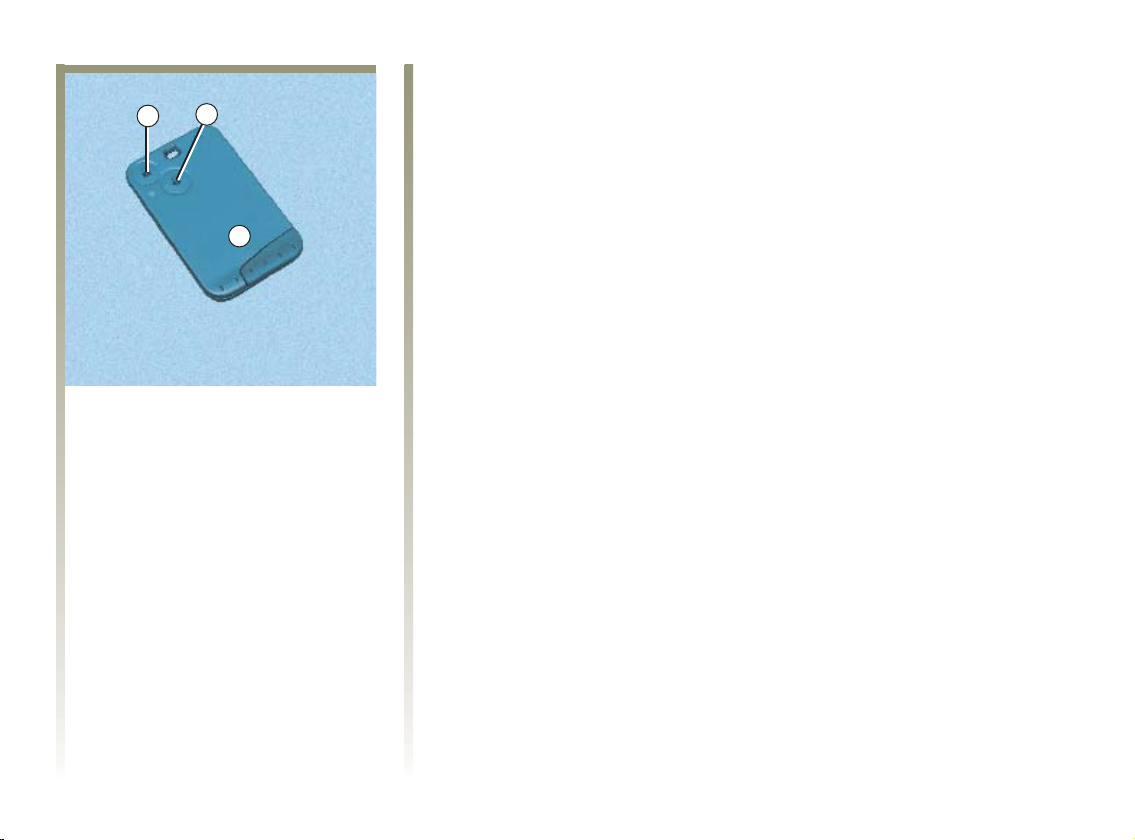

RENAULT CARDS: general information
Remote control RENAULT
card A
The Card has two buttons, 1and 2.
It enables:
- the doors, tailgate and the fuel
filler flap to be locked or unlocked
(see the following pages);
- depending on the vehicle,
automatic closure of windows and
the sunroof (see the Electric
window with automatic closing
and Sunroof information in
Section 3);
- operation of certain devices (e.g.:
radio, electrically controlled seats,
etc.);
- starting the engine (see the
information on Starting the engine
in Section 2);
- switching off the See-me-home
lighting (refer to the information
on Lighting and external signals in
Section 1).
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.02 (Black/Process Black plate)

1
3
2B
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.03
1.03

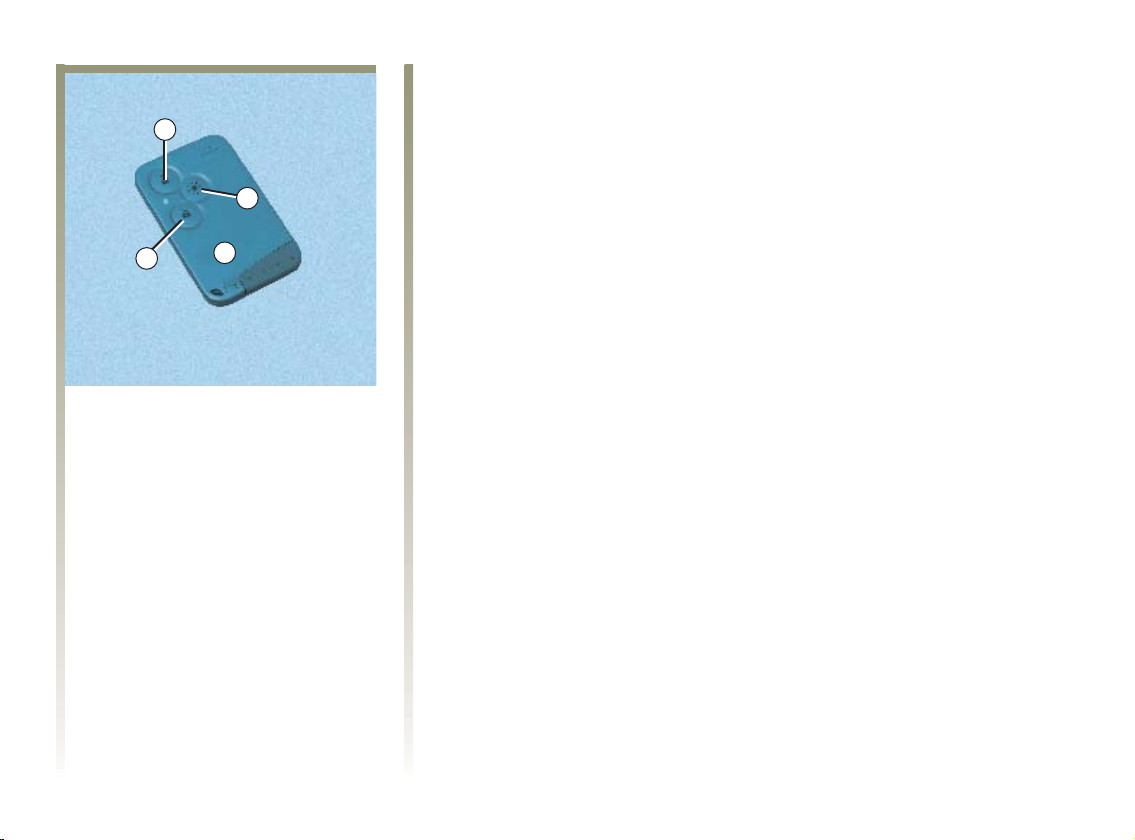

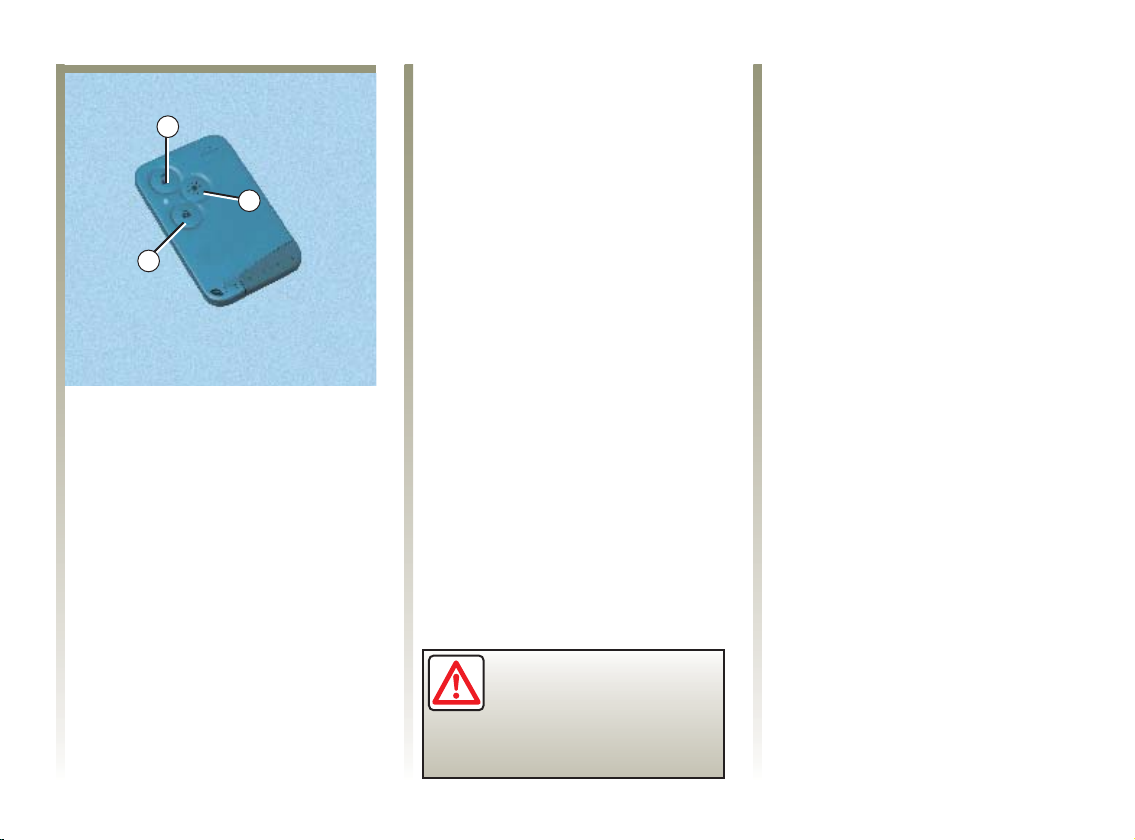

RENAULT CARDS: general information (continued)
RENAULT card in Hands-Free
mode B
This has three buttons, 1, 2and 3.
It enables:
- automatic unlocking and locking
of the doors, tailgate and fuel filler
flap, if desired;
- the doors, tailgate and the fuel
filler flap to be locked or unlocked
intentionally (see the following
pages);
- depending on the vehicle,
automatic closure of windows and
the sunroof (see the Electric
window with automatic closing
and Sunroof information in
Section 3);
- operation of certain devices (e.g.:
radio, electrically controlled seats,
etc.);
- the engine to be started (see the
information on Starting the engine
in Section 2);
- operation of the See-me-home
lighting (refer to the information
on Lighting and external signals in
Section 1).
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.03 (Black/Process Black plate)

4A4B
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.04
1.04
RENAULT CARDS: general information (continued)
RENAULT cards Aand Bare
supplied with a battery which
should be replaced when the battery
indicator light 4is no longer lit up
(see the information on RENAULT
card: battery in Section 5).
Special note: for some vehicles, the
RENAULT card records the settings
selected by the Card user: the
choices for the settings for automatic
climate control, some radios,
electric seats (if this is stored), the
position of the door mirrors, etc. It is
therefore advisable always to keep
the same RENAULT card so that you
can retrieve your personal settings.
Remote control range
This varies according to the
environment: therefore take care
when handling the RENAULT card,
so that you do not inadvertently lock
or unlock the doors.
Driver’s responsibility
If there is a child (or a pet)
in the vehicle, never leave
it unsupervised with the
RENAULT card inserted in the
reader. With the card in the
reader, the engine could be
started or electrical equipment
such as the electric windows
could be operated and there is a
risk that a part of their body
(neck, arms, hands, etc.) may be
trapped. Risk of serious injury.
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.04 (Black/Process Black plate)

56
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.05
1.05
RENAULT CARDS: general information (continued)
Integral emergency key 5or
separate emergency key 6
(depending on the vehicle)
This is only for use in exceptional
circumstances, it is used to lock and
unlock the left-hand door when the
RENAULT card is not functioning
correctly:
- if the vehicle is located in a zone of
high electromagnetic radiation;
- when using devices with the same
frequency as the card;
- when the RENAULT card battery is
drained, flat battery, etc.
For instructions on how to use the
emergency key, refer to the
paragraph on Locking/Unlocking
the doors.
Once you have entered the vehicle
with the emergency key, insert the
RENAULT card into the card reader
in order to start the vehicle.
Replacement/need for an additional
RENAULT card
If you lose your RENAULT card or
require another, you can obtain one
from your RENAULT Dealer.
If a RENAULT card is replaced, it
will be necessary to take the
vehicle and all RENAULT cards to
your RENAULT Dealer to initialise
the system.
You can use up to four RENAULT
cards per vehicle.
Faulty RENAULT card
Make sure that the batteries are
always in good condition: they
have a service life of approximately
two years.
See RENAULT card: batteries in
Section 5.
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.05 (Black/Process Black plate)

12
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.06
1.06
REMOTE CONTROL RENAULT CARD: use
Unlocking the doors
Press unlocking button 1.
The hazard warning lights flash
once to indicate that the doors have
been unlocked.
Special notes (for some countries):
- pressing button 1unlocks the
driver’s door only,
- pressing twice on button 1unlocks
all the doors and tailgate.
Locking the doors
Press locking button 2.
The hazard warning lights flash
twice to indicate that the doors are
locked:
- if a front door is open or not closed
properly, the doors and tailgate
will not lock and the hazard
warning lights will not flash;
- if one of the other doors or tailgate
is open or not closed properly, the
hazard warning lights will not
flash.
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.06 (Black/Process Black plate)

3
2
1
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.07
1.07

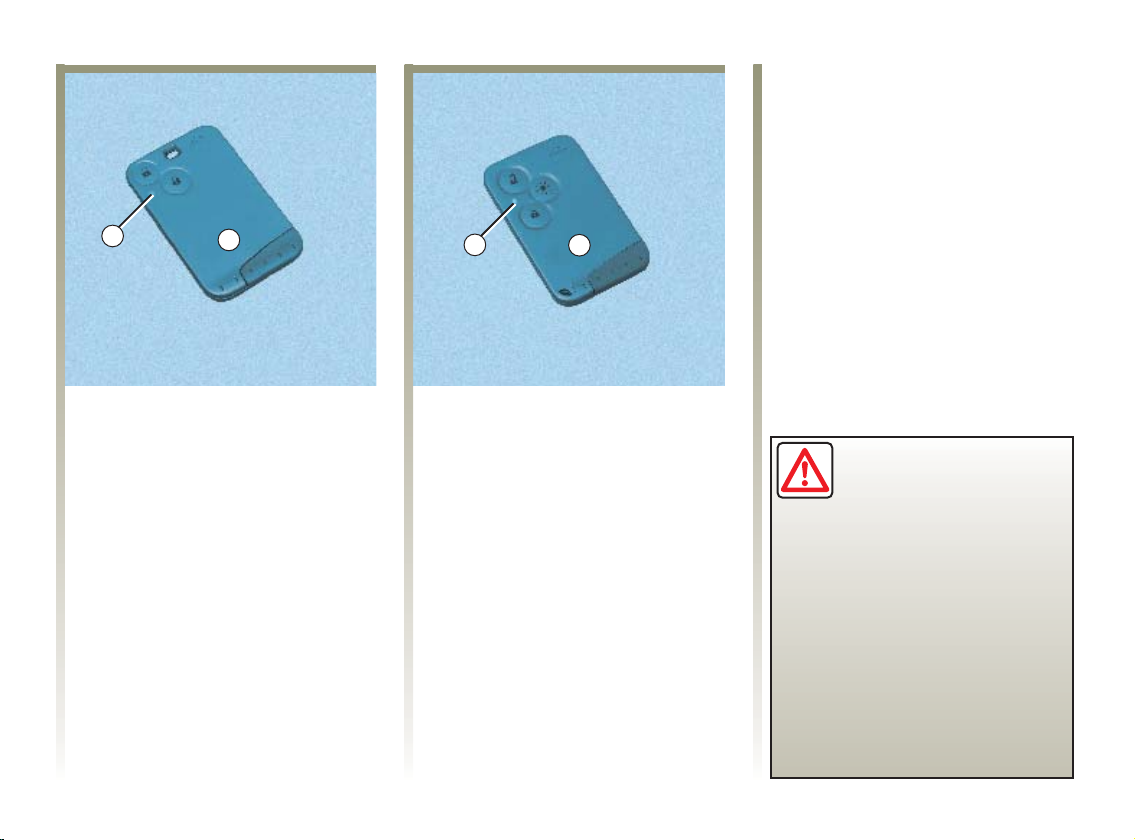

RENAULT CARD IN HANDS-FREE MODE: use
Hands-Free mode
Unlocking the doors
Walk up to your vehicle carrying
your RENAULT card.
As soon as you grip one of the
handles (doors or tailgate), the locks
will open automatically.
The hazard warning lights flash
once to indicate that the doors have
been unlocked.
Locking the doors
With the doors closed, walk away
from the vehicle carrying your
RENAULT card: the doors will lock
automatically.
Note: the distance at which the
vehicle locks depends on the
surroundings.
The hazard warning lights flash
twice and the side indicator lights
light up (for approximately ten
seconds) to indicate that the doors
have been locked. A beep also
sounds.
This beep can be chosen from a list
of several options or turned off.
Consult your RENAULT Dealer.
Operation in manual mode
If you wish, you can exit the Hands-
Free mode by pressing button 1or 2;
you will then switch to manual
mode and operation of the
RENAULT card is the same as that
described in the section entitled
Remote control RENAULT card: use.
Returning to Hands-Free mode
Hands-Free mode returns
automatically each time the vehicle
ignition is switched on.
Distance lighting function
This can, for example, identify the
vehicle from a distance when
parked in a car park.
The side lights, dipped lights,
indicator lights and interior lights
light up for approximately 30 seconds
when button 3is pressed.
Note: pressing button 3again during
the 30 seconds turns the lights off.
Never leave your vehicle
without first removing the
RENAULT card.
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.07 (Black/Process Black plate)

2
2
1
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.08
1.08

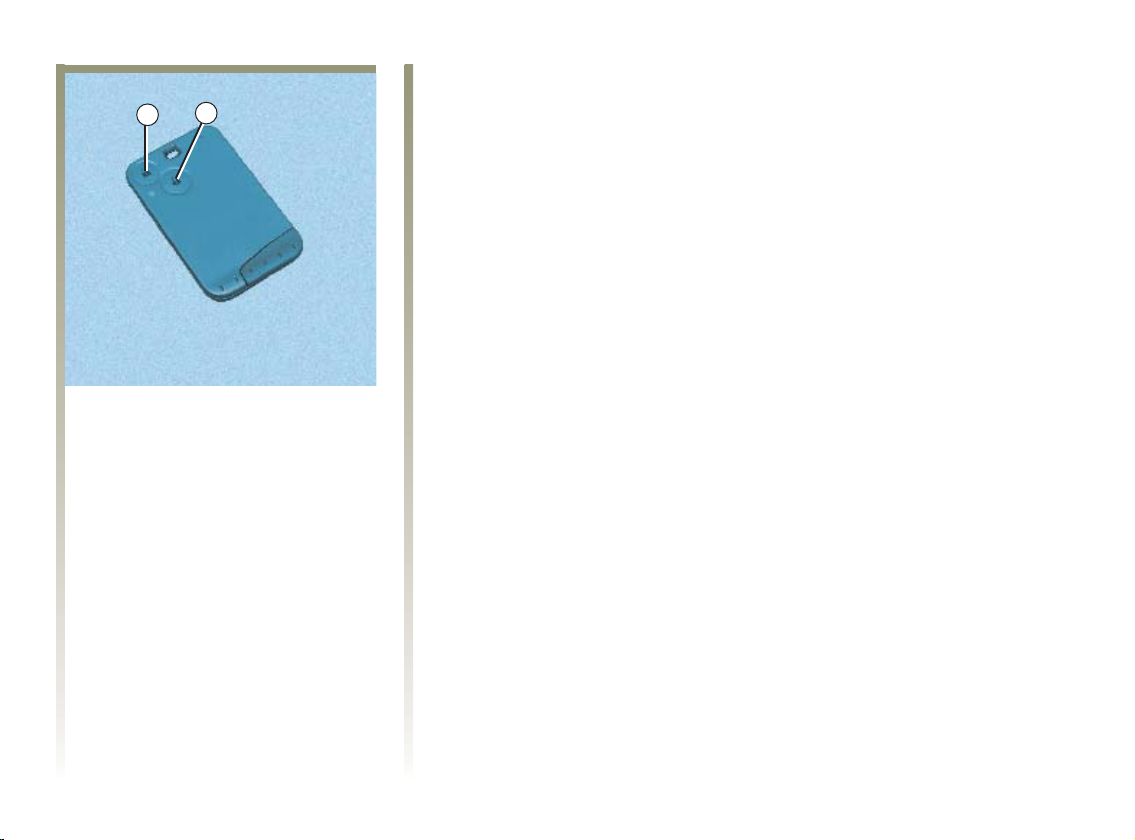

DEADLOCKING
Deadlocking the doors (for some
countries)
This allows you to lock the doors
and tailgate and to prevent the doors
from being unlocked with the
interior handles (for example, by
breaking the window and then
trying to open the door from the
inside).
To activate deadlocking:
- either press button 2twice, briefly;
- or press and hold down button 2.
The hazard warning lights flash four
times to indicate that the vehicle is
locked.
Note: deadlocking is not possible if
the hazard warning lights or the side
lights are lit.
Special notes for Hands-Free
mode
Activating the deadlocking
deactivates Hands-Free mode.
To unlock the doors, you must press
button 1(refer to the information in
the section on RENAULT card in
Hands-Free mode: use).
Hands-Free mode returns
automatically each time the vehicle
ignition is switched on.
Never use deadlocking if
someone is still inside the
vehicle.
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.08 (Black/Process Black plate)

1
2
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.09
1.09

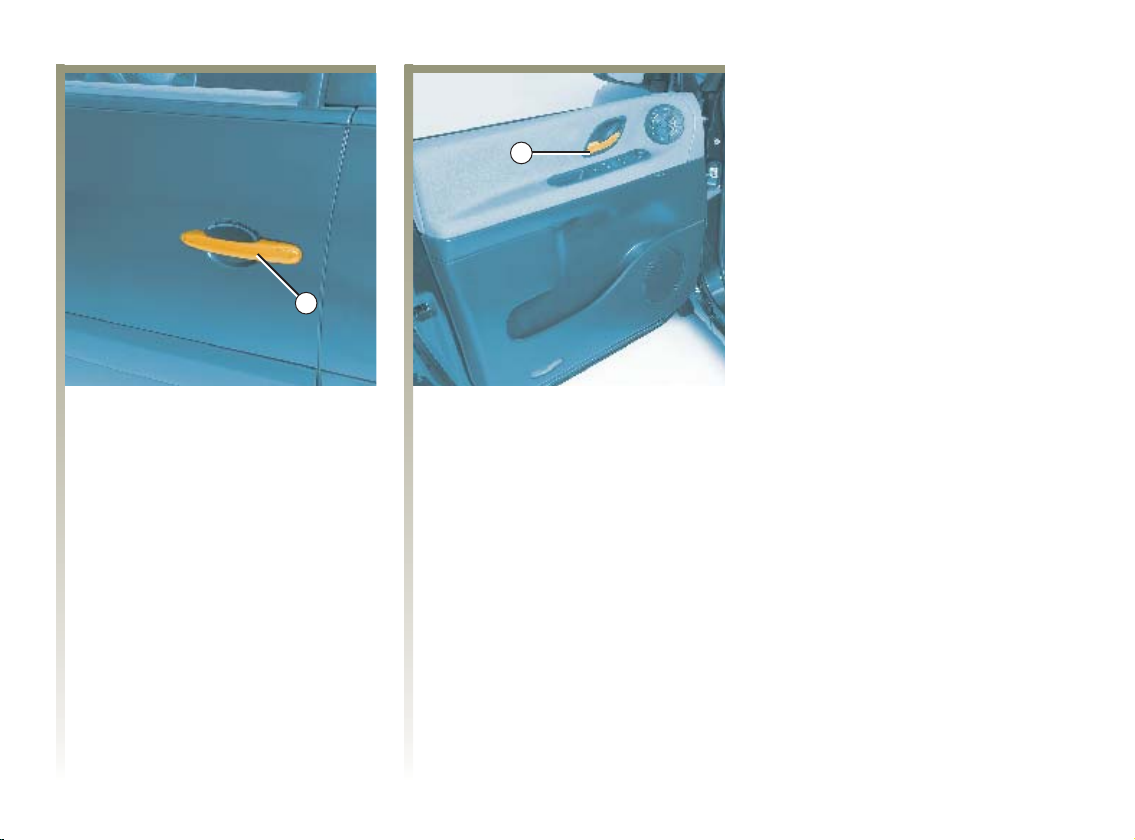

OPENING AND CLOSING THE DOORS
Opening the doors from the
outside
Once the doors have been unlocked
using the RENAULT card, hold
handle 1and pull it towards you to
open the door.
Opening the doors from the
inside
Pull handle 2.
Lights-on warning buzzer
If you have left the lights switched
on after turning off the ignition, a
warning buzzer will sound when a
door is opened (to prevent the
battery from going flat, etc.).
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.09 (Black/Process Black plate)

34
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.10
1.10
OPENING AND CLOSING THE DOORS (continued)
Child safety
Vehicles fitted with switch 3with
integrated indicator light
Press switch 3to prevent operation
of the rear electric windows and rear
door opening.
The indicator light in the switch
lights up to confirm that the doors
are locked.
Special note
This function also inhibits the rear
climate control controls (refer to the
information on Automatic climate
control in Section 3).
Other cases
To prevent the rear doors being
opened from the inside move lever 4
on each door and check from the
inside that both doors are securely
locked.
Safety of rear passengers
The driver can inhibit the
operation of the rear door
electric windows by
pressing switch 3, on the side
with the icon.
Driver’s responsibility
Never leave your vehicle without
removing the RENAULT card
from inside and never leave a
child (or a pet) inside. With the
key in the ignition the electric
windows could be operated and
there is a risk that a child or
animal may be seriously injured
(by trapping his or her neck, arm,
hand, etc.). If something gets
trapped, reverse the direction of
travel as soon as possible by
pressing the relevant switch.
If there is a fault, you will
hear a beep and the
warning light will not
light up.
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.10 (Black/Process Black plate)

2
1
A
NU760_1_G1-FRA.qxd 10/11/05 10:09 Page 1.11
1.11
LOCKING/UNLOCKING THE DOORS
Locking/unlocking the doors
from the outside
This is done using the RENAULT
card; see the RENAULT card
information in Section 1.
In certain cases, the RENAULT card
may not work:
- if the vehicle is located in a zone of
high electromagnetic radiation;
- when using appliances operating
on the same frequency as the card
(mobile phone, etc.);
- when the RENAULT card battery is
drained, flat battery, etc.
It is then possible:
- to use the emergency key
(integrated into the Card or
separate, depending on the
vehicle) for the front left-hand
door;
- to lock each of the doors manually;
- to use the door locking/unlocking
control inside the vehicle (refer to
the information on
Locking/unlocking from the inside
in Section 1).
Using the integral emergency key 2
Remove cover Afrom the front left-
hand door (using the tip of the
emergency key) in notch 1.
Move it upwards to remove cover A.
Insert key 2into the lock and lock or
unlock the door.
NU760_1_G1-ENG.qxp 27-Dec-05 18:37 Page 1.11 (Black/Process Black plate)
