Renegade vienna 2021 User manual

Welcome to
W
ewant tothank you for choosing your Renegade motorhome. Wethink you made an excellent
choice. Why?Because atRenegade,weusethehighestqualitymaterialsand workmanship to
buildyourmotorhome.Wedesignedittoensurethatyouareprovided with stylish,
comfortable, and safetransportation.
The RVIA sticker applied to your unit certifies that we meet or exceed Recreational Vehicle
Industry Association (RVIA) standards. Your motorhome also complies with the requirements of the
Federal Motor Vehicle Safety Standards (FMVSS) for seating and seat belt installation; aswellas the
AmericanNationalSafetyInstitutestandard(ANSI)1192forinstallation of plumbing, heating, electrical
systems and state regulations and the chassis manufacturers’ requirements. Thewheelbaseofthisvehicle
mayhavebeenalteredfromthechassismanufacturers’ original wheelbase as part of the manufacturing
process of your motorhome.
Whetheryouhave owned a motorhome before or are a first-time buyer, itis important to understand
that a motorhome is a complex collection of systems that need tobehandled carefully to avoid injury.
Please take time to review this owner’s manual to become familiar with the features of your new
motorhome. It has been our experience that the more you know and understand your vehicle, the greater
your pleasure and enjoyment.
ABOUT THIS MANUAL
This manual istobeused inconjunction with/and a supplement to your chassismanufacturers’ manual, as well
as the appliance and other accessories manufacturers’ manuals. It has been prepared to ensure that you are
provided with basic instructions for safely operating and maintaining your motorhome.
Throughout thisowner’s manual wecallattentiontospecificsafetyissuesandhazards. Pleasefollow the safety
instructions and/orinformation and observe and comply with proper operating practices. Failure to do so could
cause you or other people to be seriously injured or killed.
Foreasyreference,thismanual isdivided into areas orwhatwerefertoas “sections”.Youwillfind a section
calledspecifications.Thissectioncontainsfloorplans,diagrams,locationsoffeaturesand items that pertain
to your specific motorhome.
Please note: This manual explains many of the options and features that are available through Renegade RV that
may not be included in your motorhome.
Keep all manuals, in aconvenientplace sothey willbethere whenever you need them. If you sell or tradeyour
motorhome, please leave all the manuals with thevehiclesothe new owner can usethem.
IMPORTANT NOTICE Information in the Owner’s Manual is NOT to be construed as a warranty term. The
specifications and descriptions provided in this publication provide no warranty, expressed or implied. The terms of
the Renegade warranty are set forth in your limited warranty document. If you did not receive your Renegade RV
Limited Warranty upon delivery, contact your dealer immediately.
IMPORTANT NOTICE The descriptions and specifications provided in this manual were in effect at the time of
printing and are subject to revision and editions without notice. Renegade RV reserves the right to discontinue
models and/or change designs, options, and specifications at any time without notice and without incurring
obligation.

2
A
Warranty andResponsibility
BE RESPONSIBLE
Itistheowner’s responsibility to use the motorhome for itsintended design purposes, which isfor private,
single family recreational travel, camping, and seasonal usage.
Providing a safe comfortable quality product is our responsibility. Performing a pre-delivery inspection to assure
your unit is in proper working order before delivery is the dealer’s responsibility. Your dealer is also responsible
to assist you in understanding your motorhome. They will provide you with an orientation on the general use,
operations, and safety features of the motorhome, which includes the containment system and components. Your
responsibility is to use the vehicle and components as instructed and to provide proper maintenance and care for
the complete unit and its components.
Bearesponsible owner.Observe and comply with proper operating practices and safety regulations listed on the
applied safety labels in this owner’s manual, the other manuals, and/or operating practices and safety
regulations required by law.
PROVIDE PROPER MAINTENANCE
We cannot emphasize enough the value of providing proper maintenance. By providing proper maintenance
youwillnotonlyminimizedowntimebutassurethatyouwillsafelyandcomfortablyenjoy your unit for many
years to come. Be sure to read the maintenance requirements throughout this manual, the chassis manuals, and
theindividual component manuals tobecome familiar with the programs.
INSURANCE COVERAGE
As an owner it is your responsibility to carry proper insurance coverage. Individual states mandate the minimum
amount of coverage required to register your motorhome, but to fully protect you and your investment, there are
many other types of coverages to consider.
Thesameprinciplesyouusedinselectingyourmotorhomeshouldalsobeusedtoevaluate insurance coveragethat
will best protect you, your unit, and its components. There are many insurance companies that understand the
motorhome lifestyle and have customized policies that will meet your needs.
Protect yourself and your investment. Do not put off insuring your motorhome with proper RV coverage.
LET’SGETYOURMOTORHOMEANDIT’SCOMPONENTS
WARRANTED
s an original purchaser it is important that you review all warranty information. Be
sure you fill out and mail any required warranty and registration cards provided from the
various manufacturers. Some are required to be mailed within ten (10) days after
delivery.
If you are unsure on how to fill out any of the paperwork or are unclear on any of the
instructions be sure to contact your dealer for assistance. If you did not receive the owner’s packets
or are missing any of the warranty registrations, manuals, and/ or the pre-delivery checklist please
contact your dealerimmediately.
NOTE: Failure to fill out and send in your warranty cards or various registrations within the required
amount of time could void your warranty. So please fill out and mail the information immediately.
The pre-delivery checklist should be in your owner's packet, if you do not find it in the packet please
contact yourdealer.

3
B
Safety Warnings, Notices,andLabels
ecause we care about you and your passengers this manual will call your attention
to specific safety issues and hazards that need to be observed every time youuse
yourmotorhome.Asanowneryouareresponsibleforyoursafety, the safety of your
passengers and the people around your motorhome.
Pleasereview and follow all safety warnings and precautions listed throughout this manual, on
safety labels applied though out the motorhome, and those listed inthe chassis and appliance
manuals.
WARNING SYMBOL
Weuseayellowboxwith WARNING toalertyouwhensomethingcouldcauseyouor other
people harm and/or death.
NOTICE SYMBOL
Weuseagrayboxwith NOTICE whensomethingcouldcausedamagetoyourvehicleand/orcomponents, or that
could voidwarranties.
Please read all warnings and notices and follow instructions. Failure to regard the information and instructions
provided could result in costly repairs that may not be covered by your warranty or injury/ death.
WARNING LABELS
Located throughout the coach, you will find INFORMATION and WARNING labels. These have been provided
for your safety and to furnish useful information where it is needed. The National Fire Protection Association
and the American National Standards Institute require many of these labels.
These are a permanent part of the coach and must not be removed.
For your safety and safety of others, do not remove these labels from your motorhome.
WARNING
NOTICE

4
General Safety List
These general safety precautions assure that you and your passengers are safe. Failure to follow these
suggestions could result in you or other people to be seriously injured or killed.
1 Readyourvehicles(chassis)owner’s manualconcerningchassisoperations,featuresandsafety information.
2 Alwayswearyourseatbeltswhiledriving andmakesureyourpassengersdothesame.Youngchildren and
infants must be seated and restrained in proper safety seats as required by law.
3 Never place an infant or child seat inthe front passenger seat. Anyvehicle that is equipped with an airbag
can injure or kill a child if the airbag should deploy.
4 Never relocate alter or modify seat belts. All seat belts are mounted per the FMVSS Federal requirements.
Anyone relocating, altering, or modifying a seat belt will assume full responsibly for the consequences.
5 Do not allow anyone to lie on the sofa or the bed or sit anywhere a seat belt is not provided, while in transit.
6 Periodically inspect seat belts and seat components. If any of the seat belts and /or seat components are not
functioning properly have them inspected by a competent service facility.
7 Allseat releases,slides,and recline mechanisms must befully engaged and locked before putting the vehicle
inmotion. Keepfingers and handsawayfromanypivotpoints ormovingcomponentstoavoid injury.
8 Do not store items under seats. Objects could damage the airbag module under the seats or obstruct or loosen
locking mechanisms under driver’s and passenger seat(s).
9 NEVER disconnectsafetydevicesinstalledonyourmotorhome. Thesedevicesareforyourprotection and
should not be tamperedwith.
10 Have your motorhome checked by a competent service facility if any of the electrical components are not
functioning properly.
11 Do not use a cheater plug (a plug with the ground wire pin removed) to hook up into a 110-Volt plug. Doing
this could cause an electrical shock.
12 Donot use an extension cord with a lower current rating than that of the power cord provided with your
motorhome. This could cause a hazard in the electrical system.
13 TesttheCarbon Monoxide andsmoke detectors operation afteryour motorhomehasbeeninstorage,before
each trip, and at least once every few weeks during use.
14 Neverusestoveorcookingappliancesforcomfortheating, itisextremelydangerous.Refertothe
appropriate section for proper operations and safety information for appliances.
15 Neveruseportablefuelburning equipment,includingwoodandcharcoalgrillsandstovesinsidethe
motorhome. Theuse of this type of equipment inside an enclosed space may cause asphyxiation and creates a
firehazard.
WARNING

5
16 Donot touch outlets or exhaust ports or allow any material totouchor cover the air intake or exhaust ports
while operating the water heater and/or furnace. You can be burnt.
17 Never placeorstore LPgas containers inside the vehicle. LPgas containers are equipped with safety devises
that relieveexcessivepressure bydischarginggastotheatmosphere. RefertotheLPsection in this manual and in
the LP manual for proper safety instructions and operations.
18 DonotallowtheLPbottle(s)tobefilledbeyond80%liquidlevel. Overfillingwilleliminatethesafety cushion
forexpansion which, inturncanresult in thedischarge of gas through thepressure relief valve.
19 BeforefillingtheLPGtank,turnoffallpilotlightsandappliances. Duringfuelingdonotsmoke, strike
matches or uselighters.
20 BeforerefuelingyourmotorhomeclosetheLPTankservicevalve. Turnoffallpilotlightsand appliances.
During fueling do not smoke, strike matches or use lighters.
21 Do not attempt to adjust the regulators on your LPG tank. If adjustment is necessary, it must be made by
qualified LP service technician using special equipment.
22 UseonlyNON-TOXICantifreezemadespecificallyforpotablewatersystems. Automotiveantifreeze, if
ingested, can cause blindness, deafness, or death. Please refer to the water system section or more
information on the safety of using the potable and contained systems.
23 Beforetravelingcheckallemergencyexitsandwindows,toassuretheyareinproperworkingorder and are
notobstructed.
24 The driver must remain in the driver’s seat with complete control of the motorhome whenever the vehicle
is in motion. Cruise control is used to maintain a speed level and the driver must remain seated and completely
in control of the vehicle at the time of use.
25 Neveroverloadyourmotorhome. Overloadingcancausesubstandardvehiclehandling,performance, and a
loss of control. Refer to weight and loading restrictions listed in this manual.
26 The steps or running boards many become slippery during wet, snowy, or icy condition. Use them with caution.
Be sure your foot is firmly placed on the running board or step when using them.
27 Checkclearancesofanyoverheadobstructionssuchasbridges,branches,garagedoors,overhangs,
canopies, low hanging wires,etc.
28 Keep all windows free of obstructions and have window treatments open before driving.
29 Make sure luggage, sports equipment, and other cargo items are stored securely before putting the
motorhome in motion.
30 When backing upincongested areas, have someone outside the motorhome check tobesuretheway is clear.
31 Stayalert, do notdriveforlongperiodsoftimewithoutstopping. Onlongtrips,allowplentyoftimeto stop for
rest andrefreshments.
32 Please DO NOT drink and drive.
WARNING CONTINUED

6
Emergencies and Fire Extinguishers
BE PREPARED FOR EMERGENCIES
It is important that everyone using and riding inthe vehicle befamiliar with emergency features, such as the
location of exits and fire extinguishers.
EMERGENCY EXITS
Make sure all occupants are familiar with the
escaperoutes of the motorhome. One exit is the
front cab driver side door; another is the passenger
side cab door, and another isthe curb side main
entry door. Be sure you keep all exits
unobstructed, so they canbeopenedcompletely.
All coaches are equipped with a window
emergencyexit.Thesewindowsaremarked
withastickerthatstates EXIT andwillhave
bright red latches.
TO OPEN EMERGENCY WINDOW
1 Pull the red button on the screen toward you and remove screen
2 Pull the orange window handle up and out of the holdingbracket
3 Swing handle to lineup with center of window and push window out
4 Crawl out the window and call forhelp
FIRE EXTINGUISHERS
Fire extinguisher are located on the right side of the curb side entry door. Some models may have a second fire
extinguisher in thebedroom.
It is very important that you read the manufacturer's instructions for operation and maintenance of the fire
extinguisher.
Fire extinguishers are recommended for SMALL FIRES ONLY
IN CASE OF FIRE
Evacuate all occupants.
If possible, turn the LP gas service valve to off.
Fight fire only where there is a clear escape path to allow a quick exit.
Stand at least 6 feet back from the fire near an exit and make sure nothing is between
youand your escape route. If you get closer than 6 feet to afire, yourisk getting burned
or hit by splattering material like grease.
If a fire is too hot or smoky for you to get within 6 feet, DO NOT try to fight the fire
yourself. Evacuate immediately and call the Fire Department.

7
Removethefireextinguisherfromthemountingbracket.Youwillnotbeableto
discharge the powder to fight a fire if the mounting bracket is attached.
Besurethesafetyseal ontheextinguisherisbroken. Youwillnotbeableto
squeeze the trigger to discharge the powder if the seal is not broken.
Protect yourself. Stand back at least 6 feet from thefire and make sure the fire is not
between you and yourexit.
AFTER A FIRE HAS BEEN EXTINGUISHED
After any fire it is advisable to have your motorhome inspected by the Fire Department.
The powder sprayedfrom the extinguisher may have spread over a wide area and soiled the furniture, carpets,
and walls. Clean up all the powder as soon as possible.
Never turn on the electrical power or plug in an appliance until all the powder is removed completely from the
area. If the powder has become wet, it can conduct electricity. This may worsen an electrical leakage problem,
impair the equipment’s insulation, or create an electrical shock hazard.
IF A FIRE HAPPENS ON THE KITCHEN STOVE
For fires on a kitchen stove, if possible, turn oven or burner off immediately. If you cannot reach the oven or
burner controls safely, extinguish the fire first, then turn them off.
Remove all the powder and ventilate the area before turning any of the items back on, this is especially important for a self-
cleaning oven.
IF THE FIRE HAD AN ELECTRICAL ORIGIN
If possible, shut off all electrical power. Do not touch any electrical wire or appliances.
Leave themotorhome and close all doors behind you. Call the Fire Department and have them inspect the
premises.
After the inspection and when it is safe to return be sure to ventilate the area thoroughly.
Have a licensed electrician orauthorized dealer inspect your electrical system. Donotturn thepower back on or
plug in electrical equipment until inspection has been completed.
Neverturnonelectricalpowerorpluginan applianceuntilall powder from the
extinguisher is removed completely from the area.
If the powder has become wet, it can conduct electricity. This may worsen an electrical
leakage problem, impair the equipment’s insulation, and create an electrical shock
hazard. These conditions could result in you or others being seriously injured or killed.
WARNING
WARNING

8
PROPERLY DISPOSE OF THE FIRE EXTINGUISHER
The type of fire extinguisher supplied with the
motorhome is a disposable device and cannot be
re-charged.Althoughyoumaynothavefully
discharged the fire extinguisher it cannot be used
more than once. After using, discharge completely
and discardit.
Never puncture or burn the fire extinguisher doing
this could cause it to rupture or explode.
Immediatelyreplaceyourdiscardedextinguisher
with a newextinguisher.
Read the information in the fire extinguisher
manual for proper disposal.
Do not puncture or burn a discarded fire extinguisher.
Puncturing or subjecting the extinguisher to temperatures over 150 degrees
Fahrenheit(66degreesCelsius)couldcauseittoruptureorexplodewhichcould result
in you or others being seriously injured or killed.
FIRE PREVENTION AND SAFETY SUGGESTIONS
Taking proper precautions to prevent a fire from starting is thebest method of firesafety.Usethesame
principlesinyourmotorhomeasyouwouldinyourhome.Belowareafew suggestionsforfireprevention.
Failuretofollowthesesuggestions, aswellasthe onesinallother manuals, could result in you or others
being seriously injured or killed .
Followtheinstructions forthepropercareandoperationof allyourappliances. Check
your fire extinguisher on a regular basis to make sure it is properly charged.
Inspect fuel-burning appliances often and keep them in good working condition. Do not
smoke in bed.
Do not overload electrical circuits. Do not let children handle LP gas or electrical appliance
controls. Do not store flammable liquids inside your unit.
Donotuseportablefuelburning equipment insidethemotorhome.
Never replace a fuse with one of a higher amp rating.
Follow all rules and regulations regarding the use of LP gas and pilot lights.
Avoid parking over dry leaves, dry grass, or other flammable material that can be ignited
by the hot exhaust system under your coach.
When fueling your vehicle do not smoke, strike matches or use lighters.
WARNING
WARNING

9
C
Carbon Monoxide(CO)
arbon monoxide gas is a by-product of the incomplete burning process of any fuel,
including, but not limited to, gasoline, propane, natural gas, oil, charcoal, or wood.
All appliances that burn fuel such as cooking stoves, lamps, space heaters,
furnaces, water heaters, RV generators, or the engine from an RV, car or truck
can produce CO.
When appliances are in good working condition with proper combustion and
ventilation, lethal carbon monoxide gas is vented outdoors where it quickly disperses. A
safety hazard can occur when an appliance malfunctions and produces CO that is not
fully vented. CO polluted air inside an RV can quickly build to lethal levels.
Unlike smoke or LP gas, carbon monoxide cannot be smelled or seen. If a
personisexposedtoenoughCO,theresultscanbepermanentlydisablingor fatal.The
COdetectorinstalledwillwarnyouofitspresence.Before each trip test your alarm as
specified in the manual.
It important that you read the manufacturer’s instructions for operating and
maintaining the CO detector.
Carbonmonoxide(CO)cancauseunconsciousnessanddeath.Youcannotseeit or
smell it,soyou maynot know itisinyourvehicle. Useyour detector tohelp assure the
safety of you and your passengers.
CO PREVENTION AND SAFETY SUGGESTIONS
As a safety precaution, learn the early symptoms of CO exposure and regularly test and maintain your CO alarm to
ensure it is in good working order. If you suspect CO poisoning, move outside to fresh air, and seek emergency
help. Below are suggestions to help assure everyone’s safety. Failure to follow these suggestionsorthe
instructionsinyourothermanualscouldresultyouorotherstobeseriouslyinjuredorkilled.
Before each trip make sure power is supplied to the CO detector. Learn the early symptoms of
CO exposure.
Inspect fuel-burning appliances and vents often and keep them in good working
condition. Regularly test and maintain your CO alarm to ensure it is good working
order.
Check your exhaust system to ensure it is in good working order. A damaged and /or
rusty exhaust could allow engine exhaust containing CO to leak into your vehicle. When
parking in snowy conditions make sure that snow does not block exhaust pipes from the
engine, furnace, or water heater. Clear the way and check around from time to time.
If the alarm goes off oryoususpectcarbon monoxide maybein yourvehicle, let in as
much fresh air as possible, leave the unit and call the fire department. Never restart
appliances untilthesource of the carbon monoxide leak has been repaired.
WARNING
WARNING

10
LP Gas Safety
SAFETY REGULATIONS FOR LP GAS SYSTEM AND GAS APPLIANCES
We are required to furnish the following consumer information as provided by the National Fire Protection
Association andthe American National Standards Institute.Theinformation andwarnings found here might
also be found in other sections of this Owner’s manual.
WARNING: LP gas containers shall not be placed or stored inside the vehicle. LP gas containers are equipped
with safety devices, which relieve excessive pressure by discharging gas to the atmosphere.
WARNING: Portable fuel-burning equipment, including wood and charcoal grills and stoves, cannot be used
inside the recreational vehicle. The use of this equipment inside the recreational vehicle may cause fires or
asphyxiation.
WARNING: Do not bring or store LP gas containers, gasoline, or other flammable liquids inside the vehicle
because a fire or explosion may result.
A warning label has been located near the LP Gas container. This label reads DO NOT FILL CONTAINER(S)
MORE THAN 80 PERCENT OF CAPACITY. Overfilling the LP Gas container may result in uncontrolled gas
flow which can cause fire or explosion. A properly filled container will contain approximately 80 per cent of its
volume as liquid LP Gas.

11
T
Smoke Alarms andFires
he smoke detector is mounted in the ceiling inthe front of
the living area. It is very important that you read the
manufacturer’s instructions for operation, testing, and the
maintenance of the smokedetector.
Smoke detectors are the single most important means of
preventing fatalities by providing an early warning signal so you and
your family canescape.
TEST THE ALARM
It is important that you test the smoke detector before each trip and after
prolongedstorage.Themanufacture’smanual will explainthe best way
to test your smoke detector.
PLAN AN ESCAPE ROUTE
Make afloor plan indicating all doors and windows and atleast two (2) escape routes from each room. Have a
family meeting and discuss your escape plan, explain to everyone what to do if they hear the alarm.
Determine aplaceoutsideyourmotorhomewhereallofyoushould meet. Familiarize everyone with the sound
ofthesmoke alarm and explain theymust leave the motorhomeimmediatelywhenthey hear it. Practice a fire
drill at least every six months.
CLEAN THE ALARM
The alarm should be cleaned at least once a year.To clean your alarm, remove it from the mounting bracket.
Clean theinterior ofyour alarmbyusing compressed airor avacuumcleanerhosetoblowor vacuum through
the openings around the perimeter of the alarm. Clean the outside of the alarm by wiping it down with a damp
cloth.
IF THE ALARM SOUNDS
If a smoke detector goes off, you have seconds to respond so get everyone out as quickly as
possible. Your best response is to leave your motorhome immediately, gather at your prearranged
meeting place and call 911.
When you hear the alarm:
Leave immediately using your escape plan. Every second counts so do not waste time getting dressed or
picking up valuables.
In leaving, do not open any inside door without first feeling its surface. If hot or if you see smoke
seepingthroughcracks, DO NOTOPENTHATDOOR! Insteaduseanalternateexit.Ifthe inside door is
cool, place your shoulder against it, open it slightly and beready to slam it shut if heat and smoke
rushin.
If the air is smoky stay close to the floor. Breathe shallowly through a cloth, wet if possible. Once
outside, go to your selected meeting place and make sure everyone is there.
Call the fire department from your neighbor’s residence NOT FROM YOUR MOTORHOME!
Do not return to your motorhome until the fire officials say that it is all right to do so.

12
Donotremoveyoursmokedetectorunless replacingitwithanewone. Never make
alterations tothesmoke detector. Make sure itis in good working order.
Testthesmoke detector before eachtripand afterprolongedstorage.Without a
working smoke detector toalert you orothers,thechances of dyingif afire breaks
out are extremelyincreased.
WARNING

13
BUCKLE UP
Seat Belt Systems
It is very important that you read the chassis manufacturer’s seat belt information section. This section will have
vital information concerning proper use, operation, and safety information of seat belts. Seat belts work for
everyone. They are designed to secure a person in the vehicle helping toreduce the chance of injury or the
amount of injury resulting from accidents or sudden stops. Do not allow anyone to ride on the sofa, recliner
(unless a seat belt is provided within the unit) or the bedoranywherethereisnotaseatbelttoproperlysecure
them.Youneverknowifyouwill beinvolvedin an accident or crash so please make sure that you and all your
passengers use the three-point and/or lap seat belts while your vehicle is in motion.
IMPORTANT NOTICE: Anyone relocating, altering, or modifying a seat belt in anyway is assuming the responsibility for
any consequences.
The seat belts are mounted per the Federal motor Vehicle Safety Standards
(FMVSS). Never relocate ormake alterations ormodify the seat belts.
Relocating,altering,ormodifyingseatbeltscouldresultinimproper operation
resulting in someone being seriously injured or killed.
Never allowanyonetorideonthe bed, cargo area oranywhere heorshecannot wear a
seat belt properly. If you are in a crash and not wearing a safety belt,youcould hit
thingsinsidethevehicleorbeejectedfromit.Alwaysfasten your safety belt and check
that your belts are fastened properly.
SEAT RESTRAINTS FOR BABIES, TODDLERS AND OLDER CHILDREN
Beaware thatthere are special things to know about safety belts concerning babies, toddlers, and older children.
Failuretofollow the rules for babies, toddlers and older children could result inthembeing seriously injured or
killed.
In every state in the United States and in the Canadian providence the law states children up to a specified age
mustberestrainedwhileinavehicle.Babiesandsmallerchildrenshould alwaysberestrainedin achild orinfant
restraint and never held on someone's lap. It is against the law in most states to hold a baby or child or allow
themtobeunbuckledwhilethevehicleisinmotion.Followtherequirementof
the state/providence laws that govern the state/providence you are driving in. Follow the manufacturer’s
instructions when installing and using an infant and child restraint.
Improper installation of an infant or child restraint can lead to improper protection.
Ifthe child isnotsecured properlyit could allowthechildtomove about or come out
of the restraint and become airborne ina collision. In either case the child could
sustain serious or fatal injuries.
Alwaysfollowthemanufacturer’s instructionswheninstallingandusingthe
restraint to properly protect the infant or child.
SEAT BELT OPERATION
Again, we stress that it is very important that you read the chassis manufacturer’s seat belt information section to
find the complete information concerning the proper use and operations ofseat belts aswell as detailed safety
information .
WARNING
WARNING

14
THREE-POINT (LAP-SHOULDER COMBINATION)
The chassis manufacturer provides the driver and passenger front seat belts. Refer to the chassis manufacture for
proper operations of this type seat belt.
LAP BELT
These belts maybe located in the sofa area or recliner.
Pick up the tongue plate portion of the belt (the loose end) pull it across you.
Lengthen the belt byturning the tongue to the right angle and pull across until it reaches the buckle. Push the
tongue plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. To tighten the
belt, pull the loose end of the belt through the tongue until it fits snugly across the hips. If your lap belts are not
long enough contact Renegade Customer Service at 1-800-295-7859 .
In an accident, you can be seriously injured if your seat belt is loose or twisted. A
loose belt could allow you to move forward too much, which could increase the
chance of injury.
During an accident, a twisted belt may not beable toprovidethefull
protection.
MAINTENANCE
Periodically make sure the safety belt reminder light and all your belts, buckles, latch plates, and retractors are
working properly and are anchored correctly. Look for any torn, frayed, loose, or damaged belts or attachments. If
you find any items that may be defective or loose have the component of the seat belt repaired or replaced
immediately.
Ifyour motorhome has been involved inanaccident have the seat belts inspected for proper operation by an
authorized technician and to make sure the components have not been damaged in any way. If any of the belts
have been stretched and/or their components have been damaged they must be replaced.
Do not attempt to disassemble or modify the seat belt system at any time.
Frayed, torn, stretched or damaged belts, as well as, loose, or broken attachments,
could come apart in an accident leaving you without protection. You must have any
defective or loose component of the seat belt repaired or replaced immediately.
If the seat belt is not out of the way of the door you can damage both the belt and your vehicle.
WARNING
WARNING
NOTICE

15
T
Captain’s Chairs
hese seats can be adjusted so you maintain correct height position and should aid the driver’s
visibilityandvehiclecontrol.Whenadjustedproperlyandundernormaldriving conditions set
the seat to make sure you have enough head clearance.
Please read your chassis driver’s manual for more information on the captain chairs
operating instructions.
Due to the maximum adjusting capabilities of the mid and high back air suspension seats, it is
possible to combine the seat back recline adjustment and the seat slide adjustment so that the seat back
contacts thesidewall.
YourCaptain’s chairsmayalsohaveafactoryaddedoptiontoswivel.Toswivelthechair reach
underneath the front of the seat and move the lever to the left. And release thelever when you have
achieved the position you desire. When the coach is in motion both captain’s chairs must be locked in
the forward-facing position.
When adjusting the seats make all adjustments while seated and before the engine is started.
Seat belts should be always worn when operating the vehicle.
Make sure the front seat releases are in their locked forward position before moving
the coach. The forward/locked position is the only one certified for safety and to be
used while the vehicle is in motion.
Serious injury may occur if head clearance isnot adequate. Before driving or riding in
the vehicle, ensure that there is adequate head clearance at maximum upward travel
ofseat.
It is the responsibility of the driver to adjust the seat to prevent damage to the seat and the cab interior. Rotate the
seat back into place by going the same direction you came.
Do not turn the seat 360 degrees. This will damage wires that are behind the seat.
It may be necessary to move the seat forward or backward to clear the vehicle walls and dash as it turns.
WARNING
NOTICE

16
FUELTYPE
Fuel Tank Safety
Alwaysusetherecommendedfuellistedinyourchassismanual.Fuelvaporburnsviolently.Toavoida fuelfire,
turnyourengineoffwhenyouarerefueling. Neverallowopenflamesnearthefillerneckand never smoke while
refueling.
FUEL CAP
When removing the gasoline fill cap, rotate it slowly to release any built-up pressure that may have occurred
within the fuel tank. You will hear the hissing sound of the pressure being released, when the noise has stopped,
you can completely remove the cap. Always replace a lost or damaged fuel cap with the same style as the original
one .
Always remove the fuel cap slowly to allow any internal pressure to be slowly released.
The use of the vehicle or on hot days the fuel may warm up causing vapor to build up
within the fuel tank. A sudden release in the pressure could cause the fuel to spray out
creating a potential hazard and result in you or someone being seriously injured or
killed.
Using a different style of gas cap as the original could cause a malfunction indicator lamp to light and may damage
your fuel tank and emissions system .
WARNING
NOTICE

17
Y
Vehicle weight, loading, and leveling
ourRenegademotorhomeisdesignedtoallowforareasonableweightofpassengers and/or
cargoitems.Theweightoftheemptyvehicle willvarybasedontheequipment and options that
areinstalled.
It isvery important that you know thevarious weight limits/ratings of your motor home.
The driving ability and handling for the unit could be greatly altered or affected if your unit is
overloaded.

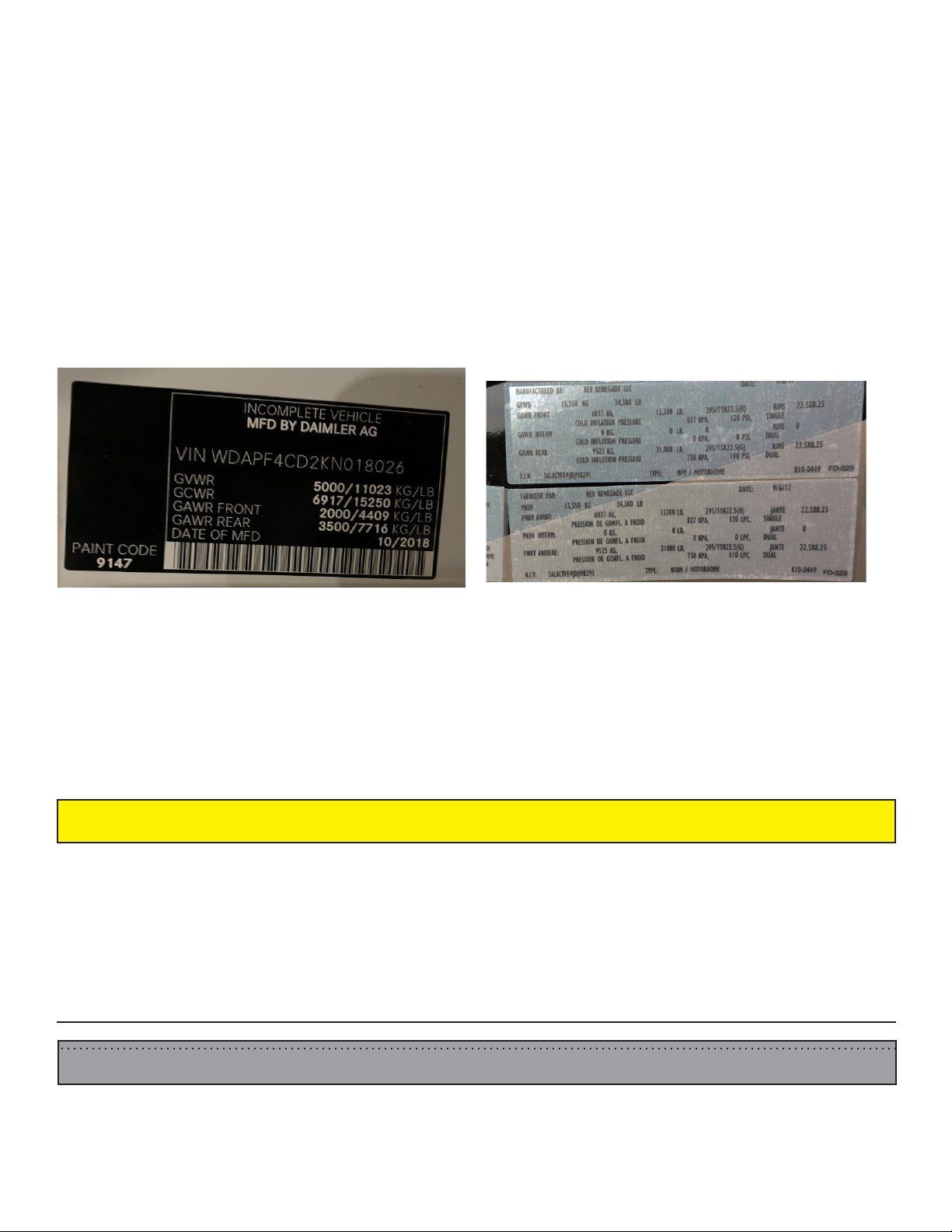

Amotorhomeisdesignedtocarryloadsthatarespecifiedbythechassismanufacturer.Theseload and
weightlimitsignsarepostedonthelabelsaffixedtothedriver’s andpassenger’s doorjams.
TheGrossVehicleWeightRating(GVWR)isacombinationofthestructureandthesuspension
components.
The Gross Combination Weight Rating (GCWR) is the maximum amount of weight allowable for your fully
loaded vehicle (passenger, food, fuel, water systems, supplies etc.), and if applicable the weight of any towed
vehicle.
LOADING THE VEHICLE
When loading the outside storage compartments, try to distribute the load as evenly as possible, from side to
side, and front to back. Note that gray, black, and freshwater tanks need to be considered, as they will
significantly change the balance due to their weight.
Inside the cargo should be distributed as evenly as possible from side toside and front toback. Store heavier
items on or closetothe floor as possible. Lighter items may be stored in overhead cabinets, closets, and drawers.
Secure items and cabinet latches toavoid sudden shifting of cargo during travel, sudden stops, or emergency
maneuvers .
Do not exceed the GVWR or GCWR. Overloading can cause a serious potential safety
hazard. The driving ability and the handling of the unit could be greatly altered or
affected if your unit is overloaded resulting in an accident which could cause someone to
be seriously injured or killed.
Donot modifyyour vehiclebyadding additional equipment or rackstocarry
additionalcargo.Thiscouldcauseyoutoexceedyourweightlimitand/orplace the
vehicleoutofbalance, alteringthehandling ofthevehicle, causingalossof control,
which could lead to you or others being seriously injured or killed .
Overloading can cause parts to break and/or shorten the life of your vehicle or could lead to costly repairs that may
not be covered by your warranty .
WARNING
NOTICE

18
WEIGHING THE UNIT
Any vehicle can have the potential ofbeing overloadedanditmaybenecessarytoremovesome of the weight or
redistribute items tomake the load even. Youmay want toweigh the unit from time totimeto make sure you are
staying within the weight limitations specific to your motorhome.
When weighing your motorhome, it must be weighed when it is fully loaded. This includes passengers, food,
clothing, water, fuel, supplies, any towed vehicles behind a motorhome, and the tow vehicle. It is important to
weigh your motorhome at a location that can provide axle-end specific weights.
You should not expect to measure equal loads at both ends of the same axle, because floor plans and component
locations vary significantly, however, you should distribute the load to obtain the best balance possible.
HOW TO WEIGH YOUR VEHICLE
When weighing the motorhome at apublic scalethescale operator willrecommend themethod to use to determine the
weightvalues.
It is very important that you read the chassis owner’s manual. It will also give additional information on the
complete procedures for weighing and loading your vehicle.
Procedure 1 Drive only the front axle of the motorhome onto the scale compare this weight to the GAWR (Gross
Axle Weight Restrictions) listed on the federallabel.
Procedure2 Pullforwarduntilbothfrontandrearaxlesareonthescale.Comparethisweighttothe GVWR
(Gross Vehicle Weight Restrictions) listed on the federal label.
Procedure 3 Pull forward until only the rear axle is on the scale. Compare this weight to the GAWR listed on the
federal label.
NOTEAfterweightdetermination,ifthereisanyweightexcess,relocateorremoveportionsofthecargo until
proper tolerances are obtained. Cargo should bedistributed evenly from side-to-side and front-
to-back.Store heavieritems on or close tothe floor as possible. Light items may bestored in cabinets, closets,
and drawers. Secure items to avoid damage in sudden stops and/or accidents.
Whenever hauling cargo besureitissecuredinpositiontoavoidshifting during quick
stops, cornering, orin caseof an accident. Unsecured cargo could cause you to lose
control of your vehicle and result in you or others being seriously injured or killed.
Overloading cancause your tires to overheatresultingintoomuch friction and you
could have an air-out which could result ina serious accident. Besure that theoverall
weight,includingpassengers,equipmentandsuppliesetc.,doesnot causeyour
motorhometoexceedaxleloadsaswellastheoverallvehicleloads specific to your
motorhome.
Overloading can cause your tire to overheat, wear prematurely and/or damage the tire.
WARNING
NOTICE

19
LEVELING JACKS
Itisveryimportantthatyoureadthelevelingsystemmanufacturer'smanualbeforeoperating leveling
jacks for the first time.
Thejacks needtobekept ingood condition. In rainy,snowy,oricyweather thejacks may become caked withmud
and/oricecausingproblemswithitsoperations.Periodicallychecktheleveling jacks,usewater to spray away the
mud or break away the ice before you try to use them.
The leveling system should be cycled once a month or whenever the vehicle is used to keep the system in operating
smoothly.
Atthebeginningoftheseason checktheoillevelinthejacks and check the hydraulic lines and wiring for damage and
wear. It is advisable to check the oil again before you leave on a trip.
Yearly check the framework for rust or damage. Periodically inspect the hoses and lines.
Before moving the vehicle make sure the jacks are completely stored. Never move the vehicle with the jacks down
on the ground.
Refer to your owners-manual for the proper procedures for manually retracting your jacks should you lose
power to the pump. A handle is provided to perform this task.
SLIDE OUT MECHANISMS
Your coach is equipped with electric slide out systems to move the slide rooms in and out. The slide out system is
powered by your batteries. Your batteries are very important to the operating system. Maintaining your batteries is
crucial. The batteries should be fully charged, and the cable terminals andbatterypostsshould beclean toavoid erratic
operations due tolowvoltage.Theswitch for the 12-volt electrical service is located on the side panel of the counter in
the step well area.
Theslidemechanism mustbekept ingood condition.Watchclosely as youextend theroomtomake sure the slides
are not binding. To move the slide room in or out hold the button continuously until the room has reached its inner
or outermostposition.
OPERATING
The slides are controlled through the multiplex system. Please make yourself familiar with the use of this system.
Before you extend the slide room, make sure the level jacks are in place and the unit is level. If the unit is not
level the mechanism can bind and if the weight is not distributed properly the slide-out can lean.
These types of situations can damage the slide out mechanism.
Byusing a level (small bubble type should work) either on acounter, dining room table,or other areas in the RV
can help assure the vehicle and the slide rooms are level.
When you are parking the RV,make sure that the slide out can move freely and that the area is clear of any
obstructions. Watch closely as you extend the room.
Refer to your owner’s manual on the proper procedures for manually extending or retracting your slides
should you lose power to the actuator.
Before moving check around theinside slide room area to ensure that personal items such as ceramic flowerpots,
small tables, plants, etc. are not going to fall as the unit moves out.
A manual override is installed toassist you in casethereisafailure with the electrical power.Refer to your
manual for more information on this feature.

20
MAINTENANCE
Keep theslide-outmechanisms clean. Road grime such as dirt, salt, ice, can build up on the mechanism impairing
operation. You canclean them by using a mild soap and water solution.
Avoid damage totheslide outmechanism. Beforeyouslidetheroom, makesurethelevelingjacks arein place to
avoid improper weight distribution or leaning.
To avoid damage to the slide out be sure the unit can slide freely, and the area is clear of any obstructions.
Your slides are equipped with rubber wiper blades located at the top, along the sides, and across the bottom of the
slide out opening that will assist in wiping off debris when the slide out is being operated. Periodically check the
wipersealstoensuretheyarefreeofdebris.
