Renkforce RF-PJ-300 User manual

Operating Instructions
RF-PJ-300 Mini projector
Item No. 2301166 Page 2 - 28
Notice d’emploi
Mini projecteur RF-PJ-300
N° de commande 2301166 Page 29 - 56
Gebruiksaanwijzing
RF-PJ-300 Mini-projector
Bestelnr. 2301166 Pagina 57 - 84

Table of contents
Page
1. Introduction..........................................................................................................................3
2. Explanation of symbols .......................................................................................................3
3. Intended use........................................................................................................................4
4. Package contents................................................................................................................4
5. Features and functions........................................................................................................5
6. Safety information ...............................................................................................................5
a) General information......................................................................................................5
b) Connected devices.......................................................................................................6
c) LED light.......................................................................................................................6
d) Electrical safety............................................................................................................6
e) Persons and product....................................................................................................7
f) Batteries.......................................................................................................................7
7. Product overview.................................................................................................................8
8. Pin assignment for VGA connection....................................................................................9
9. Positioning the projector......................................................................................................9
a) General information......................................................................................................9

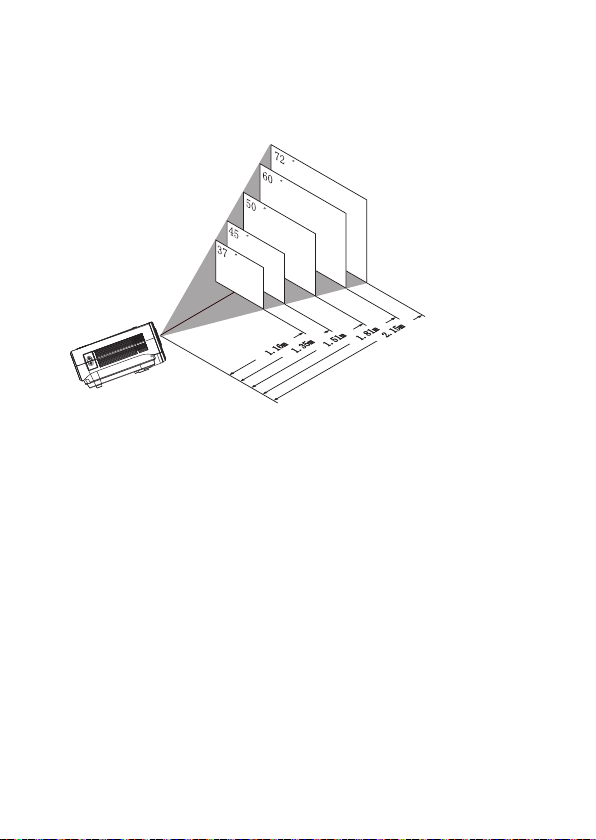

b) Determining the projection distance...........................................................................11
10. Installation and connection ...............................................................................................12
a) Overhead mounting....................................................................................................12
b) Wall mounting.............................................................................................................13
c) Ventilation openings ...................................................................................................13
d) Keystone correction....................................................................................................14
e) Connections ...............................................................................................................14
RF-PJ-200 Mini projector
2

11. Remote control..................................................................................................................18
a) Inserting/changing the batteries .................................................................................18
b) Using the remote control ............................................................................................18
12. Setup.................................................................................................................................19
a) Turning the projector on/off ........................................................................................19
13. Operation...........................................................................................................................20
a) Selecting the signal source (video) ............................................................................20
b) Conguringtheprojectionsettings.............................................................................20
c) Manually changing the volume...................................................................................20
d) Playing video content.................................................................................................20
14. Settings .............................................................................................................................21
a) Operating the menu (general) ....................................................................................21
b) Setting the menu language ........................................................................................22
c) Audio settings.............................................................................................................22
d) Conguringtheimagemode ......................................................................................22
e) Setting the duration of the menu display....................................................................23
f) Setting the colour temperature...................................................................................23
g) Setting the image format ............................................................................................23
h) Conguringthenoisereductionsettings ....................................................................24
i) Screen (VGA settings)................................................................................................24
j) Changing the projection size......................................................................................24
k) Restoring factory settings...........................................................................................25
l) Software update.........................................................................................................25
15. Care and cleaning .............................................................................................................25
16. Disposal.............................................................................................................................26
a) Product.......................................................................................................................26
17. Technical data ...................................................................................................................26
3

1. Introduction
Dear customer,
Thank you for purchasing this product.
This product complies with statutory, national and European regulations.
To ensure that the product remains in this state and to guarantee safe operation, always follow
the instructions in this manual.
These operating instructions are part of this product. They contain important information
on setting up and using the product. Do not give this product to a third party without
the operating instructions. Keep these operating instructions in a safe place for future
reference.
If there are any technical questions, please contact:
www.conrad.com/contact
2. Explanation of symbols
The symbol with the lightning in a triangle indicates that there is a risk to your health,
e.g. due to an electric shock.
The symbol with an exclamation mark in a triangle is used to highlight important
information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and tips on how to use the product.
4

3. Intended use
This product is intended for projecting, displaying and playing back multimedia content from
suitable signal sources, e.g. for presentations. The projector is powered by a 100 - 240 V/
AC mains voltage. The LED light source offers up to 30,000 hours of operating time with a
brightness of 3200 lumens, ensuring a long lifespan. A remote control is provided for convenient
operation. This requires two 1.5 V AAA batteries (not included with the product) as a power
supply. The projector also comes with stands, which enable fast and simple setup for convenient
projection in almost any environment. The device can be mounted on ceilings and walls using
brackets. A built-in microSD card slot and a USB port allow you to view electronic documents,
videos and other multimedia content. The video signal input can be connected via HDMI, VGA
or AV inputs.
This product is intended for indoor use only. Do not use it outdoors. Contact with moisture, for
example in bathrooms, must be avoided.
For safety and approval purposes, do not rebuild and/or modify this product. Using the product
for purposes other than those described above may damage the product. In addition, improper
use can cause hazards such as a short circuit, re or electric shock. Read the operating
instructions carefully and store them in a safe place. Only make this product available to third
parties together with its operating instructions.
All company and product names contained herein are trademarks of their respective owners.
All rights reserved.
HDMI is a registered trademark of HDMI Licensing L.L.C.
4. Package contents
• Mini projector
• Network cable
• HDMI cable
• AV cable
• Remote control
• User manual
5

1Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads
or scan the QR code shown. Follow the instructions on the website.
5. Features and functions
• 800 x 480 Mini projector
• Workswithcomputers,laptops,tablets,smartphones,ampliersandgameconsolesviaan
AV, VGA or HDMI connection
• Playsvideos,photoandaudiolesviaUSB
• Manual focus setting (focal length)
6. Safety information
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety information and information on
proper handling in these operating instructions, we will assume no liability for
any resulting personal injury or damage to property. Such cases will invalidate
the warranty/guarantee.
a) General information
• This product is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. It may become a
dangerous toy for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high
humidity,moisture,ammablegases,vapoursandsolvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, stop using it and prevent
unauthorised use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stress.
6

• Handle the product carefully. Jolts, impacts or a fall even from a low height may
damage the product.
• Consult a technician if you are not sure how to use or connect the product, or if
you have concerns about safety.
• Maintenance,modicationsandrepairsmayonlybecarriedoutbyatechnician
or a specialist repair centre.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
b) Connected devices
Always observe the safety information and operating instructions of any other
devices which are connected to the product.
c) LED light
• Do not look directly into the light of the lens while the projector is in use, as this
may cause eye damage.
• Attention, LED light:
- Do not look directly at the LED light!
- Do not look into the beam directly or with optical instruments!
d) Electrical safety
• This device was constructed according to protection class II. Only connect the
mains plug to a standard mains socket (100 - 240 V/AC, 50 Hz) connected to
the public grid.
• Neverpouranyliquidsoverelectricaldevicesorputobjectslledwithliquidnext
to the device. If liquid or an object does get inside the device, power down the
respective socket (e.g. switch off the circuit breaker), and then remove the mains
plug from the mains socket. Discontinue use and take the product to a specialist
repair centre.
• Never use the product immediately after it has been taken from a cold room into
to a warm one. This may cause condensation to form, which can destroy the
product. Allow the product to reach room temperature before connecting it and
putting it into use. This may take several hours.
• The mains socket must be located near to the device and be easily accessible.
7

• Never unplug the mains plug by pulling on the cable. Always use the grips on
the plug.
• Unplug the mains plug from the mains socket if you do not plan to use the product
for an extended period of time.
• For safety reasons, disconnect the mains plug from the mains socket during
thunderstorms.
• Ensure that the mains cable is not squeezed, bent, damaged by sharp edges
or subjected to mechanical stress. Avoid excessive thermal stress on the mains
cable from extreme heat or cold. Do not modify the mains cable. Failure to adhere
to these instructions may lead to damage of the mains cable. A damaged mains
cable can cause a fatal electric shock.
• Do not touch the mains cable if there are any signs of damage. Power down
the respective mains socket (e.g. via the respective circuit breaker), and then
carefully unplug the mains plug from the mains socket. Never use the product if
the mains cable is damaged.
• Damaged mains cables must be replaced by the manufacturer, an authorised
repaircentreoraqualiedelectrician.
• Never plug in or unplug the mains plug when your hands are wet.
e) Persons and product
• Do not cover the ventilation openings (air inlet and outlet) on the product.
• Do not place the product too close to equipment that is susceptible to
electromagnetic interference. This may result in malfunctions.
f) Batteries
• Correct polarity must be observed while inserting the batteries.
• To prevent battery leakage, remove the batteries when you do not plan to use
the product for an extended period. Leaking or damaged batteries may cause
acid burns if they come into contact with your skin. Always use suitable protective
gloves when handling damaged batteries.
• Batteries must be kept out of the reach of children. Do not leave batteries lying
around, as there is a risk that children or pets may swallow them.
• All batteries must be replaced at the same time. Mixing old and new batteries can
cause the batteries to leak and damage the product.
• Batteries must not be dismantled, short-circuited or thrown into open ames.
Never recharge non-rechargeable batteries. This may cause an explosion!
8

7. Product overview
6
7
1
3
2
5
4
8
14
13
11
10
12
9
8
1 Lens
2 Focus selection wheel
3 Keystone selection wheel
4 Up button
5 LED
6 On/off button
7 ESC button
8 Volume + button
9 Down button
10 OK button
11 Signal selection button
12 Menu button
13 Infrared sensor
14 Volume - button
9

8. Pin assignment for VGA connection
1 R (red) 2 G (green)
3 B (blue) 4 Monitor ID2
5 Earth (horizontal) 6 R (red earth)
7 G (green earth) 8 B (blue earth)
9 5 V 10 Earth (vertical)
11 Monitor ID0 12 DDC data
13 Horizontal sync. 14 Vertical sync.
15 DDC time
9. Positioning the projector
a) General information
You can place the projector on a surface such as a table or other similar piece of furniture.
Overhead mounting in front of or behind the projection surface is also possible. Refer to the next
section for details. The requisite brackets are not included with the product. Suitable products
are available from specialist retailers.
10

Ensure that the ventilation openings on the projector are not obstructed or blocked during the
installation/mounting process. The projector should be placed at least 10 cm away from other
objects to ensure adequate cooling by air circulation.
11

b) Determining the projection distance
When setting up the projector, observe the correct ratio between the distance of the projector
from the projection screen (e.g. screen or similar) and the image size. Refer to the following
gure.
Inaddition,bearinmindthattheambientbrightnesshasasignicantimpactonthevisibilityof
theimage.Ifthebrightnessoftheprojectorbulbisnotsufcientforprojectingaclearimage,
darken the room and/or avoid glare from strong sunlight.
12

10. Installation and connection
a) Overhead mounting
• Mount the projector with a projector ceiling bracket (not included with the product).
• Make sure that the load-bearing strength of the mounting surface and the fastening elements
(e.g.screws)issufcient.
Do not mount the projector in the vicinity of air conditioning, ventilation or heating
systems. This can cause the device to overheat and power off.
13

b) Wall mounting
Wall mounting hole
• Use the wall mounting hole to attach the projector to a wall.
• In addition, make sure that the load-bearing strength of the mounting surface and the
fasteningelements(e.g.screws)issufcient.
c) Ventilation openings
Do not cover the air cooling openings during use, as this may cause the device to overheat
orevencauseare.Theremustbeacontinuousowofairbetweentheairinletandoutlet.
Micro SD
Lufteinlass Luftauslass
Air inlet Air outlet
14

d) Keystone correction
Position the projector as perpendicular as possible to the projection surface. If the projector is
not exactly perpendicular to the projection screen, the projected image will appear distorted.
The image will appear wider (or higher) on one side than on the opposite side. To compensate
for this, use the keystone correction on the device. This creates a distortion in the image that
compensates for the existing distortion and creates a normal image for the viewer.
• Turn the Keystone selection wheel (3) to correct the image for an undistorted view. You can
correct the image up to a maximum of ±15°.
Projection
Projector
Vertical
Projector
Projection
Vertical
Setting wheel
e) Connections
Connect the desired signal source devices to the projector.
1VGA video signal
MicroSD You can use a VGA signal
source such as computer.
15

2VGA signal parameters for adjusting a computer output signal
Resolution Frequency (kHz) Half-frame frequency (Hz)
VGA 640 x 480 31.5 60
34.7 70
37.9 72
37.5 75
SVGA 800 x 600 31.4 50
35.1 56
37.9 60
46.6 70
48.1 72
46.9 75
XGA 1,024 x 768 40.3 50
48.4 60
56.5 70
If the projector is connected to a laptop, the image may not be displayed on both
devices at the same time. If so, adjust the display attributes of the laptop and select
the CRT output mode.
16

3HDMI source signals
Micro SD
Connect the supplied HDMI
cable to a suitable HDMI signal
source.
4USB port
The USB port on the projector can be used to connect USB storage devices.
5Audio output signal
MicroSD
3.5 mm jack socket :
Use this socket to connect
analogue audio devices (e.g.
headphones, speakers or
ampliers)totheprojector.The
diagram shows an example of a
connection.
17

6Video source signal
MicroSD AV 3.5 mm jack socket: Use
this socket to connect video
source devices such as DVD
players, video cameras or video
recorders (a suitable AV cable is
included with the product).
Video cable = yellow, left audio channel = white, right audio channel = red
7MicroSD card slot
Micro SD
Insert a suitable microSD card.
Pay attention to the orientation
of the card and do not use force
when inserting it.
The projector can then access
the contents stored on the
microSD card.
8Connecting the power supply
Connect the power cable to the
power-in socket on the product
(a suitable power cable is
included with the product).
Then connect the power cable
to a mains socket. The LED will
turn on. The device is now in
standby mode.
18

11. Remote control
a) Inserting/changing the batteries
Beforerstuse,inserttwonew1.5Vbatteriesintotheremotecontrol.
• Open the battery compartment cover on the back of the remote control.
• Insert two AAA batteries (not included) with correct polarity into the battery compartment
(observe the plus/+ and minus/- markings).
• Replace the battery compartment cover.
Replace the batteries when the range of the remote control decreases noticeably.
• To change the batteries, remove the battery compartment cover from the back of the remote
control.
• Remove the used batteries before inserting the new batteries. Proceed as described above.
b) Using the remote control
On/off button
Forwards button
OK button
ESC button
Volume -
Mute button
Play/pause button
Back button
Menu button
Signal selection button
Volume +
• Direct the remote control at the infra-red sensor on the product. The remote control has
a range of approx. 6 m at an angle of inclination of up to 30°.
• Youcanalsocongurethesettingsusingthebuttonsontheprojector.
19

1Tips
• Make sure that there is an unobstructed line of sight between the remote control and the
infrared sensor. The signal must not be blocked by opaque objects.
• To ensure unobstructed reception, point the remote control towards the rear left of the device
or directly at the infrared sensor.
• To prevent damage to the remote control, do not store it in places where it may be exposed
to high temperatures or moisture.
12. Setup
The lens cap must be removed before the image can be projected. Replace the lens
capwhenyouhavenishedusingtheprojector.
a) Turning the projector on/off
• Wait for approx. 3 seconds after connecting the device to the mains voltage. The LED will
turn red.
• Press the on/off button (6) to switch the device on. The LED will turn green.
• Press the on/off button to switch the device off.
• You can also switch off the projector via the on/off button on the remote control.
• The LED will turn red to indicate that the projector is in standby mode.
Before disconnecting the power plug, make sure that the projector fan has turned
off. If this is not the case, this indicates that the device has not yet cooled down
sufciently.Neverunplugthemainsplugfromthemainssocketbeforethefanhas
switched off, as the device could still be too hot without further cooling. This excess
heat will affect the lifespan of the device.
20
