InFocus Play Big IN83 User manual

IN83
Full-HD 1080p
resolution
HDMI 1.3, DVI, Component
& RS-232 Control
connectivity
brightness 1600 lumens
maintenance
free
No filters to replace or
screens to clean or panel
alignment
Just the Facts
1600 Lumens
Contrast
Connectivity
Lamp life
BrilliantColor
DLP®Technology
Warranty
bright images in high ambient light environments, SMPTE of 15.2’/4.6m
15,000:1 with active iris/5,000:1 native
HDMI 1.3, Component, S-Video, Composite & RS232 Control
2500 hours
true to life color reproduction
superior reliability and lower total cost of ownership
standard 2 year projector, 6 month lamp warranty
Technology
The IN83’s backlit remote control
offers great looks with complete
image adjustability.
contrast 15,000:1
Dashboard
Honestly Impressive
The InFocus IN83 brings true cinema experience to a wider
audience. This projector integrates the very latest in digital
imaging technology with the 1080p DLP® DarkChip4 chipset from
Texas Instruments™. Rendering the most lifelike images possible
with enhanced contrast and greater brightness, the IN83 is the
most powerful and versatile home cinema projector in InFocus’
lineup, bright enough to watch sports in daylight with the lights
on. When desired the brightness can be decreased for nighttime
or dedicated dark theaters to achieve outstanding black-level
performance.
2.35:1 scaling built-in
Leveraging the latest Pixelworks™ DNX™ 10-bit video processing,
the IN83 is a master of full-HD reproduction. This outstanding
processing, de-interlacing, and scaling performance is based
on the “home theater of the year” IN82 and award-winning IN7x
series. The IN83 hosts 2.35:1 Cinemascope/widescreen aspect
ratio support without an external scaler (requires the Panamorph
anamorphic lens, available separately).
True Colors at first sight
The IN83 is precalibrated for film standard color accuracy and
exhibits none of the color decay often found with other projector
technologies. The IN83’s luminance measures at 1600 Max
ANSI lumens after D6500K calibration. A rich 15000:1 contrast
further enriches the image in theater rooms or mixed-use space.
Utilizing the very latest in high definition connectivity the IN83 has
onboard HDMI 1.3 inputs with Deep Color™ support. This new
HDMI standard will display up to 1.07 billion colors for a smooth
picture without color band artifacts. The IN83 also provides a
complete suite of connections, including DVI and PC input, screen
triggers, RS232, and an IR repeater input.

©2008 InFocus Corporation. All rights reserved. Specications are subject to change without further notice. InFocus
and InFocus The Big Picture are either trademarks or registered trademarks of InFocus Corporation in the United States
and other countries. DLP, the DLP logo, and the DLP medallion are trademarks of Texas Instruments. All trademarks
are used with permission or are for identication purposes only and are the property of their respective companies.
PB_IN83. Part Number: 805-1169-00
InFocus Corporate Headquarters: 27500 SW Parkway Avenue
Wilsonville, Oregon 97070-9215, USA • Phone: [phone]
(1) 800-294-6400 • Fax: [phone]
In Europe: InFocus International BV • Louis Armstrongweg 110 • 1311 RL Almere
The Netherlands • Phone: [phone] • Fax: [phone]
Freephone: 008000 4636287 (008000 INFOCUS)
In Asia: 19 Tanglin Road • 7th Floor
Singapore 247909 • Telephone: [phone] • Fax: [phone]
* Product specications, terms, and offerings are subject to change at any time without notice.
** Actual lamp life may vary based on the ambient environment and projector usage. Conditions that may
affect lamp life include temperature, altitude, and rapidly switching the projector on and off.
Warranty
Providing the highest quality products and support is very important to
InFocus. Just one reason why the IN83 digital projector comes standard with
a 2-year limited factory warranty (including parts and labor) and a 6-month
limited lamp-replacement warranty. Extended product & lamp warranty
programs are also available. For more information about warranty and
service programs in your region, please visit: www.infocus.com/service
Optional Accessories
Projection Screens (4:3, 16:10 & 16:9)
Cables & Adaptors
Ceiling Mount (SP-CEIL-UNIV)
Security Locks (SEC-LOCK-01)
Replacement Lamp (SP-LAMP-032)
Panamorph™ 2.35:1 anamorphic lens (www.panamorph.com/infocus.html)
5.8”/ 11cm
18.7”/ 47cm
17”/ 43cm
www.InFocus.com

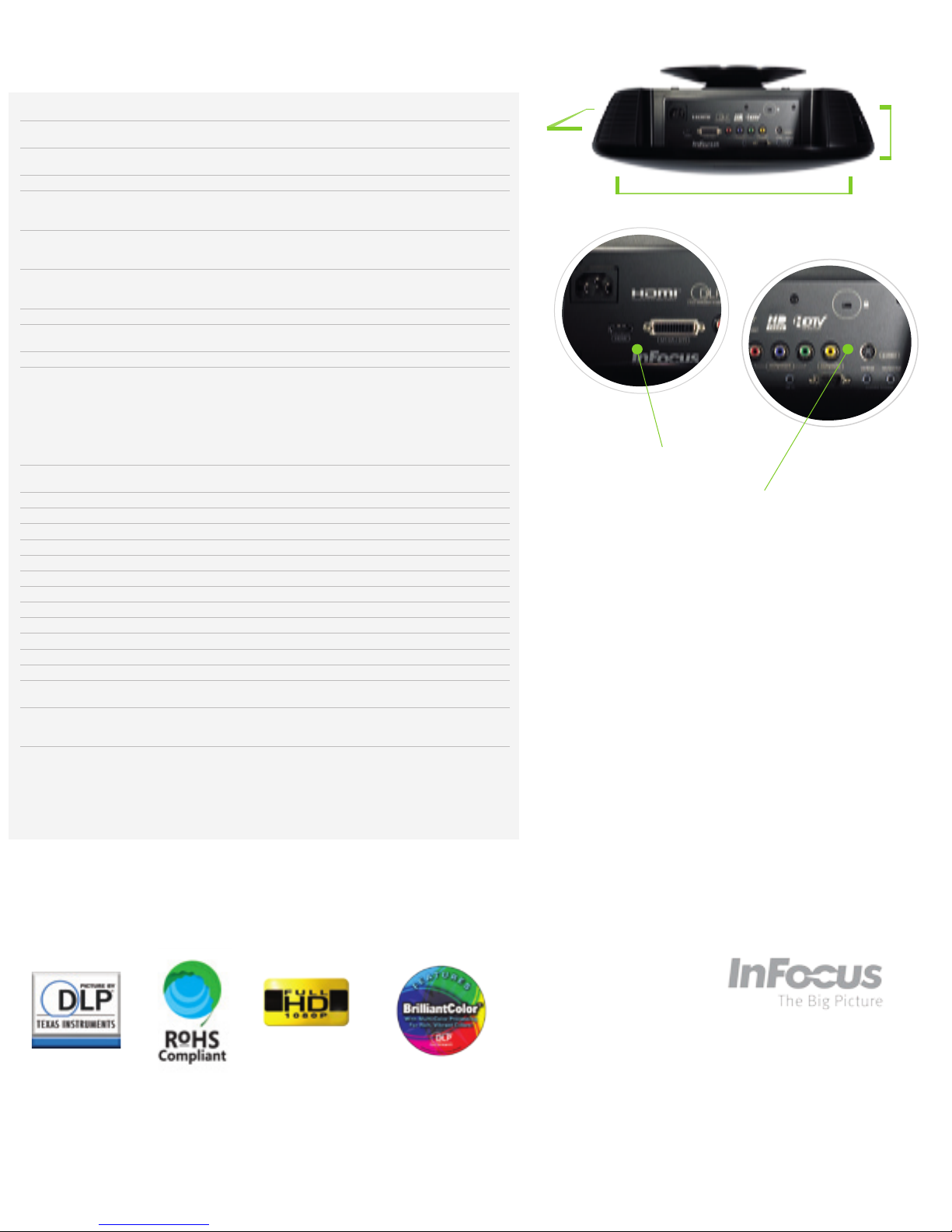

Digital Inputs Include:
HDMI 1.3 w/ DeepColor™ & M1-DA/DVI
Component, Composite & S-Video inputs are
flanked by RS-232 control & screen triggers
Native Resolution Full HD 1080p (1920 x 1080)
Display Technology DarkChip4 DLP® by Texas Instruments™
7-segment (RGBRGBndG) color wheel
Brightness Video Optimized 1600 Max ANSI lumens (1400 typical)
SMPTE brightness up to 15.25 ft (4.6m) diagonal/1.0 gain screen
Contrast Ratio 5000:1 native (Max 15,000:1 using iris)
Video Processing Digital Natural Expression™ (DNX) by Pixelworks™ 10-bit video decoder with
Motion Adaptive De-Interlacing, Rich Color Processing, Video Enhancement
Processing, Noise Reduction
Color Features Up to 1.07 billion displayable colors with Deep Color™ (requires HDMI 1.3 source)
Texas Instruments BrilliantColor™ Preset color gamma tables optimized by
sourcetype. Individually adjustable RGB colors
Advanced Features Automatic black level calibration, Digital vertical image shift, InFocus Color Gamut
Calibrator utility support, ISF Day/Night modes (requires ISF Certified Calibration by
professional installer)
Lamp Life and Type 2500 hrs (2000 hrs normal mode), 300W UHP
Compatibility 1080p/60/50/30/24, 1080i/60/50/35/24, 720p, 576p, 576i, 480p, 480i
NTSC, PAL, SECAM, VESA, SXGA, XGA, SVGA, VGA
Digital Keystone Correction ±13° Vertical
I/O Connections (1) HDMI (version 1.3) with HDCP
(1) Component Video, YPbPr/RGBHV, RCA
(1) Composite Video, RCA
(1) S-Video, 4-pin mini DIN
(1) Auxiliary input for 2nd video source (HDMI 1.3, DVI, VGA, or Component), M1-DA
(2) 12V screen/aspect ratio trigger, 3.5mm mini jack
(1) IR repeater input, Niles/Xantech compatible 3.5mm mini jack
(1) RS232, male DB9
Projection Lens Manual 1.2x zoom, F 2.6 - 2.8, f 39.1 - 46.9m, 136% offset
Threaded focus ring for 72mm neutral density filter (available separately)
Throw Ratio 1.89-2.22:1 (Distance/Width)
Image Offset 136%
Aspect Ratio 16:9 (native), 4:3, 2.35:1 widescreen (requires anamorphic lens, available separately)
Projection Modes Ceiling Front/ Ceiling Rear (built-in ceiling-mode sensor); tabletop w/swivel base (incl.)
Projection Distance 4.92’ - 32.8’ (1.5m - 9.9m)
Audible Noise 30 dB (33 dB normal mode)
Power Consumption 350W typical (375W Max)
Power Supply 100 - 240 Volts at 50 - 60 Hz
Operating Temperature 50 - 95° F (10 - 35° C) at 7500 ft (2286 m)
Storage Temperature -7 - 140°F (-20 - 60°C), 80% Maximum Humidity
Dimensions 18.75” x 5.83” x 17” (476mm x 148mm x 432mm)
Weight 14.1 lbs (6.4kg)
Menu Languages English, German, Spanish, French, Italian, Norwegian, Portuguese, Swedish, Russian,
Japanese, Korean, Chinese (Simplified and Traditional)
Included IN83 projector, AC Power Cord, 2M HDMI cable, M1-to-HDMI adapter, detachable cable
cover, Swivel Base, Polishing Cloth, Play Big Remote Control with batteries,
multi-language User’s Guide, Warranty Card
Specifications
