Introduction 1
Multimedia Features 1
Getting Started 2
Connecting multi-media device to the projector 2
Control Panel and Remote Control 3
Onscreen Display (OSD) Menus 4
Media Gallery 5
Setting 7
Photo Setting 8
Music Setting 9
Video Setting 10
Using MPtG Converter Tool 11
Wireless Projection via acer USB WiFi Adapter 12
Projection with MobiShow 14
Using MobiShow 14
Photo reviewer 15
Wireless PtG 16
Using the PtG converter 17
MirrorOp - Mobile Screen Projection 18
Using MirrorOp 18
Display over USB 19
Appendices 20
Troubleshooting 20
Problems and Solution 20
Multi-media format supported 21
1. Photo Format 22
2. Music Format 22
3. Video Format 23
Contents

1
English
Introduction
The Acer multimedia support offers easier projection without PC and player
connected. Through SD card reader and USB type A slot, you can easily access
various photo, video and music media formats (See format supported table).
The stylish user interface gives you best experience while playing media files.
Multimedia Features
•Fancy and stylish user interface for better experience.
Supports SD/ SDHC card, USB memory stick and mass storage (FAT32,
FAT16, NTFS) device.
•Supports high resolution JPEG and BMP picture formats, slideshow and
kinds of slideshow effects for the best viewing experience.
•Supports MP3, PCM and WMA...audio formats, music spectrum and
random play function for your please control.
•Supports MJPEG, MPEG4, H.264, WMV, MKV and RMVB...video formats.
Smooth video playback with 1080p@30Hz.
•Support office documents playback (Word, Excel, Powerpoint, PDF).
•Easy control for all media functions by remote controller.
Copyright ©2011. Acer Incorporated.
All Rights Reserved.
Changes may be made periodically to the information in this publication
without obligation to notify any person of such revisions or changes.
Such changes will be incorporated in new editions of this manual or
supplementary documents and publications.
This company makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims the
implied warranties of merchantability or fitness for a particular purpose.

2
English
Getting Started
Connecting multi-media device to the
projector
Note: USB drive does not support power consumption over
500mA. Once you find OSD pop up "Drive USB failed", please
have external power for USB device.
#Icon Component Description
1 SD Card reader Connects to SD Card.
2 USB connector Connects to USB disk/stick
SD CARD
12

3
English
Control Panel and Remote Control
#Icon Component Description
1 RESYNC Back or stop function in multimedia controls.
2 SOURCE Enter or play under certain control conditions.
3 MENU Press to be back or stop function in multimedia
controls.
4e key Enter or play function under certain control
conditions.
5 Direction Keys Press " " to select items or volume control
while media playing.
Press " " to enter or play function in most
multimedia controls.
Press " " to be back function in most
multimedia controls.
6Enter/Play/
Pause
Confirm your selection of items or play/pause
media file.
7 Back/Stop Stop playing media file or go back to upper
data folder.
8 Pre./Rewind Go to previous index or page in file list view.
9 Next/Fast
forward
Go to next index or page in file list view.
10 MEDIA Toggle between USB A, SD and RAM sources.
11 USB B Press "USB B" to change source to the USB B
connector.
1
1
2
2
3
3
4
4
5
5
6
7
8
11
10
9

4
English
Onscreen Display (OSD) Menus
The projector has multilingual OSD that allow you to make image adjustments
and change a variety of settings.
Setting
Main menu
Sub menu

5
English

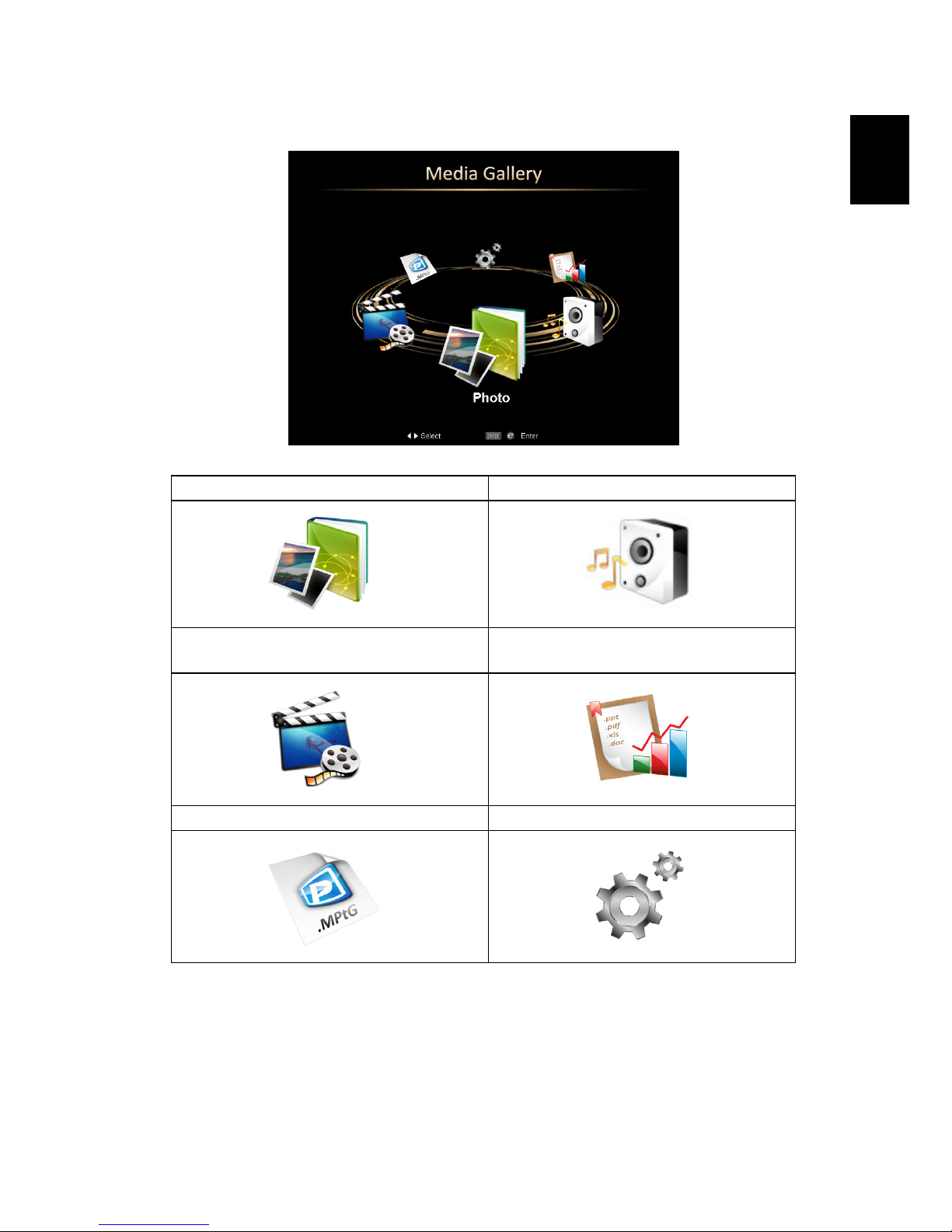

Media Gallery
Photo: For access of photo files. Music: For access of music files.
Video: For access of video files. Office Reader: For access of reader
files.
MPtG: For access of MPtG files. Setting: For access of kinds of settings.

6
English
Note: Office Reader:
1. All IPR, including but not limited to copyright, in the Picsel
Products is owned by Picsel suppliers.
2. The End User may not:
• Make copies of the Picsel Products or make them available
for use by third parties.
• Reverse engineer, disassemble, reverse translate, or in any
way decode the Picsel Products or any copy or part of it in
order to derive any source code, save only as is permitted
by any applicable law.
3. Picsel make no representations or warranties whether express
or implied (by statute or otherwise) relating to the
performance, quality, merchantability or fitness for a
particular purpose of the Picsel Products or otherwise and all
such representations or warranties are specifically disclaimed
and excluded.
4. Picsel agrees and acknowledges that Picsel and the Picsel
Products will not be specifically mentioned in the end user
license agreement.

7
English

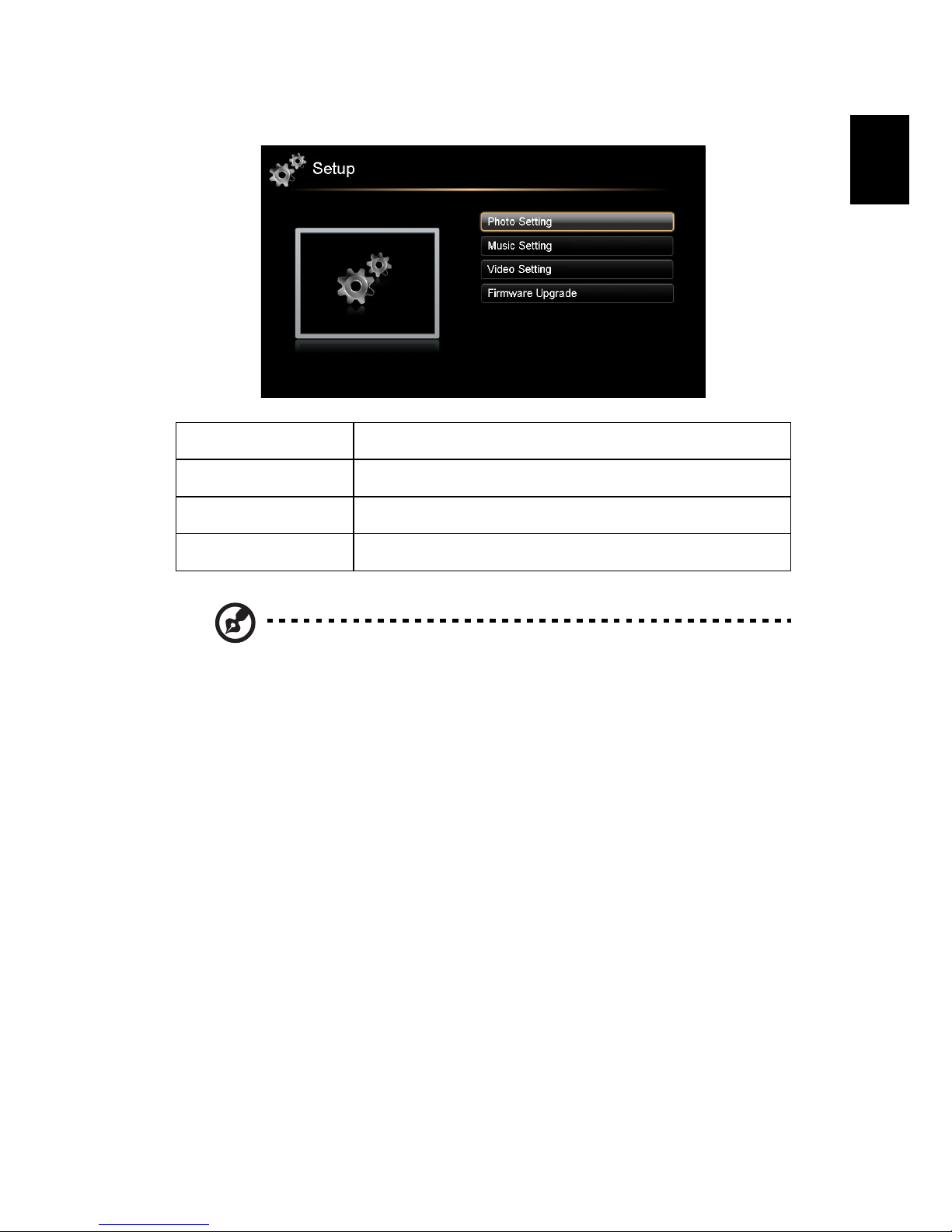

Setting
Note: K330 provides Media FW upgrade via SD card.
1. Check media FW filename in SD card by ACTUPGRADE.BIN
and plug in projector.
2. Check projector source upto SD.
3. Media Gallery -> Setup Mode -> Firmware Upgrade
4. Confirm to go.
5. Projector will show welcome screen automatically when
finished upgrade.
Photo Setting For access of photo settings.
Music Setting For access of music settings.
Video Setting For access of video settings.
Firmware Upgrade Press enter to do firmware upgrade by SD card.

8
English

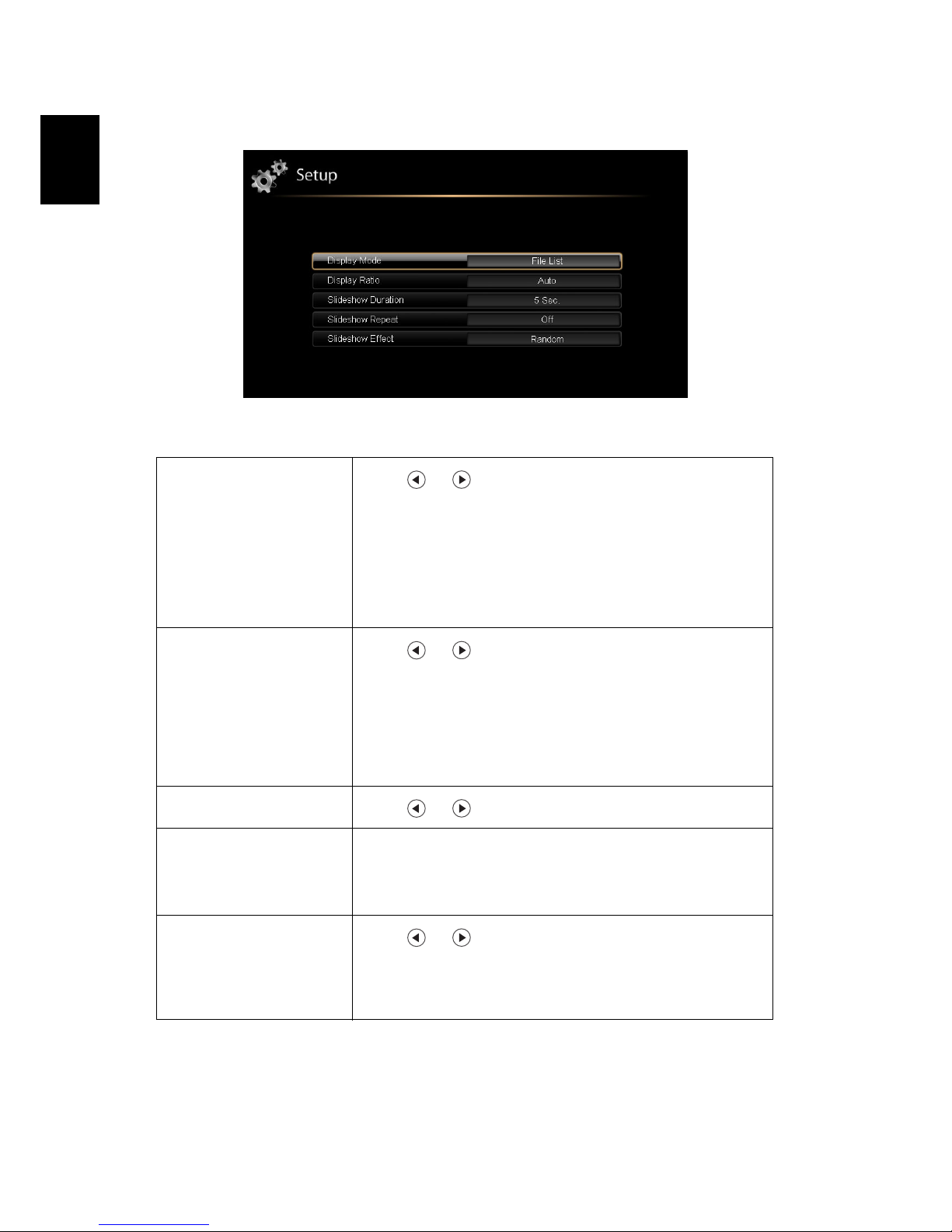

Photo Setting
Display Mode Press or to select display mode while
entering the photo list.
•File list
•Slideshow
•Thumbnail
•Browse Mode
Display Ratio Press or to select display ratio.
•Auto: Keep original aspect ratio and resize to
fit horizontal or vertical direction of the
screen.
•Full: Fit full screen without keeping the
original aspect ratio.
Slideshow Duration Press or to select the slideshow duration.
Slideshow Repeat •Choose "On" to repeat slideshow always.
•Choose "Off" to stop slideshow when it goes
to the last page.
Slideshow Effect Press or to select what slideshow effect you
want. There are various kinds: Random, Snake,
Partition, Erase, Blinds, Lines, GridCross, Spiral,
Rect., Off.

9
English
Music Setting
Play Mode Press or to select the music play mode.
•Once
•Repeat One
•Repeat All
•Random
Show Spectrum Choose "On" to show the spectrum plot while music
is playing.
Auto Play Choose "On" to play music automatically while
entering the music list.

10
English

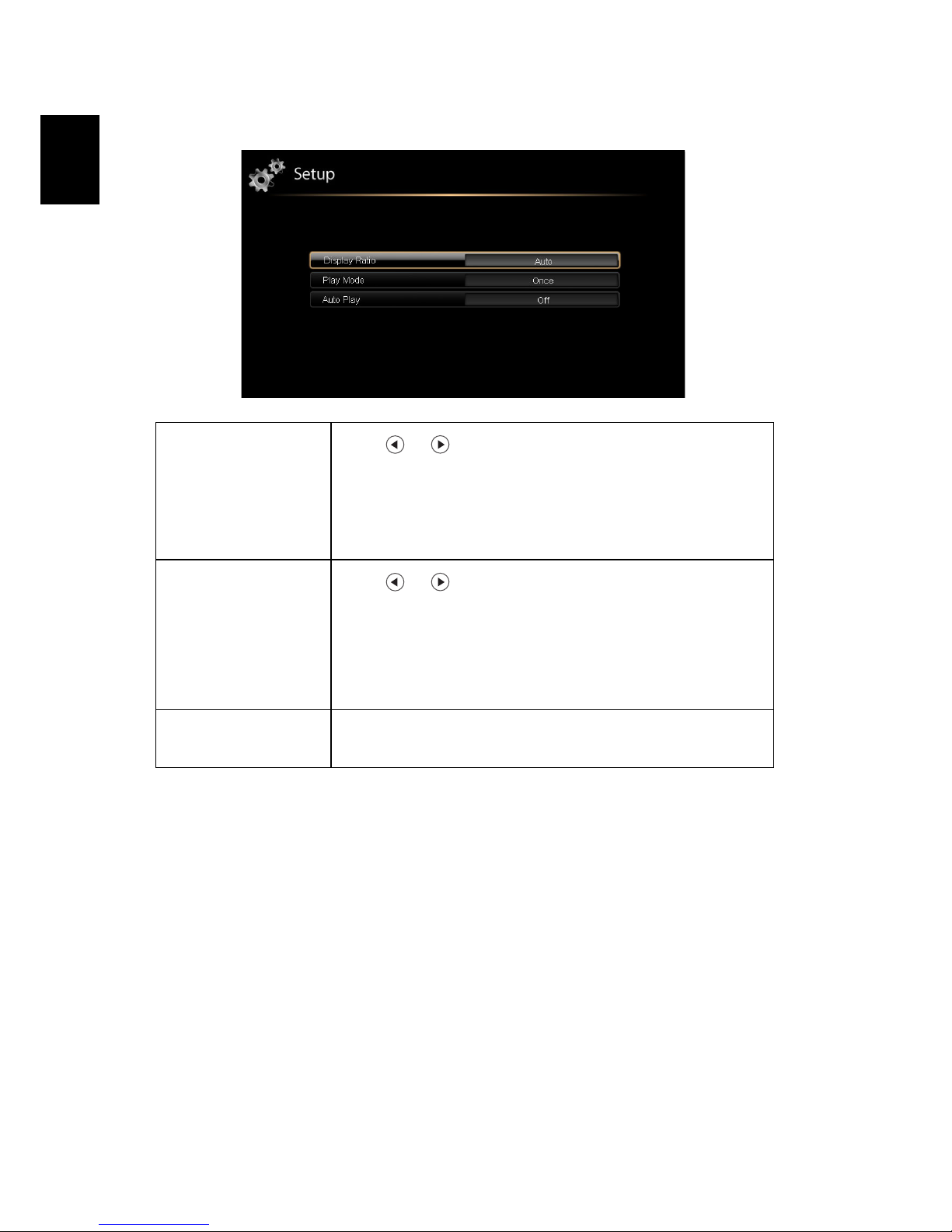

Video Setting
Display Ratio Press or to select display ratio
•Auto: Keep original aspect ratio and resize to fit
horizontal or vertical direction of the screen.
•Original Size: Display video in original size of the
content.
Play Mode Press or to select the video play mode.
•Once
•Repeat One
•Repeat All
•Random
Auto Play Choose "On" to play the video automatically while
entering the video list.

11
English
Using MPtG Converter Tool
Download MPtG converter tool from manual CD of projector. You can use this
tool to transfer PPT/PDF files and play by projector.
To install converter tool:
1 Insert manual CD in your PC, find "mptg.exe" in folder "Converter"
2 Execute the file "mptg.exe" on your PC/NB, and follow the onscreen
instructions to finish installation.
Click converter to select a PowerPoint or PDF files and start conversion.
The tool will transfer PowerPoint/PDF files to MPtG format. You can copy all of
converted results in media (ex. USB drive) you have and play MPtG files on
Presentation mode of Projector.
Note: Please make sure the Microsoft office is installed before
playing MPtG files. Office 2010 is not supported.
Note: Please make sure the Adobe reader or writer is installed
first. Adobe reader v.8, v.9, v9.1 are supported

12
English
Wireless Projection via acer USB
WiFi Adapter

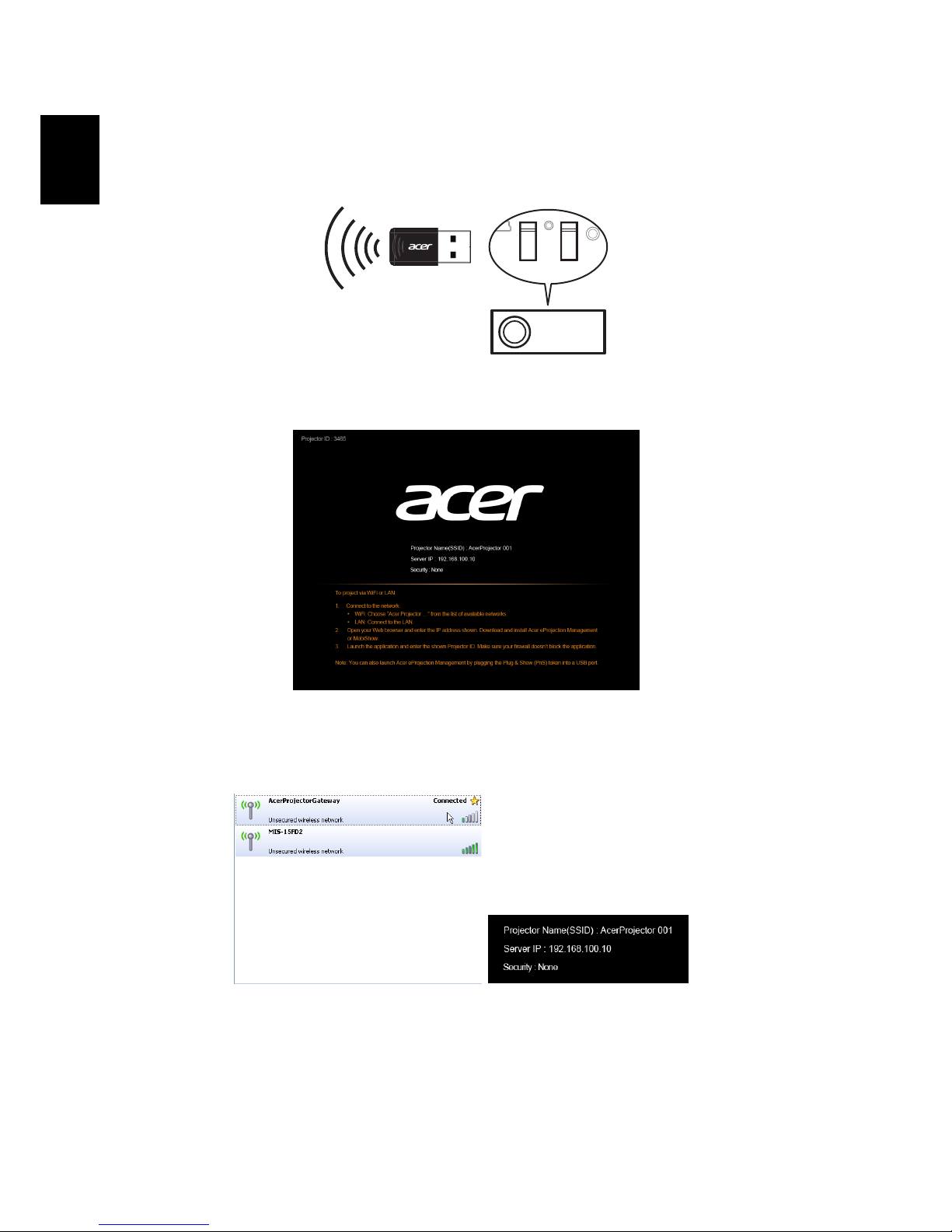

Plug in acer USB WiFi adapter in USB type A slot of projector. Change projector
source upto USB A, and screen of projector will as below.
Enable your WLAN of Notebook and select the access point labeled
AcerProjector or AcerProjector XXXX to connect wirelessly. The Server IP
indicates the IP address (192.168.100.10) your projector uses to connect to a
wireless network.
Open the Internet browser or installation CD to download Acer eProjection
Management from the welcome page, and then click Run to launch the
POWER
RESET
USB A1 USB A2
USB B

13
English
Welcome to the Acer Projector Gateway Setup Wizard. The installation will
proceed automatically. Make sure the installation is complete.

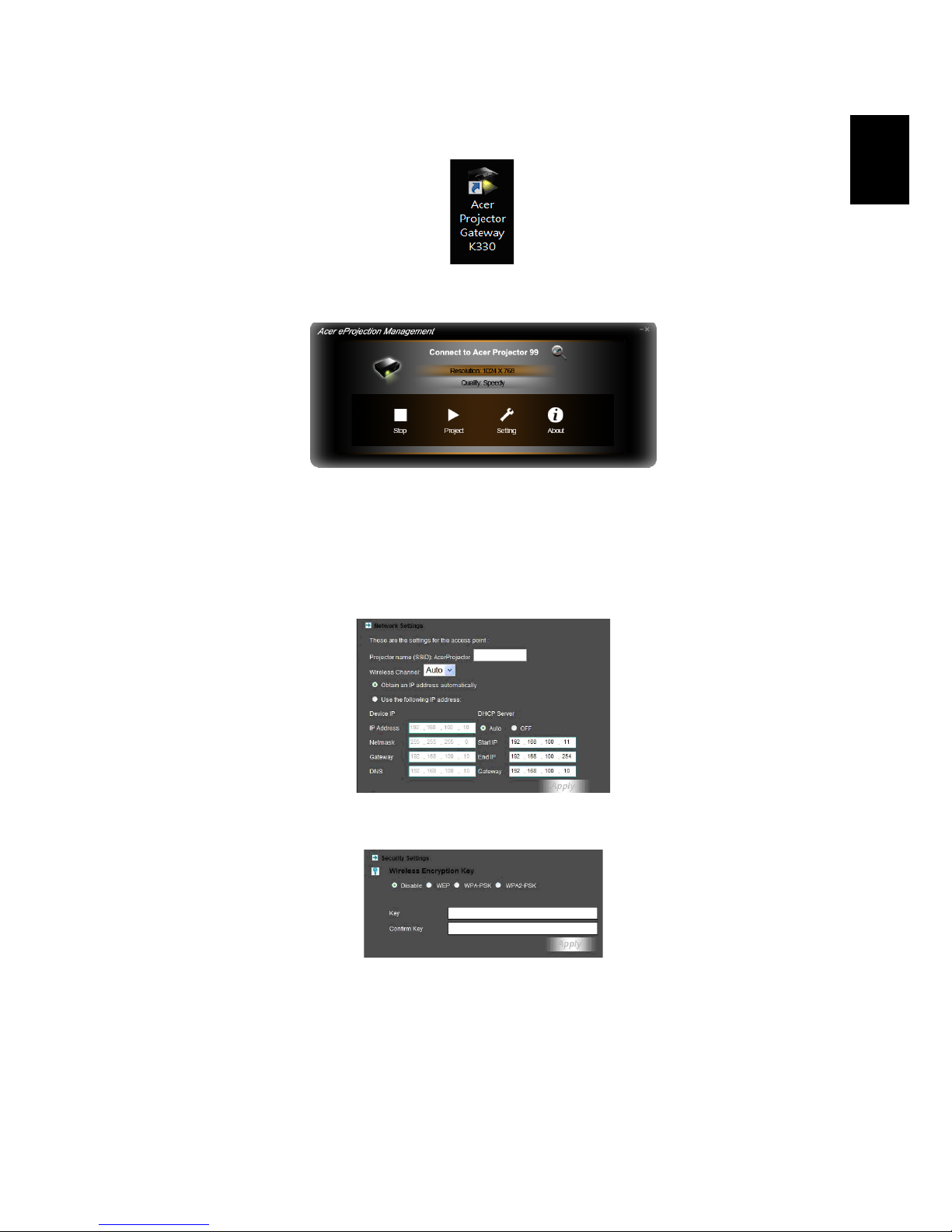

Execute shortcut - Acer eProjection Management on desktop and see below
compact UI.
•Resolution : change the projection resolution
•Project : start and stop screen projection via wireless.
•Setting
(1) Networking settings.
(2) Security Settings
•About: displays version information of Acer eProjection Management.

14
English
Projection with MobiShow
MobiShow allows content projection from a Wi-Fi-enabled smartphone
(Android, iPhone). Install application - Mobishow on smartphone and connect
to wireless projector (SSID by AcerProjector) .
Note: Windows Mobile is not supported.
Using MobiShow
•Tape the MobiShow icon to launch application.
•MobiShow will turn on your mobile WiFi and display available access points
for you to choose.
•The MobiShow client will automatically search for wireless projectors (SSID
with prefix AcerProjector) and connect.
•If more than one projector is found, the following list is displayed for you
to select the one to use.
•You can enjoy photo viewer and PtG playback.

15
English
Photo reviewer
When you select the Photo function, MobiShow will automatically open
Explorer for you to select a photo folder. Open a file (JPG format) and controls
show on your device's screen.
Icon Item Description
Prev/ Next Tap to go to the previous or next item on the
slide.
Pause/Stop Pause or stop playing photo.
Rotate Rotate to left or right photo.

16
English
Wireless PtG
Install the PtG converter from the installation CD on your PC; this will enable
you to convert PowerPoint files to PtG format.
When you select PtG, the MobiShow client will automatically open Explorer for
you to select a PtG file. Select the file to open for your presentation. When the
file is open, the PtG slides will be projected while you will be shown controls on
your device screen. The slides are projected full screen with all the effects of the
original PowerPoint slides preserved.
Note: PtG supports 800X600 and 1024X768 resolutions.
Icon Item Description
Prev/ Next Tap to go to the previous or next item on the
slide.
PgUp/ PgDn Tap to go to previous or next slide.
Stop Tap to stop projecting the file. The icon will
become Play if the file is not being played. Tap
Play again to play the file if it is stopped.
Home Tap to go to the first slide.
Jump Tap and MobiShow client will show thumbnails
of every slide in the PtG file. You can select any
page to go to.
Open Tap to select another PtG file.

17
English
Using the PtG converter
To use the Presentation-to-Go feature, you need to install the PtG Converter on
your PC from the CD. Put the CD into your CD-ROM and follow the onscreen
instructions to install the PtG Converter.
Open Programs > PtG Utility > PtG Converter from the Start menu. The
following control panel is displayed on your desktop.
Click Convert to select a PowerPoint file and start conversion. PtG Converter will
open the PowerPoint file and convert it to PtG format. You can see the
conversion process on your desktop.
Click Preview to expand or collapse the preview pane. Click Play to play back the
selected PtG file or click Open to select a different PtG file.
