REP HR-5000 User manual
HR-5000 Assembly Instructions
Parts Included:
3 Horizontal Foot Braces
2 Horizontal Top Braces
2 Horizontal Peg Braces
4 Uprights
Laser Cut Name Plate
2 Spotter Arms
2 J-Cups
12 Band Pegs
6 Long Weight Horns
6 Short Weight Horns
Multi-Grip Pull-Up Bar
2 Spotter Arms
2 J-Cups
12 Band Pegs
6 Long Weight Horns
6 Short Weight Horns
Hardware Included:
M24x120 Bolt, Medium Washers,
Lock Washer, Nut - x 16

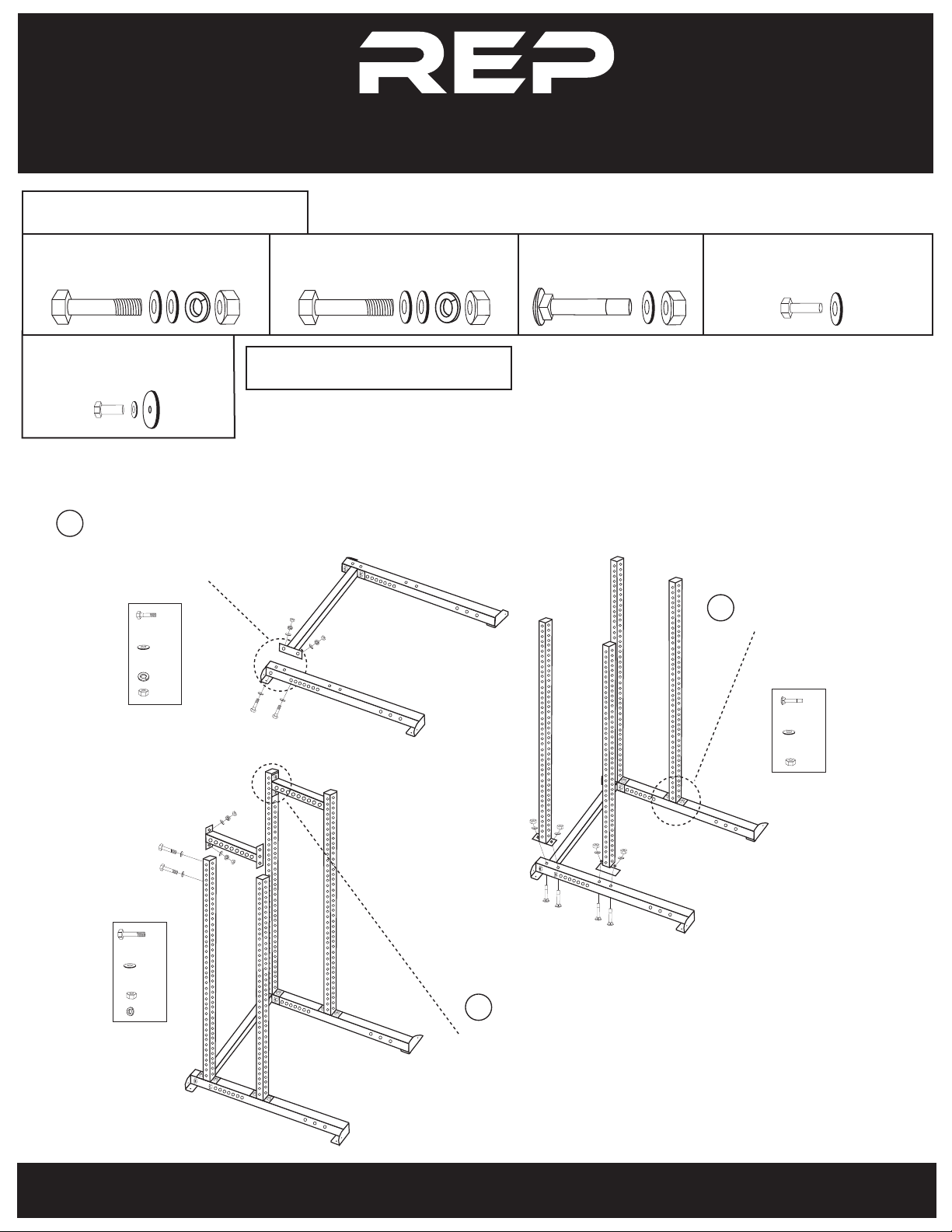

1. Connect the three horizontal
foot braces to each other to form a
base for the rack to be built upon.
x 4
x 8
x 4
Denver, CO(720) 420-1731
morse code...(.-. . .--. ..-. .. - -. . … …). We are always here for our Customers! - Team REP
M24x130 Bolt, Medium Washers,
Lock Washer, Nut - x 4
M16x100 Bolt, Medium
Washers, Nut - x 8
M10x16 Bolt, Medium Washer
- x 12
M10x20 Bolt, Small Washer,
Large Washer - x 12
(M24x120)
(medium)
x 4
x 8
x 8
x 8
(M16x100)
(medium)
2. Attach the four uprights.
x 4
x 8
x 4
(M24x130)
(medium)
3.
Connect the uprights of each
side to each other by securing the top
horizontal braces between them.
(Wait until the next step to put in the
front bolt as the next piece you connect
will be sharing this bolt with the
horizontal brace you just connected)
x 4
Denver, CO
morse code...(.-. . .--. ..-. .. - -. . … …). We are always here for our Customers! - Team REP
x 4
x 4
(medium)
Attach the four uprights.
x 4
x 8
x 4
(M24x130)
(M24x130)
(M24x120)
(medium)
4. Attach the horizontal peg braces
to the front uprights. (These pieces will
share hardware with the horizontal braces
partially attached in step 3.)
x 4
5. Secure the name plate between
the two back uprights.
x 4
x 8
(medium)
6. Attach the multi-grip pull up bar.
x 4
x 4
x 12
x 12
(M10x16)
(medium)
7. Secure band pegs and
weight horns to rack
8. Attach j-cups and spotter
arms to your desired height on
the front of the uprights .
(large)
(small)
x 12
x 12
x 12
(M10x20)
