REVELL AURA User manual

REVEL SAUNAS
USER MANUAL

AURA Infrared Sauna
Due to our continued product improvement, product illustrated on this
instruction manual may vary slightly from the actual product.

IMPORTANT SAFETY GUIDES
Read this manual carefully before using your sauna for the first time.
We recommend you keep it in a safe place for future reference.
1. Children must be using the equipment under the care of an adult. For safety, do not play with it;
2. Do not insert objects such as fingers or sticks into the heating tube plate to prevent danger;
3. Never pour water to the equipment or the heating pipe (board);
4. Do not use or store flammable gas or liquid such as hair spray, oil paint, gasoline, etc near the equipment to avoid
fire;
5. Do not place items inside or on top of the sauna;
6. Do not touch the power control panel and any electrical
components with wet hands to prevent electric shock;
7. It is forbidden to use the equipment during thunderstorms to prevent electric shock;
8. Do not tilt the equipment, do not use sharp objects to strike;
9. Shut down the equipment for half an hour after 4 hours continuous working;
10. Do not operate the equipment in a long-term high temperature
environment;
11. Use with caution after drinking alcohol;
12. Those who have hemophilia or are prone to bleeding should
avoid using it;
13. Please consult your doctor before using if you are in period of disease and taking medicine;
14. Do not use after intense exercise, wait until the body temperature returns to normal before using;
15. If you feel any discomfort, please stop using immediately;
16. Mind your head when get in and out of the equipment;
17. Do not sleep inside the equipment when it is working;
18. Do not use any bath products in the sauna;
19. To avoid burns, do not touch the heating element;
20. Please keep the seat timber dry to avoid damage!
21. Please keep the floor heater dry to avoid excessive sweat dripping off!
22. WARNING:Covering the heater or infrared emitter causes fire risk!
23. If you have any questions, please call the supplier.

STRUCTURE OF THE
INFRARED
SAUNA

SAUNA STRUCTURE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
17
18
Speaker
Left board
Control panel
Hinge
Handle
1
2
3
4
Control box
Duster cover
5
Temperature sensor
Top board
Back board
Heater frame
11
12
Right board
13
14
15
Door glass
10 Ventilation
6
8
9
7
Front board
Bench front board
Bench
Bottom board
16
17
18

SAUNA
INSTRUCTIONS
PRECAUTIONS
OPERATIONS
MAINTENANCE

ASSEMBLY INSTRUCTIONS
Back board Left board
BenchBench front board
Bottom board
Right board
Top board
Front board Duster cover andHandle
* The structure may vary from different models. Due to our continued product improvement,
product illustrated on this instruction manual may vary slightly from the actual product.

ASSEMBLE INSTRUCTIONS
INSTALLATION PRECAUTIONS
Large plate assembly
Outer buckle installation method
Hanging buckle installation method
Screw connection installation method

INSTALLATION PRECAUTIONS

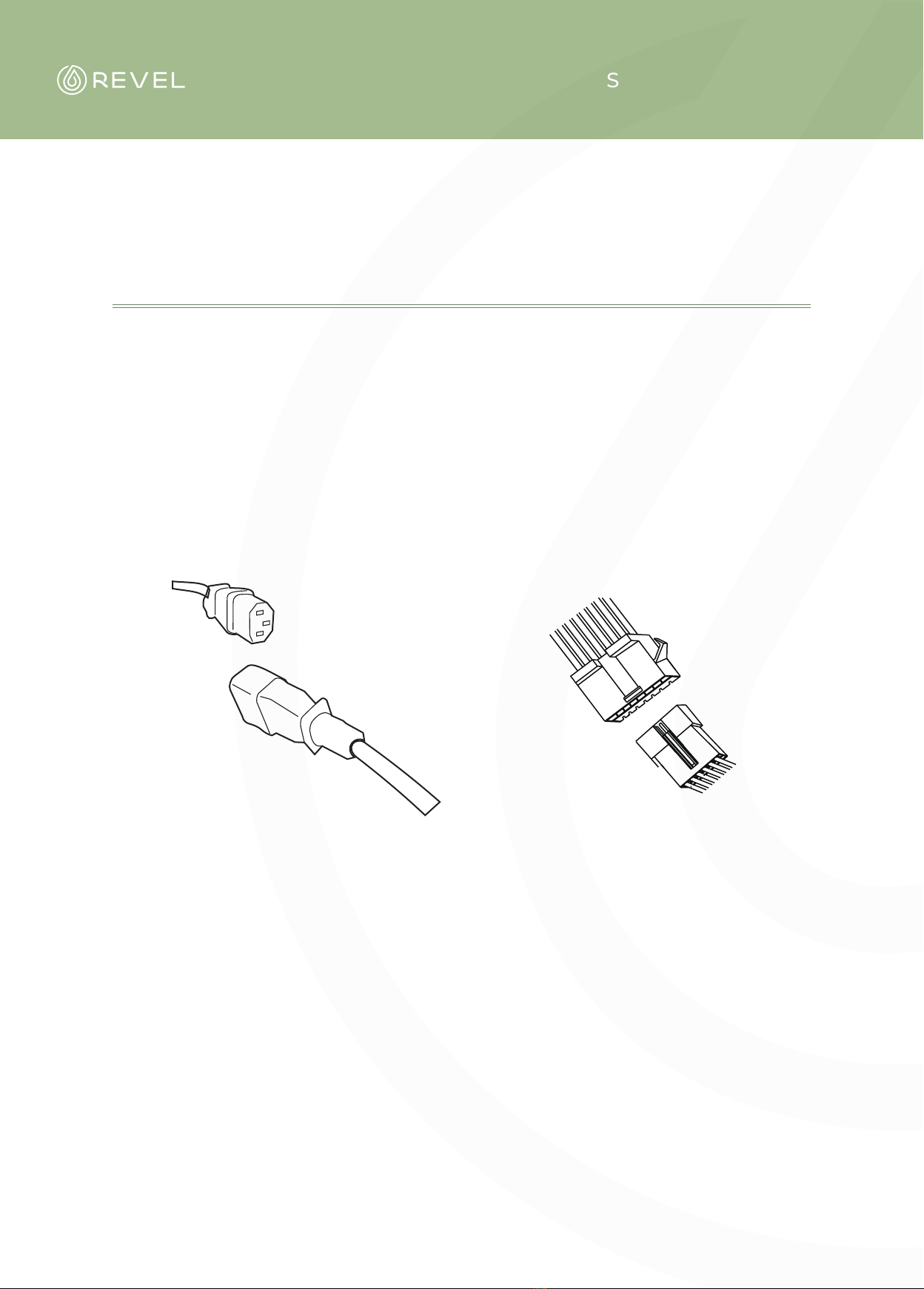

Electrical connection
1 2
Conection cable Connection plug

CONTROL PANEL OPERATION
TIME
VOLUMETRACKMUSIC
TEMP
1
2
3
4
5
7
8
9
10
6
1
2
.
3
4
5
6
7
8
9
10
s.
TOUCH
Touch the ‘+’and ‘-‘ button to increase or decrease the temperature. If
the ‘heat’ light is on, the temperature setting will increase one degree
every time the ‘+’ button
is pushed. If pressed for three seconds, the setting will increase
quickly. Decrease the temperature in the same
manner by pressing the ‘-‘ button. After the sauna reaches the
desired temperature, the ‘heat’ light turns off. The Fahrenheit and
Centigrade display can be switched: press the temperature button "+"
and "-" at the meantime.
TIME CONTROL
Touch the ‘+’and ‘-‘ buttons to set the timer from 5 to 90 minutes. If
pressed for three seconds, the timer will increase quickly. To extend
the sauna session, reset the timer again.
PAUSE/PLAY
When music playing in this mode,this key is for pause or play. In FM
mode, long press for 5 seconds to enter FM station search automatic.
VOLUME CONTROL
Press ‘+’and ‘-‘ to increase or decrease volume.
DISPLAY SCREEN
For temperate,time,FM.
POWER BUTTON
Touch this key to turn on or turn off it.
LIGHT BUTTON
Touch the key to turn on/off the light
MUSIC BUTTON
Touch this key to adjust bluetooth, MP3
and FM.FM from 85.7-108.0M.
USB FUNCTION
Touch this key to start USB function.
SONG SELECTION
FUNCTION
Press key upon the TRACK for last
song and key for next one.
COLOR LIGHT FUNCTION
• 5 seconds press on “LIGHT” button,shows“ 2N” on display.
• Short press “LIGHT ”button to change color of LED light.
• Press to convert one color at a time and it can be cycled
and memorized (L0 shade, L1 all bright, L2-17 corresponding to different colors). Quick press on TEMP+, can
control LED 1 ON/OFF ( if available).
• Quick press on TEMP-, can control LED 2 ON/OFF ( if available). Quick press on TIME+, can control RGB Light
ON/OFF ( if available).
• Some products may be slightly different from the actual products.

CONTROL BOX
1
1
2
3
4
5
6
7
8
9
10
2
3
4
5
67
8
9
10

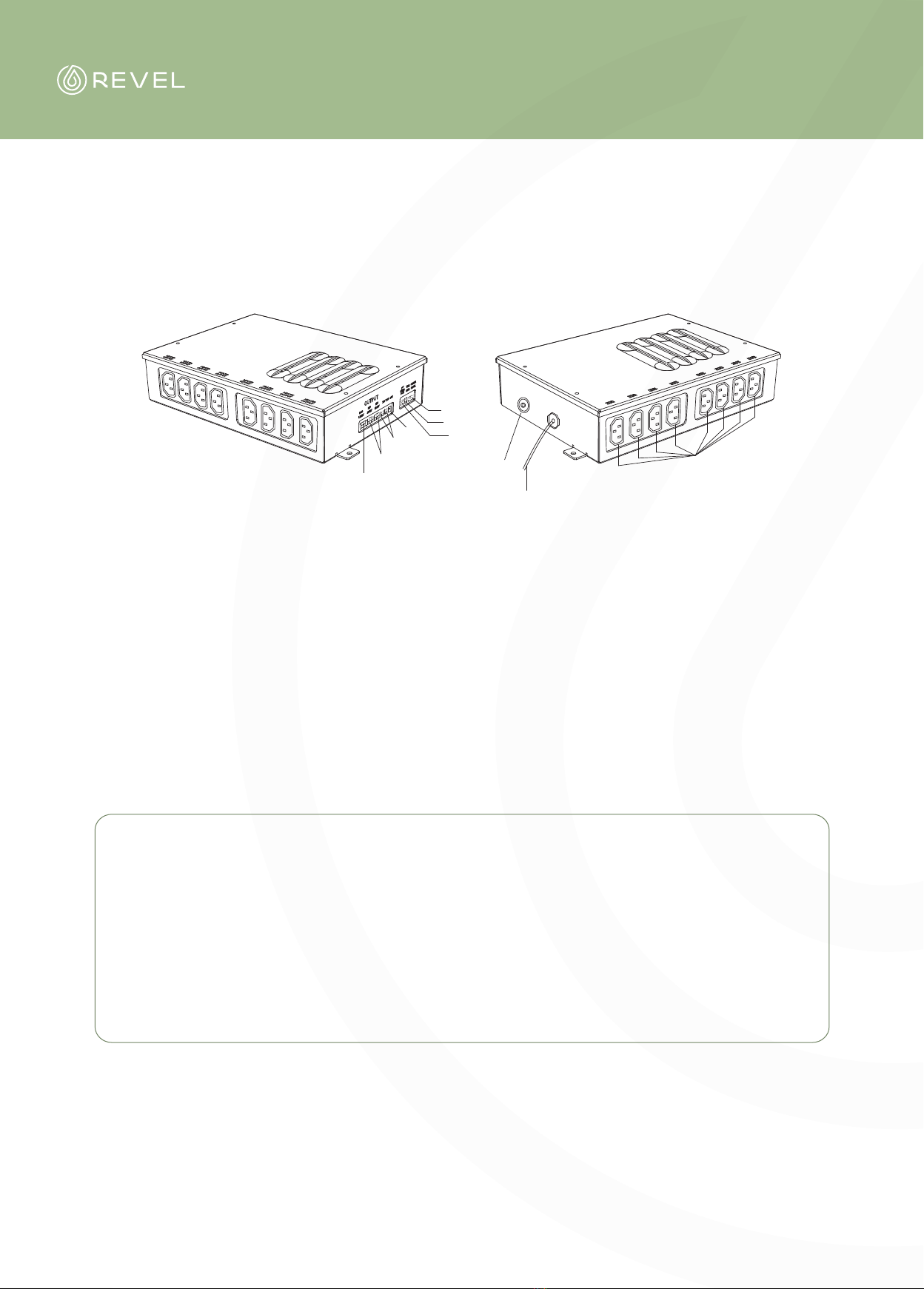

This control box is the control center of sauna room,it is installed on the top
board,input/output connections as below.
Main power of sauna room.
Heaters power output cable(HT1--HT8)
Reading lamp power output cable
Color lamp power output cable(optional)
12V output
24V output
If necessary can connect another power
box
Temperature sensor connection port
Control panel connecting
Fuse reset(20A)

MAINTENANCE
BEFORE USING
1. Please be sure to follow the instruction manual before operations;
2. Prepare a towel on the seat bench to prevent sweat from dripping onto it.To avoid affecting the quality
and beauty of wood.
AFTER USING
1. Please unplug the power plug in time;
2. Open the door to let the heat and humid water vapor dissipate and keep the sauna cabin dry.
STAIN ON WOOD
1. The outer cabin can be wiped with a wrung wet towel; The inner cabin can be wiped by
small vacuum cleaner.
2. Do not use organic solvents to decontaminate, such as gasoline, alcohol, etc. wipe the sauna surface;
3. Do not use sharp objects in sauna cabin to prevent scratching woods.
STAIN ON GLASS
1. Wipe the glass with soft paper;
2. Stubborn stains can be wiped with a damp cloth, then dry with a dry cloth;
3. Do not scratch the surface with a sharp object to prevent scratching the glass.
TRANSPORTATION AND STORAGE
1. Avoid water, snow and intense impact during the transportation;
2. Do not store it in a humid environment;
3. The northern climate is relatively dry, often wipe the product with a wrung wet towel;
4. The climate in the south is relatively humid and can be ventilated and dried frequently.

SAUNA
TROUBLE
SHOOTING

TROUBLE SHOOTING
Number Problems Possible reasons Countermeasure
Indicator light for
powersupply is
not working
Indicator light for
function is not
working
Infrared Heater is
not heating up
Odor from the
sauna
The connector is not connected
properly
Check the connector or replace
with a new one
No power supply input
Check the circuity (especially
where there is power supply input)
Indicator light is broken Replace the circuity panel
The heating indicator light is
broken
The circuit board or components
are broken
The temperature sensor is broken
Replace the relevant control panel
Replace the circuit board
Check if the connect is loosened
and replace it
The heater is broken Replace with a new one of the
same specifications
The wire junction or the heater’s
wire is loosen Check and make them tight
Check if junction of the
temperature sensor is loosened
and replace it
The circuit board of the relay is not
work Replace the circuit board
The circuit‘s problems
1) There is eyewinker around,
remove it
2)Some heater’s temperature over
high, cut off the power supply,
replace it.
3) Parts on the circuity is broken
1
2
3
4
The temperature sensor is broken

TROUBLE SHOOTING
Number Problems Possible reasons Countermeasure
Light bulb is not
working
Sauna is not
powering up
Music Player
doesn’t work
Speaker does
not work
Light bulb is burned out
Light bulb wiring is loosen
Problems with electrical control
panel
Replace the light bulb
Replace the lamp holder
Repair or replace it
Plug back power cord to outlet
5
6
7
The temperature
display show "Er1"
The temperature
display show "Er2"
The temperature
display show "Er3"
The temperature
display show "Er4"
Power cord is unplugged
Outlet has no power
Power supply or circuit panel is
broken
Check outlet or circuit breaker
Replace the power supply or
related circuitry board
Power connector is loose or
damage
DC power supply is no power to
the music player
Music player is defective
Check connector or replace it
Check DC power supply wiring or
replace the power supply
Replace the music player
The speaker is broken
The speaker wire is loosen
The power indicator light for music
player is off
Replace with a new one of the
same specifications
Reconnect the speaker wire
Turn on the switch to start work
NTC open circuit, wire is not
well connected
NTC open circuit
Under -15°
Thermostat breakdown
Check and well connect
Change Thermostat
Can’t be functional under too low
ambient temperature
Change Thermostat
8
9
10
11
12
