Owner’s Manual
HSGP1052-M10_OM 9/12/08 12:18 PM Page 1

2
Revel®Concerta™
M10 Owner’s Manual
Table of Contents
3 Introduction
4 Planning Your System
4 Placement
4 Installation
5 Tabletop/Shelf Placement Assembly
8 Wall-Mounting the M10,
Using the Included Wall Bracket
9 Wiring the Speaker
9 Maintenance and Service
10 Specifications
HSGP1052-M10_OM 9/12/08 12:18 PM Page 2

3
Introduction
Revel®Concerta™M10
The Revel®Concerta™M10 satellite speaker continues
the longstanding Revel commitment to accurate sound
reproduction. The proprietary transducers utilizing Micro
Ceramic Composite (MCC) diaphragms, precision dividing
networks, sophisticated high-frequency waveguides and
rigid enclosures all combine to deliver uncompromising
performance in any stereo or multichannel home theater
system. In addition, these speakers are magnetically
shielded for safe placement near a CRT television.
Unpacking the Speaker
Carefully unpack the speaker. If you suspect damage
from transit, report it immediately to your dealer and/or
delivery service. Keep the shipping carton and packing
materials for future use. Open the package and verify
the following contents:
(1) Satellite speaker
(1) Table stand
plate
(1) Bottom foot
(1) Small collar
(1) Medium collar
(1) Large collar
(2) Wall-mount end caps
(attached to satellite)
(1) Flat-head Phillips screw
1/4-20 x 1-1/4"
(1) Pan-head Phillips screw
1/4-20 x 3/4"
(6) Flat-head Phillips screws
1/4-20 x 7/8"
(2) Pan-head Phillips screws
1/4-20 x 1"
(3) 1/4-20 Flat washers (3) 1/4-20 Nuts
(1) Allen wrench
Part A
Part B
(1) Wall bracket
with wall
bracket cover
HSGP1052-M10_OM 9/12/08 12:18 PM Page 3

4
Planning Your System
Before deciding where to best place your speakers,
survey your room and study Figures 1 and 2.
Figure 1: In this overhead view of a typical 5-channel
installation, satellites are used to reproduce sound
for the front and surround channels. A dedicated
loudspeaker reproduces the center channel, and a
subwoofer reproduces low frequencies below the
crossover point.
Figure 2: This overhead view shows a typical home
theater plan. Left/right rear channels are for a
7-channel system. The center rear channel is for
a 6-channel system.
Note: The Revel Concerta M10 is ideally suited
for use with a subwoofer. Contact your Revel
dealer for recommendations on subwoofer
models for your application.
Listening Position
Center Channel
(above or below video screen)
Left
Front
Channel
Right
Front
Channel
Subwoofer
Right
Surround
Channel
Left
Surround
Channel
Placement
Note: The satellite speakers can be placed
directly on a shelf or tabletop, using one of
the three included shelf stands, or mounted
on a wall using the included wall brackets.
Optional floor stands are also available.
Please contact your dealer.
Left and Right Front Channels
For left and right front channels, place one satellite to the
left and another to the right of the television, as shown in
Figure 1. Since the speakers are magnetically shielded,
you can place them close to a CRT TV without worrying
about the magnetic field distorting the picture.
Surround Channels
For left and right surround channels, place one speaker
on the left and another on the right, to the side of or
slightly behind the listening area. The surround speakers
should ideally be mounted at a height of between 4 feet
and 7 feet.
In 6- or 7-channel configurations, place the rear channel(s)
behind the listening position, as shown in Figure 2.
Installation
Please read through this owner’s manual completely
before attempting to install or connect the speakers.
It is understandable that you may be anxious to play your
new system, so every effort has been made to simplify
the installation and connections of the Revel Concerta
M10 loudspeakers.
Before proceeding, you should decide how you would like
to install the M10 loudspeakers. They may be mounted on
the included tabletop/shelf stands, mounted on the wall
using the included wall bracket, or mounted to the
optional floor stands.
Listening Position
Left
Front
Channel
Right
Front
Channel
Subwoofer
Right
Surround
Channel
Left
Surround
Channel
Left
Surround
Channel
Right
Surround
Channel
Center
Surround
Channel
Center Channel
(above or below video screen)
HSGP1052-M10_OM 9/12/08 12:18 PM Page 4

Step One

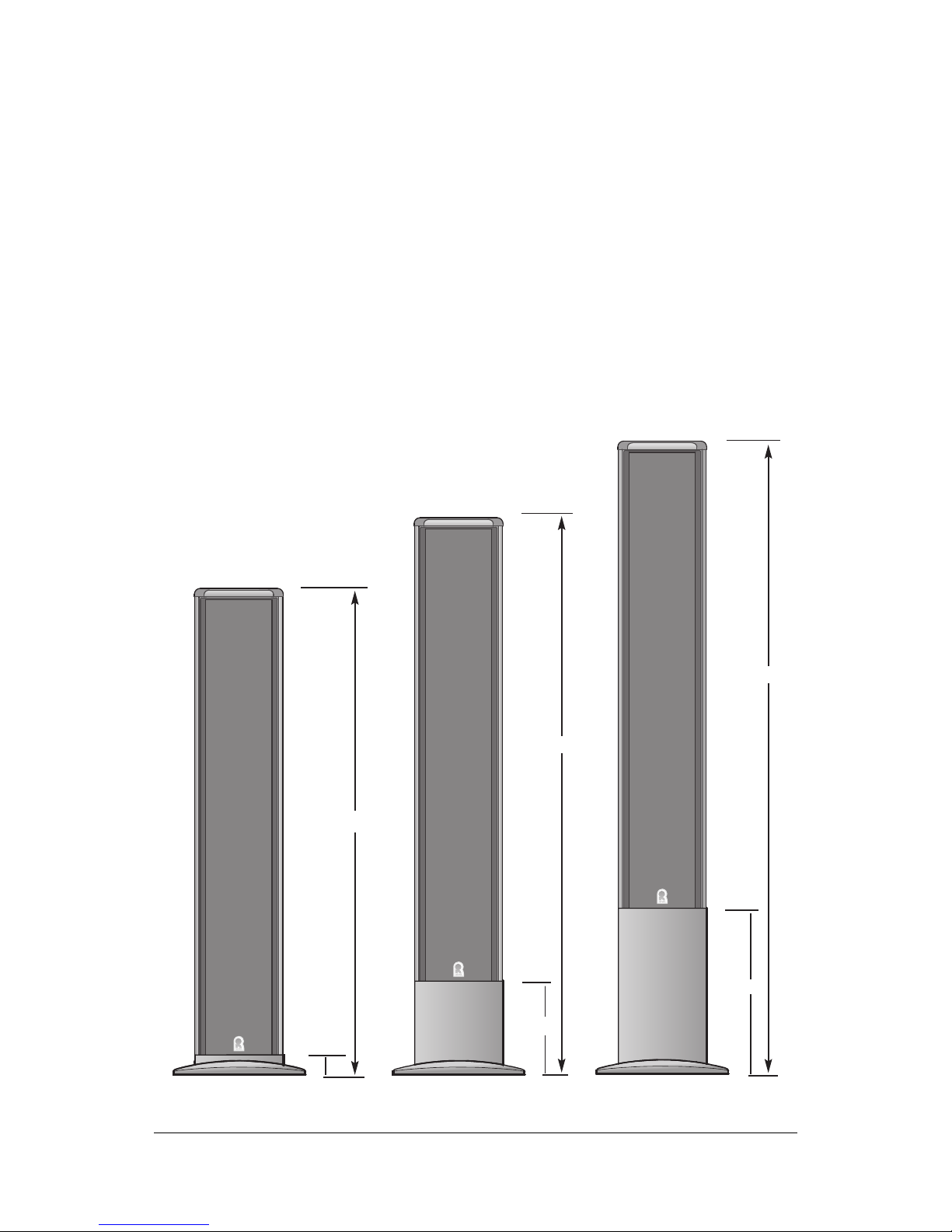

Choose one of the three shelf stands on which to mount
the satellite. If you decide to place the stand next to a
television, the television’s height should be taken into
consideration. If you choose the shortest stand, follow
steps two to four on page 6. If you choose either of the
taller stands, follow steps two to five on page 7.
5
4"
8"
Large
27"
30-1/2"
muideMllamS
4"
23-3/8"
7/8"
27"
Tabletop/Shelf
Placement Assembly
HSGP1052-M10_OM 9/12/08 12:18 PM Page 5

Step Three
For Small Table Stand Assembly
Assemble the table stand plate, the small section and
the foot. Place three nuts (provided) in the base of the
foot and secure them in place by inserting three screws
(provided) through the top of the table stand plate.
Step Four
For Small Table Stand Assembly
Run the speaker wire through the base, and screw the
foot assembly to the speaker assembly.
6
Step Two
For Small Table Stand Assembly
Using the included Allen wrench, remove the bottom end
cap of the speaker by unscrewing the single center
screw on the bottom.
Note: The bottom is the end closest to the
Revel logo on the front grille and the speaker
connections on the rear.
Satellite speaker
Revel logo
End cap
1/4-20 x 3/4"
Screw
1/4-20 x 1-1/4"
Flat-head screw
Speaker wire
(3) 1/4-20 Nuts
Table stand plate
Small section/collar
Foot
(3) 1/4-20 x 7/8"
Flat-head screws
HSGP1052-M10_OM 9/12/08 12:18 PM Page 6

Step Four
For Medium and Large Table Stand Assembly
Use the screw and washer to attach the medium or large
base assembly to the speaker assembly, as shown.
Step Five
For Medium and Large Table Stand Assembly
Run the speaker wire through the table stand plate. Use
three screws (provided) to attach the plate to the bottom
of the base assembly.
7
Step Two
For Medium and Large Table Stand Assembly
Using the included Allen wrench, remove the bottom end
cap of the loudspeaker by unscrewing the single center
screw on the bottom.
Note: The bottom is the end closest to the
Revel logo on the front grille and the speaker
connections on the rear.
Step Three
For Medium and Large Table Stand Assembly
Run the speaker wire through the collar. Using three
screws, attach the table stand plate to the medium or
large section, as shown.
Satellite speaker
Revel logo
End cap
1/4-20 x 3/4"
Screw
(3) 1/4-20 x 7/8"
Flat-head screws
Speaker wire
1/4-20 x 1"
Pan-head screw
Flat washer
Flat washers
1/4-20 x 1"
Pan-head screw
1/4-20 x 3/4"
P
an-head screw
(3) 1/4-20 x 7/8"
Flat-head screws
Speaker wire
HSGP1052-M10_OM 9/12/08 12:18 PM Page 7

8
Wall-Mounting the M10
Using the Included Wall Bracket
The customer is responsible
for the proper selection and
use of mounting hardware,
and for correctly and safely
wall-mounting the speakers.
Step One
Remove the wall-bracket cover
by removing the four wall
bracket screws on the ends,
as shown.
Step Two
Run the speaker wire behind
the wall bracket and out
through the hole at the
bottom. After deciding where
to place the satellite speaker,
attach the wall bracket (in a
vertical position) to the wall,
using the appropriate screws
and anchors.
Step Three
Run the speaker wires out
through the bottom hole of the
wall bracket cover. Resecure
in place, as shown, with four
of the wall bracket screws.
Step Four
Using the included Allen wrench, remove the bottom end
cap of the speaker by unscrewing the single center screw
on bottom.
Note: The bottom is the end closest to the
Revel logo on the front grille and the speaker
connections on the rear.
Step Five
Connect the wires (see page 9).
Replace the end caps while
capturing the wall bracket in
between parts A and B and
securing it in place.
Tighten until snug.
Mounting screws
and anchors
not included
Bottom hole
Wall bracket
End cap
Satellite speaker
Revel logo
End cap
1/4-20 x 3/4"
Screw
Wall-mount
end cap A
Wall-mount
end cap B
HSGP1052-M10_OM 9/12/08 12:18 PM Page 8

9
Step Six
The wall-bracket design allows for rotation of the speakers
at angles up to 30º of center. Position the speakers so that
they face toward the primary listening position, before
fully tightening.
Wiring the Speaker
After placing the speaker, you are ready to connect it
to your system. First, turn off all audio-system power.
Use high-quality speaker wire to make the connections.
Consult the owner’s manuals included with your amplifier
or receiver, for connection and operation procedures.
Surround Modes
When using the system in a Dolby®Digital or DTS®home
theater system, make sure the receiver or processor is
set to “Small” for all M10 loudspeakers.
Some receivers/processors offer a choice of crossover
frequencies. Select 110Hz as the crossover frequency
for all M10 loudspeakers in the system.
Some Dolby Digital-equipped receivers/processors offer
different setup options for each source or surround
mode, e.g., CD-stereo, DVD, Dolby, Pro Logic®. In each
case, follow your equipment’s instructions to ensure that
the subwoofer output is turned on and that the speakers
are set to “Small” or to a crossover frequency of 110Hz
in each mode.
Wiring and Polarity
The M10 speaker has gold-plated terminals that can
accept bare wire.To ensure proper polarity, connect
each + terminal on the back of the amplifier or receiver
to the respective + (red) terminal on each speaker, as
shown in Figure 3. Connect the – (black) terminals in
a similar way. See the owner’s manuals that were
included with your amplifier or receiver to confirm
connection procedures.

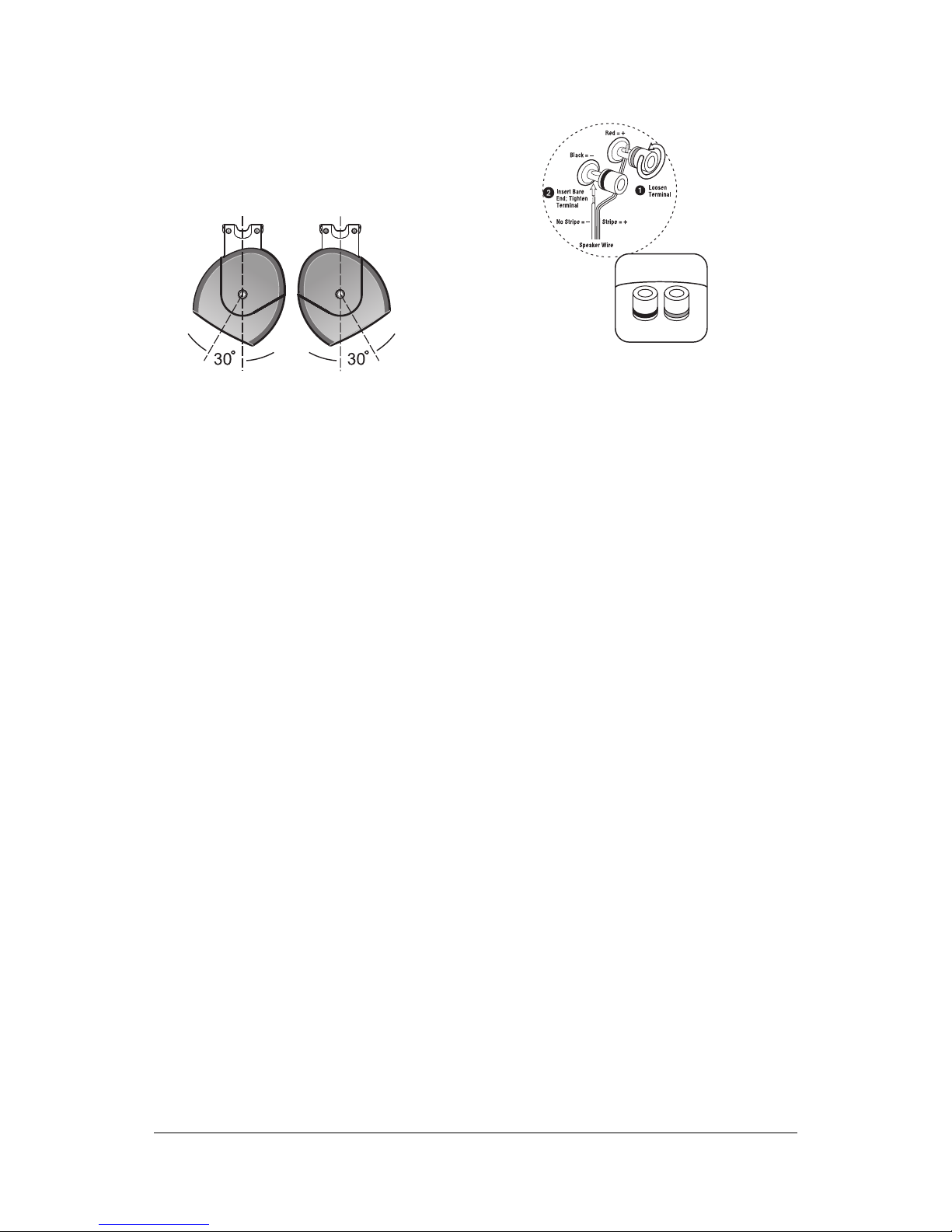

Figure 3: This example shows how to connect bare
wires to the terminals. Banana plugs may also be
inserted directly into the rear of the connector.
1. Loosen the terminals.
2. Inset bare ends; tighten terminals.
Important! DO NOT reverse polarities (+ to – or
– to +) when making connections. Doing so will
degrade the imaging and bass response of the
home theater system.
After correctly placing and wiring the M10 and the rest
of your speaker system, adjust the levels for all of the
channels as recommended by the manufacturer of your
receiver/processor.
Maintenance
and Service
When needed, use a soft cloth to remove any fingerprints
or to wipe off dust. Do not use any cleaning products or
polish. Clean the grille by gentle vacuuming.
If your M10 loudspeaker should ever need service,
please contact your local dealer or distributor, or
visit www.revelspeakers.com for the location of a
service center.
–+
HSGP1052-M10_OM 9/12/08 12:18 PM Page 9

10
Revel®Concerta™M10
Frequency Response (±3dB) 110Hz – 21kHz
Recommended Amplifier Power Range 10 – 150 Watts
Sensitivity (2.83V @ 1m, 2πanechoic) 89dB
Nominal Impedance 8 Ohms
Crossover Frequency 2-1/2-Way high-order at 400Hz and 2.2kHz
Low-Frequency Drivers Dual 3" (76mm) woofers with Micro Ceramic Composite (MCC) cones
LF Extension –3dB @ 110Hz, – 6dB @ 100Hz, –10dB @ 80Hz
Mid-Frequency Drivers Dual 3" (76mm) midrange transducers with Micro Ceramic Composite (MCC) cones
High-Frequency Driver 1" (25mm) tweeter with waveguide and Micro Ceramic Composite (MCC) dome
External Dimensions 22-15/16" x 4-1/4" x 4-1/2"
(H x W x D) (582mm x 107mm x 113mm)
Weight (Net) 6.75 lb (3.1kg)
Specifications
4.24
22.94
4.49
Declaration of Conformity
We, Harman Consumer Group, Inc.
2, route de Tours
72500 Ch
â teau du Loir
France
declare in own responsibility that the product described
in this owner’s manual is in compliance with technical
standards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Laurent Rault
Harman Consumer Group, Inc.
Ch
â teau du Loir, France 8/08
22.6
1.8
4.32
27 23.4
6.25
6.25
6.25
5.5
5.5
5.5
4.5
8
30.5
.91
HSGP1052-M10_OM 9/12/08 12:18 PM Page 10

11
A valid serial number is required for warranty coverage.
This Revel warranty protects the original retail purchaser for
a period of five (5) years (parts and labor) from any failure
as a result of original manufacturing defects, so long as:
1. The Revel products were purchased within the 50
United States, its territories or Canada.
2. The dealer from whom the Revel products were
purchased was authorized to sell such products at
the time of the original purchase.
3. The original, dated Bill of Sale is presented whenever
service is required during the warranty period.
The balance of this warranty is transferable only if the used
product is purchased from an authorized Revel dealer. This
warranty is only valid for service within the United States,
its territories and Canada; please contact an authorized
Revel dealer for warranty and service information.
Any Revel product not performing satisfactorily may be
returned to the factory for evaluation. Return authorization
must first be obtained by either calling or writing Customer
Service prior to shipping the product. The customer is
responsible for shipping charges to the factory.
Customer Service will pay return shipping charges within
the United States only in the event that the product is
found to be defective, as mentioned above. There are
other stipulations that may apply to shipping charges.
There is no other express warranty on this product. Neither
this warranty nor any other warranty, express or implied,
including implied warranties of merchantability and fitness,
shall extend beyond the warranty period. No responsibility
is assumed for any incidental or consequential damages,
so that the above exclusion or limitation may not apply.
This warranty provides specific legal rights. Other states
may provide additional rights. This warranty is applicable in
the United States, its territories and Canada. Outside of the
United States, its territories and Canada, please contact an
authorized Revel dealer for warranty and service information.
The information this document contains is subject to change
without notice. In the event that there are differences between
this warranty and the provisions of any advertisements,
documentation, product brochures or packaging cartons,
the terms of this warranty will prevail.
For customer service and product shipment information,
go to www.revelspeakers.com.
Limited Warranty
HSGP1052-M10_OM 9/12/08 12:18 PM Page 11

www.revelspeakers.com
250 Crossways Park Drive, Woodbury, NY 11797
8500 Balboa Boulevard, Northridge, CA 91329
516.594.0300
Technical Support: 516.682.3744
Part No. ML-80325-01
©2008 Harman International Industries, Incorporated.
All rights reserved.
Revel, the Revel logo and Concerta are trademarks
of Harman International Industries, Incorporated,
in the United States and/or other countries.
Dolby and Pro Logic are registered trademarks of
Dolby Laboratories.
DTS is a registered trademark of DTS, Inc.
Features, specifications and appearance are subject
to change without notice.
HSGP1052-M10_OM 9/12/08 12:18 PM Page 12
