REVERSO-MANUFACTURING DV200 NG/TV User manual

REVERSO-MANUFACTURING INC.
MANUFACTURERS OF
FIREPLACE EQUIPMENT AND ACCESSORIES
790 Rowntree Dairy Road, Woodbridge, Ontario, Canada L4L 5V3
Tel: [phone] Fax: [phone]
Website: www.reversomfg.com Email: [email protected]
These appliances have been tested and found to comply with the
established standards for GAS-FIRED DIRECT VENT WALL
FURNACES in CANADA and the U. S. A. (Models DVR-
NG/P certified as Decorative Fireplaces in U.S.A.) CANI-2.17-
M91, ANSI-Z21.50(a)-1990 CAN/CGA 2.22-M86, WH-GPN-
001 ANSI-Z21.44a-1992 & CGA I.R. #41
INSTALLATION AND OPERATING
INSTRUCTIONS
SERIES DV200
REVERSO "SUPREME" DIRECT VENT FIREPLACES
REAR & TOP VENTED MODELS
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Refer to this manual. For assistance or for additional information,
consult a qualified installer, service agency or gas utility.
PLEASE KEEP THESE OPERATING INSTRUCTIONS FOR FUTURE REFERENCE
Rev. September 2005
Model No.'s: DV200 NG/TV
DV200 P/TV
DV200 NG/RV
DV200 P/RV
(Natural Gas, Top Vent)
(Propane, Top Vent)
(Natural Gas, Rear Vent)
(
Pro
p
ane
,
Rear Vent
)
For Your Safety
If you smell gas:
1. Open windows.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
For Your Safety
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.

2
IMPORTANT: SAVE THESE INSTRUCTIONS
To the new owner:
We at REVERSO MFG. INC. are pleased that you have chosen one of our products for
your home environment. We would like to take this opportunity to assure you that you
have chosen a top quality product which will provide you with all the warmth and charm
of a wood fireplace at the flick of a switch without any of the fuss and mess you would
normally associate with lighting a wood fire.
You can now enjoy many years of clean burning, trouble free operation, as well as, high
efficiency performance.
At REVERSO we have continued to deliver on our commitment to uncompromising
quality and time proven reliability. We stand proudly behind our entire wood and gas
burning products division, which are industry renowned by the brand name REVERSO
"SUPREME".
The REVERSO "SUPREME", DV200 series of products incorporates heavy gauge
fireboxes, state of the art safety controls, and leak proof construction, all in an
aesthetically pleasing finished package. When setup correctly, the gas effects flames and
glowing embers bed offer what many people consider to be the most realistic simulated
wood fire available today. Some of the logs even include burn out effects and knot holes
which appear to have burned through and allow flames to lick out.
The logs employed in these units are manufactured with the latest space age ceramic fiber
material which products the glowing effects commonly associated with a wood fire but,
can be used over and over again for many years without showing any signs of wear.
All "REVERSO" products have been tested by Warnock Heresy to the national standards
of the Canadian and American Gas Associations for both safety and efficiency.
The DV200 series direct vent gas fireplaces are also the most versatile fireplaces available
today, as they are approved for either top or rear venting, suiting sidewall or rooftop
applications. Since they arrive completely finished, inside and outside, the DV200 can be
installed as either freestanding / non-recessed or as recessed (with optional zero clearance
kit).
Please take a moment now to acquaint yourself with these instructions and the many
features of your new "REVERSO" gas fireplace.
GENERAL INFORMATION
All "REVERSO" gas-fired appliances must be installed in accordance with these
instructions. Carefully read all of the instructions in this manual first. Consult the building
authority having jurisdiction to determine the need for a permit prior to commencing the
installation.

3
NOTE: Failure to follow these instructions could cause a malfunction of the fireplace
which could result in death, serious bodily injury, and/or property damage. Failure to
follow these instructions may also void your fire insurance and/or warranty.
FOR YOUR SAFETY
Follow these instructions, local codes and information in CAN / CGA B149 (.1 or .2)
Installation Codes for Gas Burning Appliances and Equipment (in Canada) or (in the
U.S.A.) follow local codes and/or the most current edition of the National Fuel Gas Code
ANSI Z223.1.2.
FOR SAFE INSTALLATION AND OPERATION OF YOUR "REVERSO" GAS
FIREPLACE, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:
PREPARATION FOR INSTALLATION
Remove the packaging from the appliance, and check to make sure there is no damage. In
the event damage is found, please report it to both the carrier and your dealer as soon as
possible.
Before beginning, carefully check the glass door and the log set. Check to make sure
there is no hidden damage to the logs or any other component of the appliance.
INSTALLATION INSTRUCTIONS
GENERAL
This appliance should be inspected annually, at least, by a professional service person. It
is important that control compartments, circulating air passages and other components be
kept clean and free from excessive lint from carpeting. Make sure the pilot is turned off
before attempting to service this appliance.
It is a good practice to have all of your gas appliances inspected annually.
Due to high temperatures, the appliance should be located out of high traffic areas and
away from furniture and draperies.
Children and adults should be alerted to hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Always connect this gas fireplace to an approved vent system and vent to the outside of
the building envelope. Never vent to another room or inside a building.

4
Make sure that the vent is properly sized and is of adequate height to provide the proper
draft.
Inspect the venting system annually for blockage and any signs of deterioration.
To prevent injury do o not allow anyone who is unfamiliar with the operation to use the
fireplace.
A faint odor and slight smoking will likely be noticed when the fireplace is first used.
Open a window until the slight smoking stops.
Any glass removed for servicing must be replaced prior to operating the appliance.
Thoroughly clean the location that has been chosen for installation of the REVERSO
fireplace.
Ensure that it is level before securing to the floor and connecting the gas.
Take a minute to plan out the best routes for the gas lines and the venting system. Move
the appliance into the exact location where it is going to be installed. Under no
circumstances should this appliance be modified.
Parts that have to be removed for servicing must be replaced prior to operating this
appliance. Only parts supplied by REVERSO should be used in this appliance.
Never use solid fuels such as wood, paper, cardboard, coal, etc., in this appliance.
Always keep the area around these appliances clear of combustible materials, gasoline or
other flammable vapors and liquids. These appliances should not be used as a drying rack
for clothing or for hanging Christmas stockings or decorations.
SPECIFICATIONS: FOR REVERSO GAS PRODUCTS
GAS-FIRED VENTED WALL FURNACES (CAN/USA) DV200 (NG)(P) (R)(T)
(ALL MODELS ARE SUITABLE FOR INSTALLATION AS FREESTANDING NON-
RECESSED FIREPLACES, FOR INSTALLATION IN BEDROOMS OR FOR ZERO
CLEARANCE INSTALLATION WITH THE OPTIONAL ZERO CLEARANCE KIT).
(THE MODEL DV200 P IS SUITABLE FOR RETRO-FIT INSTALLATION IN
MOBILE HOMES)
SPECIFICATIONS
The above models have all been certified for use with either Natural or Propane gases,
designated in the model number by the suffix NG (Natural Gas) or P (Propane).
There are two types of appliances covered under this manual:
- Top Vented designated by the suffix T which may be vented through the roof and

5
may also be vented through a wall above the appliance.
- Rear Vent type which may be vented through the sidewall of the dwelling or
vertically through the roof.
- Both of these appliances draw all of their air for combustion from the outside
of the dwelling through specially designed vent pipe.
FOR INSTALLATIONS ABOVE SEA LEVEL
In Canada, these appliances are certified for altitudes of 0 - 2000' and must be.
derated by 10% for installation at elevations between 2000 and 4500'. In the U.S.A.,
the appliance must be derated 4% for every 1000' above 2000' elevations.
All models are equipped with a variable input gas control which allow reductions in input
of approximately 25%, when heating requirements are lower.
ALTITUDE (In feet): (0-4500') (0-2000') (0-4500') (0-2000')
REAR VENT TOP VENT
ORIFICE SIZES: NATURAL PROPANE NATURAL PROPANE
FRONT BURNER #57DMS #67DMS #55DMS #68DMS
REAR BURNER: #47DMS #56DMS #49DMS #55DMS
Manifold Press:("W.C.) 3.5" 10.0" 3.5" 10.0"
Min. Manifold Press: 2.1" 7.8" 2.1" 7.8"
Max. Supply Press: 7.0" 13.0" 7.0" 13.0"
Min. Supply Press: 4.5" 10.8" 4.5" 10.8"
Max. BTUH Input: 20,000 20,000 22,000 22,000
Min. BTUH Input: 15,000 15,000 16,000 16,000
STEADY STATE EFFICIENCY: (With Minimum Vent Attached)
FAN OFF: 71.1% 74.6% 77.4% 79.2%
FAN ON: 78.3% 80.2%
* NOTE: With maximum vertical vent attached this model can achieve up to 80% efficiency
with fan off and 83% with fan on.
DIMENSIONS:
Front Width: 34"
Height: 36" (Top Vent) 34" (Rear Vent)
Depth: 12.5" Shipping Weight: 981bs.
CLEARANCES TO COMBUSTIBLES: Sides :2"
Rear :2"
Top :2"
Floo
r
:0"
Above: 6"

6
CORNER INSTALLATIONS - CLEARANCES TO COMBUSTIBLES: AS ABOVE
WITH 2" CLEARANCE TO CORNER OF THE APPLIANCE
Always observe the approved clearance to combustible materials.
ELECTRICAL REQUIREMENTS
No external electrical power supply is required to operate the REVERSO "SUPREME" DV200
series if these models have a Millivolt gas control which uses the pilot flame to generate enough
electricity to operate the main burner whenever the manual switch provided is on.
The DV200 NG/P models may also have a fan delay limit switch mounted in the control
compartment of the appliance. This switch is designed to delay the operation of the fan until
sufficient heat has built up, to avoid uncomfortable drafts and to hold the fan on for several
minutes after the burners have shut-off, extracting all of the usable heat.
When supplied with the optional circulating fan, the appliance does come fully equipped
with a 120 volt household plug which will supply electrical power for the air circulation
fan.
When connected to 120 volts, the appliance must be grounded in accordance with local
codes, with the current version of CSA C22.1 (in Canada) or the National Electrical Code
ANSI/NFPA 70.
Circulation fan: 120V / 60 hz - Variable speed fan.
NOTE: Operation of the fan increases the efficiency and the heat output of the appliance.
LOCATIONS
As noted earlier, these appliances are approved for bedroom installations.
They may be installed on any flat, hard surface combustible or otherwise. They can be
located within the allowable clearances to combustibles against the wall, in a corner or out in
the center of the room if desired. (See diagram # 1)
Don't forget to try to line up the center point of the flue with an open joist space above the
unit, when planning to vent vertically.

7
GAS LINE CONNECTION
Only persons licensed to work with gas piping may make the necessary gas connections to this
appliance.
The appliance is provided with an opening on both
sides of the control compartment. A 3/8" gas
supply pipe must be brought near this inlet hole,
from either the left or right hand side. It is
recommended that a union be provided inside or
close to the control compartment to facilitate easier
servicing.
NOTE: The gas line connection may be made using 3/8"
copper tubing or an approved flex connector. Since some
municipalities have additional local codes, it is always best to
consult your local authorities and the CAN/CGA-B 149 (1 or
2) Installation Code. For U.S.A. gas installations follow either
local codes or the current edition of the National Fuel Gas
Code ANZI.Z223.1

8
GAS PIPE TESTING
The appliance and its shutoff valves must be disconnected from the gas supply piping system
during any pressure testing where the pressure exceeds 1/2 PSIG (3.45 kpa).
Always check for gas leaks with a soap and water solution, after completing the required
pressure test.
NEVER US AN OPEN FLAME FOR LEAK TESTING
When using copper or flex connectors use only fittings approved for gas connections. The gas
control inlet is 3/8" NPT, therefore the 1/2" rigid gas line must be reduced to 3/8" NPT. A
typical gas line installation layout for rigid pipe is shown on the previous page.
VENTING (COAXIAL 6" AIR INTAKE & 4" EXHAUST)

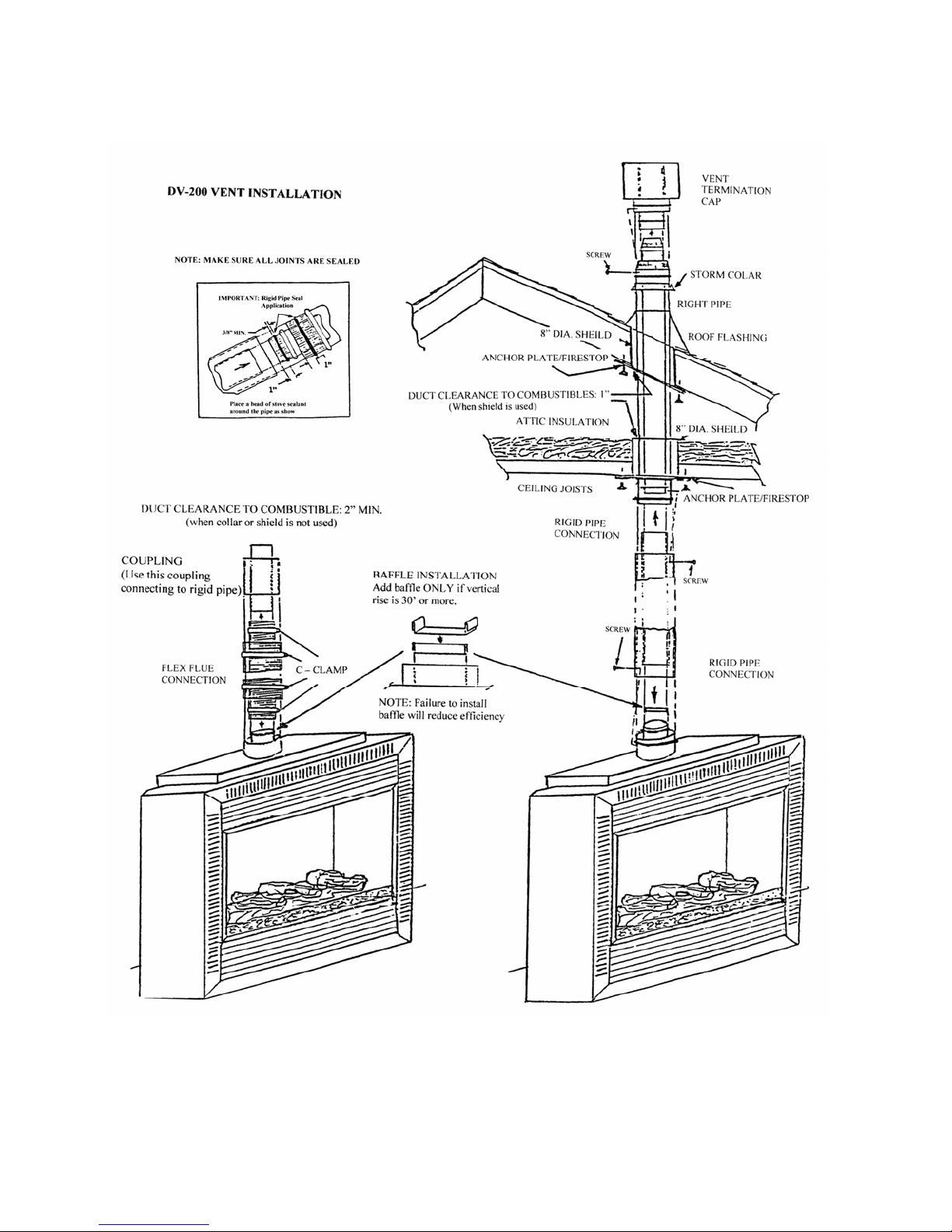

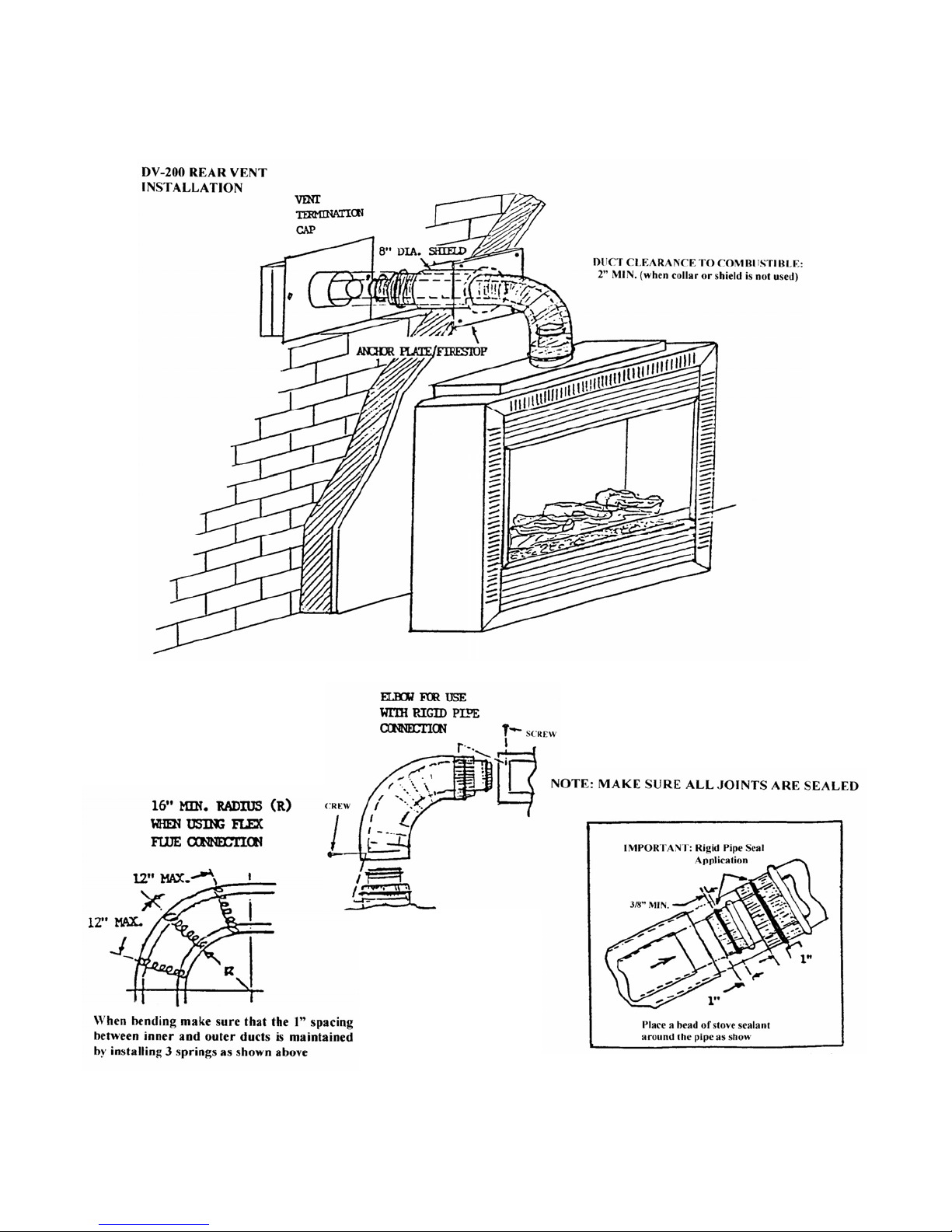

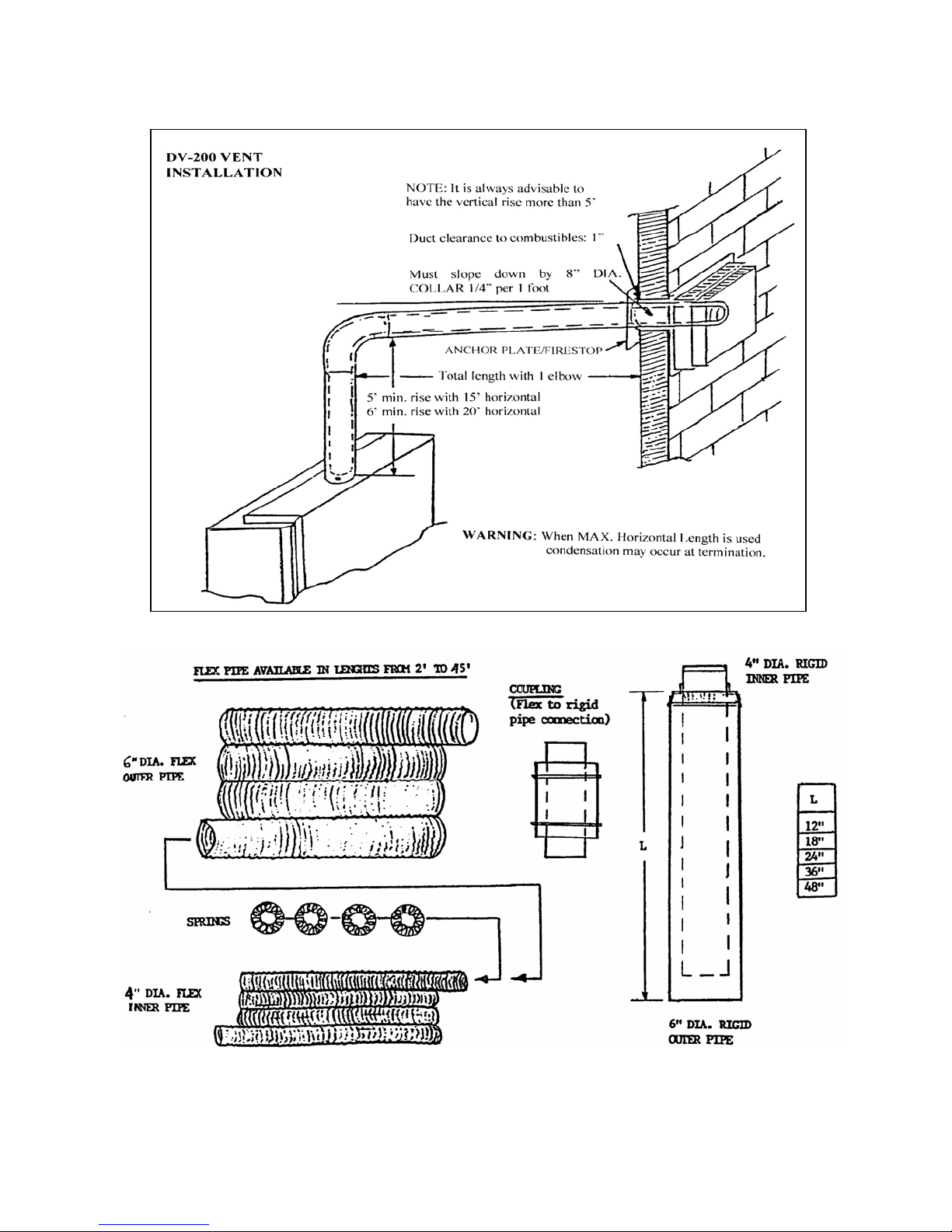

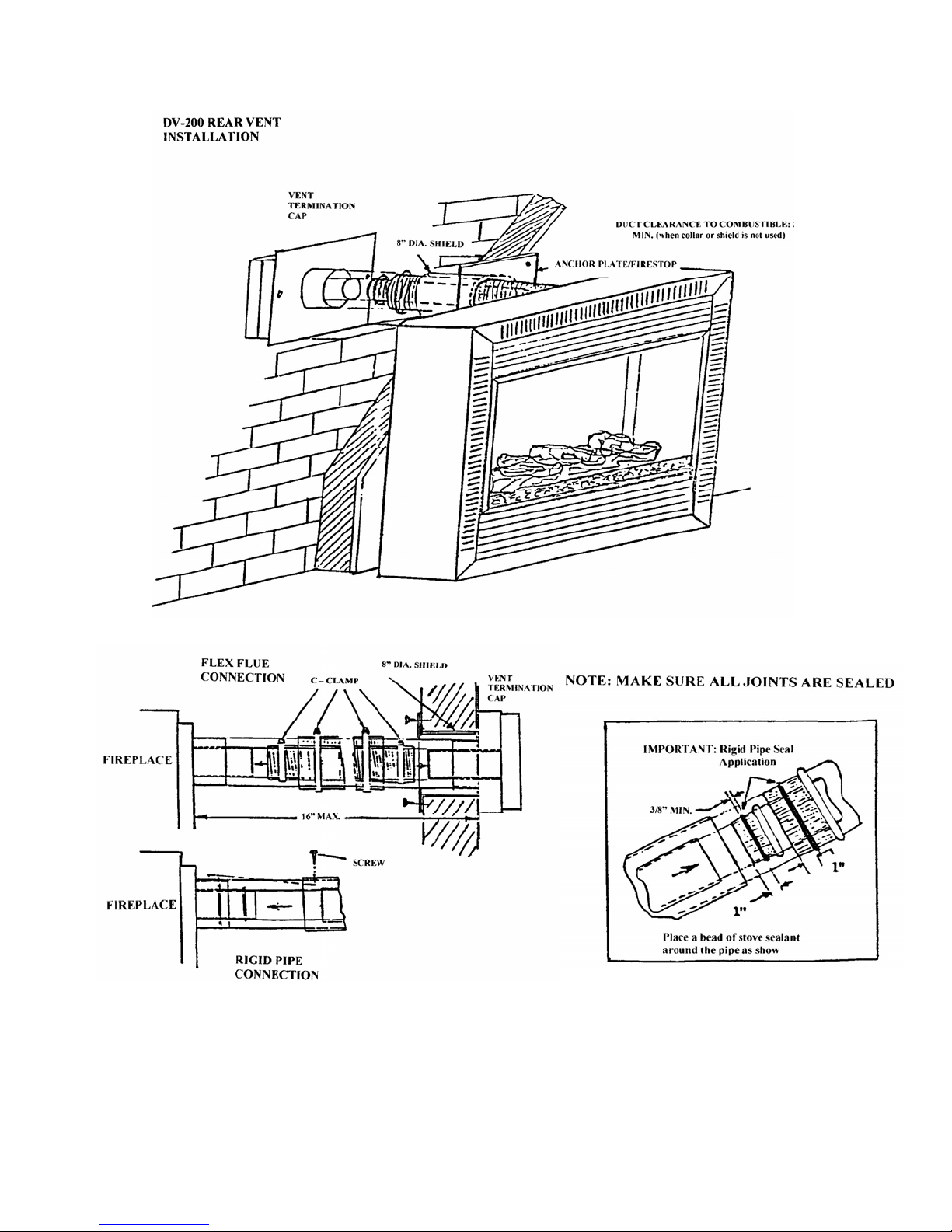

Kits are available for venting either through the sidewall or vertically through the roof .
SIDEWALL VENTING
THIS APPLIANCE MUST BE INSTALLED WITH A MINIMUM VERTICAL LENGTH
OF 18" TO THE FIRST 90 DEGREE ELBOW. WITH THIS MINIMUM VERTICAL RISE,
HORIZONTAL RUNS OF UP TO 18" ARE PERMITTED TO REACH THE OUTSIDE
VENT TERMINATION.
FOLLOW THE VENTING INSTRUCTIONS ON THE FOLLOWING PAGES PRECISELY
BEFORE BEGINNING THE INSTALLATION, TAKING CARE TO ENSURE AN
APPROPRIATE OUTSIDE LOCATION FOR THE VENT TERMINATION CAN BE
ACCOMMODATED.
ALSO, TAKE CARE TO REVIEW THE DIAGRAM ON THE FOLLOWING PAGE
WHICH OUTLINES LOCATION LIMITATIONS GOVERNED BY NATIONAL CODE.
SINCE THE DIRECT VENT IS AN UNPRESSURIZED SYSTEM, IT WILL BE
SENSITIVE TO LOCAL CONDITIONS SUCH AS ELEVATION, WIND
CONDITIONS, VENT LOCATION AND FUEL TYPE UTILIZED. THIS WILL
AFFECT THE OVERALL APPEARANCE OF THE GAS FLAME.

TERMINATION CAP CLEARANCES
A = Clearance above grade, veranda, porch, deck, or balcony
[*12 inches (30mm) minimum]
B = Clearance to window or door that may be opened [*12
Inches (30 cm) minimum]
C = Clearance to permanently closed window [minimum 12
Inches (30 cm) recommended to prevent condensation
on window]
D = Vertical clearance to ventilated soffit located above the
terminal within a horizontal distance of 2 feet (60 cm)
from the center -line of the Terminal [18 Inches (46 cm)
minimum]
E = Clearance to unventilated soffit [12 Inches (30 cm)
minimum]
F = Clearance to outside corner [12 Inches minimum]
G = Clearance to inside corner [12 inches minimum]
H = * Not to be Installed above a meter/regulator assembly within 3
feet (90 cm) horizontally from the center -line of the regulator
I = Clearance to service regulator vent outlet [* 6 feet (1.8 m)
Minimum]
J = Clearance to non-mechanical air supply inlet to building or the
combustion air inlet to any other appliance [12 Inches (30 cm)
minimum]
K = Clearance to a mechanical air supply Inlet [* 6 feet (1.8 m)
minimum]
L = *** Clearance above paved side-walk or paved driveway
located on public property [* 7 feet (2.1 m) minimum]
M = Clearance under veranda, porch, deck, or balcony [* 12 Inches
(30 cm) minimum **]
*** A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings *
** Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of 2 sides beneath the floor *
* As specified in CGA B149 installation Codes (1991) Note: local Codes or Regulations may require different clearances

10
CAUTION: USE ONLY COMPONENTS SUPPLIED BY REVERSO FOR ALL VENTING
INSTALLATIONS. WHEN USING FLEXIBLE COAXIAL VENT PIPE CLAMPS MUST BE
USED IN LIEU OF SCREWS.

11

12

13

14

15

16

17
INSTALLATION OF LOG SET (Standard Set)
Log Set: Four pc. (4) - Two top (cross logs)
- Two bottom Ceramic Fiber logs An optional fifth log is available, for the Top
Vent models.
The log set for the DV200 is shipped in the master carton. Check to ensure there is no damage to
any of the four (4) logs. It is very important to install these logs in their proper position to insure
safe operating conditions. (SEE THE FOLLOWING LOG PLACEMENT DIAGRAM)
WARNING: Dangerous operating conditions may occur if these logs are not positioned in their
certified locations.
1. Open the front door.
2. Remove logs carefully from their packing.
3. Place rear fiber log on rear log holder.
4. Place front fiber log on front log holders. The front bottom notch will match with the front burner.
5. Place the two cross logs on the positioning notches provided and according to the diagram shown
above.
INSTALLING THE GLOWING EMBERS
CAUTION: Use only the amount (0.5g with rear vent and 1.2g with top vent) and type of ember
material supplied with this appliance. The use of other foreign materials on the burners can
create dangerous conditions.
If over time, through cleaning and servicing, these embers require replacement, contact your
nearest REVERSO dealer for an approved replacement embers kit.
1. Gently remove the ember material from the plastic bag.
2. Spread these pieces evenly across the front ember tray. Place a single layer of embers on top of
the front burner, under the front log.

18
3. Carefully avoid any clumping or large build-ups.
4. Do not pack down on top of the burner; leave them fluffy and loosely layered around the front
log.
5. Do not place embers on the rear burner.
6. Upon the first light up, watch for smooth and fast ignition to all burner ports. If a long delay is
noted:
a) First, wait for the appliance to cool down
b) Open the front door of the appliance
c) Carefully reposition the embers at the point of the delay
d) Check to ensure that no burner ports are plugged solid
CAUTION: NEVER OPERATE THIS APPLIANCE WITH THE DOOR OPEN CARE OF YOUR
DOOR ASSEMBLY.
It will be necessary to clean the glass periodically. During a cold start up condensation will
sometimes form on the glass; this is a normal condition with all gas fireplaces and stoves.
However, sometimes this condensation can allow dust and lint to cling to the glass surface. Also,
sometimes initial paint curing of the appliance can leave behind a slight film on the glass. This is a
temporary problem.
It is therefore recommended that the glass be cleaned initially after about the first two weeks of
use.
After that, depending upon the amount of use, cleaning should be required no more than two or
three times per season. To clean the door, use a mild cleaner (i.e.. Windex, Fantastic) and a soft
cloth. Abrasive cleaners will damage the protective coating.
MAIN BURNER REAR LOG
FRONT LOG
FRONT BURNER
EMBER MATIERAL FRONT SCREEN
TOP VIEW
EMBER PLACEMENT DIAGRAM

19
ROUTINE MAINTENANCE
WARNING:
Improper installation, adjustment, alteration, servicing or maintenance can result in personal
injury and property damage. Always refer to this manual for normal maintenance requirements.
For further assistance or additional information consult a qualified gas installer, your REVERSO
MFG. dealer or your local gas supplier.
This appliance must not be operated if it or the gas controls have been under water. Contact a
qualified gas technician for service before attempting to operate.
This appliance should be serviced regularly, to ensure continuing safety and efficiency contact a
qualified technician at least annually.
For cleaning, turn the gas control knob to the "OFF" position. This will extinguish the pilot
flame. Wait at least five (5) minutes before cleaning.
NOTE: This appliance is equipped with Neo Ceram Glass that can only be broken by a
significant impact or misuse.
FOR CLEANING THE INSIDE OF THE FIREBOX
Gently remove the embers and place on a piece of paper towel until ready to replace.
Remove the logs carefully from the combustion chamber and vacuum the burner compartment
thoroughly. Vacuum any dust on the logs and remove any lint from the main burner and pilot
burner.
After carefully replacing the logs and ember in their correct positions, and resealing the door,
relight the pilot following the instructions on the attached label, and turn on the main burner.
1. Check to ensure that all burner ports are list and burning properly.
2. Check to ensure that the right branch of the pilot flame is engulfing the thermocouple tip,
while the left branch of the pilot flame is engulfing the thermopile and the other branch is
long enough to light the rear main burners.
3. Check to ensure that the main burner lights instantly when the on switch is turned on and
that the flame carries across to the front burner fairly evenly.

20
