Revo Mondo DAB User manual

DAB
DAB
Operating Guide
DAB DIGITAL RADIO
www.revo.co.uk
DAB DIGITAL RADIO ADAPTOR
NorwayItalianoDeutschFrançaisEnglish
Guide de Fonctionnement Bedienungsanleitung Guida Operativa Bruksanvisning

Copyright and
Acknowledgements
Copyright © 2007 Revo Technologies Ltd.
All rights reserved.
Revo Technologies Ltd
The Inox Building
Caldwellside
Lanark
Scotland
United Kingdom
ML11 7SR
Tel. [phone]
Fax. [phone]
Email. [email protected]
Website: www.revo.co.uk
The information in this guide is believed to
be correct at the time of publication.
However, our policy is one of continuous
development and so the information is
subject to change without notice.
Revo® and Mondo™ are trademarks or
registered trademarks of Revo Technologies
Limited.
Safety Warnings
Do not operate this radio near water.
Avoid small objects and liquids from getting
into this product.
Do not remove screws or casing parts.
Use only the power supply unit supplied.
EEC: This product has been designed and
type-tested to comply with EU requirements
and carries a CE mark.
Technical Support
Should you encounter any difficulties with
the operation of your Revo product, or
should you suspect that it may be faulty in
some way, please call our technical support
department on the number below:
01555 666 161
Alternatively, email [e-mail] or
visit the troubleshooting section of our
website at: www.revo.co.uk/support
Preface
2
English

Welcome to Revo 4
Benefits of DAB radio 4
Mondo overview and key features 4
Warranty 4
Warranty registration 4
Controls and Connections 5
Powering Mondo 5
DAB Operation 6
Change display mode 7
Show signal strength 7
Finding and adding new stations 7
Removing ‘unavailable’ stations 7
Menu Options 8
To change station order 8
Manual Tuning 9
Set DRC 9
Display software version 9
Alarm 10+11
Sleep Mode 11
FM Operation 12
Trouble-Shooting 13
Technical Specification 14
Accessories and Spares 15
3
English

Benefits of DAB Radio
Clear, interference free digital sound
Many more stations, much more choice
No frequencies, select by station name
No re-tuning
Text information via LCD screen
Mondo Overview
Mondo is the simplest and most cost
effective way to upgrade your hi-fi or home
entertainment system to receive DAB Digital
Radio broadcasts.
The Mondo DAB adaptor easily connects to
any device that has stereo RCA connectors,
using the connection leads supplied.
Mondo also adds FM radio reception and
alarm clock functionality to your set-up.
Warranty
Revo Technologies Ltd warrants to the
purchaser that this product will be free
from parts and manufacturing defects in
the course of normal use for a period of
one year from the date of purchase.
This warranty does not apply in cases of
accidental damage, where the case has
been removed, wear and tear, negligence,
modification or inappropriate use.
Should you encounter problems with this
product, please contact your supplier or
alternatively see page 2 of this guide for
technical support contact details.
Warranty Registration
It is a warranty condition that you register
your purchase by either completing the
warranty card enclosed with your radio or
alternatively registering online at
www.revo.co.uk/register
Thank you for buying our Mondo DAB Digital Radio Adaptor, we feel sure that
it will provide you with years of enjoyment and reliable service.
This guide has been designed to quickly get you up-and-running and listening
to DAB digital radio, offer guidance on the more complex features of this
product and provide information on safety, warranty and registration.
Welcome to Revo DAB
4
English

Controls and Connectors
Powering Mondo
Your Mondo DAB adaptor is powered
from the mains using the power
adaptor supplied.
Insert the power adaptor plug into the
DC power socket on the rear of
Mondo. Pressing the button will
switch Mondo on.
IMPORTANT: Only use the power
adaptor supplied. Replacements are
available, see page 15 for further
details.
1. Power
2. Scroll Down
3. Select
4. Scroll Up
1. Stereo RCA Line-Out
2. DC Power Socket
3. Headphone Socket
4. Pig-Tail Antenna
1.
4.
2.
1. 2. 3.
3. 4.
5
A
A
select
1. DAB
2. FM
3. Scroll Left
4. Select
5. Menu
6. Info
7. Presets
8. Shift
9. Scan
10. Volume Down
11. Scroll Right
12. Volume Up
13. Alarm 0n/Off
14. Standby
1.
2.
3.
4.
5.
6.
7.
10.
8.
9.
12.
11.
14.
13.
English

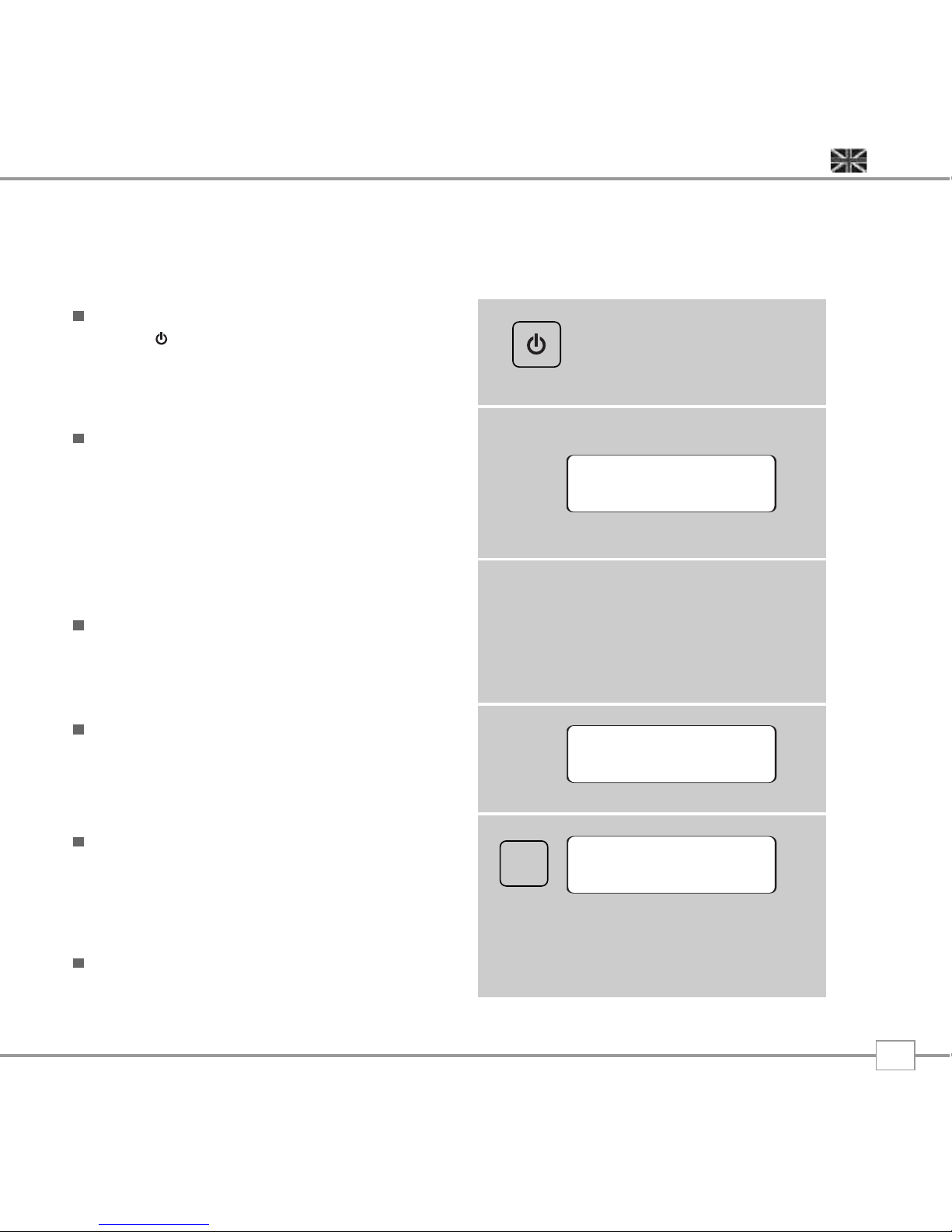

Unravel Mondo’s ‘pig-tail’ antenna and
plug-in the power adaptor.
Mondo will now display ‘clock not set’.
The clock will set automatically during use.
Press the power button to switch on
your radio.
If this is the first time Mondo has been
used, press and hold the SCAN button.
Mondo will now scan for DAB stations in
your area and store them in memory.
When the station scan has been
completed, stations will be displayed in
numeric then alphabetic order. The first
station in the list will be selected.
If no DAB signal is found, it may be
necessary for you to relocate your radio.
Or visit www.ukdigitalradio.com/coverage
to check that DAB coverage is available in
your area.
The top line of Mondo’s LCD screen shows
the name of the station currently selected.
Press the <and >buttons on Mondo’s
top panel or remote control to scroll
through the available stations. Press
SELECT to select the chosen station.
DAB Operation
Scanning... 10
•••••
6 Music
Now tunin
Station not
available
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
Welcome to DAB
•••••
1Xtra
txt us...on 0203
Scanning... 10
•••••
6 Music
Now tunin
Station not
available
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
Welcome to DAB
•••••
1Xtra
txt us...on 0203
Scanning... 10
•••••
6 Music
Now tunin
Station not
available
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
Welcome to DAB
•••••
1Xtra
txt us...on 0203
Scanning... 10
•••••
6 Music
Now tuning...
Station not
available
87.50MHz
99.50MHz
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
Welcome to DAB
•••••
1Xtra
txt us...on 0203
Clock not set...
Scanning... 10
•••••
6 Music
Now tuning...
Station not
available
87.50MHz
99.50MHz
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
Welcome to DAB
•••••
1Xtra
txt us...on 0203
Clock not set...
6
Scanning... 10
•••••
6 Music
Now tuning...
Station not
available
87.50MHz
99.50MHz
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
•••••
1Xtra
txt us...on 0203
Clock not set...
Scanning... 10
•••••
6 Music
Now tunin
Station not
available
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
Welcome to DAB
•••••
1Xtra
txt us...on 0203
SCAN
SELECT
English

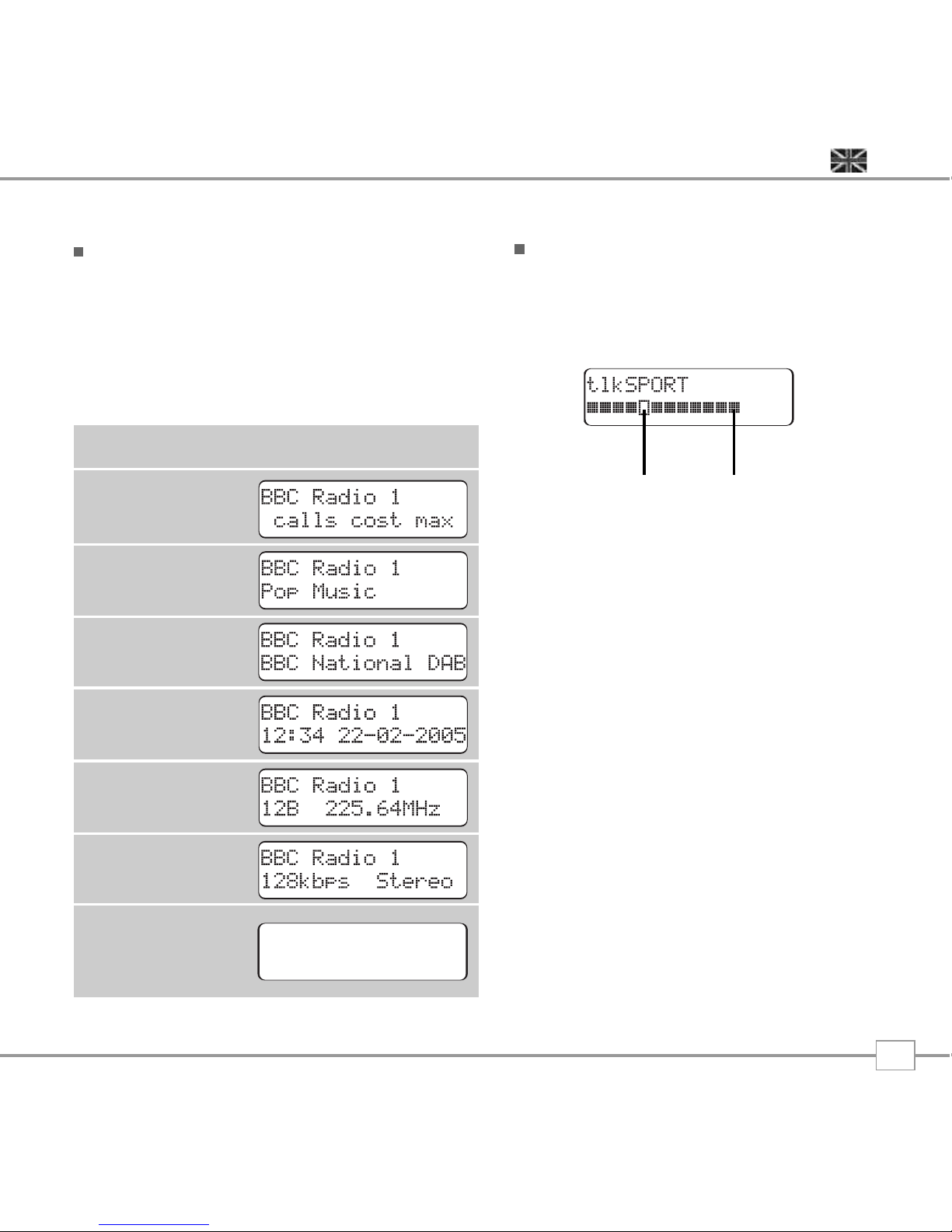

To Change the Display Mode
Mondo has seven different display modes.
Press the INFO button on the remote to cycle
through each mode.
These display modes are explained in the
table below:
BBC Radio 1
Sig strength 96
Signal error 98
BBC Radio 1
Sig strength 96
Signal error 98
Normal display
with scrolling text
Display option Example
Type of broadcast
Broadcaster
Time and date
Station name and
frequency
Data rate and
stereo/mono
Signal strength
To Show the Signal Strength
Press SELECT on Mondo’s top panel
or on the remote control.
The display shows a signal bar with the
strength of the current station:
The indicator on the signal bar shows the
minimum acceptable signal level.
Stations with a signal strength below this
level will not provide a steady stream of
unbroken audio.
Finding and Adding New
Stations
As time passes, new stations will become
available in your area. To find them and
add them to your station list, simply
press and hold the SCAN button on your
remote for at least two seconds.
Removing ‘Unavailable’
Stations
To remove ‘unavailable’ stations from
Mondo’s station list, ie. those that display
a ? before the station name, see the
‘Menu Options’ section on page 8.
Strength of signal
Minimum signal level
7
English

Mondo has a number of functions that are accessed through the MENU button.
The following table describes the options
available under the ‘Station Order’ menu:

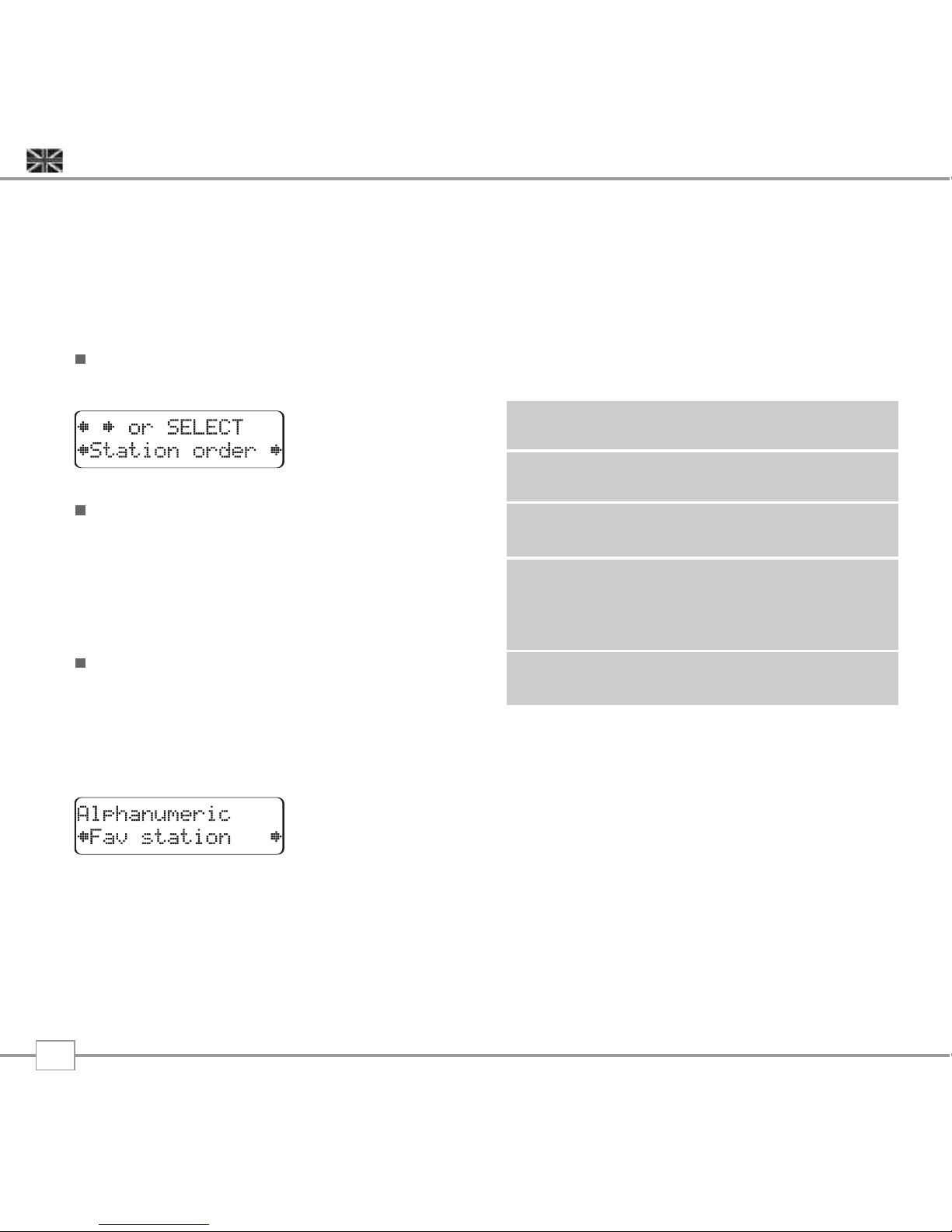

To change station order
Press MENU, then press <or >until the
name of the option is displayed:
Press SELECT to select your choice.
To specify the order in which stations are
displayed
Select the Station order option.
The top line of the display shows the
currently selected station order and allows
you to change it.
Press <or >to step between the station
order options:
Press SELECT to select the current option.
Menu Options
¯ ˘ or SELECT
¯Station order ˘
Alphanumeric
¯Fav station ˘
¯ ˘ or SELECT
¯Station order ˘
Alphanumeric
¯Fav station ˘
Fav station Lists the most frequently
selected stations first.
Alphanumeric Displays all stations in
alphanumeric order.
Active station Lists active stations
[ones that are currently
broadcasting] before
inactive ones.
Prune stations Remove inactive stations
from the station list.
Station order Description
8
English

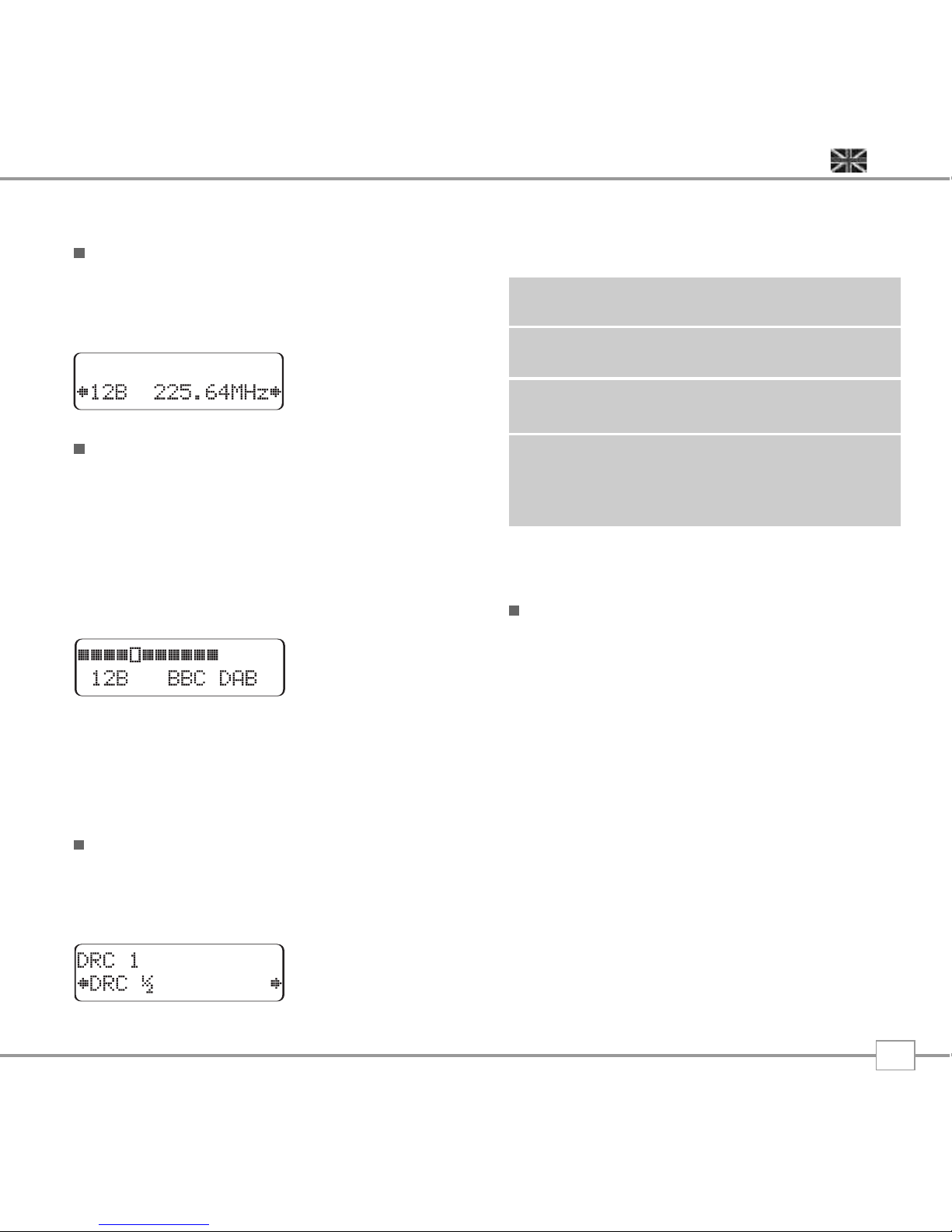

To use manual tuning
Select the Manual tune option.
The display shows the current station number
and frequency:
Press <or >to step between the stations
and press SELECT to select the current
station.
If there is a station corresponding to this
station number and frequency the display will
show the station name, and a tuning meter
showing the signal strength.
To set the dynamic range control
Mondo includes a dynamic range control that
automatically boosts the volume of quieter
sounds for listening in noisy environments.
Select the DRC value option.
The display shows the current DRC value and
allows you to adjust it:
¯12B 225.64MHz˘
¯12C 227.36MHz˘
••••°••••••
12B BBC DAB
DRC 1
¯DRC fi ˘
¯12B 225.64MHz˘
¯12C 227.36MHz˘
••••°••••••
12B BBC DAB
DRC 1
¯DRC fi ˘
¯12B 225.64MHz˘
¯12C 227.36MHz˘
••••°••••••
12B BBC DAB
DRC 1
¯DRC fi ˘
The DRC value can be switched between the
following options:
To display the software
version number
Press the MENU button then use the
<and > buttons to scroll across to SW
VERSION. The software version number
is displayed on the top line of the display.
You should specify this when speaking to
Revo Technical Support.
DRC 0 Dynamic Range Control is
switched off
DRC 1/2 Dynamic Range Control is
set to half normal level.
DRC 1 Dynamic Range Control is
switched on; the default
setting recommended for
noisy environments.
DRC Description
9
English

10
To access the alarm clock functions press
the MENU button, then use the <>
buttons on the remote control to scroll
through to CLOCK, then press SELECT.
To set an alarm press the SELECT
button. Mondo will now ask you to set the
wake-up time. Use the <>on your
remote and SELECT button to set the
hour, then minute.
Mondo allows you to set either a daily or
one-off alarm. If you select a one-off
alarm, Mondo will ask you to enter the
year, month and day.
Finally, Mondo will ask you what type of
alarm you would like, DAB, FM or Buzzer.
When an alarm has been set, Mondo will
display the alarm details.
To turn-off a preset alarm, press
button on the Mondo remote control.
Alternatively, a preset alarm can be
switched-off via the CLOCK menu.
Alarm
Clock
¯Set alarm˘
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Alarm ¯2˘
07.30 Daily
Alarm ¯1˘
08:00 Daily
Clock
¯Set alarm˘
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Clock
Alarm ¯2˘
07.30 Daily
Alarm ¯1˘
08:00 Daily
Clock
¯Set alarm˘
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Alarm ¯2˘
07.30 Daily
Alarm ¯1˘
08:00 Daily
Clock
¯Set alarm˘
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Clock
¯Alarm on/off˘
Alarm ¯2˘
07.30 Daily
Alarm ¯1˘
08:00 Daily
Clock
¯Set alarm˘
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Clock
¯Alarm on/off˘
Alarm ¯2˘
07.30 Daily
Alarm ¯1˘
08:00 Daily
Clock
¯Set alarm˘
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Clock
¯Alarm on/off˘
Alarm ¯2˘
07.30 Daily
Alarm ¯1˘
08:00 Daily
Clock
¯Set alarm˘
¯ ˘ or SELECT
Time ¯17˘:55
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Alarm ¯2˘
Alarm ¯1˘
08:00 Daily
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Clock
¯Alarm on/off˘
Alarm ¯2˘
07.30 Daily
Alarm ¯1˘
08:00 Daily
Sleep
¯10 minutes ˘
Clock
¯SleepTime ˘
Alarm:
¯Off ˘
SELECT
English

11
To halt an alarm, press the Standby
button on Mondo’s top panel, or on the
Mondo remote control.
When using Mondo in areas where no
DAB signal is available, Mondo will not be
able to automatically retrieve the time
from a DAB broadcast. However, it is
possible to manually set the time via the
CLOCK menu.
Sleep Mode
Sleep mode allows you to set Mondo to
turn itself off after a pre-determined
period of time (anywhere between 5 - 60
minutes).
To set the SLEEP time period press the
MENU button, then use the <>buttons
on the remote control to scroll through to
CLOCK, then press SELECT.
Now use the <>buttons to scroll
through to SLEEP, then press SELECT.
Using the <>buttons, increase or
decrease the sleep duration and press
SELECT to register your choice.
Sleep mode can also be turned-off
completely at this point.
SELECT
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Clock
¯Alarm on/off˘
Alarm ¯2˘
07.30 Daily
Alarm ¯1˘
08:00 Daily
Sleep
¯10 minutes ˘
Clock
¯SleepTime ˘
Alarm:
¯Off ˘
Set alarm type
¯Daily˘
¯ ˘ or SELECT
Year ¯2006˘
¯ ˘ or SELECT
¯Wake to DAB˘
Clock
¯Alarm on/off˘
Clock
¯Alarm on/off˘
Alarm ¯2˘
07.30 Daily
Alarm ¯1˘
08:00 Daily
Sleep
¯10 minutes ˘
Clock
¯SleepTime ˘
Alarm:
¯Off ˘
Clock
¯Set Clock ˘
English

12
FM Operation
To listen to FM radio stations press the
FM button on your remote control.
If this is the first time Mondo has been in
FM mode, it will start at the beginning of
the FM frequency range. Otherwise, the
last FM station you were listening to will
be selected.
To scan through the FM frequency range
press the <or >buttons on your remote
control or UP/DOWN buttons on Mondo
itself.
To ‘SEEK’ next active station, press the
SCAN button on your remote.
Mondo can store 10 FM presets.
To store the current station press and
hold one of the preset buttons.
To access preset numbers 6 - 10, press
the SHIFT button first, before pressing
the appropriate key.
To select a stored FM station, simply
press the corresponding preset key on the
remote control.
1
1
FM
>
SCAN
BBC R3 St RDS
Preset 1 saved
BBC R3 St RDS
BBC R3 St RDS
Preset 1 saved
BBC R3 St RDS
Scanning... 10
•••••
6 Music
Now tuning...
Station not
available
87.50MHz FM
99.50MHz FM
94.50MHz
Preset 1
BBC 7
????
12:03:26
12-08-2006
Setting clock...
Revo Uno
Digital Radio
Welcome to DAB
•••••
1Xtra
txt us...on 0203
Clock not set...
6 Music
Now tuning...
87.50MHz FM
99.50MHz FM
94.50MHz FM
Preset 1 saved
BBC 7
????????????????
Clock not set...
English

Trouble-Shooting
Q. I hear a ‘burbling’ noise on some
stations.
A. If the signal strength is too low, a break-
up in reception can occur. This sound is
the result. Make sure that Mondo’s wire
(“Pig-Tail”) antenna has been unraveled
and is straight. If the problem persists,
try moving Mondo to another location or
check that you are in an area where
reception of this station is possible.
Visit www.ukdigitalradio.com/coverage to
check DAB coverage in your locality.
Q. I get a ‘?’ before some stations in my
station list, and don’t seem to be able to
select them.
A. ‘?’ before a station name means that it is
either inactive or unavailable. This can
be because they are not currently
broadcasting, you are outside their
broadcast area or you have simply lost
reception. To remove inactive or
unavailable stations press the MENU
button and go to the ‘Prune Stations’
option (available through the Station
Order menu).
Q. I get a ‘No stations available’ message?
A. Make sure that your antenna is fully
extended and vertical. Check the signal
strength and move Mondo to another
location if necessary.
Q. I get a ‘clock not set’ message.
A. Mondo needs to be able to pick-up a
DAB signal to set its clock, since the
time is taken from a radio station
broadcast. Try turning Mondo on and
pressing the SCAN button. If Mondo
can find a DAB station, it can then set
its clock.
13
English

Technical Specification
General: Stereo DAB receiver with full Band III reception.
Frequency Ranges: DAB Band III (174 - 240 MHz)
FM (87.5 - 108 MHz)
Antenna: “Pig-Tail” antenna
Input Connectors: DC power adaptor socket (230V adapter supplied)
Output Connectors: Stereo RCA Line Out
3.5mm headphone socket
LCD Display: High resolution 2 x 16 character negative display
Alarm Clock: Alarm clock with ‘Sleep’ function
Controls: Power, up, down and select
Remote Control: Infra-red remote control
Mains Power Supply: 9V 720mA
Approvals: CE marked and RoHS compliant.
Dimensions: 48mm (H) x 130mm (W) x 79mm (D)
14
English

Accessories and Spares
15
Remote Control:
Replacement Mondo remote control.
Mains Power Supply Unit:
Replacement power supply for Mondo.
Stereo RCA Leads:
Replacement leads to connect Mondo to a hi-fi system or similar.
The following optional accessories and spare parts are available for Mondo.
Please contact your local retailer or alternatively call us on 01555 666 161.
Accessories and spare parts can also be purchased online at www.revo.co.uk
English

16

DAB
DAB
Guide de Fonctionnement
DAB DIGITAL RADIO
DAB DIGITAL RADIO ADAPTOR
Français

Droit d'auteur et
Remerciements
Droit d'auteur© 2007 Revo Technologies
Ltd. Tous droits réservés.
Revo Technologies Ltd The Inox Building
Caldwellside
Lanark
Scotland
United Kingdom
ML11 7SR
Tel. [phone]
Fax. [phone]
Email. [email protected]
Site Web: www.revo.co.uk
Les informations contenues dans ce guide
sont réputées exactes au moment de leur
publication Cependant, nous observons une
politique de développement continu et ces
informations sont donc sujettes aux
changements sans avertissement préalable.
Revo® et Mondo™ sont des marques
déposées ou enregistrées de Revo
Technologies Limited.
Avertissements
Ne faites pas fonctionner cette radio près
de l’eau.
Evitez que de petits objets et des liquides
entrent dans ce produit.
N’ôtez pas les vis ou des parties du boîtier.
Utilisez uniquement le bloc d’alimentation qui
est fourni.
CEE: Ce produit a été conçu et testé de
manière à être conforme aux exigences EU
et porte la marque CE.
Support Technique
En cas de difficultés pour faire fonctionner
votre produit Revo, ou si vous soupçonnez
quelque défaut, veuillez s'il vous plaît appeler
notre département de support technique au
numéro ci-dessous:
01555 666 161
Vous pouvez aussi nous écrire un email à:
[e-mail] ou visiter la section
dépannage sur notre site web:
www.revo.co.uk/support
Préface
2
Français

Table des matières
Welcome to Revo 4
Bienvenue à Revo 4
Avantages de la radio DAB 4
Aperçu de Mondo et fonctions
principales 4
Garantie 4
Enregistrement de la garantie 4
Contrôles et Connections 5
Alimentation et mise en marche de
Mondo 5
Fonction DAB 6
Changer le mode d’affichage 7
Montrer la puissance du signal 7
Trouver et ajouter de nouvelles stations 7
Oter les stations «non disponibles» 7
Options du menu 8
Changer l’ordre des stations 8
Syntonisation manuelle 9
Etablir le DRC 9
Version du logiciel d’affichage 9
Réveil 10+11
Mode de veille 11
Fonction FM 12
Dépannage 13
Spécifications Techniques 14
Accessoires et pièces de rechange 15
3
Français

Avantages de la Radio DAB
Son digital clair, sans interférences
Beaucoup plus de stations et de choix Pas
de fréquences, sélection des stations par nom
Pas de re-syntonisation
Information sous forme de texte sur écran LCD
Aperçu de Mondo
Mondo est le moyen le plus simple et le plus
efficace d’améliorer votre hi-fi ou système de
divertissement à domicile pour pouvoir
recevoir les diffusions de radio digitale DAB.
L’adaptateur Mondo DAB se connecte
facilement à tout appareil possédant des
connections stéréo RCA, en utilisant les
câbles de connection fournis.
Mondo ajoute aussi une réception de radio
FM et la fonction de réveil à votre
installation.
Garantie
Revo Technologies Ltd garanti à l’acheteur
que ce produit ne présentera pas de
défauts de fabrication ou sur ses pièces lors
de son utilisation normale durant une
période de un an à partir de la date d’achat.
Cette garantie ne s’applique pas en cas de
dommages accidentels, d’usure normale, de
négligence, de modification ou d’usage
inapproprié, ou si le boîtier a été enlevé.
Si ce produit présente un problème, veuillez
s’il vous plaît contacter votre revendeur ou
voir les coordonnées du support technique à
la page 2 de ce guide.
Enregistrement de la garantie
Une condition de la garantie est
d’enregistrer votre achat soit en
remplissant la carte de garantie inclue
avec votre radio, ou de l’inscrire en ligne
sur www.revo.co.uk/register.
Merci d’avoir acheté notre Adaptateur digital de radio DAB Mondo, nous sommes
certains que vous allez en retirer des années de plaisir et de service fiable.
Ce guide a été conçu pour que vous soyez rapidement prêt à utiliser Mondo et
à écouter la radio digitale DAB, pour vous offrir des conseils sur les fonctions
plus complexes de ce produit et vous fournir des informations sur la sécurité,
la garantie et l’enregistrement.
Bienvenue à Revo DAB
4
Français
