RFS APD-D Series User manual

602400011500
Revision C
Radio Frequency Systems
200 Pond View Drive
Meriden, CT 06450
Ph. (203) 630-3311
Fax (203) 634-2272
www.rfsworld.com
ProductManual
AUTOMATICPRESSURIZATIONDEHYDRATOR
APD‐DSeries

602400011500
Revision C
Page 2of 24
This Page Intentionally Left Blank

602400011500
Revision C
Page 3of 24
TABLEOFCONTENTS
1WARNINGS, CAUTIONS & NOTES........................................................................................................... 4
2INSTALLATION ........................................................................................................................................... 5
3TERMS & DEFINITIONS............................................................................................................................. 7
4OPERATION.................................................................................................................................................. 8
5CONTROLS AND INDICATORS............................................................................................................... 12
6MAINTENANCE......................................................................................................................................... 15
7REPLACEMENT PARTS AND ACCESSORIES....................................................................................... 18
8OPTION / CONFIGURATION / SOFTWARE UPGRADE ....................................................................... 18
9SPECIFICATIONS....................................................................................................................................... 20
10MODEL CONFIGURATION ...................................................................................................................... 21
11RUN TIME CALCULATIONS.................................................................................................................... 22
12TRANSMISSION LINE VOLUMES........................................................................................................... 23
13CE DECLARATION OF CONFORMITY .................................................................................................. 24

602400011500
Revision C
Page 4of 24
1WARNINGS,CAUTIONS&NOTES
NOTE:Readthismanualbeforeinstallationoroperationofthedehydrator.
NOTE:Removingtheunit’scoverwillvoidthewarranty.
WARNING
TheAPD‐Dseriesdehydratorsarenotcompatiblewithsingle‐phase
systemsutilizingtwoLineconductorsandoneneutralconductor(such
asNorthAmerican240VACservice).Earthgroundmustalwaysbe
connected.
1/N/PE
[1]
[N]
[PE]
Hazardousvoltagesexistinsidetheunit.Unplug
thepowerbeforeservicing.
Donotenergizeoroperatetheunitwiththelid
removed.
Theunitstartsautomaticallywhenpoweris
applied.Donotoperateunitwithoutcover
securedproperlyinplace.

602400011500
Revision C
Page 5of 24
2INSTALLATION
2.1 SystemPurging:
2.2 FlowRestrictions:
2.3 InstallationLocation:
2.4 InstallationProcedure:

602400011500
Revision C
Page 6of 24
2.5 InstallationTroubleshooting:

602400011500
Revision C
Page 7of 24
3TERMS&DEFINITIONS
RelativeHumidity(RH)
DewPointTemperature(Td)
DewPointReduction(Tdr)
DistributionSystem
Active
RunTime
Standby
DutyCycle
LowerOperationalPressure(LOP)
UpperOperationalPressure(UOP)

Pag
e
4
4.1
e
8of 24
OPERAT
I
General
D
I
ON
D
escriptio
n
n
:
Figure
4
4
.1‐APD‐DOperation
n
alClimato
g
g
ram
6
0
0
240001150
0
Revision
C
0
C

602400011500
Revision C
Page 9of 24
4.2 DetailedOperation:
Figure 4.2 – System Diagram

602400011500
Revision C
Page 10 of 24
4.3 ChoosingtheAppropriateModel:
Section11
4.4 AvailableOptionsandConfigurations:

602400011500
Revision C
Page 11 of 24
NOTE:

602400011500
Revision C
Page 12 of 24
5CONTROLSANDINDICATORS

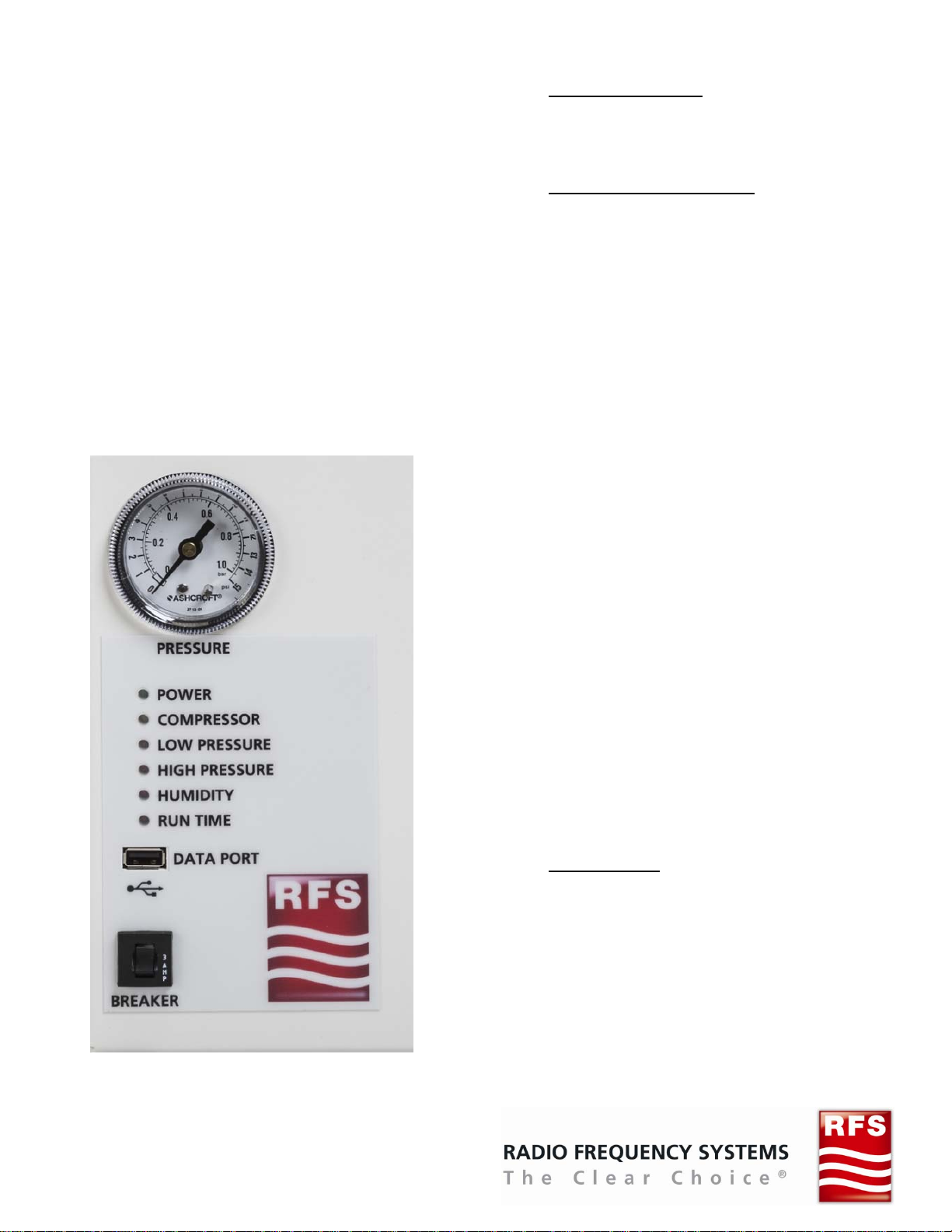

Picture 5.1 – APD-D Series Front Panel
PRESSUREGauge:
OperationalIndicators:
POWER
COMPRESSOR
LOWPRESSURE
HIGHPRESSURE
HUMIDITY
RUNTIME
DATAPORT:

602400011500
Revision C
Page 13 of 24
BREAKER:

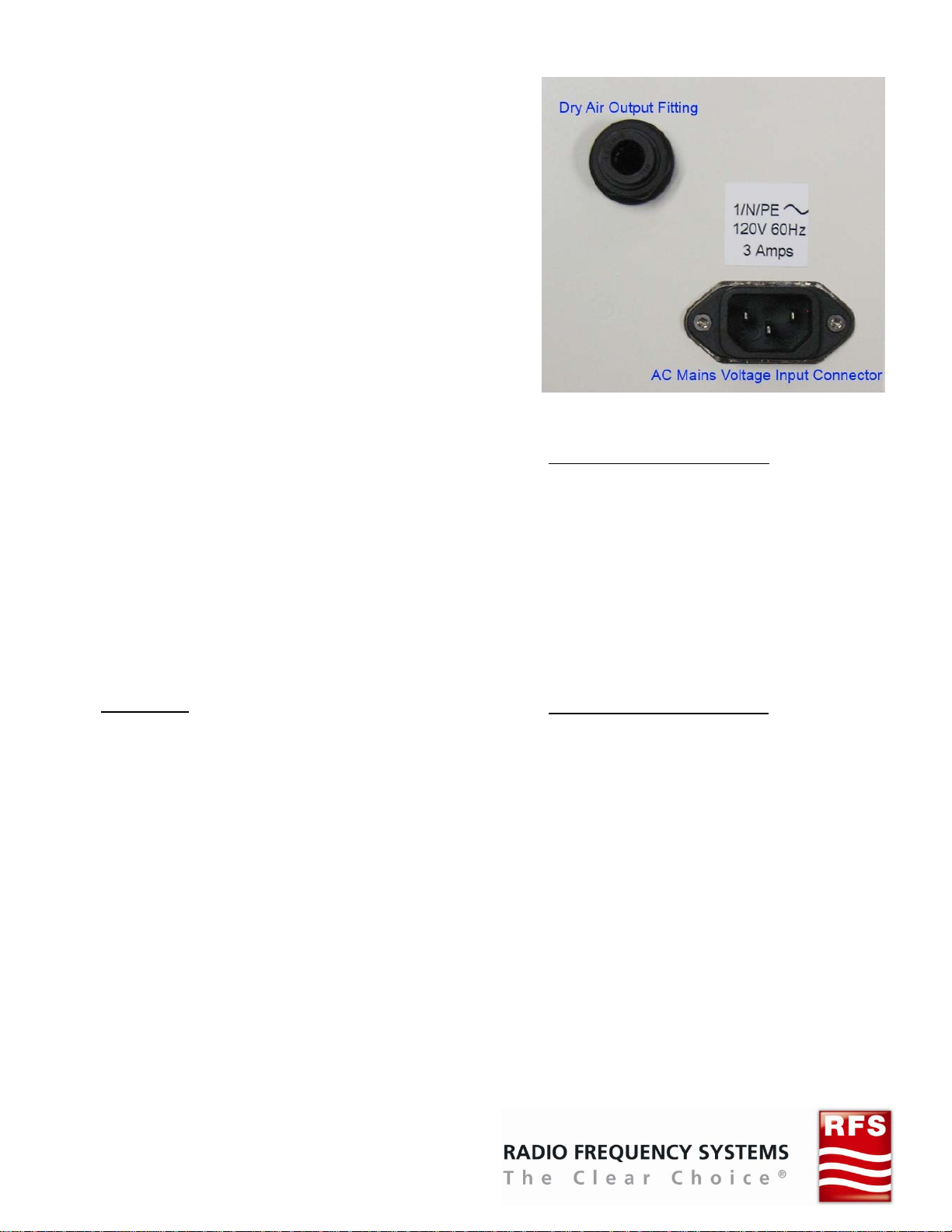

Picture 5.2 – APD-D Series Rear Panel
Connections
ACMainsVoltageInput:
DryAirOutputFitting:

602400011500
Revision C
Page 14 of 24
Picture 5.3 – Case Fan and Alarm Port
CaseFan:
AlarmPort:
Picture 5.4 – Alarm Connector
AlarmConnector:

602400011500
Revision C
Page 15 of 24
AlarmPin‐out:
Pin No. Alarm Configuration
1 Low Pressure Normally Closed (NC)
2 Low Pressure Common (COM)
3 Low Pressure Normally Open (NO)
4 High Pressure Normally Closed (NC)
5 High Pressure Common (COM)
6 High Pressure Normally Open (NO)
7 Humidity Normally Closed (NC)
8 Humidity Common (COM)
9 Humidity Normally Open (NO)
10 Run Time Normally Closed (NC)
11 Run Time Common (COM)
12 Run Time Normally Open (NO)
Picture 5.5 – APD-D Series Site Grounding Studs
SiteGroundingStuds:
6MAINTENANCE
6.1 TakingtheUnitOutofServiceand
RemovingtheLid:
Picture 6.1 – Lid Removal and Filter Location

602400011500
Revision C
Page 16 of 24

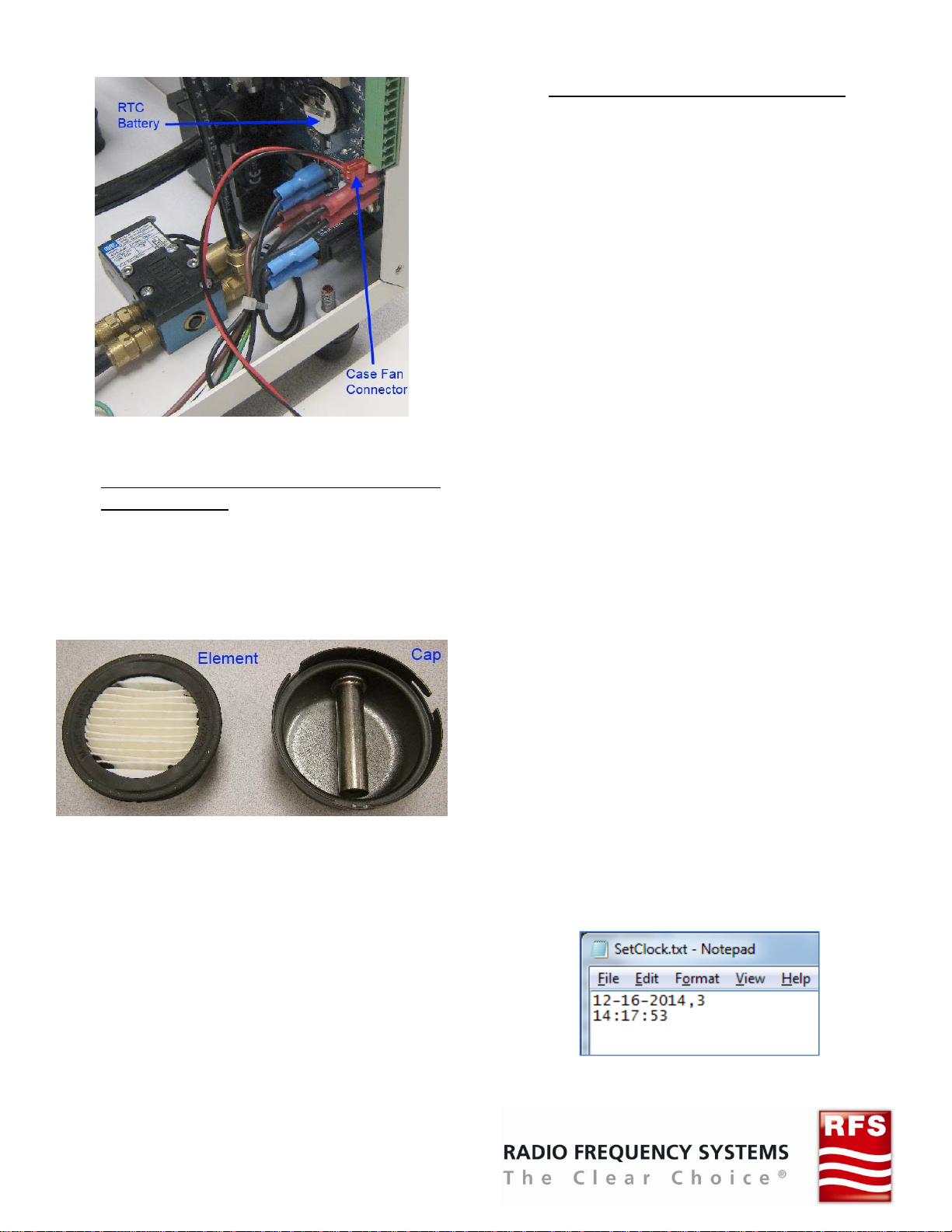

Picture 6.2 – Case Fan Connector and
RTC Battery Locations
6.2 InspectingorReplacingtheInputAir
FilterElement:
Picture 6.3 – Air Filter Element & Cap
6.3 ReplacingtheRTCBackupBattery:
Refer to
Picture 6.2.
WARNING
MM‐dd‐yyyy,x
MM
dd
yyyy
x
HH:mm:ss
HH
mm
ss
Picture 6.4 – SetClock.txt Notepad Example

602400011500
Revision C
Page 17 of 24
NOTE: Once the “SetClock.txt” file has been
created, it is important to follow the steps below
as quickly as possible to ensure a minimum RTC
time error exists.
6.4 ReplacingtheLid&PlacingtheUnit
BackInService:
Picture6.1Picture6.2

602400011500
Revision C
Page 18 of 24
7REPLACEMENTPARTSANDACCESSORIES
Replacementpartsandaccessoriesthatcanbefield‐installed:
ItemPartNumberDescriptionModelCompatibility
8OPTION/CONFIGURATION/
SOFTWAREUPGRADE
Upgradeprocedure:
Theupgradefilesareencryptedand
matchedtoeachindividualdehydrator.

602400011500
Revision C
Page 19 of 24
TheLOWPRESSUREindicatorflashes5
timesindicatingsuccessfulRTCclock
update.
TheHIGHPRESSUREindicatorflashes5
timestoindicatesuccessfulconfiguration
upgrade.
TheHUMIDITYindicatorflashes5times
toindicatesuccessfulfirmwareupdate.
Picture 8.1 – UPDATE.LOG File

602400011500
Revision C
Page 20 of 24
9SPECIFICATIONS
Model
GENERALAPD20‐DAPD22‐DAPD70‐DAPD72‐D
OutputFlow,Minimum,Nlm(SCFM)5.65(0.2)4.8(0.17)19.8(0.7)16.4(0.58)
MaxSystemVolume,liters(ft3),@34.5kPa(5psig)3500(123)13000(106)116500(582)113500(477)1
OutputDewPoint,Minimum,Celsius(Fahrenheit)Ambientdewpoints<=10°(50°):‐40°(‐40°)dewpoint
Ambientdewpoints>10°(50°):50°(72°)dewpointreduction
OperationalPressure,psig(kPa)Firmwareconfigurablefrom1‐10(6.9‐68.9)
PressureDeadband,psig(kPa)Firmwareconfigurablefrom2‐9(13.8‐62.1)
AmbientOperationalTemperatureRange0‐40°C(32‐104°F)2
AmbientOperationalHumidityRange5‐85%relative,non‐condensing(maximumabsolutehumidity=25g/m3)2
OperationalNoise,dBA@1meter,Standby0
OperationalNoise,dBA@1meter,Active6066
OutputPressureSafetyReliefFixedat15psig(103.4kPa)
OutputFittingTypeQuick‐Connect,3/8"ODPlasticTube3
MaximumContinuousOperation,Active4Hours
ELECTRICAL
OperatingVoltage,AC120V+/‐10%230V+/‐10%4120V+/‐10%230V+/‐10%4
SourceFrequency,Hz,Nominal(Range)60Hz(47‐63Hz)50Hz(47‐63Hz)60Hz(47‐63Hz)50Hz(47‐63Hz)
Max.StandbyCurrent,Amps0.5
Max.ActiveCurrent,Amps3254
Max.ActivePowerConsumption,Watts320280500420
Max.ActivePowerConsumption,Volt‐Amps380290520440
PowerFactorCorrection,typical0.8
ElectricalFeedCircuitConfigurationSinglePhase,3‐Conductor(Phase/Neutral/Ground)4
ElectricalFeedCircuitSizeRecommendation15Amps5
ElectricalInletConnectorIEC320TypeC14
ALARMS
AlarmConfiguration1FormCrelaycontacts,screwterminalconnector
AlarmContactRating,Maximum30VDC,1A
LowPressureAlarm(Standardonallunits)Standardconfigurations:Fixedat0.5psi(3.4kPa)belowloweroperationalpressure
LowPressureconfigurations:Fixedat0.25psig(1.7kPa)
SIZEANDWEIGHT
Dimensions,HxWxD,inches(mm)9.5x13.5x9.5(242x343x242)
NetWeight,pounds(kilograms)25(11.4)30(13.6)
ENVIRONMENTAL
Max.OperationalAltitude@5psig,feet(meters)6,500(1,930)6,000(1,830)12,400(3,780)11,500(3,500)
Max.OperationalAltitude@10psig,feet(meters)5,000(1,525)4,500(1,370)10,900(3,325)9,500(2,900)
Deratingper1000ft(305m)aboveMSL,CFM(lm)0.024(0.68)0.022(0.62)0.07(1.98)0.06(1.70)
Options:(FieldConfigurable)
LowPressureOperationSoftwareconfigurablefrom1‐2.5psig(6.9‐13.8kPa)in0.5psig(3.4kPa)increments6
HighPressureAlarmSoftwareconfigurablefrom3‐11psig(20.7‐75.9kPa)in1psig(6.9kPa)increments
HumidityAlarmSoftwareconfigurablefrom20‐50%RHin10%RHincrements
RunTimeAlarmSoftwareconfigurablefrom10minutesto4hoursin10minuteincrements
SystemPurgeSoftwareconfigurablefrom2‐10daysin2dayincrements
Compliance
CE(EMC,MD,PED,RoHS)
IEC60529‐IP20
NOTES:
1) Allspecificationsat23°C(73F)and50%RelativeHumidityatmeansealevel(MSL)unlessotherwisenoted.
2) Forindooruseonly.IEC60721‐3‐3Class3k3(temperature‐controlledenclosedlocations,humiditynotcontrolled),
Humidity:25g/m3AbsoluteHumidity@85%RH=29.4°C,40°C@25g/m3AbsoluteHumidity=48.8%RH.
3) Tubingusedmustbepolyurethane(durometer95A),polyethylene(durometer44D),ornylon(durometer50D).
4) VoltagesourceperIEC60038(1/N/PE)***NotforusewithNorthAmerican240VACservice***
5) Electricalsupplycircuitmustremainwithinoperatingvoltagespecificationsatalltimes.
6) LowerOperationalPressurefixedat0.5psig(3.4kPa),LowPressurealarmfixedat0.25psig(1.7kPa).
