Rheem RPH Series User manual

RPH SERIES SWIMMING POOL HEAT PUMP
USER MANUAL

Heat Pump & Installation Information
Date of installation:
Model Nº:
Serial Nº:
Installed by:
Purchased from:
43 Marigold Street,
Revesby NSW 2212
ABN: 28 062 383 224
ACN: 062 383 224
Rheem Thermal Systems: 1300 132 950
Email:[e-mail]
www.rheemthermal.com.au
PATENTS
This heat pump may be protected by one or more patents or registered designs.
® Registered trademark of RheemAustralia Pty Ltd.
™Trademark of Rheem Australia Pty Ltd.
Warning: Upon completion of the installation and commissioning of the heat pump, leave this guide with
the premises householder or responsible officer.
DO NOT leave this guide inside of the cover of the heat
pump, as it may interfere with the safe operation of the heat pump or ignite when the heat pump is turned on.

Table of contents
A. Foreword 1
B. Safety Precautions 1
1. Warning 1
1. Attention 2
2. Safety 3
3. Service 3
C. About Your Heat Pump 4
1. Transportation 4
2. Accessories 4
3. Features 5
4. Operating condition and range 5
5. Introduction of different modes 5
6. Technical parameter 6
7. Dimension 7
D. Installation Guidance 8
1. Installation reminder 8
2. Wiring 10
3. Electric wiring diagram 11
4. References for protecting devices and cable specification 11
E. Operation Guide 12
1. Key functions 12
F. Testing 15
1. Inspect theheat pump before use 15
2. Leakage detection notice and method 15
3. Trial & Start Up 15
G. Maintenance 16
H. Trouble Shooting for Common Faults 17
I. Hard Wired - Methods of Water Pump Control Connections 19
J. Water Pump connection using the Rheem IQ Link –Pump Controllers 22
K. Wi-Fi Connection Instructions 27
L. RHEEM THERMAL WARRANTY –RPH SERIES POOL HEAT PUMPS 33

1
A. Foreword
Thank you for choosing our RheemThermalinverter pool heat pump, which is designed for easeof
operation,quietness and efficiency. The low electrical use of your new heater minimises greenhouse
impact, providing a very green solution to pool heating.
B. Safety Precautions
Your heat pump is supplied as a package unit, being a closed refrigeration system,
connected directly to your pool either via the pool’s filtration or a standalone heating circuit
and suitable for outdoor installation only. This Manual includes important safety messages
please always read and obey all safety messages.

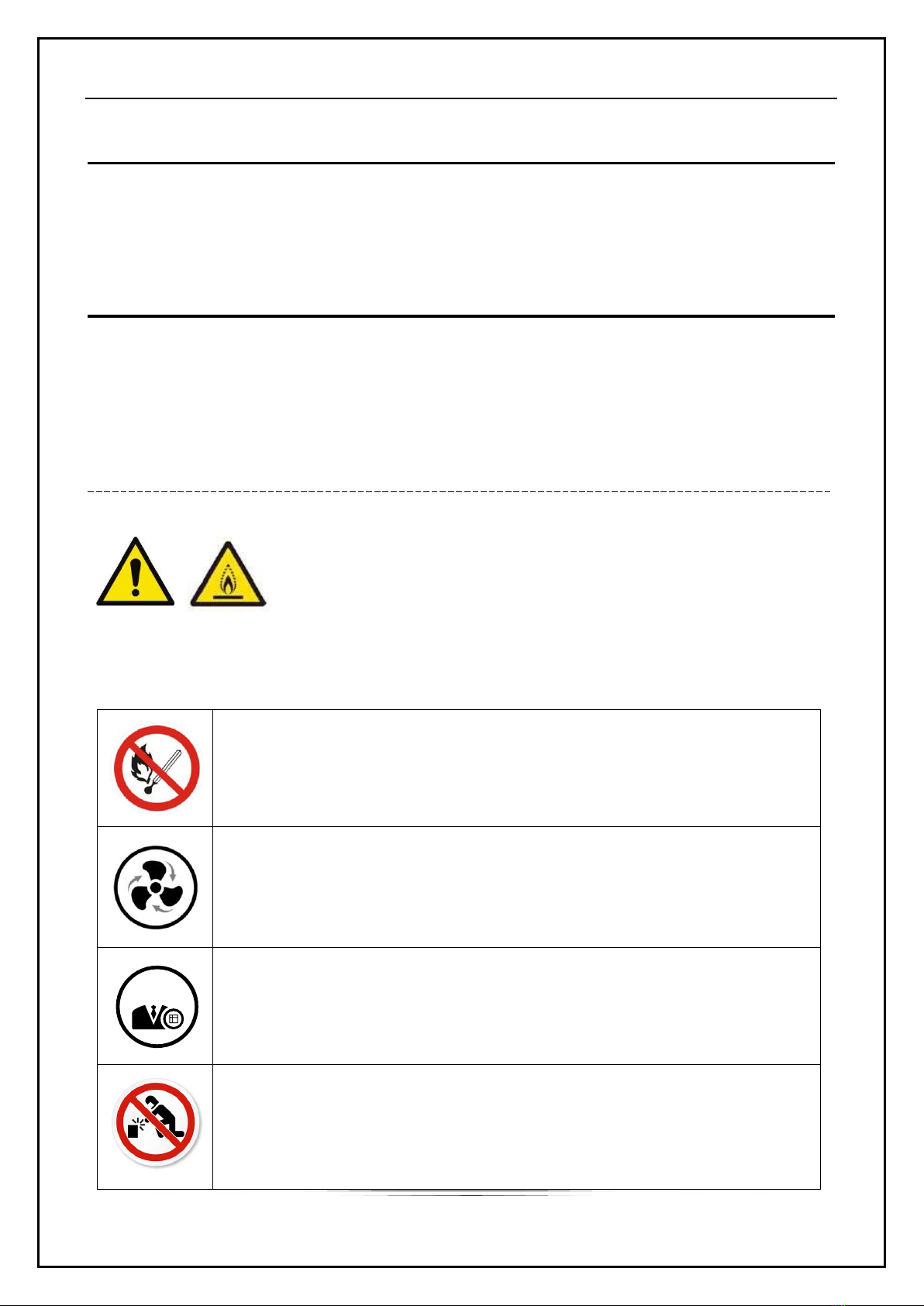

1. Warning
The WARNING sign denotes a hazard. It calls attention to a procedure,
practice, or the like, which, ifnot correctly performed oradhered to, could result inpersonal injury or injury
to a third party. These signs are rare but are extremely important.
a. Keep the heat pump away from a fire source.
b. The heat pump is suitable for outdoor installation only.
c. Repairs and disposal must be carried out by trained service personnel
d. Vacuumise all R32 gas completely before welding pipes. Welding can only
be carried out by professional personnel in a service center.

2
1. Attention
a. The specific instructions below related to the safe operation of the heat pump are set out below in accordance
with AS/NZS60335-1 and AS/NZS60335-2-40.
b. Installation requirements are detailed in the Installation Guidance section of this Manual.
c. The heat pump must be installed by 1. A qualified person, 2. In accordance with the installation instructions and
3. In compliance with Standards AS/NZS 3000, AS/NZS 3500.4 as applicable under local regulations and all
local codes and regulatory authority requirements.
d. In New Zealand, the installation must also conform with NZS 5261, as applicable under local regulations, and
the NZ Building Code.
e. The heat pump is supplied as a package unit, ready for immediate operation after installation with the provision
ofpowersupplyanddirectconnectionto your swimmingpool via PVC pipingas outlined in the hydraulic sections
of this Manual.
f. It is suitable for outdoor installation only and clearance guidelines are outlined in this Manual.
g. Connection to water mains is not intended.
h. For electrical connection, the selection of type and rating of fuses should be in accordance with the Installation
Guidance Section of this Manual.
i. The heat pump is a closed refrigeration system using the low GWP Refrigerant R32. As such, compliance with
national gas regulations shall be observed.
j. Do not pierce or burn.
k. Be aware that refrigerants may not contain an odour.
l. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the
manufacturer.
m. The heat pump should be located to prevent the risk of mechanical damage from external sources.
n. If a repair is required, please contact the nearest after-sales service center. The repair process must be strictly
in accordance with manual. All repair practice by non-professional is prohibited.
o. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid
certificate from an industry-accredited assessment authority, which authorises their competence to handle
refrigerants safely in accordance with an industry recognised assessment specification. Servicing shall only
be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the
assistance of other skilled personnel shall be carried out under the supervision of the person competent in the
use of flammable refrigerants.
p. A leakage test must be performed after installation.
q. Please don’t stack substances, which will block air flow near inlet or outlet area, otherwise the efficiency of the
heat pump will be reduced or even stopped.

3
r. Don’t use or stock combustible gas or liquid such as thinners, paint and fuel in the vicinity of the heat pump to
avoid the risk of ignition.
s. In order to optimise the heating effect, please install heat preservation insulation on pipes between swimming
pool and the heat pump, and please use a recommended cover on the swimming pool.
t. Connecting pipes of the swimming pool and the heat pump should be ≤10m.
2. Safety
a. This heat pump is only intended to be operated by persons who have the experience or knowledge and the
capabilities to do so.
b. This heat pump is not intended to be operated by persons with reduced physical, sensory or mental
capabilities i.e. the infirm, or by children. Children should be supervised to ensure they do not interfere with or
play with or at the heat pump.
c. If electrical supply conduit to the heat pump is damaged, it must be replaced by a qualified person in order to
avoid a hazard. Phone Rheem or the nearest Accredited Service Agent to arrange for an inspection.
d. Please keep the main power supply switch far away from the children.
e. If power supply is disrupted during operation, the heat pump will start again when power is restored.
f. Please switch off the main power supply in lightning and storm weather to prevent from machine damage that
caused by lightning.
g. Installation and any repairing should be conducted in the area with good ventilation. The ignition source is
prohibited during the operation.
h. Safety inspection must be carried before the maintenance or repair for heat pumps with R32 gas in
order to minimize the risk.
i. If R32 gas leaks during theinstallation process, all operations must be stopped immediately and call the service
center.
3. Service
a. This heat pump must be maintained and serviced in accordance with the Maintenance Guidelines Section of
this Manual.
b. For peak performance, it is suggested that the heat pump is serviced by your nearest Rheem Thermal
Service Department or Accredited Service Agent every four months for commercial installations or annually
for residential installations.
c. Warning: Servicing of a heat pump must only be carried out by a refrigeration mechanic.

4
C. About Your Heat Pump
1. Transportation
a. Always keep upright
b. Do not lift the unit by the water
unions (Otherwise the titanium
heat exchanger inside the heat
pump may be damaged)
2. Accessories
Connection for the condensate drainage kit:
Water Connection Unions

5
3. Features
a. Mitsubishi - DC Twin-rotary inverter compressor
b. DC Brushless fan motor
c. EEV Technology
d. Reverse cycle defrost
e. High efficiency twisted titanium heat exchanger
f. Sensitive and accurate temp control and water temp display
g. High pressure and low-pressure protection
h. Full protection on electrical system
4. Operating condition and range
The heat pump RPH009-1A, RPH013-1A, RPH016-1A, RPH021-1A, RPH024-1A can work between ambient
air temperatures of -5°C～43°C and the RPH028-1A, RPH028-3A can work between ambient air temperatures
of -10°C～43°C and their ideal operation range is between 15°C ~ 25°C.
5. Introduction of different modes
a. The heat pump has two modes: Boost and Silence.
b. They have different strengths under different conditions.
Mode
Modes
Strength
Boost mode
Heating capacity: 20% to 100%
Intelligent optimisation
Fast heating
Silence mode
Heating capacity: 20% to 80%
Sound level: 3dB (A) Lower than Boost mode

6
6. Technical parameter
Model
RPH009-1A
RPH013-1A
RPH016-1A
RPH021-1A
RPH024-1A
RPH028-1A
RPH028-3A
PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80%
Heating
capacity (kW)
8.6
13
15.5
21
23.5
27.8
27.8
COP Range
14~6.5
14~6.4
15~6.5
15~6.5
14.5~6.4
15.8~7.2
15.6~7.1
Average COP
at 50% Speed
9.0
9.5
9.6
9.3
9.6
11.0
10.7
PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70%
Heating
capacity (kW)
6.4
9.0
10.9
14.5
16.1
18.8
18.8
COP Range
6.8~4.5
7~4.4
7~4.5
7~4.6
7.2~4.5
7.8~4.9
7.8~4.9
Average COP
at 50% Speed
6.2
6.3
6.3
6.2
6.3
6.5
6.4
TECHNICAL SPECIFICATIONS
Advised pool
volume (m3) *
20~50
30~60
40~75
50~90
60~110
60~120
60~120
Operating air
temperature
(°C)
-5°C ~43°C
-10°C ~43°C
Power supply
240V 1Ph
415V 3Ph
Rated input
power (kW)
0.21~1.42
0.31~2.10
0.37~2.42
0.47~3.20
0.54~3.60
0.50~3.84
0.5~3.84
Rated input
current (A)
0.93~6.20
1.34~8.90
1.60~10.60
2.06~13.70
2.34~15.60
2.17~16.70
0.72~5.56
Recommended
circuit breaker
size (A)
10
16
20
25
25
25
10
Sound level at
10m dB (A)
19.0~28.4
22.2~30.8
21.2~34.4
23.4~34.1
21.8~36.0
21.5~32.9
21.5~32.9
Refrigerant
charge (kgs)
0.5
0.75
0.8
1.0
1.2
2.0
2.0
Advised water
flow (L/sec)
0.5~1.2
1.2~1.7
1.7~2.3
2.0~2.8
2.8~3.4
2.8~3.4
2.8~3.4
Water
Connections
mm)
48.3
Remarks:
The heat pump RPH009-1A, RPH013-1A, RPH016-1A, RPH021-1A, RPH024-1A are all able to perform normally within
air temp -5°C～+43°C and the RPH028-1A, RPH028-3A can perform normally within air temp -10°C~+43°C. Efficiency
cannotbeguaranteedoutofthisrange. Please takeinto considerationthat the pool heat pump performance and parameters
are different under various conditions.
Related parameters are subject to adjustment periodically for technical improvement without further notice. For further
details please refer to the nameplate on the side of the unit.

7
7. Dimension
※The above product data is subject to change without notice.
Note: The product pictures and dimensions above are specification diagrams for use by technician’s
installers and for layout reference only.
Size (mm)
Model
A
B
C
D
E
F
G
H
RPH009-1A
410
645
387
430
890
250
75
657
RPH013-1A
410
645
387
430
890
290
75
657
RPH016-1A
410
645
387
430
890
280
75
657
RPH021-1A
410
710
387
430
1060
390
75
657
RPH024-1A
410
710
387
430
1060
390
75
757
Size(mm)
Model
A
B
C
D
E
F
G
H
RPH028-1A
410
710
390
430
1060
640
75
957
RPH028-3A
410
710
390
430
1060
640
75
957

8
D. Installation Guidance
1. Installation reminder
Only use a qualified electrician and pool plumber to install the heat pumps. The consumer, (unless qualified),
is not to install the unit/s themselves, otherwise this could void warranty and potentially risk the users’ safety.
a. Location and clearances
The heat pump is suitable for outdoor installation only and requires the following clearances to
ensure the correct movement of air and for service access:
For the 16kw unit and below models
For the 21kw unit and above models

9
1) The provision of the clearances shown in 1.a above are important to achieving the maximum heating
performance and efficiency of your heat pump. If clearances are compromised, this creates the
potential for the cold air discharged at the rear of the unit (through the evaporator) to recirculate so that
the air being used for heat capture is cooler than the true ambient (outside) temperature. This issue of
recirculation is particularly worsened if the surrounding area is not open or if the heat pump position is
for example, directly under the eave of your home. The intent in selecting the installation position and in
considering the potential to place other plant nearby is to achieve the maximum open area around the
heater. As such, the clearance guidelines given should be understood as the minimum recommended
and wider spacing will be beneficial in terms of minimizing the risk of air recirculation.
2) The frame of the unit must be fixed by bolts (M10) to a solid or concrete foundation. The foundation must be
secure.
3) Do not stack obstacles near the inlet or outlet area of the heater fan/s or evaporator coil/s and ensure there is
a minimum of 500mm behind the main machine’s evaporator coil, otherwise the efficiency of the unit may be
compromised. It may also cause the unit to stop working.
4) The machine needs a circulation pump (supplied by the others) to operate. The heat pump unit can be
energised by either a main filter pump or separate circulation pump. This will depend on the preferred method
of installation. Please refer to the minimum flow rate of the unit being installed to select a pump for the
required water flowrates.
5) When the machine is running, there will be condensate water discharging from the bottom of the unit, please
pay attention to this. There is a condensate drainage nozzle (accessory) supplied. Please ensure this is placed
into the condensate drainage hole on the bottom of unit and clipped in. Then connect a PVC pipe to this and
run it to an approved plumbing drainage point.

10

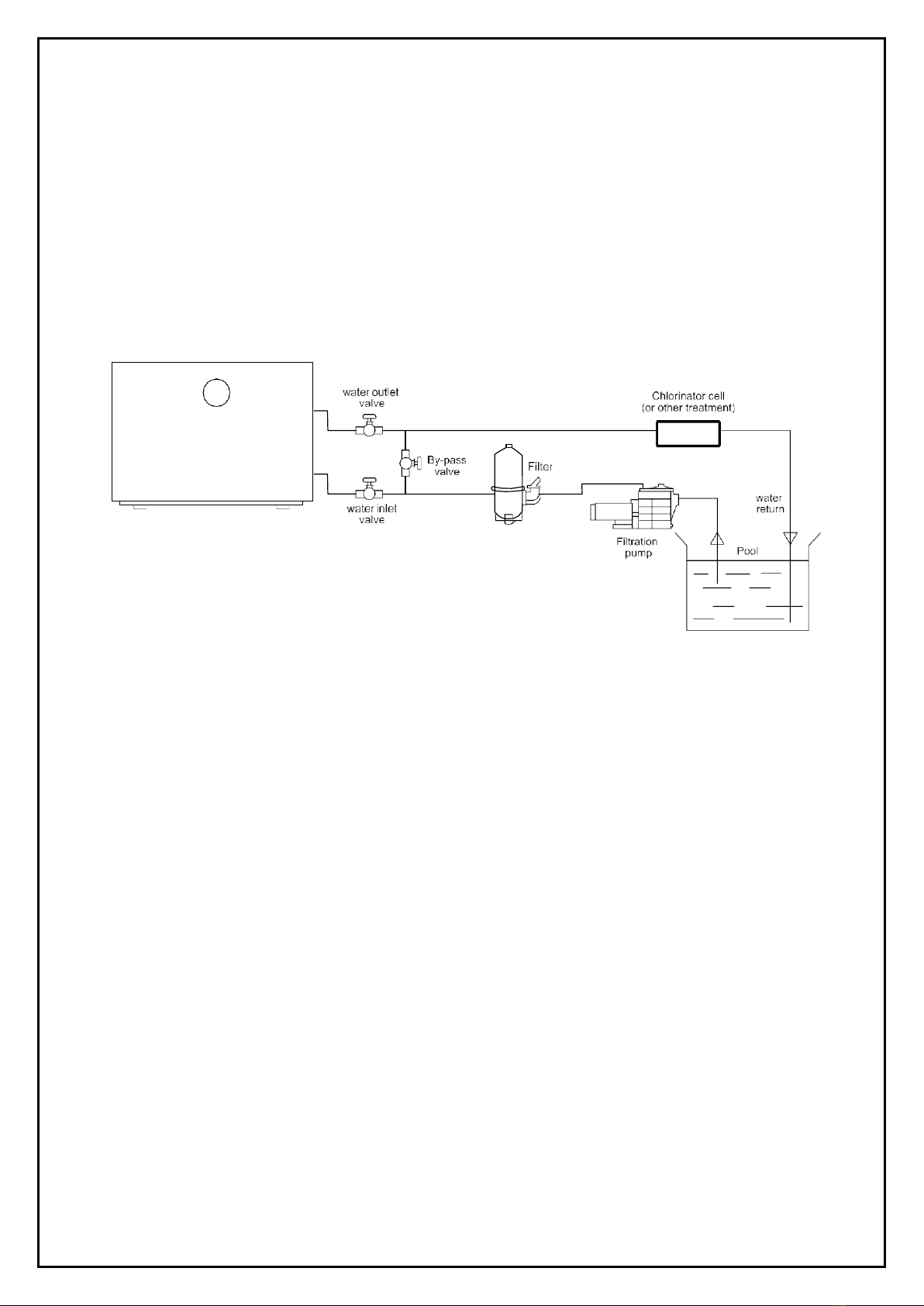

b. Water pipe connection
The inlet and outlet water unions are to be connected by approved PVC pipes used for pool &
spa plumbing!
•DO NOT install water pipes in a way that they pass behind the heat pump's evaporator coil. If this
cannot be avoided, ensure the pipes are covered with thermal insulation.
2. Wiring
a. Connect this device to an appropriate power supply, the voltage should comply with the rated voltage of
the product.
b. Earth the machine well.
c. Wiring must be handled by a professional electrician according to the circuit diagram.
d. Set leakage protection according to the local authority for wiring (i.e.: leakage operating current ≤30mA).
e. The laying of power and signal cables should be such that they do not affect each other.

11

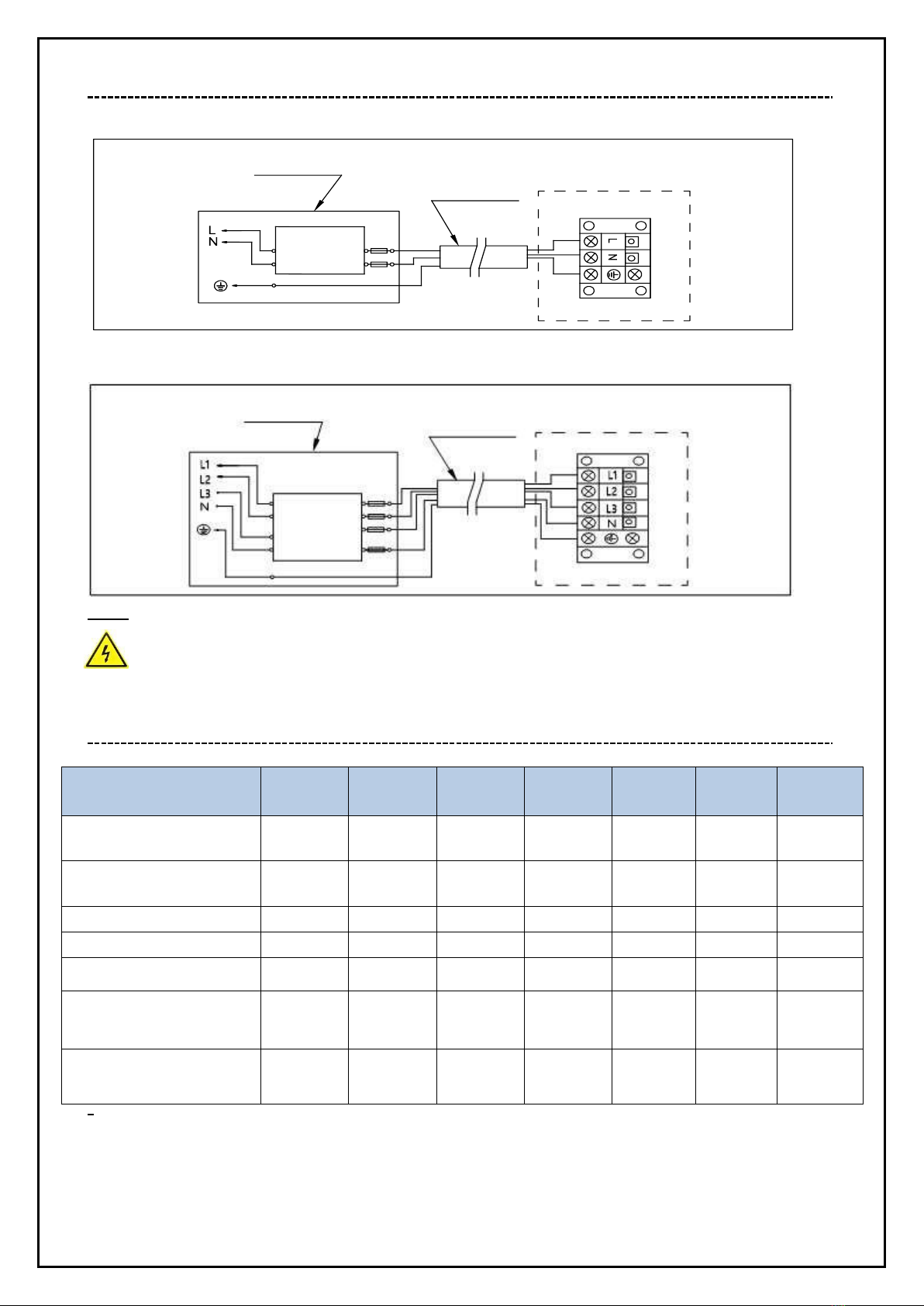

3. Electric wiring diagram
a. For power supply: 240V 50Hz
b. For power supply: 415V 50Hz
Note: The electrical installation must comply with Standards AS/NZS 3500.4. AS/NZS 3000 and all local
codes and regulatory authority requirements. Models RPH009-1A and RPH013-1A may be
connected by an electrical plug. All other models must be hard wired.
4. References for protecting devices and cable specification
MODELS
RPH009-
1A
RPH013-
1A
RPH016-
1A
RPH021-
1A
RPH024-
1A
RPH028-
1A
RPH028-
3A
Breaker Rated Current (A)
10
13
18
21
24
24
10
Breaker RatedResidual
Action Current (mA)
30
30
30
30
30
30
30
Circuit Breaker (A)
10
16
20
25
25
25
10
Power Cord (mm2)
3 x 1.5
3 x 2.5
3 x 2.5
3 x 4
3 x 6
3 x 6
5 x 2.5
Signal Cable (mm2)
3 x 0.5
3 x 0.5
3 x 0.5
3 x 0.5
3 x 0.5
3 x 0.5
3 x 0.5
Max Pressure of Inlet
Water
（Mpa）
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Min Pressure of Inlet
Water
（Mpa）
0.5
0.5
0.5
0.5
0.5
0.5
0.5
※The above data is subject to change without notice.
Note: The above data is adapted to power cord ≤10m. If power cord is >10m, wire diameter must be
increased. The signal cable can be extended to a maximum of 50m.
Distribution Box (Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
415V 50Hz
Fuse
Earthing
Breaker
Distribution Box (Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
240V 50Hz
Fuse
Breaker
Earthing

12

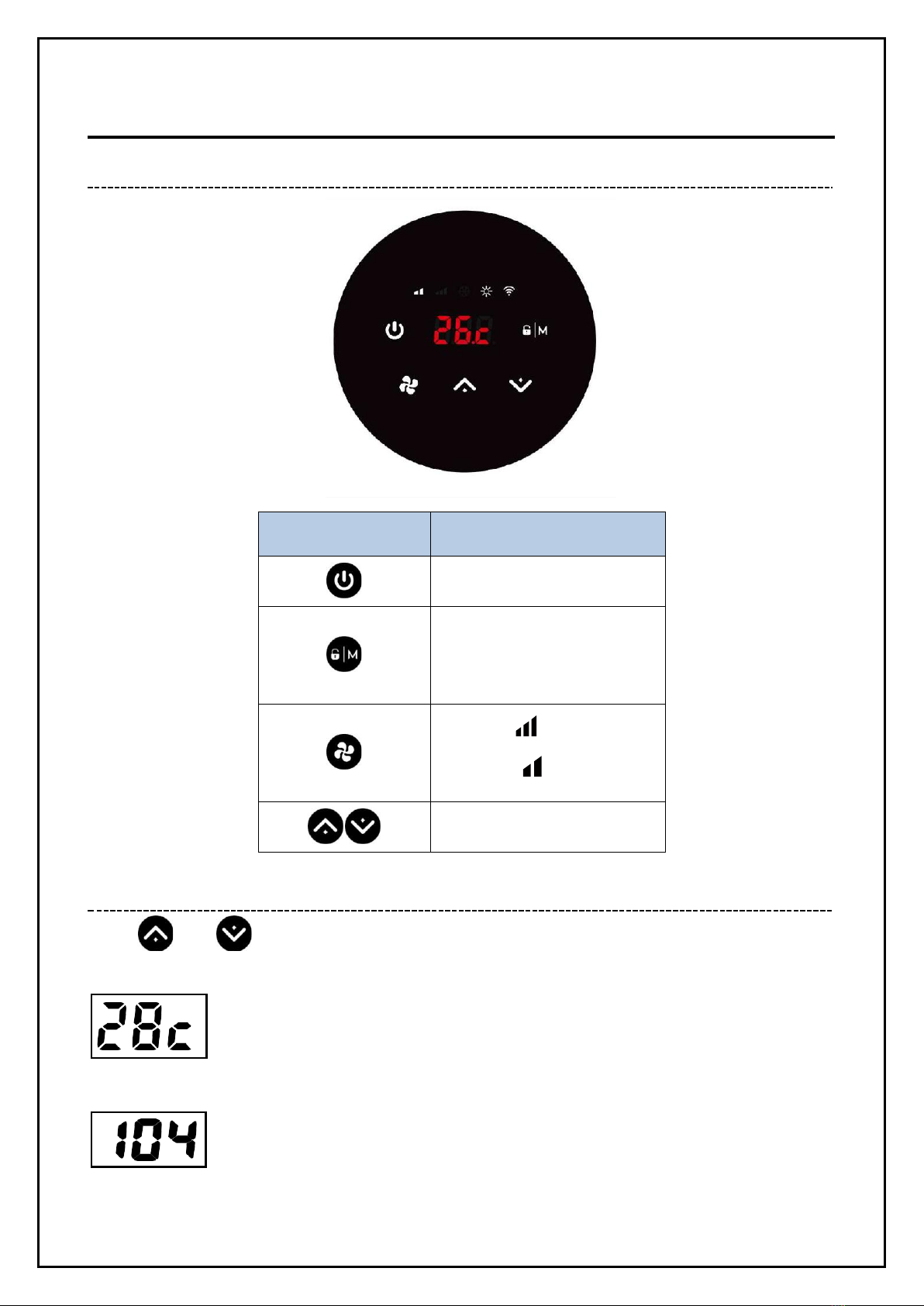

E. Operation Guide
1. Key functions
Symbol
Heating & Cooling models
1. Power On/Off
2. Wi-Fi settings
1. Lock/Unlock Screen
2. Heating mode (18-40°C)
3. Cooling mode (12-30°C)
4. Auto mode (12-40°C)
1. Boost
2. Silence
Temperature Setting
1. Temperature display
1. Celsius display:
means 28°C
2. Fahrenheit display: (only the temperature number). For USA and some parts of Europe only:
means 104°F
Press
and
together for 5 second to switch temperature display.

13
2. Operation instruction
a. Screen Lock
1) Press for 3 seconds to lock or unlock the screen.
2) The screen will automatic lock again after 30 seconds if there has been no action.
b. Power On
Press for 3 seconds to unlock the screen. Press to power on the unit.
c. Temperature Setting
When the unit is on, press and to set the desired temperature.
d. Boost/Silence Mode
Press to switch between boost mode and silence mode
(Please choose boost mode for initial heating).
e. Heating / Cooling /Auto Mode
Press to switch among Heating Cooling and Auto Mode
- Heating mode: Water temperature setting range (18-40°C)
- Cooling mode: Water temperature setting range (12~30°C)
- Auto mode: Water temperature setting range (12~40°C)
* When the water inlet temperature is higher than the set point, automatic cooling mode starts.
* When the water inlet temperature is lower than the set point, automatic heating mode starts.

14
f. Defrost
1) Automatic defrosting: When the unit is in auto defrosting mode this symbol will flash until it is
finished. Once finished it will go back to normal operating mode.
2) Manual Defrost: To enter the forced defrosting mode, the compressor must have been operating for
more than 10 minutes.
In heating mode, press and on buttons together simultaneously for 5 seconds to start the
forced defrost mode and this symbol is flashing the defrost function starts. Once stops
flashing the defrosting mode stops and the unit will resume normal operation.
(Note: the intervals between forced defrosting should be more than 30 minutes)
g. Wi-Fi Setting
When the screen is on, press for 3 seconds, when this symbol starts to flash, enter the
Wi-Fi connection. Connect the Wi-Fi on your mobile device and input the password, and then control
equipment by Wi-Fi. When the Wi-Fi APP successfully connects the Wi-Fi symbol light stays
on.
h. Running Status Checking
1) Press symbol for 5 seconds, the unit will then start to run the checking status
2) During this time, the display will show the status symbol “C0” and its corresponding value.
3) Change status bypushing the and arrows to the corresponding value.
4) Press to quit the “Running Status Checking” mode.
5) Running status checking table:
Symbol
Content
Unit
C0
Inlet water temp
°C
C1
Outlet water temp
°C
C2
Ambient temp
°C
C3
Exhaust gas temp
°C
C4
Evaporator coil pipe temp
°C
C5
Return gas temp
°C
C6
Cooling coil pipe temp
°C
C9
Cooling plate temp
°C
C10
EEV opening angle
P
C11
DC fan speed
r/min

15
F. Testing
1. Inspect theheat pump before use
a. Ensure the ventilating device and outlets are operating adequately and are not obstructed.
b. It is prohibited to install refrigeration pipe or components in corrosive environment.
c. Inspect all the electrical wiring and earthing connections by referencing the electrical wiring diagram.
d. Double check that the main power isolation switch is off.
e. Inspect the air inlet and outlet vent/s, coil/s and fan/s.
2. Leakage detection notice and method
a. Leakage checks are prohibited in closed area.
b. Any ignition source is prohibited during a leakage inspection. Ahalide torch (or any other detector
using a naked flame) should not be used.
c. Leakage detection fluids can be applied with most refrigerants, but the use of detergents
containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the
copper pipes.
d. Vacuumise completely before welding. Welding can only be carried out by professional personnel
in a well-ventilated area.
e. Please stop using the heat pump if gas leakage occurs. Contact Rheem or one of their qualified
service agents.
3. Trial & Start Up
a. The user must “Start” the circulation pump before the heat pump is turned on and “Turn”off the
heat pump before the pump” is stopped, or the unit could be damaged.
b. Before starting the heat pump, check for any water leaks around the plumbing fittings.
c. Set the desired temperature on the heater thermostat, and then switch on the power supply.
d. To protect the heat pump, the unit is equipped with a time lag starting function. The fan will run
for 1 minute before the compressor starts and it will stop running 1 minute after the compressor
stops when the unit switches off.
e. When running the startup trial, check for any abnormal noises and leaks from the unit.
f. Please note that condensation will form at the bottom of the unit when it is running and will leak
from the condensate drain hole if the condensation drainage kit and hose are not fitted.
Condensation is normal during operation.

16
G. Maintenance
1. In the winter and frost prone areas when you don’t swim and heat your pool or spa:
a. Cut off the power supply.
b. Drain any water out of the unit. Ensure the water isolating valves to the unit are closed to prevent the unit
from filling again once drained.
c. Cover the machine body.
!! Important:
Shut off the water supply to the unit.
Unscrew the union of the inlet pipe to
let the water flow out. Once drained
reconnect the union and pipe.
If the water in the machine freezes in winter
season, the titanium heat exchanger may be
damaged.
2. Please clean the unit with biodegradable household detergents or clean water, NEVER use harsh or
corrosive chemicals.
3. Check bolts, cables and connections regularly.
4. If repairs are required, contact Rheem or one of their authorised service agents.
5. Do not attempt to work on the heat pump by yourself. Improper operation may cause danger, damage and
void warranty.
6. In case of risk, proper safety equipment must be worn before carrying out any maintenance or repairs
on heat pump units with R32 gas.
CUT OFF the power supply to the heat pump before cleaning,
examination and carrying out any repair works on the unit.

17
H. Trouble Shooting for Common Faults
1. Repairing Guidance
WARNING:
If repairs are required, contact Rheem or one of their authorised service agents.
Requirements for Service Personnel
a. Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certificate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an industry recognised
assessment specification.
b. Donotattempt to work onthe heat pump unit by yourself.Improper repairs maycause damage anddanger
to you.
c. Strictly comply with the manufacturer's requirements when charging R32 gas. This chapter focuses
on special maintenance requirements for swimming pool heat pumpwithR32gas.Pleasereferto the
technical service manual for detailed maintenance operation.
d. Vacuumise the refrigerant circuit completely before carrying out any welding. Welding can only be
carried out by a professional person who is a qualified refrigeration mechanic.
2. Failures, solutions and fault codes
Failure
Reason
Solution
Heat pump doesn’t run
No power
Wait until the power recovers
Power switch is off
Switch on the power
Fuse burned
Check and change the fuse
The breaker is off
Check and turn on the breaker
Fan running but with
insufficient heating
Evaporator blocked
Remove the obstacles & any
debris
Air outlet blocked
Remove the obstacles & any
debris
There is a 3-minute start delay
Waitpatiently. This is normal on
start up
Display normal, but no heating
Set temperature. too low
Set proper heating temp.
There is a 3-minute start delay
Waitpatiently. This is normal on
start up
If above solutions don’t work, please contact Rheem or your installer with detailed information and
your model number. Do not try to repair the unit yourself.
Note: If the following conditions happen, please stop the machine immediately, and cut off the power
supply immediately, then contact your dealer:
1. Inaccurate switch action.
2. The fuse is frequently broken, or the leakage circuit breaker tripped.
