Rheem ELECTRIC WATER HEATERS Quick start guide

- 1 -
INSTALLATION INSTRUCTIONS
&
OWNER’S GUIDE
RHEEM STAINLESS STEEL
MAINS PRESSURE ELECTRIC
WATER HEATERS
Congratulations for choosing a
Rheem Water Heater
It is important that you take a few minutes to read this booklet as
this will help you get a long, safe and trouble-free life from your
water heater.
If you require any further information or your water heater needs
to be serviced, please contact
Rheem Service on 0800 657 335 or your local plumber.
Important to the Installer
This water heater must be installed and serviced by a qualified
person.
Do not leave this booklet inside the element cover
after installation. Please leave the booklet with the householder
or owner.
www.rheem.co.nz
318026G-02
April 2012

- 2 -
IMPORTANT INFORMATION
GENERAL
The information contained in this guide, and all other information or advice given at any time by
Rheem New Zealand Limited in connection with the purchase, installation or use of a Rheem water
heater, is given in good faith. Subject to any rights the owner may have under the “Consumer
Guarantees Act 1993”, Rheem New Zealand Limited will not be liable to any person for any inaccuracy
or omission in the information or advice arising through the fault or negligence of Rheem New Zealand
Limited or any other person or through any other cause whatsoever.
This water heater is designed for use in a single family domestic dwelling for the purpose of heating
potable water. Its use in an application other than this may shorten its life.
Warning: This water heater is only intended to be operated by persons who have the experience
or knowledge and capabilities to do so. This water heater is not intended to be operated by
persons with reduced physical, sensory or mental capabilities i.e. the infirm, or by children.
ABOUT YOUR WATER HEATER
DOES THE WATER QUALITY AFFECT THE WATER HEATER?
Your water heater is suitable for most public water supplies, however, some water qualities may have
a detrimental effect on it. If you are in a known harsh water area please read page 9.
HOW HOT SHOULD THE WATER BE?
For reasons of safety and economy, we recommend the thermostat is adjusted to the lowest setting
that meets your needs. Some models require an authorised person to make any temperature
adjustments. The New Zealand Building Code requires a temperature setting of not less than 60°C
within the tank to protect against Legionella.
Regulations require an approved temperature limiting device (tempering valve) be fitted into the hot
water pipe work to the bathroom(s) and ensuite(s) to provide safety protection from potential scalding.
This will keep the hot water supply temperature to the bathroom(s) and ensuite(s) below 55°C which
will reduce the risk of scald injury whilst still allowing hotter water (60°C+) to the kitchen and laundry.
To minimise scalding, especially for those people in high scald risk categories i.e. young children,
people with potentially incapacitating medical conditions, elderly people etc, this water heater must be
installed in accordance with AS/NZS 3500.4.
Water temperatures within the tank of 90°C or higher are possible if the water heater is connected to
solar panels or any other secondary sources (refer page 7).
Warning: This water heater can deliver water at temperatures which can cause scalding. Always
check the water temperature before use, such as when entering a shower or filling a bath or basin,
to ensure it is suitable for the application and will not cause a scald injury.
HOW DO I KNOW IF THE WATER HEATER IS INSTALLED CORRECTLY?
Refer to the installation requirements on page 6.
HOW LONG WILL THE WATER HEATER LAST?
There are a number of factors that affect the life of the water heater. These include; the water quality,
water pressure, water temperature and the usage pattern, however, your Rheem water heater is
supported by a comprehensive warranty (refer to page 8).

- 3 -
HOW THE WATER HEATER WORKS
SINGLE AND TWIN ELEMENT MODELS
Water stored within the water heater is heated by the electric heating element. The thermostat controls
the electricity supply to the heating element so that a constant water temperature is maintained. As the
cold water is heated it expands approximately1/50 of its volume and as a result, a small amount of
water is discharged from the cold water expansion valve.
MODELS WITH ADDITIONAL CONNECTIONS OR COIL(S)
In addition to electric heating elements, models with additional sockets may be connected to
alternative energy sources such as heat pump water heaters or solar panels to heat the water stored
within the water heater. Models with ‘direct’ connections allow hot and cold water to be circulated
directly to and from the volume inside the water heater. Models with coils allow heat transfer to occur
to and from non-potable fluids being circulated through the coil(s).
Warning: Connection to this water heater of any external heating source must be designed and
installed by qualified and authorised persons in accordance with relevant regulations and
standards. Failure to comply may cause a dangerous situation and void the warranty.
SAFETY
On all models, a Temperature and Pressure Relief valve is supplied with each water heater. It can be
found inside the front cover and must be fitted to the appropriate socket on the top side of the water
heater. Also fitted to the water heater is a thermostat which incorporates an over-temperature thermal
cut-out device.
Warning: The operation of the thermal cut-out indicates a possible dangerous situation. Do not
reset the thermal cut-out until the water heater has been serviced by an authorised service person.
Warning: These safety devices must not be tampered with, or removed, and under no
circumstances operate the water heater unless both devices are fitted.
REGULAR CARE
MANUALLY OPERATING THE TEMPERATURE AND PRESSURE RELIEF VALVE:
Valve manufacturers recommend that you operate the easing lever (see diagram 1) on the
Temperature and Pressure Relief valve once every six months. It is very important that you raise
and lower the lever gently.
Warning: To ensure the relief valve is working correctly, operate the relief valve easing lever at
least every six months. Failure to do this may result in a dangerous situation due to the water
heater over-pressurising.
DIAGRAM 1
Water Heater
Drain line
Lift until
water flows
from the
drain line –
lower gently
If water does not flow freely from the
drain line or the valve fails to
completely close and water continues
to be discharged, contact Rheem
Service on 0800 657 335, or your
local plumber.

- 4 -
GOING ON HOLIDAYS:
If you plan to be away from home for one or two nights, we suggest that you leave the water heater
switched on. However, if you plan to stay away more than a few nights, you can conserve energy by
switching the water heater off at the isolating switch, or at the main switchboard. In locations where
freezing could occur, you should leave the water heater turned on.
Where alternative energy sources are in use, consult the user manual for the energy source for
instructions to switch off the system when going on vacation.
SAVE A SERVICE CALL
Check the items below before making a service call. You may be charged for service if the fault
is not related to the water heater manufacture or parts supplied with the water heater by
Rheem.
WATER DISCHARGING FROM CONTROL VALVES
It is normal for the cold water expansion valve to discharge a small quantity of cold water during the
heating cycle. If a cold water expansion valve is not fitted, then the Temperature and Pressure Relief
(TPR) valve may discharge a small quantity of hot water. If either of these valves discharges more than
a bucket full of water in 24 hours, one of the following may be the cause.
Continuous dribble from valve, vent or drain line
Try gently raising the easing lever on the TPR valve for a few seconds. This may dislodge small
particles of foreign matter and clear the fault.
Heavy flow of hot water discharging from valve, vent or drain line
Immediately turn off the electricity supply to the water heater. Call Rheem Service or your local
plumber to arrange an inspection.
A steady flow of water (often at night) from vent or drain line.
This may indicate that your cold water pressure sometimes rises above the design pressure of
your water heating system. A Pressure Limiting valve should be installed, or if one is installed, it
may need replacing.
NOT ENOUGH HOT WATER (or no hot water)
Is the electricity turned on?
Check the switch marked ‘water heater’ at the switchboard and the water heater isolating switch.
Check the fuse or circuit breaker marked ‘water heater’.
Where the water heater is connected to an off peak (night rate) electrical tariff, the supply may not
be available at certain times of the day.
Do you have the correct size heater for your requirements?
Refer to the sizing guide in the Rheem sales literature or the Rheem website.
Is one outlet (especially the shower) using more hot water than you think?
Carefully review the family’s hot water usage and if necessary check the shower flow rate.
For optimum hot water usage we recommend the shower flow rate is between 8 to 10 litres per
minute. This can be achieved by either a flow restrictor or a flow control valve.
Ensure the thermostat setting is appropriate. Note some models require an authorised person
to make thermostat adjustments.
HIGH ELECTRICITY BILLS
Is one outlet (especially the shower) using more hot water than you think? (see above)
Is there a leaking hot water pipe, dripping hot water tap, etc?
Even a small leak will waste a surprisingly large quantity of hot water and energy. Service dripping
taps, and have your plumber rectify any leaking pipe-work.
Are either of the expansion valves discharging too much water? (see above)
Consider recent changes to your hot water usage pattern and check if there has been an
increase in energy tariffs since your previous account.

- 5 -
INSTALLATION
Please take careful notice of the advice given as Rheem New Zealand Limited will not be liable for any
loss or damage suffered as a result of the incorrect installation of the water heater, or any failure to
check the capability of the electrical supply and wiring to the water heater.
The water heater must be installed and serviced by a certified person or registered plumber and the
installation must comply with the New Zealand Building Code, Rheem Installation Instructions,
AS/NZS 3000 Electrical Installations and all local codes and regulatory authority requirements. Please
note also that no warranty costs will be payable where the water heater is located in a position that
does not comply with the Rheem water heater installation instructions or relevant statutory
requirements, causing the need for major dismantling or removal of cupboards, doors or walls, or use
of special equipment to bring the water heater to floor or ground level or to a serviceable position.
WATER HEATER LOCATION
Rheem electric water heaters with a galvanised outer casing are only suitable for indoor
installations, whereas water heaters with a factory painted casing are suitable for both indoor and
outdoor installations. Outdoor models must be installed on a hard, level base and feet must be
used between the bottom of the water heater and the base.
Clearance must be allowed for servicing and removal of the water heater and it must be accessible
without the use of a ladder or scaffold. Adequate clearance must be provided for: TPR valve
removal, element cover and element removal, and anode removal and replacement. Also, the
information on the rating label must remain readable once installed.
WATER SUPPLY PRESSURE
•Maximum permitted mains water pressure - refer product label and Table 5.2 AS/NZS 3500.4
Note: Inlet pressure-control valve is required where the maximum permitted mains pressure is
likely to be exceeded.
•Minimum inlet water pressure: 60 kPa
CONNECTION SIZES
•Hot water connection: RP ¾/20
•Cold water connection: RP ¾/20
•Relief valve connection: RP ½/15
•Alternative energy source connections: RP ¾/20.
INLET/OUTLET CONNECTIONS
Unions must always be provided at the cold water inlet, hot water outlet and at any additional
connections to allow for removal of the water heater should it be required. All connection sockets
on the water heater are parallel threaded and therefore tapered brass nipples must be used to
ensure watertight connections. Parallel brass nipples must not be used and could invalidate
warranty.
NON RETURN VALVE
A non return valve must be installed on the cold water line to the water heater.
PIPE SIZES
The cold water line to the water heater should be the same size or bigger than the hot water line
from the water heater. For best results, choose the most suitable pipe size for each individual
application.
COLD WATER EXPANSION VALVE
A cold water expansion valve must be fitted to the cold water line to the water heater.
TEMPERATURE AND PRESSURE RELIEF VALVE
When fitting the temperature and pressure relief valve, ensure the probe has not been bent. Seal
the thread with PTFE tape, or similar, as recommended by the valve manufacturer and screw the
valve into the socket provided. Do not use a wrench on the valve body – use the spanner flats
provided. Drain from the TPR valve with a pipe the same size as the valve outlet. The drain must
run downwards to a visible point outside the house, and must comply with the NZ Building Code.
In locations where the pipe exceeds 3 metres unbroken length, or freezing could occur, an air
break must be provided within 300 mm of the TPR valve.

- 6 -
Warning: The drain line from the TPR valve must be in copper. A Rheem mains pressure
water heater must not

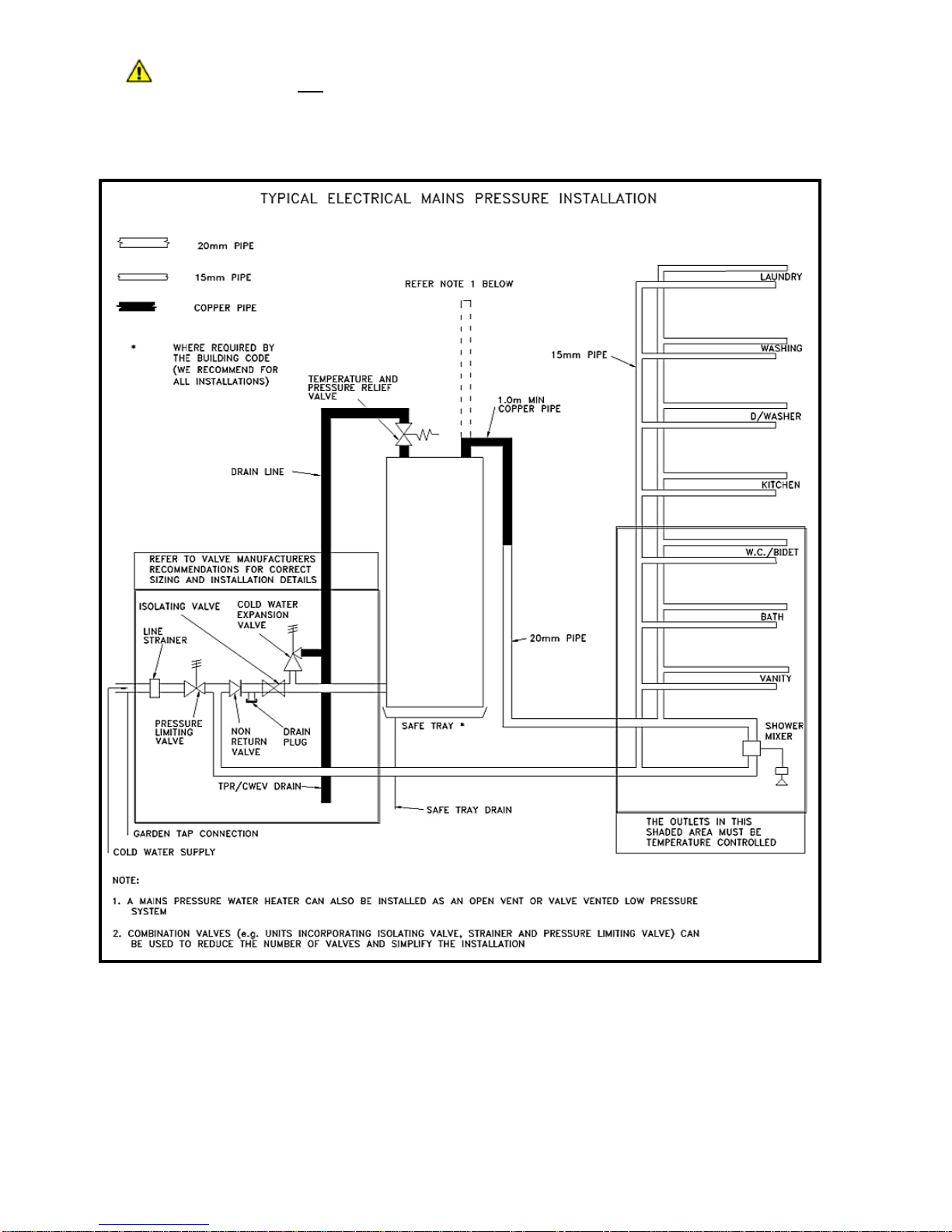

DIAGRAM 2
be installed and operated without a suitable temperature and pressure
relief valve that complies with AS 1357.1. Under no circumstances block the outlet of this
valve or its drain pipe.
PRESSURE LIMITING VALVE
If the water supply pressure exceeds the requirements of Table 5.2 AS/NZS 3500.4, a pressure
limiting valve with a maximum setting of 500 kPa is to be fitted in the installation.
SAFE TRAY
The water heater must be installed with a properly drained safe tray where there is the possibility
of water damage to furniture, carpets or building. Failure to do so may jeopardise any warranty
claim.
EARTHQUAKE RESTRAINTS
All water heaters must be restrained to protect against seismic forces. Refer to the Zealand
Building Code for acceptable solutions.

- 7 -
CONNECTIONS - ELECTRICAL
The electrical installation must be completed in accordance with AS/NZS 3000. All water heaters are
designed for 230 VAC, 50 Hz mains operation and a means of disconnection from the power supply
must be incorporated in the fixed wiring during installation.
A flexible 20 mm conduit is required for the electrical cable to the water heater. The conduit is to be
connected to the unit with a 20 mm plain to screw adaptor. Connect the power supply wires directly to
the terminal block and earth tab connection, ensuring there are no excess wire loops inside the front
cover. For details, refer to the wiring diagram on the inside of the element cover. A separate heating
element earth wire is not required because the element earths by the flange being in contact
with the element socket.
ELEMENT WIRING
All 325 model series are pre-wired for standard installations where the bottom element only is
connected to the mains supply. For alternative energy configurations that require a smaller hot water
boost volume, the upper element may be connected instead. The upper element is not factory fitted.
For alternative energy installations the following element kitsets are available:
KITSET
DESCRIPTION
FOR MODELS:
# 318241
Kitset Element Solar / HP Droopy 2.0 kW
325180xx-x
# 318242
Kitset Element Solar / HP Sickle 2.0 kW
325250xx-x; 325300xx-x
# 318243 Kitset Element Solar / HP Sickle 3.0 kW 325250xx-x; 325300xx-x
CONNECTIONS – ALTERNATIVE ENERGY
SOURCES
TEMPERATURE SENSOR TUBE
Some models include receptacle tubes for temperature sensors used in alternative energy source
water heater products that may be connected to this cylinder.Ensure that any additional sensor wiring
is routed away from mains wiring and in accordance with the instructions provided by the
manufacturer.
TEMPERATURE CONTROL DEVICES AND SETTINGS
The temperature of water heated by alternative / supplementary energy sources connected either
directly or indirectly (through coils) is controlled exclusively by that energy source (e.g. Heat Pump
Water Heater or Solar Water Heater). The temperature of water heated by these sources must not
exceed 85ºC to prevent activation of the over-temperature cut out of the supplied thermostat.
Warning: The connection of any alternative energy source to this water heater could create a
dangerous situation and may jeopardise the water heater warranty. Water heater system design
must be carried out by licensed competent persons. For further advice contact Rheem. For
uncontrolled heat source, such as wetback heaters or some solar systems, the water heater must
be open vented. COMMISSIONING
TO FILL AND TURN ON THE WATER HEATER
Warning: The power supply to the water heater must not be switched on until the water
heater is filled with water and an “Earth Continuity Test”, as outlined in Annex A of AS/NZS
60335.1, has been carried out. Failure to do so will damage the element and shorten its life
and may create a dangerous situation.
Open all of the hot water taps in the house (don't forget the shower). Open the cold water isolation
valve fully to the water heater to force the air out of the taps. As water flows freely from each tap,
close it. Check the pipe-work for leaks.
Switch on the electrical supply at the isolating switch to the water heater.

- 8 -
TO TURN OFF THE WATER HEATER
If it is necessary to turn off the water heater on completion of the installation, such as on a building site
or where the premises is vacant, then;
Switch off the electrical supply at the isolating switch to the water heater.
Close the cold water isolation valve at the inlet to the water heater.
DRAINING THE WATER HEATER
Switch off the electrical supply at the isolation switch to the water heater.
Close the cold water isolation valve.
Operate the relief valve easing lever to release the pressure in the water heater.
Drain the water heater through the drain valve or plug.
Undo the top outlet union or operate the relief valve easing lever again to let air into the water
heater and allow the water to drain.
WHAT YOU NEED TO KNOW ABOUT WATER QUALITY
WATER SUPPLY CHEMISTRY
Water quality can have a detrimental effect on water heater operation, components and life expectancy
and may affect warranty.
Warning: This water heater must be installed in accordance with this advice to be covered by the
Rheem warranty.
This water heater is manufactured to suit the water conditions of most public reticulated water supplies.
However, there are some known water chemistries which can have detrimental effects on the water
heater and its operation and/or life expectancy. This water heater must only be connected to a water
supply which complies with these specifications for the Rheem warranty to apply. If you are unsure of
your water chemistry, you may be able to obtain information from your local water supply authority or
you can contact Rheem and we will provide you with contact details of a suitable agency capable of
testing your water for compliance with Rheem standards. Water quality tests must be carried out at the
owner’s cost.
Water Chemistry Levels Affecting Warranty
The Rheem warranty of this Stainless Steel water heater will not cover resultant faults on components
including the storage cylinder where water stored in the storage cylinder exceeds at any time any of
the following levels:
Total dissolved solids 600 mg/Litre
Total hardness 200 mg/Litre
Chloride 300 mg/Litre
Magnesium 10 mg/Litre
pH 8.5 and not less than 6.5
Calcium 20 mg/Litre
Sodium 150 mg/Litre
Iron 1 mg/Litre
Note on Total Dissolved Solids (TDS)
The Rheem warranty will not cover resultant faults to the storage cylinder if this water heater is
connected at any time to a water supply where the TDS content of the water exceeds 600 mg/L. Some
water analysis reports may state the conductivity of the water rather than the level of total dissolved
solids. Conductivity, measured in microsiemens per centimetre (μS / cm), is directly proportional to the
TDS content of the water. TDS, in mg/L, is approximately 70% of the conductivity in μS / cm.
In locations where TDS approaches 600 mg/L, e.g. due to sediment, we strongly recommend fitting an
appropriate filter to ensure water entering, or in the water heater, does not exceed this level at any time
i.e. due to sediment build up.

- 9 -
Scaling Water
Scaling water is water that contains levels of calcium carbonate (total hardness in excess of 200
mg/Litre at any time when the water heater is operating). Scaling water can block and prevent the
pressure & temperature relief valve from operating, resulting in damage to the water heater storage
cylinder and water heater components.
An expansion control valve must be fitted in ALL areas with scaling water to assist in preventing
blockage of the pressure and temperature relief valve.
Warning:Failure to install an expansion control valve where scaling water conditions occur may
result in the water heater storage cylinder failing, or under certain circumstances, exploding.
To avoid damage to the storage cylinder and water heater components, Rheem strongly recommends
scaling water be treated before entering the water heater by fitting appropriate water filters/conditioners
etc. Refer to your Local Water Authority for information on water in your area. A build up of white
sediment on hot water taps or shower roses can be indicative of scaling water. Contact Rheem if this
condition is observed.
Warning:Damage caused by scaling water can affect the Rheem warranty.
Spring, Dam, Bore & River Water Supplies
The Rheem warranty of this water heater will not cover resultant faults on components including the
storage tank due to the effects of sludge and/or sediment as a result of connection to a water supply
from silted or treated sources i.e. springs, dams, bores, rivers or towns supplied from a bore.
SATURATION INDEX
The saturation index is used as a measure of the water's corrosive or scaling properties. In a scaling
water supply calcium carbonate is deposited out of the water onto any hot metallic surface. When
scaling water has a saturation index greater than +0.40 an expansion control valve must be fitted on
the cold water line after the non-return valve.
Where the saturation index exceeds +0.80, low watts density elements should be used. Where the
saturation index is less than -1.0, a corrosive resistant heating element should be used.
Contact Rheem Service for further information.

- 10 -
RHEEM WARRANTY
Mains Pressure Electric Water Heater Product Warranty
--- New Zealand ONLY --
In addition to your legal rights, in New Zealand, Rheem New Zealand Limited makes the following
promise to the owner. We will repair or, if necessary, replace a defective water heater or part of it,
which has failed due to faulty manufacture on the following terms and conditions:
1. THE RHEEM WARRANTY – GENERAL
1.1 This warranty is given in respect of sales in New Zealand by Rheem New Zealand Ltd, Company
number 1175771, 475 Rosebank Road, Avondale, Auckland.
1.2 Rheem offer a trained and qualified national service network that will repair or replace
components at the address where the water heater is installed subject to the terms of the Rheem
warranty. In New Zealand contact your Rheem Service Centre on 0800 657 335.
1.3 For details about this warranty, you can contact us in New Zealand at [e-mail] or
phone your Rheem Service Centre on 0800 657 335.
1.4 The terms of this warranty are set out in Section 2 and apply to water heaters manufactured after
1st April 2012.
1.5 If a subsequent version of this warranty is published, the terms of that warranty will apply to water
heaters manufactured after the date specified in the subsequent version.
2. TERMS OF THE RHEEM WARRANTY AND EXCLUSIONS TO IT
2.1 The decision of whether to repair or replace a faulty component is at Rheem New Zealand’s sole
discretion.
2.2 Where a failed component or cylinder is replaced under this warranty, the balance of the original
warranty period will remain effective. The replacement does not carry a new Rheem New
Zealand Limited warranty.
2.3 Where the water heater is installed outside the boundaries of a metropolitan area as defined by
Rheem New Zealand Limited or further than 25 km from an Rheem New Zealand Limited
Accredited Service Centre’s office, the cost of transport, insurance and travelling between the
Rheem New Zealand Limited Accredited Service Centre’s office and the installed site shall be
the owner’s responsibility.
2.4 Where the water heater is installed in a position that does not allow safe or ready access, the
cost of that access, including the cost of additional materials handling and/or safety equipment,
shall be the owner’s responsibility. In other words, the cost of dismantling or removing
cupboards, doors or walls and the cost of any special equipment to bring the water heater to
floor or ground level, or to a serviceable position is not covered by this warranty.
2.5 This warranty only applies to the original and genuine Rheem New Zealand Limited’s water
heater in its original installed location and any genuine Rheem replacement parts.
2.6 The Rheem New Zealand Limited warranty does not cover faults that are a result of:
a) Accidental damage to the water heater or any component (for example:
(i) Acts of God such as floods, storms, fires, lightning strikes and the like; and
(ii) Third party acts or omissions).
b) Misuse or abnormal use of the water heater.
c) Installation or use not in accordance with the Owner’s Guide and Installation Instructions or
with relevant statutory and local requirements (including failure to install a properly drained
safe tray where required by the Owner's Guide and Installation Instructions).

- 11 -
d) Connection at any time to a water supply that does not comply with the water supply
guidelines as outlined in the Owner’s Guide and Installation Instructions, or poor water
quality outside the limits specified in the Owner's Guide and Installation Instructions.
e) Service or repair work, attempts to repair or modifications to the water heater by a person
other than Rheem Service or a Rheem Accredited Service Centre.
f) Faulty plumbing or faulty power supply.
g) Failure to maintain the water heater in accordance with the Owner's Guide and Installation
Instructions.
h) Transport damage.
i) Fair wear and tear from adverse conditions (for example, corrosion).
j) Cosmetic defects.
2.7 If you require a call out and we find that the fault is not covered by the Rheem warranty, you are
responsible for the Rheem Service Centre’s call out cost. If you wish to have the relevant
component repaired or replaced by Rheem, that service will be at your cost.
2.8 Subject to any statutory provisions to the contrary, this warranty excludes any and all claims
however arising, including under contract or tort, for damage to furniture, carpet, walls,
foundations or any other consequential loss or incidental expenses either directly or indirectly
due to leakage from the Rheem water heater, or due to leakage from fittings and/ or pipe work of
metal, plastic or other materials caused by water temperature, workmanship or other modes of
failure that were not reasonably foreseeable as liable to result from the failure.
2.9 This warranty excludes to the extent permissible all implied warranties set out in the Sale of
Goods Act 1908 (New Zealand) and all guarantees set out in the Consumer Guarantees Act
1993 (New Zealand) to the extent that the goods are acquired for the purpose of resupply in
trade, consumption in the course of a process of production or manufacture or repairing or
treating in trade other goods or fixtures on land.

- 12 -
3. WHAT IS COVERED BY THE RHEEM WARRANTY FOR THE WATER HEATERS DETAILED
IN THIS DOCUMENT
3.1 Rheem will repair or replace a faulty component of your water heater if it fails to operate in
accordance with its specifications as follows:
Product Model Application
Period from installation
in which the fault must
appear in order to be covered
All components including
inner tank. Inner tank only
Standard Mains
Pressure VE
(Vitreous Enamel)
and Calorifier VE
Installed in a single-
family domestic
dwelling.
(T
hermostat setting
must be below
76°C)
Year 1:
Repair and/or replacement of the
faulty component, free of charge,
including labour.
Year 2 to 3:
Replacement water heater, free of
charge. including labour costs.
Year 4 to 7:
Replacement water heater, free of
charge. Installati
on and repair
labour costs are the responsibility of
the owner.
All applications other
than single-family
domestic dwelling .
(
Thermostat setting
must be below
76
°
C)
Year 1:
Repair and/or replacement of the
faulty component, free of charge,
including labour.
Year 2 to 3:
Replacement water heater, free of
charge. Installation and repair
labour costs are the responsibility of
the owner.
Mains Pressure SS
(Stainless Steel) All
models.
Installed in a single-
family domestic
dwelling.
Year 1:
Repair and/or replacement of the
faulty component, free of charge,
including labour.
Year 2 to 3:
Replacement water heater, free of
charge. including labour costs.
Year 4 to 10:
Replacement water heater, free of
charge. Installation and repair
labour costs are the responsibility of
the owner.
All applications other
than single-family
domestic dwelling.
Year 1:
Repair and/or replacement of the
faulty component, free of charge,
including labour.
Year 2 to 3:
Replacement water heater, free of
charge. Installation and repair
labour costs are the responsibility of
the owner.
Optima VE
(Vitreous Enamel)
Installed in a single-
family domestic
dwelling (Thermostat
setting must be
below 76°C)
Year 1 to 3:
Repair and/or replacement of the
faulty component, free of charge,
including labour.
Year 4 to 10:
Replacement water heater, free of
charge. Installati
on and repair
labour costs are the responsibility of
the owner.
All applications other
than single-family
domestic
dwelling.(Thermostat
setting must be
below 76
°
C)
Year 1:
Repair and/or replacement of the
faulty component, free of charge,
including labour.
Year 2 to 5:
Replacement water heater, free of
charge. Installation and repair
labour costs are the responsibility of
the owner.

- 13 -
4. ENTITLEMENT TO MAKE A CLAIM UNDER THIS WARRANTY
4.1 To be entitled to make a claim under this warranty you need to:
a) Be the owner of the water heater or have consent of the owner to act on their behalf
b) Contact Rheem Service without undue delay after detection of the defect and, in any event,
within the applicable Rheem warranty period.
4.2 You are not entitled to make a claim under this Rheem warranty if your water heater:
a) Does not have its original serial numbers or rating labels.
b) Is not installed in New Zealand.
5. HOW TO MAKE A CLAIM UNDER THIS WARRANTY
5.1 If you wish to make a claim under this warranty, you need to:
a) Contact Rheem on 0800 657 335 and provide owner’s details, address of the water heater, a
contact number and date of installation of the water heater or if that’s unavailable, the date of
manufacture and serial number (from the rating label on the water heater)
b) Rheem will arrange for the water heater to be assessed on-site and may require the unit to
be removed and returned to the factory for further testing.
c) If Rheem determines that you have a valid warranty claim, Rheem will repair or replace the
water heater in accordance with this warranty
5.2 Any expenses incurred in the making of a claim under this warranty will be borne by you.
6. THE CONSUMER GUARANTEES ACT 1993 (NEW ZEALAND)
6.1 Our goods come with guarantees that cannot be excluded under the Consumer Guarantees Act
1993 (New Zealand). If the goods fail to comply with the applicable guarantees set out under the
Consumer Guarantees Act 1993 (New Zealand) being the guarantee as to acceptable quality,
the guarantee as to correspondence with description or the guarantee as to repair and parts, or if
the goods fail to comply with any express guarantee given by Rheem, then you are entitled to a
replacement or refund and for compensation for any other reasonably foreseeable loss or
damage.
6.2 The Rheem warranty (set out above) is in addition to any rights and remedies that you may have
under the Consumer Guarantees Act 1993 (New Zealand)

- 14 -
INSTALLATION NOTES:

- 15 -
This page is intentionally blank

- 16 -
RHEEM NEW ZEALAND LTD
www.rheem.co.nz
FOR SERVICE TELEPHONE
0800 657 335 NEW ZEALAND
475 Rosebank Road, Avondale, Auckland
Note: Every care has been taken to ensure accuracy in preparation of this publication. No liability can be accepted for
any consequences, which may arise as a result of its application.
Revision Date:13 April 2012 316804F
