Rice Lake 882IS User manual

882IS Digital Weight Indicator
IS6V2 Battery Charger Instructions
The IS6V2 battery charger instruction sheet contains important safety and operating instructions. Before using the battery
charger, please read all instructions and cautionary information on the battery charger and the product using the battery.
Manuals and additional resources are available from the Rice Lake Weighing Systems website at www.ricelake.com
Warranty information can be found on the website at www.ricelake.com/warranties
Do not expose the charger to rain or moisture.
Do not remove the cover.
Disconnect the charger from AC power before maintenance or cleaning.
Only use Rice Lake Weighing Systems approved charger for IS indicator batteries.
Because hydrogen gas may be present, disconnect unit from AC power before connecting or disconnecting
output connectors.
Connections to the battery pack must be made in the non-hazardous area before connecting the cable to the
882IS indicator.
Figure 1. IS6V2 Battery Charger
Introduction
The IS6V2 battery charger is a typical encased power adapter that provides battery charge power at 7.35 V at 2 amps while
charging and 7.0 V once the battery is fully charged.
Two LEDs indicate AC power status and charge trip point.
The dual mode (charge/float) provides rapid battery charging while preventing hazardous overcharging. In addition, the charger is
ideal for optimizing battery life as it will maintain the float voltage of 7.0 V to prevent battery discharge during normal AC operation.
LED LED Color LED Description
AC Power Status Green States the charger has power from an AC source and is continually on
Charge Trip Point Amber Charging status: < 70% is charging and > 70% is charged and light goes off
Table 1. LED Descriptions
CAUTION
WARNING
IMPORTANT
Power LED
Charge LED
PN 195930 Rev D
March 5, 2021

230 W. Coleman St. • Rice Lake, WI 54868 • USA
U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe [phone]
Rice Lake Weighing Systems is an ISO 9001 registered company.
© Rice Lake Weighing Systems Specifications subject to change without notice.
www.ricelake.com
PN 195930 Rev D
March 5, 2021
Battery Charging and Operation
Charging a dead battery takes 12 hours minimum. The recommended initial battery charging time is 24 hours.
1. Disconnect the 882IS battery pack cable from the 882IS indicator.
2. Remove the battery pack from the indicator tilt stand and take to a non-hazardous area.
3. Remove the lockout device and battery cable from the battery.

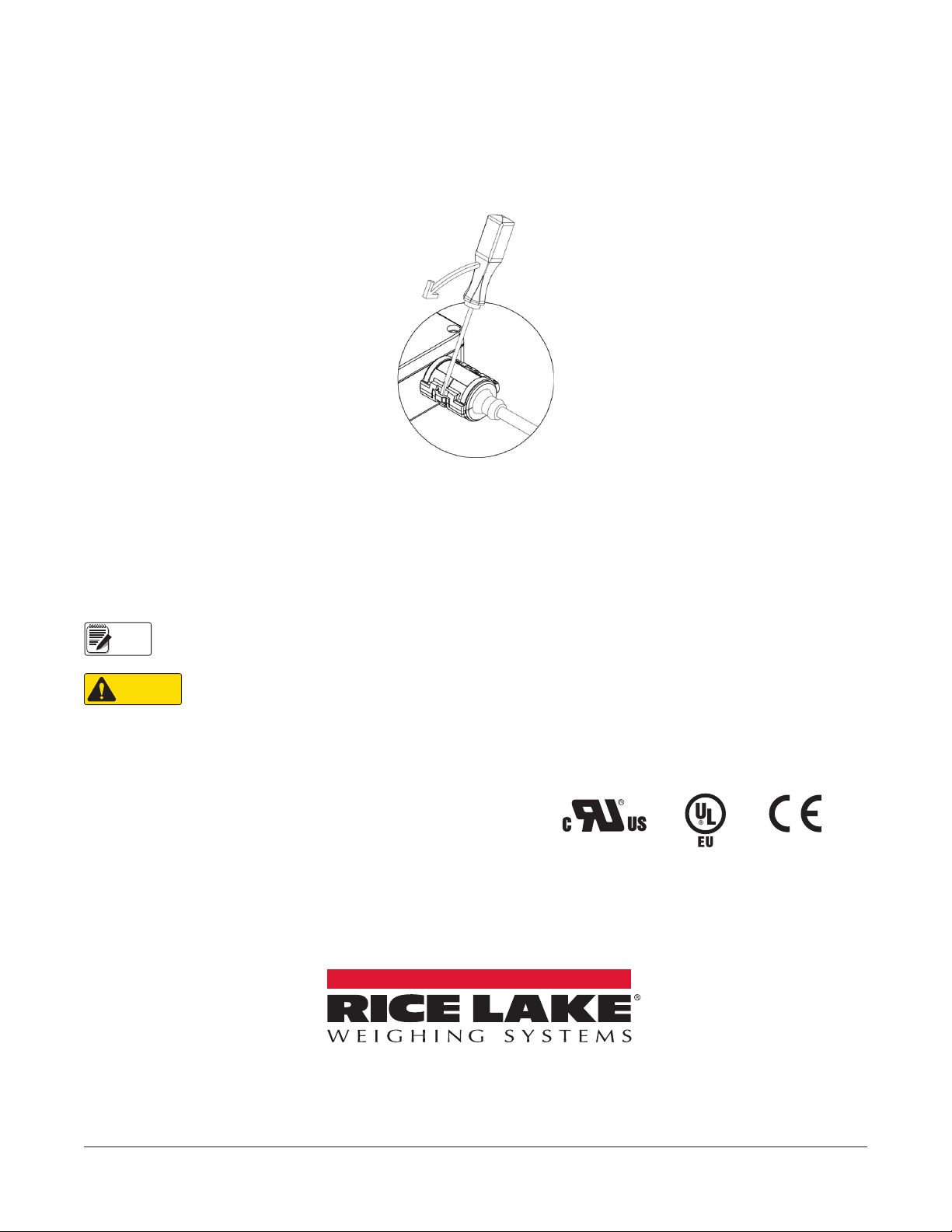

Figure 2. Remove Lockout Device
4. Plug the connector from the battery charger into the connector on the battery pack.
5. Connect the charger power cord to a properly grounded outlet supplying the correct input voltage.
6. Charge the battery.
A fully charged battery is one that has been charged for a minimum of 12 hours. The battery charger pilot lamp switches from
amber color to off when the unit is approximately 70% charged. At that time, the charger switches over to a float charge mode.
To keep the battery at full capacity, it is recommended to leave the battery connected to the charger, in float charge
mode, until ready to use. The battery can remain on the charger in float charge mode indefinitely without damaging
the battery. See IS6V2 Battery Charging Instruction sheet (PN 194893) for instructions on charging the battery.
Re-charge batteries in a non-hazardous location.
Specifications
Power Compliance
Input Voltage Range: 100 - 250 VAC, 50/60 Hz, 75 VAC
Voltage Output: 6 VDC Nominal, 7.35 VDC Charge, 7.0 VDC Float
Maximum Output Current: 2.0 A
Environmental
Operating Temperature: 14°F to 104°F (-10°C to 40°C)
Note
CAUTION
