Rifton R310 User manual

Compass Chair
R310, R320, R330, R340 & R350 Product Manual
R310, R320, R330, R340 & R350 Product Manual

2© 2018 Rifton Equipment
Contents
Important information 3
Safety messages 4
Recommended use and item dimensions 5
Check your order 6
Basic components 6
Accessories
Seat belt 7
Stability feet 7
Operation 8-9
Maintenance, cleaning and warranty 10
Materials and user modifications 11

3
IMPORTANT
Please save this product manual for future reference. Additional copies are
available at www.rifton.com
Key for users
Use this key to determine which sections of this product manual apply to you.
Technical Users For professionals who order and set up Rifton products.
Home Users For care-givers who use Rifton products on a regular basis.
Maintenance Personnel For anyone who is responsible for service or
re-ordering of Rifton products and parts.

4
• Thoroughly read and understand the information in this product manual before
attempting to use this product. If the procedures and instructions in this product manual
are not followed, serious injury or death could occur.
• A qualified professional must assess the appropriateness and safety of all equipment for
each user.
• This product is intended for use by clients of unreliable judgment. Adult supervision is
required at all times.
• To prevent falls and injuries, ensure the appropriate use of straps and supports at all
times. Straps and supports are provided for the safety of the user and must be carefully
adjusted for comfort and security.
• To prevent falls, strangulation, head entrapment or other injuries:
○When using the seatbelt, ensure that it is reasonably snug.
• Do not use this product for clients outside the height and weight limits specified in this
manual.
• To prevent structural failure, which may result in serious injury or death:
○Inspect this product and accessories regularly for loose or missing screws, metal
fatigue, cracks, missing attachments, general instability or other signs of
excessive wear.
○Immediately remove this product from use when any condition develops that might
make operation unsafe.
○Do not use Rifton components or products for any purpose other than their
intended use.
WARNING

5
Recommended use
The Rifton Compass Chair is a Class 1 medical device. It is a classroom chair with armrests.
The raised sides of the seat provide lateral hip support, and the high armrests help users
with poor upper trunk muscle control maintain their posture. Together these features
provide sensory boundaries. The ergonomic shape of the seat and back promotes good
sitting posture. The legs may be adjusted slightly for seat height or tilt. An optional seat
belt can be used for hip positioning and stabilization.
User and item dimensions
User dimensions
inches (cm) R310 size 1 R320 size 2 R330 size 3 R340 size 4 R350 size 5
Height 36-47 (91-119) 43-54 (109-137) 49-60 (124-152) 55-68 (140-173) 62+ (157+)
Key user dimension: height
The user’s overall height is a general guide to help you select the appropriate size.
Choose the model that allows for growth.
Important: Make sure that seat width, depth, and height are adequate for each individual user, and
that the user’s weight does not exceed the maximum weight recommended.
Item dimensions
inches (cm) R310 R320 R330 R340 R350
Seat height 9, 10, 11
(23, 25, 28)
10½, 11½, 12½
(27, 29, 32)
12½, 13½, 14½
(32, 34, 37)
14½, 15½, 16½
(37, 39, 42)
16½, 17½, 18½
(42, 44, 47)
Seat depth 9½ (24) 11 (28) 12¾ (32½) 14¾ (37½) 16½ (42)
Seat width 10½ (27) 12¼ (31) 14 (36) 16¼ (41½) 18¼ (46½)
Backrest height 9½ (24) 11 (28) 12½ (32) 14¼ (36½) 16 (41)
Armrest height
above seat 5½ (14) 6 (15) 7 (18) 8¼ (21) 8¾ (22½)
Armrest length 6½ (17) 7½ (19) 8½ (22) 9¾ (24½) 11 (28)
Max. working load -
lbs (kg) 100 (45) 120 (55) 175 (80) 220 (100) 250 (113)

6
Check your order
The basic Compass Chair comes fully assembled, complete with 4 adjustable legs with
rubber tips.
If your shipment is incomplete or in any way damaged on arrival, please call
Customer Service, 800.571.8198.
Basic item
Figure 6a
Height-adjustable legs

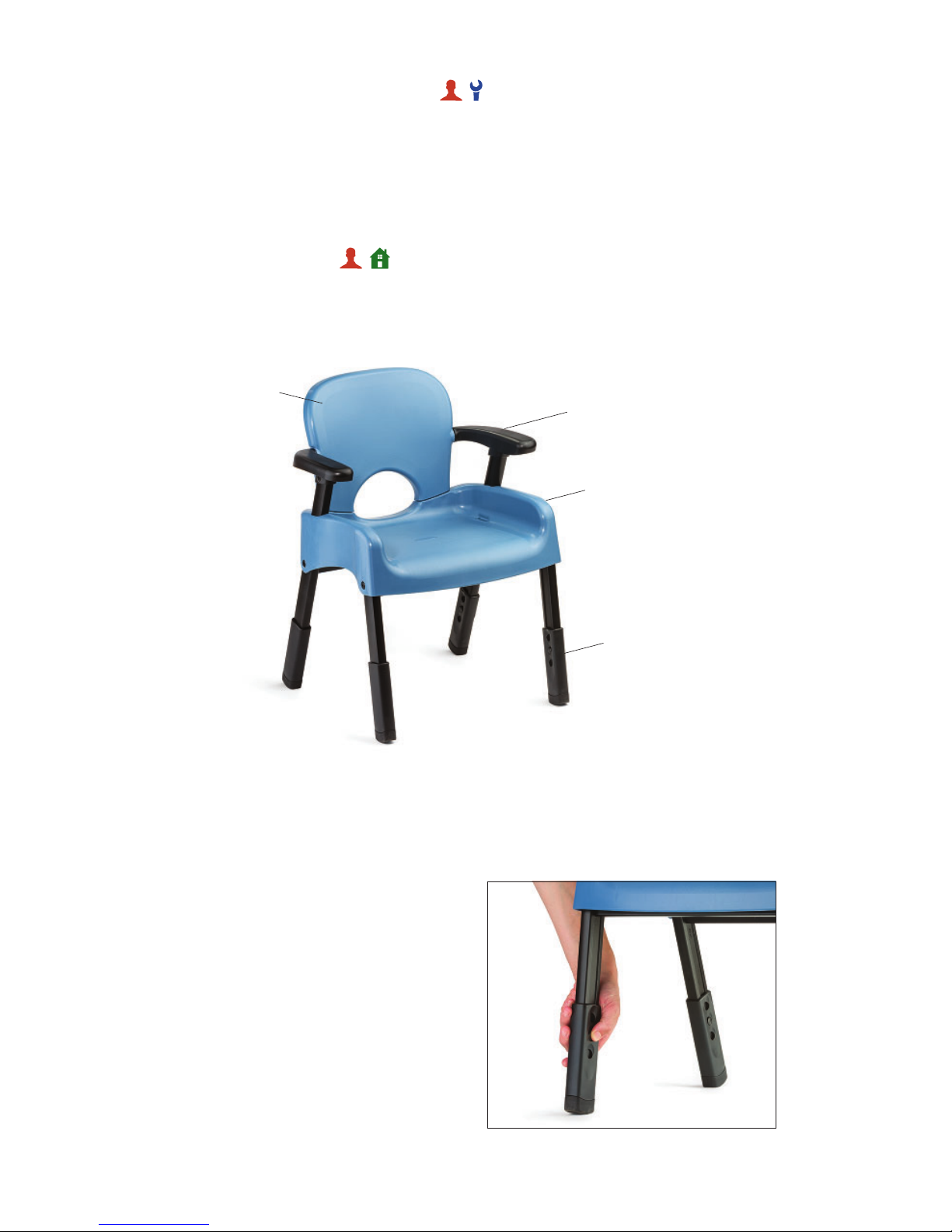

Figure 6a: Push the button and slide the
adjustable leg to the desired position.
Contoured seat and
back with lightly
textured surfaces
Armrests
Lateral thigh support
Height-adjustable legs

7
CAUTION
Accessories
Seat belt

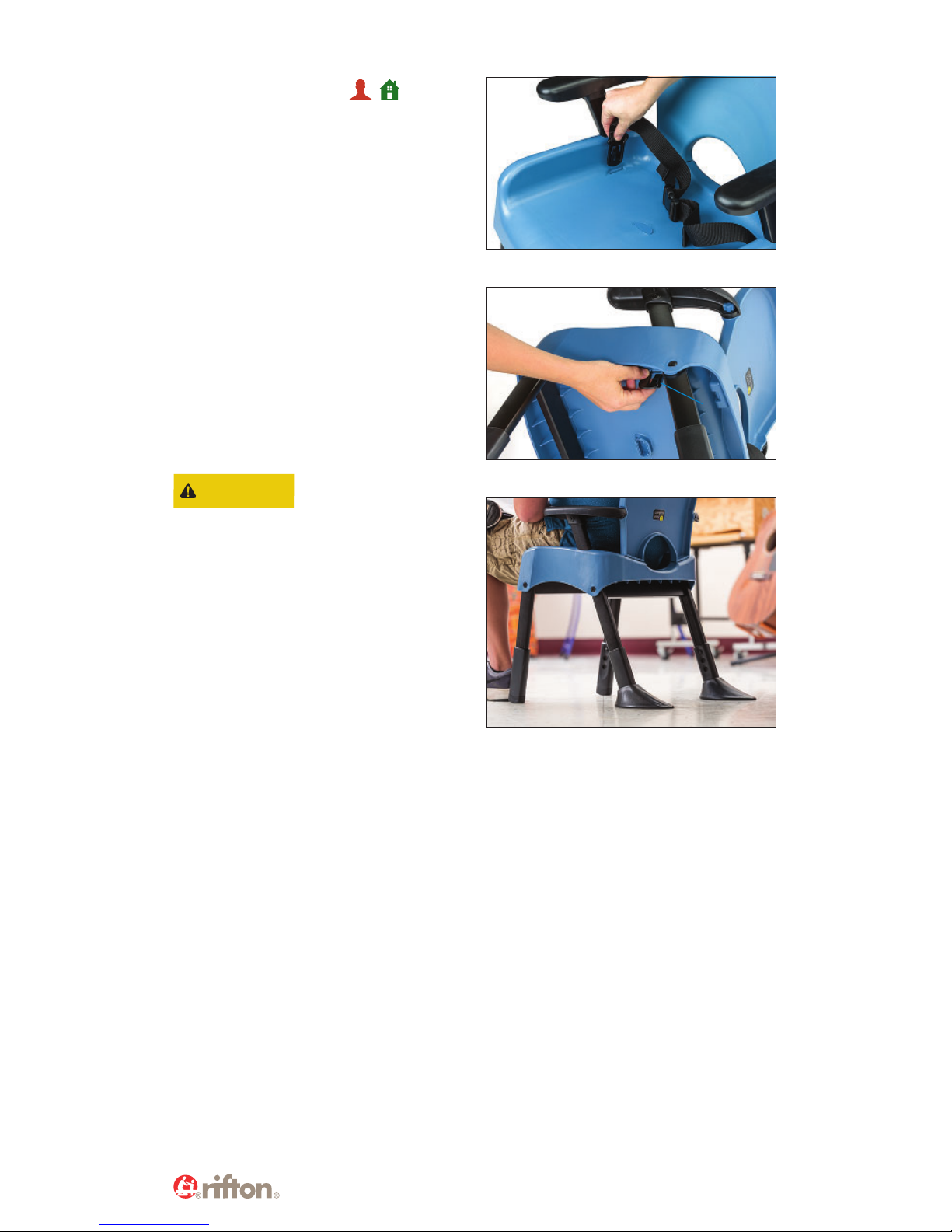

Figure 7a: Clip the seat belt into the seat
when needed by a particular user for safety
or postural support. The seat belt opens
and closes in the front with a side-release
buckle. The buckle can be positioned to
either side or in the middle.
Figure 7b: Remove the seat belt by
squeezing the two plastic tabs together on
the seat belt mounting clip (A) underneath
the seat.
Stability feet
To avoid breakage
and the potential
for injury, never tilt the seat when the
stability feet are in use.
Figure 7c: For users who require greater
stability to prevent the chair from tipping
backwards, stability feet can be attached
to the rear legs in place of the standard
adjustable feet.
Figure 7a
Figure 7c
Figure 7b
A
A

8
Operation
The Compass Chair is intended for children
and adults with mild disabilities who
require a small amount of extra postural
support. The armrests are short enough to
position the student close to a table and
are the optimal height to aid in transfers.
Some users may benefit from the additional
support of an optional seat belt to enhance
their safety, comfort and function in the
seated position.

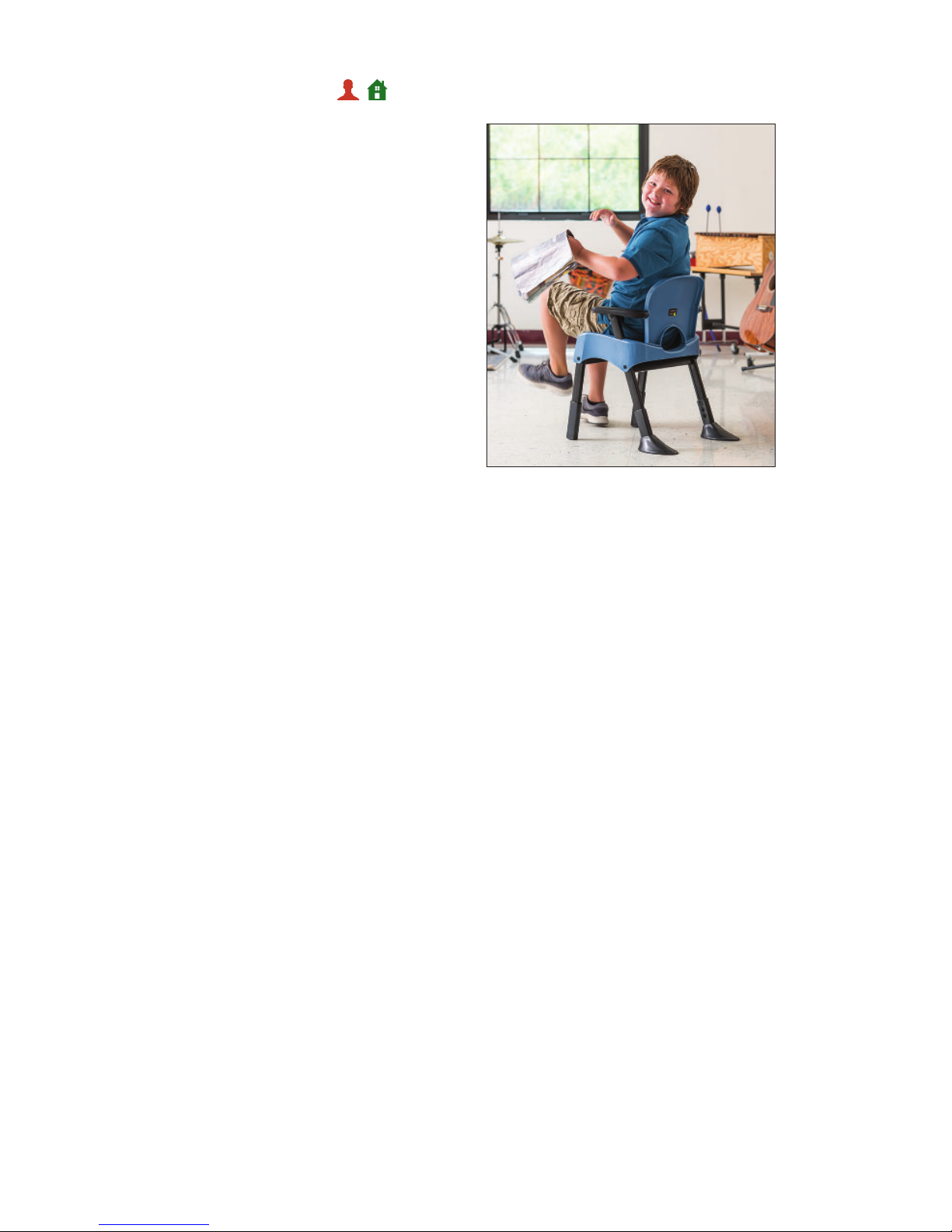

Figure 8a: The Compass Chair’s wide
footprint makes it inherently stable. For
users who require even greater stability to
prevent tipping, the optional stability feet
can be attached to the rear legs. Figure 8a

9
Figure 9a
WARNING
Slight tilt
To prevent falls and
injury:
Adjusting the chair to tilt back by
shortening the rear legs while extending
the front legs will make the chair less
stable. This position should be used with
caution, and only for users who do not
tend to tip backward.

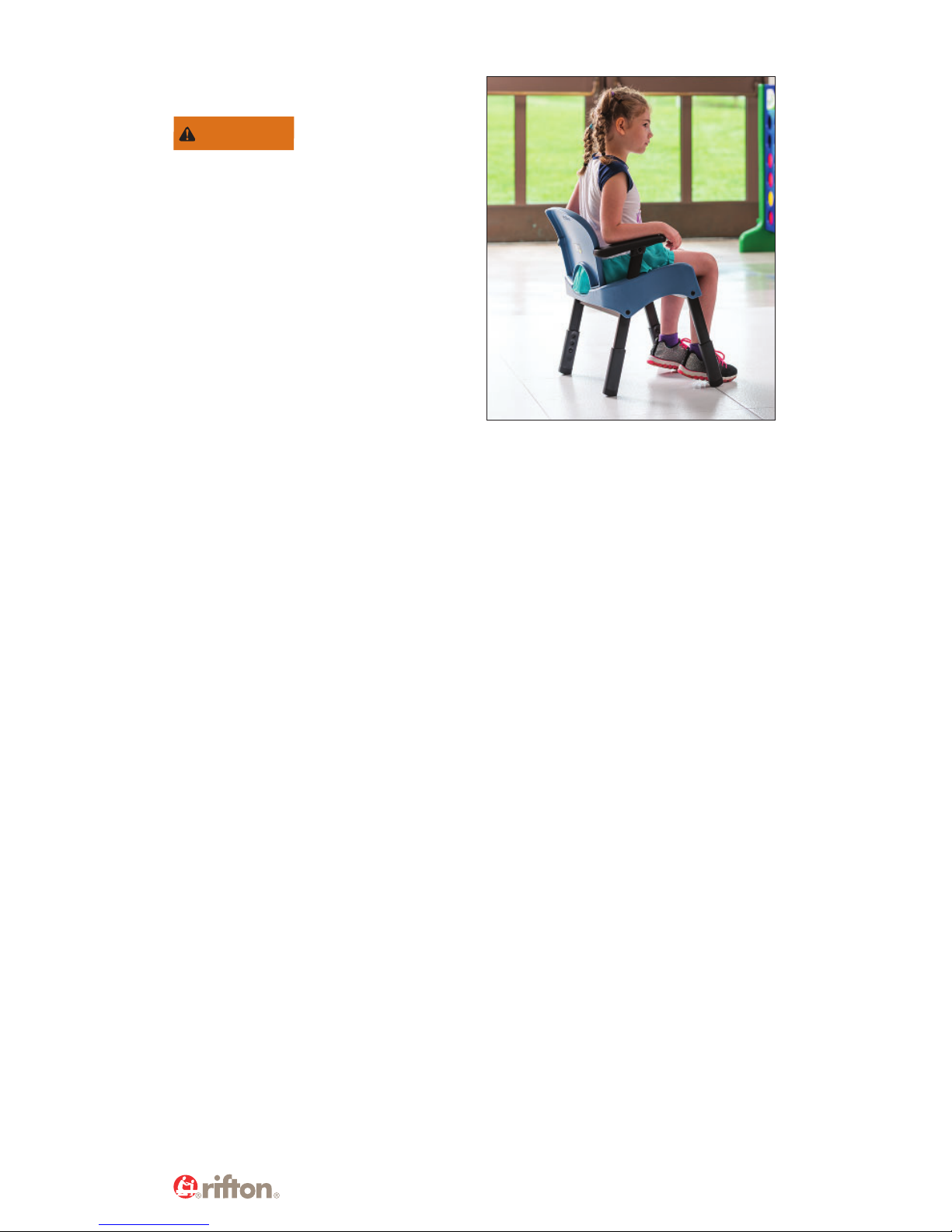

Figure 9a: Adjusting the front legs longer
or shorter than the rear legs makes it
possible to position the chair in a slight
posterior or anterior tilt.

10
Maintenance
This product is designed and tested for an expected life of 5 years when used and
maintained in accordance with this manual. At all times, clients must ensure that the
product remains in a safe and useable condition, including regular maintenance and
inspections as specified in this product manual.
To prevent structural failure, which may result in serious injury or death:
• Inspect this product and accessories regularly for loose or missing screws, metal
fatigue, cracks, broken welds, missing attachments, general instability or other signs of
excessive wear.
• Immediately remove this product from use when any condition develops that might
make operation unsafe.
• Do not use Rifton components or products for any purpose other than their
intended use.
• Replace or repair components or products that are damaged or appear to be unstable.
• Use only Rifton authorized replacement parts. Order information for replacement parts
is provided on the back of this product manual.
Cleaning
Clean with disinfectant wipes or a solution of up to 10% bleach.
Warranty Statement
If a Rifton product breaks or fails in service during the first year, we will replace it
free of charge.

11
Materials
• Steel hardware items (nuts, bolts, screws, etc) are zinc/nickel plated for excellent
resistance to corrosion.
• Frames are aluminum extrusions, bolted together, with black anodized coating.
• Straps are typically made of polypropylene or nylon webbing.
• Plastic components are typically injection molded from a variety of
industrial resins.
All materials are latex, lead and phthalates free.
User modifications
To prevent serious injury or death, do not modify or alter Rifton
products or components, or use Rifton products or components
in conjunction with products from other manufacturers. Rifton does not accept
responsibility for any modifications or alterations made to our components or products
after they leave our premises. Customers modifying or altering our components or
products, or using them in conjunction with products from other manufacturers, do so
at their own risk.
WARNING

12
JS13 ECO N/A Revision 00
Rifton Contact Information
Mail
Rifton Equipment
PO Box 260
Rifton NY 12471–0260
Fax
800.865.4674
Phone
800.571.8198
9–5 EST
Online
www.Rifton.com
To order replacement parts
1. Locate the ID number of the product on the small white label.
2. Have this number available when you call 800.571.8198 for your
customer service representative.
Use only replacement parts supplied by Rifton Equipment.
We are glad to supply replacement parts. Although Rifton makes every effort to
supply correct parts and instructions for repairing or refurbishing your equipment,
you are responsible to make sure that the repairs or modifications are correctly and
safely completed.
@
Email
[e-mail]
Find important details and informative
facts about the Compass Chair at:
www.rifton.com/compasschair
