Rikaline E-705 User manual

GPS Receiver
Oct. 06, 2002
Rikaline Marketing Corp.
4F-11, 26, Tai Yuen St., Chu Pei, Hsin Chu, Taiwan
Phone: [phone] Fax: [phone]
E-Mail: [e-mail] Web: www.rikaline.com.tw
All Right Reserved
User’s Guide
Rikaline E-705

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
2
TABLE OF CONTENTS
1. Introduction ……………………………………………………………………………………….. 3
1.1 Overview …………………………………………………………………………………….. 3
1.2 Features …………………………………………………………………………………….. 3
1.3 Technical Specifications ……………………………………………………………….. 3
2. Operational Characteristics ……………………………………………………………….… 5
2.1 Initialization …………………………………………………………………………………. 5
2.2 Navigation …………………………………………………………………………………. 5
3. Hardware Interface ………………………………………………………………………….…… 6
3.1 Dimension ………………………………………………………………………………….… 6
3.2 Hardware Interface
…..……………………………………………………………….…… 6
3.3 Connector ………………………………………………………………………………….… 6
3.4 Accessories …………………………………………………………………………………. 6
4. USB Driver …………………………………………………………………………….…………… 9
4.1 System Requirements
……………………………………………………..…………….. 9
4.2 Installation …………………………………………………………………………………… 9
4.3 Important ……………………………………………………………………………………… 9
5. Software Interface …………………………………………………………………………….… 10
5.1 NMEA Transmitted Sentences ……………………………………………………..… 10
6. Ordering Information ………………………………………………………………………..… 14
6.1 Product Options ………………………………………………………………….………… 14
6.2 Accessories ……………………………………………………………………………. 14
7. Warranty ……………………………………………………………………………………………… 14

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
3
1. Introduction
1.1 Overview
The E-705 GPS Receiver integrated antenna is a total solution GPS receiver, designed based on EVERMORE
on-chip hardware tracking loops technique for use in a wide range of application. This positioning application
meets strict needs such as car navigation, mapping, surveying, security, agriculture and so on. Only clear view
of sky and certain power supply are necessary to the unit. It communicates with other electronic utilities via
compatible RS-232. With low power consumption, the E-705 tracks up to 12 satellites at a time, re-acquires
satellite signals in 100 ms and updates position data every second. The fast time-to-first-fix (TTFF) allows the
unit operates with low power consumption.
1.2 Features
The E-705 provides the following features:
1. Fast TTFF and low power consumption.
2. High performance receiver tracks up to 12 satellites.
3. Supports NMEA-0183 protocol.
4. Compact design ideal for applications requiring small space.
5. Optimized for navigation in urban-canyon environments.
6. Automatic cold start with no user initialization required.
7. Water resistance.
1.3 Technology specifications
1.3.1 Physical Dimension
Single construction integrated antenna/receiver.
Size: 46.0(W) x 31.0 (D) x 15.6(H) (mm)
1.81"(W) x 1.22"(D) x 0.61"(H).
1.3.2 Environmental Characteristics
1) Operating temperature: -20oC to +75oC(internal temperature).
2) Storage temperature: -55oC to +90oC.
1.3.3 Electrical Characteristics
1) Input voltage: +3.3 ~ 5.5 VDC.
2) Power consumption:
100mA w/o power saving
<80mAwithpowersaving
1.3.4 Performance
1) Tracks up to 12 satellites.
2) Update rate: 1 second.
3) Acquisition time
Reacquisition 0.1 sec., averaged
Interrupted Repositioning 8 sec., averaged
Ephemeris update 40 sec., averaged
4) Position accuracy:
Position 5-25 meter CEP without SA
Velocity 0.1 meters/second, without SA
Time 1 microsecond synchronized GPS time
5) Dynamic Conditions:
Altitude 18,000 meters (60,000 feet) max

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
4
Velocity 515 meters / second (1000 knots) max
Acceleration 4 G, max
1.3.5 Interfaces
1) PC interface: RS-232.
2) Baud rate: 4800/9600.
3) NMEA 0183 Version 2.2 ASCII output : GPGGA, GPGSA, GPGSV, GPRMC).
1.3.5 Coordinates System
1) WGS84.

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
5
2. Operational Characteristics
2.1 Initialization
As soon as the initial self-test is complete, the E-705 begins the process of satellite acquisition and
tracking automatically. Under normal circumstances, it takes approximately 40 seconds to achieve a position fix,
15 seconds if ephemeris data is known. After a position fix has been calculated, information about valid position,
velocity and time is transmitted over the output channel.
The E-705 utilizes initial data, such as last stored position, date, time and satellite orbital data, to achieve
rapid GPS signal acquisition and fast TTFF. If significant inaccuracy exists in the initial data, or the orbital data
is obsolete, it may take more time to achieve a navigation solution or cold–start automatic-locate will be invoked.
However, acquisition performance can be improved significantly of the host initializes the E-705 with a rough
estimate of time and user position.
2.2 Navigation
After the acquisition process is complete, the E-705 sends valid navigation information over output
channels. These data include:
1) Latitude/longitude/altitude
2) Velocity
3) Date/time
4) Error estimates
5) Satellite and receiver status
The E-705 will perform 3D navigation when 4 or more satellites are tracked. When 3 or fewer satellites are
tracked, altitude-hold is enabled using the last computed altitude and 2D navigation mode is entered.
With signal blockage or rising and setting of the satellites, where a change in satellite constellation used for
position fix occurred, large position error may result. The E-705 incorporates a proprietary algorithm to
compensate the effect of satellite constellation change, and maintains an accurate smooth estimate of the
receiver’s position, velocity, and heading.

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
6
3. Hardware interface
3.1 Dimension
46.0(W) x 31.0 (D) x 15.6(H) (mm)
1.81"(W) x 1.22"(D) x 0.61"(H).
3.2 Hardware Interface
The E-705 includes an antenna in a unique style water resistance gadget. Simply connect PS-2 female
connector to your notebook PC, PDA or other devices.
3.3 Connector
Standard cable: 2 meters with COM port and male PS-2 connectors.
3.3.1 Function definition of standard PS-2 composite connector
3.4 Accessories
3.4.1 A-6011 Mini Din Female and PS-2 male connector:
Cable Length: To E-705: 1 meter
RS-232 to PS-2: 45 cm
Pin Signal
1 Tx (RS-232)
2 +5VDC
3 Tx (TTL)
4 Ground
5 1PPS
6 Rx (RS-232)

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
7

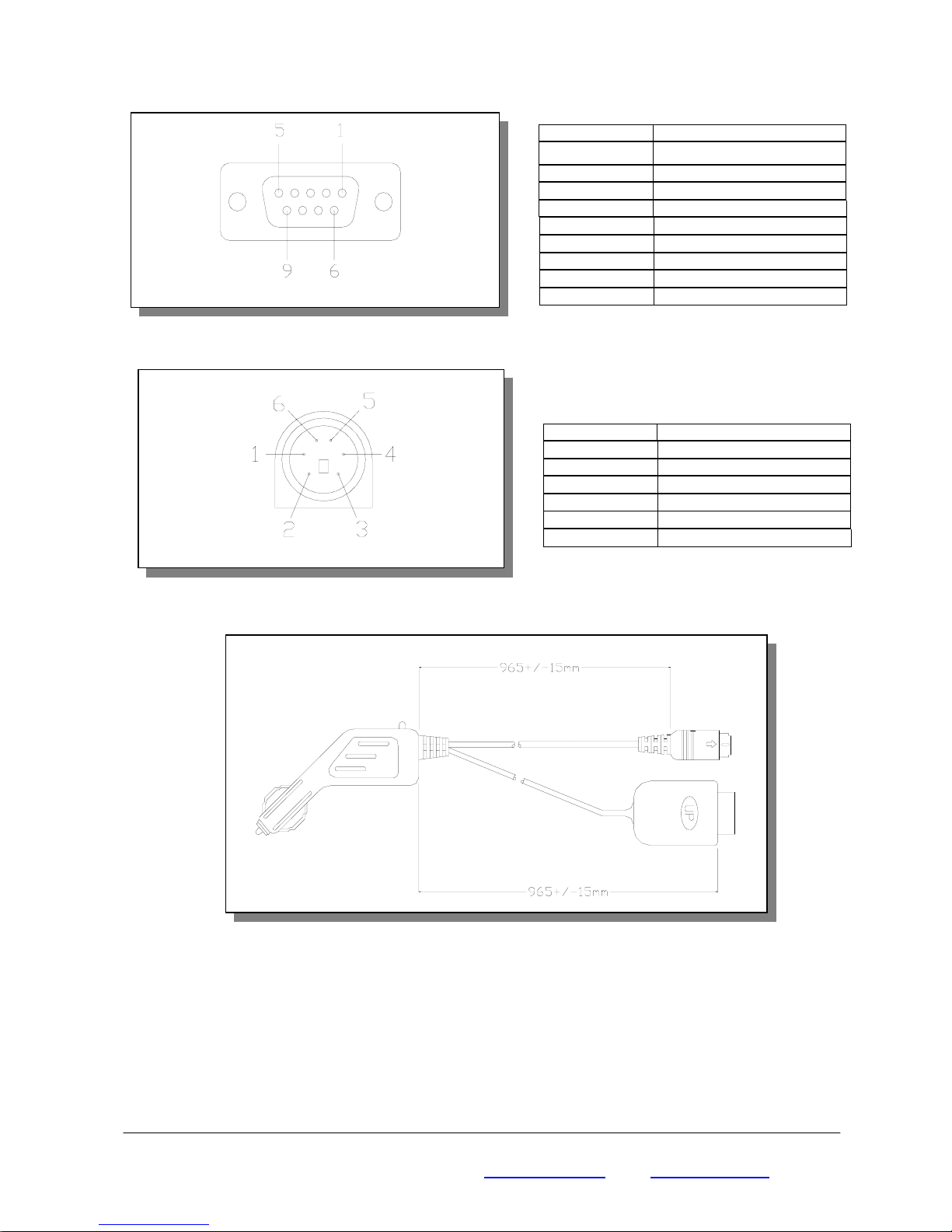

3.4.1.1 Mini Din Female connector function definition:
Pin Si
g
nal Name
1 N.C
2 Tx
3 Rx
4 N.C
5 Ground
6 N.C
7 N.C
8 N.C
9 DGPS in
N.C = No connection
3.4.1.2 PS2 composite connector function definition (to PC):
Pin Si
g
nal Name
1 +5V
2 N.C
3 N.C
4 Ground
5 N.C
6 N.C
N.C = No connection
3.4.2 A-6012 Cigarette adapter and PDA connector:
Part No. Application Part No. Application
A-6017-A ASUA A-6012-P Palm
A-6017-B BESTA I-WINNA A-6012-Q I-Paq
A-6012-H HP Jornada A-6012-S Sony Series
A-6017-L Siemens LOOX A-6017-T Toshiba Series
A-6017-M Mitac Mio A-6017-X O2-XDA / T-Mobile - MDA
A-6017-N NEC

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
8
3.4.3 A-6013 USB connector
The function definition of the A Type USB connector is as follows:
3.4.4 A-6014 High power connector
3.4.5 A-6016 Cigarette Adapter
Input power: 12-26VDC
Cable Length: 2 meter core type
Pin Signal Name
1 +5V
2 D +
3 D -
4 Ground
Color Signal
Black Ground
Red +6~30 VDC
Green Tx
White Rx
Orange DGPS IN

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
9
4. USB Driver
4.1 System Requirements
IBM, Pentium or above and other compatible PC; 16 MB and above memory; Windows 98/Me/2000/XP; VGA
Graphic Adapter.
4.2 Installation
1. Copy entire <E-705 USB> folder from CD to hard disk.
2. Connect E-705 USB connector to computer. While the computer automatically starts the installation
program, please direct the driver to the <E-705 USB> folder.
3. After the installation is complete, go to <Device Manager> and select <Ports (COM & LPT)> to verify if a
virtual COM port <USB to Serial Port> was created.
4.3 Important
Verify the COM port # to start using your own navigating software.
1. Click <Start> menu, select <Settings>, then enter <Control Panel>.
2. After entering <Control Panel>, select <System>.
3. Select <Device Manager>.
4. Find the <Connect Port> and check the Virtual COM Port, which was created by the USB driver. Please
note that the Virtual COM Port number might be different from every computer. Before using navigating
software, please confirm the COM Port numbers created by your computer and provided by your navigation
software. They must be the same Com Port numbers. Otherwise, the navigating software won’t receive the
satellite signal for the un-match COM Port setting.

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
10
5. Software Interface
The E-705 interface protocol is based on the National Marine Electronics Association's NMEA 0183 ASCⅡ
interface specification, which is defined in NMEA 0183, Version 2.2.
5.1 NMEA Transmitted Messages
The E-705 outputs data in NMEA-0183 format as defined by the National Marine Electronics Association
(NMEA), Standard.
The default communication parameters for NMEA output are 4800 baud, 8 data bits, stop bit, and no parity.
Table 5-1 NMEA-0183 Output Messages
NMEA Record Description
GPGGA Global positioning system fixed data
GPGSV GNSS satellites in view
GPRMC Recommended minimum specific GNSS data
GPVTG Course over ground and ground speed
5.1.1 Global Positioning System Fix Data (GGA)
Out put time, position and position – fix related data.
Table 5-2 contains the values for the following example:
$GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M, , , ,0000*18
Table 5-2 GGA Data Format
Name Example Units Description
Message ID $GPGGA GGA protocol header
UTC Time 161229.487 Hhmmss.sss
Latitude 3723.2475 ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
Position Fix Indicator 1 See Table 5-3
Satellites Used 07 Range 0 to 12
HDOP 1.0 Horizontal Dilution of Precision
MSL Altitude 9.0 Meters
Units of Altitude M Meters
Geoid Separation Meters
Units M Meters
Age of Diff. Corr. second Null fields when DGPS is not used
Diff. Ref. Station ID 0000
Checksum *18
<CR> <LF> End of message termination
Table 5-3 Position Fix Indicator
Value Description
0 0 Fix not available or invalid
1 GPS SPS Mode, fix valid
2 Differential GPS, SPS Mode, fix valid
3 GPS PPS Mode, fix valid
Note: the NMEA checksum consists of a “*” and two hex digits representing exclusive-OR of all the
characters between, but not including, the “$” and “*” characters

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
11
5.1.2 Geographic Position with Latitude/Longitude (GLL)
Table 5-4 contains the values for the following example:
$GPGLL,3723.2475,N,12158.3416,W,161229.487,A*2C
Table 5-4 GLL Data Format
Name Example Units Description
Message ID $GPGLL GLL protocol header
Latitude 3723.2475 ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
UTC Position 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Checksum *2C
<CR> <LF> End of message termination
5.1.3 GNSS DOP and Active Satellites (GSA)
Table 5-5 contains the values for the following example:
$GPGSA,A,3,07,02,26,27,09,04,15, , , , , ,1.8,1.0,1.5*33
Table 5-5 GSA Data Format
Name Example Units Description
Message ID $GPGSA GSA protocol header
Mode 1 A See Table 5-6
Mode 2 3 See Table 5-7
Satellite Used (1) 07 Sv on Channel 1
Satellite Used (1) 02 Sv on Channel 2
…… ….
Satellite Used Sv on Channel 12
PDOP 1.8 Position Dilution of Precision
HDOP 1.0 Horizontal Dilution of Precision
VDOP 1.5 Vertical Dilution of Precision
Checksum *33
<CR> <LF> End of message termination
(1) Satellite used in solution.
Table 5-6 Mode 1
Value Description
M Manual—forced to operate in 2D or 3D mode
A2D Automatic—allowed to automatically switch 2D/3D
Table 5-7 Mode 2
Value Description
1 Fix Not Available
2 2D
3 3D
5.1.4 GNSS Satellites in View (GSV)
Table 5-8 contains the values for the following example:
$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
12
$GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41
Table 5-8 GSV Data Format
Name Example Units Description
Message ID $GPGSV GSV protocol header
Number of Messages 2 Range 1 to 3
Message Number 1 Range 1 to 3
Satellites in View 07 Range 1 to 12
Satellite ID 07 Channel 1 (Range 1 to 32)
Elevation 79 degrees Channel 1 (Maximum 90)
Azimuth 048 degrees Channel 1 (True, Range 0 to 359)
SNR (C/No) 42 dBHz Range 0 to 99, null when not tracking
.... ....
Satellite ID 27 Channel 4 (Range 1 to 32)
Elevation 27 degrees Channel 4 (Maximum 90)
Azimuth 138 degrees Channel 4 (True, Range 0 to 359)
SNR (C/No) 42 dBHz Range 0 to 99, null when not tracking
Checksum *71
<CR> <LF> End of message termination
NOTE: Items <4>,<5>,<6> and <7> repeat for each satellite in view to a maximum of four (4) satellites per
sentence. Additional satellites in view information must be sent in subsequent sentences. These fields will be
null if unused.
5.1.5 Recommended Minimum Specific GNSS Data (RMC)
Table 5-9 contains the values for the following example:
$GPRMC,161229.487,A,3723.2475,N,12158.3416,W,0.13,309.62,120598, ,*10
Table 5-9 RMC Data Format
Name Example Units Description
Message ID $GPRMC RMC protocol header
UTC Time 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Latitude 3723.2475 ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
Speed Over Ground 0.13 Knots
Course Over Ground 309.62 Degrees True
Date 120598 ddmmyy
Magnetic Variation Degrees E=east or W=west
Checksum *10
<CR> <LF> End of message termination
5.1.6 Course Over Ground and Ground Speed (VTG)
Table 5-10 contains the values for the following example:
$GPVTG,309.62,T, ,M,0.13,N,0.2,K*6E
Table 5-10 VTG Data Format
Name Example Units Description
Message ID $GPVTG VTG protocol header
Course 309.62 Degrees Measured heading
Reference T True
Course Degrees Measured heading

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
13
Reference M Magnetic (1)
Speed 0.13 Knots Measured horizontal speed
Units N Knots
Speed 0.2 Km/hr Measured horizontal speed
Units K Kilometers per hour
Checksum *6E
<CR> <LF> End of message termination
(1) All “course over ground” data are geodetic WGS84 directions.
5.1.7 Time & Date (ZDA)
Table 5-11 contains the values for the following example:
$GPVTG,114523.62,12,04,2001,10,34*6E
Table 5-11 zda Data Format
Name Example Units Description
Message ID $GPZDA ZDA protocol header
Hour, Min, Sec, Sub
Sec 114523.62 Hhmmss.ss
Day 12 Day in UTC, 01to 12
Month 04 Month in UTC, 01 to 12
Year 2001 Year in UTC
Local Zone Hours 10 Local zone hours, +/- 13 hours
Local Zone Minutes 34 Local zone minutes, 0 to +59
Checksum *6E
<CR> <LF> End of message termination

Rikaline
Rikaline Marketing Corp. 5F-1, 125, Roosevelt Road, Sec. 5, Taipei, Taiwan 116
Tel: ++886 2 2934 5456 Fax: ++886 2 2934 4373 E-Mail: [email protected]w web: www.rikaline.com.tw
14
6. Ordering Information
6.1 Product Options
E-705 With COM Port connector
E-705-P with PS-2 femal connector
E-705-U With USB connector
6.2 Accessories
A-6011 Com Port connector (Standard, packed in color box)
A-6013 USB connector
A-6014 High power connector, 6-30VDC
A-6015 Magnetic pad
A-6016 Cigarette adapter
A-6012 / 6017 PDA connector with Cigarette Adapter
Part No. PDA
1 A-6017-A ASUS A-600
2 A-6017-B BESTA I-WINNA
3 A-6012-C Casio E-115
4 A-6012-C1 Casio E-125
5 A-6012-C2 Casio E-200
6 A-6012-H HP Jornada 565/568
7 A-6012-HS HandSpring Treo
8 A-6012-HS1 HandSpring Visor\Prism
9 A-6012-HS2 HandSpring Edge
10 A-6017-L Siemens LOOX
11 A-6017-M Mitac Mio 528
12 A-6017-N NEC 300E
13 A-6012-P Palm Vx
14 A-6012-P1 Palm / IBM WorkPad 500/505
15 A-6012-Q I-Paq 36xx
16 A-6012-Q1 I-Paq 38xx
17 A-6017-Q1 I-Paq 38xx
18 A-6012-S Sony N-7xx
19 A-6012-S1 Sony T-6xx
20 A-6017-SM Siemens SX-45
21 A-6012-T1 Toshiba E-570
22 A-6017-T2 Toshiba E-330/740
23 A-6017-X O 2 – XDA / T-Mobiles – MDA
Remarks: A-6012 series is 500mA
A-6017 series is 2A
7. Warranty
The E-705 is warranted to be free from defects in material and functions for one year from the date of
purchase. Any failure of this product within this period under normal conditions will be replaced at no charge to
the customers.
