Rikaline GPS-6033 User manual

R
ikalin
e
GPS-6033
New Generation High Sensitivity
Bluetooth GPS
-157dBm (-187dBw)
Mar. 04, 2005 V1.1
Rikaline International Corp.
10F, 64, Kang-Ding Road, Taipei 108, Taiwan, R.O.C.
Phone: [phone] Fax: [phone]
E-Mail: [e-mail] Web: www.rikaline.com.tw
All Right Reserved
All manuals and user guides at all-guides.com
all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
2
Rikaline
Rikaline International Corp.

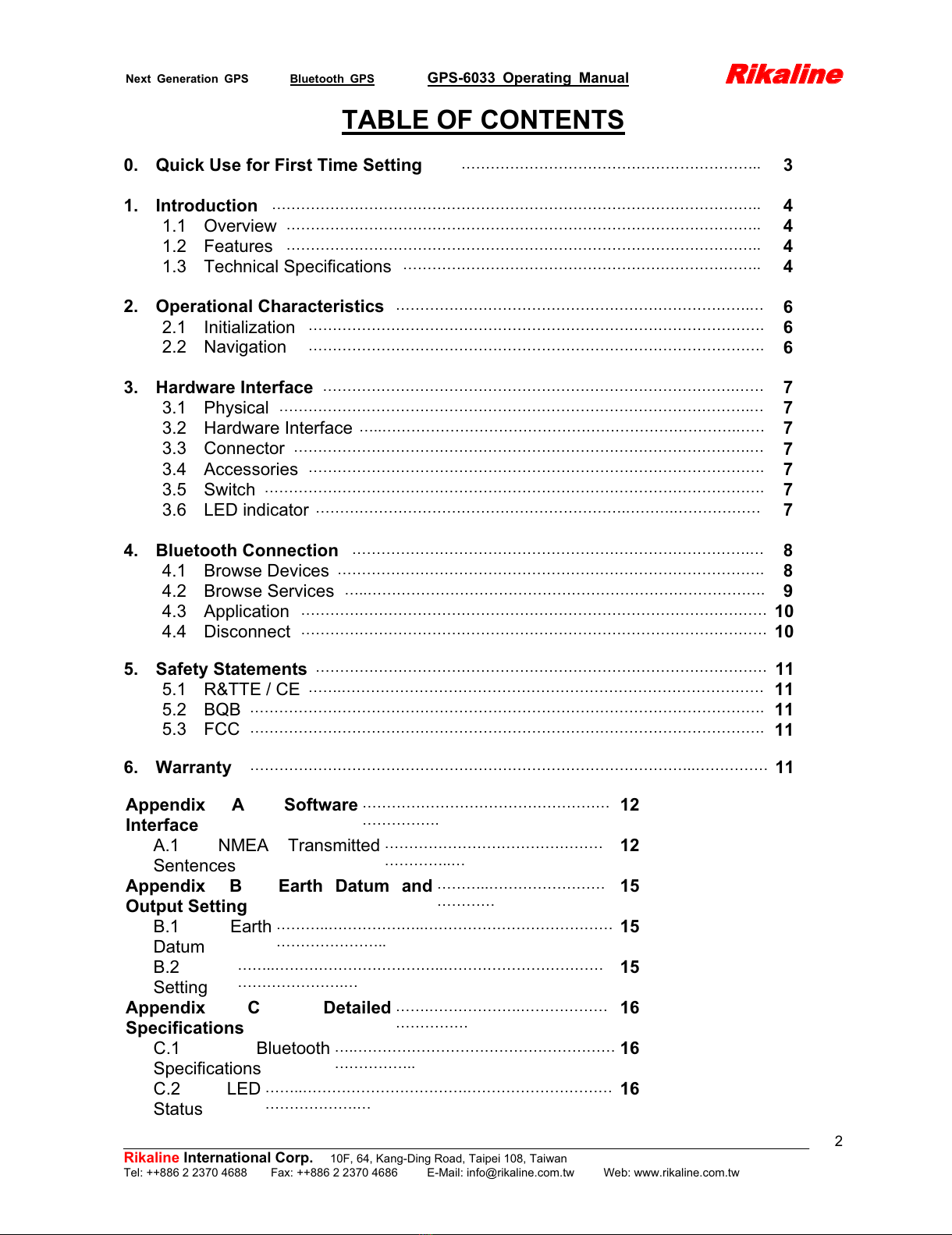

TABLE OF CONTENTS
0. Quick Use for First Time Setting …………………………………………………….. 3
1. Introduction ……………………………………………………………………………………….. 4
1.1 Overview …………………………………………………………………………………….. 4
1.2 Features …………………………………………………………………………………….. 4
1.3 Technical Specifications ……………………………………………………………….. 4
2. Operational Characteristics ……………………………………………………………….… 6
2.1 Initialization …………………………………………………………………………………. 6
2.2 Navigation …………………………………………………………………………………. 6
3. Hardware Interface ………………………………………………………………………….…… 7
3.1 Physical …………………………………………………………………………………….… 7
3.2 Hardware Interface …..……………………………………………………………….…… 7
3.3 Connector ………………………………………………………………………………….… 7
3.4 Accessories …………………………………………………………………………………. 7
3.5 Switch …………………………………………………………………………………………. 7
3.6 LED indicator ……………………………………………………….……….……………… 7
4. Bluetooth Connection ……………………………………………………………………….… 8
4.1 Browse Devices ……………………………………………………………………………. 8
4.2 Browse Services …..………………………………………………………………………. 9
4.3 Application …………………………………………………………………………………… 10
4.4 Disconnect …………………………………………………………………………………… 10
5. Safety Statements ………………………………………………………………………………… 11
5.1 R&TTE / CE …….…………………………………………………………………………… 11
5.2 BQB ……………………………………………………………………………………………. 11
5.3 FCC ……………………………………………………………………………………………. 11
6. Warranty ………………………………………………………………………………..…………… 11
Appendix A Software
Interface
……………………………………………
……………. 12
A.1 NMEA Transmitted
Sentences
………………………………………
…………..… 12
Appendix B Earth Datum and
Output Setting
………..……………………
………… 15
B.1 Earth
Datum
………..………………..…………………………………
………………….. 15
B.2
Setting
……..……………………………..……………………………
………………….… 15
Appendix C Detailed
Specifications
…….……………….………………
…………… 16
C.1 Bluetooth
Specifications
….………………………………………………
…………….. 16
C.2 LED
Status
……..…………………………….…………………………
……………….… 16
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
3
Rikaline
Rikaline International Corp.
C.3
Switch
…………………………………………………………………
……………..……… 16
C.4
Battery
…………………………………………………………………
……………………… 16
Appendix D Trouble
Shooting
………..……………..………………………
…………….. 17
E.1 Trouble
Shooting
………………………………………………………
……….………… 17
Appendix E Ordering
Information
…………………………………………
………….. 19
F.1 Product
Options
………………………………………………………
……….………… 19
F.2
Accessories
………………………………………………………………
………….……… 19
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
4
Rikaline
Rikaline International Corp.
0. Quick Use for First Time Setting
Please read this instruction carefully before use.
0.0 Standard Package
GPS Unit + Lithium-ION Rechargeable Battery + Cigarette Adapter + Travel Charger + Document CD +
Warranty Card + Easy-Place Pad + Quick Use.
0.1 Fully charge the battery for at least 10 hours before using.
A fully charged battery can last for 10-12 hours continuously operation facilitating the low power consumption
design at 80mA. Please put the switch at “OFF” or “AUTO” position if you will not use the device for an
extended period of time.
0.2 Activate the Bluetooth function in your PDA or PC
Before activating the Bluetooth function in your PDA/PC, please Switch ON GPS-6033 Receiver for paring and
check if your device is equipped with Bluetooth function. If not, you may need to acquire an optional CF
(PD-3005) or SD Bluetooth card.
NOTE: The pairing procedure is required for the first time only.
0.3 Automatically create a shortcut in Bluetooth Manager window
After the pairing complete, the system will automatically create a quick connect device, Rikaline in Bluetooth
Manager. In further use, you just need to click this device to connect our Bluetooth Receiver.
0.4 Check the Serial Port in Bluetooth Setting
After pairing with the Receiver complete, please click “Serial Port” to confirm the COM port. If you use PDA/PC
to pair the Receiver, please select “Outbound COM port”.
0.5 Set correct Serial Port in your map software
Activate your map function and select the correct serial port.
0.6 Switch off the Bluetooth function
Switch off the Bluetooth function before you turn off your PDA/PC, and Switch off Receiver will disconnect the
GPS function. If the BT GPS is on “AUTO” position, you do not need to take extra action.
0.7 Turn off your PDA or PC
0.8 Others
0.8.1 LED Indicator
LED Status Flash ON OFF
1 Power (Red) Low Power Recharging / System on Sufficient Power
2 Bluetooth (Blue) Paring Transmitting Mode System Off
3 GPS (Green) Position not fix Position Fix GPS not Powered
0.8.2 Pass Word The pass word for paring is “0000”.
0.8.3 Manufacturing Setting
Datum: WGS84
Sentence: GGA, GLL, GSA, GSV, RMC, VTG
Baud Rate: Auto
0.8.4 GPS features
Next generation sensitivity at -157dBm (-187dBw)
32-channel acquisition parallel
0.8.5 BT Feature
Sensitivity: -85
SPP profile
0.8.6 Overall Feature
Low power consumption: <80mA
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
5
Rikaline
Rikaline International Corp.
1. Introduction
1.1 Overview
The
Rikaline GPS-6033 Bluetooth GPS Receiver is a total solution GPS receiver with Bluetooth wireless
transmitting ability, designed based on next generation indoors GPS technology with super sensitivity at
-157dBm (-187dBw) and low power (<80mA) consumption. This revolutionary system provides you
unbelievable positioning sensitivity allowing you to have easy and quick position fix in urban canyon conditions.
You may use this device for strict needs of positioning applications such as car navigation, mapping, surveying,
security, agriculture and so on.
The GPS-6033 communicates with other electronic utilities wireless Bluetooth technology, It acquires 32
satellites parallel when cold start, and display the best 8 signals for power saving purpose.
1.2 Features
The GPS-6033 provides a host of features that makes it easy for integration and use.
1. Patent pending AUTO ON-OFF function makes you hands-free once you place the device in place.
2. Patent pending Easy-Place function makes the device placed without sliding around the car in a snap.
3. Wireless transmitting positioning status up to 10 meters.
4. High sensitivity receiver acquires 32 satellite signals parallel while providing first fast fix and low power
consumption.
5. Advanced design ideal for applications with soft touch and minimal space.
6. User initialization is not required.
7. Automatically baud rate setting, user does not need to do any selection.
8. FLASH based program memory: New software revisions upgradeable both for GPS and Bluetooth. (For
distributor only)
9. LED display status: The LED provides users visible operating status for Recharging, Battery power lever,
Bluetooth and GPS. No more extra device needed.
10. Rechargeable Li-ION battery provides you a durable use.
1.3 Technology specifications
1.3.1 Physical Dimension
Single construction integrated antenna/receiver.
Size: 83.0(W) x 44.5(D) x 23.5(H) (mm)
3.27"(W) x 1.75"(D) x 0.93"(H).
Weight: 72g (battery included)
1.3.2 Environmental Characteristics
1) Operating temperature: -30oC to +85oC.
2) Storage temperature: -50oC to +100oC.
1.3.3 Electrical Characteristics
1) Input Power:
External: +4.75 ~ 5.5 VDC
Battery: +3.7V
1.3.4 Performance
1.3.4.1 LED functions
We built 3 LEDs in the GPS-6033 Bluetooth GPS with functions as follows:
1) Battery (Red)
Blinking: Low Battery
OFF: Full power or still sufficient
ON: Recharging or Switch is at “ON” position
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
6
Rikaline
Rikaline International Corp.
2) Bluetooth (Blue)
Blinking: Power on
ON: In Transmitting mode
3) GPS (Green)
ON: Position Fix
Blinking: System is on and position is not fix
1.3.4.2 GPS Functions
1) Acquisition: 32 satellites parallel.
2) Update rate: 1 second.
3) Acquisition time
Reacquisition 0.1 sec., averaged
Hot start 6 sec., averaged
Warm start 30 sec., averaged
Cold start 30 sec., averaged
4) Position accuracy:
Non DGPS (Differential GPS)
Position < 5 meter (RMS)
Velocity 0.1 meter / second, with SA off
Time 1 microsecond synchronized GPS time
5) Dynamic Conditions:
Altitude 18,000 meters (60,000 feet) max
Velocity 515 meter / second (1000 knots) max
Acceleration 4 G, max
Jerk 20 meters/second, max
1.3.4.3 Bluetooth Functions
1) Transmits up to 10 meters.
2) Details specifications please refer to appendix D at page 19.
3) SPP Profile, V1.2
1.3.4.4 Battery
1) Capacity: 1000mAh.
2) Type: Li-ion rechargeable.
1.3.5 Interfaces
1) RS-232 compatible level, with auto adjusted baud rate.
2) NMEA 0183 Version 2.2 ASCII output (GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG).
All manuals and user guides at all-guides.com
all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
7
Rikaline
Rikaline International Corp.

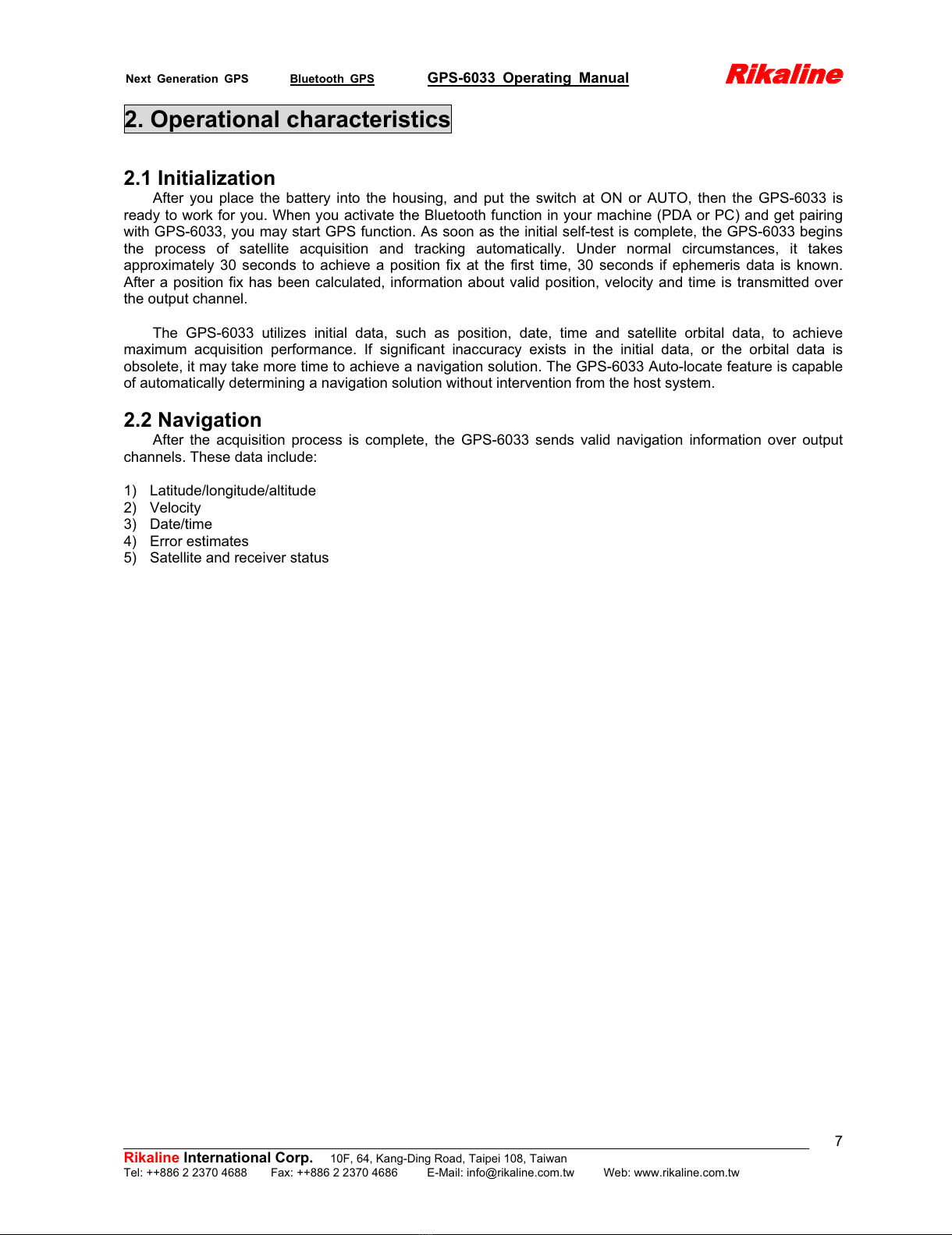

2. Operational characteristics
2.1 Initialization
After you place the battery into the housing, and put the switch at ON or AUTO, then the GPS-6033 is
ready to work for you. When you activate the Bluetooth function in your machine (PDA or PC) and get pairing
with GPS-6033, you may start GPS function. As soon as the initial self-test is complete, the GPS-6033 begins
the process of satellite acquisition and tracking automatically. Under normal circumstances, it takes
approximately 30 seconds to achieve a position fix at the first time, 30 seconds if ephemeris data is known.
After a position fix has been calculated, information about valid position, velocity and time is transmitted over
the output channel.
The GPS-6033 utilizes initial data, such as position, date, time and satellite orbital data, to achieve
maximum acquisition performance. If significant inaccuracy exists in the initial data, or the orbital data is
obsolete, it may take more time to achieve a navigation solution. The GPS-6033 Auto-locate feature is capable
of automatically determining a navigation solution without intervention from the host system.
2.2 Navigation
After the acquisition process is complete, the GPS-6033 sends valid navigation information over output
channels. These data include:
1) Latitude/longitude/altitude
2) Velocity
3) Date/time
4) Error estimates
5) Satellite and receiver status
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
8
Rikaline
Rikaline International Corp.

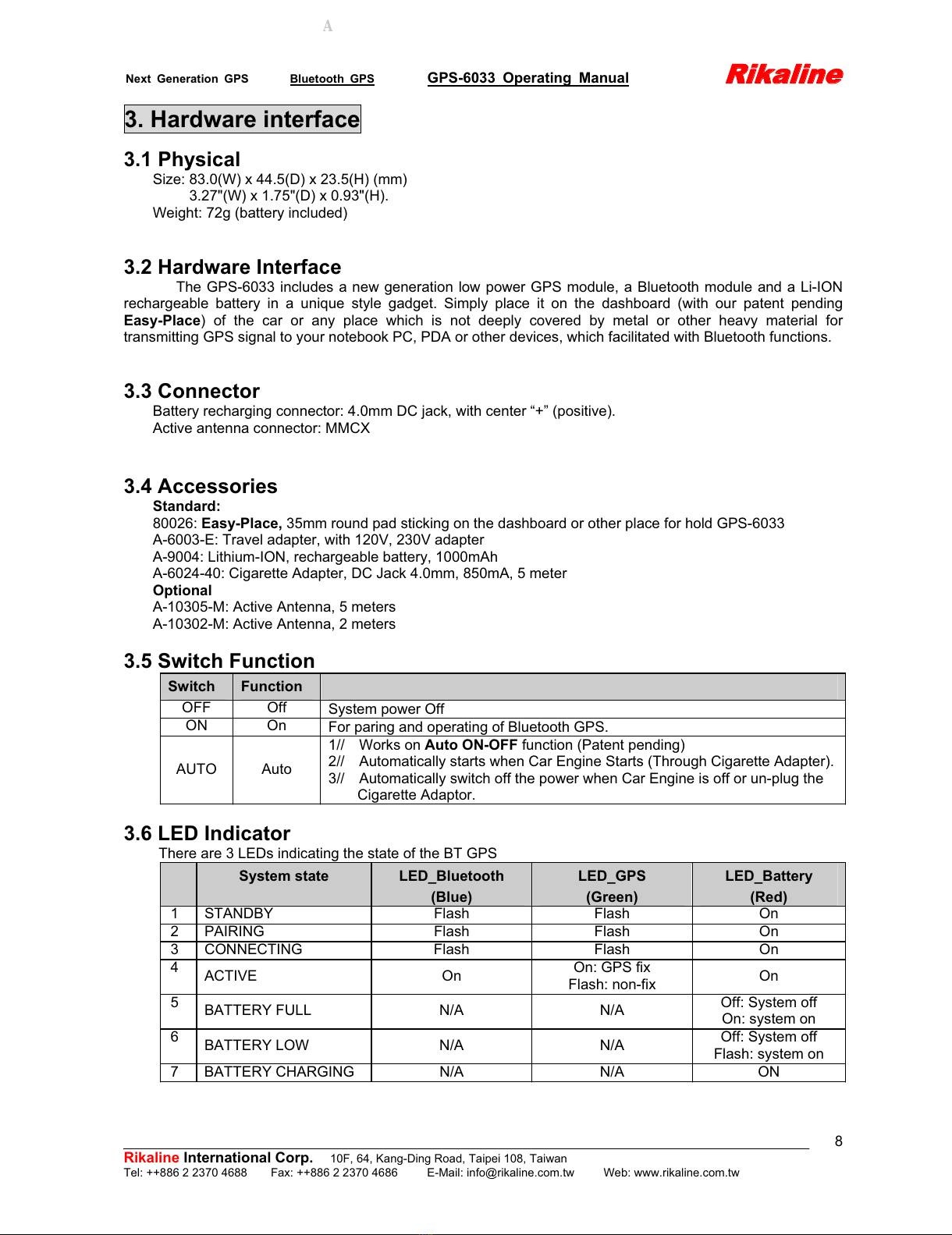

3. Hardware interface
3.1 Physical
Size: 83.0(W) x 44.5(D) x 23.5(H) (mm)
3.27"(W) x 1.75"(D) x 0.93"(H).
Weight: 72g (battery included)
3.2 Hardware Interface
The GPS-6033 includes a new generation low power GPS module, a Bluetooth module and a Li-ION
rechargeable battery in a unique style gadget. Simply place it on the dashboard (with our patent pending
Easy-Place) of the car or any place which is not deeply covered by metal or other heavy material for
transmitting GPS signal to your notebook PC, PDA or other devices, which facilitated with Bluetooth functions.
3.3 Connector
Battery recharging connector: 4.0mm DC jack, with center “+” (positive).
Active antenna connector: MMCX
3.4 Accessories
Standard:
80026: Easy-Place, 35mm round pad sticking on the dashboard or other place for hold GPS-6033
A-6003-E: Travel adapter, with 120V, 230V adapter
A-9004: Lithium-ION, rechargeable battery, 1000mAh
A-6024-40: Cigarette Adapter, DC Jack 4.0mm, 850mA, 5 meter
Optional
A-10305-M: Active Antenna, 5 meters
A-10302-M: Active Antenna, 2 meters
3.5 Switch Function
Switch Function
OFF Off System power Off
ON On For paring and operating of Bluetooth GPS.
AUTO Auto
1// Works on Auto ON-OFF function (Patent pending)
2// Automatically starts when Car Engine Starts (Through Cigarette Adapter).
3// Automatically switch off the power when Car Engine is off or un-plug the
Cigarette Adaptor.
3.6 LED Indicator
There are 3 LEDs indicating the state of the BT GPS
System state LED_Bluetooth
(Blue)
LED_GPS
(Green)
LED_Battery
(Red)
1 STANDBY Flash Flash On
2 PAIRING Flash Flash On
3 CONNECTING Flash Flash On
4ACTIVE On On: GPS fix
Flash: non-fix On
5BATTERY FULL N/A N/A Off: System off
On: system on
6BATTERY LOW N/A N/A Off: System off
Flash: system on
7 BATTERY CHARGING N/A N/A ON
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
9
Rikaline
Rikaline International Corp.
4. Bluetooth Connection
Please follow below instructions step by step: The pass word is “0000”
4.1 Browse Devices
Firstly, you need to find the device with which you want to establish connection.
Open “Bluetooth Manager” on your pocket PC.
Click “New”
Click “Connect”
Search Bluetooth device “Rikaline 6033” To find the Bluetooth device
Double click “Rikaline”
Select “Explore a Bluetooth device”
Click “Next”
Click this refresh
button to find the
device if the device
is not in the device
window.
Fig. 1 Browse Service
Found the Bluetooth device
Tap “Rikaline”
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
10
Rikaline
Rikaline International Corp.

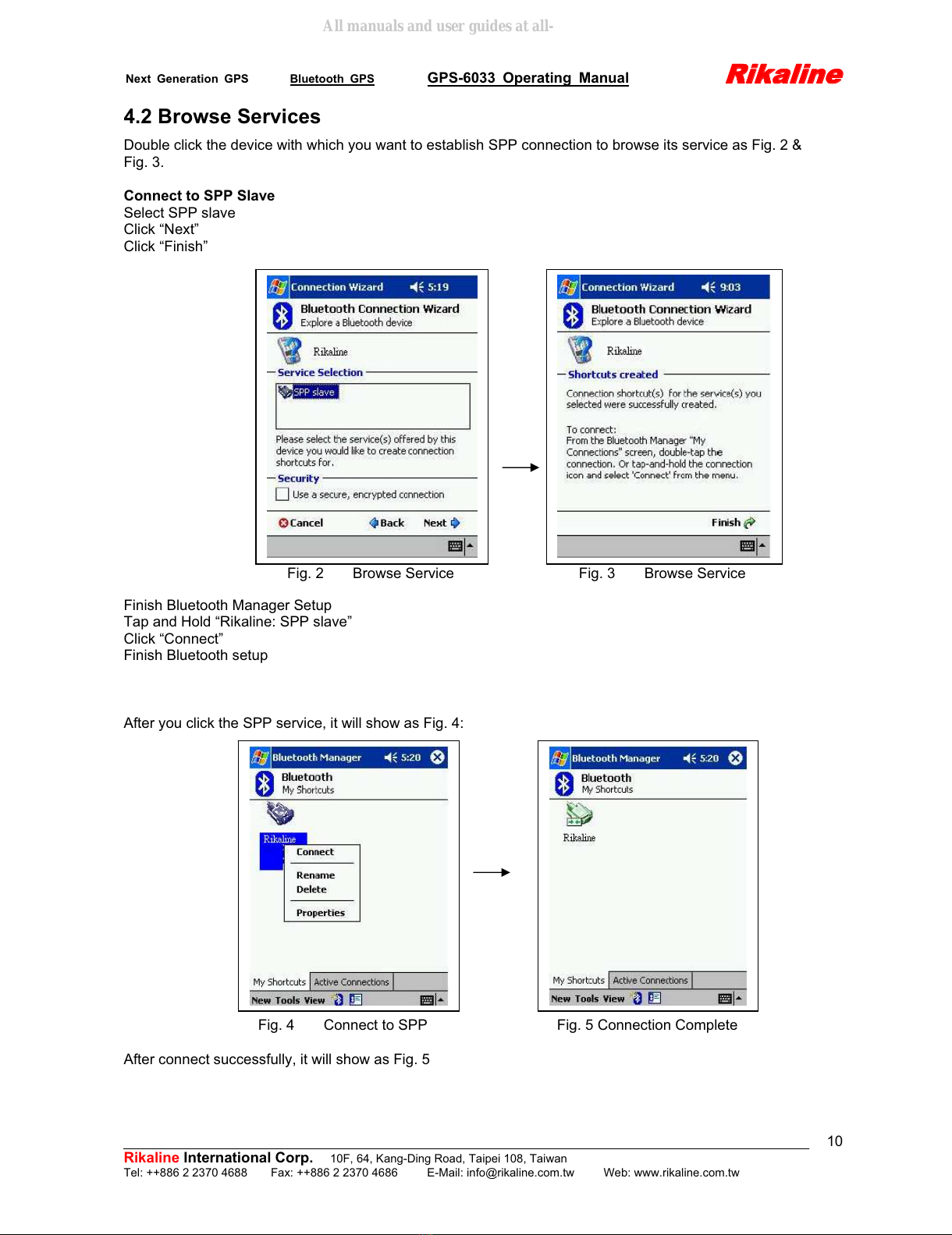

4.2 Browse Services
Double click the device with which you want to establish SPP connection to browse its service as Fig. 2 &
Fig. 3.
Connect to SPP Slave
Select SPP slave
Click “Next”
Click “Finish”
Fig. 2 Browse Service
Fig. 3 Browse Service
Finish Bluetooth Manager Setup
Tap and Hold “Rikaline: SPP slave”
Click “Connect”
Finish Bluetooth setup
After you click the SPP service, it will show as Fig. 4:
Fig. 4 Connect to SPP Fig. 5 Connection Complete
After connect successfully, it will show as Fig. 5
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
11
Rikaline
Rikaline International Corp.

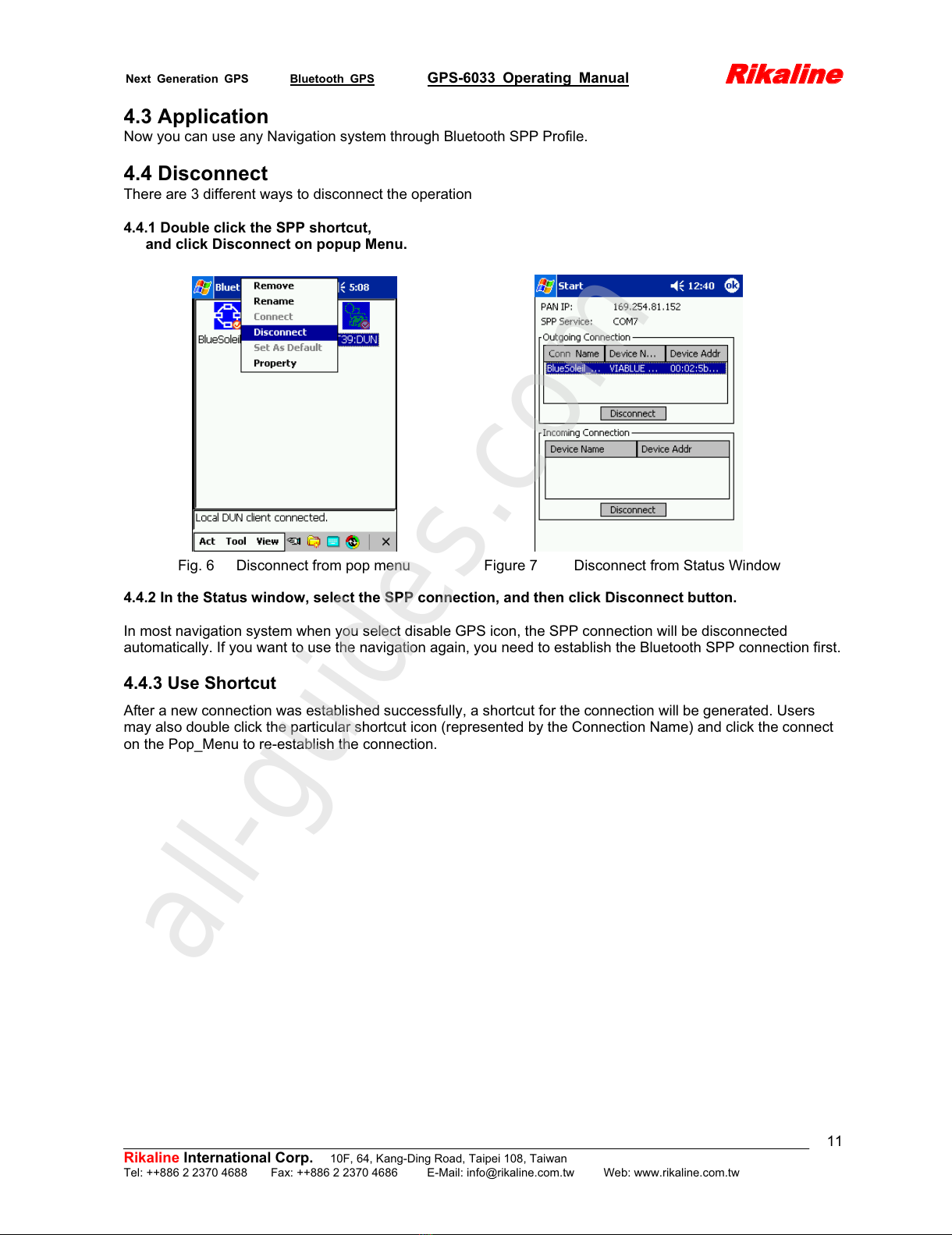

4.3 Application
Now you can use any Navigation system through Bluetooth SPP Profile.
4.4 Disconnect
There are 3 different ways to disconnect the operation
4.4.1 Double click the SPP shortcut,
and click Disconnect on popup Menu.
Figure 7 Disconnect from Status Window Fig. 6 Disconnect from pop menu
4.4.2 In the Status window, select the SPP connection, and then click Disconnect button.
In most navigation system when you select disable GPS icon, the SPP connection will be disconnected
automatically. If you want to use the navigation again, you need to establish the Bluetooth SPP connection first.
4.4.3 Use Shortcut
After a new connection was established successfully, a shortcut for the connection will be generated. Users
may also double click the particular shortcut icon (represented by the Connection Name) and click the connect
on the Pop_Menu to re-establish the connection.
All manuals and user guides at all-guides.com
all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
12
Rikaline
Rikaline International Corp.

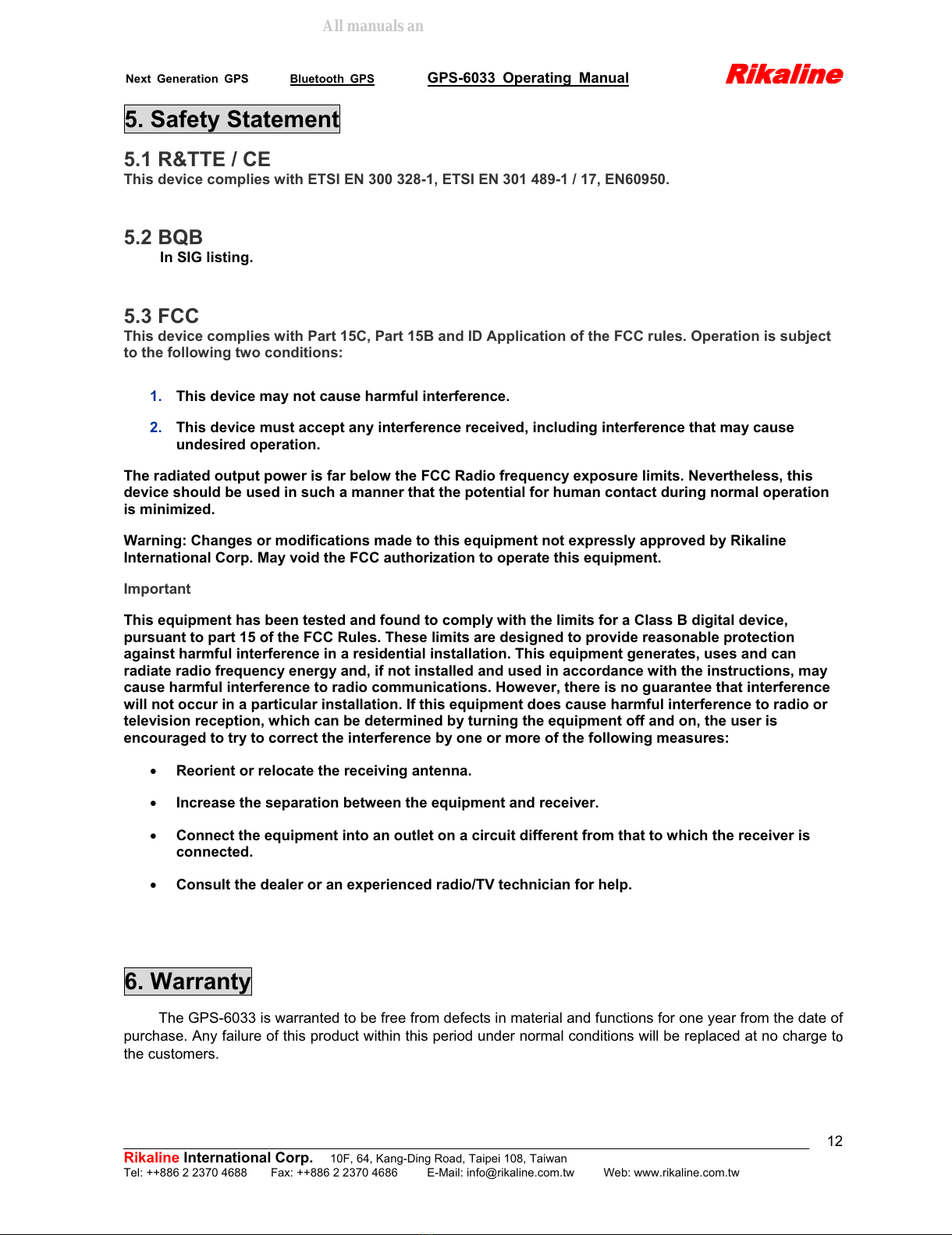

5. Safety Statement
5.1 R&TTE / CE
This device complies with ETSI EN 300 328-1, ETSI EN 301 489-1 / 17, EN60950.
5.2 BQB
In SIG listing.
5.3 FCC
This device complies with Part 15C, Part 15B and ID Application of the FCC rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
The radiated output power is far below the FCC Radio frequency exposure limits. Nevertheless, this
device should be used in such a manner that the potential for human contact during normal operation
is minimized.
Warning: Changes or modifications made to this equipment not expressly approved by Rikaline
International Corp. May void the FCC authorization to operate this equipment.
Important
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
xReorient or relocate the receiving antenna.
xIncrease the separation between the equipment and receiver.
xConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
xConsult the dealer or an experienced radio/TV technician for help.
6. Warranty
The GPS-6033 is warranted to be free from defects in material and functions for one year from the date of
purchase. Any failure of this product within this period under normal conditions will be replaced at no charge t
o
the customers.
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
13
Rikaline
Rikaline International Corp.

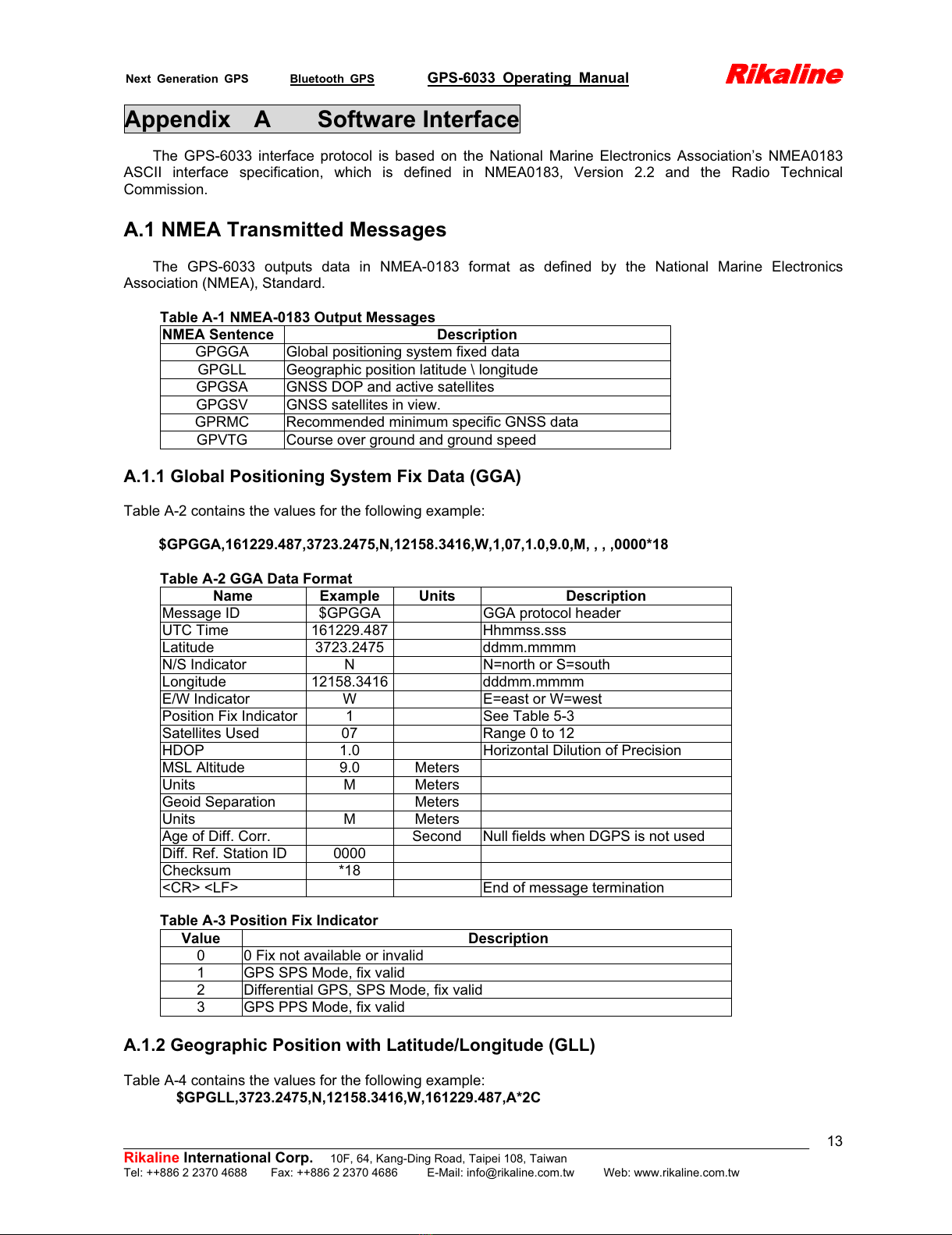

Appendix A Software Interface
The GPS-6033 interface protocol is based on the National Marine Electronics Association’s NMEA0183
ASCII interface specification, which is defined in NMEA0183, Version 2.2 and the Radio Technical
Commission.
A.1 NMEA Transmitted Messages
The GPS-6033 outputs data in NMEA-0183 format as defined by the National Marine Electronics
Association (NMEA), Standard.
Table A-1 NMEA-0183 Output Messages
NMEA Sentence Description
GPGGA Global positioning system fixed data
GPGLL Geographic position latitude \ longitude
GPGSA GNSS DOP and active satellites
GPGSV GNSS satellites in view.
GPRMC Recommended minimum specific GNSS data
GPVTG Course over ground and ground speed
A.1.1 Global Positioning System Fix Data (GGA)
Table A-2 contains the values for the following example:
$GPGGA,161229.487,3723.2475,N,12158.3416,W,1,07,1.0,9.0,M, , , ,0000*18
Table A-2 GGA Data Format
Name Example Units Description
Message ID $GPGGA GGA protocol header
UTC Time 161229.487 Hhmmss.sss
Latitude 3723.2475 ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
Position Fix Indicator 1 See Table 5-3
Satellites Used 07 Range 0 to 12
HDOP 1.0 Horizontal Dilution of Precision
MSL Altitude 9.0 Meters
Units M Meters
Geoid Separation Meters
Units M Meters
Age of Diff. Corr. Second Null fields when DGPS is not used
Diff. Ref. Station ID 0000
Checksum *18
<CR> <LF> End of message termination
Table A-3 Position Fix Indicator
Value Description
0 0 Fix not available or invalid
1 GPS SPS Mode, fix valid
2 Differential GPS, SPS Mode, fix valid
3 GPS PPS Mode, fix valid
A.1.2 Geographic Position with Latitude/Longitude (GLL)
Table A-4 contains the values for the following example:
$GPGLL,3723.2475,N,12158.3416,W,161229.487,A*2C
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
14
Rikaline
Rikaline International Corp.
Table A-4 GLL Data Format
Name Example Units Description
Message ID $GPGLL GLL protocol header
Latitude 3723.2475 ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
UTC Position 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Checksum *2C
<CR> <LF> End of message termination
A.1.3 GNSS DOP and Active Satellites (GSA)
Table A-5 contains the values for the following example:
$GPGSA,A,3,07,02,26,27,09,04,15, , , , , ,1.8,1.0,1.5*33
Table A-5 GSA Data Format
Name Example Units Description
Message ID $GPGSA GSA protocol header
Mode 1 A See Table 5-6
Mode 2 3 See Table 5-7
Satellite Used (1) 07 Sv on Channel 1
Satellite Used (1) 02 Sv on Channel 2
…… ….
Satellite Used Sv on Channel 12
PDOP 1.8 Position Dilution of Precision
HDOP 1.0 Horizontal Dilution of Precision
VDOP 1.5 Vertical Dilution of Precision
Checksum *33
<CR> <LF> End of message termination
(1) Satellite used in solution.
Table A-6 Mode 1
Value Description
M Manual—forced to operate in 2D or 3D mode
A 2D Automatic—allowed to automatically switch 2D/3D
Table A-7 Mode 2
Value Description
1 Fix Not Available
2 2D
3 3D
A.1.4 GNSS Satellites in View (GSV)
Table A-8 contains the values for the following example:
$GPGSV,2,1,07,07,79,048,42,02,51,062,43,26,36,256,42,27,27,138,42*71
$GPGSV,2,2,07,09,23,313,42,04,19,159,41,15,12,041,42*41
Table A-8 GSV Data Format
Name Example Units Description
Message ID $GPGSV GSV protocol header
Number of Messages 2 Range 1 to 3
Message Number 1 Range 1 to 3
Satellites in View 07 Range 1 to 12
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
15
Rikaline
Rikaline International Corp.

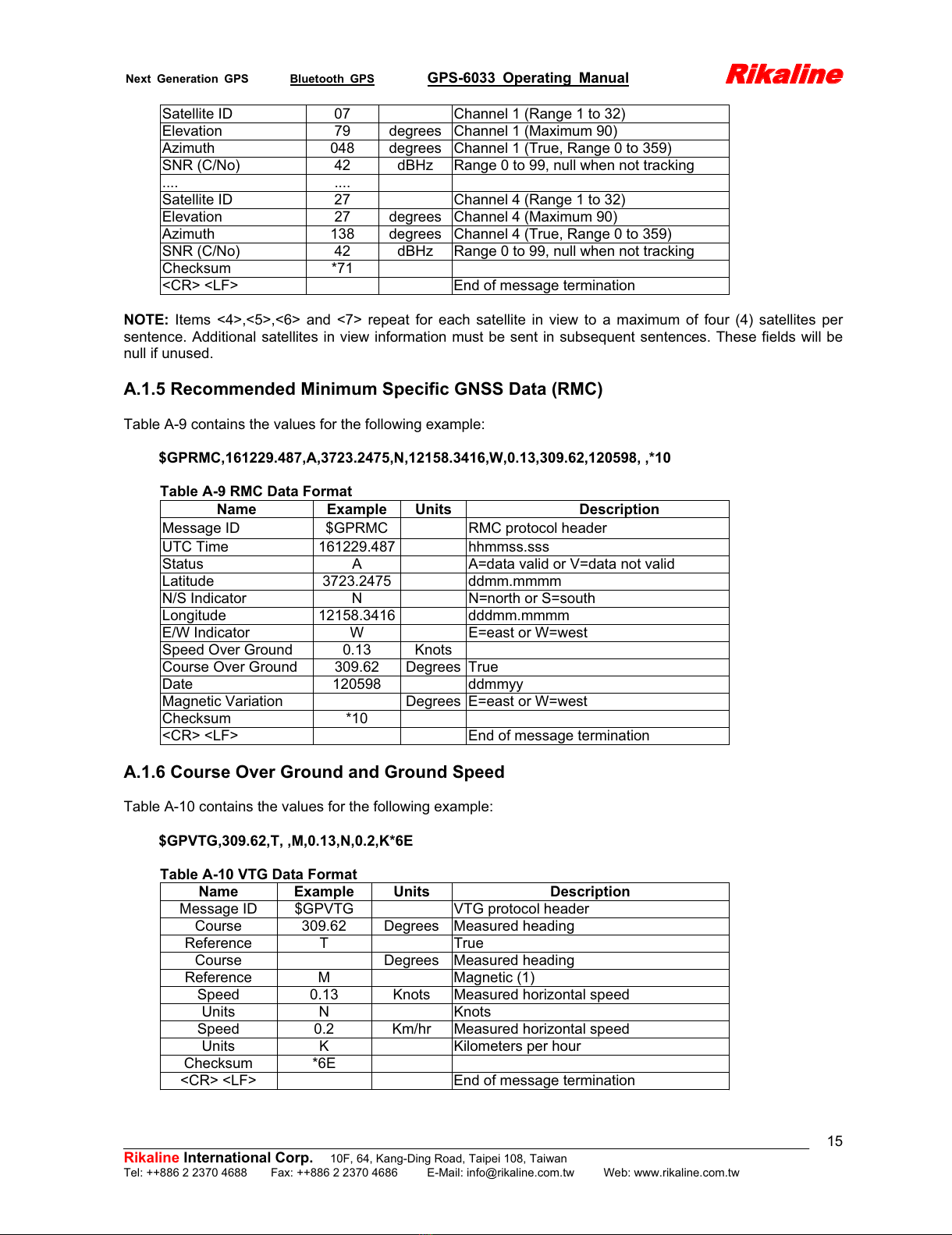

Satellite ID 07 Channel 1 (Range 1 to 32)
Elevation 79 degrees Channel 1 (Maximum 90)
Azimuth 048 degrees Channel 1 (True, Range 0 to 359)
SNR (C/No) 42 dBHz Range 0 to 99, null when not tracking
.... ....
Satellite ID 27 Channel 4 (Range 1 to 32)
Elevation 27 degrees Channel 4 (Maximum 90)
Azimuth 138 degrees Channel 4 (True, Range 0 to 359)
SNR (C/No) 42 dBHz Range 0 to 99, null when not tracking
Checksum *71
<CR> <LF> End of message termination
NOTE: Items <4>,<5>,<6> and <7> repeat for each satellite in view to a maximum of four (4) satellites per
sentence. Additional satellites in view information must be sent in subsequent sentences. These fields will be
null if unused.
A.1.5 Recommended Minimum Specific GNSS Data (RMC)
Table A-9 contains the values for the following example:
$GPRMC,161229.487,A,3723.2475,N,12158.3416,W,0.13,309.62,120598, ,*10
Table A-9 RMC Data Format
Name Example Units Description
Message ID $GPRMC RMC protocol header
UTC Time 161229.487 hhmmss.sss
Status A A=data valid or V=data not valid
Latitude 3723.2475 ddmm.mmmm
N/S Indicator N N=north or S=south
Longitude 12158.3416 dddmm.mmmm
E/W Indicator W E=east or W=west
Speed Over Ground 0.13 Knots
Course Over Ground 309.62 Degrees True
Date 120598 ddmmyy
Magnetic Variation Degrees E=east or W=west
Checksum *10
<CR> <LF> End of message termination
A.1.6 Course Over Ground and Ground Speed
Table A-10 contains the values for the following example:
$GPVTG,309.62,T, ,M,0.13,N,0.2,K*6E
Table A-10 VTG Data Format
Name Example Units Description
Message ID $GPVTG VTG protocol header
Course 309.62 Degrees Measured heading
Reference T True
Course Degrees Measured heading
Reference M Magnetic (1)
Speed 0.13 Knots Measured horizontal speed
Units N Knots
Speed 0.2 Km/hr Measured horizontal speed
Units K Kilometers per hour
Checksum *6E
<CR> <LF> End of message termination
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
16
Rikaline
Rikaline International Corp.
Appendix B Earth Datum & Output Setting
B.1 Earth Datum
The GPS-6033 is built in earth datum with WGS84.
B.2 Setting
B.2.1 Manufacturing Default
Datum: WGS84.
Baud Rate: Automatically adjustable.
Output: GGA, GLL, GSA, GSV, RMC, VTG.
All manuals and user guides at all-guides.com
all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
17
Rikaline
Rikaline International Corp.

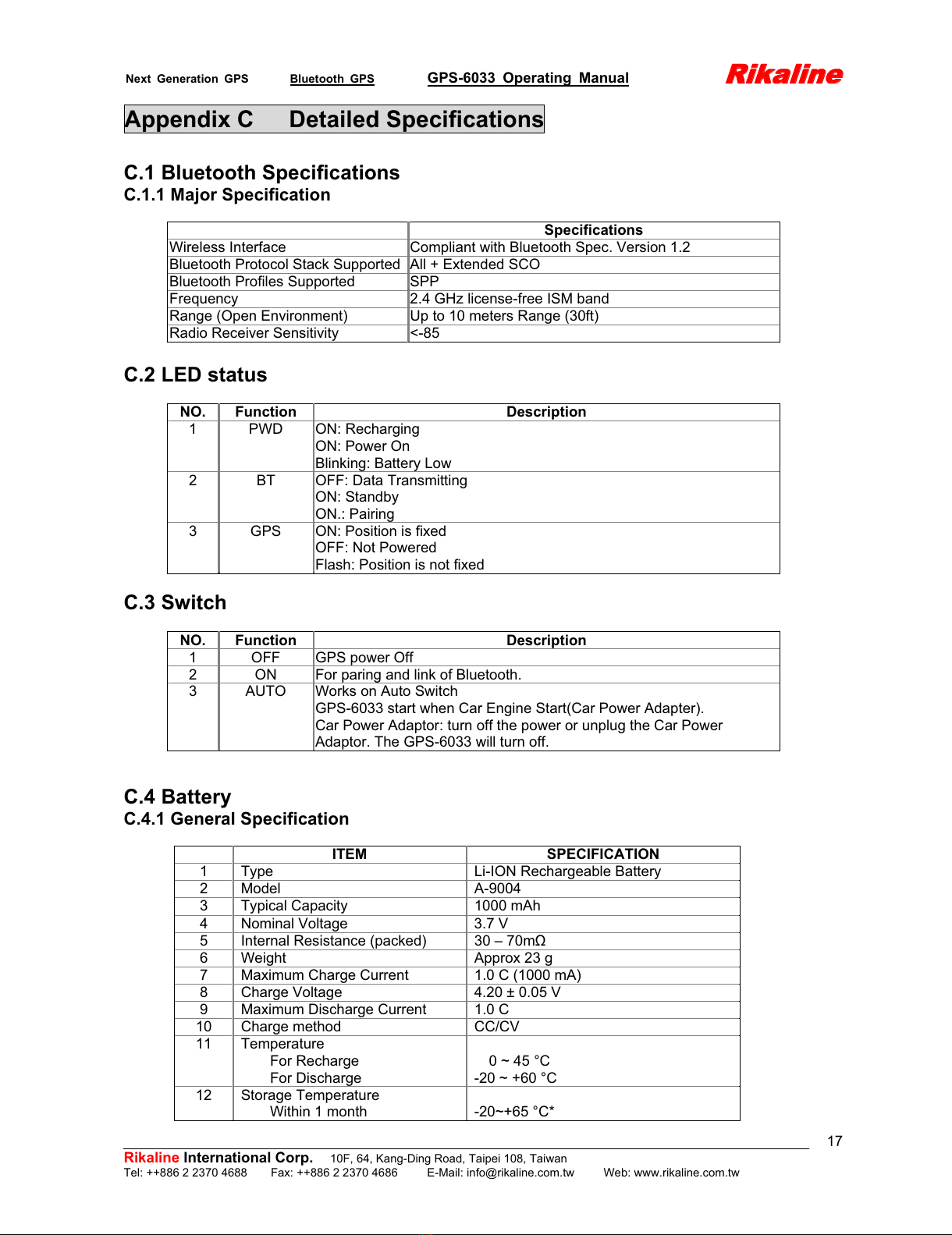

Appendix C Detailed Specifications
C.1 Bluetooth Specifications
C.1.1 Major Specification
Specifications
Wireless Interface Compliant with Bluetooth Spec. Version 1.2
Bluetooth Protocol Stack Supported All + Extended SCO
Bluetooth Profiles Supported SPP
Frequency 2.4 GHz license-free ISM band
Range (Open Environment) Up to 10 meters Range (30ft)
Radio Receiver Sensitivity <-85
C.2 LED status
NO. Function Description
1 PWD ON: Recharging
ON: Power On
Blinking: Battery Low
2 BT OFF: Data Transmitting
ON: Standby
ON.: Pairing
3 GPS ON: Position is fixed
OFF: Not Powered
Flash: Position is not fixed
C.3 Switch
NO. Function Description
1 OFF GPS power Off
2 ON For paring and link of Bluetooth.
3 AUTO Works on Auto Switch
GPS-6033 start when Car Engine Start(Car Power Adapter).
Car Power Adaptor: turn off the power or unplug the Car Power
Adaptor. The GPS-6033 will turn off.
C.4 Battery
C.4.1 General Specification
ITEM SPECIFICATION
1 Type Li-ION Rechargeable Battery
2 Model A-9004
3 Typical Capacity 1000 mAh
4 Nominal Voltage 3.7 V
5 Internal Resistance (packed) 30 – 70mȍ
6 Weight Approx 23 g
7 Maximum Charge Current 1.0 C (1000 mA)
8 Charge Voltage 4.20 ± 0.05 V
9 Maximum Discharge Current 1.0 C
10 Charge method CC/CV
11 Temperature
For Recharge
For Discharge
0 ~ 45 °C
-20 ~ +60 °C
12 Storage Temperature
Within 1 month -20~+65 °C*
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
18
Rikaline
Rikaline International Corp.
Within 3 months
Within 1 year
-20~+45 °C*
-20~+25 °C*
C.4.2 Testing Data
Electrical Characteristics
NO ITEM TESTING INSTRUCTION REQUIREMENTS
1Complete
Charge
Charge the battery with 1c of constant current and 4.2V
constant voltage for 2.5 hours.
2Nominal
Capacity
Measure discharge capacity with discharge current 0.2C to 2.75V
cut-off within 1 hour after complete charge. 950mAh
3 Cycle Life Measure the capacity after 300 cycles of complete charge
and discharge at 1C current to 2.75V cut-off 80% of initial Capacity
≧Capacity after 30days storage at 25℃from complete
charge Retentioncapacit
y ≧ 90%
4 Storage
Capacity after 7days storage at 60℃ffom complete charge Recovery capacity≧
90%
Environmental Characteristic
NO ITEM TESTING INSTRUCTION REQUIREMENTS
1Temperature
testing
Measure capacity with constant discharge current 1C to 2.75V
cut-off at each temperature after complete charge at 25℃.
Percentage as an index of the capacity compared with
100% at 25℃.
25% at -20℃60% at 0℃100% at 25℃96% at 60℃2
Constant
temperature
/humidity
Keep the battery at 40℃and 90%RH for 96hrs Recovery capacity≧
85%
3 Vibration
The battery will be vibrated 10 times in three mutually
perpendicular directions with amplitude of 0.35mm and
changing frequency between 10 and 55Hz. The rate of
scanning frequency is from 10Hz to 55Hz with the rate of
1Hz per min.
4Impacting
Testing
The battery will be impacted 1000±10 times with the
acceleration of 100m/s2and pulse lasting time 16ms.
5 Free fall
The battery will be dropped free five times in three mutually
perpendicular directions from the height of 1.0m onto a
hard board with the thickness of 20mm
The battery shall not
rupture, smoke, catch fire,
vent or leak.
Safe Characteristic
NO ITEM TESTING INSTRUCTION REQUIREMENTS
1 Short Circuit
The battery is to be short-circuited by connecting the
positive and negative terminals of the battery with and
external load of less than 50
m Ω2Over charge
testing According to the method of UL
3
Over
discharge
testing
After complete charge, the battery will be discharged to end
voltage. Then Connect with external load of 30Ωfor 24hrs.
The battery shall not
rupture, smoke, catch fire,
vent or leak.
C.4.3 Cautions
1) The best operating performance is between -20 ~ +60 °C. Higher or lower temperature could cause
damage to the battery.
2) Operated with external power supply will not hurt battery life since battery does not discharge. Therefore, it
operating temperature range is -40 ~ +85°C.
3) Recharge the battery for 10 hours before use.
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
19
Rikaline
Rikaline International Corp.
Appendix D Trouble Shooting
D.1 Trouble Shooting
Problems Reasons Methods
No position output but
timer is counting
Weak or no GPS signal can be
received at the place of GPS-6033
Find an open space for your
GPS-6033
No position output but
timer is counting
At outdoor space but GPS signal is
blocked by building or car roof.
Use an optional Active Antenna
Execute fail Bluetooth function unstable Re-Start PDA or PC or re-install
software
Can not turn on the
COM port
Install GPS-6033 incompletely or The
COM port of the device is being used
Install GPS-6033 completely or stop
other device that is being used.
Can not find out
GPS-6033
Poor connection Re-Start PDA or PC and re-install
software.
No Signal No action for few minutes may
cause the Pocket PC entry power
saving mode. It will close the COM
port at the same time.
Close the application and execute it
again to re-open the COM port.
No Signal Weak or no GPS signal when
using GPS-6033 indoor
Go outdoors to improve the poor
GPS signal.
All manuals and user guides at all-guides.com

Next Generation GPS Bluetooth GPS GPS-6033 Operating Manual
10F, 64, Kang-Ding Road, Taipei 108, Taiwan
Tel: ++886 2 2370 4688 Fax: ++886 2 2370 4686 E-Mail: [e-mail] Web: www.rikaline.com.tw
20
Rikaline
Rikaline International Corp.

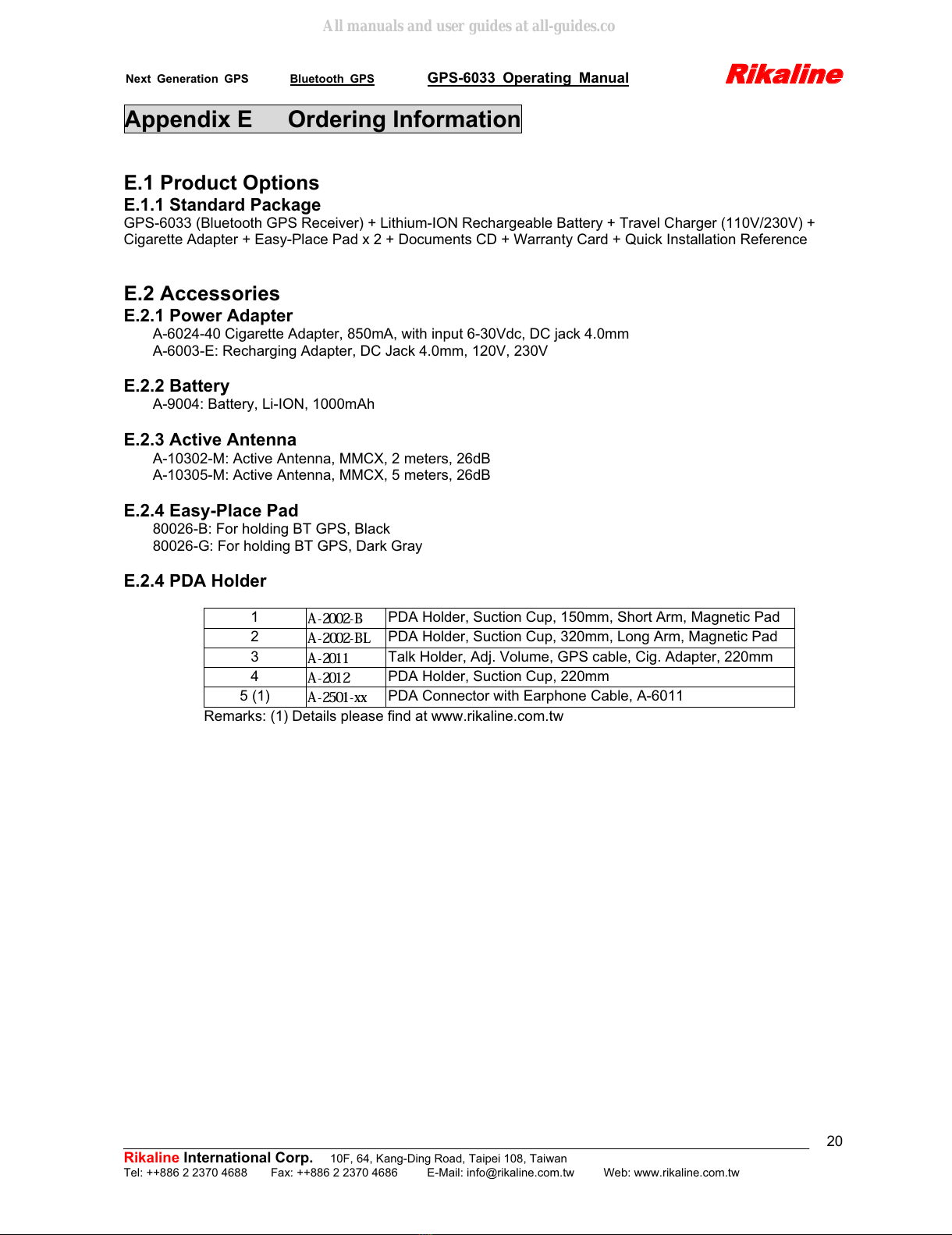

Appendix E Ordering Information
E.1 Product Options
E.1.1 Standard Package
GPS-6033 (Bluetooth GPS Receiver) + Lithium-ION Rechargeable Battery + Travel Charger (110V/230V) +
Cigarette Adapter + Easy-Place Pad x 2 + Documents CD + Warranty Card + Quick Installation Reference
E.2 Accessories
E.2.1 Power Adapter
A-6024-40 Cigarette Adapter, 850mA, with input 6-30Vdc, DC jack 4.0mm
A-6003-E: Recharging Adapter, DC Jack 4.0mm, 120V, 230V
E.2.2 Battery
A-9004: Battery, Li-ION, 1000mAh
E.2.3 Active Antenna
A-10302-M: Active Antenna, MMCX, 2 meters, 26dB
A-10305-M: Active Antenna, MMCX, 5 meters, 26dB
E.2.4 Easy-Place Pad
80026-B: For holding BT GPS, Black
80026-G: For holding BT GPS, Dark Gray
E.2.4 PDA Holder
Remarks: (1) Details please find at www.rikaline.com.tw
1
A-2002-B
PDA Holder, Suction Cup, 150mm, Short Arm, Magnetic Pad
2
A-2002-BL
PDA Holder, Suction Cup, 320mm, Long Arm, Magnetic Pad
3
A-2011
Talk Holder, Adj. Volume, GPS cable, Cig. Adapter, 220mm
4
A-2012
PDA Holder, Suction Cup, 220mm
5 (1)
A-2501-xx
PDA Connector with Earphone Cable, A-6011
All manuals and user guides at all-guides.com
