Rikon Power Tools 10-350 User manual

14” Professional Bandsaw
Owner’s Manual
For more information:
www.rikontools.com or [email protected]
For Parts or Questions:
[email protected] or 877-884-5167
Record the serial number and date of purchase
in your manual for future reference.
Serial number:
Date of purchase:
Part #10-350M1
Models: 10-350/10-350BAL

Operator Safety: Required Reading
IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following
instructions must be followed at all times.
There are certain applications for which this tool was designed. We strongly recommend that this tool not be modied and/
or used for any other application other than that for which it was designed. If you have any questions about its application,
do not use the tool until you have contacted us and we have advised you.
General Safety Warnings
KNOW YOUR POWER TOOL. Read the owner’s manual carefully. Learn the tool’s applications, work
capabilities, and its specic potential hazards.
ALWAYS KEEP VISITORS AWAY FROM RUNNING MACHINES.
All visitors should be kept a safe distance from the work area.
ALWAYS MAKE THE WORKSHOP CHILDPROOF.
Childproof with padlocks, master switches, or by removing starter keys.
NEVER OPERATE A TOOL WHILE UNDER THE INFLUENCE OF DRUGS,
MEDICATION, OR ALCOHOL.
ALWAYS WEAR PROPER APPAREL.
Never wear loose clothing or jewelry that might get caught in moving parts. Rubber-soled footwear is
recommended for the best footing.
ALWAYS USE SAFETY GLASSES AND WEAR HEARING PROTECTION.
Also use a face or dust mask if the cutting operation is dusty.
NEVER OVERREACH.
Keep your proper footing and balance at all times.
ALWAYS GROUND ALL TOOLS.
If your tool is equipped with a three-pronged plug, you must plug it into a three-hole electric receptacle.
If you use an adapter to accommodate a two-pronged receptacle, you must attach the adapter plug to a
known ground. Never remove the third prong of the plug.
ALWAYS AVOID DANGEROUS ENVIRONMENTS.
Never use power tools in damp or wet locations. Keep your work area well lighted and clear of clutter.
ALWAYS REMOVE THE ADJUSTING KEYS AND WRENCHES FROM TOOLS AFTER USE.
Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before
turning it on.
ALWAYS KEEP YOUR WORK AREA CLEAN. Cluttered areas and benches invite accidents.
NEVER STAND ON TOOLS.
Serious injury could occur if the tool is tipped or if the cutting tool is accidentally
2

ALWAYS CHECK FOR DAMAGED PARTS.
Before initial or continual use of the tool, a guard or other part that is damaged should be checked to
assure that it will operate properly and perform its intended function. Check for alignment of moving
parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its
operation. A guard or other damaged parts should immediately be properly repaired or replaced.
ALWAYS DISCONNECT TOOLS.
Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters.
ALWAYS AVOID ACCIDENTAL STARTING.
Make sure switch is in “OFF” position before plugging in cord.
NEVER LEAVE TOOLS RUNNING UNATTENDED.
1. Always allow the Bandaw blade to stop before removing scrap pieces from table.
2. Always keep hands and ngers away from the blade.
3. Never attempt to saw stock that does not have a at surface, unless a suitable support is used.
4. Always hold material rmly and feed it into the blade at a moderate speed.
5. Always turn off the machine if the material is to be backed out of an uncompleted cut.
6. Adjust the upper guide about 1/8” above the material being cut.
7. Check for proper blade size and type for thickness and type of material being cut.
8. Make sure that the blade tension and blade tracking are properly adjusted.
9. Make “relief” cuts before cutting long curves.
10. Release blade tension when the saw will not be used for a long period of time.
Special Safety Rules For Bandsaws
SAVE THESE INSTRUCTIONS.
Refer to them often.
3
Note: This owner’s manual is not a teaching aid. Use of this owner’s manual is intended to
show assembly, adjustments, and general use.
California Proposition 65 Warning
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains
chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.Your risk from
exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in
a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to lter out
microscopic particles.
For more detailed information about California Proposition 65 log onto rikontools.com.

13-9/16” (345 mm)
13-15/16” (356 mm)
124” (3150 mm)
1/4” – 1”(6-25 mm)
21-1/16” x 19-1/16” (535 mm x 485 mm)
Left-10oRight-45 o
2163 ft/min or 4162 ft/min
3 HP (Baldor)
12.5A / 1725 RPM
230V
315 lbs
Throat width
Max. cutting depth
Blade length
Blade width
Table size
Table tilt
Blade speeds
Motor
Amps
Volts
Net weight
13-9/16” (345 mm)
13-15/16” (356 mm)
124” (3150 mm)
1/4” – 1”(6-25 mm)
21-1/16” x 19-1/16” (535 mm x 485 mm)
Left-10oRight-45 o
2132 ft/min or 4101 ft/min
2.5 HP (RIKON)
10A / 1700 RPM
220V
308 lbs
Throat Width
Max. Cutting Depth
Blade Length
Blade Width
Table Size
Table Tilt
Blade Speeds
Motor
Amps/Speed
Volts
Net weight
4
SafetyWarnings..................................................................................................................................................2-3
Bandsaw Safety Rules ..........................................................................................................................3
Specications ........................................................................................................................................4
Contents of Package ............................................................................................................................5
Loose Parts ...........................................................................................................................................6
Getting To Know Your Bandsaw ............................................................................................................7
Table Assembly .....................................................................................................................................8
Rip Fence Assembly .............................................................................................................................8
Hand-Wheel Assembly .........................................................................................................................8
Setting 90oTable Stop ...........................................................................................................................9
Tilting the Table .....................................................................................................................................9
Tracking Blade ......................................................................................................................................10
Adjusting Blade Tension .......................................................................................................................10
Blade Tension Indicator Adjustment.......................................................................................................10
Changing the Bandsaw Blade........................................................................................................11
Upper Blade Guide Adjustment ..........................................................................................................12
Lower Blade Guide Adjustment ..........................................................................................................12
Adjusting the Cutting Height ..................................................................................................................12
Changing Blade Speed .......................................................................................................................13
Setting Drive Belt Tension.......................................................................................................................13
Operation ............................................................................................................................................13-15
Electrical Requirements ..................................................................................................................................16
Maintenance ................................................................................................................................... ..... 17

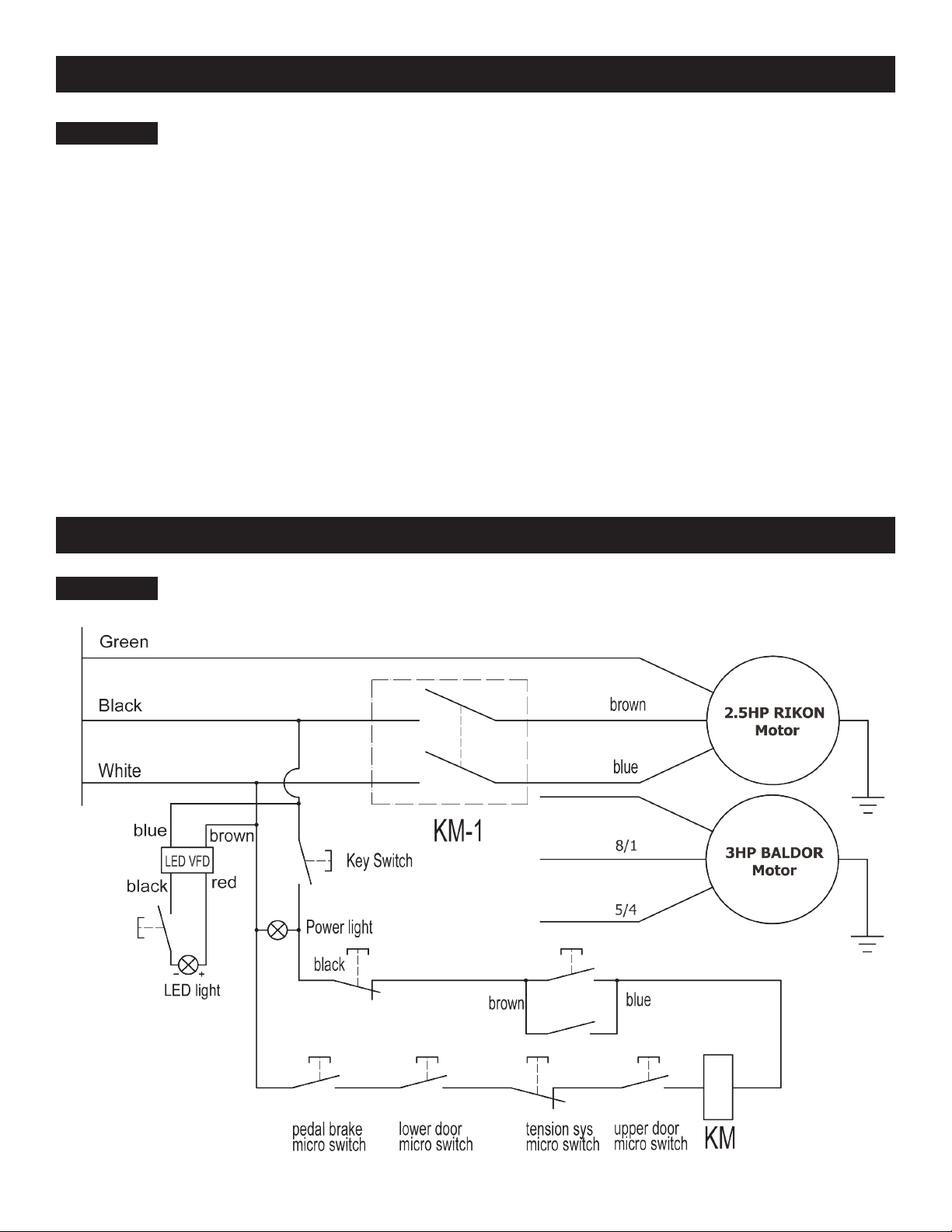

Wiring Diagram ...................................................................................................................................17
Troubleshooting .........................................................................................................................18-19
Changing Bandsaw Tire ..................................................................................................................................19
AdjustingFence90DegreestotheTable..................................................................................................................19

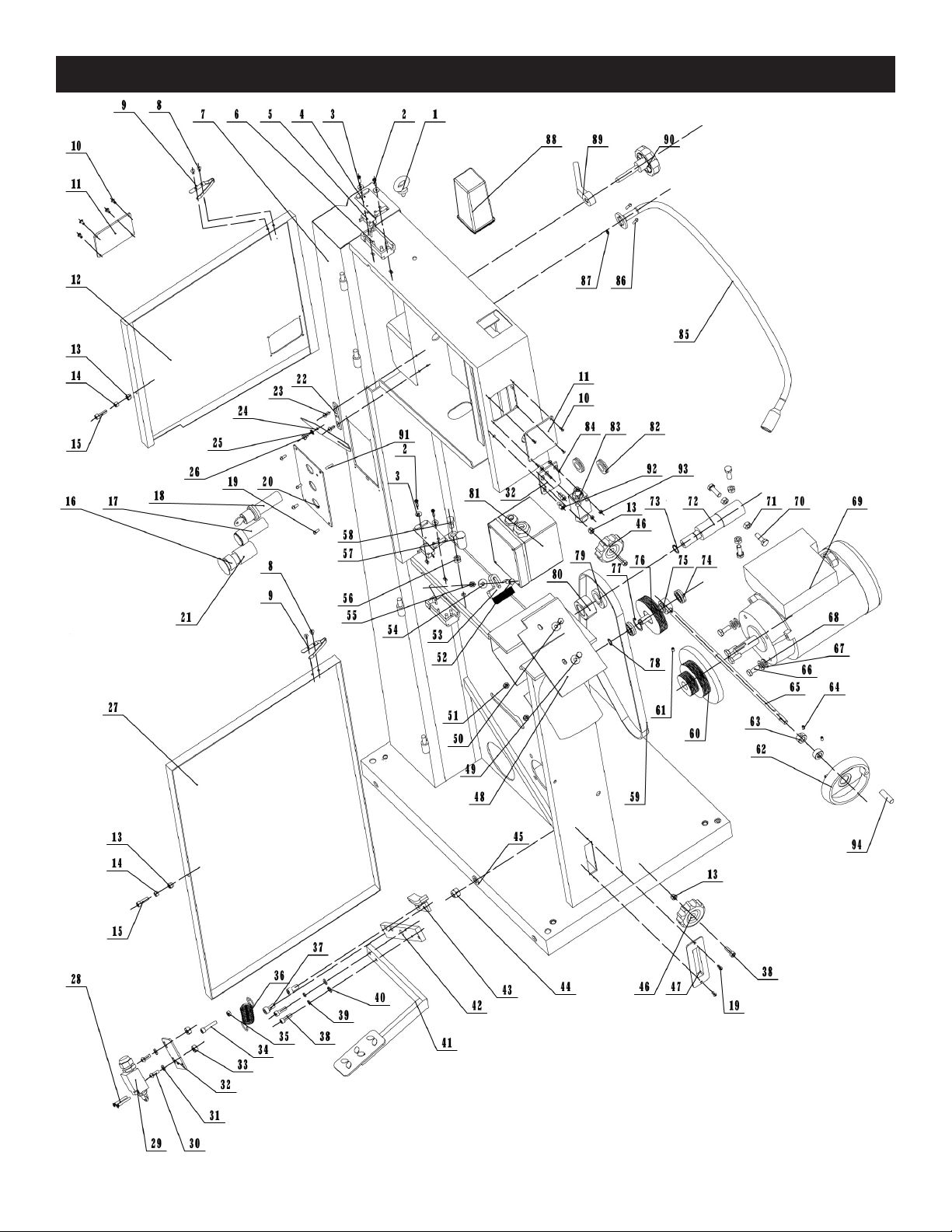

Parts Diagrams/Lists ................................................................................................................................20-29
How To Guide .....................................................................................................................................30
Warranty .............................................................................................................................................31
Table of Contents
Specications
10-350 10-350BAL

5
Model 10-350 14” Professional Bandsaw is shipped complete in one crate. Model 10-350BAL is
shipped in two cartons unless otherwise noted.
Unpacking and Checking Contents
a. Separate all “loose parts” from packaging materials and check each item with “Table of Loose
Parts” to make sure all items are accounted for, before discarding any packaging material.
b. Thread hoist ring into threading hole on top of Bandsaw frame. This allows the user to connect
a properly secured hoist mechanism to lift the Bandsaw.
c. With the help of another person or by installing hoist ring, unbolt the Bandsaw from the packing
pallet. Properly lift the Bandsaw off the packing pallet and place on level oor.
d. Remove protective oil that is applied to the table. Use any ordinary house hold type grease or
spot remover.
e. Apply a coat of paste wax to the table to prevent rust. Wipe all parts thoroughly with a clean
Contents of Package
TABLE OF LOOSE PARTS
Item Part Name Qty
A Bandsaw Assembly 1
B Table w/insert 1
C Owner’s manual 1
D Parts Package 1 1
E Parts Package 2 1
14” Professional Bandsaw
Owner’s Manual
For more information:
www.rikontools.com or [email protected]
For Parts or Questions:
[email protected] or 877-884-5167
Record the serial number and date of purchase
in your manual for future reference.
Serial number:
Date of purchase:
Part #10-350M1
Models: 10-350/10-350BAL
AB
C
D
E

6

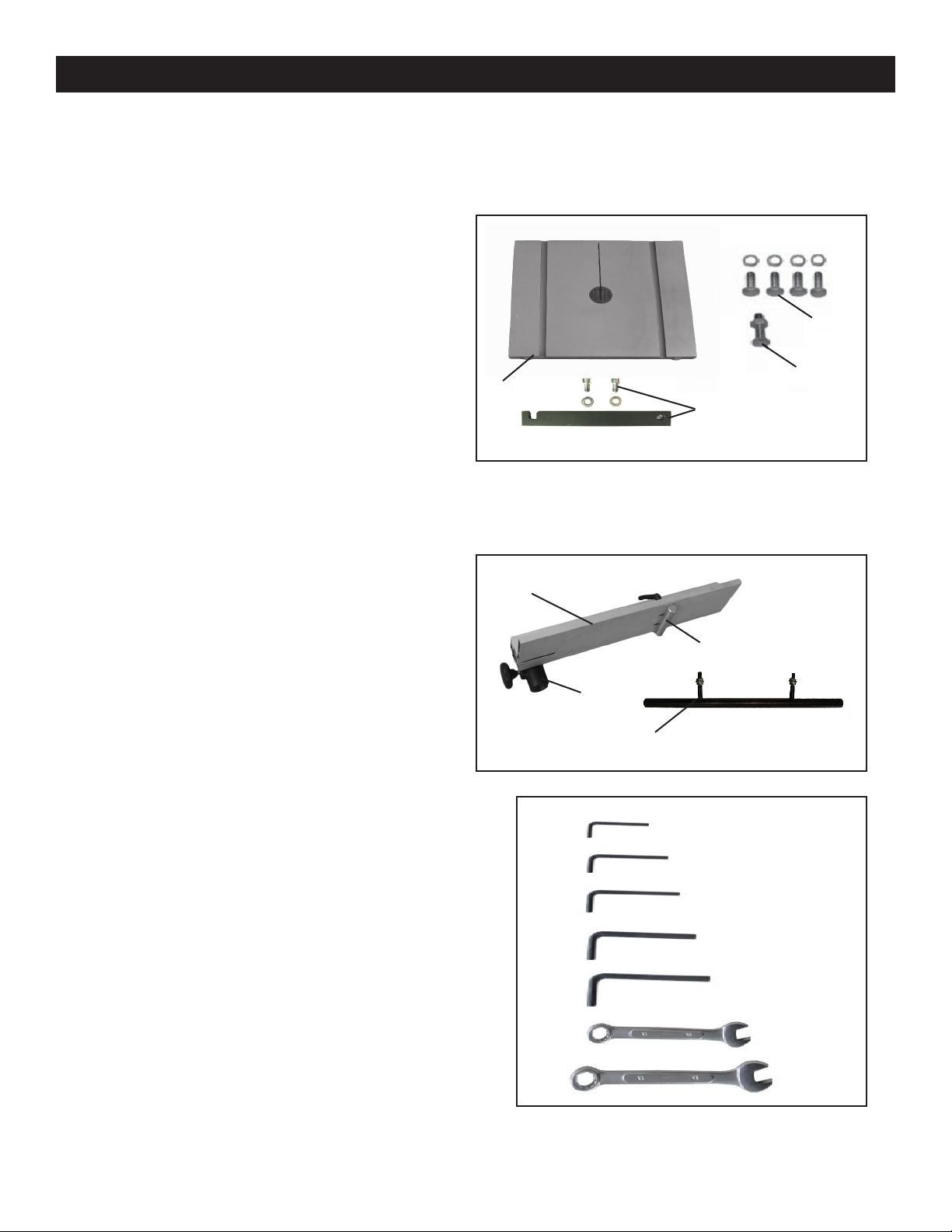

LIST OF LOOSE PARTS
Loose Parts List
Table assembly:
A. Table
B. Table leveling bar and hardware
C. 90° table stop bolt
D. Table mounting bolts and washers
Rip fence assembly:
A. Fence bar
B. Fence
C. Fence carrier
D. Resaw bar
A
B
D
C
A
Tool holder assembly:
A. L wrench 2.5MM
B. L wrench 3MM
C. L wrench 4MM
D. L wrench 5MM
E. L wrench 6MM
F. 10mm wrench
G.13mm wrench
B
C
D
A
C
D
B
E
F
G

7

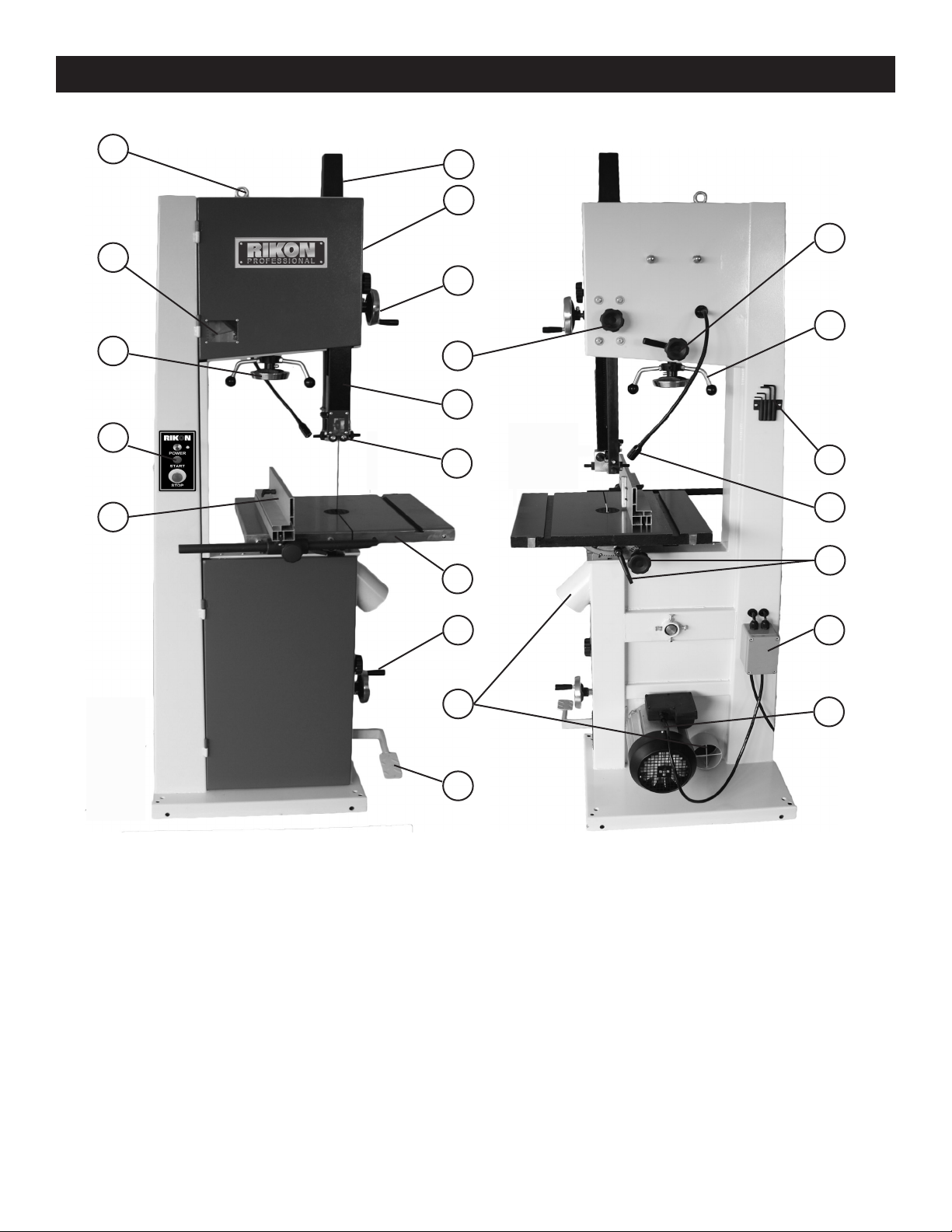

Getting to Know Your Bandsaw
A. Hoist Ring
B. Tension Indicator Window
C. Blade Tension Hand-Wheel
D. Switch
E. Rip Fence
F. Guide Post Cap
G. Blade Tracking Window
H. Guide Post Rise/Fall Handle
I. Guide Post Lock Knob
J. Hinged Blade Guard
K. Blade Guides
L. Work Table
M. Drive Belt Tension Wheel
N. 4” Dust Ports
O. Foot Break
P. Blade Tracking Knob
Q. Quick Release Lever
R. Tool Holder
S. LED Light
T. Table Tilt & Lock Knobs
U. Power Control Box
V. Motor
B
C
D
A
E
G
H
I
K
M
N
P
Q
R
S
U
V
T
F
J
L
O

Figure 1
8
Figure 2
Figure 3

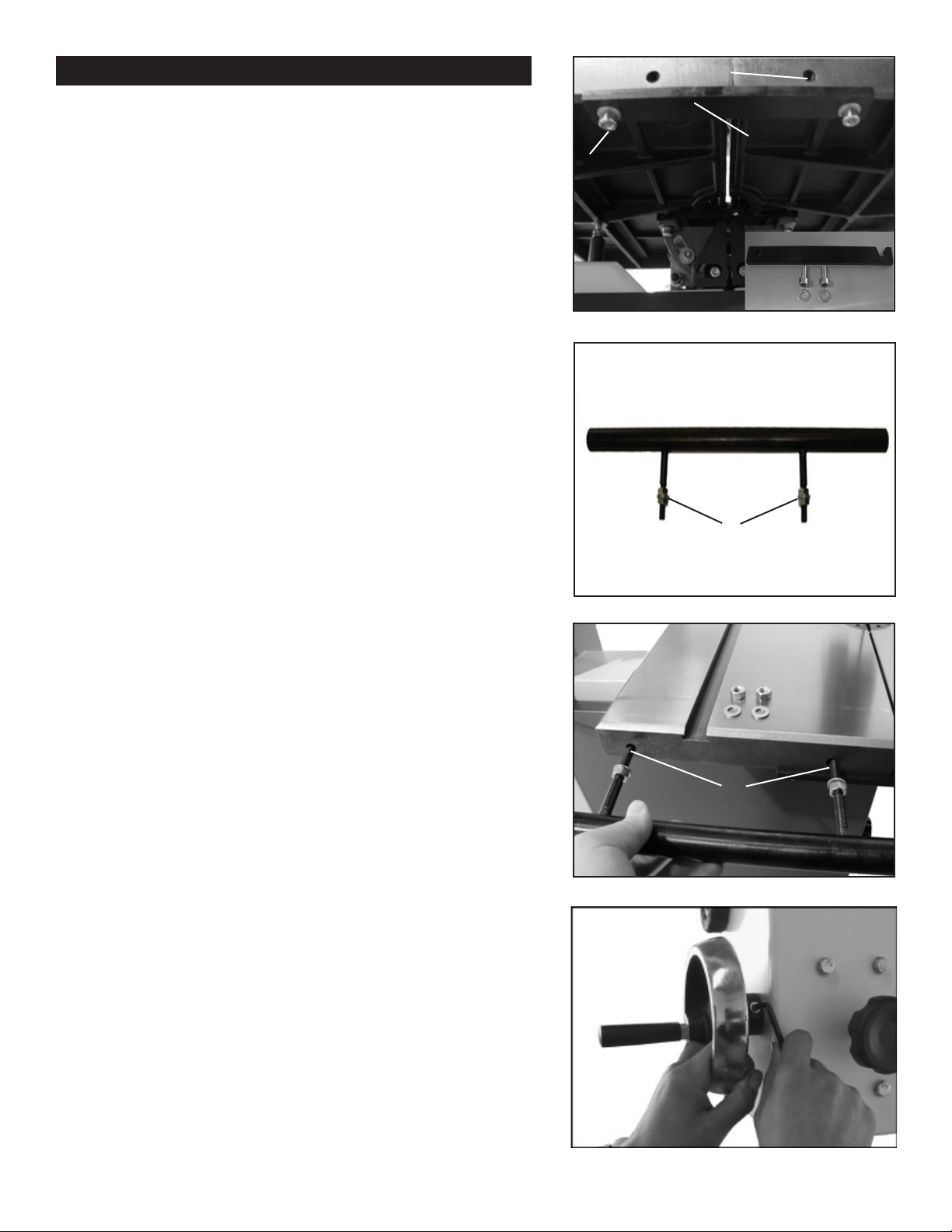

Work Table Assembly
Installing Table Leveling Bar:
Locate the table leveling bar, two hex socket screws
and two washers (A-Fig.1 Inset).
Insert a hex socket screw and washer through the left
hole of the table leveling bar and into the threaded hole
on the left side of the blade slot (B-Fig.1). Make sure
that the opening of the slot on the right side of the table
leveling bar faces toward the table trunnion. This will
allow the table leveling bar to open outward from the
bandsaw.
Rip Fence Assembly
With a 13mm wrench, remove one 13mm hex nut and
one washer from each stud on the fence bar (A-Fig.2).
Leave one each of 13mm hex nut and washer on each
stud on the fence bar. The remaining nut and washer
will be used for drift adjustments that will be described
later in this manual.
Next, install the fence bar studs into the table as
shown (Fig.3). Locate the 13mm hex nuts and washers
removed in Fig.10 and install on the opposite ends of
each fence bar stud. NOTE: It may be necessary to
open the table leveling bar to gain access to the right
side fence bar stud.
Hand Wheel Installation
There are two hand wheels used on the 10-350
bandsaw. The rst controls the height of the upper guide
post, the second adds/removes tension on the drive
belt.
Attach the rst hand wheel (Fig.4) to the rack and pinion
shaft on the upper part of the bandsaw, using the 5mm
“L” wrench provided.
Attach the second crank handle to the belt and speed
control rod located below the 4” dust port, using the
5mm “L” wrench provided.
Assembly
Figure 4
Underside of Table
Table Leveling Bar
A
Blade Slot
B
A
A

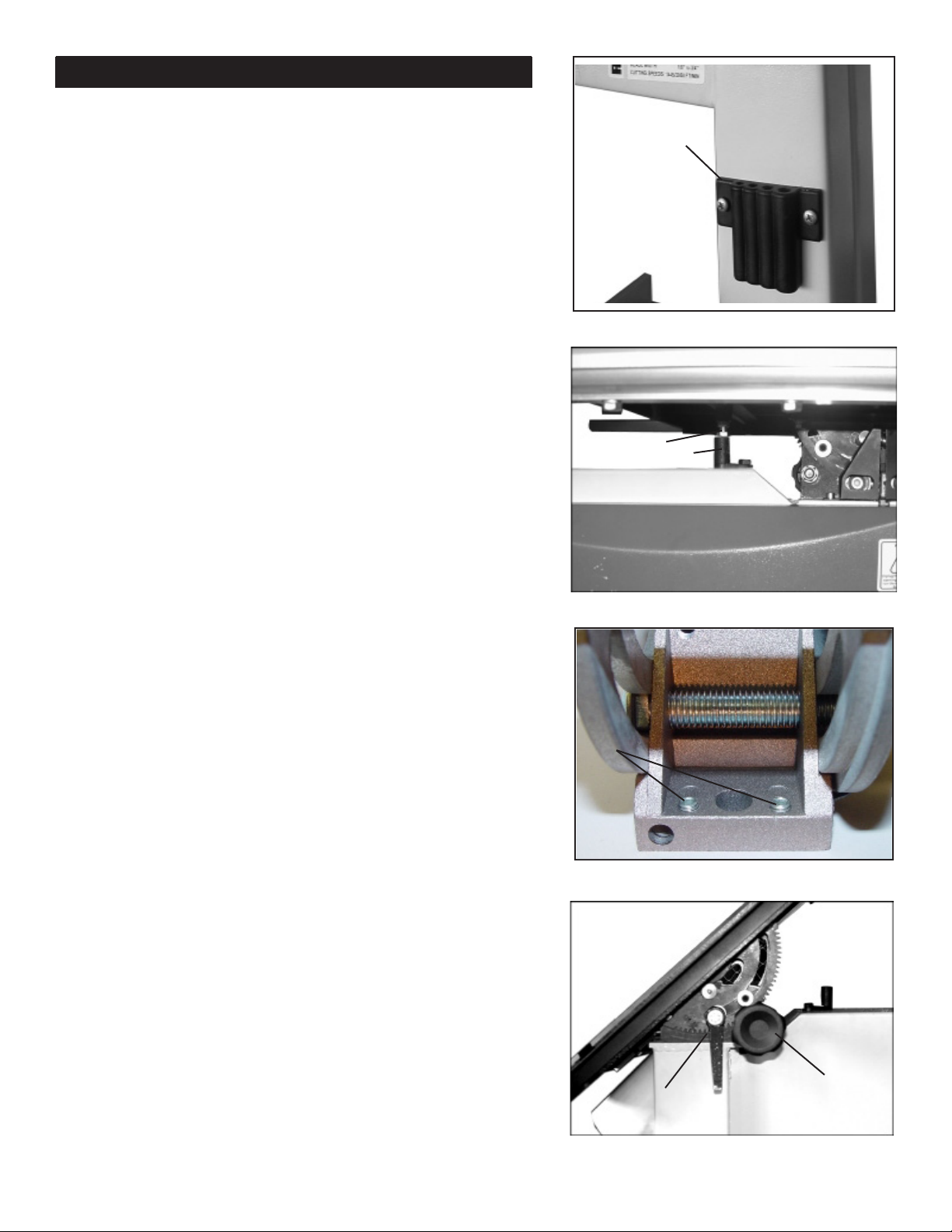

Storage for the “L” wrenches is provided for quick
access when adjustments are needed.
Place the (4) “L” wrenches (3mm, 4mm, 5mm and 6mm)
in the tool holder on the rear column support (Fig.5).
Setting the Table Square to Saw Blade
The table may be set at 90° to the saw blade sides
by adjusting the table stop screw under the table. The
table stop screw rests on the top of the quick release
adjustment stop. By rst loosening the locking nut
(A-Fig.6) and then adjusting the screw (B-Fig.6), the
table can be set correctly. Retighten the locking nut
(A-Fig.6) making sure that the setting is maintained.
The table may also be set at 90° to the back of the saw
blade by adjusting the four trunnion micro adjustment
screws (A-Fig.7). First, slightly loosen part #98 (refer to
parts explosion on page 18 of this manual). Using the
3mm “L” wrench, turn the rear trunnion micro adjusting
screws part #125. Turning the screws clockwise will
raise the trunnion; counterclockwise will lower. Check
table for 90° and tighten part #98.
(Trunnion has been removed from bandsaw for clarity. Micro
adjusting screws are raised to exaggerate location. Only two of the
four micro adjusting screws shown.)
Tilting the Table
Loosen the lock handle (A-Fig.8) on the table trunnion.
Turn the table tilting knob (B-Fig.8) to adjust the table to
the desired angle. Use the angle indicator scale on the
trunnion bracket to nd the desired angle. Retighten the
lock handle to secure the table.
Assembly
Figure 5
9
Figure 6
Tool Holder
A
B
Figure 7
Figure 8
AB
A
Adjustments

10

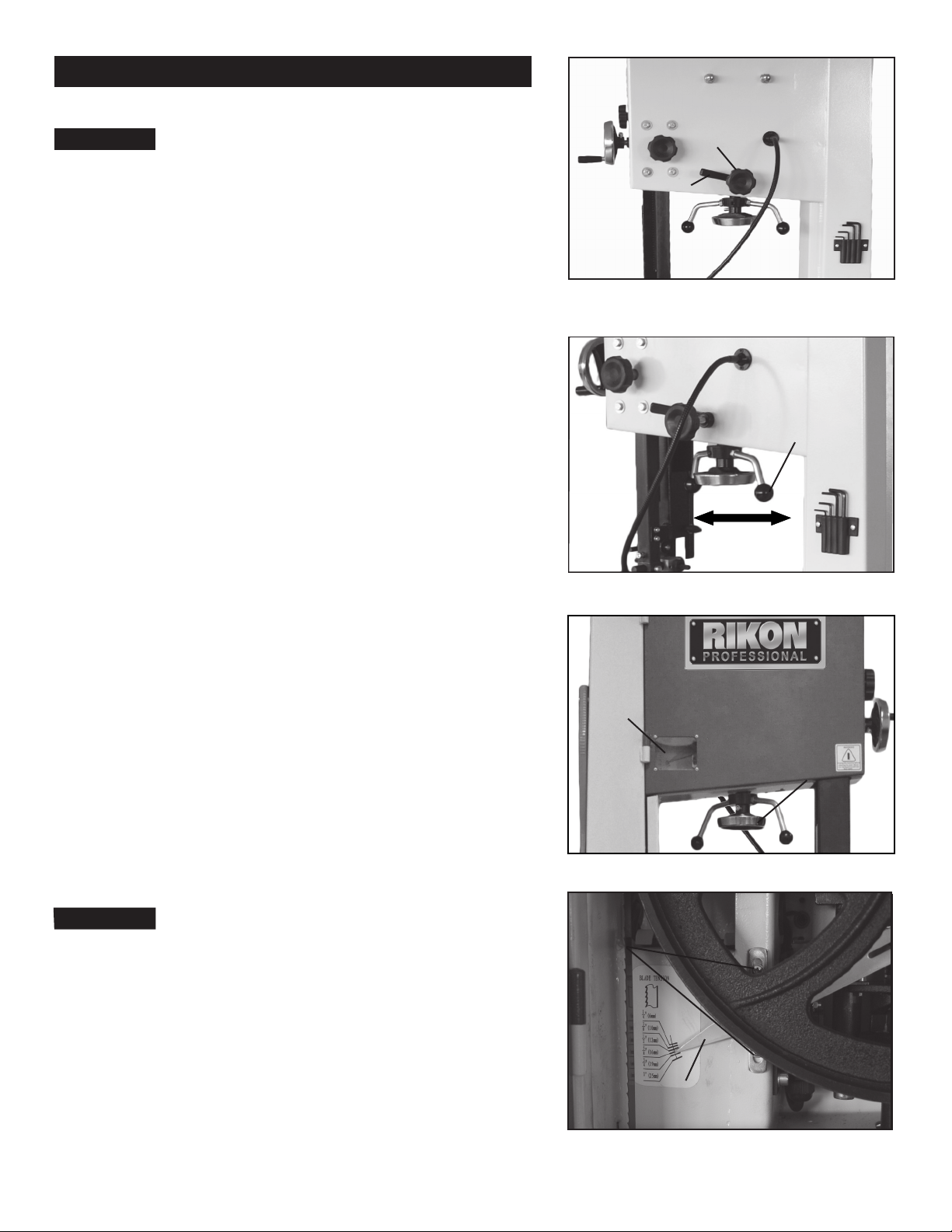

Tracking the Saw Blade
Unplug the bandsaw. Make sure the upper
and lower blade guides are adjusted away from the blade
and the tension scale is set to correspond to the width of
the blade you are using.
Note: The blade tension scale may read differently due to cut
specications of the blade manufacturer. It might be necessary to
increase/decrease tension up/down one size on blade tension scale to
achieve proper blade tension.
Open both doors. Loosen the lock lever (A-Fig.9) by
turning it counter clockwise and turn the blade tracking
knob (B-Fig.9) clockwise/counterclockwise while turning
the upper wheel by hand at least three rotations until the
blade tracks centered on the wheel. Finally, tighten the lock
lever and close the doors.
Adjusting the Blade Tension
The 10-350 has a quick release blade function which
allows for fast blade changing and tensioning. The quick
release lever is shown in gure 10.
To loosen the tension of the blade, turn the blade tension
handwheel (A-Fig.11) counter clockwise. To tighten the
tension of the blade, turn the blade tension handwheel
clockwise.
Tension the blade until the tension readings correspond
to the width of blade you are using by viewing through the
tension indicator window (B-Fig.11).
Note: The blade tension scale may read differently due to cut
specications of the blade manufacturer. It might be necessary to
increase/decrease tension up/down one size on blade tension scale to
achieve proper blade tension.
Always tension the blade with the quick
release lever in the “On” position. Failure to do so could
result in lack of blade tension or tension failure.
Blade Tension Indicator Adjustment
The blade tension indicator can be adjusted for
blades known to be cut over/under length by different
manufacturers. With moderate tension on the blade loosen
the two adjusting screws with a Phillips-head screw driver
(A-Fig.12). Adjust the blade indicator bracket up/down as
needed (B-Fig.12) and re-tighten the two adjusting screws.
Adjustments
Figure 9
Figure 10
Quick Release
Warning!
OnOff
Caution!
Figure 11
Figure 12
A
B
A
B
A
B
Quick Release
OnOff

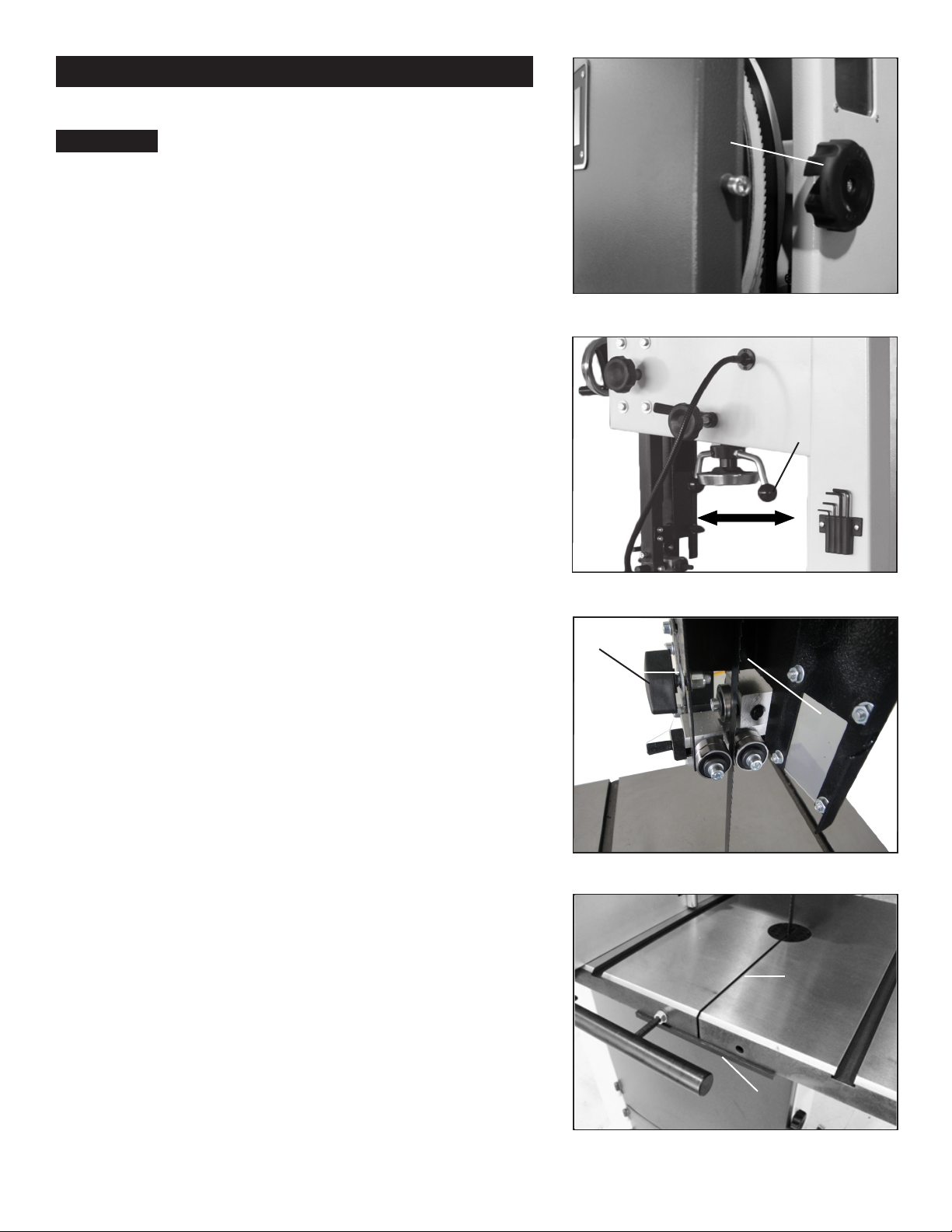

Changing the Bandsaw Blade
Unplug the machine from the electrical
supply. This ensures that the Bandsaw will not
accidentally turn on if the ON/OFF switch is bumped.
a) Open the top and bottom wheel doors by turning
the door locking knobs. (A-Fig.13)
b) Release the blade tension by moving the quick
release lever (Fig.14) from right to left. Open the
hinged door on the blade guard by loosening the
wing screw (A-Fig.15). Loosen then open the
table leveling bar (A-Fig.16).
c) Remove the saw blade by feeding it through the
slot in the table (B-Fig.16), upper and lower blade
guides and the slot in the spine of the machine,
being careful not to cut yourself. Wear gloves for
protection.
d) When installing the new blade, ensure the blade
teeth are pointing downwards and towards you at
the position where the blade passes through the
table.
e) Center the blade on both wheels.
Adjustments
11
f) Re-tension the new blade by moving the quick
release lever (Fig.14) left to right and check the
blade tracking. Spin the upper wheel clockwise
three times. The blade should run in the center of
both wheels. Refer to “Tracking the Saw Blade”
on page 10 for more details.
g) Set the blade guides as described in the section
“Adjusting the Blade Guides” on page 12.
h) Close the hinged door on the blade guard
and tighten the wing screw (A-Fig.15). Close the
table leveling bar and tighten (A-Fig. 16).
i) Close and lock both the wheel doors (A-Fig.14)
before reconnecting the power supply.
Warning!
On
Off A
Figure 13
Figure 14
AHinged Door
Figure 15
Figure 16
A
B
A
Quick Release
OnOff

12
Figure 17
Figure 18
Figure 19
Figure 20
A
C
B
A
B
C
D
Adjusting the Blade Guides
Upper Guides: To adjust the upper blade guides,
rst position the roller guides relative to the blade by
loosening the Allen cap head screw (A-Fig.17) and
sliding the guide assembly until the side roller guides
are approximately 1/16” behind the gullet of the blade
then tighten the Allen cap head screw (A-Fig.17).
Next set the roller guides to within 1/32” of the blade
by releasing the lock knob (B-Fig.17) and turning
the micro-adjusting knob (C-Fig.17). Do not set the
guides too close, as this will adversely affect the life
of the blade. When the correct adjustment is reached,
lock the guides in position by tightening the lock knob
(B-Fig.17). Finally, follow the same steps above to
position the rear thrust roller guide.
Lower Guides: To adjust the lower blade guides, rst
loosen the hex nut (A-Fig.18) then move the lower
guide support casting to allow the side roller guides to
be approximately 1/16” behind the gullets of the blade
and tighten the hex nut (A-Fig.18). Next set the roller
guides to within 1/32” of the blade by releasing the lock
knob (B-Fig.18) and turning the micro-adjusting knob
(C-Fig.18). Do not set the guides too close, as this will
adversely affect the life of the blade. When the correct
adjustment is reached, lock the guides in position by
tightening the lock knob (B-Fig.18). Adjust the thrust
bearing to be just clear of the back of the blade by
unlocking the hex nut (D-Fig.18), and turning adjusting
knob on rear of the trunnion. Finally, tighten hex nut
(D-Fig.18).
Make sure doors are closed, turn the bandsaw on and
inspect that the upper, lower and thrust bearings are
not turning. All bearings should not turn unless pressure
from workpiece is applied to the blade. If bearings are
turning under no pressure, repeat steps to adjust the
blade guides.
Adjusting the Cutting Height
Loosen the guidepost lock knob (A-Fig.19) and turn the
guidepost handwheel (B-Fig.19) to raise or lower the
guide post/upper blade guide assembly to the desired
height. Then tighten the guidepost lock knob.
Note: The bottom edge of the guide bearings should
be approximately 1/4”above the top surface of the work
piece. (Fig.20)
Approximately
1/4”
B
A

13
Changing Blade Speed Pulley Setting
Before changing the speed, always
make sure the machine has been unplugged from the
electrical supply.
The 10-350 has two pulley speed ranges, low speed
(2132 ft/min) and high speed (4101 ft/min).
The 10-350BAL has two pulley speed ranges, low
speed (2163 ft/min) and high speed (4162 ft/min).
The lower wheel (A-Fig.21) and the motor shaft have
twin multi-vee pulleys (B-Fig.21). A at ribbed “J” belt
(C-Fig.21) passes around the wheel pulley, motor pulley
and belt tension pulley. The belt tension is released and
applied by using the handwheel (D-Fig.21).
For the high speed the belt should be tted to the rear
pulley on both the motor and the wheel (A-Fig.22).
For the low speed the belt should be tted to the front
pulley on both the motor and wheel (B-Fig.22).
Setting Drive Belt Tension
To properly adjust belt tension, turn hand-wheel
(D-Fig.21) until there is 1/2” deection in the at ribbed
“J” belt.
Switch Control Station
The 10-350 has a key-on safety feature that will lock
out unauthorized users such as students, coworkers or
employees not trained or qualied to use the bandsaw.
To operate the saw turn the key (A-Fig.23) to the right to
activate the control station. A green light will illuminate
(B-Fig.23) showing that the saw is ready for use. Press
the green “START” button (C-Fig.23) to turn the saw on.
Once the cut is nished press the “STOP” button to turn
the saw off.
Note: If working with large pieces and not able to reach the “STOP”
button simply press the foot brake. There is a switch built into the
foot break assembly that will turn the saw off.
Figure 22
Figure 23
Warning!
A
B
C
Tension Pulley
Figure 21
D
A
B
Operation
A B
C D

14
Re-sawing
A resaw guide is supplied with this bandsaw to help
correct any blade wandering during certain resawing
operations.
For resawing, attach the resaw bar to the slot on the
fence. Position the resaw bar so that it is aligned with
the front of the blade. Draw a reference line down the
workpiece. Use the bar as a pivot point and follow the
line through the cut. (Fig.25)
Note: The resaw bar is not needed for all resaw operations. Proper
blade tension and selection as well as proper guide set up will allow
resawing at stock against the fence.
Basic Operation
The blade cuts on a continuous down-stroke.
With both hands, rmly hold the workpiece down on the table, and feed it towards the blade slowly,
keeping your hands away from the blade.
For best results the blade must be sharp. A dull blade will not cut correctly, especially when straight
cutting, and causes excess pressure to be applied on the rear guide bearings.
Select the right blade for the job, depending on the thickness of the wood and the cut to be made.
The thinner and harder the wood, the ner the teeth of the blade should be. Use a ne tooth blade for
cutting sharp curves.
The machine is especially suited for cutting curves, but will also make straight cuts. When cutting,
follow the design marked out by pushing and turning the workpiece evenly.
Do not attempt to turn workpiece without pushing it as this may cause the workpiece to get stuck, or
the blade to bend.
Adjusting the Rip Fence/Drift
Align the fence assembly in or out until parallel with the
side of the blade by turning the adjustment collars and
the fence bolts accordingly (A-Fig.24). If the mounting
bolts have been tightened, these will need loosened
off before this adjustment can be made. The same
adjustment can be made to compensate for blade drift.
Check that the fence is 90 degrees to the table using
a suitable square. If no adjustments are needed fully
tighten the fence bar nuts. If adjustment is required, raise
or lower either side of the fence rail until the fence body
is 90 degree to the table. Once set at 90 degrees, fully
tighten the fence bar nuts.
Figure 24
Figure 25
Pivot Workpiece
A

Features and Safety
The 10-350 14” Professional Bandsaw has many built-
in safety and feature items shown below.
LED Work Light
The LED work light is built onto a long exible goose
neck giving it the ability to illuminate the work surface
on both sides of the blade. To operate the LED work
light depress the round button (A-Fig.26). LED lights
are very bright and can wash out reference lines on
a workpiece. If the light is too bright, move the goose
neck away reducing the amount of light cast on the
workpiece.
Foot Brake
The foot brake, when depressed will slow the blade
to a stop. The foot brake (A-Fig.27) on the 10-350
will also shut off the bandsaw simultaneously. This
is an added safety feature that allows you to handle
large workpieces without having to reach back to the
switch control station to the main “STOP” button. The
lever, when depressed pivots the break pad (B-Fig.27)
against the break disc (C-Fig.27) on the motor pulley.
Quick Release Blade Tension Lever
The tension lever that operates the quick release blade
function has two of the most innovative features on
the 10-350. One feature allows the blade tension to
be released from back or front of the saw. The other
feature disables the saw from operating if the quick
release lever is not engaged with no tension on the
blade. This prevents accidental starting while the
tension lever is off and will eliminate the possibility of
damaging a blade or the saw. Fig.28
Dual Door Safety Switches
Both the upper and lower blade wheel doors are
equipped with safety switches that will shut the saw off
when opened. The saw will not operate until the blade
wheel doors are closed. If a door is opened while the
saw is running power to the motor will be cut off. The
only way to restart the saw is to make sure both band
wheel doors are closed before pressing the “START”
button.
15
Figure 26
Figure 27
A
B
C
Figure 28
A
Operate Quick Release from
the Front or Back of the Saw

Electrical Requirements
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not t the outlet, have the proper outlet installed by a
qualied electrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The
conductor, with insulation having an outer surface that is green with or without yellow stripes, is the
equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do
not connect the equipment-grounding conductor to a live terminal.
Check with a qualied electrician or service personnel if the grounding instructions are not completely
understood, or if in doubt as to whether the tool is properly grounded.
Use only three wire extension cords that have three-prong grounding plugs and three-pole
receptacles that accept the tool’s plug.*
Repair or replace a damaged or worn cord immediately.
This tool is intended for use on a circuit that has an outlet that looks the one illustrated in Figure
A below. The tool has a grounding plug that looks like the grounding plug as illustrated in Figure A
below.
* Canadian electrical codes require extension cords to be certied SJT type or better.
** Use of an adapter in Canada is not acceptable.
Figure A
16

17
BEFORE CLEANING OR CARRYING OUT MAINTENANCE WORK, DISCONNECT
THE MACHINE FROM THE POWER SOURCE (WALL SOCKET). NEVER USE WATER OR OTHER
LIQUIDS TO CLEAN THE MACHINE. USE A BENCH BRUSH. DO NOT USE COMPRESSED
AIR NEAR BEARINGS. REGULAR MAINTENANCE OF THE MACHINE WILL PREVENT
UNNECESSARY PROBLEMS.
Keep the table clean to ensure accurate cutting.
Keep the outside of the machine clean to ensure accurate operation of all moving parts and prevent
excessive wear.
Keep the ventilation slots of the motor clean to prevent it from overheating.
Keep the inside (near the saw blade, etc.) clean to prevent accumulation of dust.
This machine must be grounded. Replacement of the power supply cable should only be
done by a qualied electrician.
Caution!
WARNING!
Wiring Diagram
Maintenance

FOR YOUR OWN SAFETY, ALWAYS TURN OFF AND UNPLUG THE MACHINE BEFORE CARRYING OUT ANY
TROUBLESHOOTING.
18
TROUBLE
The machine does not
work when switched on.
The blade does not
move with the motor
running.
The blade does not cut
in a straight line.
The blade does not cut,
or cuts very slowly.
Sawdust builds up
inside the machine.
Sawdust inside the
motor housing.
The machine does not
cut at 45oor 90oangles.
The blade cannot be
properly positioned on
the bandwheels.
PROBABLE CAUSE
1. No power supply.
2. Defective switch.
1. The quick release lever or
blade tension handwheel has
not been tightened.
2. The blade has come off one
of the wheels.
3. The saw blade has broken.
4. The drive belt has snapped.
1. Fence for cutting not used.
2. Too fast feed rate.
3. The blade teeth are dull or
damaged.
4. Blade guides not suitably
adjusted.
1. The teeth are dull, caused by
cutting hard material or long
use.
2. The blade was mounted in
the wrong direction.
1. This is normal
1. Excessive dust build-up
on the machine exterior
components.
1. The table is not at right
angles to the blade.
2. The blade is dull or too much
pressure was put on the
workpiece.
1. The wheels are not in
alignment. Defective bearing.
2. The blade tracking knob
hasn’t been properly adjusted.
3. Inferior blade.
REMEDY
Check the cable for breakage.
Contact your local dealer for repair.
Switch off the motor, tighten the quick release
lever or blade tension handwheel.
Open the hinged door and check.
Replace the blade.
Replace the belt.
Use a fence.
Put light pressure on the workpiece & make
sure the blade does not bend.
Use a new blade.
Adjust the blade guides (see the section on
page 12).
Replace the blade, use a 6 T.P.I. blade for
wood and soft materials. Use a 14 T.P.I.
blade for harder materials. A 14 T.P.I. blade
always cuts slower due to the ner teeth and
the slower cutting performance.
Fit the blade correctly.
Clean the machine regularly. Open the
hinged door and remove the sawdust with a
vacuum cleaner.
Clean the ventilating slots of the motor with
a vacuum cleaner. From time to time remove
the sawdust to prevent it from being sucked
into the housing
Adjust the table.
Replace the blade or put less pressure on
the workpiece.
Contact Technical Support @ 877-884-5167
or [email protected].
Adjust the knob (see the section on page 10).
Replace the blade.
For parts or technical questions contact: [email protected] or 877-884-5167.
WARNING!
Troubleshooting

Adjusting the Upper Blade Guide Bearings Parallel to the Blade
(Refer to “Guide Post Assembly” parts diagram on page 28)
This step may not be necessary, it is factory preset. If adjustment is needed follow the steps
below.
First slightly loosen part #226 Hex Bolt M8X20 (4 each) on rear of upper bandsaw housing. This
will allow you to adjust the micro adjustment screws #227 in part #224 Gear Bracket.
Next place a 3mm “L” wrench through the sight holes in part #198 Cover. Turning clockwise on
the micro adjustment screws in left two holes will adjust the left bearings to the right. Turning
clockwise on the micro adjustment screws in the right two holes will adjust the right bearings to
the left. Check bearings for parallel.
Lastly tighten parts #226 Hex Bolt (4) on back of bandsaw housing. Repeat steps if the bearings
are still not parallel.
Adjust Upper Side Bearings Which Will Not Track Close to the Blade
(Refer to “Guide Post Assembly” parts diagram on page 28)
If the right or left upper guide bearings do not adjust to within 1/32” of the blade, the Guide Post
(part #195) may need adjustment.
First lower the Guide Post (part #195) all the way to the table.
Second slightly loosen parts #226 Hex Bolt M8X20 (4) on the back of the upper bandsaw cabinet
housing.
Next swing the Guide Post (part #195) right or left until side guide bearings are properly spaced
on each side of blade making sure that the blade will strike the center of the rear thrust bearing.
Tighten part #226 Hex Bolt M8X20 (4) on the back of the upper bandsaw cabinet housing.
Raise the Guide Post (part #195) seven inches off the table and check alignment. If side guide
bearings travel out of alignment repeat steps above. Raise the Guide Post (part #195) to the top
of the travel and check nal alignment. Repeat steps above if necessary.
Changing Bandsaw Tire
Use a putty knife to get underneath the tire and pull it up and away from the wheel. Work the putty
knife all the way around the wheel to loosen the tire. Then, use the putty knife as leverage to ip the
tire over and off of the wheel. Clean the inside of the groove, removing any dirt, debris or cement with
lacquer thinner.
Soak the replacement tire in warm water to make it more exible. Let tire dry and lay on top of wheel.
Start by setting the tire into the wheel groove at the top of the wheel. Using a putty knife, work the
new tire around the wheel, making sure not to slice the tire. If rubber cement is to be used, make sure
to distribute evenly. Having high spots between the wheel and the tire will cause a vibration and effect
blade tracking. 19
Troubleshooting

20
Parts Diagram
Frame Assembly
