Rinnai POLO PC47C User manual

1
POLOCOOL Portable Room Air Conditioner
Operation & Installation Manual
Models:
REFRIGERANT
R32
PC47C
by

2
For continued safety of this appliance it must be
installed and maintained in accordance with the
manufacturer’s instructions.
Before proceeding with the operation of your
new Rinnai Portable Room Air Conditioner,
please read this manual thoroughly and gain a
full understanding of the requirements, features
and operation of your new appliance.
REFRIGERANT
R32

3
Table of Contents
Important Information 4
Safety Precautions 5
Introduction 9
Mandatory Inspection Prior to Installation .............................................................................................10
Warnings and Important Information 10
Specications 11
Name of Each Part and Function 12
Selection of Installation Location ...........................................................................................................13
Installation Accessories .........................................................................................................................13
Installation 13
Assembly ...............................................................................................................................................14
Operation of Control Panel ....................................................................................................................17
Control Panel 17
Modes of Operation ...............................................................................................................................18
Setting the Timer ...................................................................................................................................18
The Remote Control ..............................................................................................................................19
Correct Use ...........................................................................................................................................19
Operation of Remote Control 19
Water Drainage......................................................................................................................................22
Water Drainage Method 22
Maintenance Methods ...........................................................................................................................23
Cleaning the Air Filter ............................................................................................................................23
Maintenance and Service 23
End of Season Operations ....................................................................................................................24
Trouble Shooting 25
Self Diagnosis........................................................................................................................................26
Warranty 27

4
Important Topics Regarding the Proper
Use of this Air Conditioner
Please contact your supplier for advice before returning unit
Use this air conditioner only as described in this instruction manual.
yThis appliance is tted with a special safety device. When the compressor switches o󰀨 or when the appliance is
rst turned on, this device prevents the compressor from switching on again for at least three minutes.
yThis air conditioner has been designed and manufactured to operate in a domestic situation only and should
not be used for other purposes.
yThe appliance is not intended for use by young children or inrm persons.
yNever use the air conditioner in damp rooms (eg bathrooms and laundries)
yIf the power cord is damaged, it must be replaced with a new cord installed by a suitably qualied person.
yThis air conditioner is designed to be connected to a standard IO amp power supply outlet.
yDo not pull on or place strain on the power cord when using the appliance.
yDo not operate or stop the appliance by inserting or pulling out the power plug. Use the on/o󰀨 switch on the air
conditioner control panel or the remote control.
yDue to potential safety hazards, do not use an extension cord or share the power supply outlet with other
appliances. Do not connect to multiple power outlets on extension leads.
yDo not rest hot or heavy objects on the appliance.
yAlways unplug the unit from the power outlet before cleaning or maintenance operations, for example lter
cleaning.
yDo not place the air conditioner or plastic window slider in direct sunlight.
yFor maximum cooling e󰀩ciency keep the exhaust hose as short and as free of bends as possible.
yClean the lters at least once every two weeks.
yDo not splash the unit with water.
yDo not move the unit by pulling the exhaust hose attached to the back of the unit.
yDo not move air conditioner when it is operating.
yDo not use the unit with the air intake and outlet grills closed, covered or obstructed.
yBefore transporting the air conditioner, drain the water pan in accordance with the instructions on page 16. After
transportation, wait at least one hour before switching the unit on.
yThe unit should be transported in a vertical position. If this is not possible, secure the unit at an angle, do not
lay it horizontally.
yDo not operate the air conditioner outdoors or in areas open to the outdoors.
yIf the air conditioner is only being used as a spot cooler (simply to put cool air directly on a person or thing), do
not connect the rear exhaust outlet.
yIf the compressor runs without cool air coming out of the top air outlet after 10 minutes of correct operation,
switch o󰀨 the unit and contact your supplier.
yWhen the compressor is running, hot air should always be expelled from the bottom rear outlet. If it is not,
switch o󰀨 and contact your supplier.
yAt high temperatures to protect the unit from overheating the compressor may stop. Air will ow out of the front
air outlet but it will not be cooled. In this event, switch o󰀨 the appliance for approximately one hour to enable the
thermal cut out to self reset. The unit may then be operated in the normal manner.
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Important Information

5
Safety Precautions
Safety Precautions
Safety
WARNING
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety Precautions
Read Safety Precautions Before Operation and Installation
Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or fire.
To prevent death or injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may cause
death, harm or damage.
 Page 3
WARNING
This symbol indicates the possibility
of personal injury or loss of life.
CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
Use only the included accessories and parts, and specified tools for the installation. Using non-
standard parts can cause water leakage, electrical shock, fire, and injury or property damage.
Make sure that the outlet you are using is grounded and has the appropriate voltage.
The power cord is equipped with a three-prong grounding plug to protect against shock.
Voltage information can be found on the nameplate of the unit.
Your unit must be used in a properly earthed wall socket. If the wall socket you intend to use is
not adequately grounded or protected by a time delay fuse or circuit breaker (the fuse or
circuit breaker needed is determined by the maximum current of the unit. The maximum
current is indicated on the nameplate located on unit), have a qualified electrician install the
proper earthed wall socket
Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive
noise and vibration.
The unit must be kept free from obstruction to ensure proper function and to mitigate safety
hazards.
Do not modify the length of the power cord or use an extension cord to power the unit.
Do not share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
Do not install your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
Do not install the unit in a location that may be exposed to combustible gas, as this could
cause fire.
The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to
roll over objects, as these could cause tipping.
Do not operate a unit that it has been dropped or damaged.
The appliance with electric heater shall have at least 1 meter space to the combustible
materials.
Do not touch the unit with wet or damp hands or when barefoot.
If the air conditioner is knocked over during use, turn off the unit and unplug it from the main
power supply immediately. Visually inspect the unit to ensure there is no damage. If you
suspect the unit has been damaged, contact a technician or customer service for assistance.

6
Safety Precautions
 Page 4
•
•
•
•
In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
Your air conditioner should be used in such a way that it is protected from moisture.
e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can
fall or be pulled into water or any other liquid. Unplug immediately if it occurs
The unit's circuit board (PCB) is designed with a fuse to provide overcurrent protection. The
specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
When the water drainage function is not in use, keep the upper and the lower drain plug firmly
to the unit to get rid of choking. When the drain plug is not in use, keep it carefully to prevent
children from choking.
•
•
•
•
•
•
•
•
•
•
•
•
•
CAUTION
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.
Children must be supervised around the unit at all times.(be applicable for other countries
except the European Countries )
If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
Prior to cleaning or other maintenance, the appliance must be disconnected from the supply
mains.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has
been dropped or damaged.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or
return to an authorised service facility for examination and/or repair.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control
device.
The appliance shall be installed in accordance with national wiring regulations.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use this product for functions other than those described in this instruction manual.
Before cleaning, turn off the power and unplug the unit.
Safety Precautions
 Page 5
•
•
•
•
•
•
•
•
•
Disconnect the power if strange sounds, smell, or smoke comes from it.
Do not press the buttons on the control panel with anything other than your fingers.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has
been dropped or damaged.
Do not operate or stop the unit by inserting or pulling out the power cord plug.
Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit
in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc.
Always transport your air conditioner in a vertical position and stand on a stable, level surface
during use.
Always contact a qualified person to carry out repairs. If the damaged power supply cord must
be replaced with a new power supply cord obtained from the product manufacturer and not
repaired.
Hold the cord by the head of the power plug when taking it out.
Turn off the product when not in use.

7
Safety Precautions
 Page 5
•
•
•
•
•
•
•
•
•
Disconnect the power if strange sounds, smell, or smoke comes from it.
Do not press the buttons on the control panel with anything other than your fingers.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has
been dropped or damaged.
Do not operate or stop the unit by inserting or pulling out the power cord plug.
Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit
in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc.
Always transport your air conditioner in a vertical position and stand on a stable, level surface
during use.
Always contact a qualified person to carry out repairs. If the damaged power supply cord must
be replaced with a new power supply cord obtained from the product manufacturer and not
repaired.
Hold the cord by the head of the power plug when taking it out.
Turn off the product when not in use.

8
Safety Precautions
Page 6 
WARNING for Using R32 Refrigerant
Caution: Risk of fire/
flammable materials
WARNING
CAUTION
CAUTION
CAUTION
This symbol shows that this appliance used a
flammable refrigerant. If the refrigerant is leaked and
exposed to an external ignition source, there is a risk
of fire.
This symbol shows that the operation manual
should be read carefully.
This symbol shows that a service personnel should be
handling this equipment with reference to the
installation manual.
This symbol shows that information is available such
as the operating manual or installation manual.
Do not use means to accelerate the defrosting process or to clean, other than those recommended
by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition sources (for
example: open flames, an operating gas appliance or an operating electric heater).
Do not pierce or burn.
Be aware that the refrigerants may not contain an odour.
Appliance should be installed, operated and stored in a room with a floor area according to the
amount of refrigerant to be charged. For specific information on the type of gas and the amount,
please refer to the relevant label on the unit itself.
Compliance with national gas regulations shall be observed.
Keep ventilation openings clear of obstruction.
The appliance shall be stored so as to prevent mechanical damage from occurring.
A warning that the appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorises their
competence to handle refrigerants safely in accordance with an industry recognised assessment
specification.
Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance
and repair requiring the assistance of other skilled personnel shall be carried out under the
supervision of the person competent in the use of flammable refrigerants.
The appliance shall be stored in a room without continuously operating open flames (for example an
operating gas appliance) and ignition sources (for example an operating electric heater).
Explanation of symbols displayed on the unit (For R32Refrigerant only):

9
This portable air conditioner can alter the room temperature and humidity. It has multiple functions of cooling,
dehumidifying (drying) and fan ventilation, and can be moved from room to room and transported from building to
building easily. This portable air conditioner can alter the room temperature and humidity. It has multiple functions of
cooling, dehumidifying (drying) and fan ventilation. It can be moved from one room to another and transported from
building to building easily.
The air conditioner can maintain set room indoor air temperatures between 18°C and 32°C. The set room
temperature is displayed on the remote control and in the control panel on the unit. This does not mean that the
air conditioner will necessarily reduce the actual room temperature to the set room temperature. This appliance
operates at half the noise levels of most other portable air conditioners and is ideal for bedrooms.
This POLOCOOL portable refrigerated air conditioner model PC47C has a maximum cooling capacity of 4.7 kW.
This is su󰀩cient to cool rooms with a oor area of between 20 and 42 square metres.
yDo not place the air conditioner or plastic window slider in direct sunlight. Close all curtains in the room being
cooled.

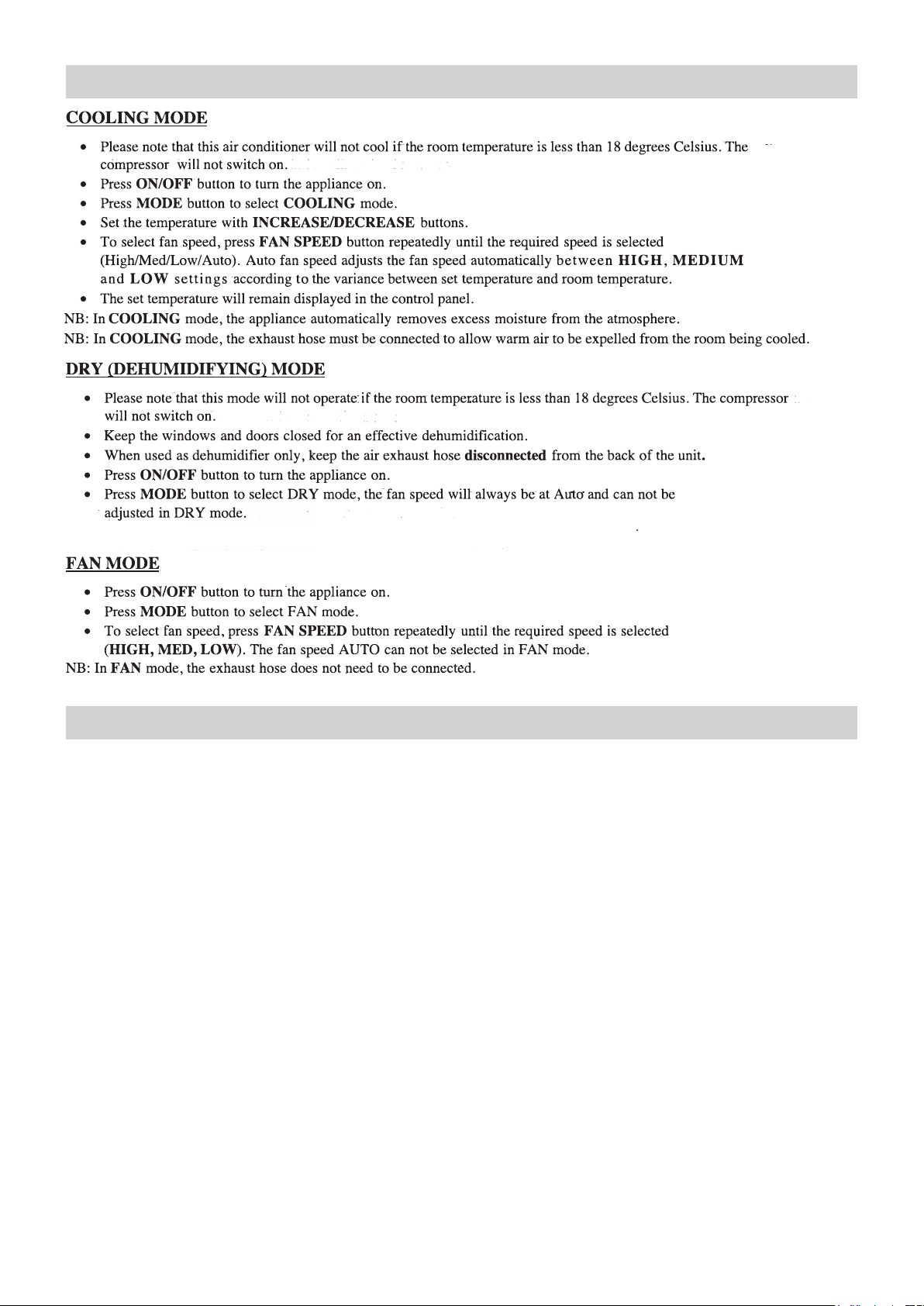

yFor maximum cooling (COOLING MODE), set the temperature at 18°C and the fan at HIGH. After
approximately 3 minutes, the compressor will turn on and cooled air will come out of the front air outlet. Warm
air will also come out of the rear outlet and into the exhaust hose.
yIn COOLING MODE the air conditioner will not cool unless the set temperature is below the existing room
temperature.
yIn COOLING MODE once the existing room temperature reaches the set temperature, the fan continues
operating and the compressor switches on and o󰀨 to maintain the set temperature within the room.

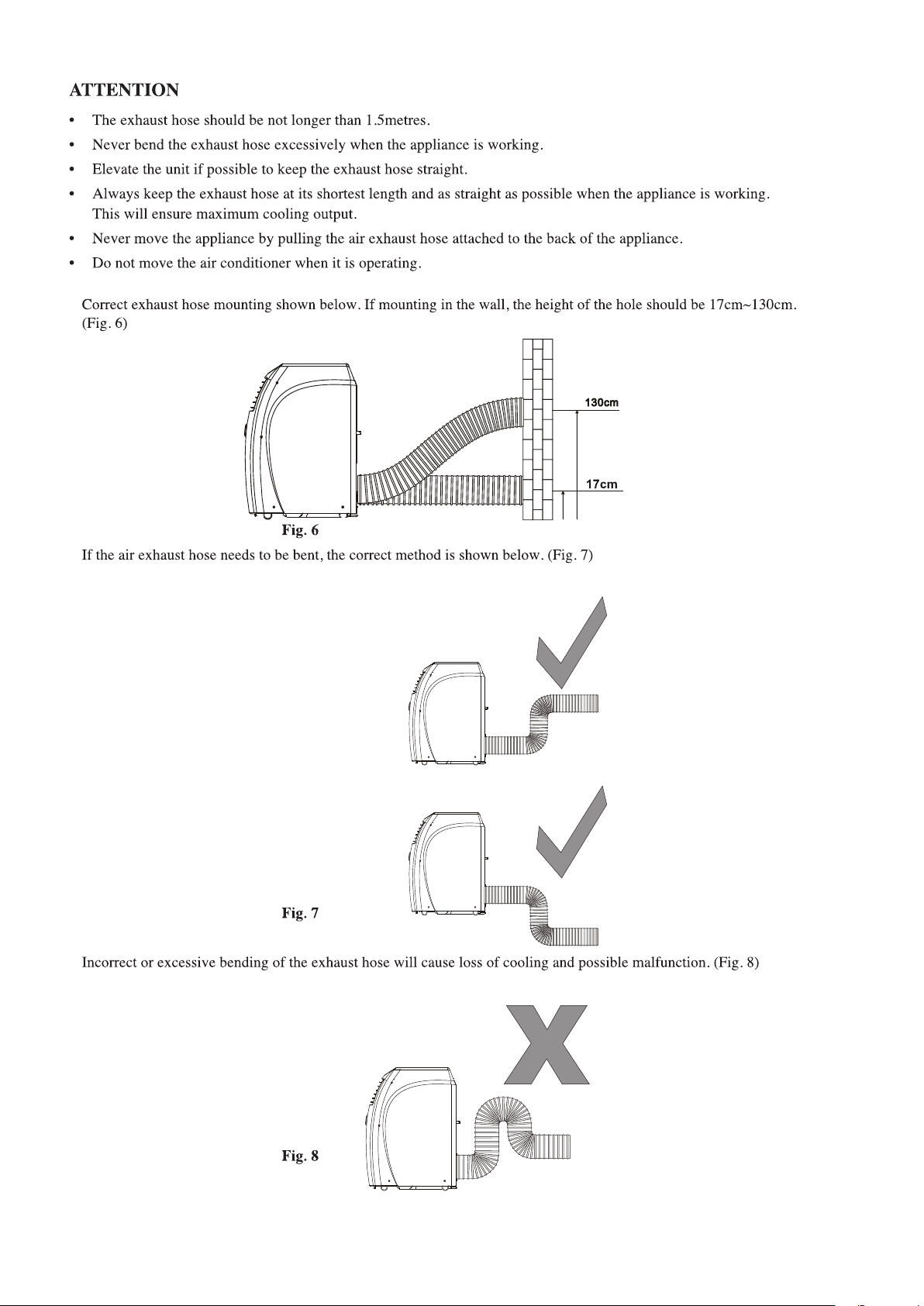

yFor maximum cooling output keep the exhaust hose as short and as straight as possible. Minimise bends which
can reduce the maximum cooling capacity of the air conditioner. Elevate the air conditioner if necessary.
yMake sure the air intake and outlet grills are unobstructed.
yClean the lters at least once every two weeks.
Introduction

10
Warnings and Important Information
R32
WARNING
This appliance uses R32 (diuoromethane) refrigerant, which is a ammable gas class 2.2
according toAS/NZS 1677 and must be handled by a refrigeration mechanic with appropriate
Australianrefrigeranthandlinglicence.
WARNINGRiskofre/ammablematerial.Iftherefrigerantisleaked,togetherwithan
externalignitionsource,thereisapossibilityofignition.
ReadtheOPERATINGINSTRUCTIONScarefullybeforeoperation.
Service personnel are required to carefully read the OPERATING INSTRUCTIONS and
INSTALLATIONMANUALbeforeoperation.
Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION
MANUAL,andthelike.
Theappliancemustbeinstalled,usedandstoredinaventilatedareathatisgreaterthan2m2.
Theappliancemustbeplacedinanareawithoutanycontinuoussourcesofignition(forexample:
openames,gasorelectricalappliancesinoperation).
yThis appliance contains 480g of R32 refrigerant gas.
yWhen cleaning the appliance, do not use any tools other than those recommended by the
manufacturing company.
yDo not puncture and do not burn.
yRefrigerant gases can be odourless.
yIf the appliance is installed, operated or stored in a non-ventilated area, the room must be
designed to prevent the accumulation of refrigerant leaks resulting in a risk of re or explosion due to ignition of
the refrigerant caused by electric heaters, stoves, or other sources of ignition.
yThe appliance must be stored in such a way as to prevent mechanical failure.
yRepairs must be performed based on the recommendations from the manufacturing company. Maintenance
and repairs that require the assistance of other qualied personnel must be performed under the supervision of
an individual specied in the use of ammable refrigerants.
Mandatory Inspection Prior to Installation
Immediately report any damage or discrepancies to the Supplier of the appliance. This appliance was inspected
and tested at the time of manufacture and packaging, and released for transportation without known damage. Upon
receipt, inspect the exterior for evidence of rough handling in shipment. Ensure that the appliance is labelled correctly
for the gas and electrical supply, and/or other services it is intended to be connected to.
For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be installed or operated
under any circumstances. Installation of damaged or incorrect appliances may contravene local government
regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the installation or operation of
damaged or incorrect appliances.
NOTE
A NOTE ON ILLUSTRATIONS
The illustrations used in this manual are for explanatory purposes only and the shape of your indoor unit
may vary slightly from that which is shown in this manual.

11
MODEL PC47C
Power Supply V/Hz 220-240V / 50
Dimensions - Net (H x W x D) mm 775 x 568 x 365
Weight kg 43
Nominal Cooling Capacity kW 4.7
Maximum Input Current A 9.8
Maximum Input Power kW 1.98
Refrigerant Type R32
Refrigerant Volume g 480
Sound Power Level dB(A) 65
365mm
775mm
568mm
Specifications

12
Name of Each Part and Function

13
Installation

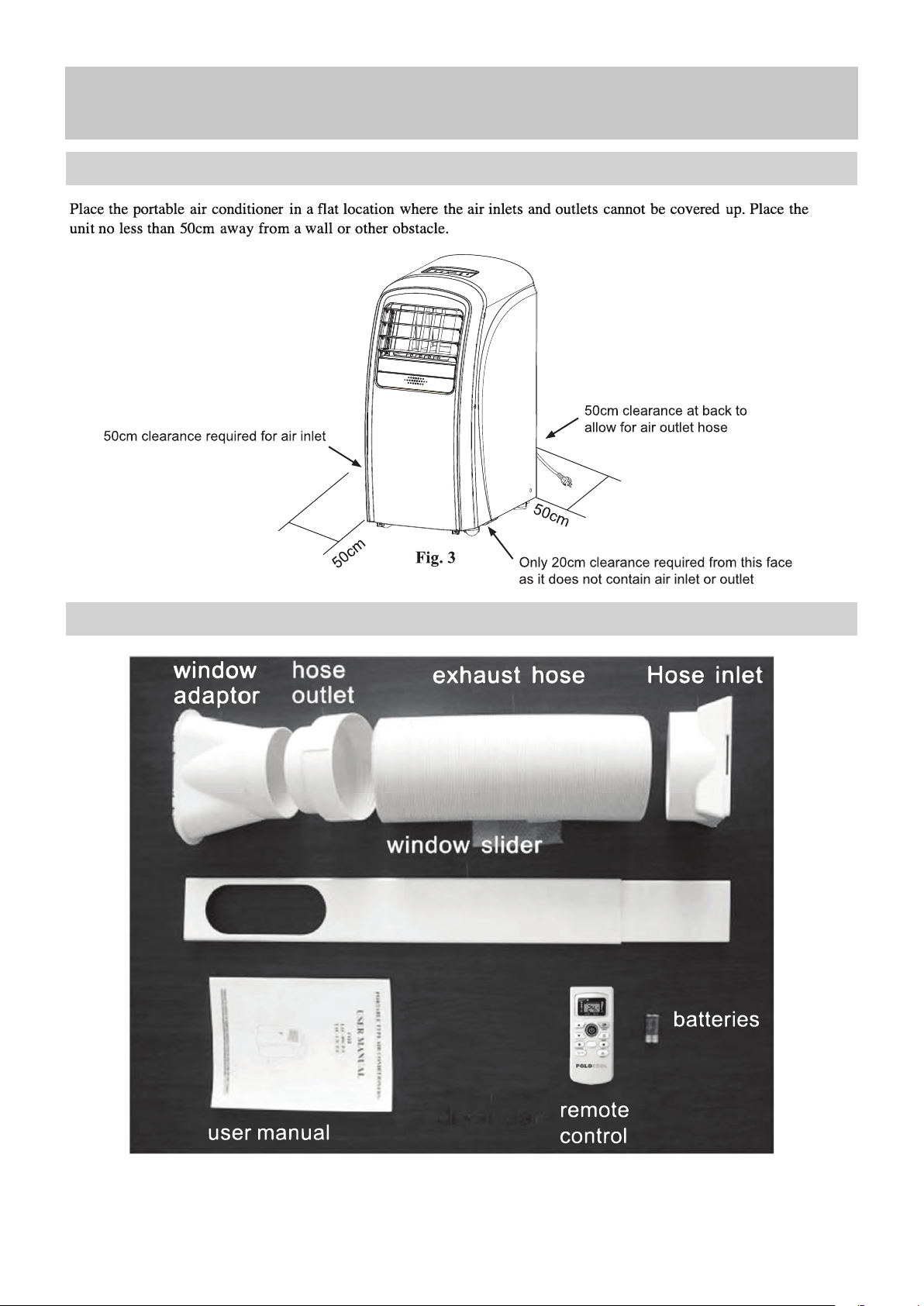

Installation Accessories
Selection of Installation Location

14

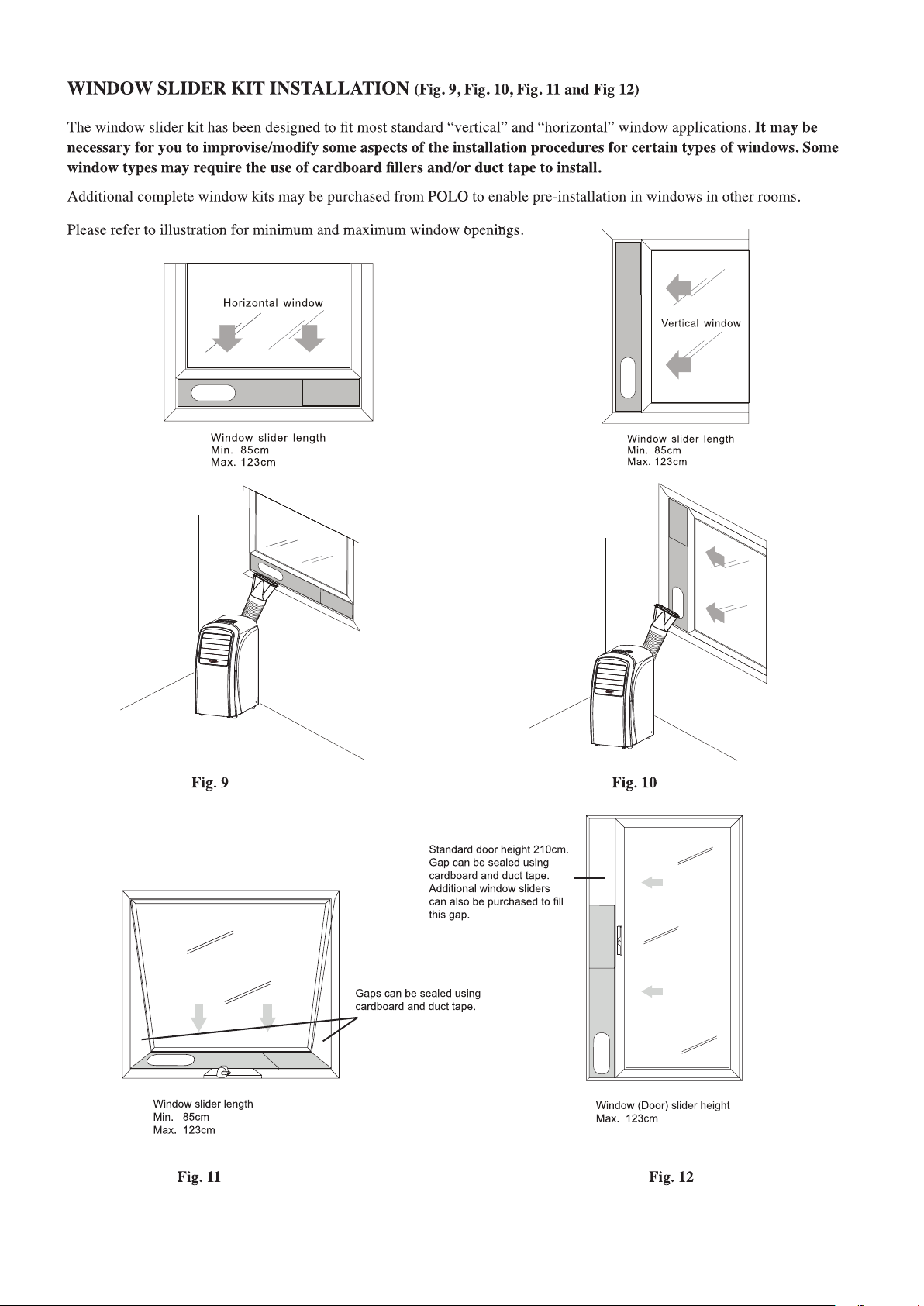

Assembly

15

16

17
Control Panel
Operation of Control Panel
NOTE
Only one mode of operation is available at any one time. Eg. Cool Mode, Dry Mode or Fan Mode only.

18
Setting the Timer

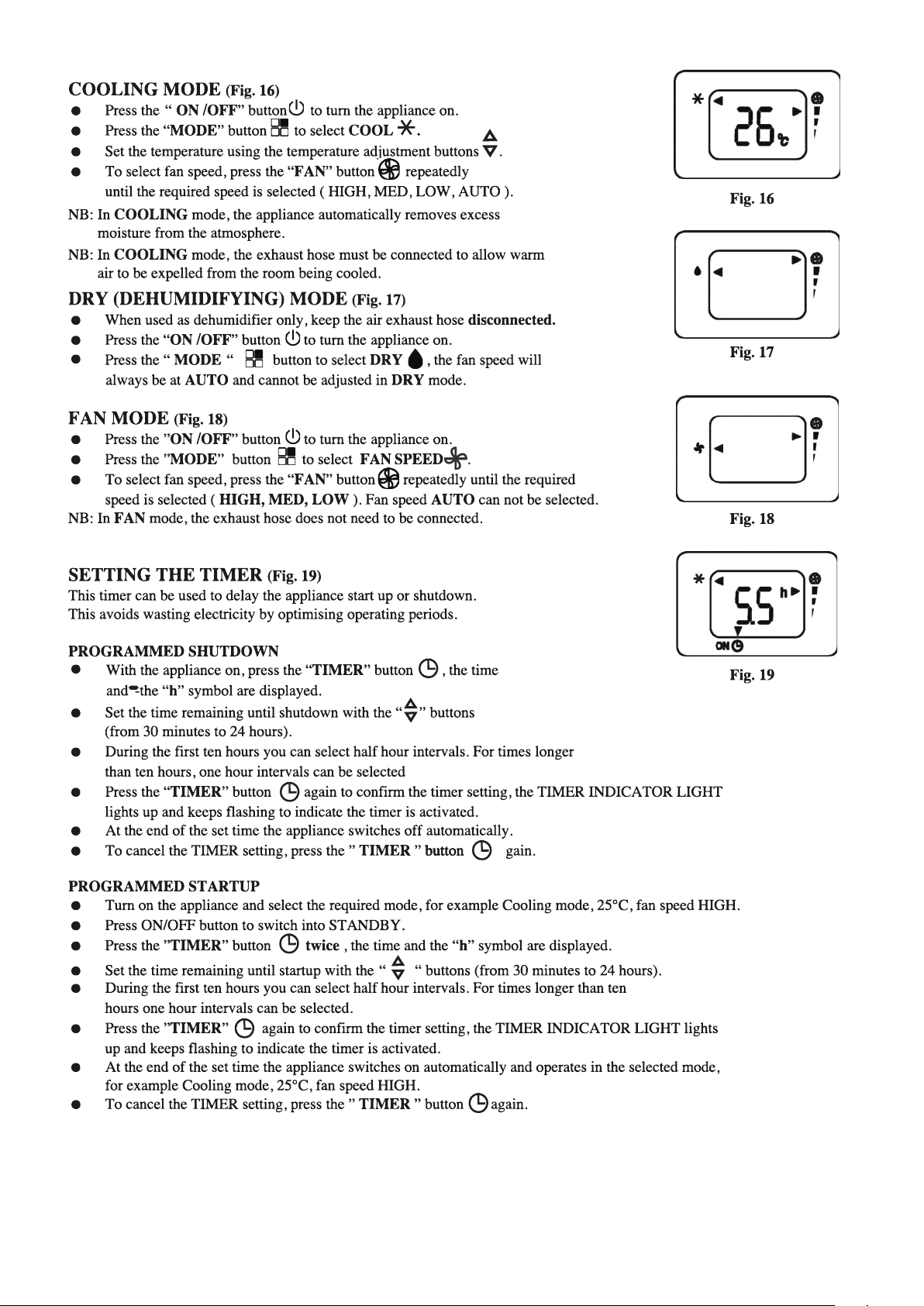

Modes of Operation
This timer can be used to delay the appliance start up or shutdown. This avoids wasting electricity by optimising operating
periods.
PROGRAMMED START-UP
yTum on the appliance, choose the mode you want, for example cool, 24°C, high fan speed. Tum o the appliance.
yPress the Timer button, the TIMER symbol and number of hours ash.
yPress the TIMER button to set the number of hours delay before the appliance comes on. The timer can set in intervals of 1
hour up to 24 hours.
yA few seconds after set, the setting is memorised, the timer indicator is lit and the display shows that
the appliance is in standby.
yPress again the Timer button TIMER or the ON/OFF button, the timer will be cancelled, and the TIMER symbol will
disappear from screen.
PROGRAMMED SHUTDOWN
yWhen the appliance is running, press the TIMER button, the Timer indicator and the hours ash.
yPress the TIMER button to set the number of hours delay before the appliance comes on. The timer can set in intervals of 1
hour up to 24 hours.
yA few seconds after set, the setting is memorised, the timer indicator is lit and the display shows the current mode. At the
end of the set time the unit automatically turns to standby mode.
yPress again the Timer button TIMER or the ON/OFF button, the timer will be cancelled, and the TIMER symbol will
disappear from screen.
yWater tank will require emptying.

19

THE REMOTE CONTROL






CORRECT USE
Fig.13


 



 ,�/[


Fig.14


 








 
°CI  




  








 
  S
°°  
ING
Fig.15
13
by
Operation of Remote Control
The Remote Control
Correct Use

20
