Rinnai HSNRA26 User manual

This appliance shall be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000
• Local Regulations and Municipal Building Codes including local OH&S requirements
This appliance must be installed, maintained and removed by an Authorised Person.
For continued safety of this appliance it must be installed and maintained in
accordance with the manufacturer’s instructions.
Installation Manual
Split Type Wall Mounted Air Conditioner
HINRA26M
HINRA35M
HINRA50M
HINRA70M
HINRA80
HSNRA26
HSNRA35
HSNRA50
HSNRA70
HSNRA80
HONRA26
IndoorSystem Outdoor
HONRA35
HONRA50
HONRA70
HONRA80
Rinnai System Models
HINRA20MReference Only Matching Multi System Only

Table of Contents
Installation Manual
Indoor Unit Installation ......... 11
1. Select installation location ......................... 11
2. Attach mounting plate to wall ................ 12
3. Drill wall hole for connective piping ...... 12
4. Prepare refrigerant piping ......................... 14
5. Connect drain hose ..................................... 15
6. Connect signal cable .................................. 17
7. Wrap piping and cables ........................... 18
8. Connect indoor power wire ................... 18
9. Mount indoor unit ..................................... 18
Outdoor Unit Installation .. 20
8
1. Select installation location ............... 20
2. Install drain joint ................................. 21
3. Anchor outdoor unit ......................... 22
4. Connect signal and power cables .. 23
Safety Precautions ................................... 4
0
1
5
Accessories
.................................................. 6
2
4
Unit Parts .................................................. 10
3

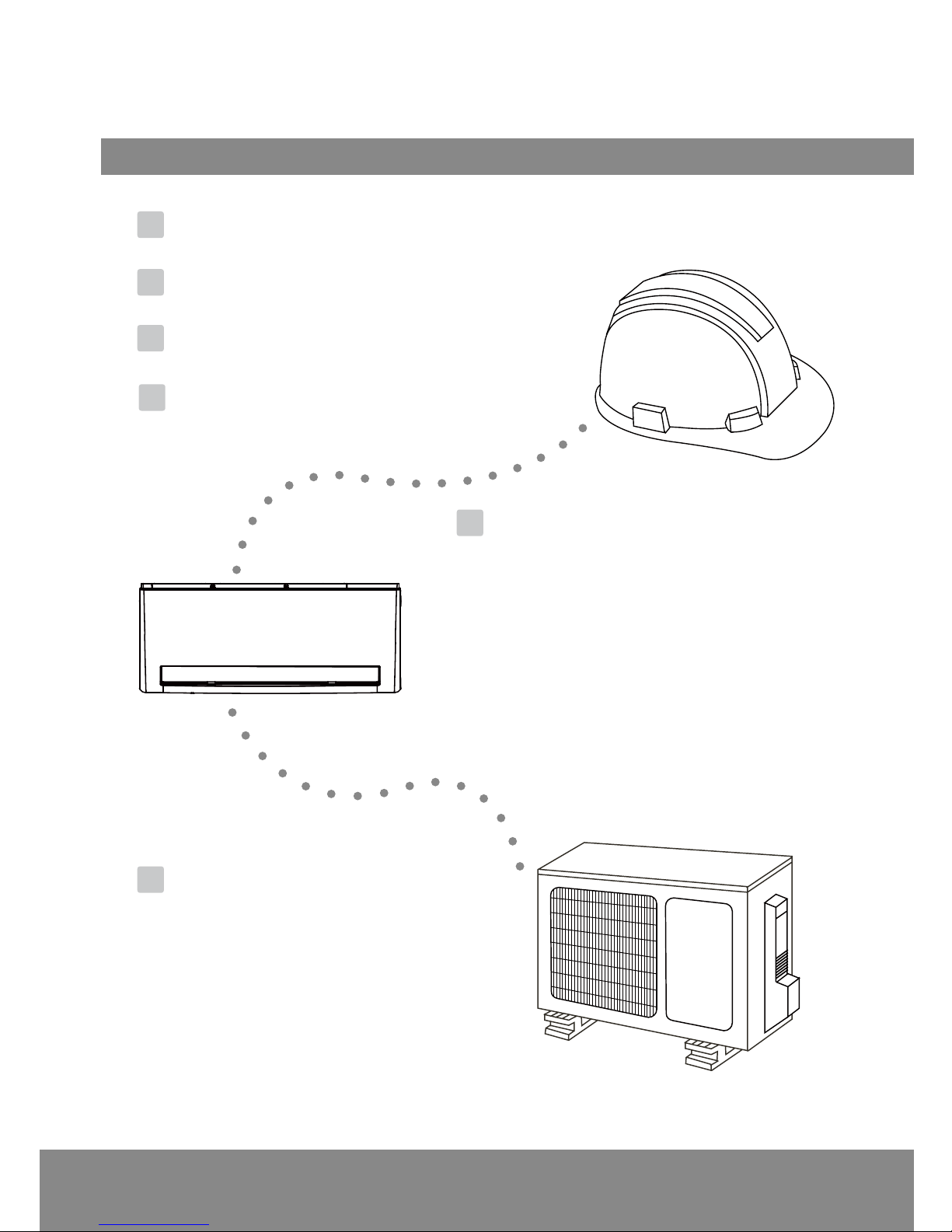

Installation Summary - Indoor Unit
.......
All pictures for illustrative purposes

Refrigerant Piping Connection ........ 25
A. Note on Pipe Length ............................................................. 25
B. Connection Instructions –Refrigerant Piping ............... 25
1. Cut pipe ............................................................................... 25
2. Remove burrs ..................................................................... 26
3. Flare pipe ends ................................................................. 26
4. Connect pipes .................................................................... 27
Air Evacuation ....................... 29
1. Evacuation Instructions .......................... 29
2. Note on Adding Refrigerant ................ 30
Electrical and Gas Leak Checks ......... 31
Test Run .................................................... 32
Disposal Guidelines .............................. 34
6
7
8
9
10
MC MC

Page 4 
Safety Precautions
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
Always comply with the following precautions to avoid dangerous situations and to ensure optimum
performance. Failure to carefully read and follow all instructions in this manual can result in
equipment malfunction, property damage, personal injury and/or death.
WARNINGS: WHEN IGNORED, CAN RESULT IN SERIOUS INJURY OR DEATH.
CAUTIONS: WHEN IGNORED, CAN RESULT IN MINOR INJURY OR RODUCT DAMAGE.
THIS SYMBOL INDICATES THAT YOU MUST NEVER PERFORM THE ACTION INDICATED.
REGULATORY / INSTALLATION
This appliance shall be installed in accordance with:
Manufacturer’s Installation Instructions.
Current AS/NZS 3000.
Local Regulations and Municipal Building Codes including local OH&S requirements.
This appliance must be installed, maintained and removed by an Authorised Person.
For continued safety of this appliance it must be installed and maintained in accordance with the
manufacturers instructions.
This appliance uses R410A refrigerant.
This appliance is heavy, use 2 people or mechanical lifting device. Improper lifting may result in
serious injury.
Take care when opening or unpacking this appliance. Failure to do so may result in serious injury or
product failure.
DO NOT modify the electrical wiring of this appliance. If the control power wiring is damaged or
deteriorated then it must be replaced by an authorised person. Failure to do so may result in
electric shock, fire, serious injury or product failure.
DO NOT install the air conditioner on an unstable or non level surface or where there may be a
danger of it falling. It may result in death, serious injury, or product failure.
DO NOT install the outdoor unit where noise may cause nuisance.
DO NOT install the outdoor unit where it will be exposed to sea wind (salt spray) as this will reduce
durability.
This manual applies to a 1:1 wall mounted system application.
Several indoor units covered in this manual have an "M"suffix in their Model Number. These units
can also be used on selected Rinnai Multi Split systems applications.
For more information on compatibility, please refer to the Installation Manual accompanying the
Rinnai Multi Split Outdoor Unit.
WARNING
DO NOT modify the length of the power cord or use an extension cord to power the unit.
DO NOT share the electrical outlet with other appliances. Improper or insufficiet power supply
can cause fire or electrical shock
This appliance is NOT intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they DO NOT play with the appliance.

Page 5 
Safety
Precautions
Warning
1. Installation MUST BE performed by an authorised dealer or specialist. Defective installation can
cause water leakage, electrical shock or fire.
2. Installation MUST BE performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock or fire.
3. Contact an authorised service technician for repair or maintenance of this unit.
4. Only use the included accessories, parts, and specified parts for installation. Using non-standard
parts can cause water leakage, electrical shock or fire, and cause the unit to fail.
5. Install the unit in a firm location that can support the units weight. If the chosen location cannot
support the units weight, or the installation is not done properly, the unit may drop and cause
serious injury or damage.
6. For all electrical work, follow all local and national wiring standards, regulations, and the
installation manual. You MUST use an independent circuit and single outlet to supply power.
DO NOT connect other apppliances to the same outlet. Insufficient electrical capacity or defects
in electrical work can cause electrical shock or fire.
7. For all electrical work, use the specified cables. Connect cables tightly, and clamp them securely
to prevent external forces from damaging the terminal. Improper electrical connections can
overheat and cause fire, and may also cause shock.
8. All wiring MUST BE properly arranged to ensure that the control board cover can close properly.
If the control board cover is not closed properly, it can lead to corrosion and cause the
connection points on the terminal to heat up, catch fire, or cause electrical shock.
9. In certain functional environments, such as kitchens, server rooms, etc., the use of specically
designed air-conditioning units is highly recommended.
10. If the supply cord is damaged, it MUST BE replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
OPERATION RANGE LIMITATIONS
The table below indicates the temperature ranges the air conditioner can be operated within.
COOL Mode HEAT Mode DRY Mode
Room Temperature 0°C ~30°C 10°C ~ 32°C
Outdoor Temperature -15°C ~ 30°C
17°C ~ 32°C
-15°C ~ 50°C 0°C ~ 50°C
CAUTION
For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of any
combustible materials.
DO NOT install the unit in a location that may be exposed to combustible gas leaks. If combustible
gas accumulates around the unit, it may cause fire.
DO NOT operate your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
1. The product must be properly earthed at the time of installation, or electrical shock may occur.
2. Install drainage piping according to the instructions in this manual. Improper drainage may
cause water damage to your home and property.

Name
Shape Quantity
1
1
1
(for cooling & heating
models only)
Clip anchor
Mounting plate fixing
screw ST3.9 X 25
Remote controller
Fixing screw for remote
controller holder ST2.9 x 10
Remote controller holder
Dry battery AAA
Seal
Drain joint
Mounting plate
1

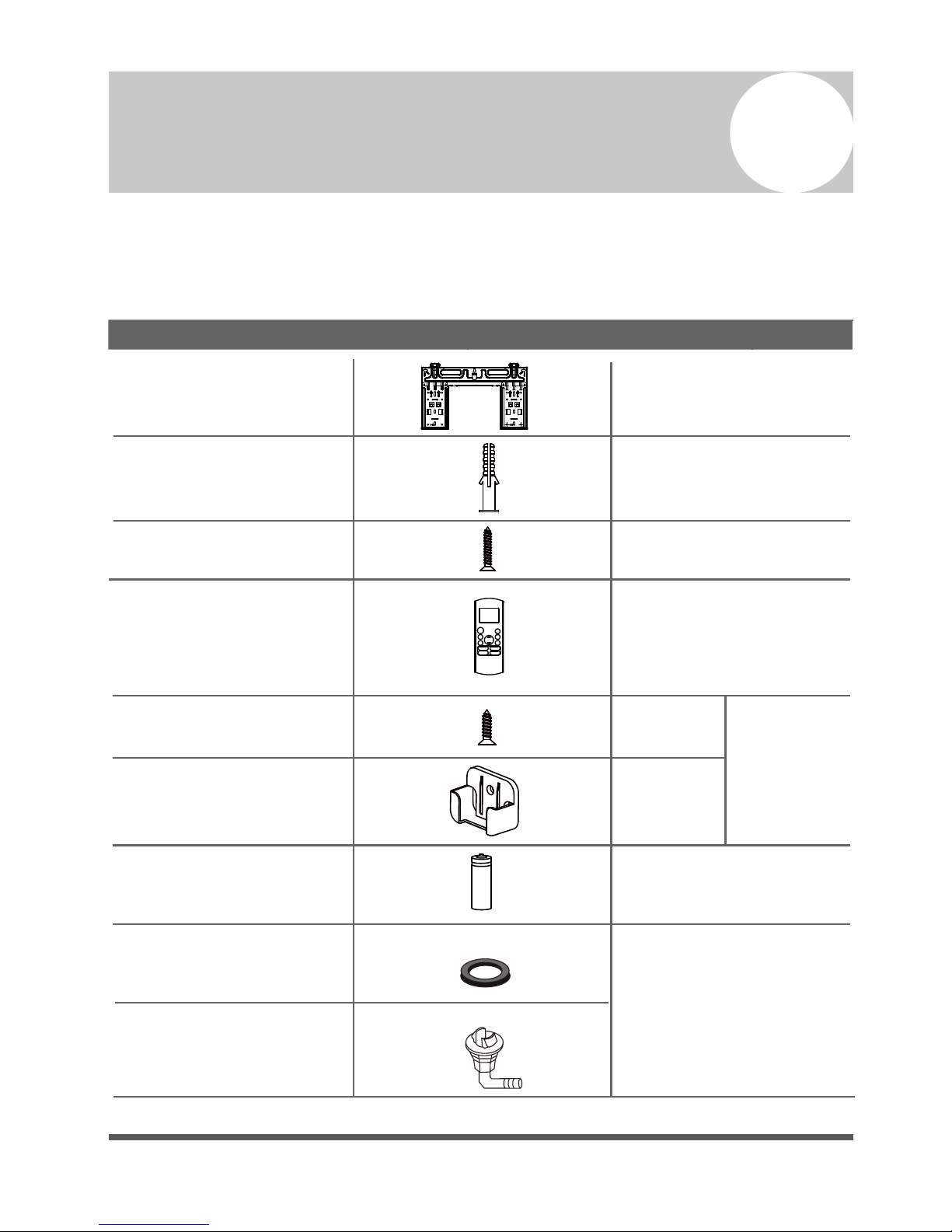

Accessories
The air conditioning system comes with the following accessories. Use all of the installation parts and
accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock
and fire, or cause the equipment to fail.
5
5
2
1
Optional
Parts
2
Page 6 

1
1
1
Owner’s manual
Installation manual
Remote controller manual
Page 7 
Name
Shape Quantity
HSNRA26 HSNRA35 HSNRA50 HSNRA70 HSNRA80
Pipe Size: Liquid / Gas mm Φ6.35 /
Φ9.52
Φ6.35 /
Φ12.7
Φ6.35 /
Φ12.7
Φ9.52 /
Φ15.9
Φ9.52 /
Φ15.9
Maximum Pipe Length m25 25 30 50 50
Chargeless Length m55555
Extra Charge for Lengths >5m g/m 15 15 15 30 30
Maximum Vertical Separation m10 10 20 25 25
System
Refrigerant Piping Summary (Field Supplied)
Owners Manual
SPLIT-TYPE ROOM AIR CONDITIONER
SPLIT-TYPE ROOM AIR CONDITIONER
Remote Control Manual
Installation Manual
SPLIT-TYPE ROOM AIR CONDITIONER

Page 8 

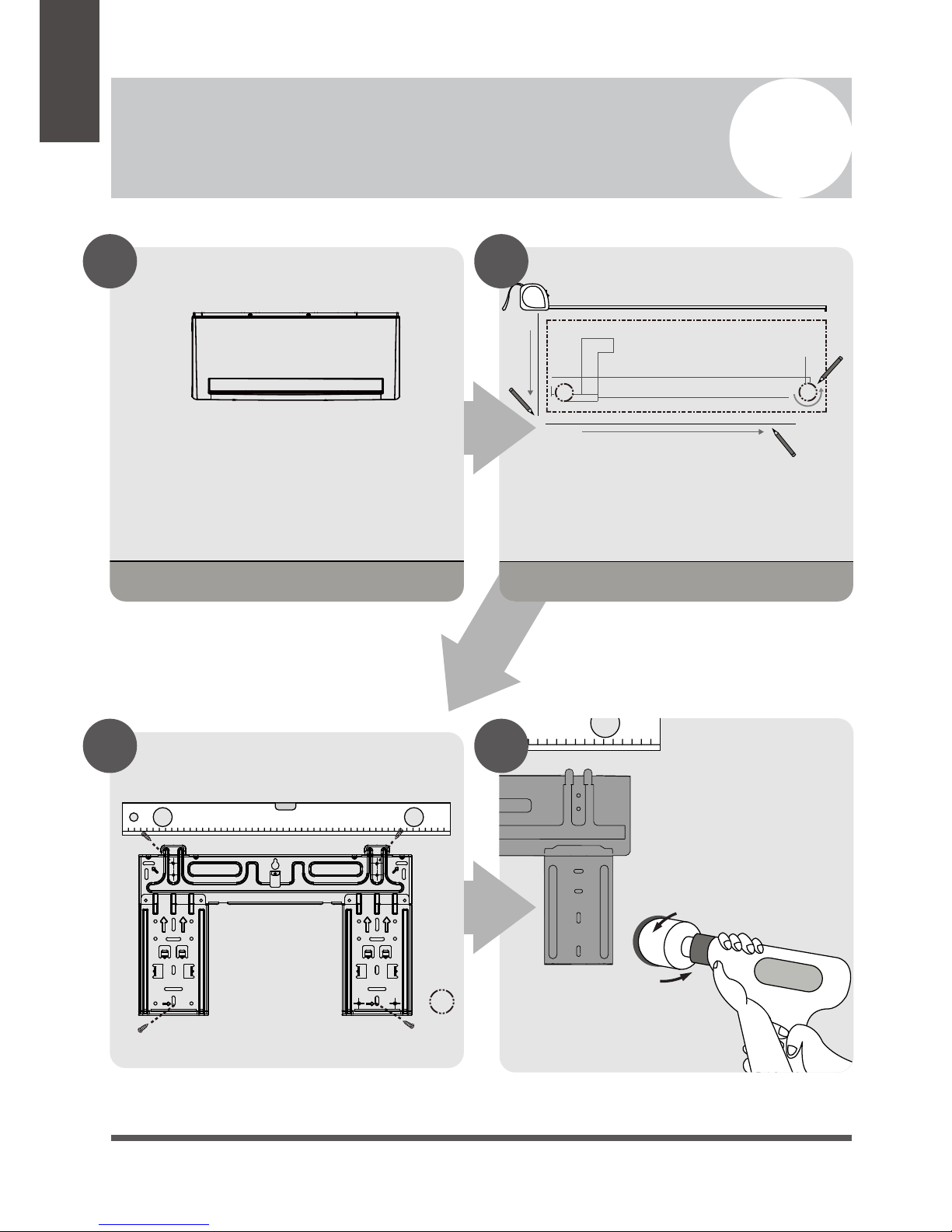

Select Installation Location
Attach Mounting Plate Drill Wall Hole
Installation Summary - Indoor Unit 2
Installation
Overview
Determine Wall Hole Position
12
3 4
12cm
(4.75in)
12cm
(4.75in)
15cm (5.9in)

Page 9 
Mount Indoor Unit
STEP 8

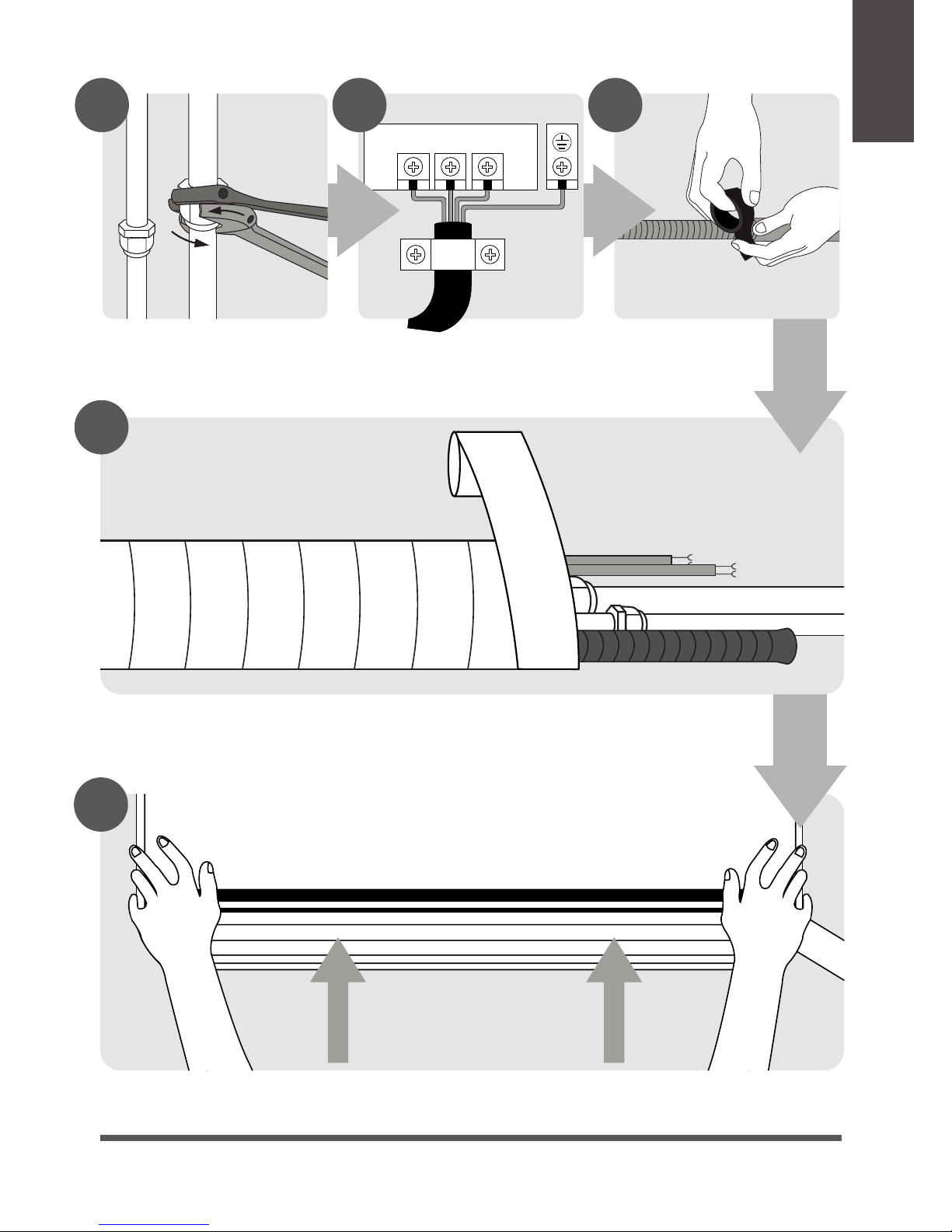

Wrap Piping and Cable
1 2 3
Connect Piping Connect Wiring Prepare Drain Hose
5 6 7
8
9
Installation
Overview

Page 10 
Unit Parts 3
Installation
Overview
Fig.3.1
NOTE ON ILLUSTRATIONS
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be
slightly different.
Wall Mounting Plate
Power Cable (Where Fitted)
Refrigerant Piping
Signal Cable
Remote Control
Drainage Pipe
Louver
Remote Holder
Front Panel
Outdoor Unit
Power Cable
Air filter
(pull it out)

Page 11 
Indoor Unit Installation 4
Installation Instructions – Indoor
Unit
PRIOR TO INSTALLATION
Before installing the indoor unit, refer to the
label on the product box to make sure that the
model number of the indoor unit matches the
model number of the outdoor unit.
Step 1: Select installation location
Before installing the indoor unit, you must
choose an appropriate location. The following
are standards that will help you choose an
appropriate location for the unit.
Proper installation locations meet the
following standards:
Good air circulation
Convenient drainage
Noise from the unit will not disturb other
people
Firm and solid—the location will not vibrate
Strong enough to support the weight of the
unit
A location at least one meter from all other
electrical devices (e.g., TV, radio, computer)
DO NOT install unit in the following
locations:
Near any source of heat, steam, or
combustible gas
Near flammable items such as curtains or
clothing
Near any obstacle that might block air
circulation
Near the doorway
In a location subject to direct sunlight

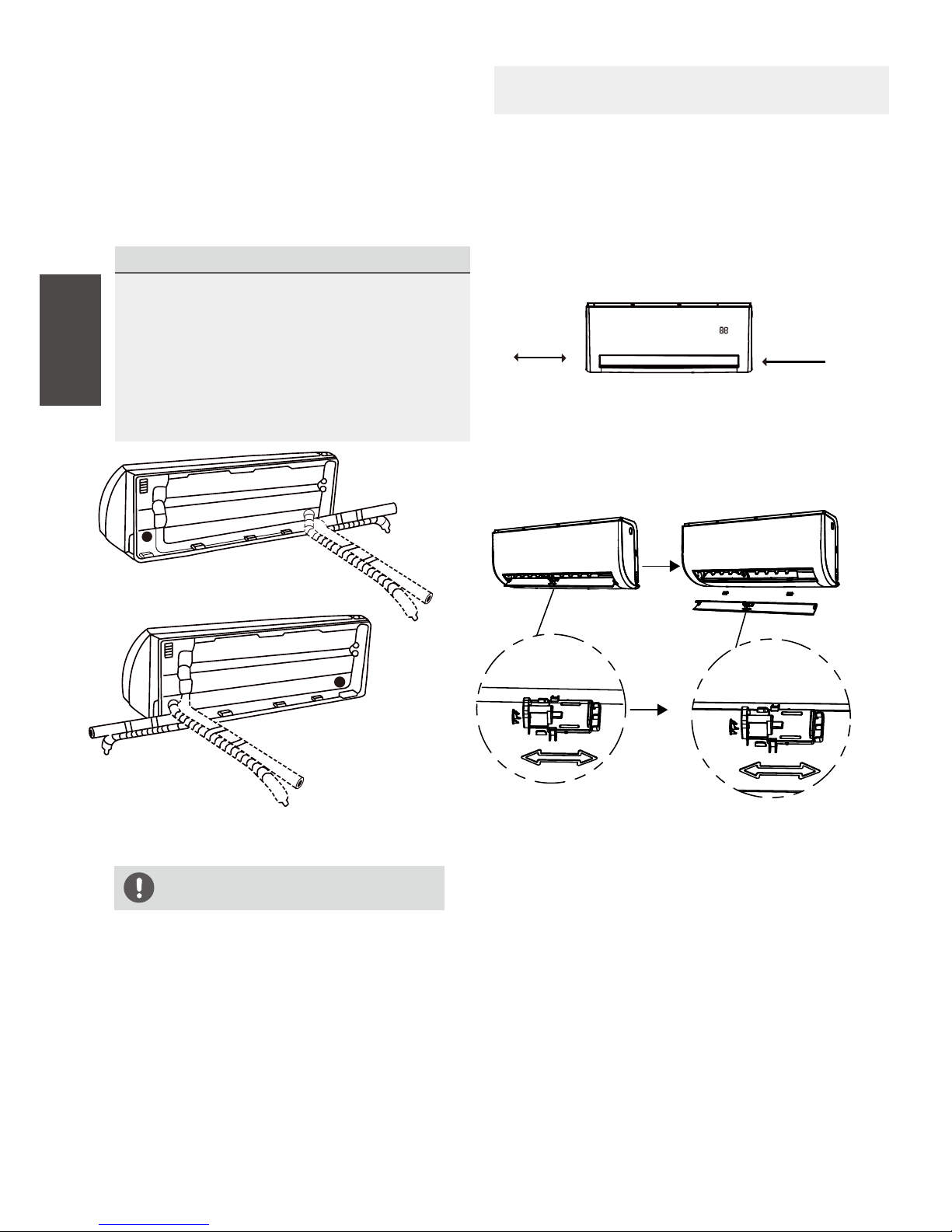

NOTE ABOUT WALL HOLE:
If there is no fixed refrigerant piping:
While choosing a location, be aware that you
should leave ample room for a wall hole (see
Drill wall hole for connective piping step)
for the signal cable and refrigerant piping
that connect the indoor and outdoor units.
The default position for all piping is the right
side of the indoor unit (while facing the unit).
However, the unit can accommodate piping to
both the left and right.
Indoor Unit
Installation

Page 12 

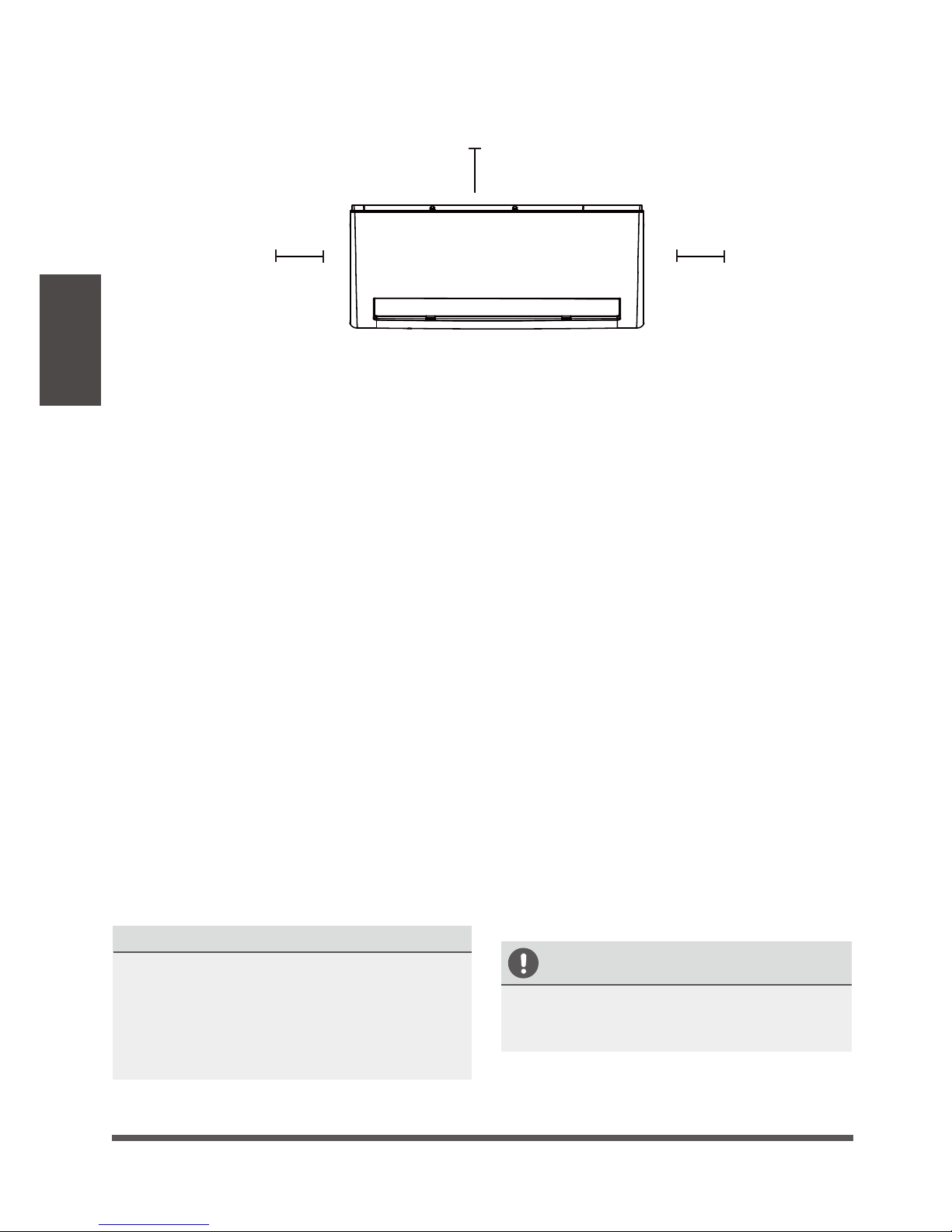

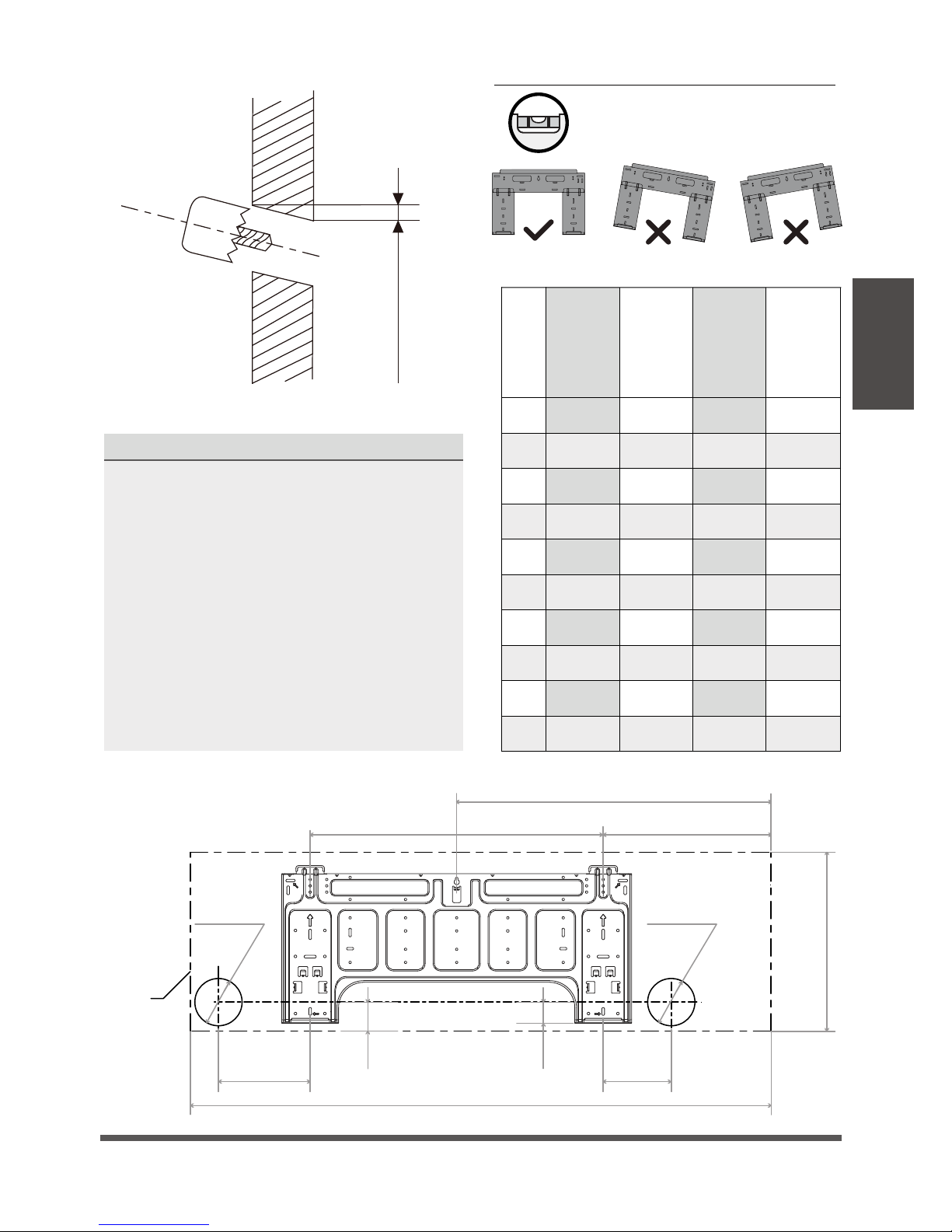

Refer to the following diagram to ensure proper distance from walls and ceiling:
Step 2: Attach mounting plate to wall
The mounting plate is the device on which you
will mount the indoor unit.
1. Remove the screw that attaches the mounting
plate to the back of the indoor unit.
2. Place the mounting plate against the wall
in a location that meets the standards in
the Select Installation Location step. (See
Mounting Plate Dimensions for detailed
information on mounting plate sizes.)
3. Drill holes for mounting screws in places that:
• have studs and can support the weight of
the unit
• correspond to screw holes in the mounting
plate
4. Secure the mounting plate to the wall with
the screws provided.
5. Make sure that mounting plate is flat against
the wall.
NOTE FOR CONCRETE OR BRICK WALLS:
If the wall is made of brick, concrete, or similar
material, drill 5mm-diameter (0.2in-diameter)
holes in the wall and insert the sleeve anchors
provided. Then secure the mounting plate to
the wall by tightening the screws directly into
the clip anchors.
Step 3: Drill wall hole for connective piping
You must drill a hole in the wall for refrigerant
piping, the drainage pipe, and the signal cable
that will connect the indoor and outdoor units.
1. Determine the location of the wall hole based
on the position of the mounting plate. Refer
to Mounting Plate Dimensions on the
next page to help you determine the optimal
position. The wall hole should have a 65mm
(2.5in) diameter at least, and at a slightly
lower angle to facilitate drainage.
2. Using a 65 mm (2.5in) core drill, drill a hole in
the wall. Make sure that the hole is drilled at
a slight downward angle, so that the outdoor
end of the hole is lower than the indoor end
by about 5mm to 7mm (0.2-0.275in). This will
ensure proper water drainage. (See Fig. 4.2 )
3. Place protective wall cuff in the hole. This
protects the edges of the hole and will help
seal it when you finish the installation process.
CAUTION
When drilling the wall hole, make sure to
avoid wires, plumbing, and other sensitive
components.
Indoor Unit
Installation
Fig. 4.1
12cm (4.75in)
or more
12cm (4.75in)
or more
15cm (5.9in) or more

All dimensions in mm
Page 13 
Indoor Unit
Installation
Indoor Unit
Installation
Wall
Indoor Outdoor
MOUNTING PLATE DIMENSIONS
Different models have different mounting plates.
In order to ensure that you have ample room to
mount the indoor unit, the diagrams to the right
show different types of mounting plates along
with the following dimensions:
• Width of mounting plate
• Height of mounting plate
• Width of indoor unit relative to plate
• Height of indoor unit relative to plate
• Recommended position of wall hole (both
to the left and right of mounting plate)
• Relative distances between screw holes
Fig. 4.2
Correct orientation of Mounting Plate
A 805 964717
B 302 325302
C 453 481408
D 406 439318
E 250 262249
F 102 219102
G 153 132153
H 39 N/A39
I N/A 71N/A
HINRA26M HINRA35M HINRA50M HINRA20M Refer Fig. 4.3
A
Indoor
unit
outline
FG
J J
H
B
D
C
E
Fig. 4.3
I
J Ø65 Ø65
1106
342
599
558
320
174
263
N/A
55
HINRA70M HINRA80
Ø90Ø65
Ensure that there
is a 5 to 7mm
fall to the outside
Ensure that Mounting Plate is installed level.
MUST BE LEVEL !

If refrigerant piping is already embedded in
the wall, do the following:
Hook the indoor unit on the mounting plate:
Prepare refrigerant piping:
Fig. 4.6
Move to left or right
30-50mm
(1.2-1.95in)
30-50mm
(1.2-1.95in)
Keep in mind that the hooks on the mounting plate
are smaller than the holes on the back of the unit.
If you find that you don’t have ample room to connect
embedded pipes to the indoor unit, the unit can be
adjusted left or right by about 30-50mm (1.25-1.95in),
depending on the model. (See Fig.4.5)
Page 14 
CAUTION
Be extremely careful not to dent or damage the
piping while bending them away from the unit.
Any dents in the piping will affect the unit’s
performance.
Step 4: Prepare refrigerant piping
The refrigerant piping is inside an insulating
sleeve attached to the back of the unit. You must
prepare the piping before passing it through the
hole in the wall. Refer to the Refrigerant Piping
Connection section of this manual for detailed
instructions on pipe flaring and flare torque
requirements, technique, etc.
NOTE ON PIPING ANGLE
Refrigerant piping can exit the indoor unit from
four different angles:
• Left-hand side
• Left rear
• Right-hand side
• Right rear
Refer to Fig. 4.4 for details.
Fig. 4.4
Indoor Unit
Installation
Fig. 4.5

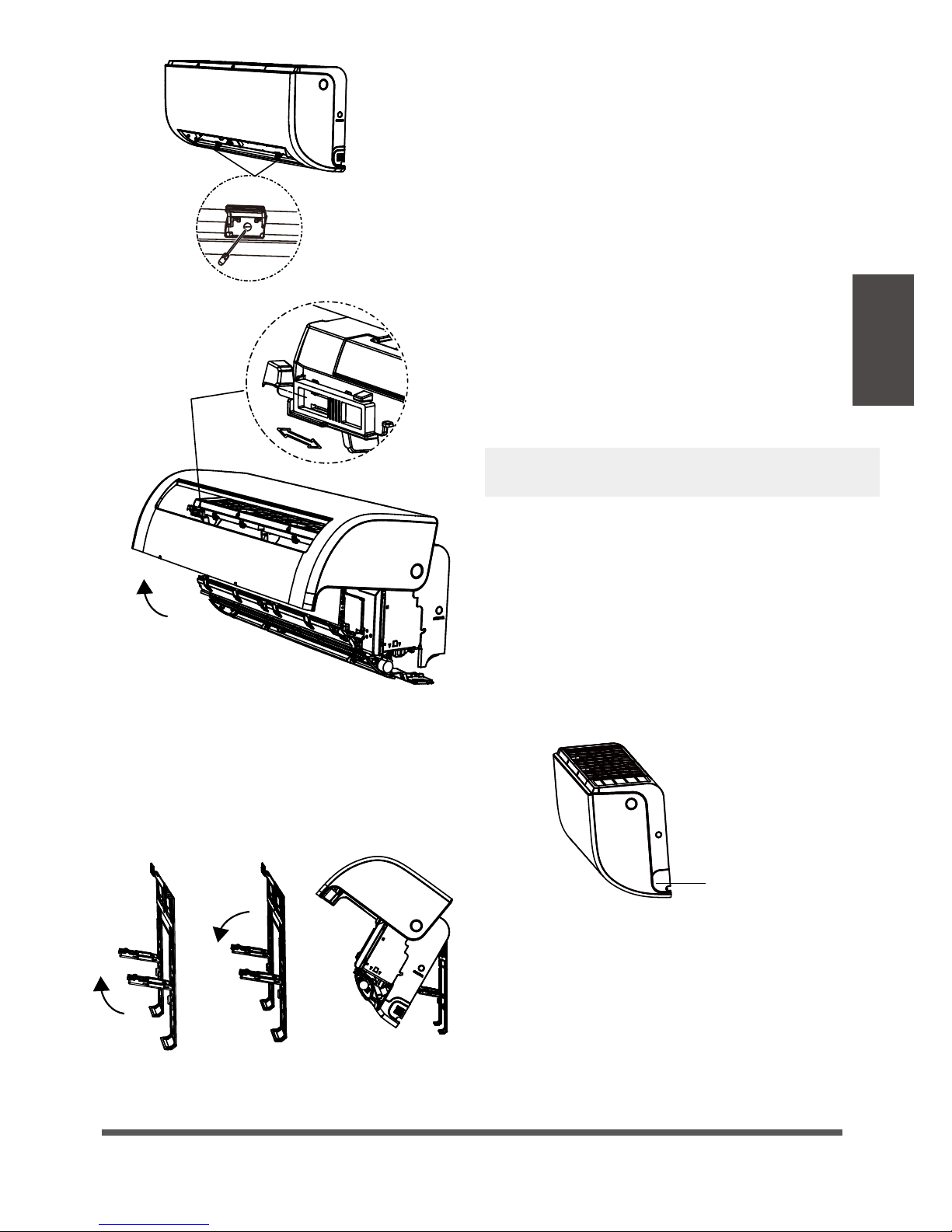

Disassemble the louver:
Open and fix the position of the panel
Firstly, unscrew the two screws showed
in the picture below, then open the panel,
and fix the position of the panel by the
latch (see Fig.4.7).
1.
2.

Page 15 
Indoor Unit
Installation
If there is no refrigerant piping embedded in
the wall, do the following:
Fig. 4.7
Fig. 4.8
Connect drain hose and refrigerant
piping (refer to Refrigerant Piping Connection
section of this manual for instructions).
Keep pipe connection point exposed to
perform the leak test (refer to Electrical Checks
and Leak Checks section of this manual).
After the leak test, wrap the connection
point with insulation tape.
Remove the bracket or wedge that is
propping with insulation tape.
Using even pressure, push down on the
bottom half of the unit. Keep pushing down
until the unit snaps onto the hooks along the
bottom of the mounting plate.
1. Based on the position of the wall hole relative
to the mounting plate, choose the side from
which the piping will exit the unit.
2. If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole is to
the side of the indoor unit, remove the plastic
knock-out panel from that side of the unit.
(See Fig. 4.9). This will create a slot through
which your piping can exit the unit. Use
needle nose pliers if the plastic panel is too
difficult to remove by hand.
3. Use scissors to cut down the length of the
insulating sleeve to reveal about 40mm (1.57in)
of the refrigerant piping. This serves two
purposes:
• To facilitate the Refrigerant Piping
Connection process
• To facilitate Gas Leak Checks and enable
you to check for dents
Knock-out Panel
Fig. 4.9
3. Use the holder in the mounting plate to
prop up the unit, giving you enough room
to connect the refrigerant piping, signal cable,
and drain hose.
4.
5.
6.
7.
8.

Page 16 
Indoor Unit
Installation
4. Connect the indoor unit’s refrigerant piping
to the connective piping that will join the
indoor and outdoor units. Refer to the
Refrigerant Piping Connection section
of this manual for detailed instructions.
5. Based on the position of the wall hole
relative to the mounting plate, determine the
necessary angle of your piping.
6. Grip the refrigerant piping at the base of the
bend.
7. Slowly, with even pressure, bend the piping
towards the hole. DO NOT dent or damage the
piping during the process.

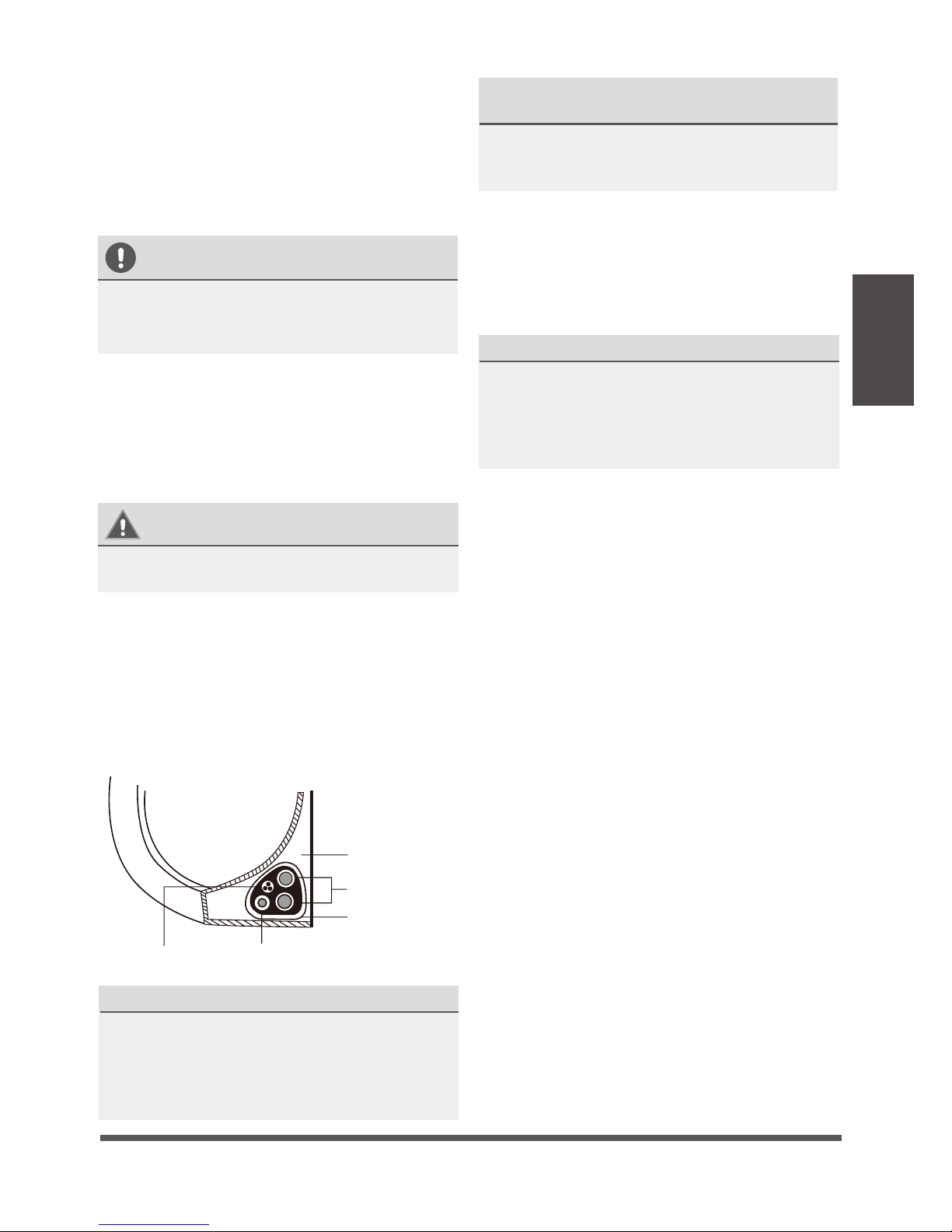

Step 5: Connect drain hose
By default, the drain hose is attached to the left-
hand side of unit (when you’re facing the back
of the unit). However, it can also be attached to
the right-hand side.
1. To ensure proper drainage, attach the drain
hose on the same side that your refrigerant
piping exits the unit.
2. Attach drain hose extension (purchased
separately) to the end of drain hose.
3. Wrap the connection point firmly with Teflon
tape to ensure a good seal and to prevent
leaks.
4. For the portion of the drain hose that will
remain indoors, wrap it with foam pipe
insulation to prevent condensation.
5. Remove the air filter and pour a small amount
of water into the drain pan to make sure that
water flows from the unit smoothly.

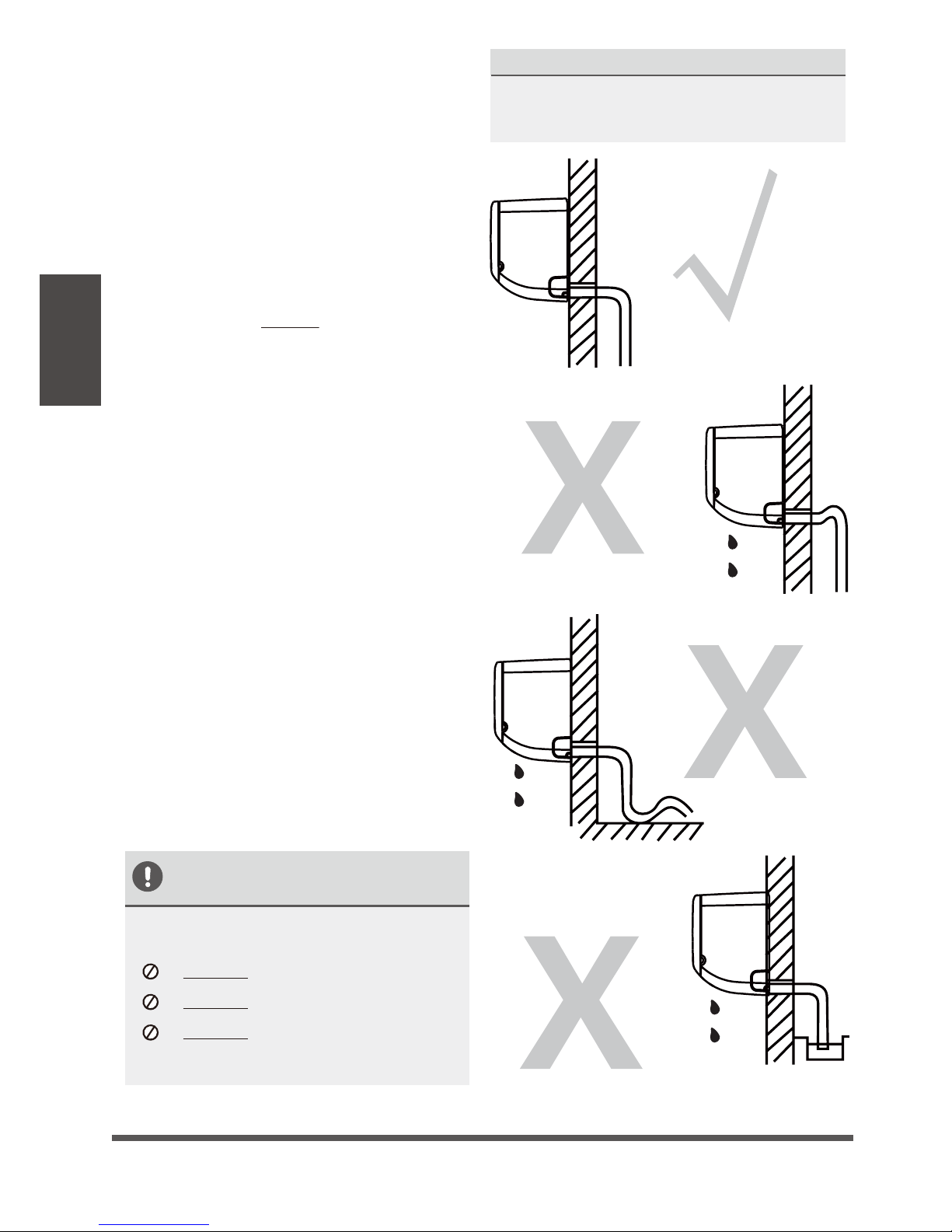

NOTE ON DRAIN HOSE
PLACEMENT
Make sure to arrange the drain hose
according to Fig. 4.10.
DO NOT kink the drain hose.
DO NOT create a water trap.
DO NOT put the end of drain hose in
water or a container that will collect
water.
PLUG THE UNUSED DRAIN HOLE
To prevent unwanted leaks you must plug
the unused drain hole with the rubber plug
provided.
CORRECT
Make sure there are no
kinks or dent in drain
hose to ensure proper
drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Do not place the end
of the drain hose in
water or in containers
that collect water. This
will prevent proper
drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
Fig. 4.10
Fig. 4.11
Fig. 4.12
Fig. 4.13

BEFORE PERFORMING
ELECTRICAL WORK, READ
THESE REGULATIONS
1. All wiring must comply with local and
national electrical codes, and must be
installed by a licensed electrician.
2. All electrical connections must be made
according to the Electrical Connection
Diagram located on the panels of the
indoor and outdoor units.
3. If there is a serious safety issue with
the power supply, stop work immediately.
Explain your reasoning to the client, and
refuse to install the unit until the safety
issue is properly resolved.
4. Power voltage should be within
90-100% of rated voltage. Insufficient
power supply can cause malfunction,
electrical shock, or fire.
If connecting power to fixed wiring,
install a surge protector and main
power switch with a capacity of 1.5
times the maximum current of the unit.
5.
6. If connecting power to fixed wiring,
a switch or circuit breaker that
disconnects all poles and has a contact
separation of at least 1/8in (3mm) must
be incorporated in the fixed wiring.
The qualified technician must use an
approved circuit breaker.
7. Only connect the unit to an individual
branch circuit outlet. DO NOT connect
another appliance to that outlet.
8. Make sure to properly ground the
air conditioner.
9. Every wire must be firmly connected.
Loose wiring can cause the terminal to
overheat, resulting in product
malfunction and possible fire.
10. Do not let wires touch or rest against
refrigerant tubing, the compressor, or
any moving parts within the unit.
11. If the unit has an auxiliary electric
heater, it must be installed at least 1
meter (40in) away from any
combustible materials.
Page 17 
Indoor Unit
Installation
Step 6: Connect signal cable
The signal cable enables communication between
the indoor and outdoor units. You must first
choose the right cable size before preparing it for
connection.
Minimum Cross-Sectional Area of
Power and Signal Cables
Rated Current of
Appliance (A)
Nominal Cross-Sectional
Area (mm²)
> 10 and ≤16 1.5
> 16 and ≤25 2.5
> 25 and ≤32 4
> 32 and ≤40 6
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable, signal
cable, fuse, and switch needed is determined
by the maximum current of the unit. The
maximum current is indicated on the nameplate
located on the side panel of the unit. Refer to
this nameplate to choose the right cable, fuse,
or switch.
WARNING
BEFORE PERFORMING ANY ELECTRICAL OR
WIRING WORK, TURN OFF THE MAINS POWER TO
THE SYSTEM
System Model Maximum Input
Current (A)
HSNRA26 6.5
HSNRA35 6.5
HSNRA50 8.5
HSNRA70 13.5
HSNRA80 13.5

TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board (PCB) is
designed with a fuse to provide overcurrent
protection. The specifications of the fuse
are printed on the circuit board, such as:
T3.15A/250VAC, T5A/250VAC, etc.
1. Prepare the cable for connection:
a. Using wire strippers, strip therubber jacket
from both ends of signal cable to reveal
about 40mm (1.57in) of the wires inside.
b. Strip the insulation from the ends of the
wires.
c. Using wire crimper, crimp u-type lugs on
the ends of the wires.
PAY ATTENTION TO LIVE WIRE
While crimping wires, make sure you clearly
distinguish the Live (“L”) Wire from other wires.
2. Open front panel of the indoor unit by loosen
the screws according to Fig.4.7, which
provide big space for wiring connection.
3. Open the wire box cover to connect the cable.
WARNING
4. Unscrew the cable clamp below the terminal
block and place it to the side.
5. Facing the back of the unit, remove the plastic
panel on the bottom left-hand side.
Page 18 
Indoor Unit
Installation
ALL WIRING MUST PERFORMED STRICTLY
IN ACCORDANCE WITH THE WIRING
DIAGRAM LOCATED ON THE INSIDE OF THE
INDOOR UNIT S WIRE COVER.
’
Terminal
block
Wire
cover
Cable
clamp
Fig. 4.14
The Wiring Diagram is located
on the inside of the indoor unit’s
wire cover.
1 (L) 2 (N) S
Indoor unit signal and power connection terminals
1(L) 2(N) S
1(L) 2(N) S L N
TO POWER SUPPLY
COMMUNICATION
CONNECTION
INDOOR UNIT
OUTDOOR UNIT
WIRING SCHEMATIC

6. Feed the signal wire through this slot, from
the back of the unit to the front.
7. Facing the front of the unit, match the wire
colors with the labels on the terminal block,
connect the u-lug and and firmly screw each
wire to its corresp onding terminal.
CAUTION
DO NOT MIX UP LIVE AND NEUTRAL WIRES
This is dangerous, and can cause the air
conditioning unit to malfunction.
8. After checking to make sure every connection
is secure, use the cable clamp to fasten the
signal cable to the unit. Screw the cable clamp
down tightly.
9. Replace the wire cover on the front of the
unit, and the plastic panel on the back.
NOTE ABOUT WIRING
Step 7: Wrap piping and cables
Before passing the piping, drain hose, and the
signal cable through the wall hole, you must
bundle them together to save space, protect
them, and insulate them.
1. Bundle the drain hose, refrigerant pipes, and
signal cable according to Fig. 4.15.
Indoor Unit
Space behind unit
Refrigerant piping
Drain hose
Signal wire
Insulation tape
DRAIN HOSE MUST BE ON BOTTOM
Make sure that the drain hose is at the bottom
of the bundle. Putting the drain hose at the
top of the bundle can cause the drain pan
to overflow, which can lead to fire or water
damage.
DO NOT INTERTWINE SIGNAL CABLE WITH
OTHER WIRES
While bundling these items together, do not
intertwine or cross the signal cable with any
other wiring.
2. Using adhesive vinyl tape, attach the drain
hose to the underside of the refrigerant pipes.
3. Using insulation tape, wrap the signal wire,
refrigerant pipes, and drain hose tightly
together. Double-check that all items are
bundled in accordance with Fig. 4.15.
DO NOT WRAP ENDS OF PIPING
When wrapping the bundle, keep the ends
of the piping unwrapped. You need to access
them to test for leaks at the end of the
installation process (refer to Electrical Checks
and Leak Checks section of this manual).
Step 8: Mount indoor unit
If you installed new connective piping to the
outdoor unit, do the following:
1. If you have already passed the refrigerant
piping through the hole in the wall, proceed
to 4. below.
2. Otherwise, double-check that the ends of the
refrigerant pipes are sealed to prevent dirt or
foreign materials from entering the pipes.
3. Slowly pass the wrapped bundle of refrigerant
pipes, drain hose, and signal wire through the
hole in the wall.
4. Hook the top of the indoor unit on the upper
hook of the mounting plate.
5. Check that unit is hooked firmly on mounting
by applying slight pressure to the left and
right-hand sides of the unit. The unit should
not jiggle or shift.
6. Using even pressure, push down on the
bottom half of the unit. Keep pushing down
until the unit snaps onto the hooks along the
bottom of the mounting plate.
7. Again, check that the unit is firmly mounted
by applying slight pressure to the left and the
right-hand sides of the unit.
Fig. 4.15
Page 19 
Indoor Unit
Installation
THE WIRING CONNECTION PROCESS MAY
DIFFER SLIGHTLY BETWEEN UNITS.

Page 20 
Outdoor Unit Installation 5
Installation Instructions – Outdoor
Unit
Step 1: Select installation location
Before installing the outdoor unit, you must
choose an appropriate location. The following
are standards that will help you choose an
appropriate location for the unit.
Proper installation locations meet the
following standards:
Meets all spatial requirements shown in
Installation Space Requirements (Fig. 5.1)
Good air circulation and ventilation
Firm and solid—the location can support the
unit and will not vibrate
Noise from the unit will not disturb others
Protected from prolonged periods of direct
sunlight or rain
DO NOT installunit in the following locations:
Near an obstacle that will block air inlets
and outlets
Near a public street, crowded areas, or
where noise from the unit will disturb others
Near animals or plants that will be harmed
by hot air discharge
Near any source of combustible gas
In a location that is exposed to large
amounts of dust
In a location exposed to a excessive amounts
of salty air
Fig. 5.1
Outdoor Unit
Installation
600mm above
300mm
on left
1000mm
in front
200mm
from back wall
600mm
on right
