Ritchie StallFount User manual

StallFount and StallFount 125
Installation Instructions

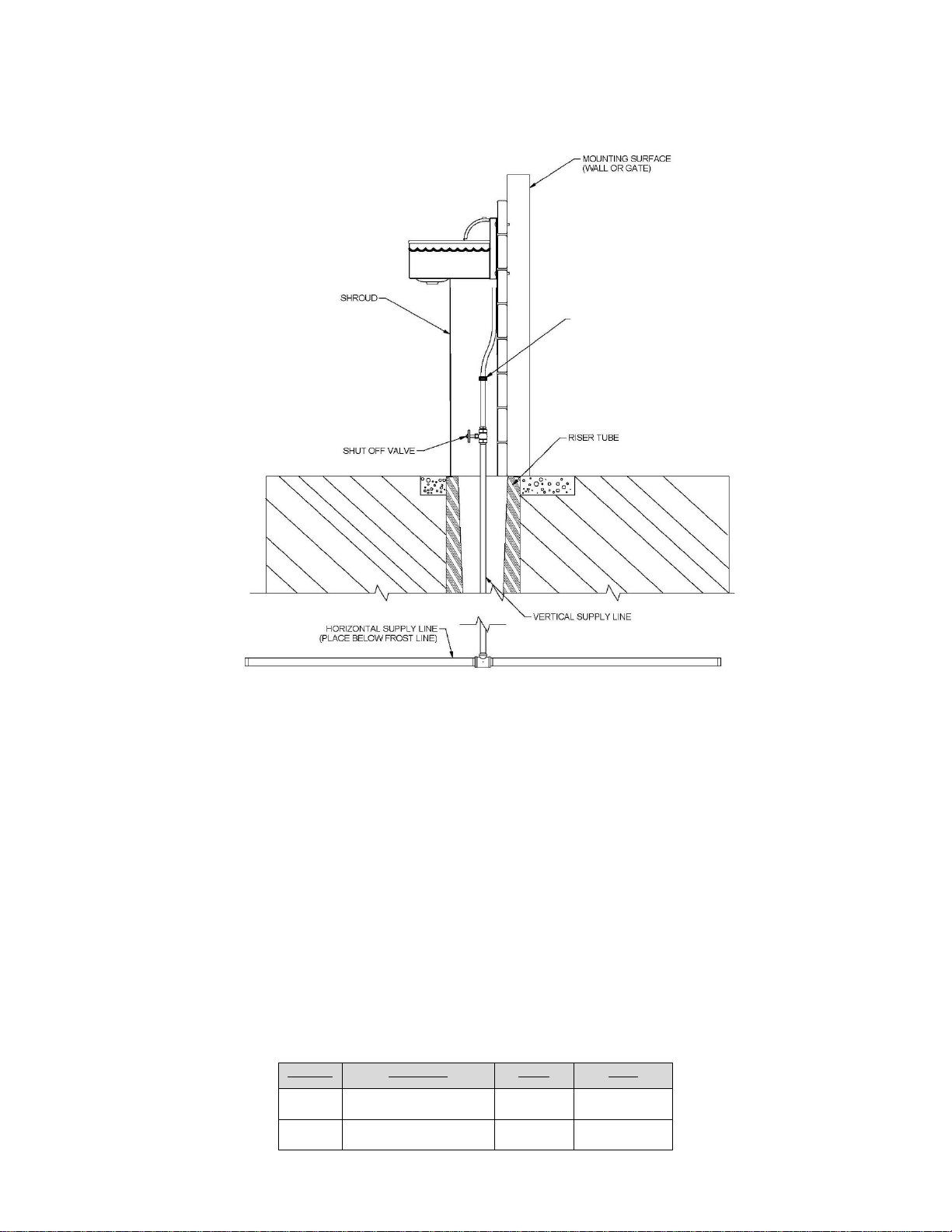

A. Mounting Fountain - The StallFount and StallFount 125 are designed to accept the water supply line from
below the fountain, or from behind the fountain through the wall.
NOTE: For the StallFount 125 version the unit must be installed over a non-combustible surface. The
supply line shroud must be in contact with non-combustible floor surface.
B. Water Supply Line from Underground –Horizontal underground water line should be sized to account for
pressure drop, relating to distance, and placed one foot below frost line. A one-inch vertical supply pipe is
recommended. A shut-off valve should be installed under fountain to allow for easier servicing. For optimum
serviceability, a stop and waste valve can be installed below frost level to drain water when unit is not in use.
Vertical supply line must be centered in riser tube to provide an air space between the line and frozen ground outside
of tube. Flush water supply line thoroughly before connection to fountain. Water supplies with foreign material
such as sand, rust, etc. may require a filter to keep fountain valve working properly. The supply pipe should extend
above the shut-off valve to within 12” of the StallFount 125.
C. Electric Supply – It is generally most cost effective to run your electrical supply line at the same time you are
trenching for your water supply.
Item No.
Description
Watts
Amps
18082
StallFount 125
173W
1.4A@120V
18415
SF 240V 200W
248W
1A@240V
3/8” HOSE BARB FITTING
StallFount Instruction Manual
1
Part # 17747
October 31, 2022

D. Riser Tube - Install a riser tube and extend it at least one foot below frost line or
down to horizontal underground water line. For optimum water line protection, use
the 12” diameter insulated Ritchie Thermal Tube, part numbers and sizes are shown
to the right. Tube opening must be kept clear.
NOTE: The supply line touching the riser tube is the most common cause of
the supply line freezing. Do not surround the supply line with insulation, wood,
or other foreign material. Any foreign material in the tube may cause frost to
migrate to the supply line causing it to freeze.
E. Mounting Fountain - Using the adjustable height shroud as a guide, mount the unit on the wall at a height
appropriate for your animals. Use of 3/8” carriage bolts or lag screws (not provided), and washers, is recommended.
F. Hose Connection - The StallFount comes with a 3/8” rubber hose (2’ long) which attaches to the supply pipe
with a 3/8” hose barb and hose clamp.

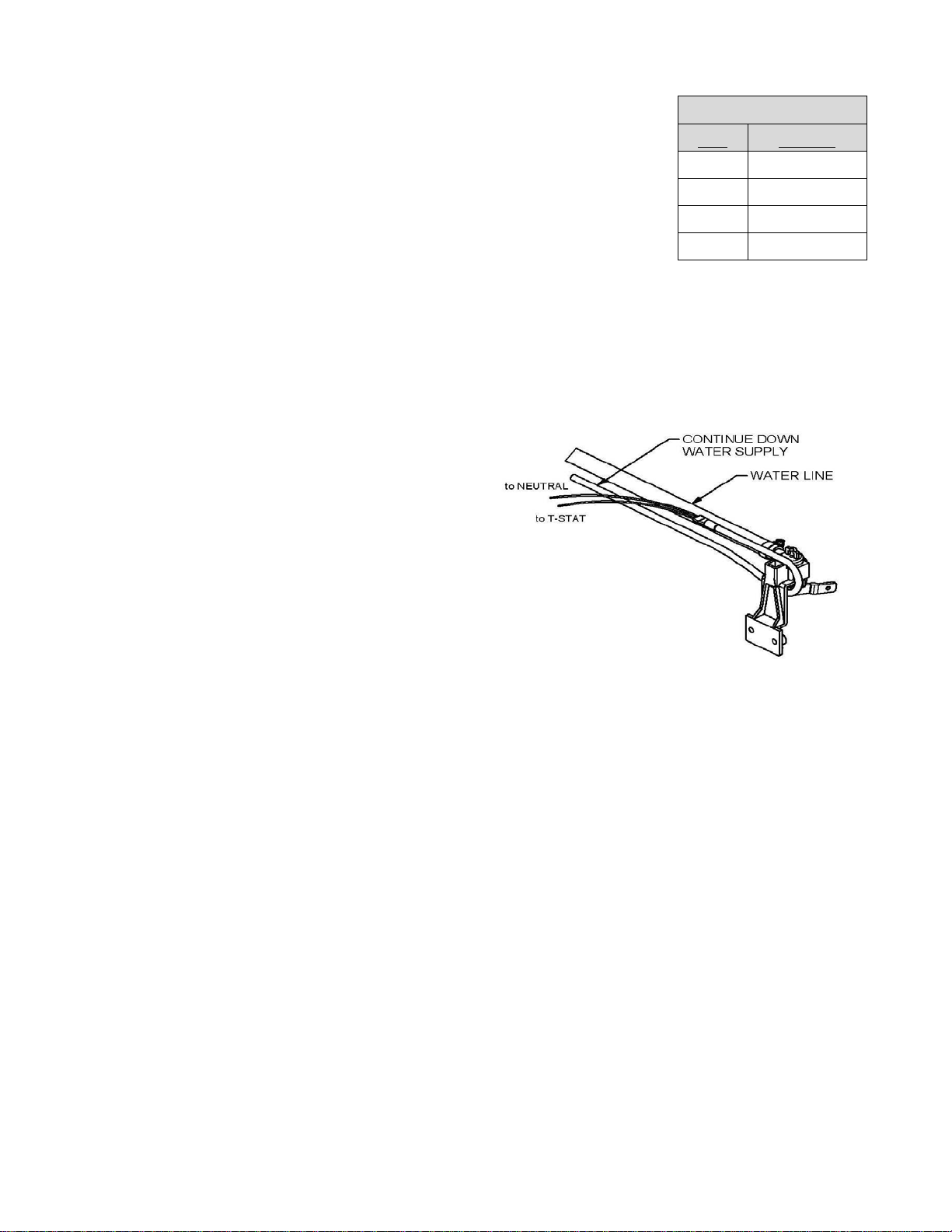

G. Cable Heater - Uncoil cable heater and loop around
the valve. Attach the remaining part of the cable heater to
the water supply, as far down the riser tube as possible with
the cable twist ties provided. This heater is watertight but
should not be immersed in water. Heater may cross over
itself but should not be tightened at those locations.
CAUTION: Installation must not cause any strain
on heater wiring connections. Avoid heater
damage caused by hot spots due to its leads lying
too close to each other. Also, do not wrap
additional insulation around heater.
H. Electrical Connection –A means for disconnection must be incorporated in the fixed wiring in accordance
with the wiring rules. For wiring connections, see wiring diagram. Make connections according to the wiring
diagram below.
WARNING: ANY ELECTRICAL SERVICE MUST BE INSTALLED AND MAINTAINED BY A
QUALIFIED ELECTRICIAN.
WARNING: DISCONNECT POWER IF THE WATER SUPPLY IS TO BE SHUT OFF FOR AN
EXTENDED AMOUNT OF TIME. FAILURE TO TURN OFF POWER CAN RESULT IN DAMAGE TO
THE WATERING FOUNTAIN.
WARNING: THIS INSTALLATION MUST BE MADE AND MAINTAINED IN STRICT CONFORMITY
WITH NATIONAL/LOCAL PLUMBING CODES AND NATIONAL/LOCAL ELECTRICAL CODES (CSA
IN CANADA). THE APPLICABLE PROVISIONS OF THESE CODES TAKE PRECEDENT. FAILURE
TO MAKE AND MAINTAIN ALL INSTALLATIONS PROPERLY MAY RESULT IN LOSS OF
LIVESTOCK, PERSONAL INJURY, OR DEATH.
NOTE: National/Local electrical codes may require livestock waterers installed in feedlotsin open feeding
area to be grounded by a separate stranded copper grounding conductor or at least no.6 AWG
terminating at a point where the branch circuit receives its supply. Check with local inspection authorities.
Ritchie Thermal Tube
Part #
Description
18158
1’ Top Section
16417 2’ Top Section
16612
4’ Top Section
16416
2’ Extension
StallFount Instruction Manual
2
Part # 17747
October 31, 2022

I. Disc Thermostat – The disc thermostat is mounted in a bracket under the trough, which allows it to be moved
relative to the heater. To ease movement of thermostat, turn 1/4 turn. To lock in position after adjustment, turn 1/4
turn back. As the thermostat is moved toward the heater, the water temperature in the trough is
lowered.The best location is determined by checking the trough temperature several times during the heating
season.
J. Drain Plug – After StallFount is securely mounted to the
wall and all supply connections are made, install the drain plug in
the drain hole from above, pushing the plug into the hole.
K. AdjustWaterLevel–Open cover by removing the screw
on top. Turn on water and adjust float to water level mark or until
there is approximately 3 inches of water in trough. Float is
adjusted by loosening the wingnut then raising or lowering the
float as needed, and then re-tightening the wingnut. When
finished adjusting close the cover and reinstall the screw.

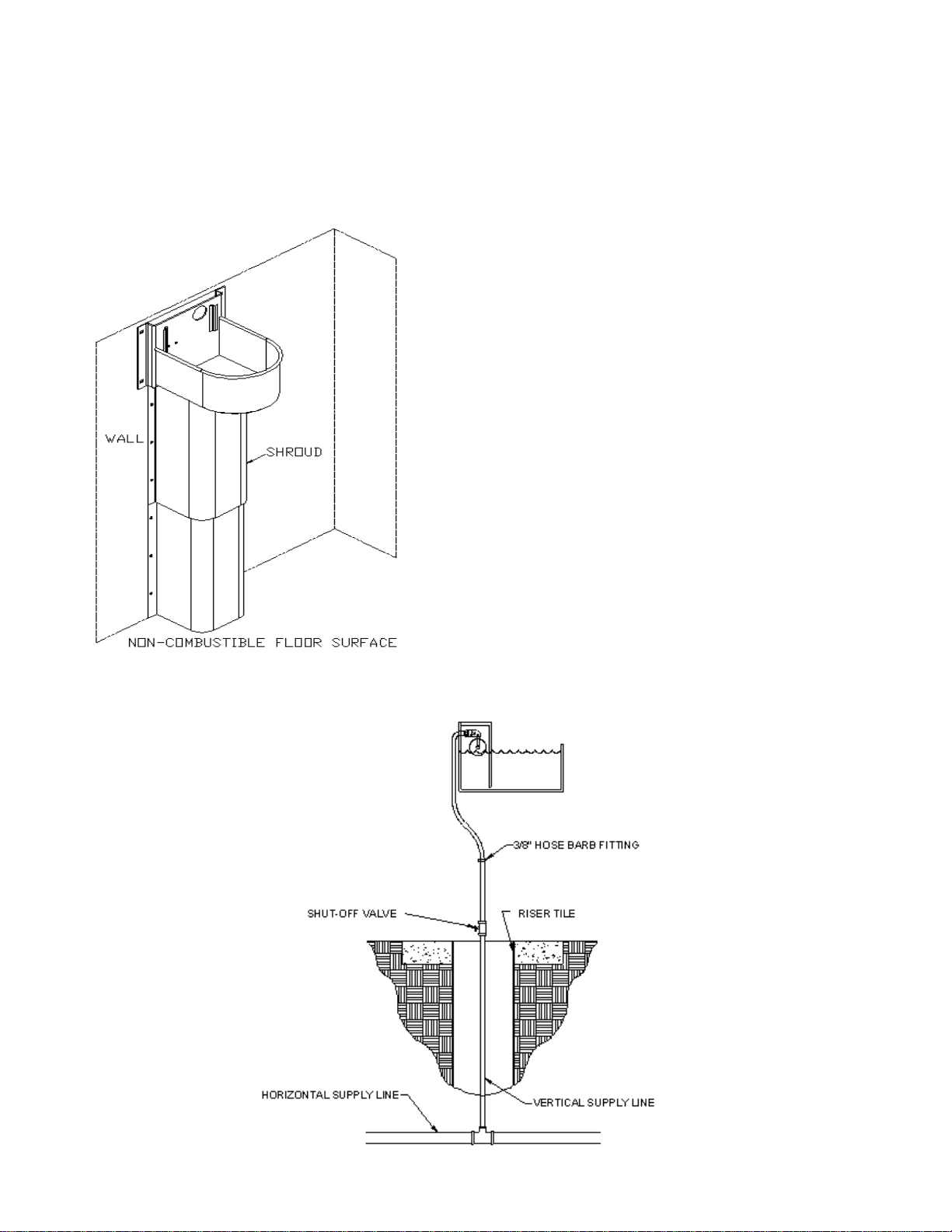

L. Installing the Shroud – After the plumbing and electrical
connections are made, install the shroud as shown using ¼”
screws or bolts. Height of the shroud can be adjusted in 6”
increments by removing insulation as needed and moving top
shroud down to align next set of holes. For the StallFount 125 -
Attach ground wire with grounding clip over top edge of top
shroud.
CAUTION: StallFount 125 must be installed with the
shroud in place. The shroud prevents animals from
coming in contact with the heater.
StallFount Installation
StallFount Instruction Manual
3
Part # 17747
October 31, 2022

Trouble Shooting
Problem
Solution
Ice in Trough
Check fuses or circuit breakers
Check all heating elements to make sure they are working and hot
Check voltage after the thermostat to the fountain with and without electrical load.
Valve freezing Check that the cable heater is installed properly near valve and fastened to water supply line
and is working (hot).
Supply line freezing
Check that the cable heater is fastened to supply line and is working (hot).
Check that supply piping is centered in riser tube and that there is air space between riser tube and
supply line. Ritchie Thermal Tubes are recommended as they have optimum inside and outside
diameter to maximize insulation.
Check that riser tube is free of water and mud that may freeze.
Valve won’t shut off
Check
float adjustment. Check for waterlogged float, or float rubbing on side of valve
compartment.
Disassemble valve and check for sand or scale in valve rubber. Also check valve orifice
outlets for wear and damage. A screen or filter may be required with sandy or scaly water
Turn valve rubber over and re-assemble
Check for excessive water system pressure (greater that 60 psi). May need to use pressure
reducer.
Low water flow
Check that valve inlet is not plugged or supply hose is not kinked
Check system pressure to unit. A severe pressure drop indicates a restriction or undersized
supply system.
Check that shutoff valves are fully open.
StallFount Instruction Manual
4
Part # 17747
October 31, 2022

8/16/2021
Wiring-2021.dwg
TDU - Sheet: 1 of 1
WHITE
BLACK
BLACK
BLACK
BLACK
BLACK
BLUE
BLUE
BLUE
BLUE
WHITE
BLACK
WHITE
WHITE
BLACK
BLACK
GREEN
RED
BLACK
BLACK
BLACK
BLACK
BLACK
BLUE
BLUE
BLUE
BLACK
BLUE
BLACK
RED
RED
BLACK
RED
GREEN
CABLE
HEATER
120V
TROUGH HEATER
120V
THERMOSTAT
FENWAL OR DISC
GREEN
GREEN GROUND
WHITE NEUTRAL
BLACK HOT
COMMERCIAL
POWER

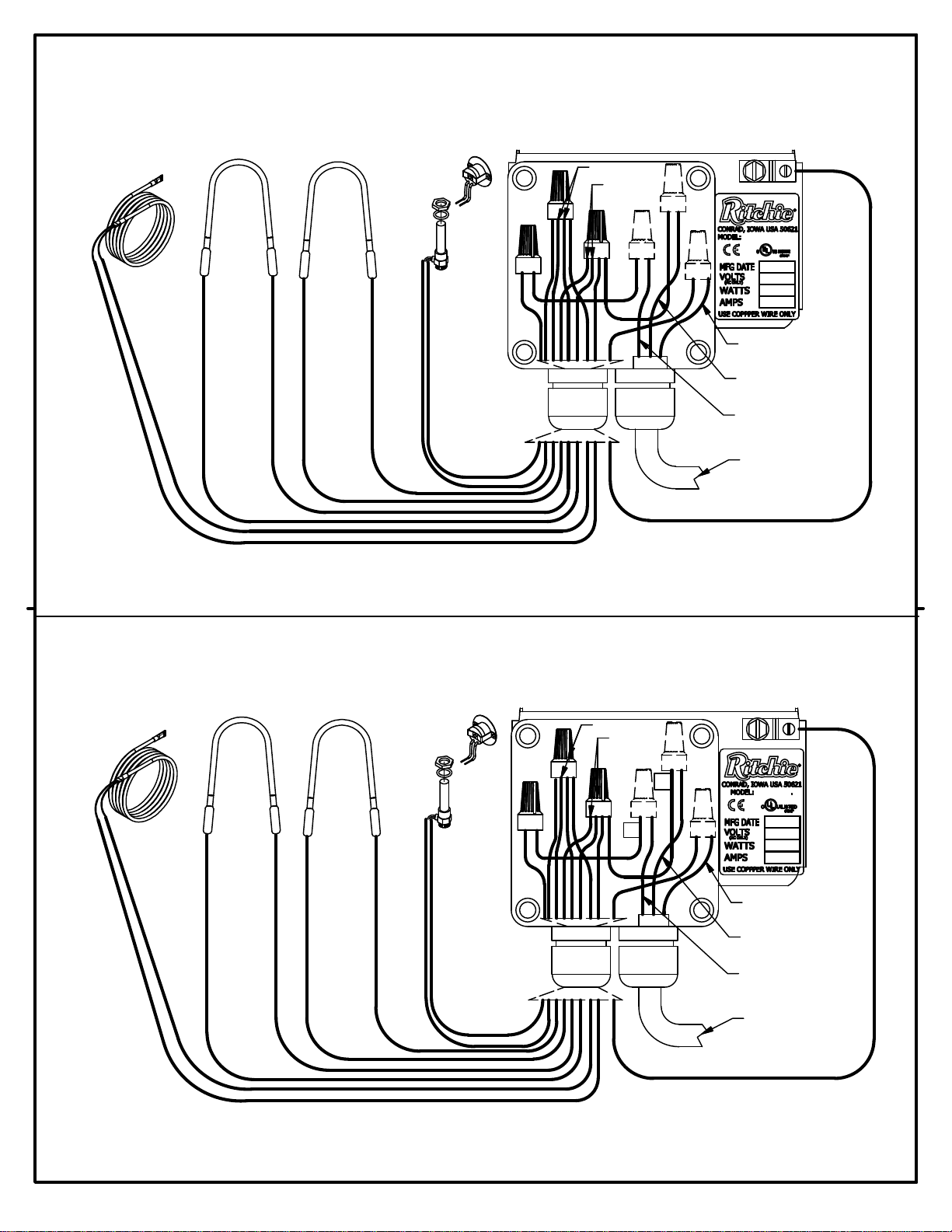

WIRING DIAGRAM FOR HEATED UNITS
NOTE: Power cord may be supplied on select units to simplify
installation. Use of a moisture resistant, exterior grade outlet is
recommended in these units. Do not use extension cords.
CABLE
HEATER
240V
TROUGH HEATER
240V
THERMOSTAT
FENWAL OR DISC
WARNING - CHECK NAMEPLATE FOR CORRECT
VOLTAGE. ONLY CONNECT 120VAC TO 120V UNITS.
WIRING DIAGRAM SHOWN WITH 2
HEATERS - QUANTITY MAY VARY
GREEN GROUND
RED - L2
BLACK - L1
COMMERCIAL
POWER
BLACK
BLACK
BLACK
BLACK
L1
L2
120V UNITS - SINGLE PHASE
(3) WIRE CONNECTORS FIELD SUPPLIED
240V UNITS - SINGLE PHASE
(3) WIRE CONNECTORS FIELD SUPPLIED
WARNING - CHECK NAMEPLATE FOR CORRECT
VOLTAGE. ONLY CONNECT 230-240VAC TO 240V UNITS.
WIRING DIAGRAM SHOWN WITH 2
HEATERS - QUANTITY MAY VARY
StallFount Instruction Manual
5
Part # 17747
October 31, 2022

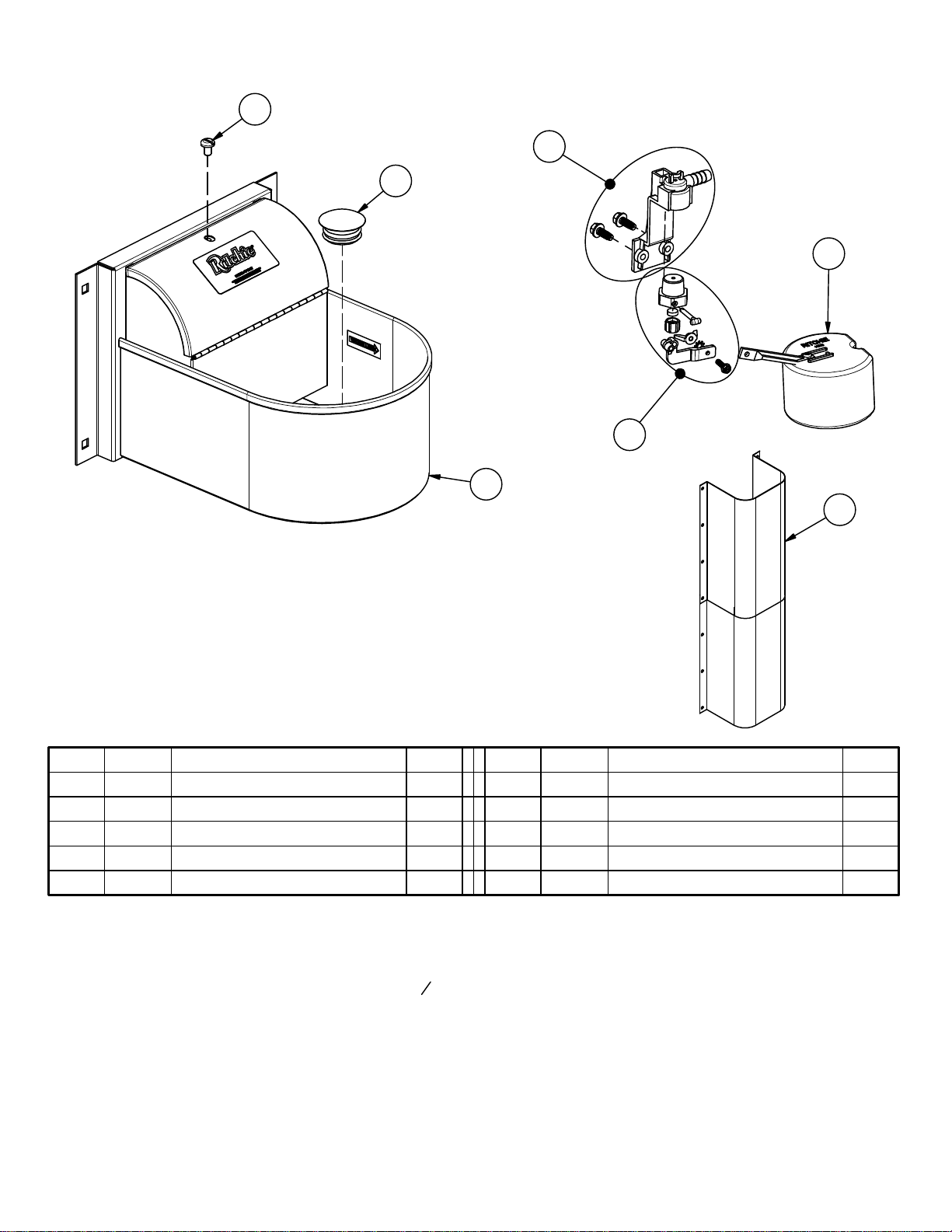

StallFount
Part # 16871
Item Part # Description Qty . . Item Part # Description Qty
1 16877 SF Trough Complete 1 6 13597 Green Valve 1/2" pkg 1 pkg
2 18876 SF Trough Plug 1 7 18092 Shroud Set Optional. 1 pkg
3 18080 SF Cover Screw (6/pkg) 1 pkg NS 15931 Hose Clamp SS (5/pkg) 1 pkg
4 13613 Float with Short Arm pkg 1 pkg NS 18228 SF Accessory pkg 1 pkg
511515 Valve Bracket w/ screw pkg 1 pkg
3
2
5
4
1
7
Installation Variations
A stainless steel shroud may be purchased to protect the waterline between the floor and the Ritchie Stall Fount. Part
number 18092 includes two sections of shroud, 19 34inches long. This part is not required for the non-electric Stall
Fount.
Installing the shroud - After the plumbing connections are made, install the optional shroud using 1/4" lag screws or
bolts. When more than one section of shroud is used, the total length of the shroud can be adjusted in 6" increments by
removing insulation as needed and moving top shroud down to align next set of holes.
6
StallFount Instruction Manual
6
Part # 17747
October 31, 2022

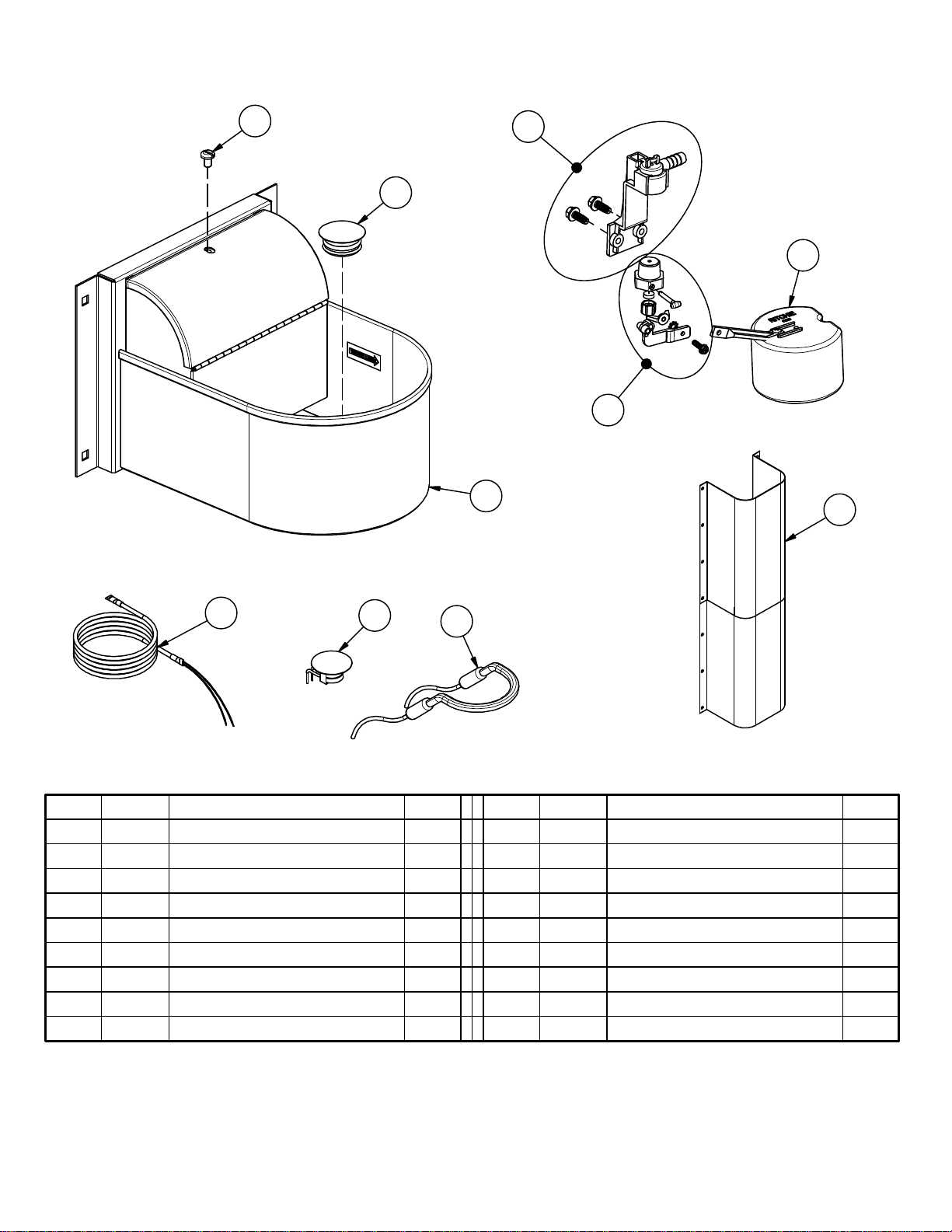

StallFount 125
Part # 18082
Item Part # Description Qty . . Item Part # Description Qty
118083 SF Trough Complete 1 10 18092 Shroud Set 1 pkg
218876 SF Trough Plug 1 NS 18613 Adapter 1/2" x 3/8" HB 1 pkg
3 18080 SF Cover Screw (6/pkg) 1 pkg NS 15931 Hose Clamp SS (5/pkg) 1 pkg
413613 Float with Short Arm pkg 1 pkg NS 18228 SF Accessory pkg 1 pkg
5 11515 Valve Bracket w/ screw pkg 1 pkg
6 13597 Green Valve 1/2" pkg 1 pkg 18415 SF 240 200W
7 11885 Disc Thermostat pkg 1 pkg NS 16664 Heater 240V 200w (1/pkg) 1 pkg
8 14150 Heater 120V 125W pkg 1 pkg NS 16424 Cable Htr 240v 48W (1/pkg) 1 pkg
9 13830 Cable Heater 120V 48W pkg 1 pkg
8
7
3
2
5
4
1
10
9
6
StallFount Instruction Manual
7
Part # 17747
October 31, 2022

This page intentionally left blank
StallFount Instruction Manual
8
Part # 17747
October 31, 2022

RITCHIE INDUSTRIES, INC.
LIMITED WARRANTY
Ritchie Industries, Inc., hereinafter referred to as Ritchie Industries, gives a LIMITED WARRANTY
for the period of time(s) stated herein, subject to certain limitations, on your new watering system
against defects in material or workmanship when properly installed, set up, operated, and maintained
in accordance with the instructions and recommendations set forth by Ritchie Industries, including in
the Installation Instructions. The warranty excludes labor and shipping charges.
The warranty is transferable to the next purchaser of the watering system prior to expiration of the warranty period, but any
such transfer will not extend the original warranty term. Proof of purchase must be submitted with any warranty claim, and all
warranty claims shall be processed through an Authorized Ritchie Dealer or Distributor.
Ritchie Industries’ liability for any defects in material or workmanship with respect to accepted goods shall be limited to
repairing the goods or replacing them as Ritchie Industries shall elect. Parts used in warranty repairs will be warranted for the
balance of the water system’s warranty period, with all parts replaced under warranty becoming the property of Ritchie
Industries.
The limited warranty periods begin upon delivery of the watering system to the original purchaser. Upon delivery of thegoods,
purchaser assumes all liability, including but not limited for all personal injury and property damage, resulting from the
handling, possession, or use of the goods.
WARRANTY COVERAGE AND LIMITATIONS
Limitations of Warranties and Remedies
Ritchie Industries’ watering systems are designed and manufactured to provideyearsof reliable use when installed and operated
consistent with Ritchie Industries’ instructions and recommendations. However, the potential for improper installation,
modifications and misuse of the goods exists. Therefore, the limited warranty provided shall be as follows:
This limited warranty shall not apply to any appearance items and shall not apply to any product which has been subject to
misuse, abuse, abnormal service or handling, negligence, or accident, nor to any product that is installed and/or used contrary
to Ritchie Industries’ installation instructions and instructions for use. The limited warranty shall also not apply to any product
whose exterior has been damaged or otherwise defaced, that has been repaired, altered, or modified by anyone, other than
Ritchie Industries, in a way so as in Ritchie Industries’ judgment it adversely affects the product’s operation, performance,
durability, or intended use, nor to any product where removal of parts, modification(s) or use of parts or accessories not
manufactured or approved by Ritchie Industries has caused damage.
Coverage and Warranty Periods
Unit Type Coverage and Warranty Period
Poly Units Base, top, and ball closures. Ten-year limited warranty: 100% for first five years,
then declining 20% per year for remainder of the 10-year period.
Stainless Steel Units Stainless trough and stainless valve chamber frame. Ten-year limited warranty,
plus ten years of corrosion coverage, at 100% for entire 10-year period.
Component Parts One-year limited warranty on all component parts, such as floats, valves, and
heating elements.
Exclusions of Liability
EXCEPT AS OTHERWISE EXPRESSLY STATED HEREIN, RITCHIE INDUSTRIES MAKES NO OTHER WARRANTY OR REPRESENTATION OF
ANY KIND, EXPRESSED OR IMPLIED. THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE EXCLUDED FROM THIS LIMITED WARRANTY. TO THE EXTENT THEY CANNOT BE DISCLAIMED, THE IMPLIED
WARRANTIES ARE LIMITED IN DURATION TO THE LIFE OF THE EXPRESS WARRANTY. THIS LIMITED WARRANTY EXCLUDES
INCIDENTAL, CONSEQUENTIAL, AND SPECIAL DAMAGES. THIS EXCLUSION OF CONSEQUENTIAL, INCIDENTAL, AND SPECIAL
DAMAGES IS INDEPENDENT FROM AND SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS
ESSENTIAL PURPOSE. THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY
PERSON UNDER THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS, AND
EXCLUSIONS IDENTIFIED ABOVE AND, AS A RESULT, THEY MAY NOT APPLY TO YOU.
No agent, employee or representative of Ritchie Industries, and no Ritchie Industries Dealer/Distributor, is authorized to bind Ritchie Industries to any
representation or warranty regarding the goods except as specifically included in this limited warranty.
StallFount Instruction Manual
9
Part # 17747
October 31, 2022

Installation Instructions for
StallFount &
StallFount 125
Congratulations, you have just purchased the finest watering fountain on the market. This unit is built to give you excellent service when properly installed and maintained. Please follow instructions carefully. Read and understand all instructions before installing. Ritchie Industries, Inc. 800-747-0222 www.ritchiefount.com @RitchieWaterers
STALLFOUNT BAG ASSY
StallFount Instruction Manual
10
Part # 17747
October 31, 2022
