Rivers Edge LANDMARK 600 BLIND User manual

GAS/OIL
RATIO
50:1
Operator's Manual
MODEL LM603
LANDMARK™
600 BLIND
Get parts online at
www.HuntRiversEdge.com
P/N: 39725
C/N: 40109
REV1: 1/26/22
© 2022 RETI
All Rights Reserved

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
2
Operator's Manual
Landmark™ 600 Blind
CONTENTS
Introduction/Warranty ..................................................................................................................................................................................................................2
Warnings/Tools Required .............................................................................................................................................................................................................3
Hardware Identication Chart....................................................................................................................................................................................................4
Assembly Instructions ............................................................................................................................................................................................................ 5-15
Notes................................................................................................................................................................................................................................................. 16

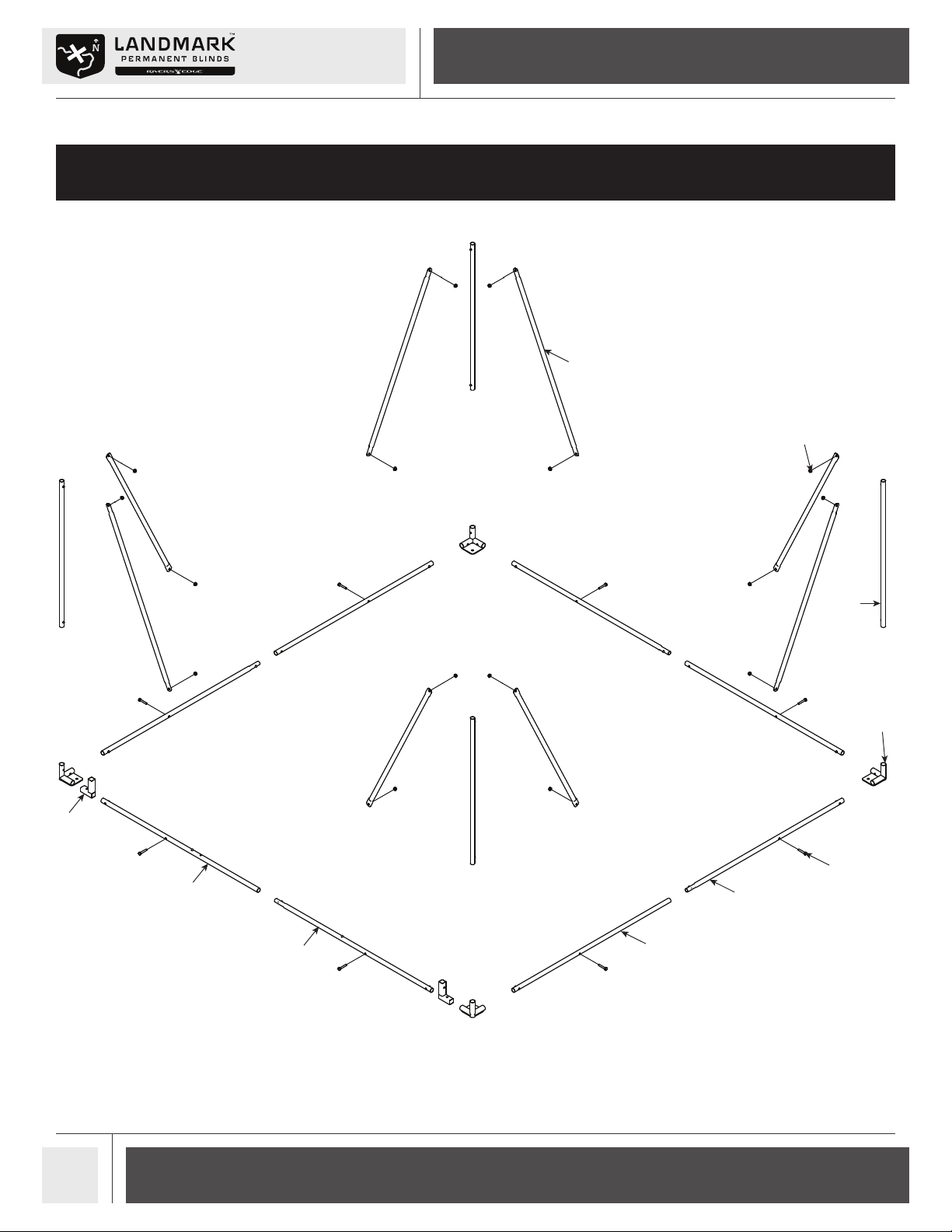

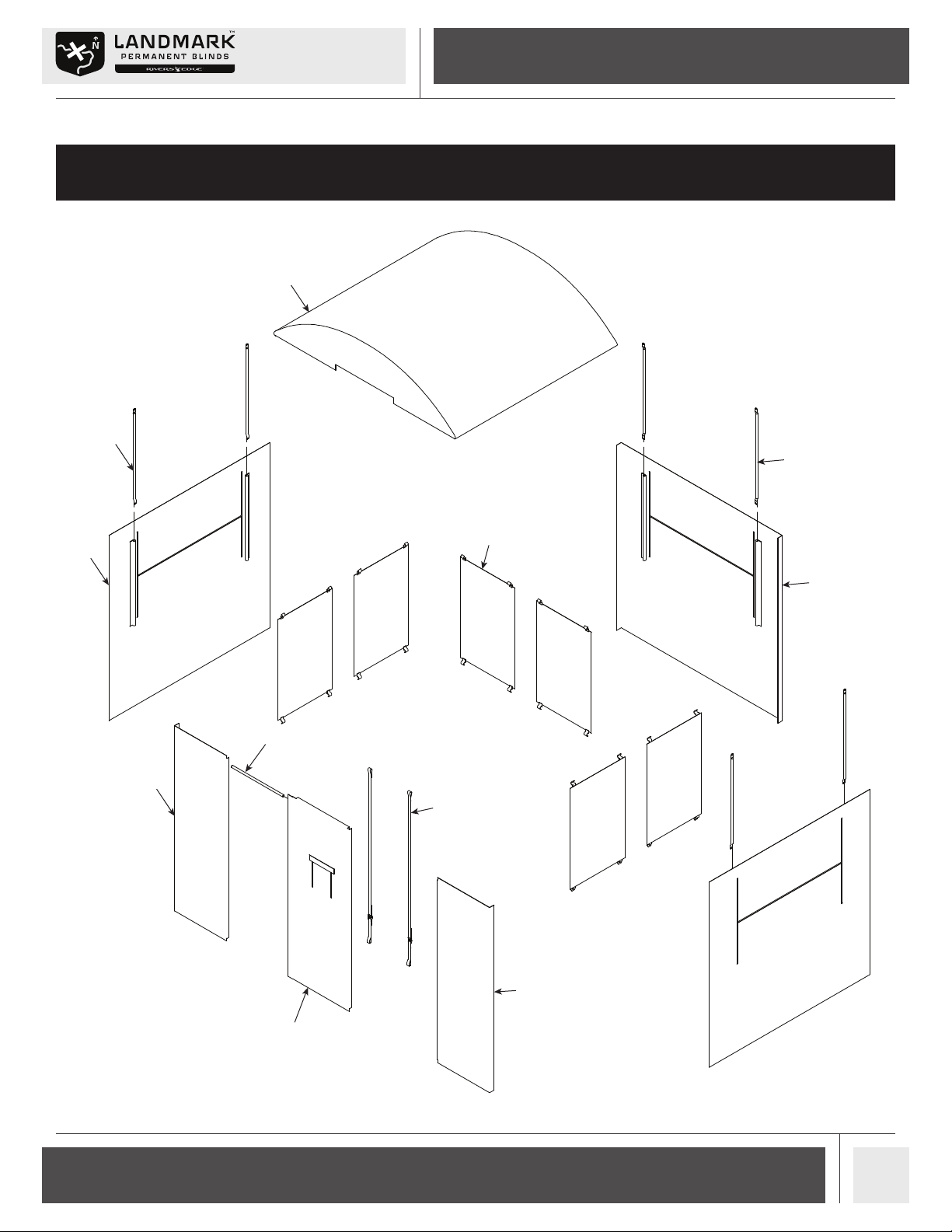

Illustrated Parts Breakdown................................................................................................................................................................................................16-19
Parts List........................................................................................................................................................................................................................................... 20
Notes...........................................................................................................................................................................................................................................21-23
INTRODUCTION
We appreciate your purchase of one of our world class products. Follow these few simple instructions and this product will
provide you many years of trouble-free pleasure. Instructions should be kept in a safe place and reviewed at least annually.
If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge®customer
service department at 800-345-6007 for assistance.
WARRANTY
Ardisam, Inc., warrants this product under a one-year limited warranty to be free from defects in materials or workmanship or both for a period not
exceeding twelve consecutive months from the date of original purchase by the rst retail consumer or commercial end user. “Consumer use” means
personal recreational use by a retail consumer. “Commercial use”or “commercial application”means all other uses, including use for commercial, income
producing or rental purposes. Once a product has experienced commercial use, it shall thereafter be considered as a commercial use product for
purposes of this warranty. This warranty does not cover cracked windows, tent tears, or bent poles due to use in exteme weather conditions (i.e. hurricane
force winds) or uses other than those listed in the operator’s manual. Damage that occurs to a unit due to improper anchoring is not covered under
manufacturer warranty. This warranty applies to the original owner that provides a proof of purchase of the unit. The warranty is not transferable. The
warranty period begins on the date of purchase by the rst retail consumer or commercial end user, and continues for the twelve month consecutive
period thereafter. Any unit used in a commercial application is covered for a period of 90 days after purchase. For the warranty to be valid, the product
must be registered online at huntriversedge.com, within 30 days of purchase. Ardisam, Inc. shall not be obligated to ship any repair or replacement product
to any location outside of the United States of America or Canada.
This warranty applies only to products which have not been subjected to negligent use, misuse, uses other than those indicated in the product’s operator’s manual,
alteration, accident, use of unauthorized parts, failure to perform periodic maintenance as specied in product’s owner’s manual, or normal wear and tear.
There is no other expressed warranty. Implied warranties, including those of merchantability and tness for a particular purpose, are limited to one year from
purchase, or to the extent permitted by law. All other implied warranties are excluded. Liability for incidental or consequential damages are excluded to the extent
exclusion is permitted by law. Ardisam, Inc. does not assume, and does not authorize any other person to assume for us, any liability in connection with the sale
of our products. To obtain warranty service, you must have prior approval by calling our Customer Service Department at 1-800-345-6007. Ardisam, Inc. will at
no charge, repair or replace, at their discretion, any defective part which satises all conditions stated above. Ardisam, Inc. retains the right to change models,
specications and price without notice. Ardisam, Inc. shall not be obligated to ship any repair or replacement product to any location outside of the United States
of America or Canada.
If you choose to elevate this product to use above ground (on a tower type structure), only use Ardisam, Inc. original designed structures to do so. *Using manmade
structures or structures not manufactured by Ardisam, Inc. will void your warranty and waive any and all claims for liability against the manufacturer Ardisam,
Inc. If you choose to elevate this product on a Ardisam, Inc. brand tower structure, the warranty listed in the tower structure manual will apply to this product in
addition to the warranty statement in this operator’s manual.

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 3
Operator’s Manual
Landmark™ 600 Blind

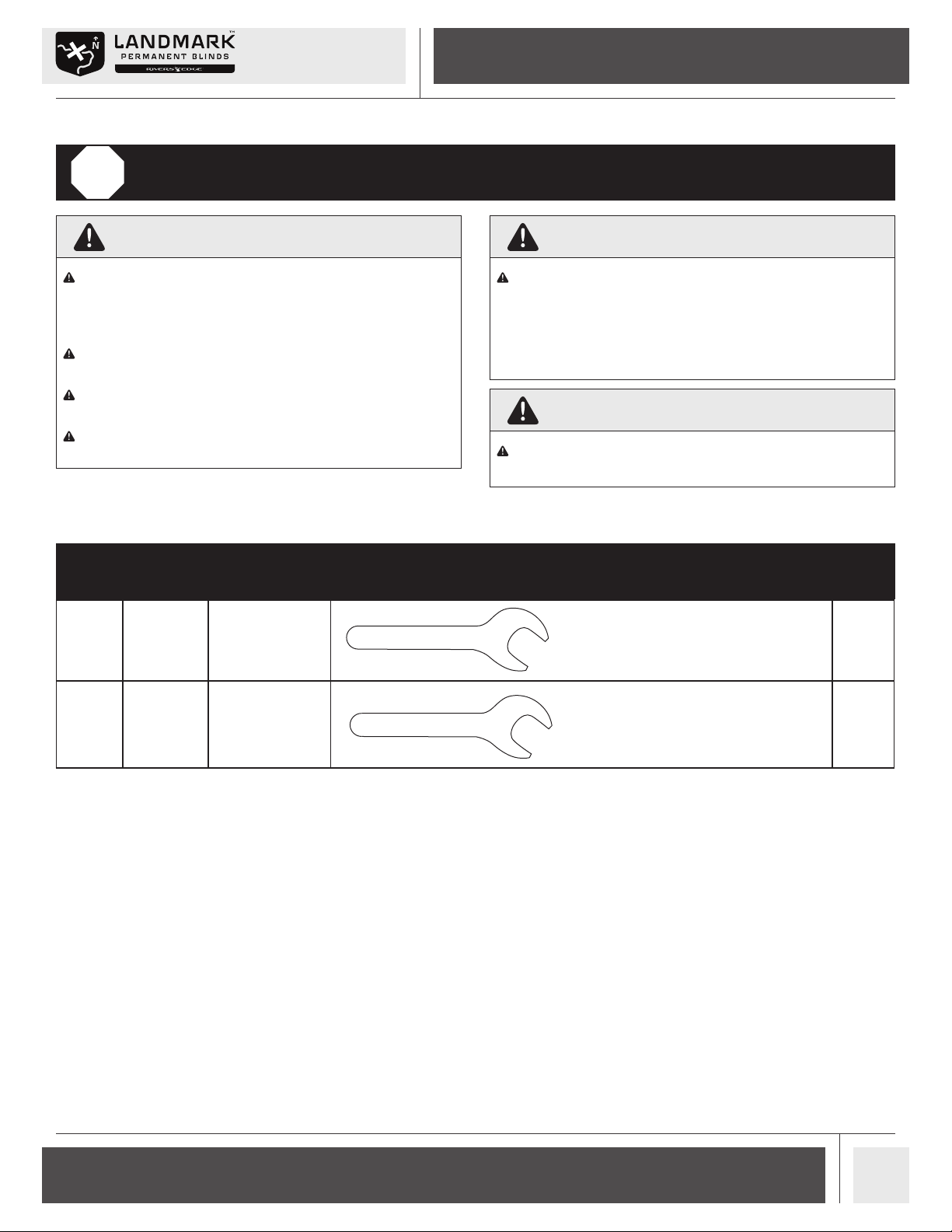

WARNING
Read, understand and follow all assembly, inspection
and use instructions provided before each use. Failure to
follow warnings and instructions could result in serious
injury or death.
This product is for hunting purposes only! It is not to be
used as a camping tent or for any other function.
Never allow children to play in this product without adult
supervision. To do so could cause serious injury or death.
Never allow the material to cover your face. This material
can cause suocation and death if it is placed over face.
READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY
STOP
WARNING
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM
THIS TENT FABRIC. This tent meets the ammability
requirements of CPAI-84. The fabric may burn if left in
continuous contact with any ame source.The application
of any foreign substance to the tent fabric may render the
ame-resistant properties ineective.
WARNING
Only use approved RETI parts. Failure to do so may result
in serious injury or death!
TOOLS REQUIRED
- # 32563 7/16”WRENCHES 2
- - 1/2”WRENCH 1

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
4
Operator's Manual
Landmark™ 600 Blind
HARDWARE LIST
Item Part No. Description Image Qty
48 # 8909B BOLT
1/4 X 11/4 IN 8
49 # 48240B BOLT
1/4 X 11/2 IN 49
50 # 48153B BOLT
1/4 X 2 IN 4
51 # 48271B BOLT
1/4 X 21/4 IN 1
52 # 63282 BOLT
1/4 X 1 IN 1
53 # 15909 SPACER PLASTIC
6 MM 2
54 # 15908 SPACER PLASTIC
2.5 MM 1
55 # 30259 WASHER BLACK
PLASTIC 4 MM 3
56 # 48752B NUT 1/4 IN 63
57 # 60G5NYB NUT 5/16 IN 1

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 5
Operator’s Manual
Landmark™ 600 Blind
1
7
ASSEMBLY INSTRUCTIONS
IMPORTANT ASSEMBLY TIP:
Do not tighten any nut and bolt combinations completely
until instructions indicate to. Finger tighten plus one turn of
a wrench only! This will temporarily hold the lock- nut on the
bolt while helping alignment of all parts!

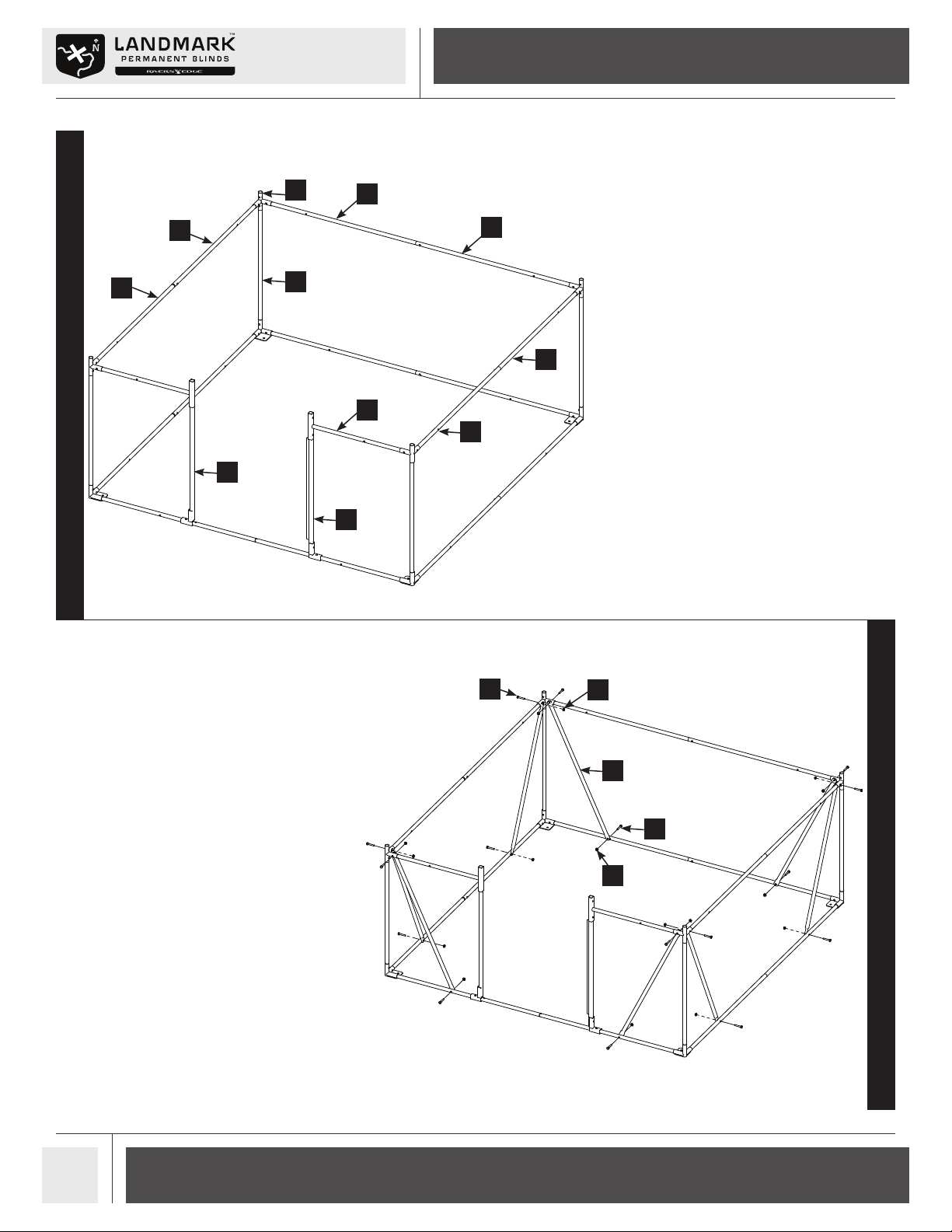

STEP 1
STEP 2
1. Open box, remove contents and organize all
parts together according to their labels. This
step greatly helps the ease of assembly.
Locate the four base hubs (1), three (6) poles,
three (7) poles, one (31) pole, one (32) pole
and two door hubs (9). SEE FIGURE 1.
Slide each (7) pole into the corresponding
(6) pole so that the snap button secures both
parts together. SEE FIGURE 1.
Slide the (32) pole into the corresponding
(31) pole so that the snap button secures
both parts together. SEE FIGURE 1.
Slide the two door hubs (9) down to the
second snap pin in assembled (31, 32) poles
as shown so that the snap buttons secure the
parts together. SEE FIGURE 1.
Slide the three assembled (6, 7) poles and
one assembled (31, 32) poles into the four
base hubs (1) so that the snap buttons secure
the parts together. You should now have the
bottom tier frame of the blind assembled.
SEE FIGURE 1.
2. Slide the four (18) poles into the base hubs
(1) so that the snap buttons secure the
parts together. SEE FIGURE 2.
Slide the (15) pole and (17) pole into the
door hubs (9) so that the snap buttons
secure the parts together. SEE FIGURE 2.
Be sure that the door stop plate on pole
(15) is facing interior of blind as shown in
DETAIL A.
7
6
9
32
31
6
6
7
DETAIL A
18
1
17
9
15
Door
stop plate
7
6
7
6
1
9
32
6
31
7
18
17
1
15
9

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
6
Operator's Manual
Landmark™ 600 Blind
18
2
17
15
30
23
24
56
49
22
23
24
23
24
56
49
STEP 3
STEP 4
3. Attach the four middle hubs (2) to the (18)
poles so that the snap buttons secure the
parts together. SEE FIGURE 3.
Attach the two (30) parts to the middle hubs
(2) and the (15) and (17) poles as shown. The
end that attaches to the middle hub does not
attach with a snap button and will be secured
together with hardware in a later step. SEE
FIGURE 3.
Slide each (24) pole into the corresponding
(23) pole so that the snap button secures
both parts together. SEE FIGURE 3.
Slide the three assembled (23, 24) poles
into the four middle hubs (2). These do not
attach with snap buttons and will be secured
together with hardware in a later step. You
should now have the middle tier frame of the
blind assembled. SEE FIGURE 3.
4. Attach each of the eight (22) poles to the
bottom and middle tiers of the blind frame
using two 1/4-20 X 1-1/2 IN bolts (49) and
1/4-20 nuts (56). SEE FIGURE 4. Pay attention
to the orientation of the bolts! The head of
the bolt must be on the outside of the frame.
This helps prevent wear on the skin when fully
assembled.
STEP 5
224
18
23
24
23
17
30
24
23
15
49 56
22
49
56

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 7
Operator’s Manual
Landmark™ 600 Blind
STEP 6A
5. Slide the four (19) poles into the middle hubs
(2) so that the snap buttons secure the parts
together. Pay attention to the orientation
of the snap buttons. The snap buttons must
face each other as shown and each through-
hole must be located closer to the top. SEE
FIGURE 5.
Slide the (10) pole and (16) pole into the (30)
parts so that the snap buttons secure the
parts together. SEE FIGURE 5. Be sure that
the door stop plate on pole (16) is facing
interior of blind.
6. Slide the (7) pole into the (6) pole so that the
snap button secures the parts together. SEE
FIGURE 6A.
Slide a roof hub (3) onto each end of the
assembled (6, 7) poles so that the snap
buttons secure the parts together. SEE
FIGURE 6A.
Slide each (4) pole into each (5) pole so that
the snap button secures the parts together.
SEE FIGURE 6A.
Slide the assembled (4, 5) poles into the roof
hubs (3) so that the snap buttons secure the
parts together. SEE FIGURE 6A.
Slide the (34) pole into the (33) pole. Make
sure that the snap buttons on each pole
are facing the same direction and secure
together using one 1/4-20 X 1 IN bolt (52)
and 1/4-20 nut (56). SEE FIGURE 6A.
Slide the two door hubs (9) down to the
second snap pin in assembled (33, 34) poles
as shown so that the snap buttons secure the
parts together. SEE FIGURE 6A.
Slide the right and left front roof hubs (35, 36)
onto the assembled (33, 34) poles so that the
snap buttons secure the parts together. SEE
FIGURE 6A.
Slide the assembled (9, 33, 34, 35, 36) onto
the assembled (4,5) poles so that the snap
buttons secure the parts together. SEE
FIGURE 6A. You should now have the top tier
frame of the blind assembled.
STEP 5
STEP 5
10
30 16
19
2
Through hole
closer to top
3
6
7
9
52
4
36
4
5
5
35
33
56
34
10
16
30 2
19
5
4
36
7
3
34
6
956
33
5
52
4
35

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
8
Operator's Manual
Landmark™ 600 Blind
STEP 6B
STEP 7
6. Assemble the top tier frame of the blind
to the rest of the frame by lifting it up and
sliding the roof hubs (3) onto the rear (19)
poles, the right and left front roof hubs (35,
36) onto the front (19) poles, and the door
hubs (9) onto poles (10) and (16). Secure parts
together with the snap buttons. SEE FIGURE
6B.

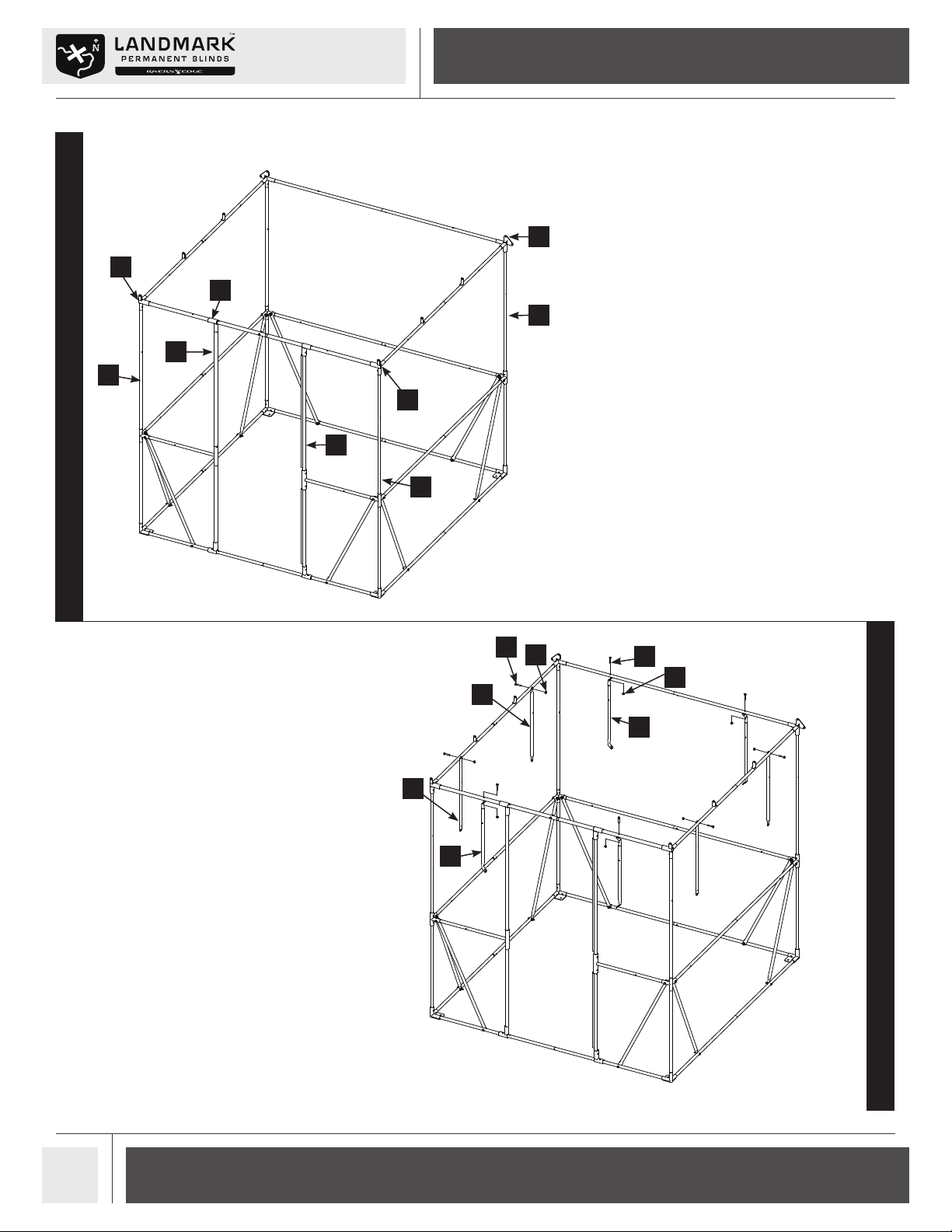

7. Attach one end of the four angled brace (20)
poles and four angled brace (21) poles to the
top tier frame of the blind using a 1/4-20 X
1-1/2 IN bolt (49) and 1/4-20 nut (56) for each
brace. Let them hang for now as shown. SEE
FIGURE 7.
19
3
35
36
19
19
9
16
10
20
56 49
21
49
56
20
21
9
36
19
16
35
19
3
10
19
21
56
49
21
20
20
49 56

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 9
Operator’s Manual
Landmark™ 600 Blind
21
56
19
49
20
STEP 8
STEP 9
8. Attach each set of angled braces (20, 21) to
the four (19) poles using a 1/4-20 X 1-1/2 IN
bolt (49) and 1/4-20 nut (56) for each set. SEE
FIGURE 8.
9. Slide the four (26) poles into the four (27)
poles and set aside. SEE FIGURE 9.
Slide the three (8) poles into the three (25)
poles so that the snap buttons secure the
parts together and set aside. SEE FIGURE 9.
Attach the assembled (26, 27) poles in the
center to one assembled (8, 25) pole using
four 1/4-20 X 2 IN bolts (50) and 1/4-20 nuts
(56). SEE FIGURE 9.
Attach the remaining two assembled (8, 25)
poles to the ends of assembled (26, 27) poles
using eight 1/4-20 X 1-1/4 IN bolts (48) and
1/4-20 nuts (56). SEE FIGURE 9. Pay attention
to the orientation of the bolts! The head of
the bolt must be on the top of the roof frame.
This helps prevent wear on the skin when
fully assembled. Securely tighten all loose roof
hardware at this time.
26 50
27
25
856
48
56
19
56
21
49
20
26 50
56
27
48
56
8
25

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
10
Operator's Manual
Landmark™ 600 Blind
DETAIL B
49
56
DETAIL C
36
STEP 10
STEP 11

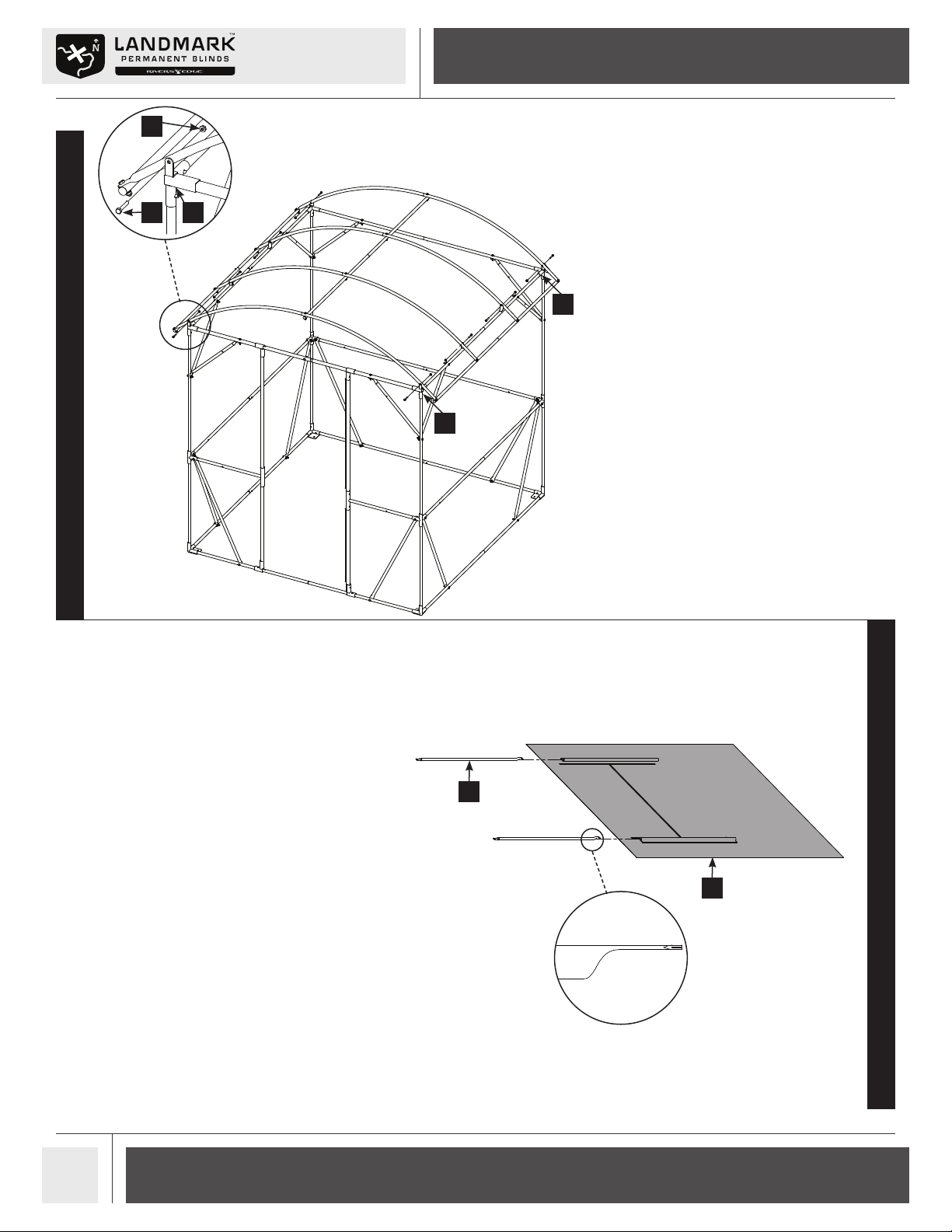

10.Attach the assembled roof to the rest of the
blind frame using eight 1/4-20 X 1-1/2 IN
bolts (49) and 1/4-20 nuts (56). SEE FIGURE
10. Pay attention to the orientation of the
roof! The roof attaches on the inside of the
roof hub (3, 35, 36) tabs. SEE DETAIL B.
Securely tighten all loose hardware at this time.
11.It is now time to begin the attachment of the
sewn panels to the frame. Lay out all sewn
panels and familiarize yourself with them. Pay
special attention to the back wall panel and
the two side wall panels as they look similar
at rst glance but are dierent. You can
identify the panels by sewn tags on the inside
near the window.
While paying attention to the orientation,
SEE DETAIL C, slide the four (28) window
poles into the sewn sleeves on the two side
wall panels (42) as shown, two poles per
panel. SEE FIGURE 11.
49 36
56
42
28
35
28
3
28

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 11
Operator’s Manual
Landmark™ 600 Blind
FIGURE 12
FIGURE 12A FIGURE 12B FIGURE 12C
28
37
49
49
30
42
DETAIL D
DETAIL F
Hook
and Loop
Straps
D-Ring
Strap
DETAIL E
STEP 12

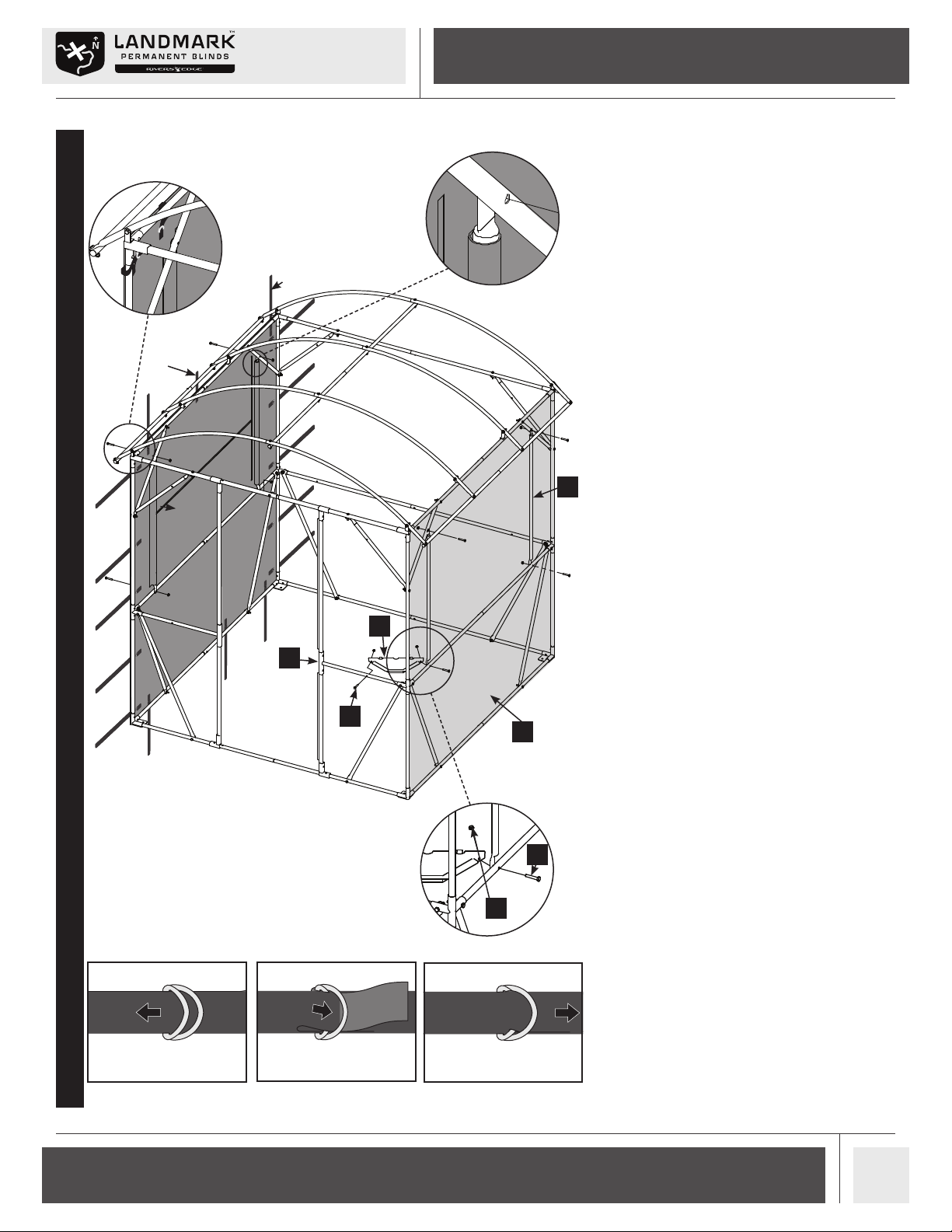

12.Attach the two side wall panels (42) to the
blind frame by rst hanging the panels from
the top tier of the frame using the two D-ring
straps and hook and loop straps along the top
edge of the panel. Wrap the straps around the
frame and secure. DO NOT FULLY TIGHTEN
D-RING STRAPS AT THIS TIME. SEE FIGURE
12 and DETAIL D. Refer to FIGURES 12A-C for
proper strap routing.
Next, bolt the (28) window poles to the blind
frame using two 1/4-20 X 1-1/2 IN bolts
(49) and 1/4-20 nuts (56) for each pole. Pay
attention to the orientation of the poles. SEE
FIGURE 12 and DETAIL E. Pay attention to
the orientation of the bolts! The head of the
bolt must be on the outside of the frame. This
helps prevent wear on the skin when fully
assembled.
Finish attaching the side wall panels (42) by
wrapping all the D-ring straps around the
frame and secure. DO NOT FULLY TIGHTEN
D-RING STRAPS AT THIS TIME. START AT
THE TOP AND WORK YOUR WAY TO THE
BOTTOM. SEE FIGURE 12.
Attach the corner shelf (37) on one end to the
previously installed window pole bolt and on
the other end to the (30) part using one 1/4-
20 X 1-1/2 IN bolt (49) and 1/4-20 nut (56) as
shown. SEE FIGURE 12 and DETAIL F.
28
37
49
30
49
56
49
42

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
12
Operator's Manual
Landmark™ 600 Blind
Right side
panel and
sidewall straps
hidden for
clarity
DETAIL G
DETAIL H
49
56
43
29
29
56
29
56
STEP 13
STEP 14

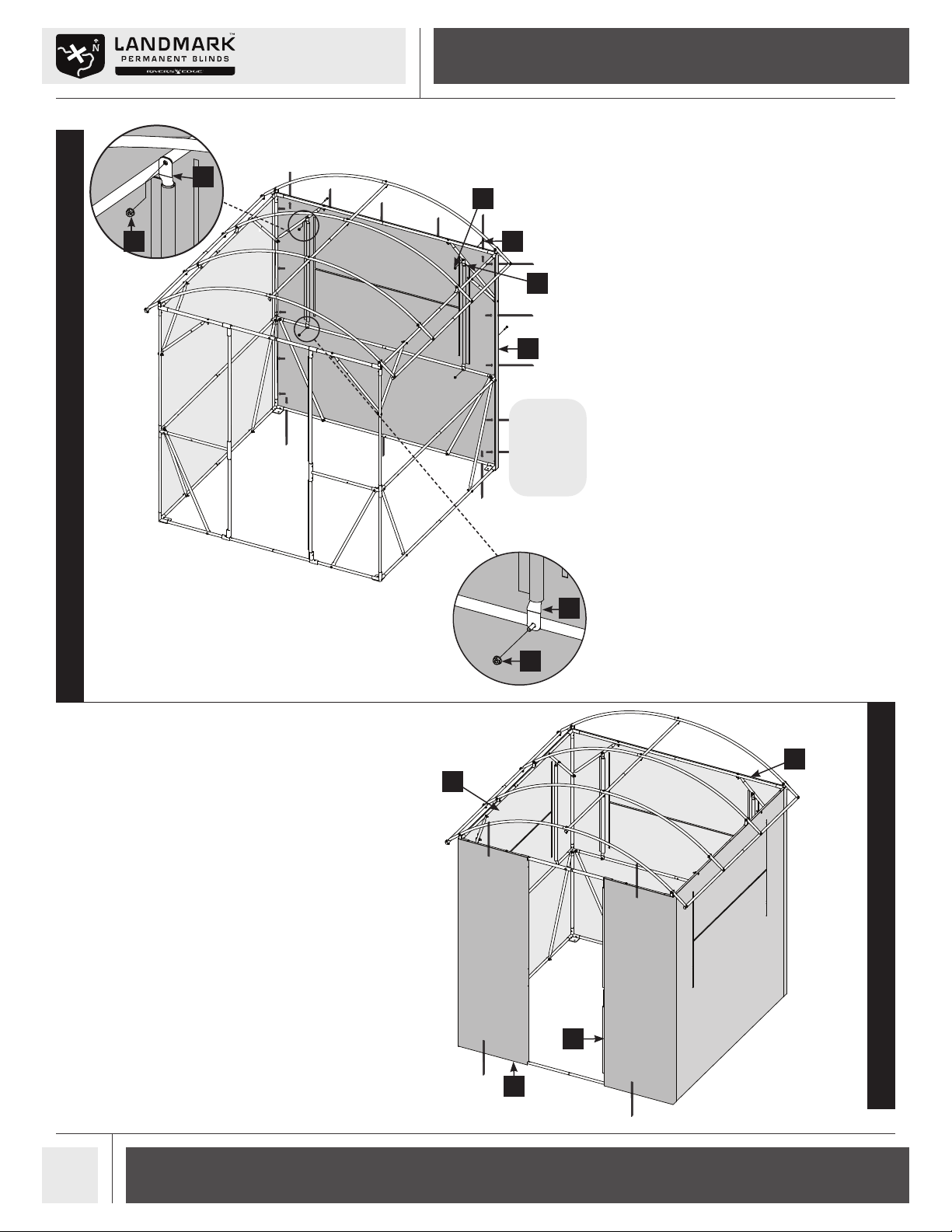

13.Repeat similar process for back wall panel,
slide the two (29) window poles into the
sewn sleeves on the back wall panel (43). SEE
FIGURE 11.
Attach the back wall panel (43) to the blind
frame by rst hanging the panels from the
top tier of the frame using the two D-ring
straps and hook and loop straps along the top
edge of the panel. Wrap the straps around the
frame and secure. DO NOT FULLY TIGHTEN
D-RING STRAPS AT THIS TIME. SEE FIGURE
13.
Next, bolt the (29) window poles to the blind
frame using two 1/4-20 X 1-1/2 IN bolts
(49) and 1/4-20 nuts (56) for each pole. Pay
attention to the orientation of the poles.
SEE FIGURE 13 and DETAILS G and H. Pay
attention to the orientation of the bolts! The
head of the bolt must be on the outside of
the frame. This helps prevent wear on the skin
when fully assembled.
Finish attaching the back wall panel (43) by
wrapping all the D-ring straps around the
frame and secure. DO NOT FULLY TIGHTEN
D-RING STRAPS AT THIS TIME. START AT
THE TOP AND WORK YOUR WAY TO THE
BOTTOM. SEE FIGURE 13.
14.Hang the left front wall panel (44) and right
front wall panel (45) from the top tier of the
frame using the one D-ring strap along the top
edge of each panel. Then attach the bottom of
the panels to the frame using the one D-ring
strap along the bottom edge of each panel.
Wrap the straps around the frame and secure.
SEE FIGURE 14.
Next, attach the door edge of the front wall
panels (44, 45) to the frame by wrapping
around and securing with the hook and loop
strips. SEE FIGURE 14.
Secure the two front wall panels (44, 45) and
back panel (43) to the two side wall panels (42)
by matching up the hook and loop attachment
strips on the corners. Start at the top and work
your way to the bottom. Adjust and redo the
D-ring straps as necessary to accomplish a snug
t and take out as much slack in the wall panels
as possible. SEE FIGURE 14. Securely tighten all
loose hardware at this time.
43
45
44
42
29
56
43
29
56
49
29
56
45
43
42
44

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 13
Operator’s Manual
Landmark™ 600 Blind
DETAIL I
DETAIL J
DETAIL K
13
12
47
14
41
38
38
DETAIL M
DETAIL L
STEP 15
STEP 16
15.Drape the roof panel (41) over the assembled
roof frame. Secure the hook and loop
attachment strips on the front and the back
of the roof panel to the strips on the front and
back wall panels and top tier of blind frame.
Adjust and redo as necessary to take out
as much slack in the fabric as possible. SEE
FIGURE 15 and DETAIL I.
Wrap the corners of the roof panel around
the corners of the frame assembly and secure
hook strip to loop. SEE FIGURE 15 and
DETAIL J.
Pull the roof panel tight by wrapping D-ring
straps around top tier of blind frame poles (4,
5). Feed the long strap through both D-rings
and back through to tighten. SEE FIGURE 15
and DETAIL K.
16.Locate the following parts: door frame top
(11), two bottom door frame parts (12, 13),
pole (14), two complete cam straps (38) (both
cam strap end and long loop end), and door
panel (47).
Slide a cam strap end onto each part (12, 13)
as shown. SEE FIGURE 16. Then slide (12,
13) into the sleeve in door panel (47) so that
snap buttons secure the parts together inside
of the sleeve as shown. SEE FIGURE 16 and
DETAIL M.
Slide door frame top (11) onto assembled
door frame bottom so that snap pins secure
the parts together. SEE FIGURE 16.
Slide pole (14) into top sleeve of door panel
being sure to also slide on the two long
loop ends of cam straps (38) as shown. SEE
FIGURE 16 and DETAIL L.
41
47
38
14
12
13
38
13
11

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
14
Operator's Manual
Landmark™ 600 Blind
FIGURE 18
DETAIL O
DETAIL P
44
53
13
51 33
53
54
40 55 55 55
57
56
Hook
and Loop
Strap
Hook
and Loop
Strap
47
DETAIL N
14
STEP 17
STEP 18

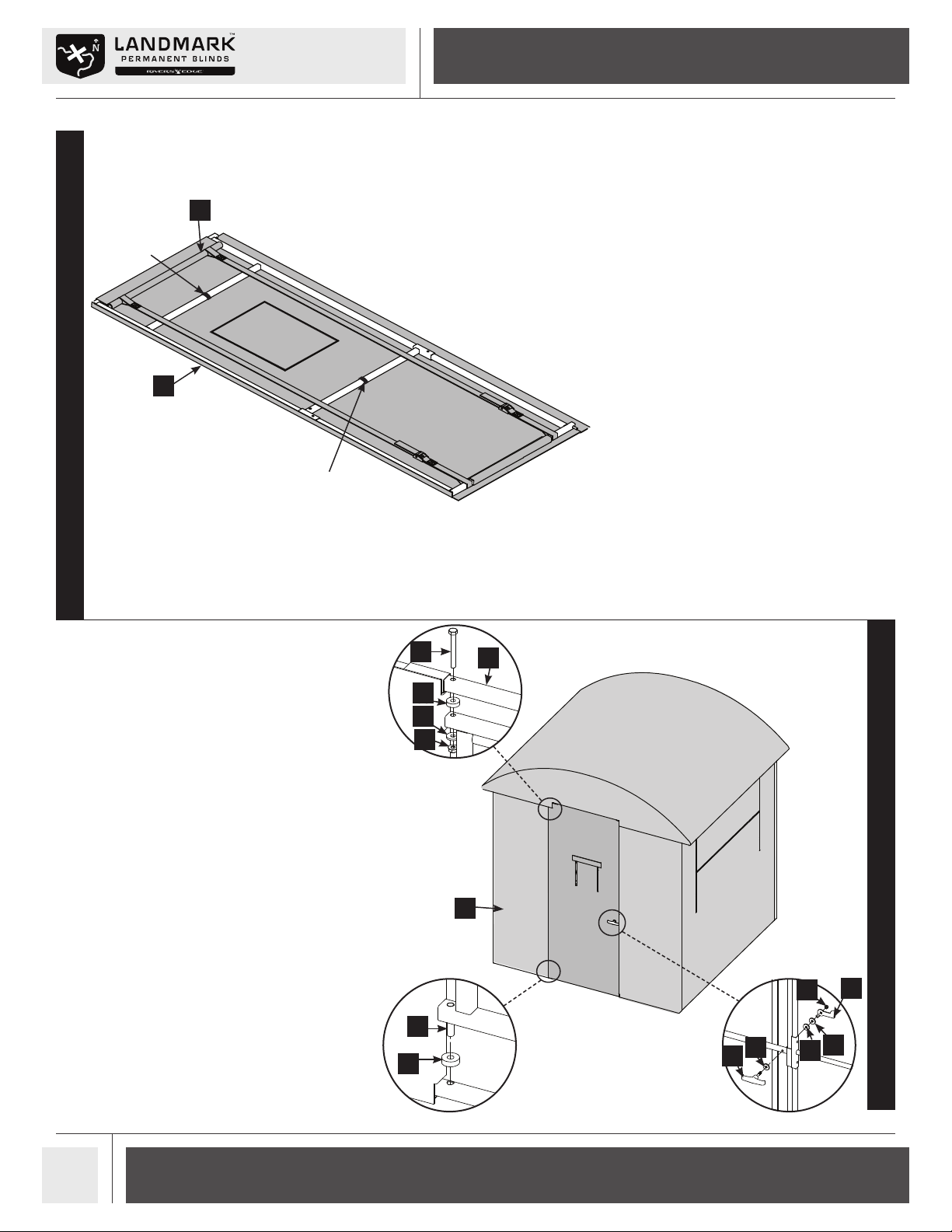

17.With the door panel (47) laid out at, ip the
assembled door frame over onto the panel.
Then, ip pole (14), top edge of panel and the
two long ends of cam straps over the frame.
SEE FIGURE 17.
Feed the loop end of straps through the cam
buckles and stand the door upright. Tension
the door panel vertically by pulling down on
the loop end of the strap with one hand and
up on the loose end with the other. DO NOT
OVER TENSION THE PANEL. ONLY TENSION
ENOUGH TO TAKE THE SLACK OUT OF
THE PANEL VERTICALLY AT THIS TIME. SEE
FIGURE 17.
Wrap the edge of the door panel on the
door handle side around the door frame
and secure with hook and loop strips. The
opposite edge will be attached with hook and
loop strips to the left front wall panel (44) in a
later step. SEE FIGURE 17.
Secure the door panel to the frame with the
two hook and loop straps on the interior of
the blind. SEE FIGURE 17.
18.Attach the assembled door to the blind frame
by sliding the plastic spacer (53) onto the
post on (13) and inserting the post into the
hole in pole (31). SEE FIGURE 18 and DETAIL
O.
Secure the top of the door to pole (33) using
a 1/4-20 X 2-1/4 IN bolt (51), plastic spacer
(53), plastic washer (54), and 1/4-20 nut (56).
SEE FIGURE 18 and DETAIL N.
Secure the edge of the door panel on the
hinge side to the front left wall panel (44)
with the hook and loop strip. SEE FIGURE 18.
Locate the door handle parts: door handle
(40), door handle latch (39), three plastic
washers (55), and 5/16-18 nut (57). Assemble
as shown in DETAIL P. Using a 1/2 IN wrench,
tighten snugly. DO NOT OVER TIGHTEN.
14
47
44
13
53
51 33
53
54
56
55
40 55 55
39
57

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 15
Operator’s Manual
Landmark™ 600 Blind
46
DETAIL Q
STEP 19
STEP 20

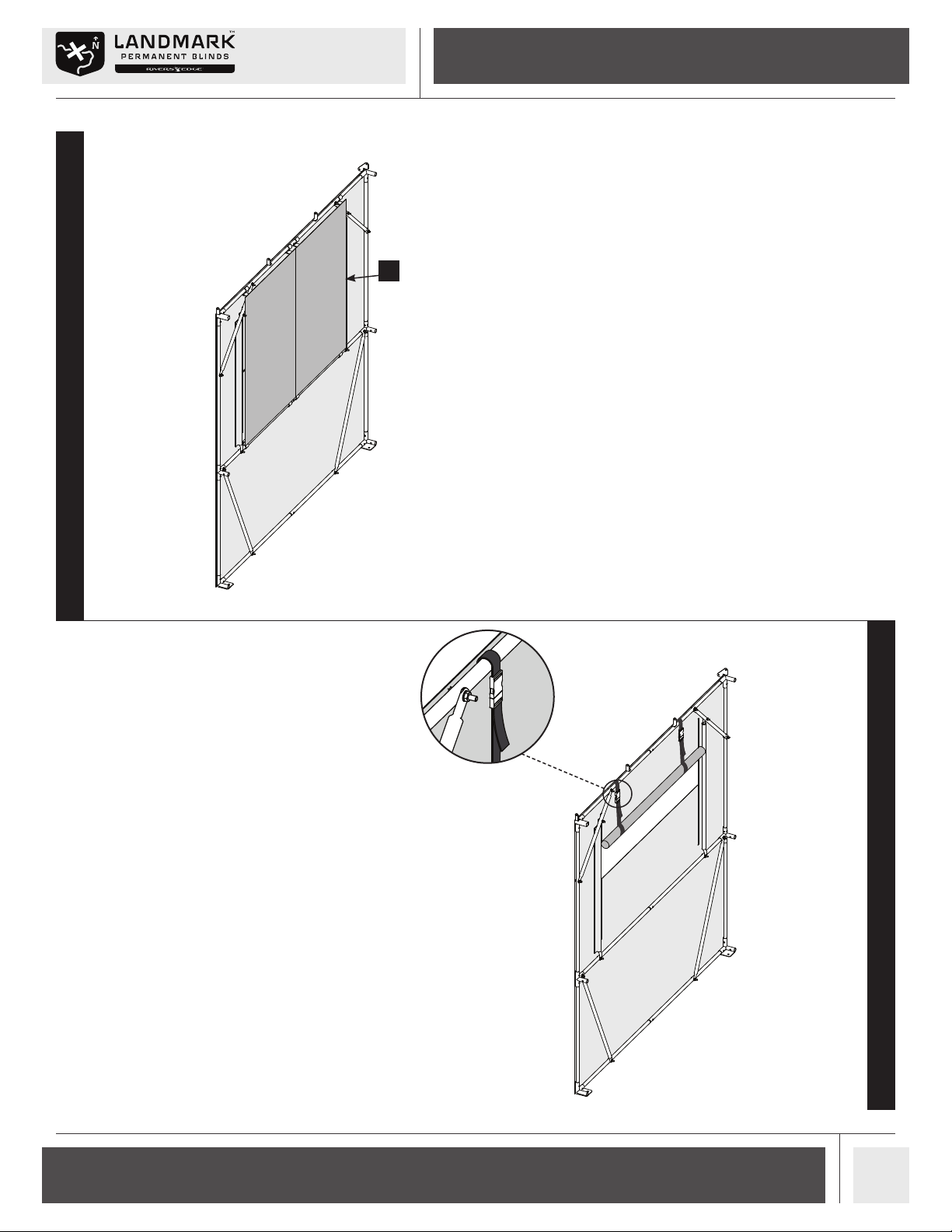

19.Attach the six vertical window panels (46)
on the interior of the blind by clipping two
panels onto the top and middle tiers of the
frame on each wall as shown. SEE FIGURE
19. To adjust these vertical window panels,
simply slide or unclip and reclip the clips to
adjust the panels.
20.To adjust the horizontal windows, simply zip
or unzip the windows to the desired position.
To keep the top horizontal window ap open,
simply roll up the ap to the desired height
and adjust the two straps to hold it in place.
SEE FIGURE 20 and DETAIL Q.
46

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
16
Operator's Manual
Landmark™ 600 Blind
ILLUSTRATED PARTS BREAKDOWN  BASE
9
31
32
7
6
49
1
18
56
22

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 17
Operator’s Manual
Landmark™ 600 Blind
ILLUSTRATED PARTS BREAKDOWN  CENTER
29
23
24
49
49
19
49
29
21
20
28
56
49
11
53
54
10
56
17
55
40
53 13
12
39
57
16
15
49 30
49
49
49
49
2
56
37

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
18
Operator's Manual
Landmark™ 600 Blind
ILLUSTRATED PARTS BREAKDOWN  ROOF
49
36
9
33
52
34
56
51
35 5
49
4
3
49
6
7
49
25
56
8
48
27
50
26

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007 19
Operator’s Manual
Landmark™ 600 Blind
ILLUSTRATED PARTS BREAKDOWN  PANELS
41
28
42
44
14
38
47
45
46
43
29

Check for parts online at www.HuntRiversEdge.com or call 800-345-6007
20
Operator's Manual
Landmark™ 600 Blind
ITEM # PART # DESCRIPTION QT Y.
1 22864 BASE HUB 4
2 22868 MIDDLE HUB 4
3 22873 ROOF HUB 2
4 22876 ROOF MOUNT MALE 2
5 22878 ROOF MOUNT FEMALE 2
6 22930 HORIZONTAL SUPPORT
FEMALE
4
7 22932 HORIZONTAL SUPPORT
MALE
4
8 22935 ROOF SUPPORT MALE 3
9 30063 BASE HUB DOOR SIDE 4
10 30070 VERTICAL SUPPORT LONG
CORNER
1
11 30094 DOOR TOP 1
12 30097 DOOR BOTTOM RIGHT 1
13 30098 DOOR BOTTOM LEFT 1
14 30102 TENSION TUBE 582 MM 1
15 30131 VERTICAL SUPPORT SHORT
DOOR STOP
1
16 30136 VERTICAL SUPPORT LONG
DOOR STOP
1
17 30189 VERTICAL SUPPORT SHORT
CORNER
1
18 39074 VERTICAL SUPPORT LOWER 4
19 39076 VERTICAL SUPPORT UPPER 4
20 39078 ANGLED BRACE UPPER
STRAIGHT
4
21 39079 ANGLED BRACE UPPER BENT 4
22 39080 ANGLED BRACE LOWER
STRAIGHT
8
23 39081 HORIZONTAL SUPPORT MID-
DLE FEMALE
3
24 39082 HORIZONTAL SUPPORT MID-
DLE MALE
3
25 39084 ROOF SUPPORT FEMALE 3
26 39085 ROOF MALE 4
27 39086 ROOF FEMALE 4
28 39087 WINDOW VERTICAL SIDE
WALL
4
ITEM # PART # DESCRIPTION QT Y.
29 39088 WINDOW VERTICAL BACK WALL 2
30 39089 HORIZONTAL SUPPORT MID-
DLE FRONT
2
31 39090 HORIZONTAL SUPPORT LOW-
ER FEMALE FRONT
1
32 39092 HORIZONTAL SUPPORT LOW-
ER MALE FRONT
1
33 39094 HORIZONTAL SUPPORT UP-
PER FEMALE FRONT
1
34 39096 HORIZONTAL SUPPORT UP-
PER MALE FRONT
1
35 39098 ROOF HUB FRONT RIGHT 1
36 39100 ROOF HUB FRONT LEFT 1
37 39910 CORNER SHELF W/HOOKS 1
38 29801 CAM STRAP LONG 2
39 39174 PLATE LATCH DOOR HANDLE 1
40 39175 DOOR HANDLE PLASTIC 1
41 39038 SEWN ROOF PANEL BROWN 1
42 39039 SEWN SIDE PANEL ZIPPER
WINDOWS BROWN
2
43 39040 SEWN BACK PANEL ZIPPER
WINDOWS BROWN
1
44 39041 SEWN FRONT PANEL LEFT
BROWN
1
45 39042 SEWN FRONT PANEL RIGHT
BROWN
1
46 39043 SEWN WINDOW PANEL VER-
TICAL BROWN
6
47 39044 SEWN DOOR PANEL BROWN 1
48 8909B BOLT 1/4 X 11/4 IN 8
49 48240B BOLT 1/4 X 11/2 IN 49
50 48153B BOLT 1/4 X 2 IN 4
51 48271B BOLT 1/4 X 21/4 IN 1
52 63282 BOLT 1/4 X 1 IN 1
53 15909 SPACER PLASTIC 6 MM 2
54 15908 SPACER PLASTIC 2.5 MM 1
55 30259 WASHER BLACK PLASTIC 4 MM 3
56 48752B NUT 1/4 IN 63
57 60G5NYB NUT 5/16 IN 1
PARTS LIST
